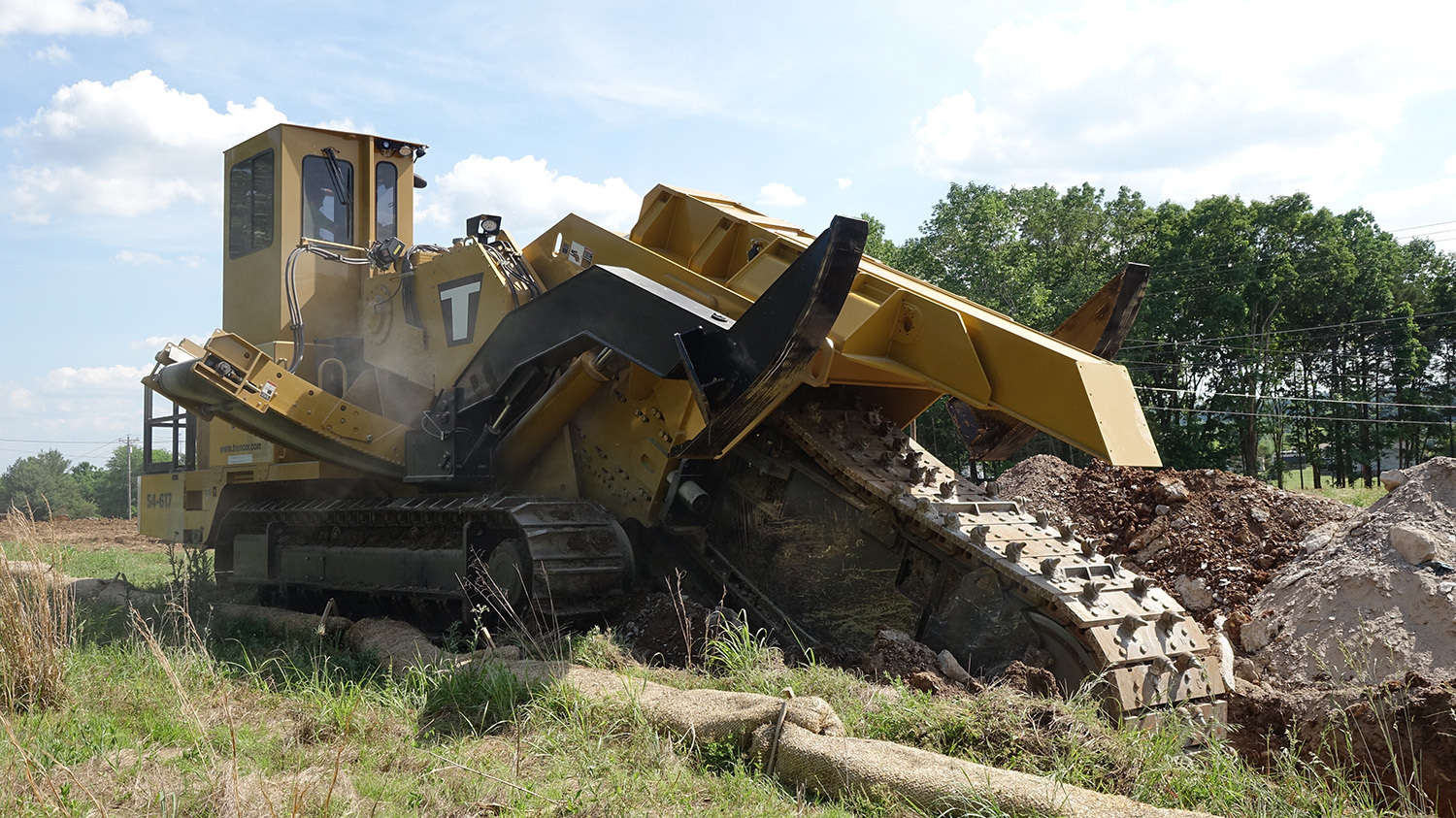

American Augers T14-54/617 trencher
American Augers’ new T14-54/617 trencher features a 617 hp Tier 4 Final emissions-compliant engine and a 54-inch-wide maximum-cut capability. The T14 offers an electronics package that includes a digital operator display in the cab, upgraded software and a telematics package. The telematics enables the rig to gather, log, and transmit real-time operating data used for predictive maintenance, reporting requirements or overall optimization of trenching operations. The Mercedes engine runs low and quiet and generates torque rated up to 2,139 ft-lbs at 1,300 rpm. Safety enhancements include a new digging drive brake and optional cameras in the cab that increase operator visibility. 800-324-4930; www.americanaugers.com.

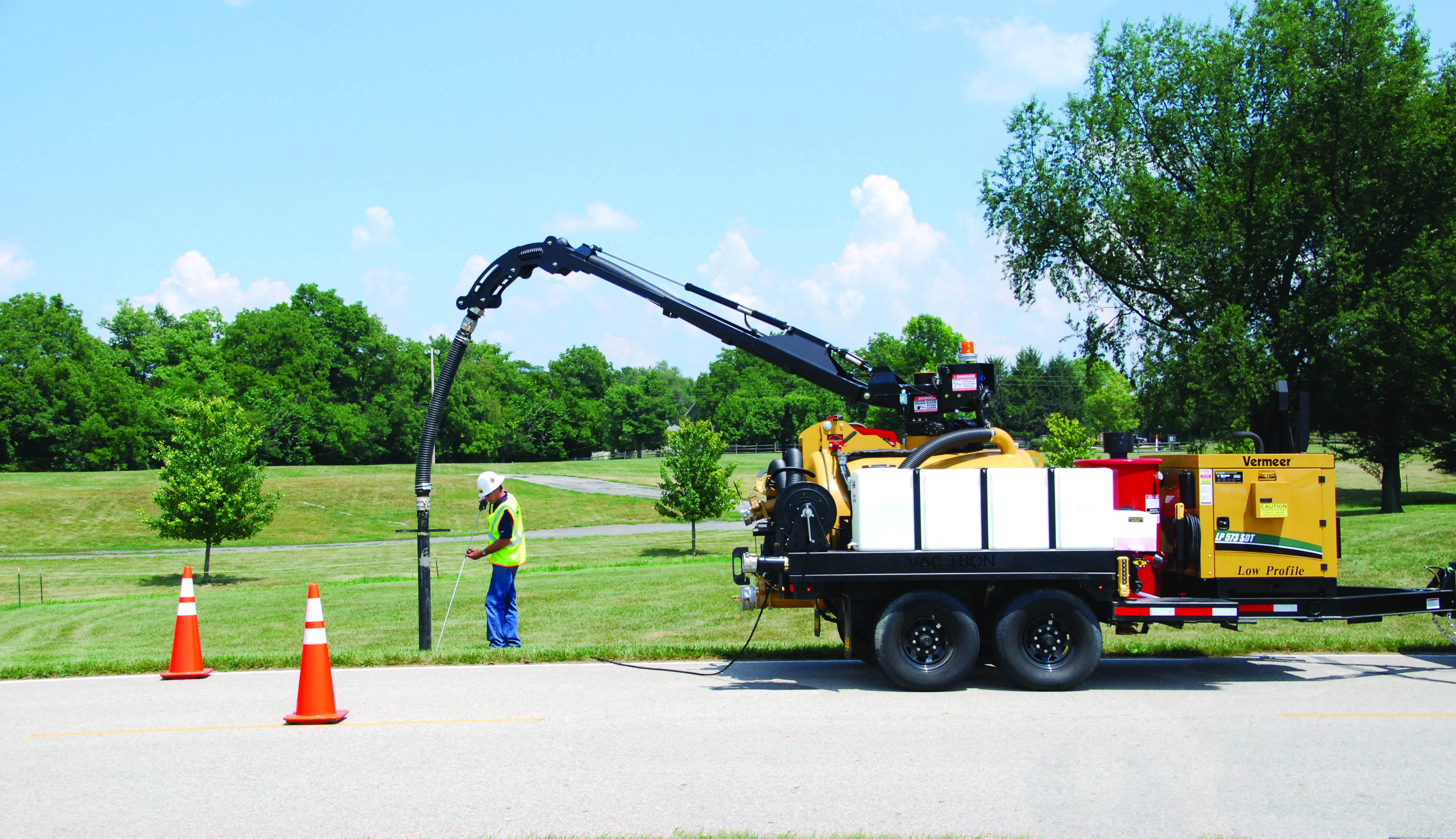

Vac-Tron Equipment six-way hydraulic boom
Vac-Tron Equipment’s new six-way hydraulic boom design for its trailer vacuum excavation equipment and industrial vacuum equipment maximizes job performance by supporting the weight of the vacuum hose. The design features increased boom length, full six-way hydraulic function, 5-inch hose, curved end with oversized rollers, wireless remote control, vacuum valve function operated from remote, wired harness, remote storage location, forward stored boom in front of engine compartment, 330-degree swing, quick connect 4-inch tooling, easily connected additional section hose, water jet clean-out in boom, and easily accessible clean-out port. 352-728-2222; www.vactron.com.

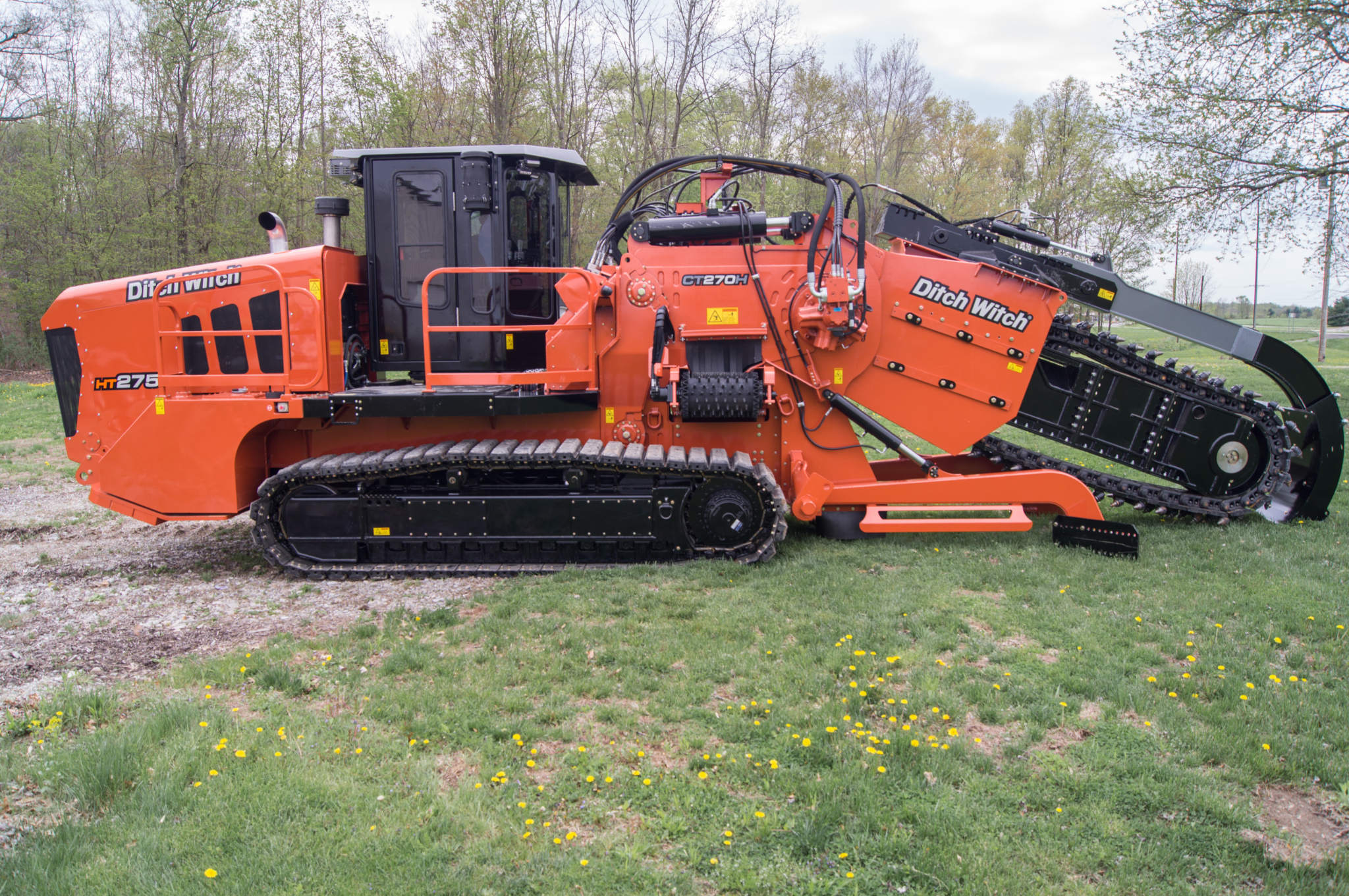

Ditch Witch HT275 heavy-duty trencher
The HT275 heavy-duty trencher from Ditch Witch has a Cummins 275 hp T4 engine and a hydrostatic trencher-chain drive with a variable displacement motor, allowing operators to match chain speeds to soil conditions. The trencher can do installations up to 10 feet deep and 26 inches wide, and has four hydraulic quick-disconnect blocks that reduce the time it takes to change attachments. The suspension mounts to the center of each track frame, providing the ability to float each track independently, taking stress off of the main frame. 800-654-6481; www.ditchwitch.com.
