It Might be Compact, But It’s A Powerhouse

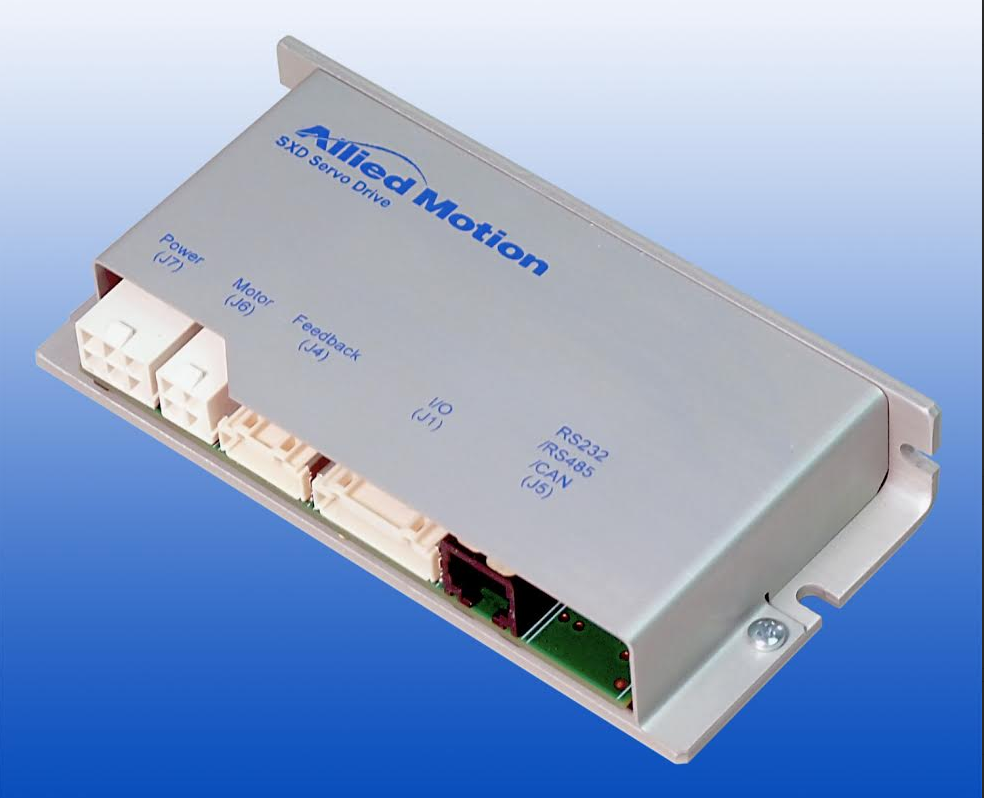

The SXD 15 is the first in a new series of economical advanced digital servo drives from Allied Motion. This compact, modular unit can drive a DC brush, DC brushless or AC brushless motor requiring up to 1 kW of power. (This might require additional heat sink.)The SXD 15 can be either panel or DIN‑rail mounted. Its small size makes the SXD easier to integrate into equipment and minimizes panel or enclosure size.Standard ratings are 12 to 80 VDC bus, 15 A continuous and 30 A peak current.Additional features include: Torque, velocity and position control modes Four digital inputs, one digital output, all
