When trying to locate underground utilities, you have options. The three main ways of locating underground utilities include ground penetrating radar, electromagnetic locating and vacuum excavation. However, when it comes to accuracy, some are better than others.

Ground Penetrating Radar

What is it?

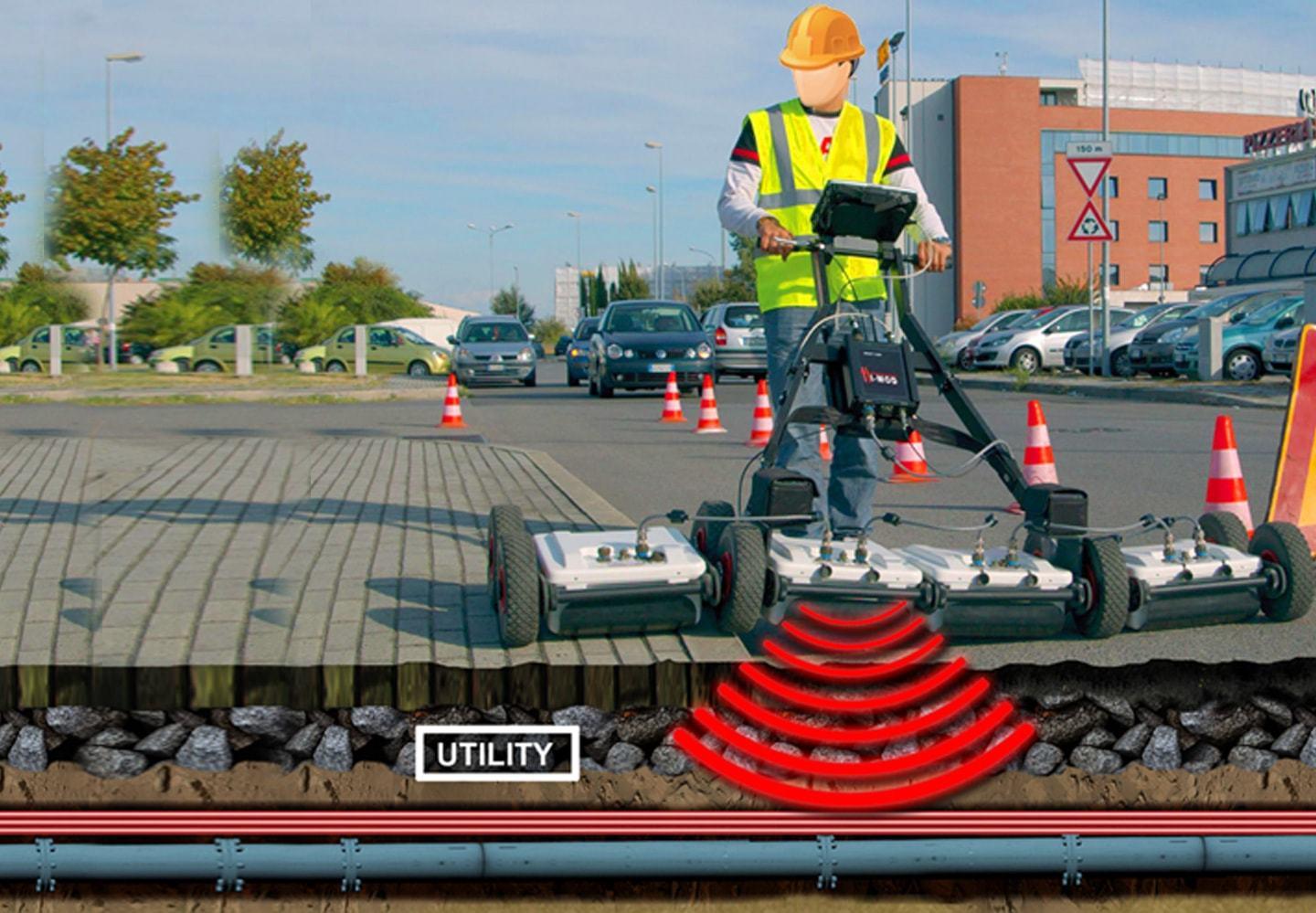

This technology uses radar pulses to detect, identify and map utilities. A transceiver sends an electromagnetic signal into the ground. If that signal encounters an underground object or utility, the signal is reflected to the surface where a receiving antenna can record the bounced signal. Using these readings, operators can map out hazards and utilities before going to dig, and can control the frequency to allow for either a higher resolution image (higher frequency) or increased depth penetration (lower frequency).

Effectiveness is site specific. Drier, sandy soil or materials like concrete, granite and limestone can be read to depths of about 50 feet, but wet soil, clay and dirt heavy with highly conductive material like iron can limit penetration to mere inches. When the job site permits it, GPR is a useful tool that allows for accurate readings. In less optimal conditions, GPR can be considerably hindered or rendered completely useless.

Electromagnetic Locating

What is it?

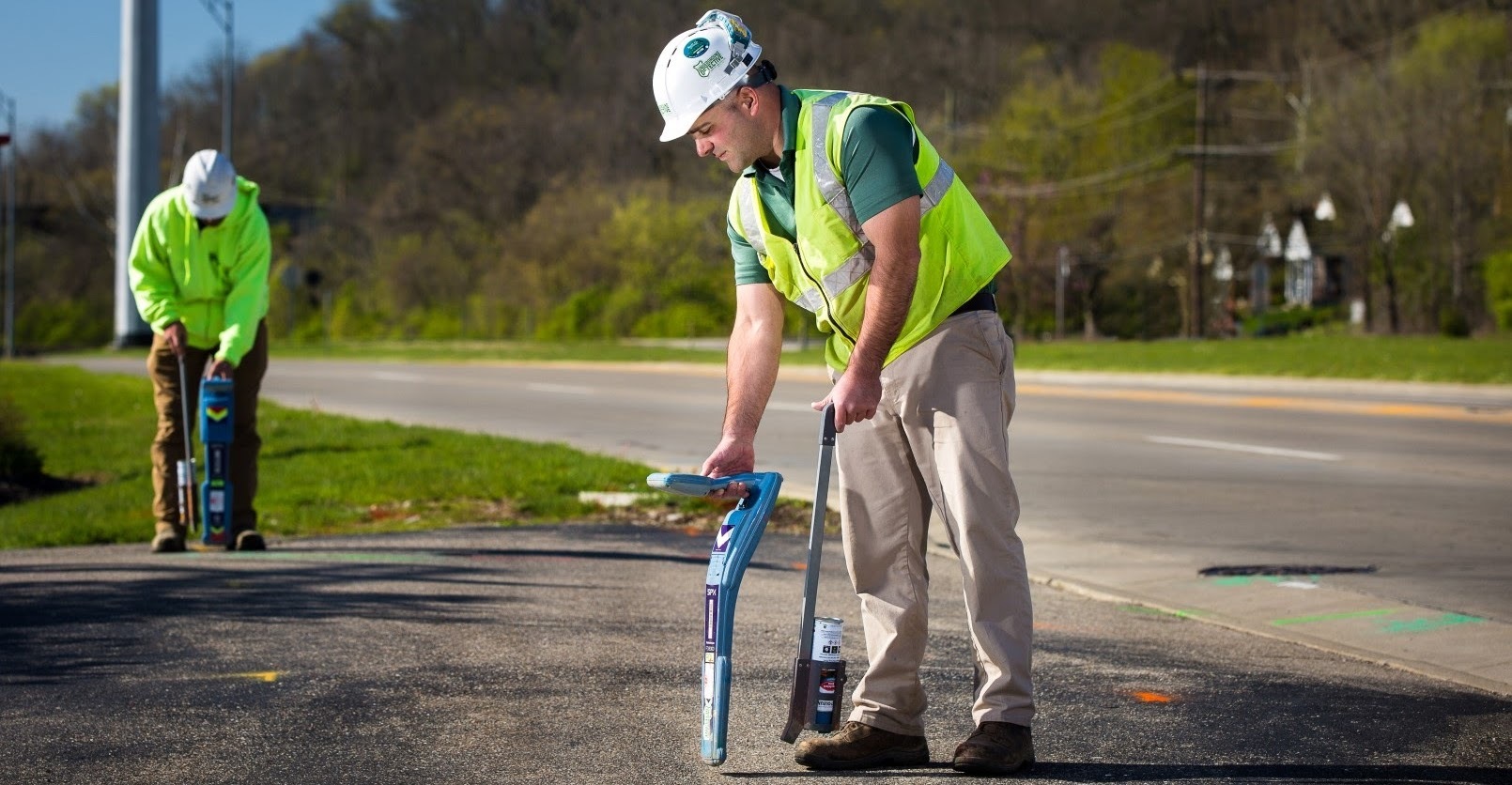

Technology used to trace utility lines like natural gas, fiber optic, street and traffic lights, water mains and more. With this method, operators connect a transmitter directly onto the utility which pushes a frequency through the utility. On the surface, the operator uses a receiver that searches for the specific signal sent by the transmitter. Wherever the operator finds the signal is where the specific utility is. Electromagnetic locating is particularly adept at finding specific utilities accurately, making marking utilities accurate.


  • If the utility cannot be located on the surface to connect the transmitter to, operators may have to use a passive form of electromagnetic radar which is less accurate.
  • Electromagnetic locating cannot find nonmetallic utilities or objects underground, which can be a major hazard.

Air Excavation and Hydroexcavation

What is it?

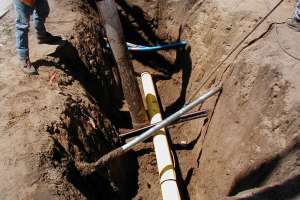

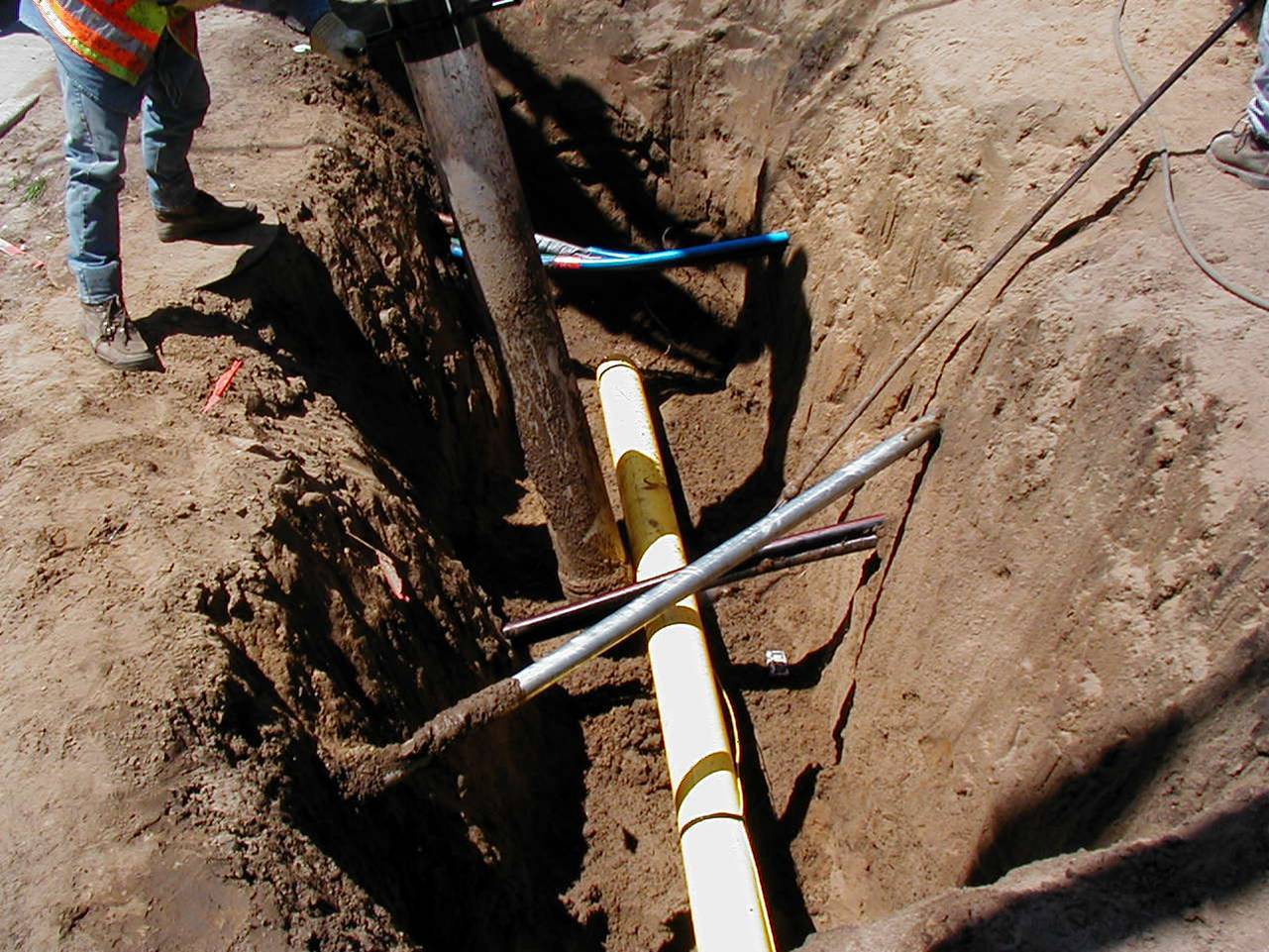

This method involves using high-pressure water or air to unearth subsurface utilities for visible inspection, looking for cracks, wear and tear, or damaged components. If the exact location of the utilities is unknown, operators utilize an air excavator or hydroexcavator to perform a service called “line locating.” This process involves first potholing to the appropriate depth, then making 12- to 24-inch perpendicular incisions into the soil using an air lance or digging wand, until the utility is found.

Downfalls: Knowledge of general utility placements is necessary.

Which method is right for you?

Both GPR and electromagnetic locating provide the technology to locate underground utilities; however, both methods can lack accuracy, depending on the environment and ground contents. Vacuum excavation is a highly accurate tool, as the utility is actually being unearthed and seen with the human eye. A vacuum excavator can also be used not only to daylight, but also in the installation of new utilities, all utilizing one truck.

Vacuum excavators offer many debris tank sizes ranging from mid-size trucks with 3-6 cubic yards to full-size trucks with 9-15 cubic yardsAir can also be substituted for water in many digging applications and therefore an air excavator may be a better fit for the environment you are working in.
