In a world that's increasingly reliant on hidden infrastructure, the underground utility industry must adopt sophisticated technologies for improved asset protection and location accuracy. Cutting-edge tools are being developed, with notable advancements including lightweight receivers capable of detecting an extensive range of frequencies, systems integrating GPS positioning for precise data capture, and devices employing real-time kinematic GNSS accuracy for superior utility location precision. Additionally, the evolution of leak detection has led to the creation of robust, flexible plugs enhancing performance and safety standards. Take a look below at the specifics of these innovations.

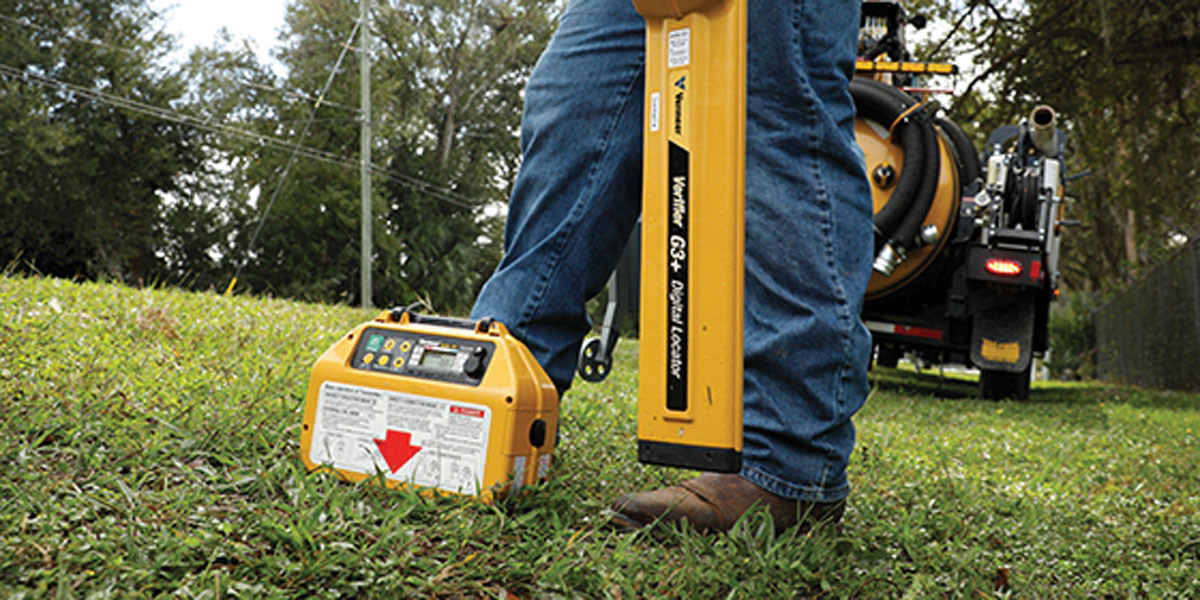

Vermeer Verifier G3
The Vermeer Verifier G3 utility locator combines precision with a user-friendly interface. Features include a combination peak and null screen, semiautomatic and manual gain adjustment, automatic depth and current measurement index and compass icon. Users new to the locating profession will appreciate the streamlined design and simple interface; advanced operators have the option to capitalize on some of the industry’s most advanced locating technology — all in one device. 352-728-2222; www.vermeer.com

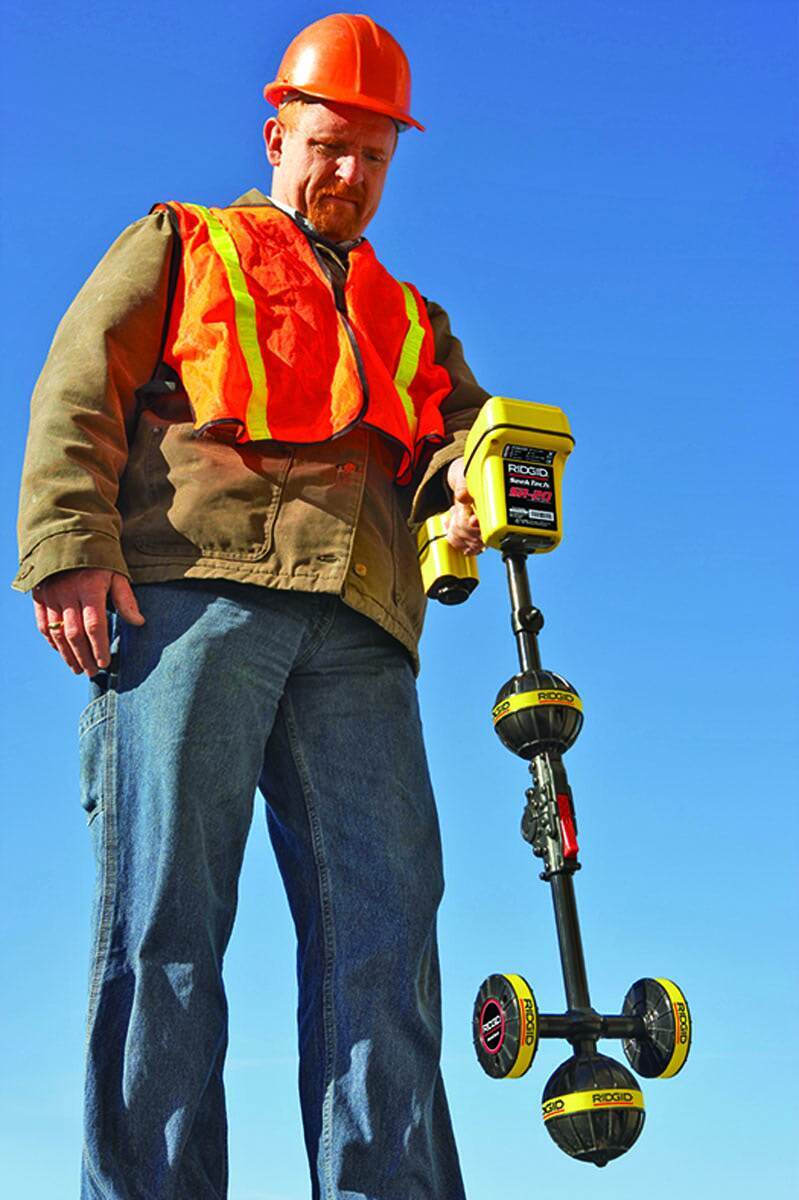

RIDGID SeekTech SR-20 Locator
The RIDGID SeekTech SR-20 Locator is a lightweight, yet rugged receiver that provides needed data faster for more accurate locating and protection of critical assets. It weighs 3.5 pounds, has a battery life of 16 hours and can be programmed to detect any active frequency from 10 Hz to 35 kHz. Target line and guidance arrows quickly identify distortions. Proximity signal and signal strength also help work through difficult locates. 800-769-7743; www.ridgid.com

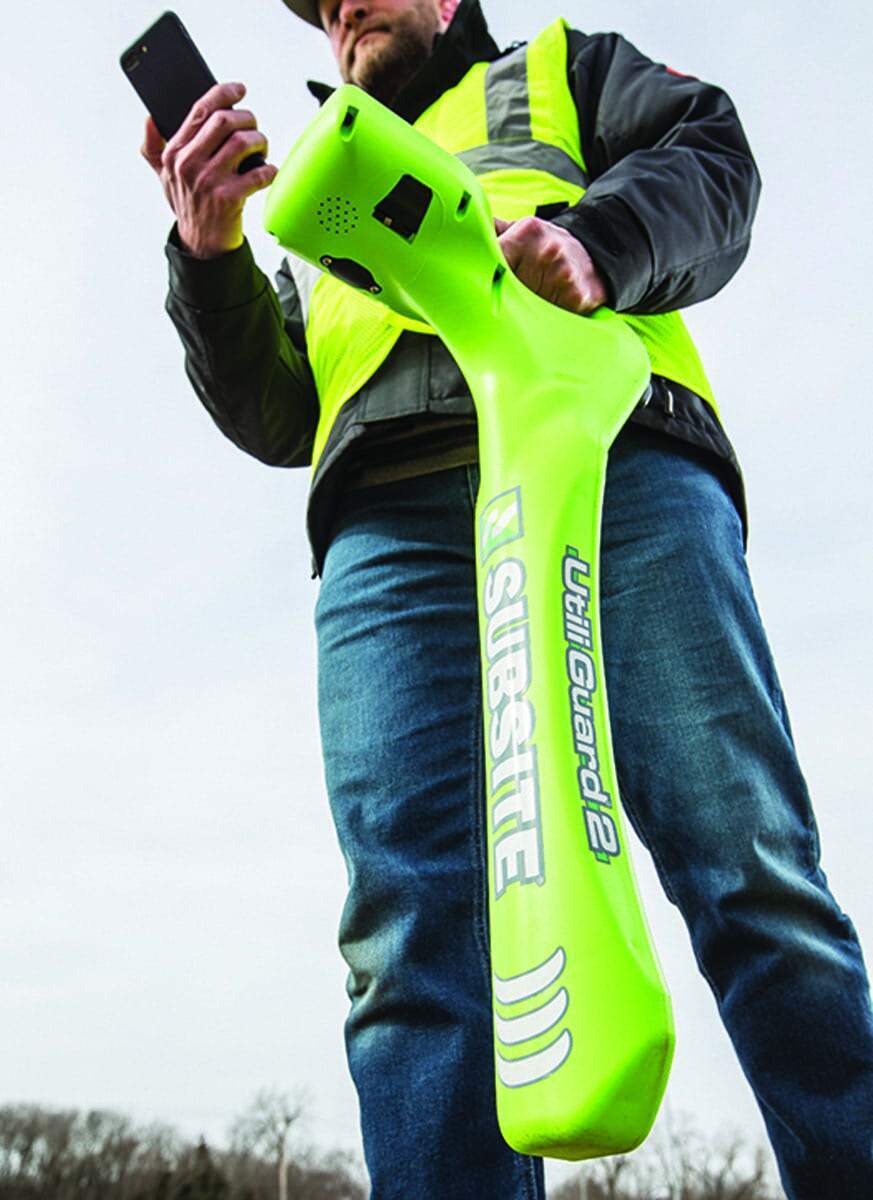

Subsite Electronics UtiliGuard 2
The UtiliGuard 2 from Subsite Electronics provides locate crews with integrated data capture, GPS positioning and an intuitive user interface to help operators improve work quality and maximize locate awareness. For increased confidence, locate consistency and operational performance, the user interface features simplified graphics that are easy and fast to interpret. Operators will notice an obvious change in screen layout when directly over a utility locate, providing positive confirmation. The data automatically captured can be used to quickly prove or track performance, compare with benchmarks and provide actionable outcomes to help increase quality and productivity while reducing cable strikes. In addition to data-logging capabilities, it is equipped with integrated GPS positioning, enabling crews to improve activity reporting. 800-846-2713; www.subsite.com

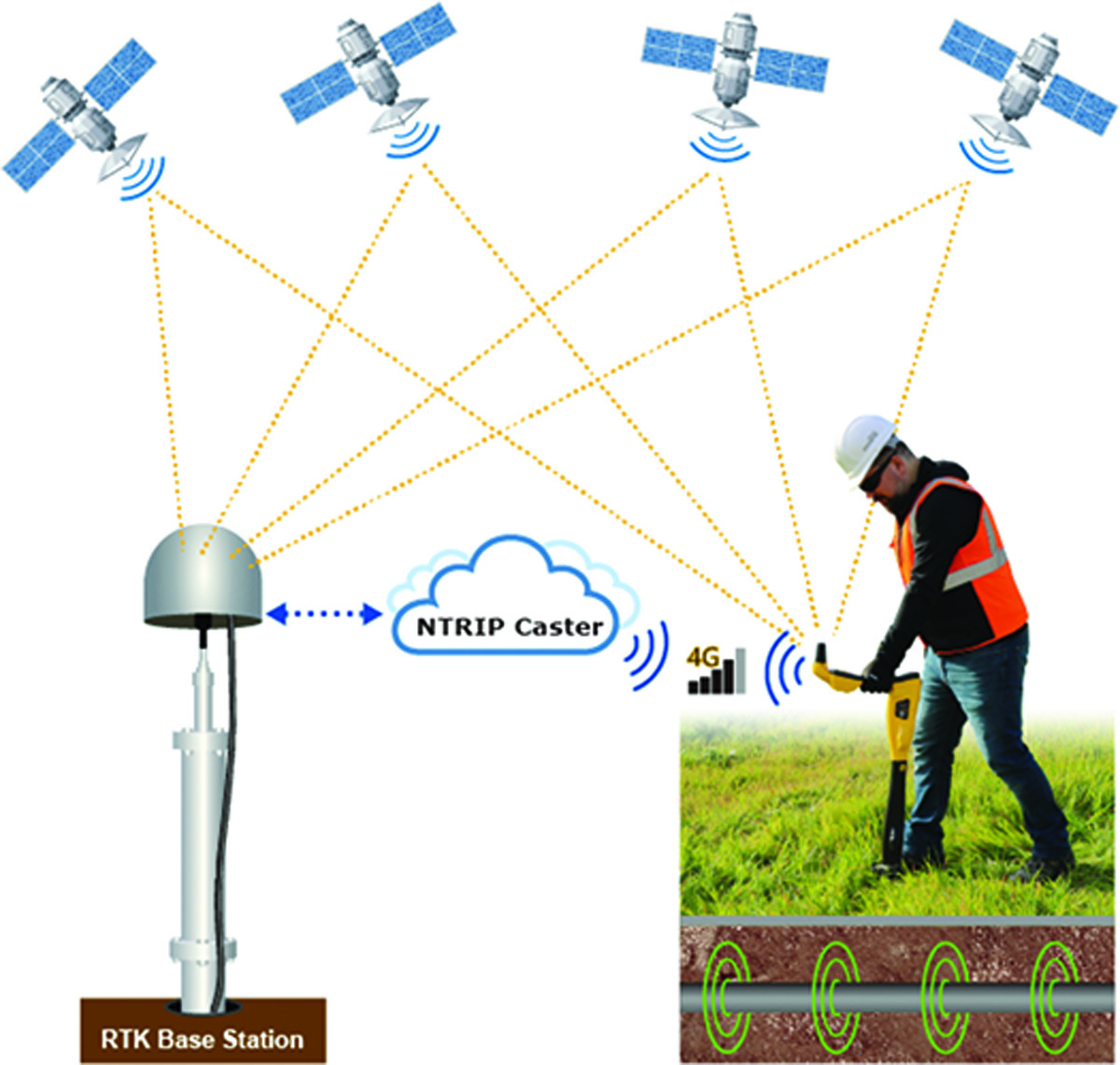

Vivax-Metrotech vLoc3 RTK-Pro
The vLoc3 RTK-Pro receiver from Vivax-Metrotech includes real-time kinematic GNSS accuracy. Using the internal cellular module with 4G LTE capabilities, the operator can connect to a NTRIP RTK caster that provides RTCM 3 corrections. By using these corrections, the operator can collect both utility location data along with the geographical location of the utility with survey-grade accuracy. It is designed for all operator levels with user-friendly and intuitive locate screens. Operators confirm the utility data with the press of a button and align the electronic spirit level to store the data. All field data is sent to the cloud and retained in the receiver’s onboard storage for review and exporting to external mapping programs. 800-446-3392; www.vivax-metrotech.com

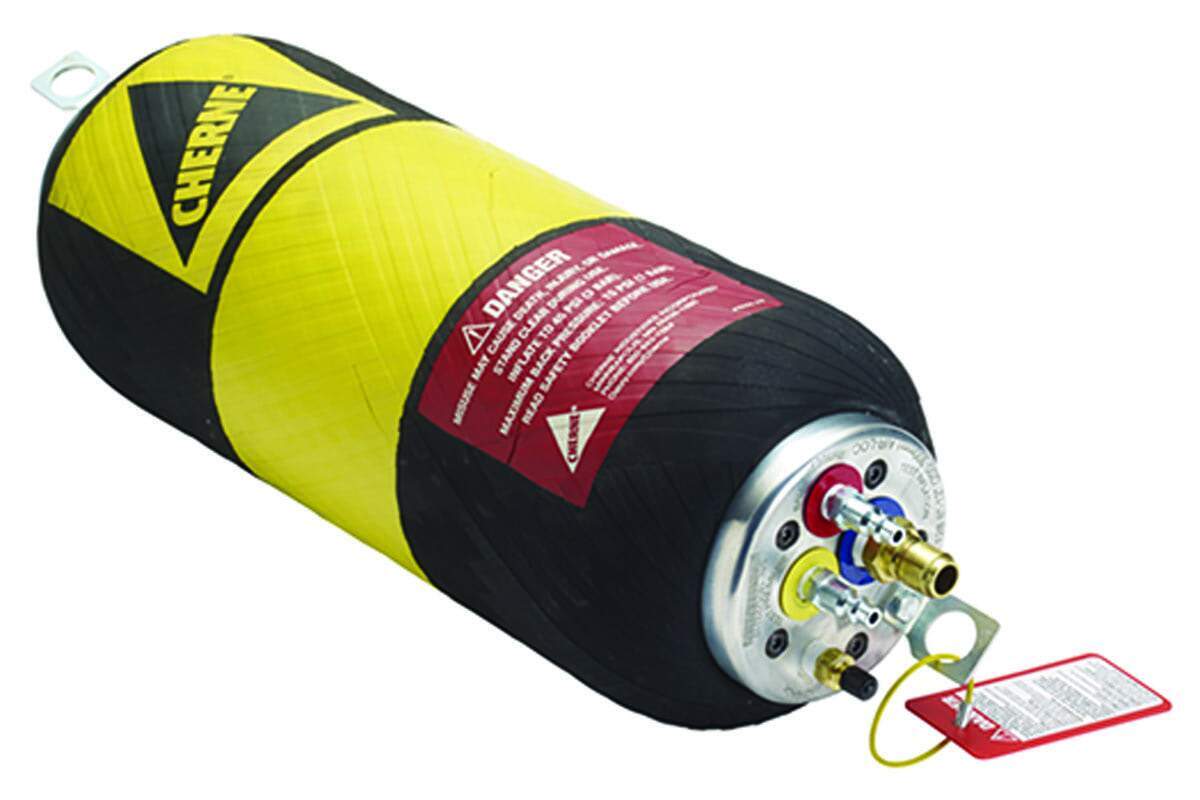

Cherne Air-Loc Front Plugs
Cherne Air-Loc Front Plugs are leak locator plugs designed for line acceptance tests and leak location testing. The pneumatic pipe plugs are made out of natural rubber, enabling them to be used as blocking plugs by plugging the fill and read-back ports. They allow for improved performance and safety with a premium aesthetic. The plug comes in an assortment of sizes and designs; all being lightweight, short, and flexible. With eye bolts on each end, they are flexible and have easy-to-use quick disconnect hose connections. They are ideal for both sewer air testing and leak location testing. 800-843-7584; www.cherneind.com
