Air Excavation

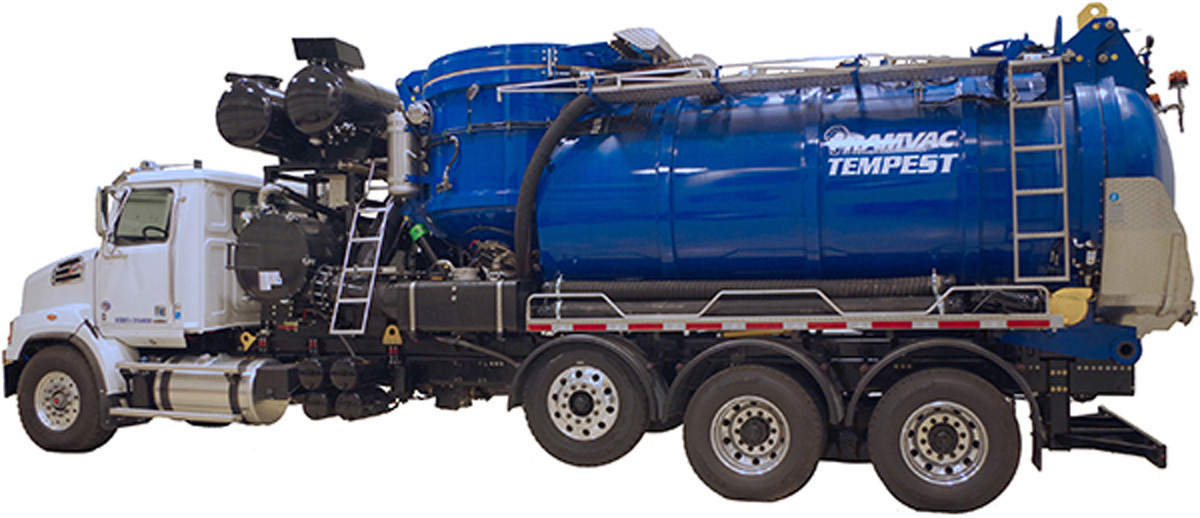

RAMVAC Vacuum Excavators by Sewer Equipment Tempest
The Tempest industrial air mover from RAMVAC Vacuum Excavators by Sewer Equipment is capable of removing dry and liquid materials over a long distance and from great depths. This unit delivers maximum vacuum efficiency even in the toughest working conditions. While utilizing high suction from a 28 inches Hg 5,500 cfm positive displacement blower through an 8-inch system, this unit offers a self-discharging filter system that provides automatic interval cleaning of the filter house during vacuum operations. This system significantly reduces the downtime associated with premature cleaning of the baghouse when the debris box is not full. It allows operators to keep working, while recognizing maximum debris capacity. Additionally, its hydraulically powered articulating extendable knuckleboom is exclusive in the marketplace. With 270-degree range of motion and 16 foot working length, this boom hinges back and forth, providing maximum support of the vacuum tube for increased operator ergonomics as well as cleaning efficiency.
888-477-7638; www.sewerequipment.com
Blower

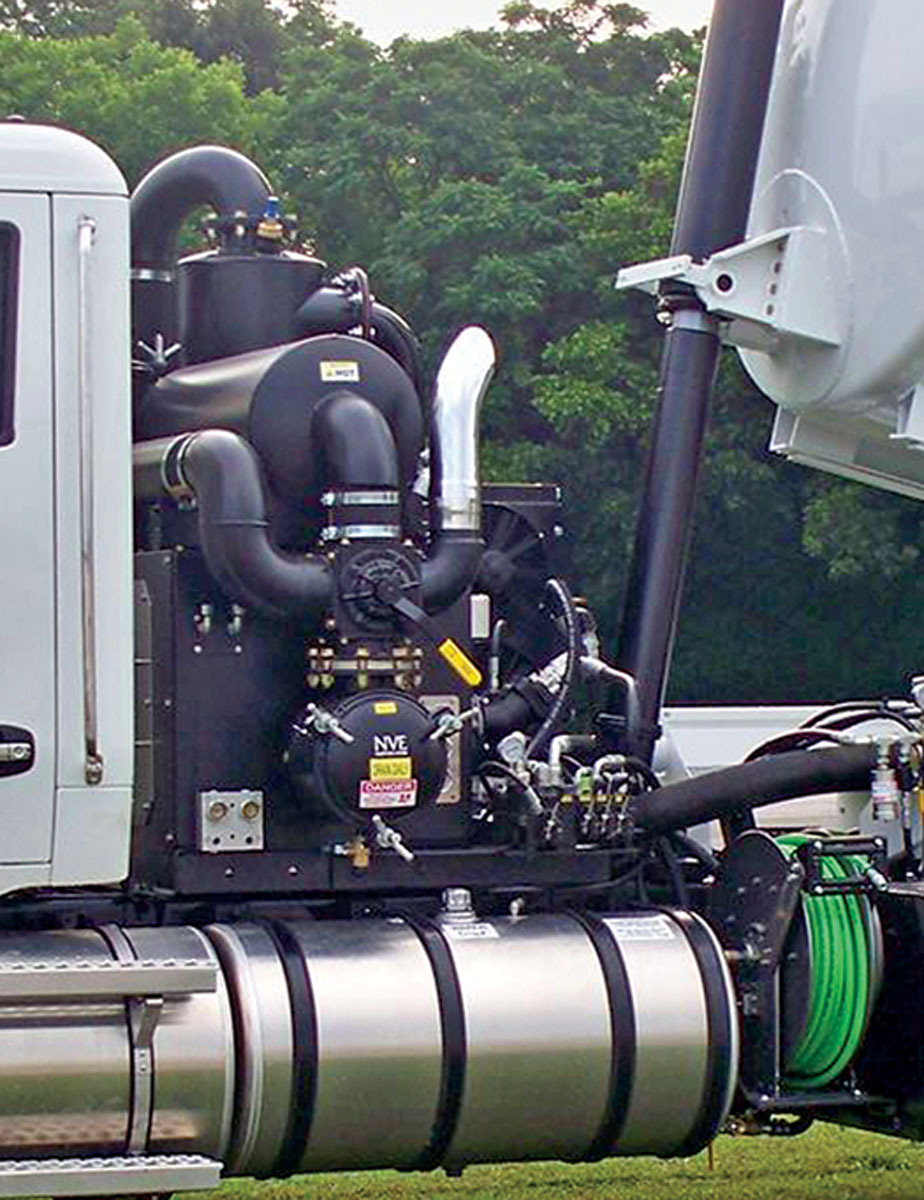

National Vacuum Equipment Challenger 1600
The Challenger 1600 from National Vacuum Equipment is a 1,600 cfm tri-lobe blower designed for continuous duty at maximum vacuum. It employs rotors designed to improve vacuum efficiency and reduce mechanical noise. The blower has a ballast air-cooling design and typical maximum vacuum of 27 inches Hg.
800-253-5500; www.natvac.com
Hot Water Boilers

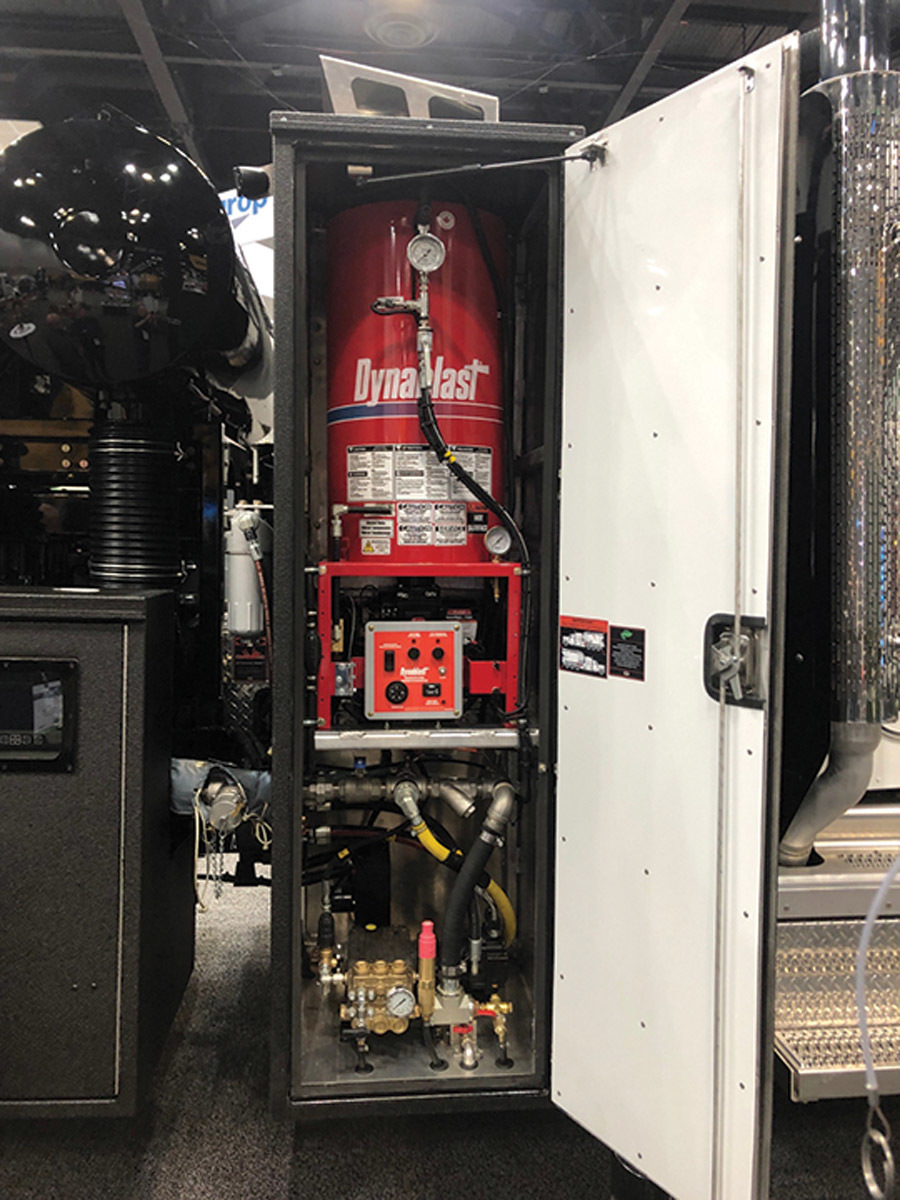

Dynablast HV420
Custom Dynablast HV420 hydrovac water heaters produce 420,000 Btu with an output temperature of 175 degrees F at 5 gpm, making them suitable for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, a stainless steel target plate for increased coil life and momentary override control. They include an Interpump Group T 2040 water pump package providing 10.5 gpm at 2,900 psi and 1,750 rpm, as well as a hydraulic package with a Sunfab 34 cc motor. All components are custom-mounted in a 24-by-24-inch cabinet.
905-867-4642; www.dynablast.ca

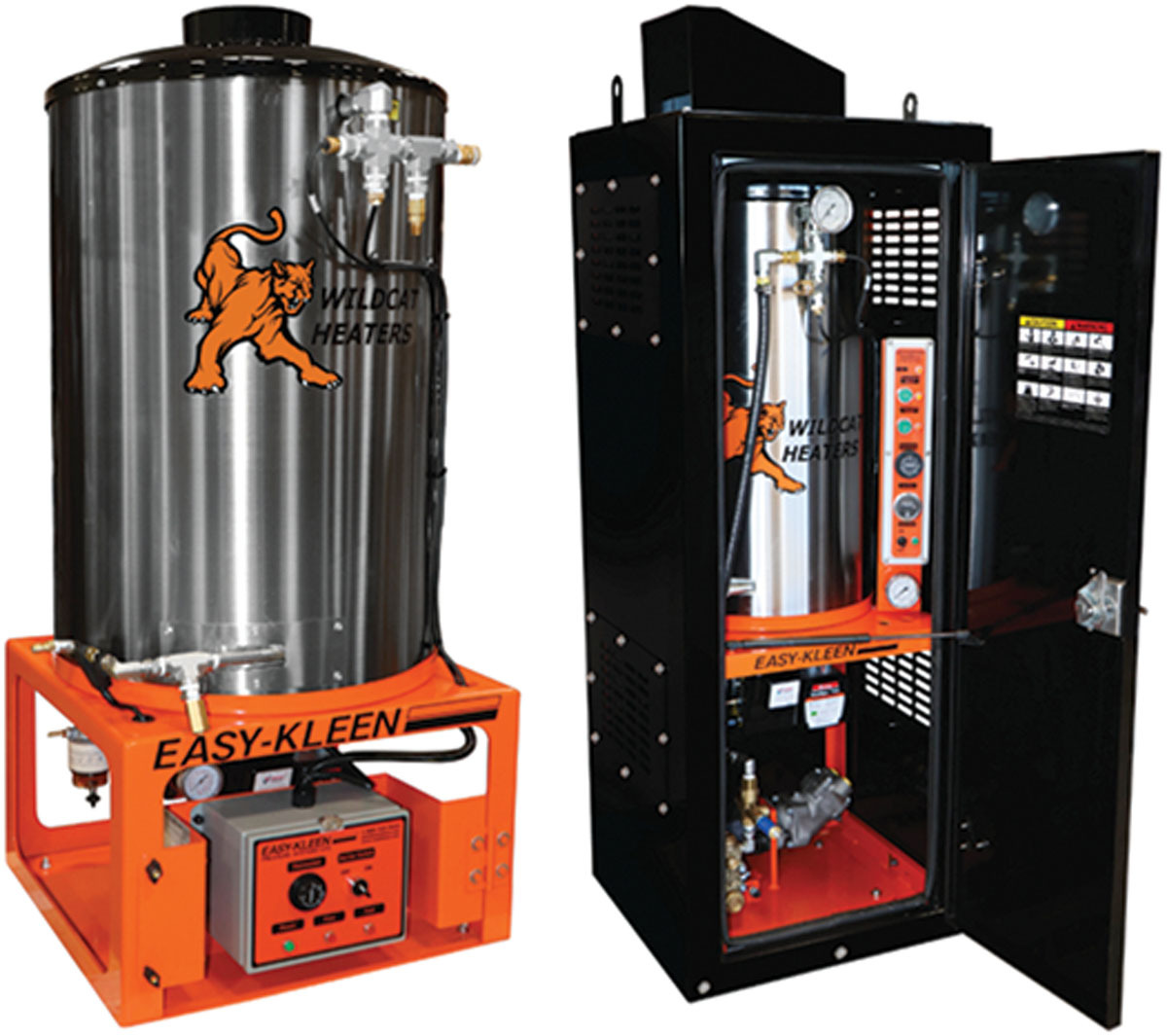

Easy-Kleen Pressure Systems Wildcat Heaters
Wildcat Heaters high-pressure, oil-fired hot-water/steam heaters and hydraulic pump systems from Easy-Kleen Pressure Systems are designed for reliability and efficiency, and are installation-ready for vacuum trucks and hydroexcavators. A full range of heater options includes dry steam, redundancy packages, schedule 80 and 160 stainless steel or A53 boiler pipe, fine-tuned temperature and flow-control systems. All coils are manufactured in-house, with CRN boiler-approved coils now available. Heaters can be designed for mounting in a cabinet or supplied as a completed cabinet unit. They are CSA and ETL approved. Hydraulic pumping systems are available.
800-315-5533; www.easykleen.com
Hydroexcavation Equipment

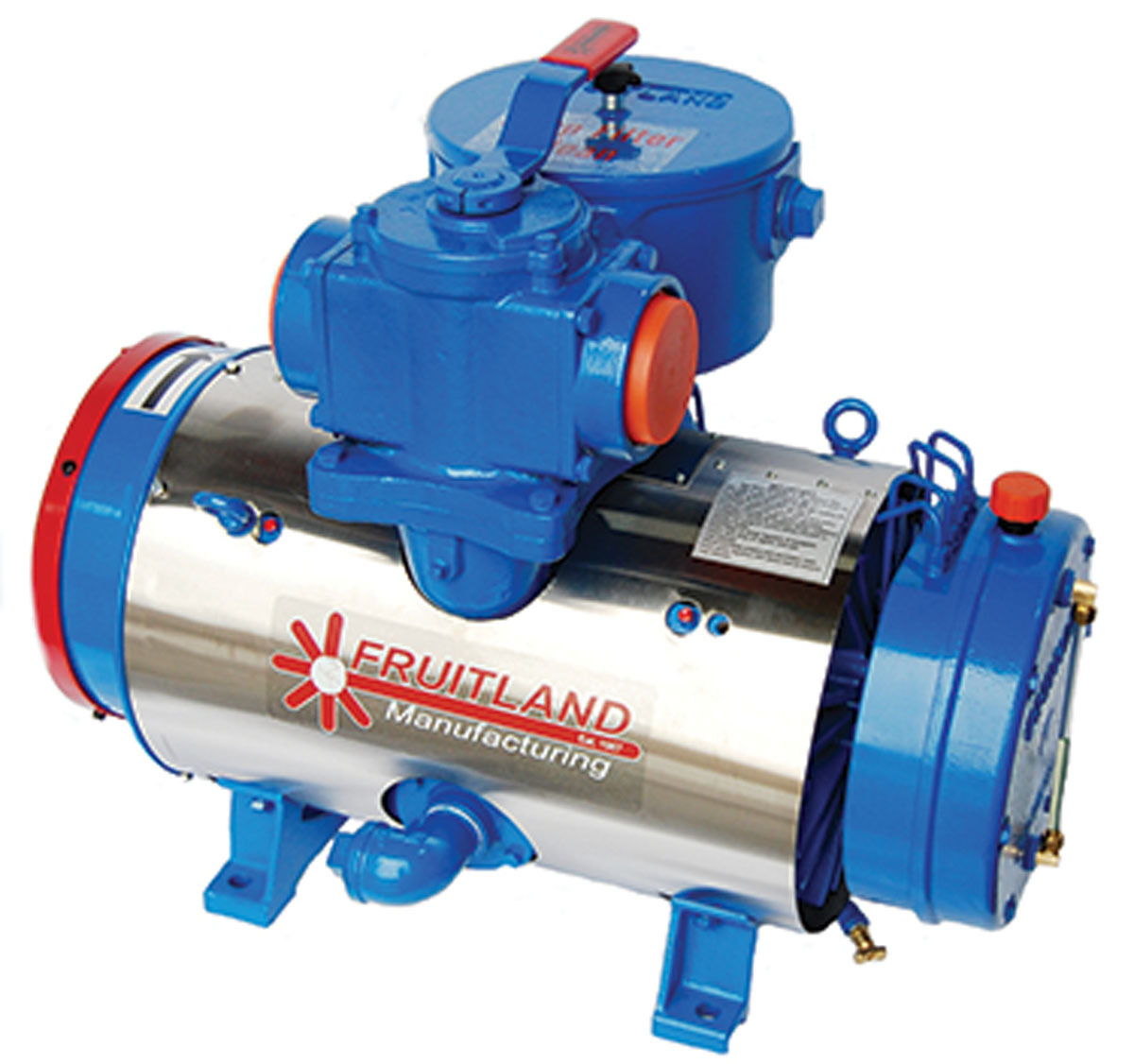

Fruitland 870 Series
Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. Additionally, it is capable of providing 30 psi pressure for off-loading. Oil consumption is 1 gallon for 18 hours of operation to reduce consumption and environmental impact. Locally sourced, nonproprietary oil may be used. The pump delivers 510 cfm (free air) through 4-inch porting.
905-662-6552; www.fruitlandmanufacturing.com

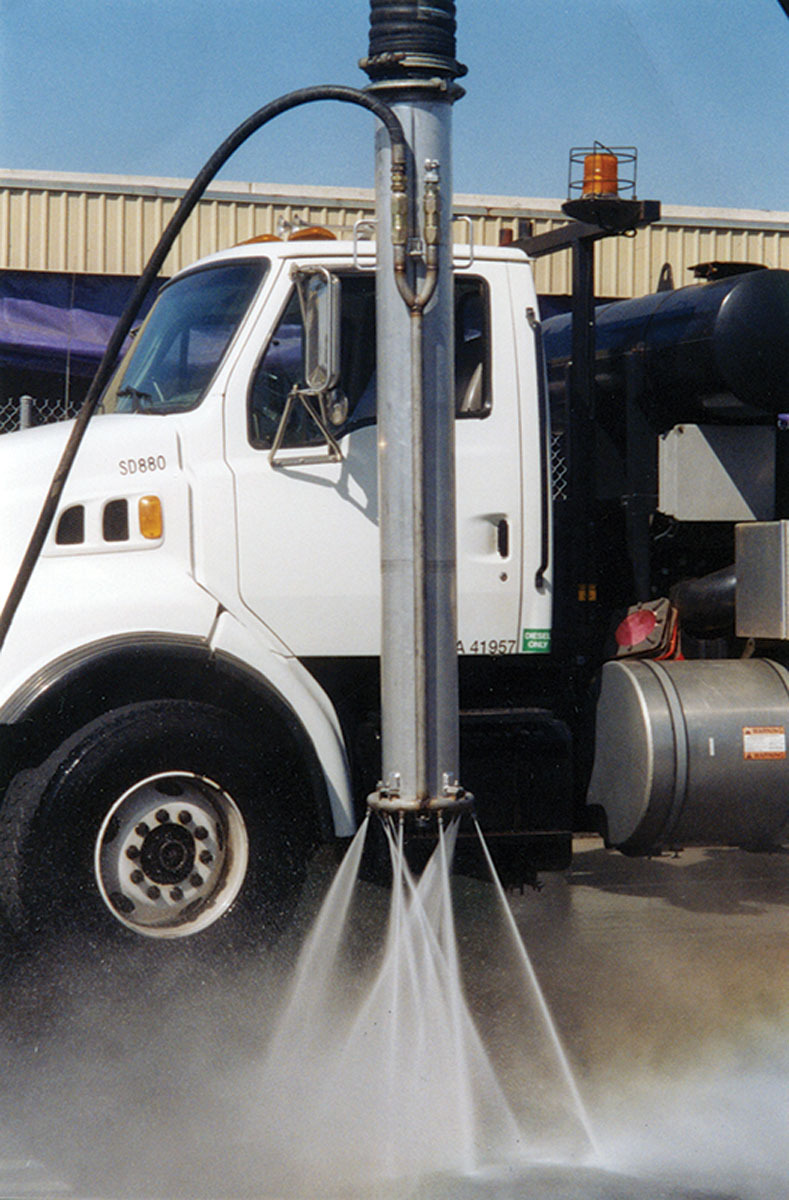

Soil Surgeon hydroexcavating tool
The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff-Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil, while six boring outward bring the tube down.
949-363-1401; www.soilsurgeoninc.com
Hydroexcavation Trucks and Trailers

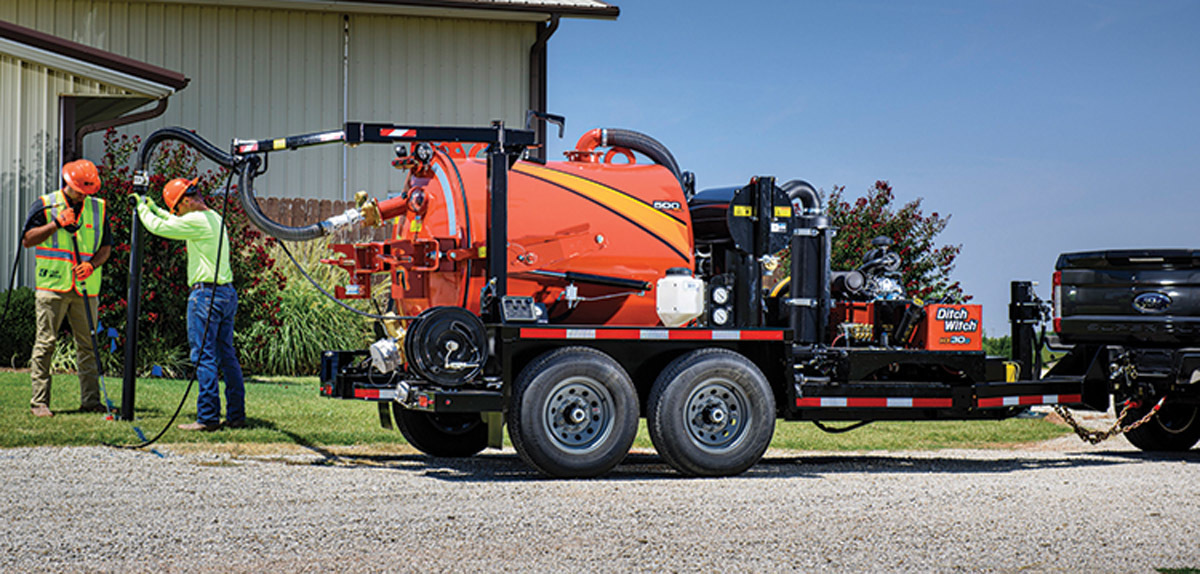

Ditch Witch HX30G
The HX30G from Ditch Witch offers power in a low-profile design to help increase productivity. It is powered by a 31 hp Vanguard gas engine for suction power and water pressure to remove slurry and expose water/sewer lines for easy repair. It has a 542 cfm blower, 3,000 psi water pressure capacity and 4.2 gpm water flow, increasing the operator’s efficiency and precision on the job site. It comes with the choice of a 500- or 800-gallon tank for a variety of job requirements. The machine is also available in a variety of trailer configurations, including the Ditch Witch VT9 trailer — which, when equipped with the 500-gallon tank, does not require a CDL to transport.
800-654-6481; www.ditchwitch.com

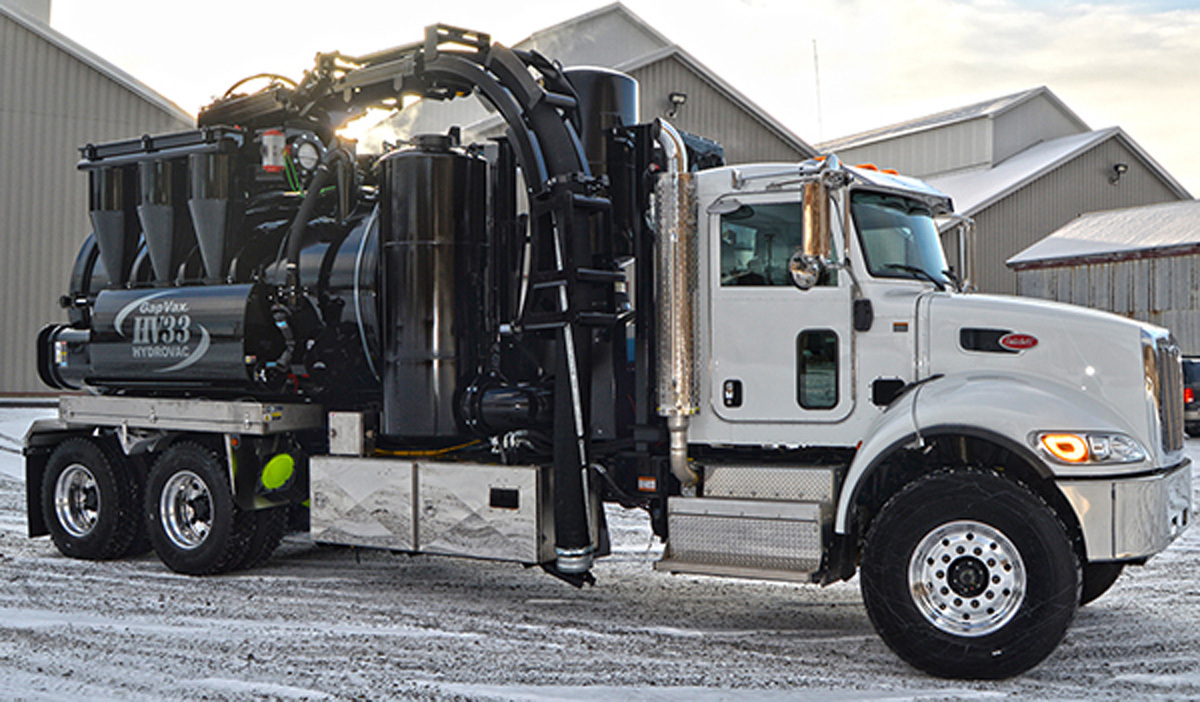

GapVax HV33
Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate.
888-442-7829; www.gapvax.com

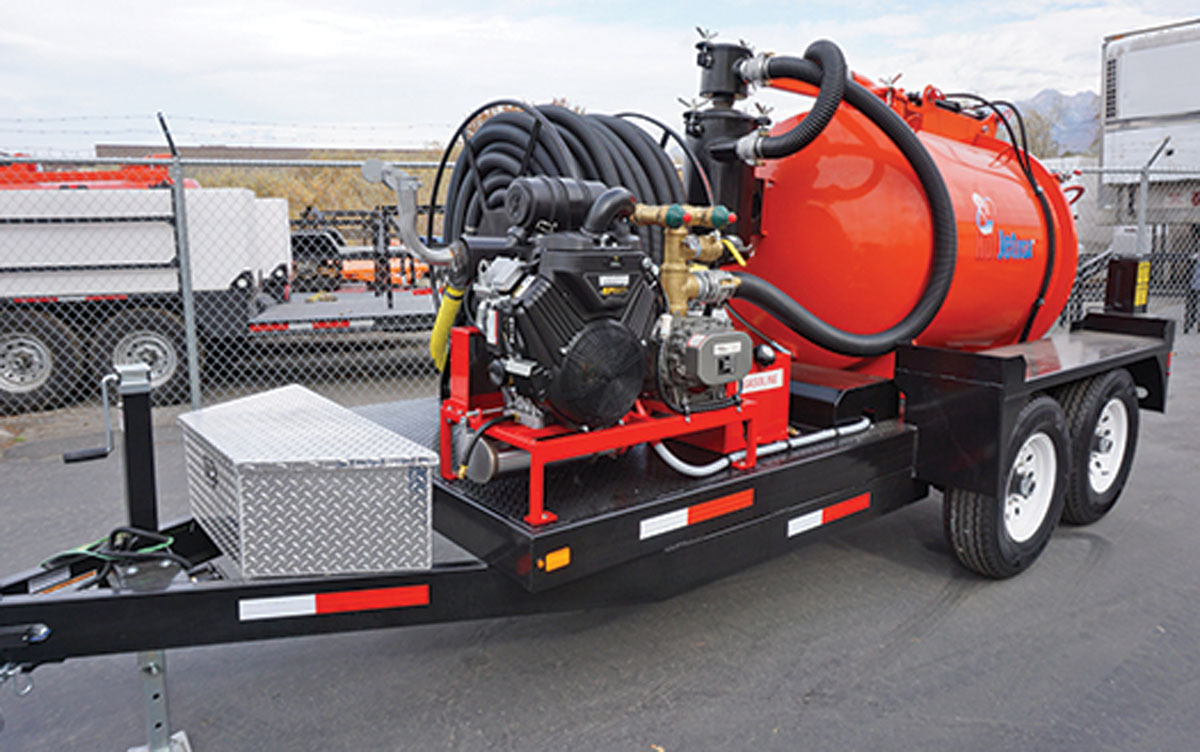

HotJet USA Vac ’n Jet Series
The HotJet USA Vac ‘n Jet Series of vacuum trailer jetters are rugged and compact, engineered to haul equipment and spoils loads, can clean valve boxes and storm drains and hydroexcavate and/or clean drainlines and sewer lines. They offer hot- and/or cold-water operation with a choice of engines ranging from 13 to 66 hp and gas or diesel. They are equipped with premium triplex pumps, a 500-gallon spoils tank, 200-gallon water tank, Gardner Denver vac/blowers, 4-ton hydraulic dump and CentriClean filter system. They can also be designed to meet specifications.
800-624-8186; www.hotjetusa.com

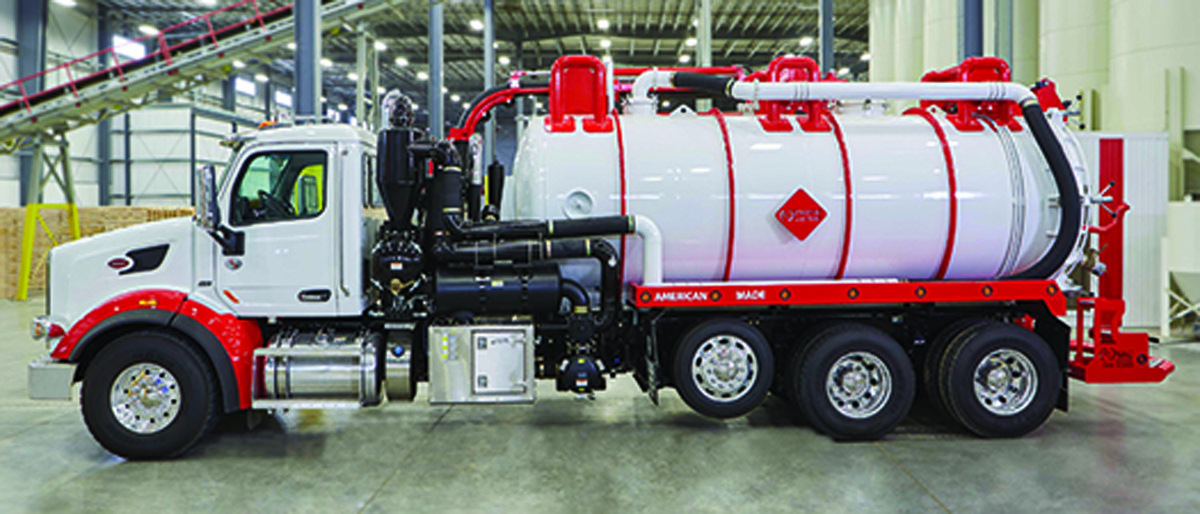

Imperial Industries Hydro 3600 Hybrid Excavator
The Hydro 3600 Hybrid Excavator from Imperial Industries is short and compact for maneuverability in tight spaces. It is user-friendly, efficient and can be operated easily by a single person and is designed to minimize time spent on the job site, according to the maker. It includes a 3,600-gallon hauling capacity (customizable sizes available), optional water capacity, code and noncode availability, a three-stage lift hoist with built-in vibrator and full opening rear door for easy dumping, 20 gpm jetter up to 4,000 psi (adjustable), a National Vacuum Equipment 1600 blower and a moisture trap and grit ridder. Options include a 16-function remote control for easy operation of the boom, jetter, blower and vacuum.
800-558-2945; www.imperialind.com

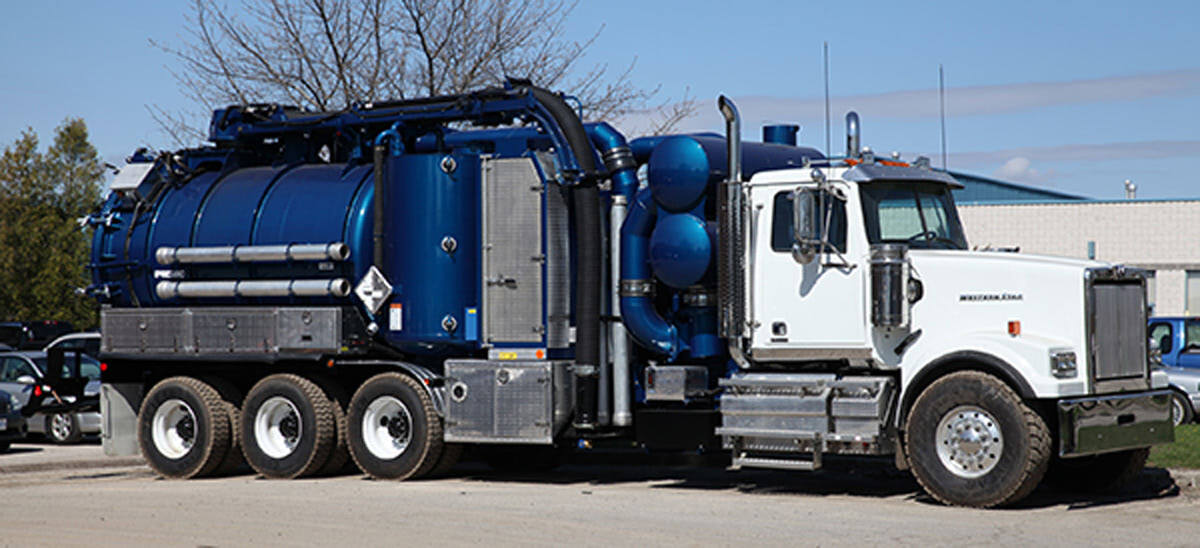

Presvac Systems Hydrovac
The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank to minimize carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.
800-387-7763; www.presvac.com

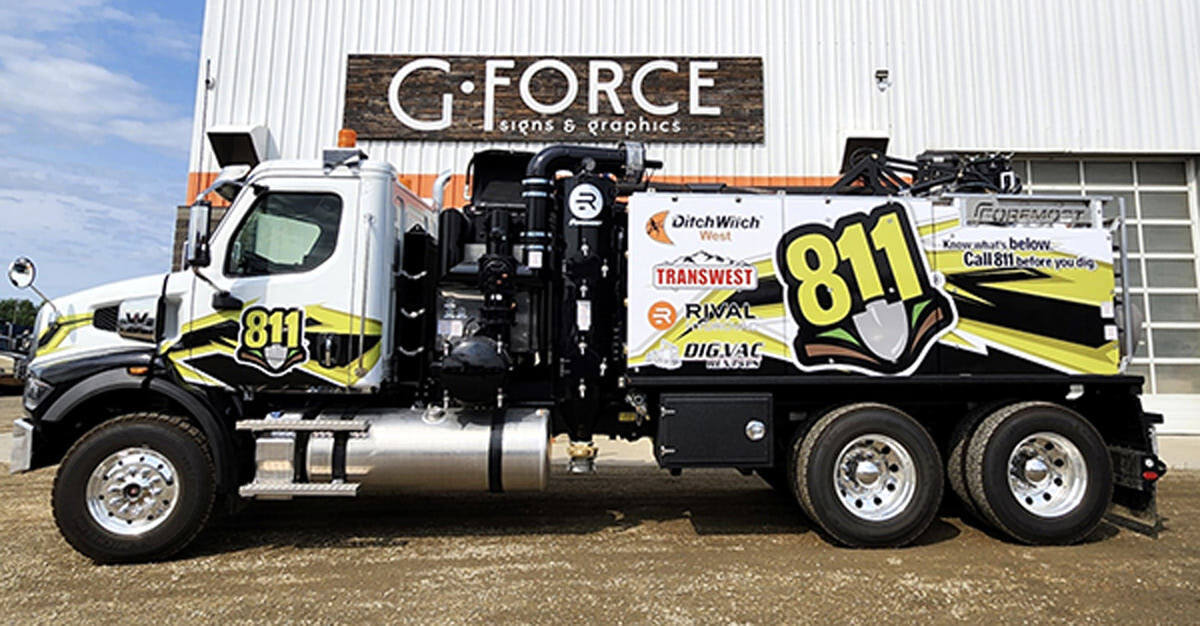

Rival Hydrovac T7 Tandem and T10
The T7 Tandem from Rival Hydrovac was designed primarily to be a unit that could be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weight prior to travel. The T10 is built with the same features and operating system, but with larger capacities and components. It is popular with clients who do both utility and industrial work. It is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating.
403-550-7997; www.rivalhydrovac.com

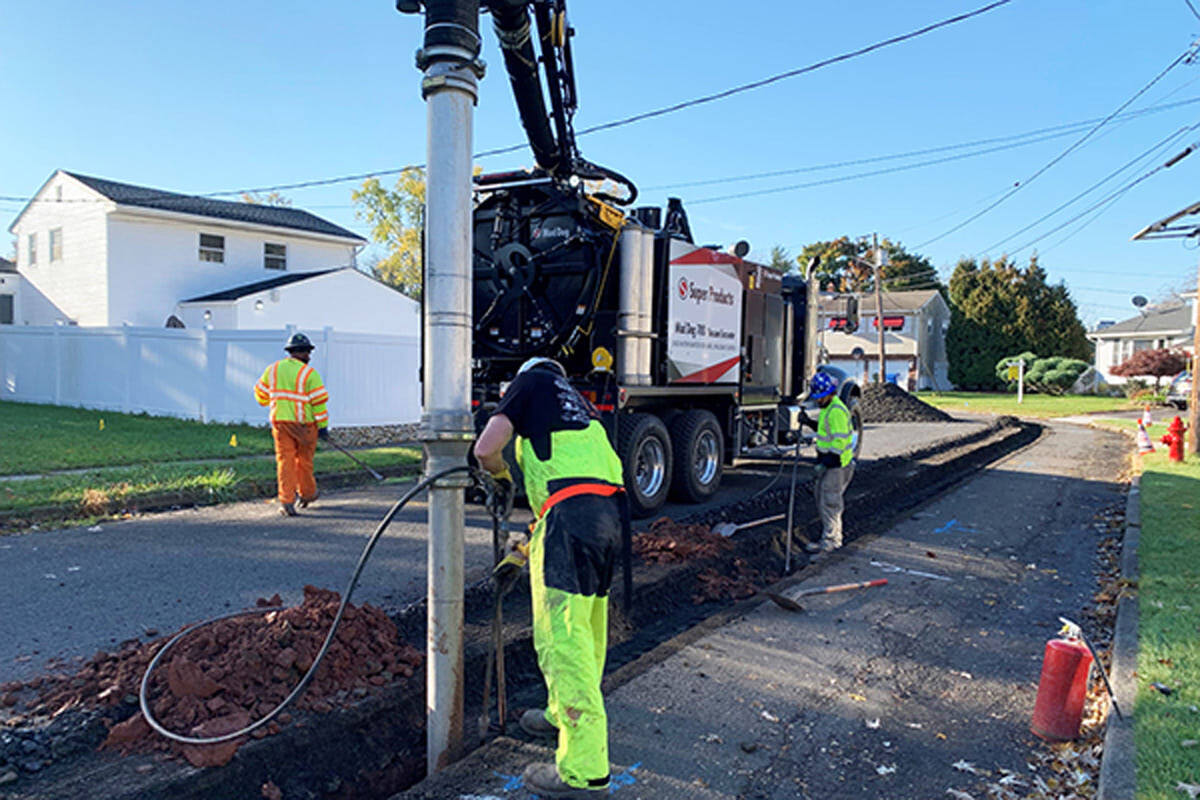

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed for operator convenience and consistent performance to meet the challenges of applications from compact, urban projects to large-scale excavation. Units come standard as hydroexcavators with an optional air excavation package. They maximize legal payload, allowing operators to carry and accomplish more while still excavating safely in small work areas. The compact, versatile vacuum excavator features a 7-yard debris body and 600-gallon water tank. The unit comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.
800-837-9711; www.superproducts.com

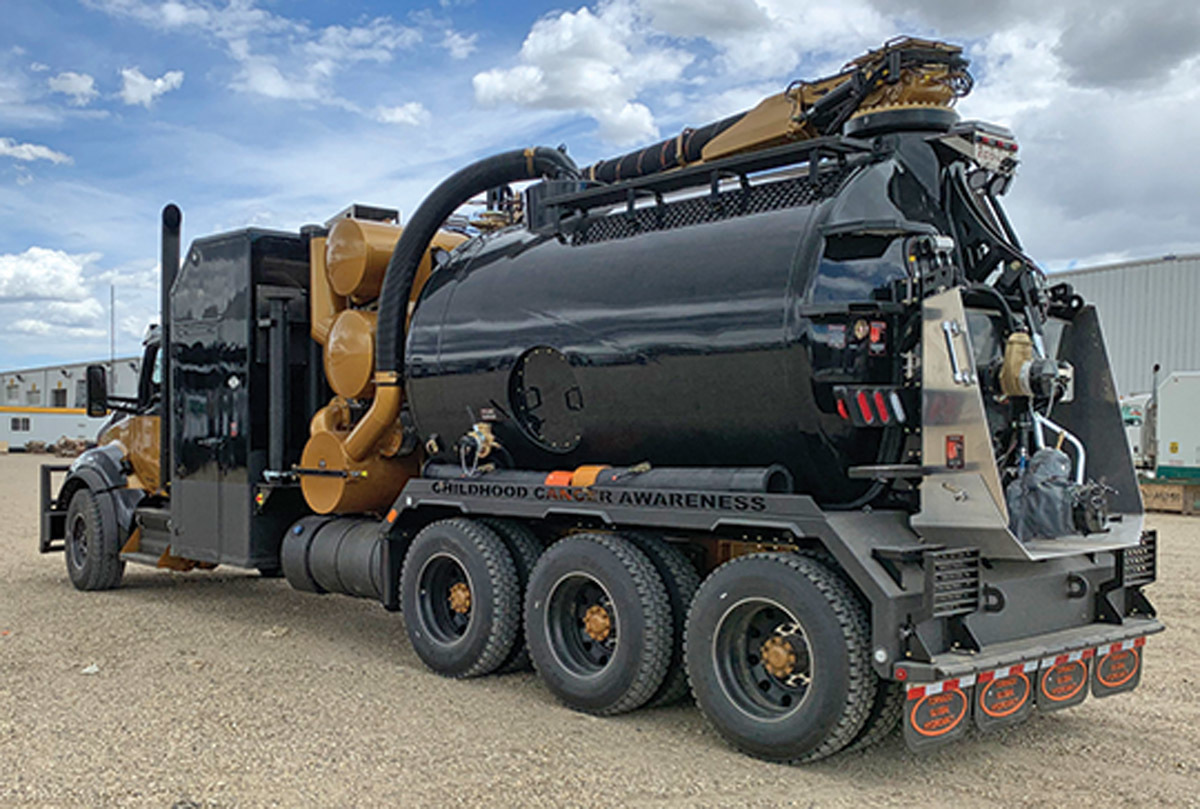

Tornado Global Hydrovacs F4 ECO-LITE
The F4 ECO-LITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECO-LITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower.
877-340-8141; www.tornadotrucks.com

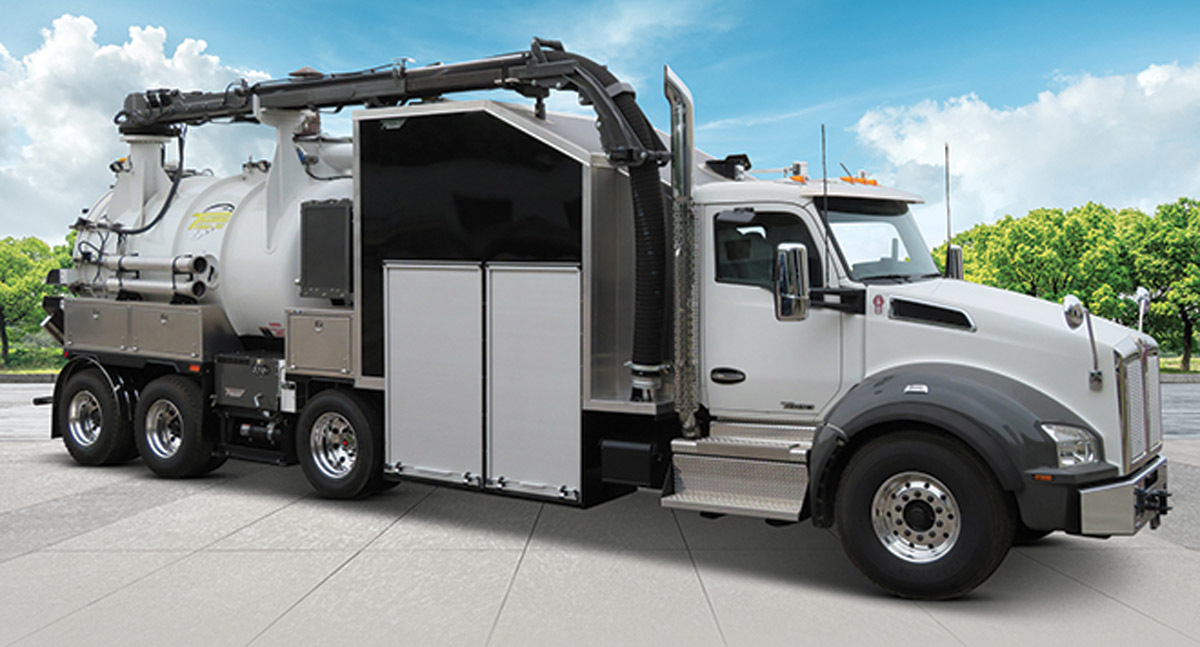

Transway Systems Terra-Vex HV65
The Transway Systems Terra-Vex HV65 is an ideal single-operator unit, capable of performing all functions from a single remote control, saving time and money. The blower, water tank, boiler, jetter system, and wands are housed in an insulted, sound-dampening enclosure complete with thermostat-controlled heater. It includes large, winter-friendly roll-up doors with ample inside storage. An onboard air compressor compliments the many features available by buying directly from the manufacturer.
800-263-4508; www.transwaysystems.com

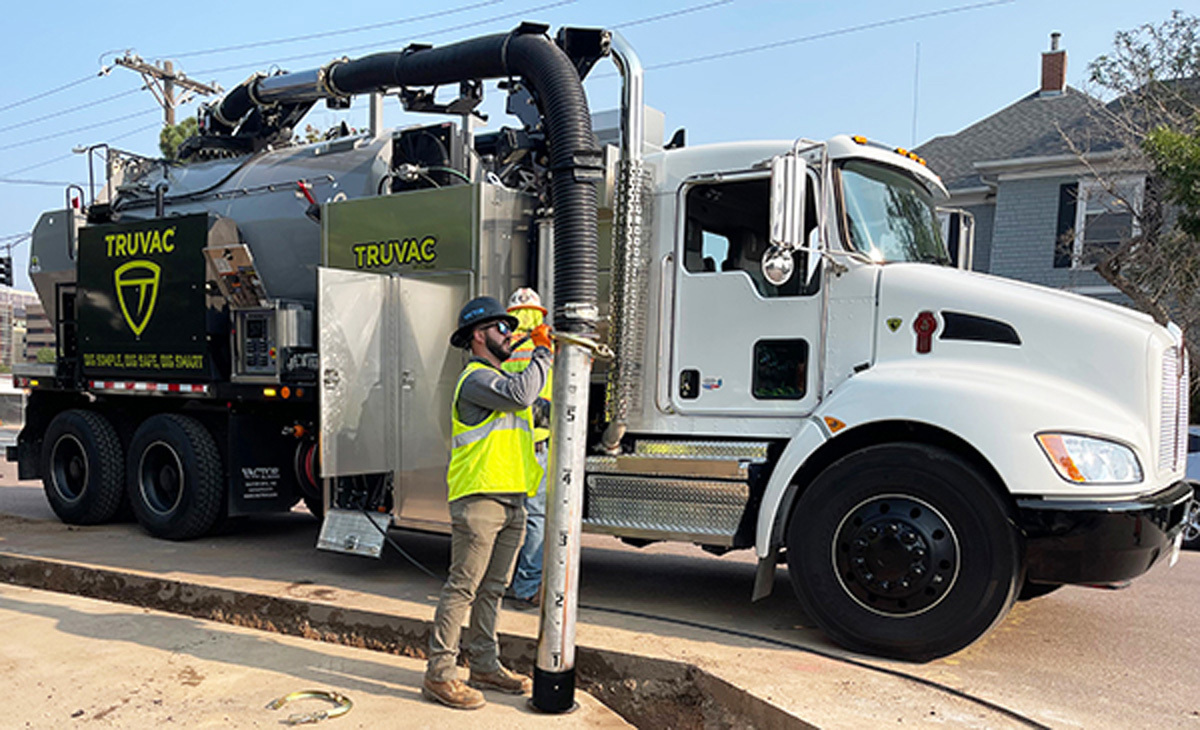

TRUVAC FLXX
The TRUVAC FLXX is a vacuum excavator built to perform for utilities and contractors installing, replacing and repairing underground infrastructure, utilizing both air and hydroexcavation options for all conditions. This safe digging machine offers more power and maneuverability ideal in tight urban settings where street excavation jobs can include supporting, repairing and installing a city’s water, sewer, power and telecommunications infrastructure. Designed to maximize productivity on the job, it boasts the highest legal payload capacity in a mid-size truck with a 10-cubic-yard debris body. In addition, it offers Park-n-Dig, an always-connected water source; safe and precise digging with the DigRight one-touch flow control technology; a water heater to dig in all types of weather/material conditions; a 22-foot boom reach with 340-degree rotation; and a DigFast option to maintain peak vacuuming performance and a clear airstream in the vacuum tube.
800-627-3171; www.truvac.com

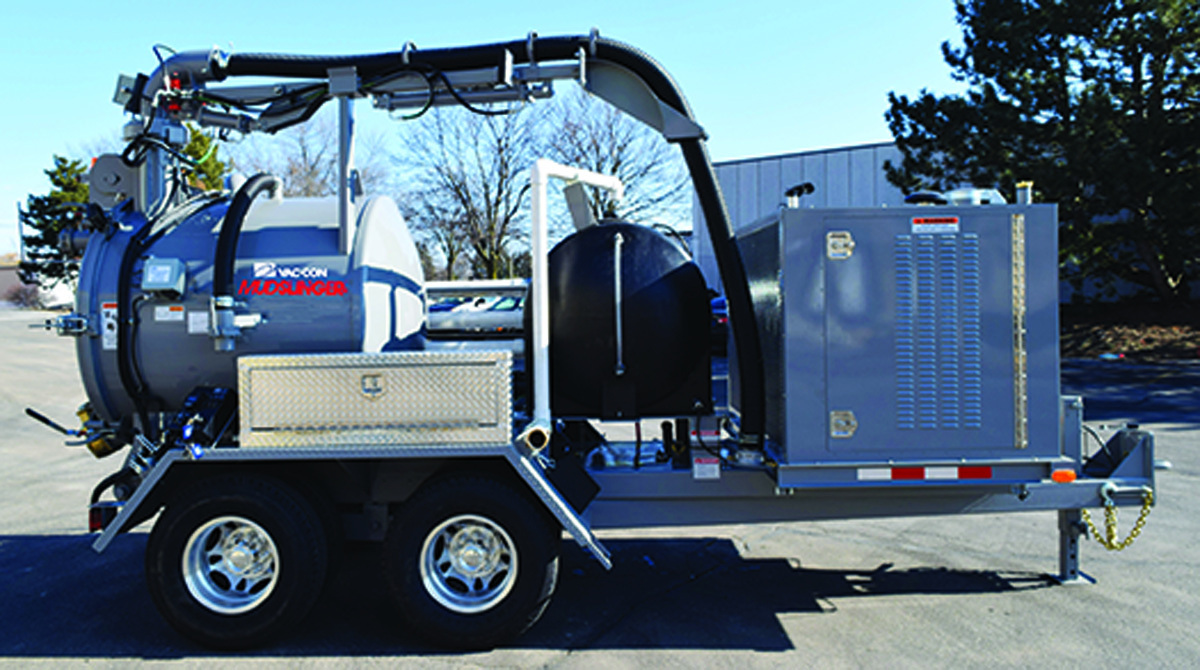

Vac-Con Mudslinger MS800
The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con encompasses the same power, suction and capacity of a truck hydroexcavator on a portable, pull-behind trailer. It includes the choice of tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. An 845-gallon debris tank allows operators to stay productive on the job site, while a 9-foot boom with 24 inches of hydraulic extension provides a full range of motion. It is designed to be a powerful standalone unit, but can also provide support to construction, HDD and public utility fleets. It’s at home in a variety of applications including daylighting, potholing, culvert and manhole cleaning, and utility locating.
904-284-4200; www.vac-con.com

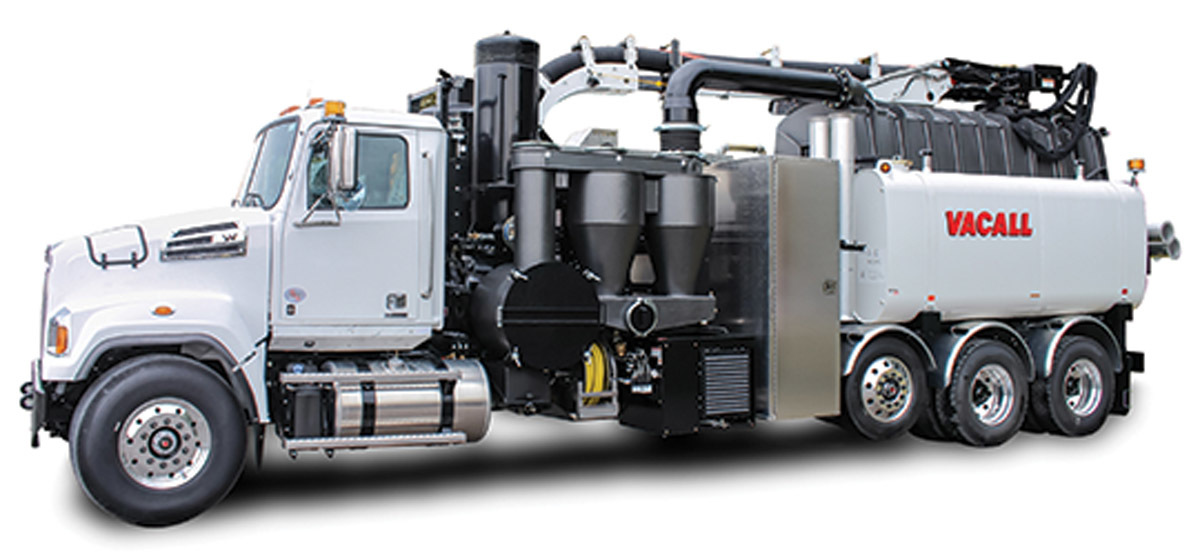

Vacall AllExcavate
High-pressure water and air jetting and standard intelligent controls, plus easy startup and operation, set Vacall AllExcavate machines apart. Water pumps generate 24.5 to 120 gpm and pressures to 3,000 psi with optional air excavation at 185 cfm and dual psi of 110 and 150. The water system, wand, control panel, tools and worker apparel are protected in a heated compartment. Standard AllSmartFlow CAN bus intelligent control systems have a programmable LCD display that monitors engine, water and airflow and vacuum performance, allowing for precise boom and reel adjustments. Aluminum water tanks carry 1,000 to 1,300 gallons. Galvanized debris tanks have a supreme finish. Units use one engine to power the chassis and excavation functions, reducing serviced and operation costs.
800-382-8302; www.vacall.com

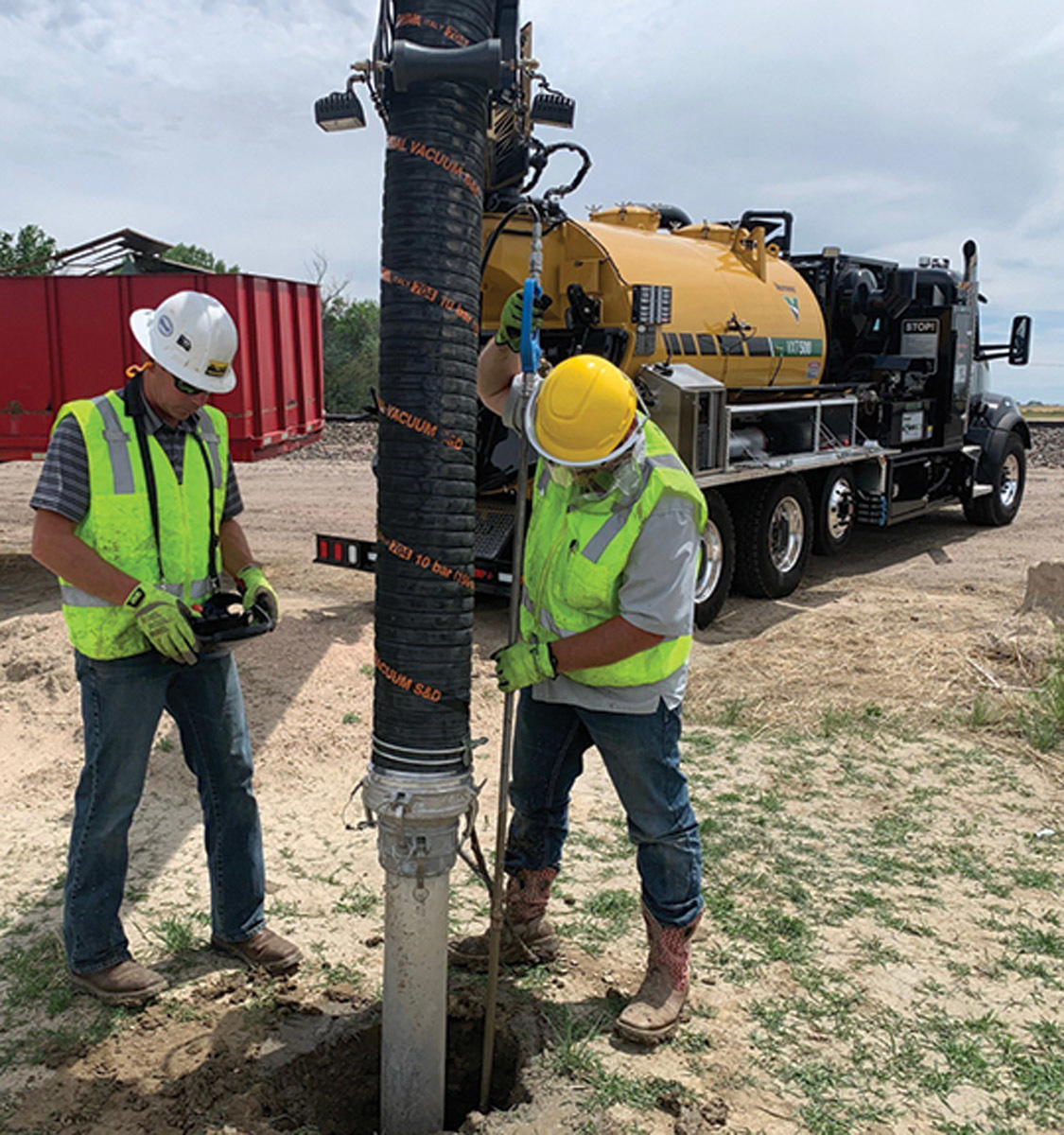

Vermeer VXT500 VXP Series
The Vermeer VXT500 VXP Series is an 8-inch vac with an 8-yard spoil tank capacity. It is suitable for utility applications where a higher-capacity machine with a smaller footprint is desired. It joins a family of Vacuum X-Traction Products, Inc. (VXP) vacs featuring vacuum blowers that deliver 4,800 to 6,400 cubic feet per minute and spoil tank capacities ranging up to 16 yards.
352-728-2222; www.vermeer.com
Nozzles

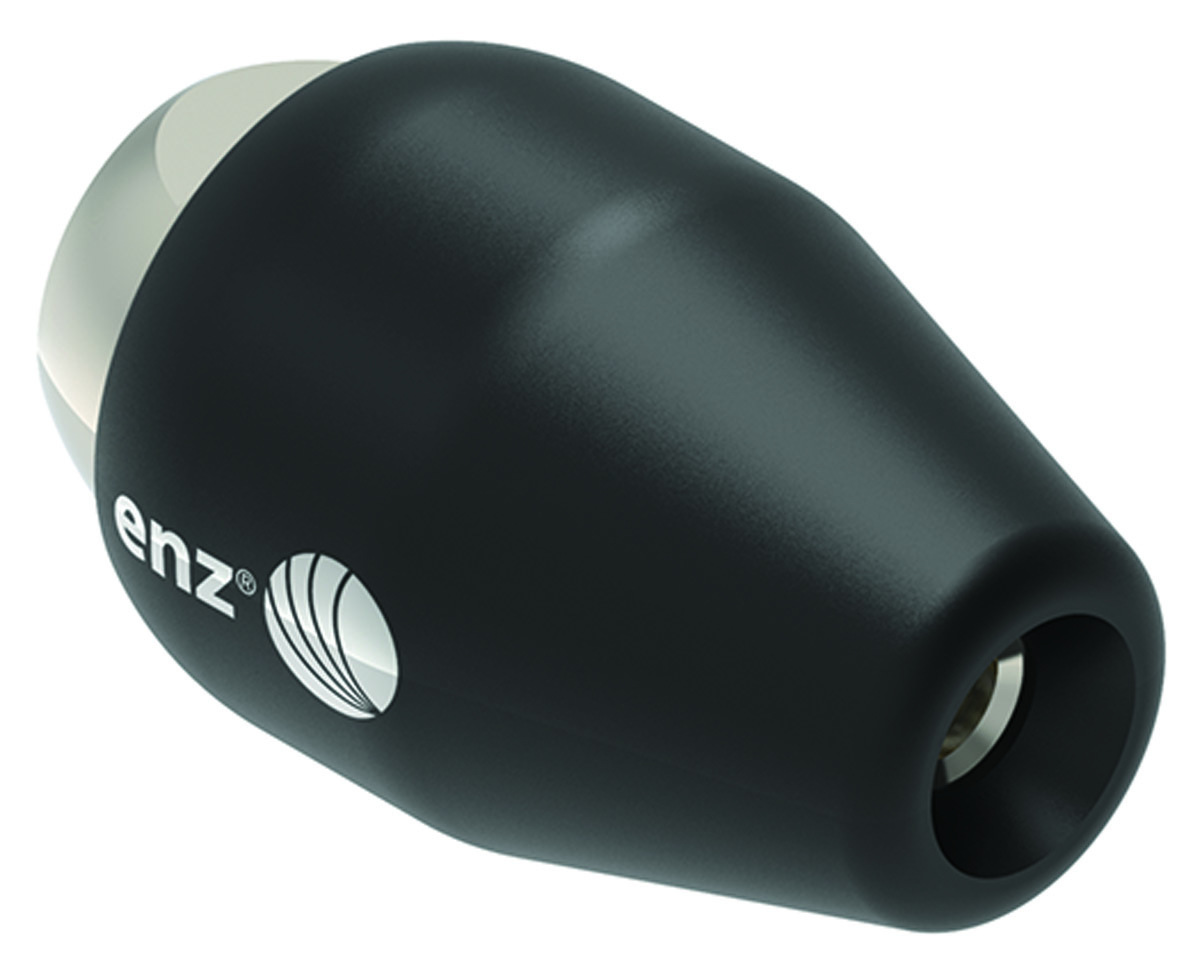

Enz USA Hydro X
The Hydro X nozzle from Enz USA is available in 3/8-inch NPT or 1/2-inch connecting threads, and it can function at up to 5,000 psi with flow as low as 8 gpm. It combines a powerful, oscillating water jet with a high debris removal rate. A tungsten carbide front jet ensures a longer life than ceramic jets can offer. For quick and easy maintenance, a repair kit is available. Due to the nozzle’s simplicity, repairs can be made quickly and efficiently in the field with little downtime. For the operator’s safety, a plastic cover provides protection against harsh and sensitive environments.
888-369-8721; www.enz.com

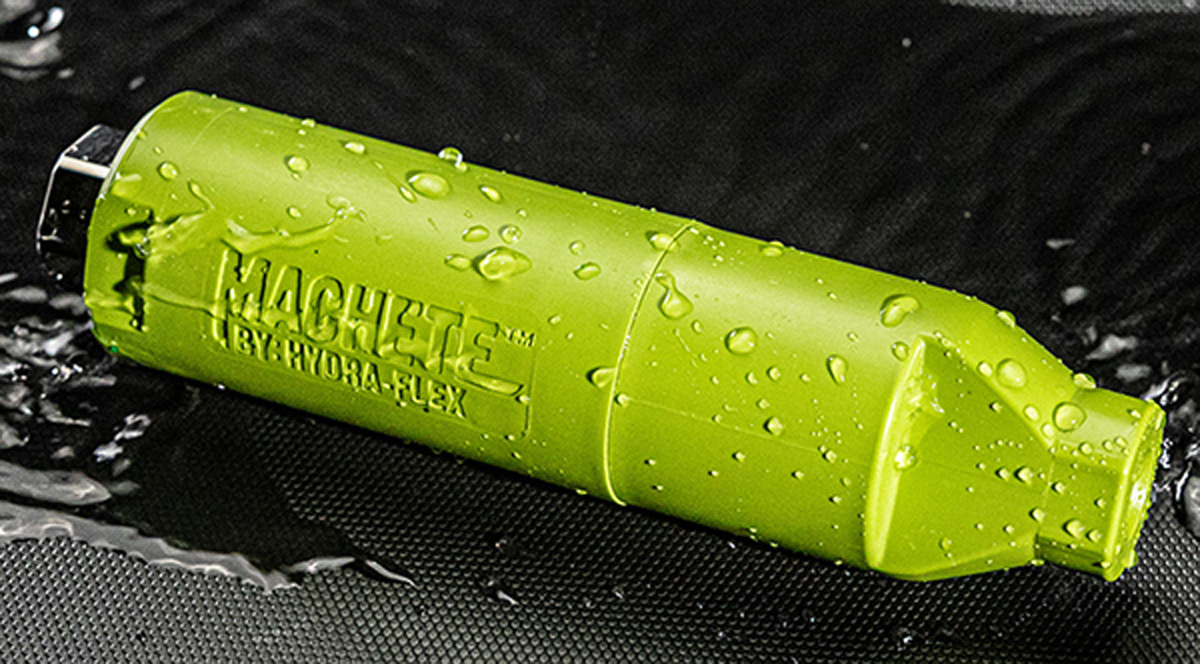

Hydra-Flex Machete
The Machete hydroexcavating nozzle from Hydra-Flex channels water in an oscillating motion, creating a small spray angle and a direct stream with a forceful impact. This premium penetration will allow faster digging and more precise trenching capabilities. Its durable, replaceable cover allows for quick changes while increasing the nozzle’s lifespan. It is available in three sizes, with operating pressure ranges from 1,000 to 3,200 psi and a heat rating of 180 degrees F. It will last in excess of 500 hours, according to the maker.
952-808-3640; www.hydraflexinc.com
Water Pump

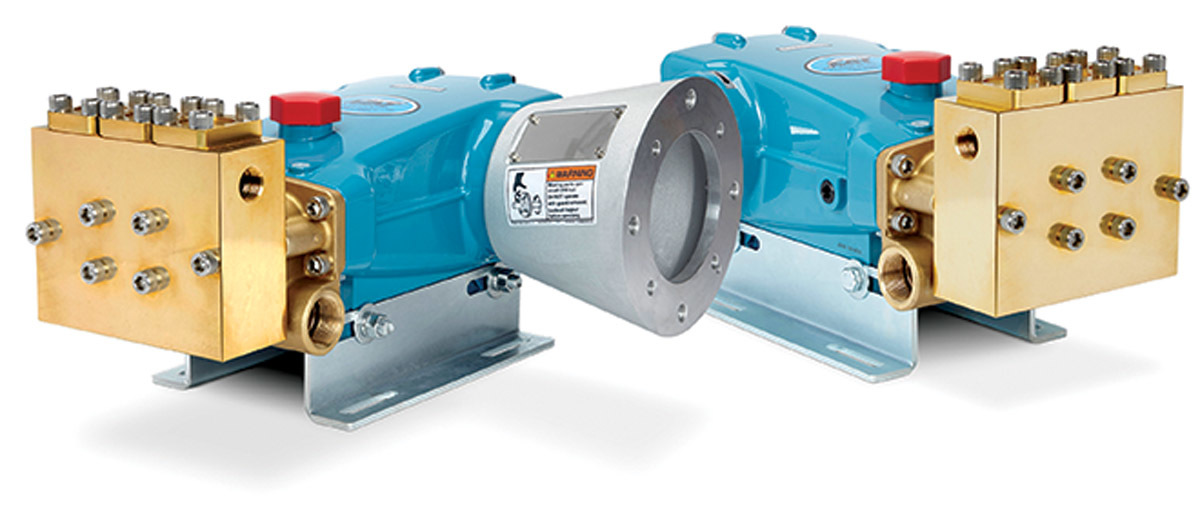

Cat Pumps Hydroexcavating Pumps
Cat Pumps Models 2560 (16 gpm at 3,000 psi) and 2565 (20 gpm at 2,500 psi) hydroexcavating pumps are constructed for continuous-duty applications. BH versions have a machined-bearing cover to mate with Cat Pumps’ 76SAEC.25FR hydraulic bell housing, allowing the 2560BH and 2565BH to be directly driven by an SAE C hydraulic motor. The compact direct drive allows for a space-saving footprint, and is simple to install and maintain.
763-780-5440; www.catpumps.com
