Product Focus - February 2020

Interested in Relining/Rehab?

Get Relining/Rehab articles, news and videos right in your inbox! Sign up now.

Relining/Rehab + Get Alerts

Casing/Piping/Tubing

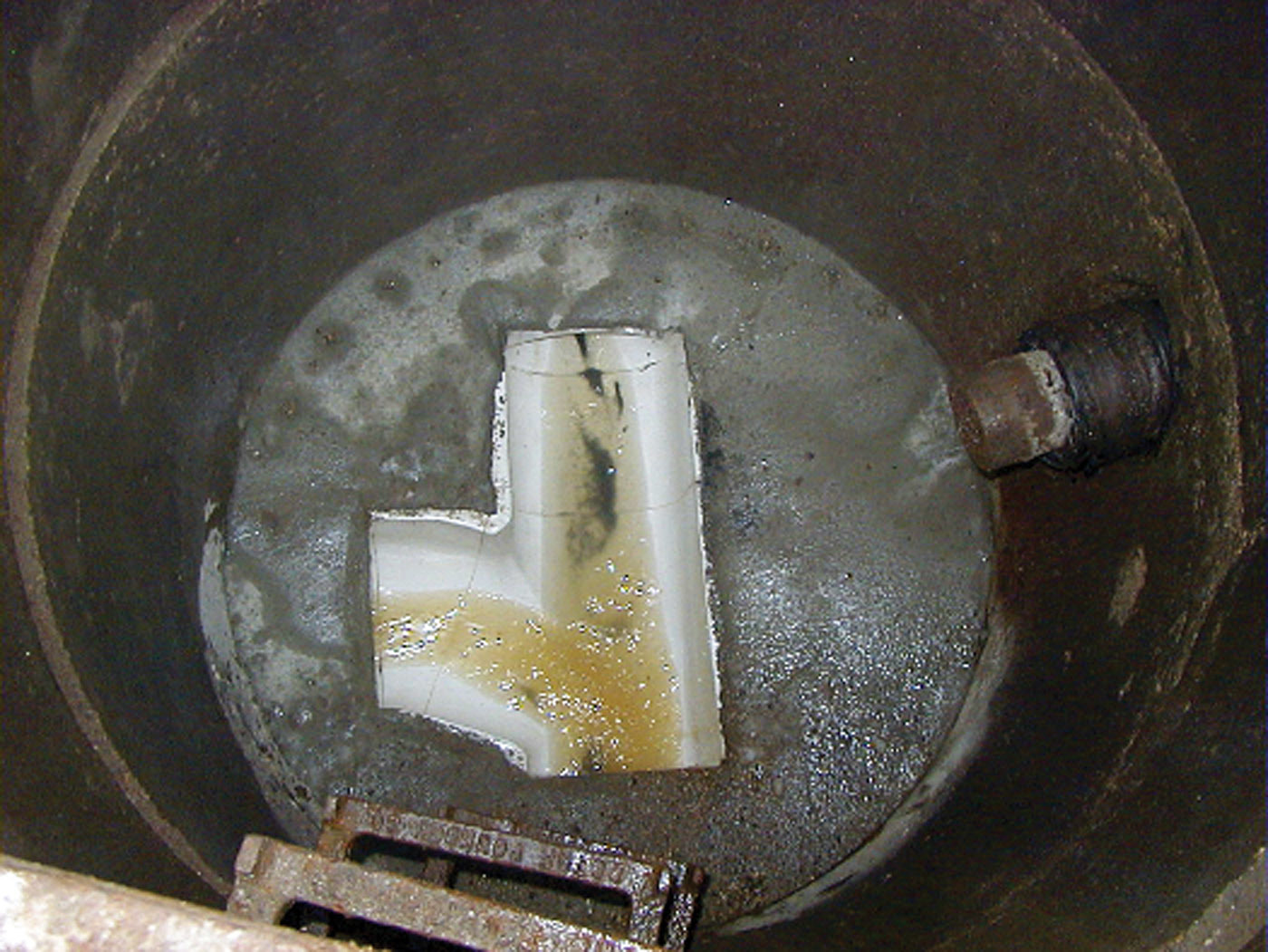

RELINER/Duran Modular Manhole Invert Channel System

RELINER/Duran Modular Manhole Invert Channel Systems use molded fiberglass flumes with smooth sewer pipe interfaces to rehabilitate inverts without flow interruption. The field-installed modular components bolt together inside the manhole and serve as the form for a new concrete bench. They eliminate the inconsistencies associated with field-formed concrete channels. The full-depth lined channels are high-flow and easy to clean and maintain. Standard 8- and 12-inch-depth channel sections fit through a 24-inch manhole frame and will accommodate 6- through 12-inch pipes. Larger sizes are available. Parts are selected based on the unique configuration of each manhole.

800-508-6001; www.reliner.com


Excavating Equipment

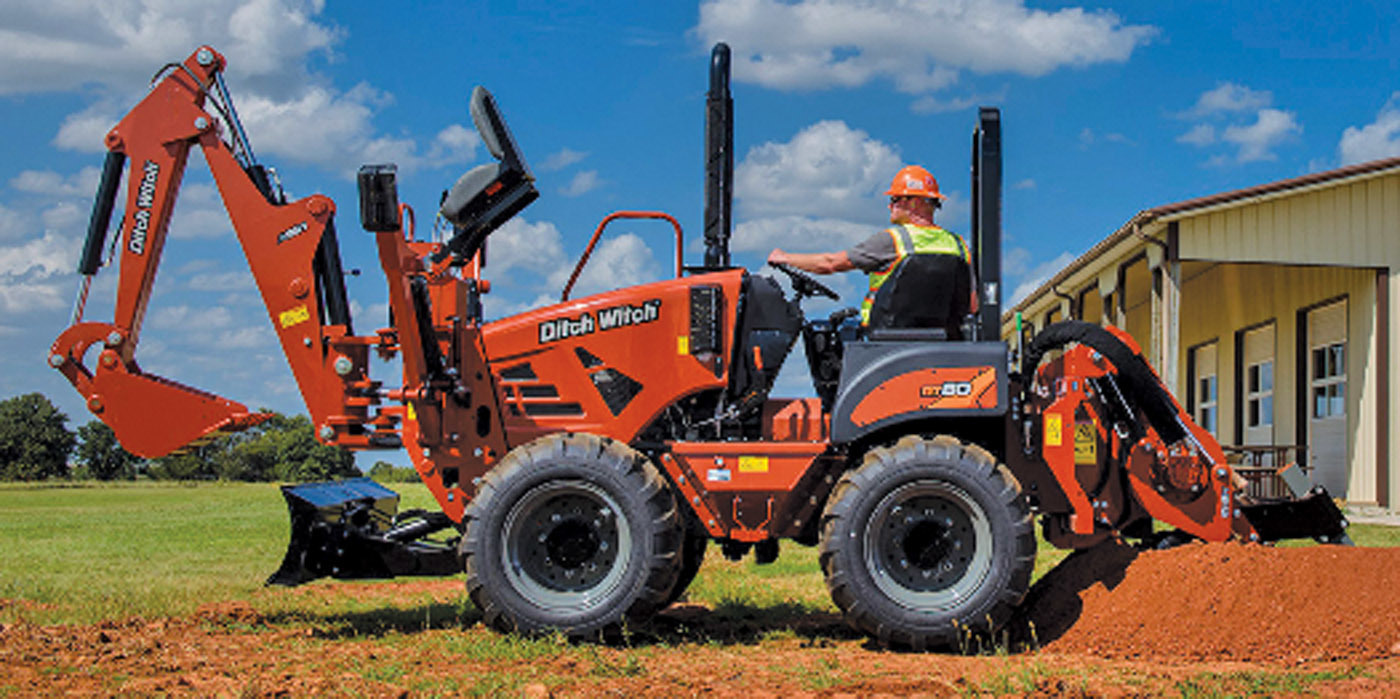

Ditch Witch RT80 trencher

The RT80 trencher from Ditch Witch offers a narrower footprint and a modular design to fit and function in small, urban environments. The narrower, more modular design is ideal for heavy-duty trenching, vibratory plowing and microtrenching in confined urban and residential areas where larger machines cannot maneuver as freely. With the typical residential street lane having a width of 11 feet, the RT80’s footprint of just over 6 1/2 feet gives operators plenty of room to work without disrupting the surrounding area. The trencher is powered by a 74.5 hp DEUTZ Tier 4 diesel engine. It delivers a static load rating of 35,407 pounds and a wide-axle rating of 39,000 pounds.

800-654-6481; www.ditchwitch.com


Horizontal Directional Drilling

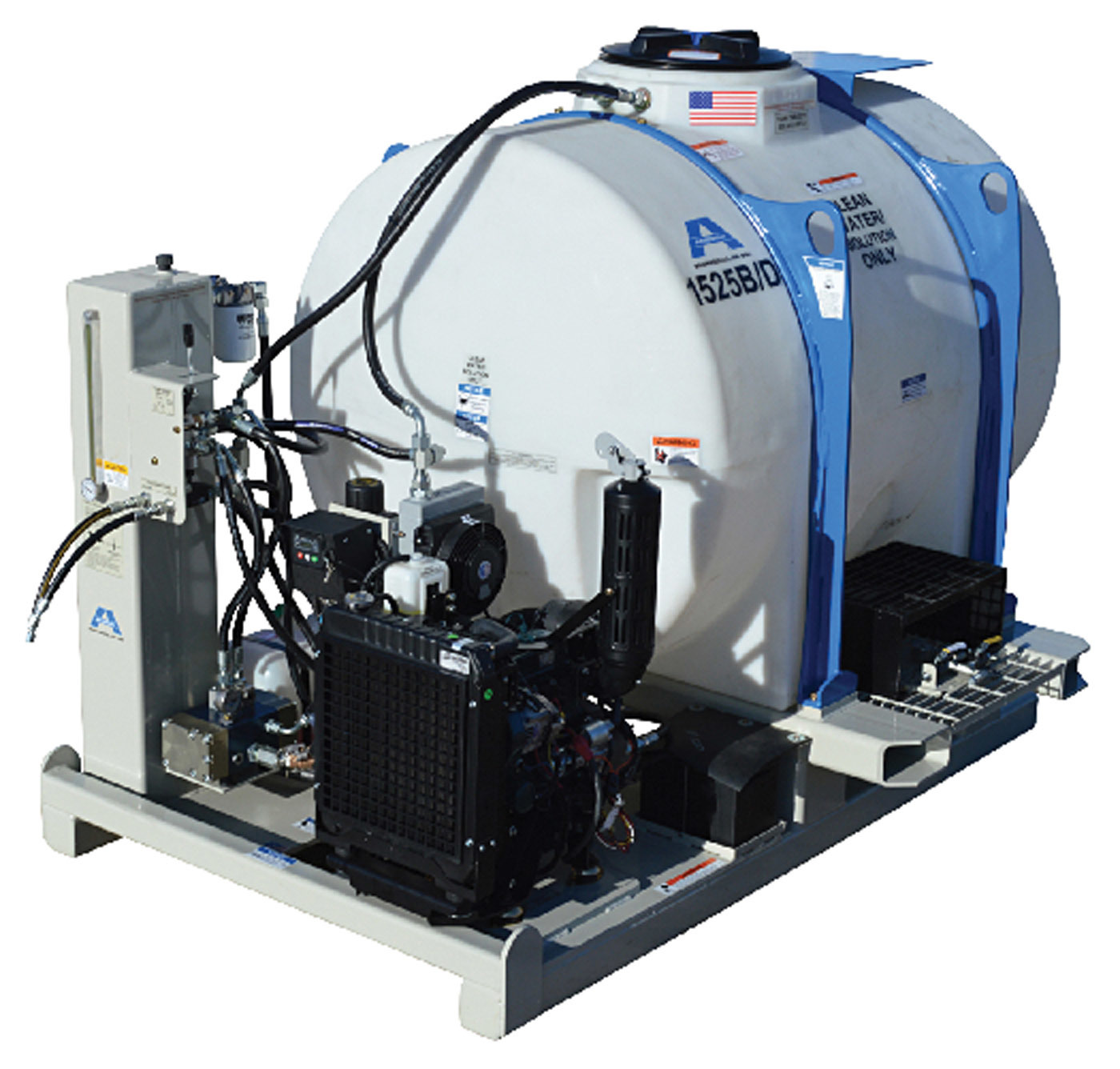

Akkerman 1525B/D

The 1525B/D hydraulically driven high-pressure pump from Akkerman is used for effective pilot tube and other pipe jacking operations particularly on larger-diameter bores. The large, 525-gallon tank offers in-tank agitation for continuous mixing, independent agitation, or agitate and pump to maintain optimal mud viscosity. It displaces a Marsh Funnel viscosity as high as 50 seconds with pump flow up to 10 gpm at 2,500 psi. It is powered by a 20.7 hp diesel engine with an 8-gallon fuel tank. Like its 325-gallon counterparts, it is simple, safe and reliable. There are few moving parts, no belts and a shrouded agitator. The stepped platform makes it easy for operators to access and fill the tank.

800-533-0386; www.akkerman.com


Hydroexcavation Equipment

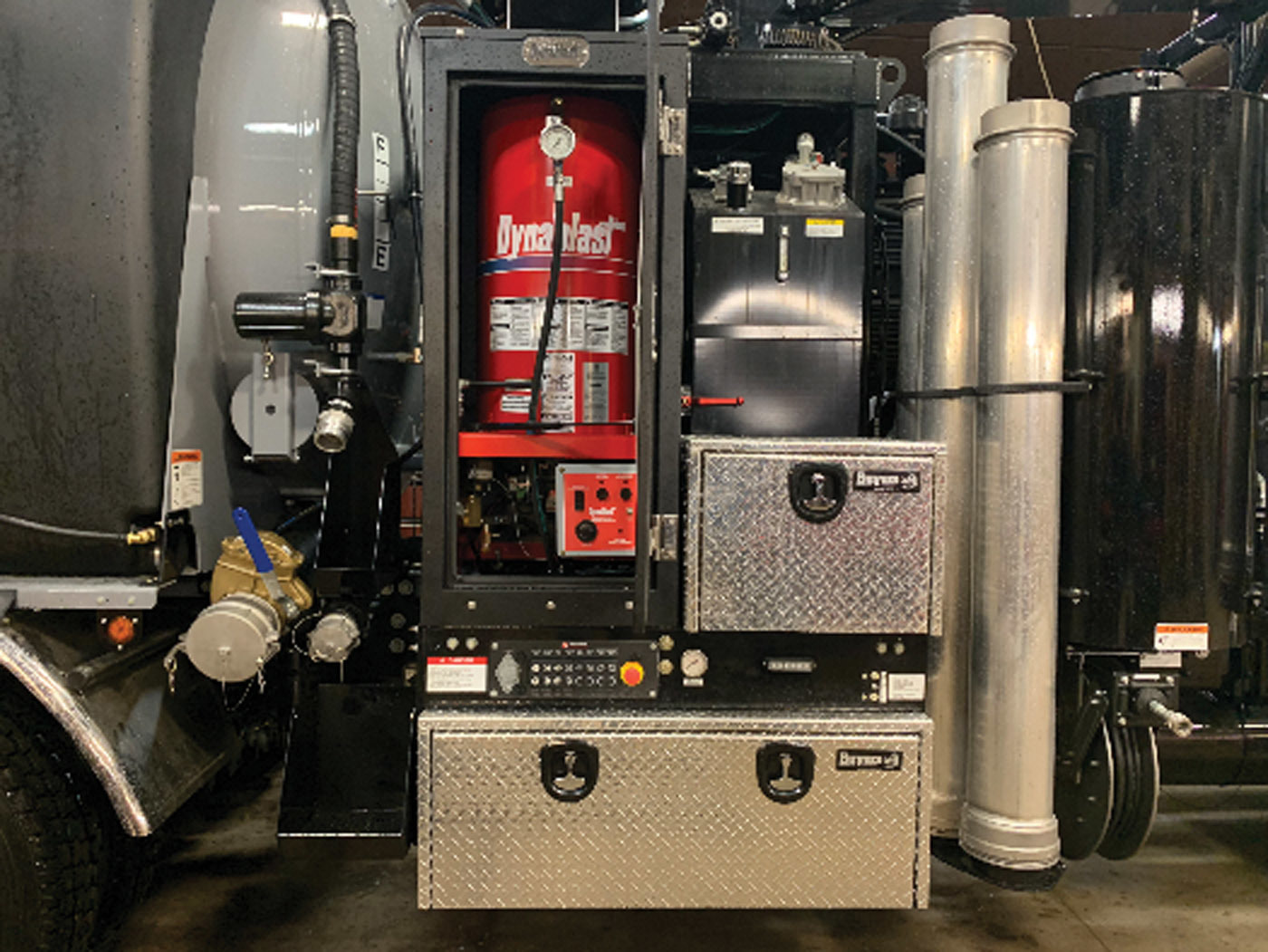

Dynablast HV420F-12VRED

The Dynablast HV420F-12VRED hydrovac water heater produces 420,000 Btu with an output temperature of 175 degrees F at 5 gpm, making it suitable for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, a stainless steel target plate for increased coil life and a design with serviceability in mind with momentary override control. A 19-by-19-inch footprint makes it suitable for compact installations.

905-867-4642; www.dynablast.ca

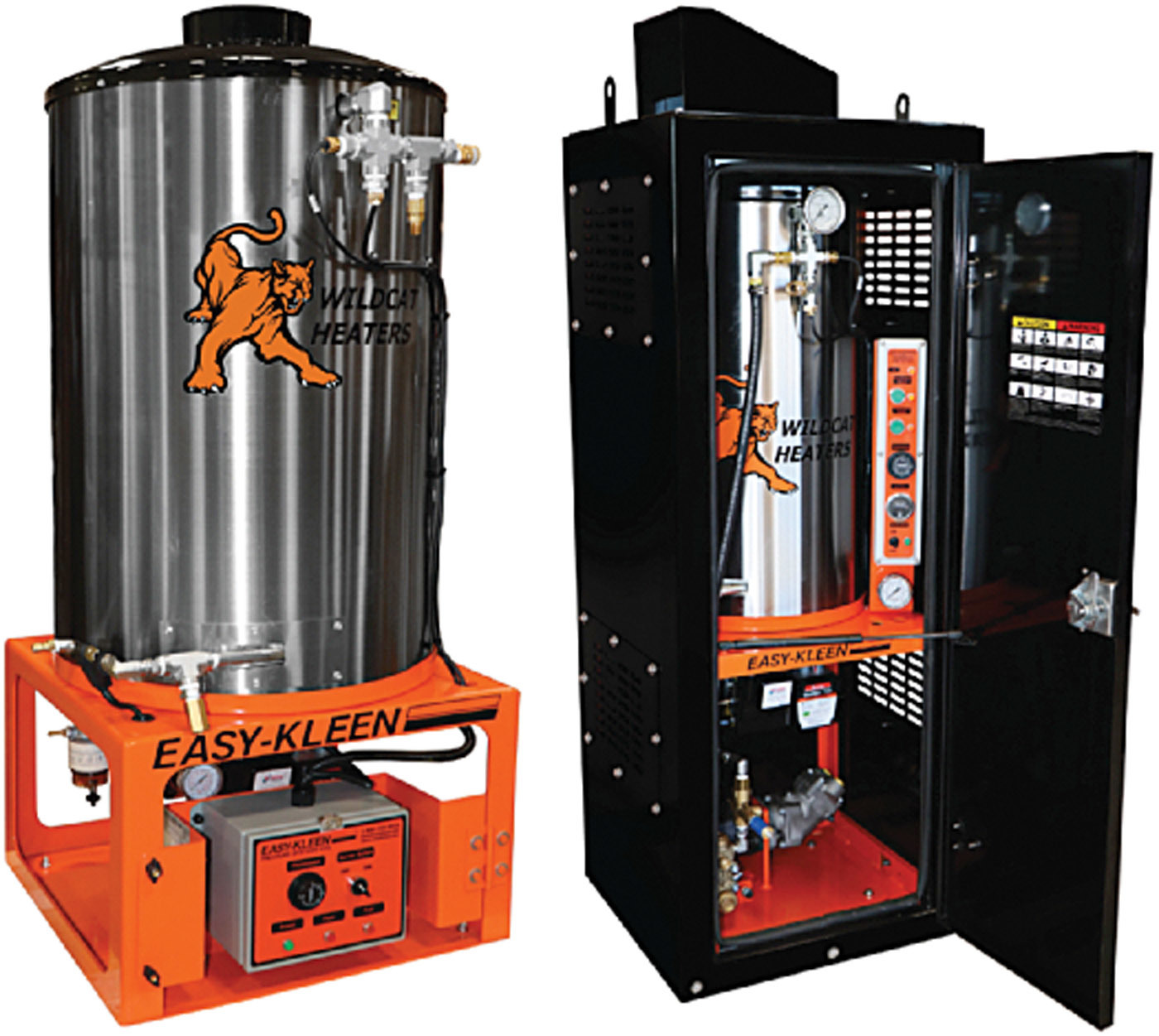

Easy Kleen Pressure Systems Wildcat Heaters

Wildcat Heaters high-pressure, oil-fired hot-water/steam heaters and hydraulic pump systems from Easy Kleen Pressure Systems are designed for reliability and efficiency and are installation-ready for vacuum trucks and hydroexcavators. A full range of heater options includes dry steam, redundancy packages, Schedule 80 and 160 stainless steel or A53 boiler pipe, fine-tuned temperature and flow-control systems. All coils are manufactured in-house, with CRN boiler-approved coils now available. Heaters can be designed for mounting in a cabinet or supplied as a completed cabinet unit. They are CSA and ETL approved. Hydraulic pumping systems are available.

800-315-5533; www.easykleen.com

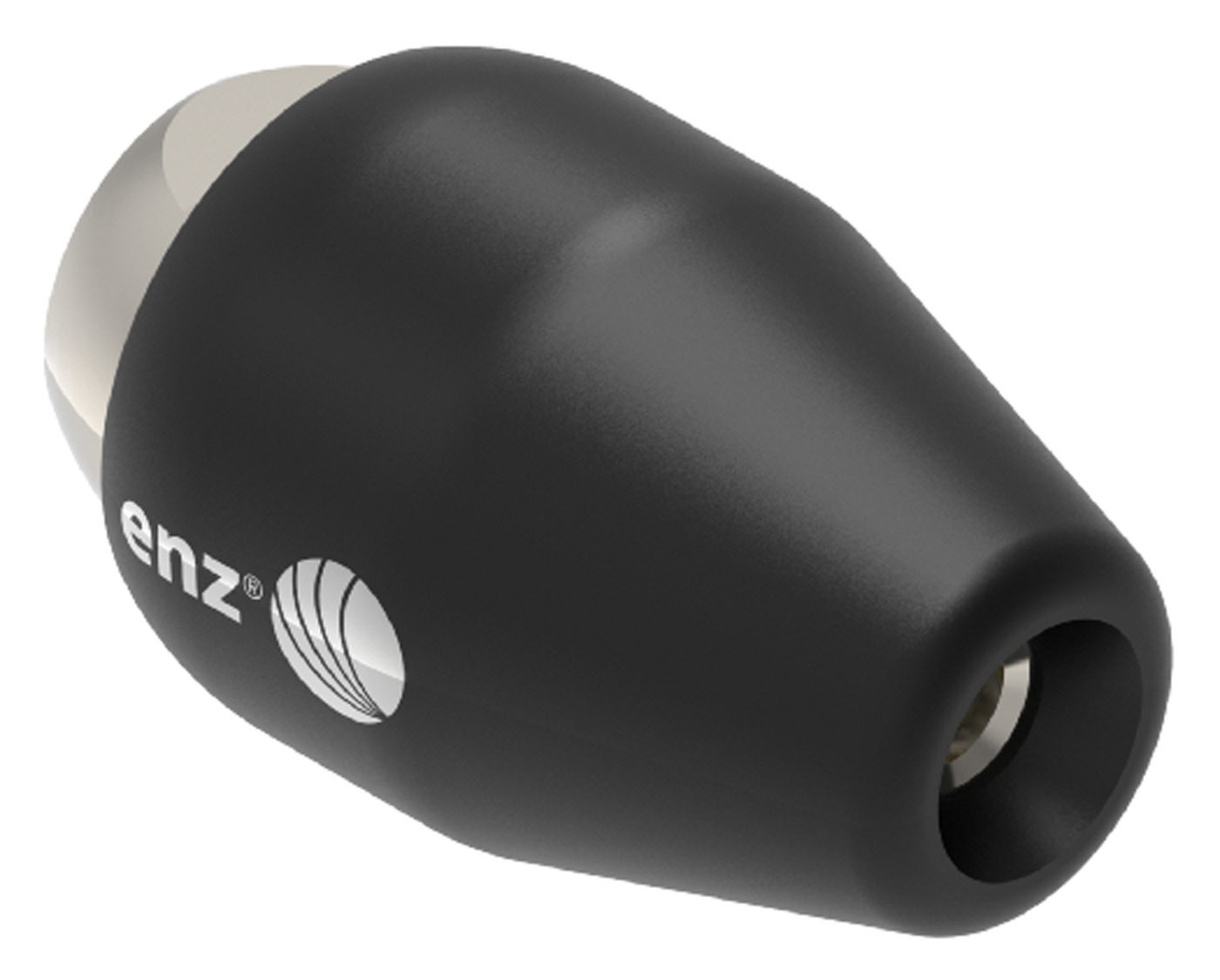

Enz USA HydroX nozzle

The HydroX nozzle from Enz USA is available in 3/8-inch NPT or 1/2-inch connecting threads, and it can function at up to 5,000 psi with flow as low at 8 gpm. It combines a powerful, oscillating water jet with the high removal rate of debris. A tungsten carbide front jet ensures a longer life than ceramic jets can offer. For quick and easy maintenance, a repair kit is available. Due to the nozzle’s simplicity, repairs can be made quickly and efficiently in the field with little downtime. For the operator’s safety, a plastic cover provides protection against harsh and sensitive environments.

888-369-8721; www.enz.com

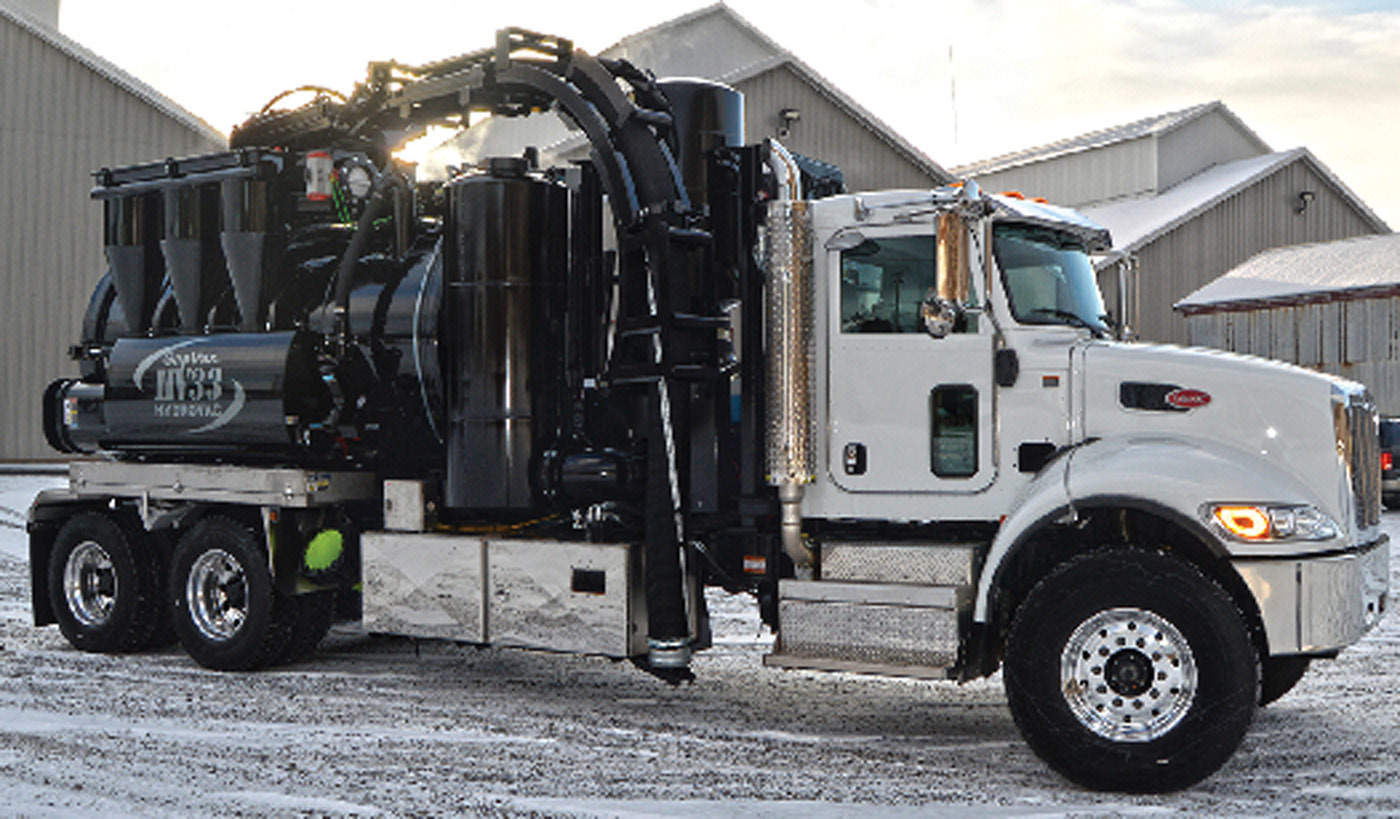

GapVax HV33

Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate.

888-442-7829; www.gapvax.com

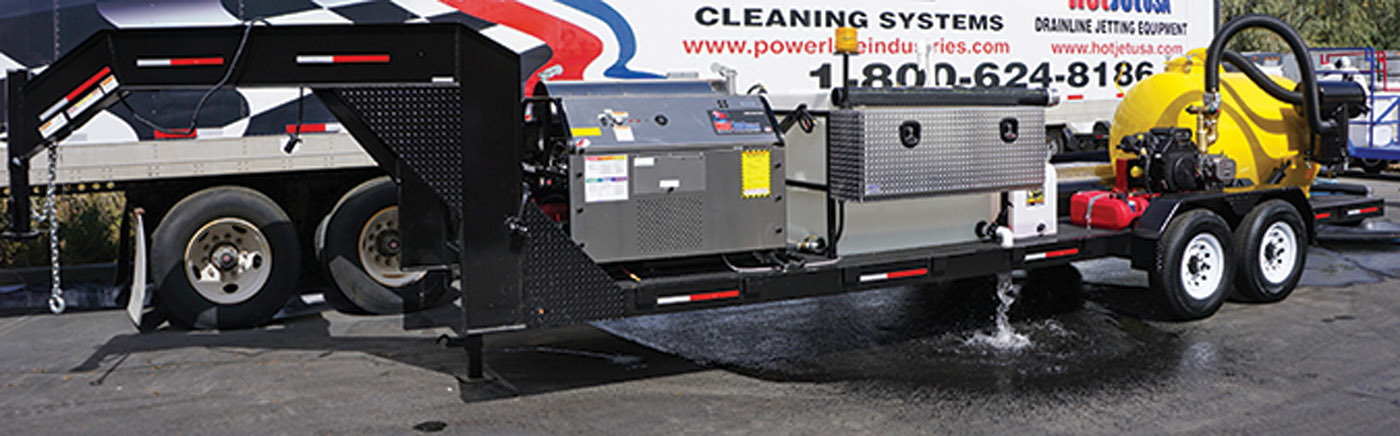

HotJet USA

Vac ’n Jet Series

The HotJet USA Vac ’n Jet Series of vacuum trailer jetters are rugged and compact; are engineered to haul equipment and spoils loads; can clean valve boxes and storm drains; and can hydroexcavate and/or clean drainlines and sewer lines. They offer hot- and/or cold-water operation with a choice of engine options ranging from 13 to 66 hp and gas or diesel operation. They are equipped with premium triplex pumps, a 500-gallon spoils tank, 200-gallon water tank, Gardner Denver vac/blowers, 4-ton hydraulic dump and centri-clean filter system. They can also be custom-engineered and designed to meet specifications.

800-624-8186; www.hotjetusa.com

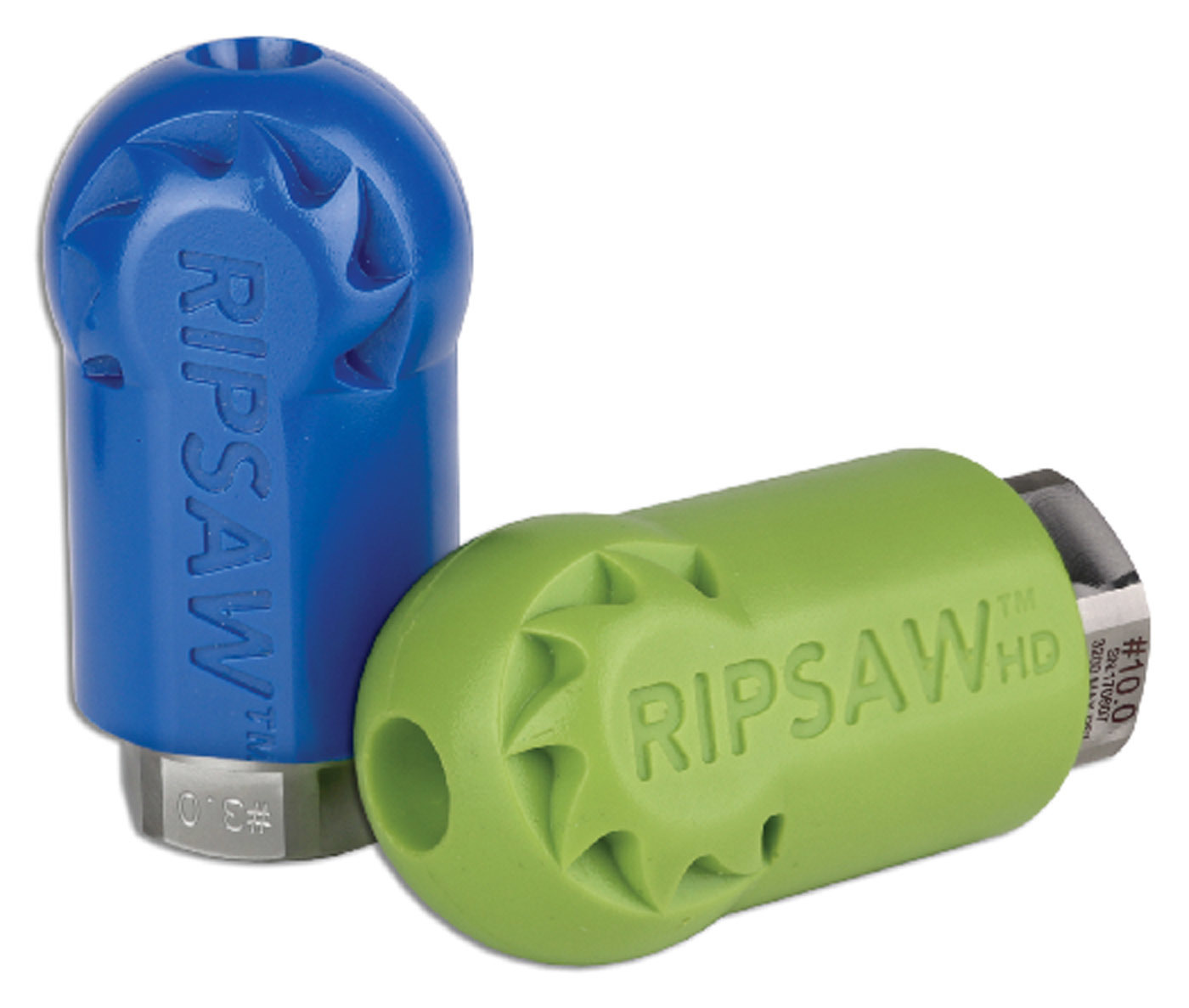

Hydra-Flex Ripsaw

The Ripsaw rotating turbo nozzle from Hydra-Flex blasts a 0-degree water stream at up to 3,200 psi while rotating at a high speed to provide an 18-degree cone of coverage. Its cone-shaped flow pattern is ideal for potholing applications. The heavy-duty, high-impact nozzles are constructed with stainless steel housings and tungsten carbide wear surfaces to withstand harsh environments and provide long life. Repair kits are available for extended life and lower operating costs. Select from traditional coating (blue) or upgrade to the heavy-duty coating (green), a formulation designed for use in extreme environments. Greater impingement allows users to complete jobs faster or use a smaller nozzle size while getting the same impact as nozzles with higher flow rates.

952-808-3640; www.hydraflexinc.com

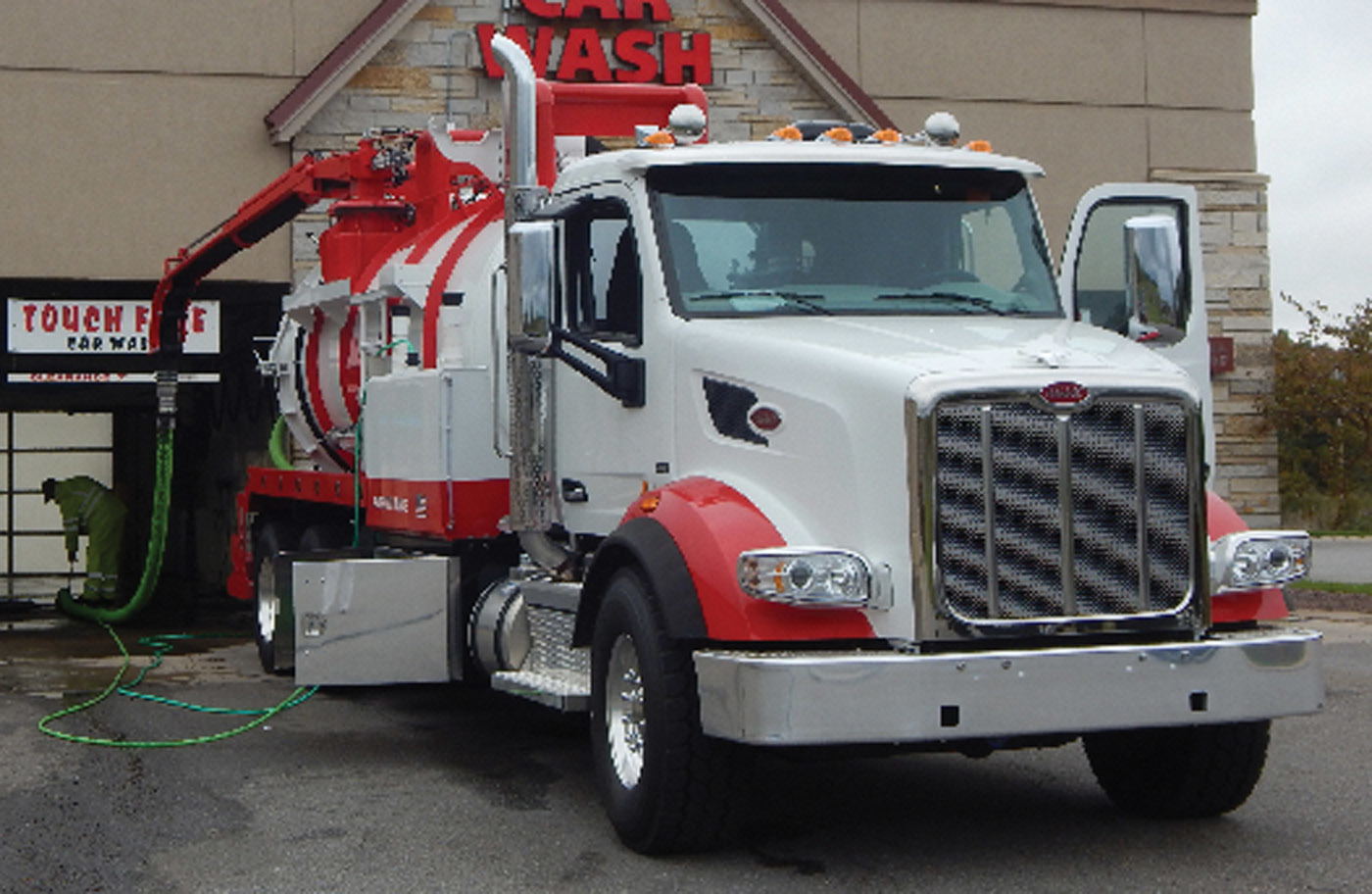

Imperial Industries Hydro 3600 Hybrid Excavator

The Hydro 3600 Hybrid Excavator from Imperial Industries offers compact power and versatility, with capabilities that include digging trenches to locating fiber optic cables and clearing debris. It provides direct applications for septic hauling, utilities maintenance and emergency response situations. It can be operated by one person. Units are available in code and noncode.

800-558-2945; www.imperialind.com

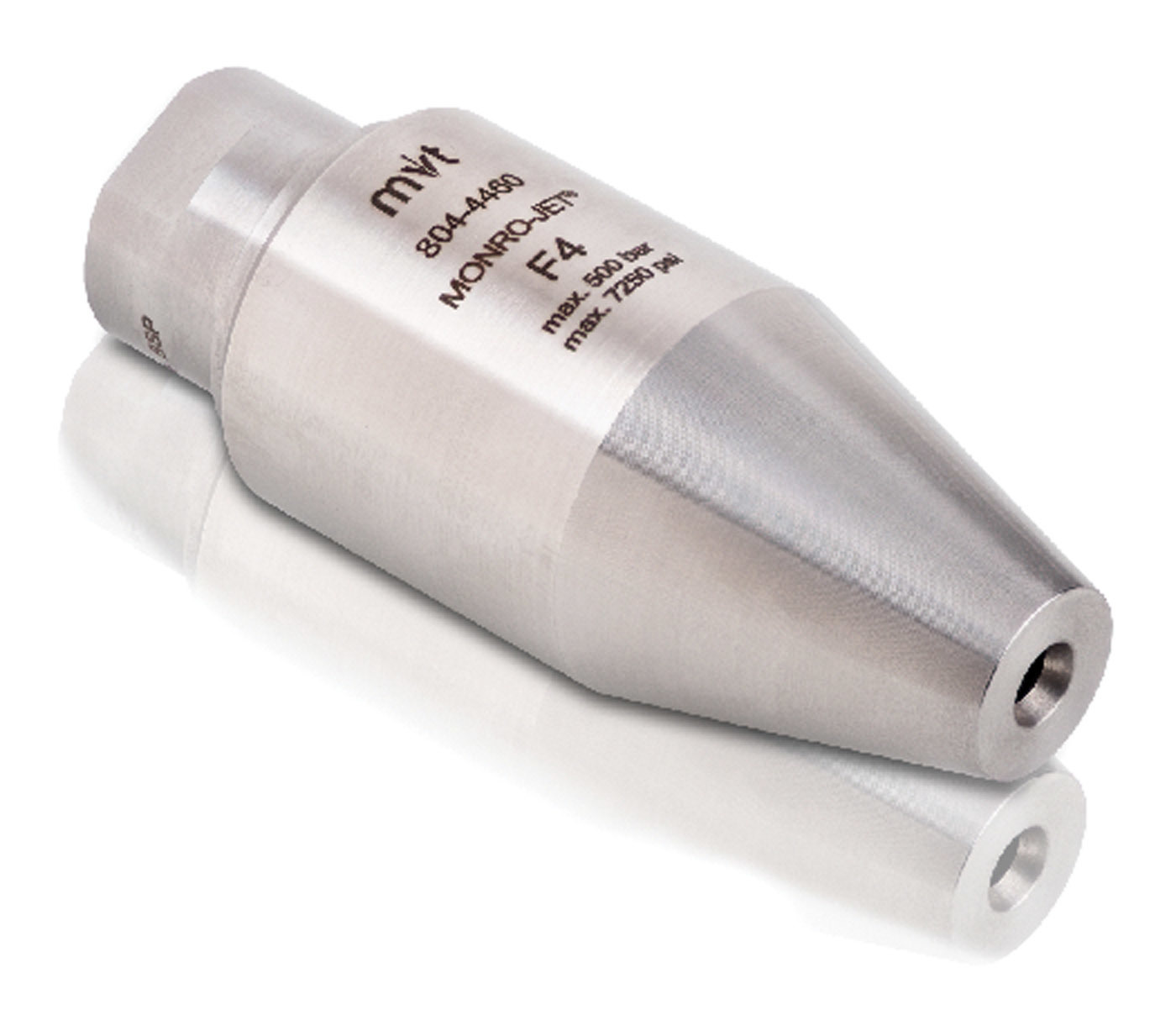

NozzTeq MONRO-JET

The MONRO-JET hydroexcavation nozzle from NozzTeq combines the power of a solid-stream pencil jet with the large coverage of a fan jet. An orbital design increases performance at a lower gallons-per-minute rate and pressures as high as 36,250 psi, allowing the operator to move faster when hydroexcavating and cleaning surfaces or sewer lines. It can be used for other types of surface cleaning such as concrete, steel, castings and large surface areas including line removal from runways. It can be modified for internal cleaning of sewers and pipes of all types.

866-620-5915; www.nozzteq.com

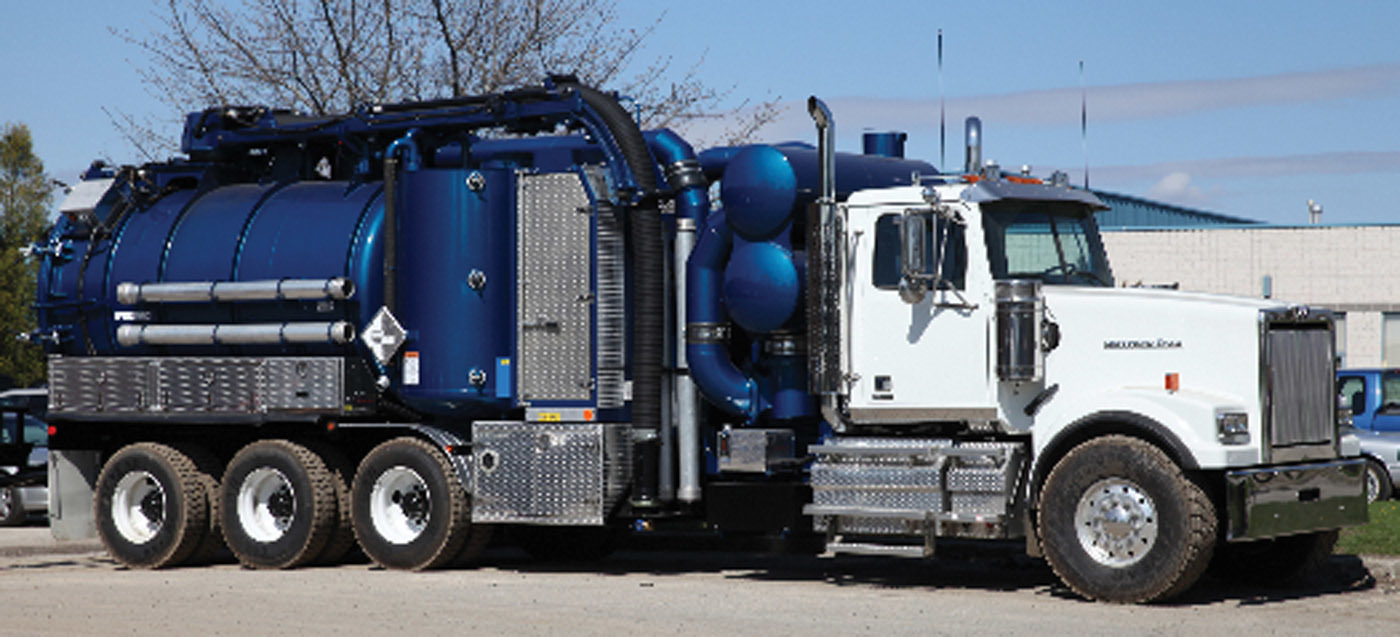

Presvac Systems hydrovac

The Presvac Systems hydrovac is designed for versatility and cold-weather operation with optional full compliance with Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank minimizing carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance, according to the maker. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.

800-387-7763; www.presvac.com

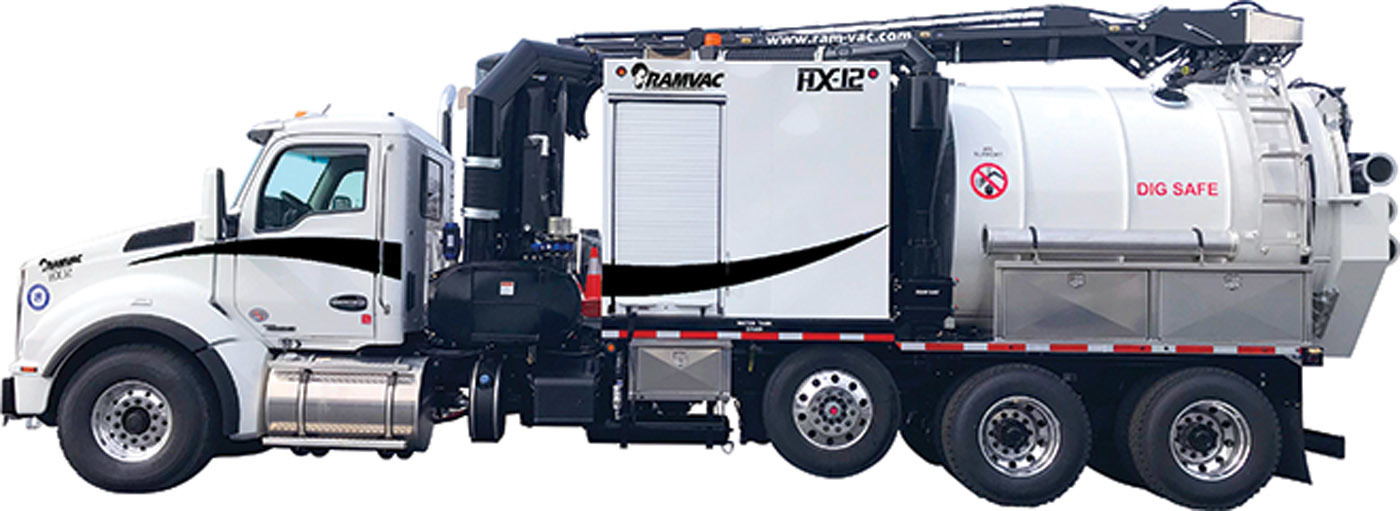

RAMVAC Vacuum Excavators by Sewer Equipment HX-12

The HX-12 hydroexcavator from RAMVAC Vacuum Excavators by Sewer Equipment has a 12-yard debris box and a standard 4,400 cfm blower designed to match the performance of larger blower machines while delivering fuel economy. Its directional discharge system allows the off-loading of debris back into the excavation site without the mess of dumping the tank and lets operators easily blow obstructions out of the dig tube without having to shut down vacuum operations. It is a true all-weather vacuum excavator, as all major water components, including plumbing, water tanks and water pump, are housed within a temperature-controlled environmental chamber to avoid water system freezing when working in subzero temperatures. It includes a long-range wireless remote, NEMA 4 electrical system, a 900,000 Btu water boiler and a three-stage cyclonic filtration system.

877-735-4640; www.ram-vac.com

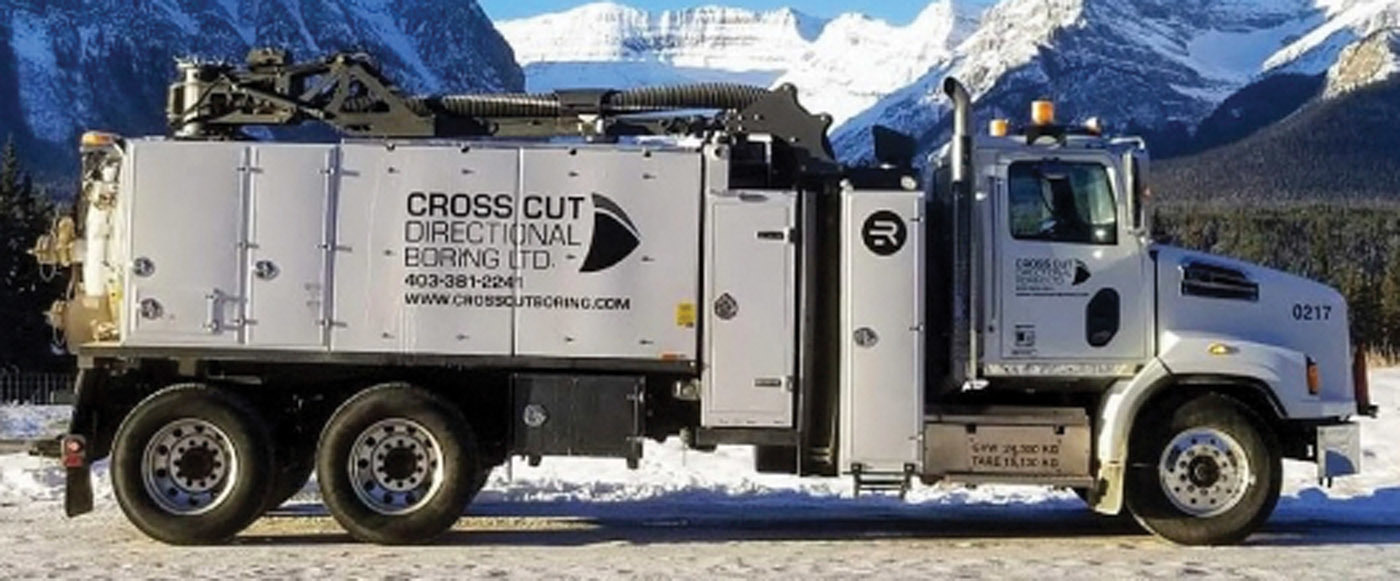

Rival Hydrovac T7 Tandem

The T7 Tandem hydrovac from Rival Hydrovac was designed primarily to be loaded with debris and driven within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weights prior to travel. It is operator-friendly, and the operating system is engaged through one PTO switch. The remainder of the operation occurs from the rear panel or the wireless remote. The components are high performance, and the unit will dig at levels competitive to large units, according to the maker.

403-550-7997; www.rivalhydrovac.com

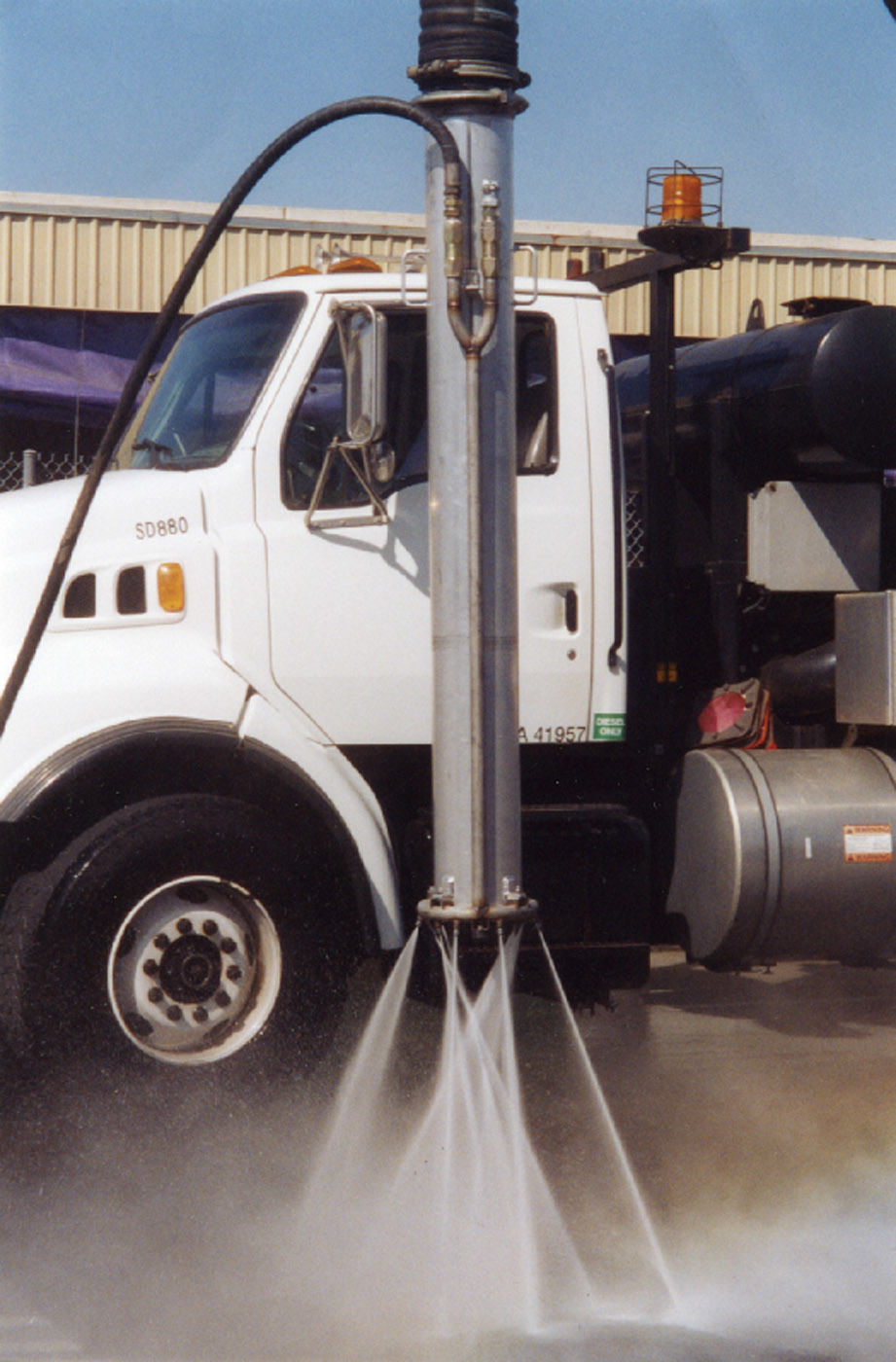

Soil Surgeon hydroexcavating tool

The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil, while six boring outward bring the tube down.

949-363-1401; www.soilsurgeoninc.com

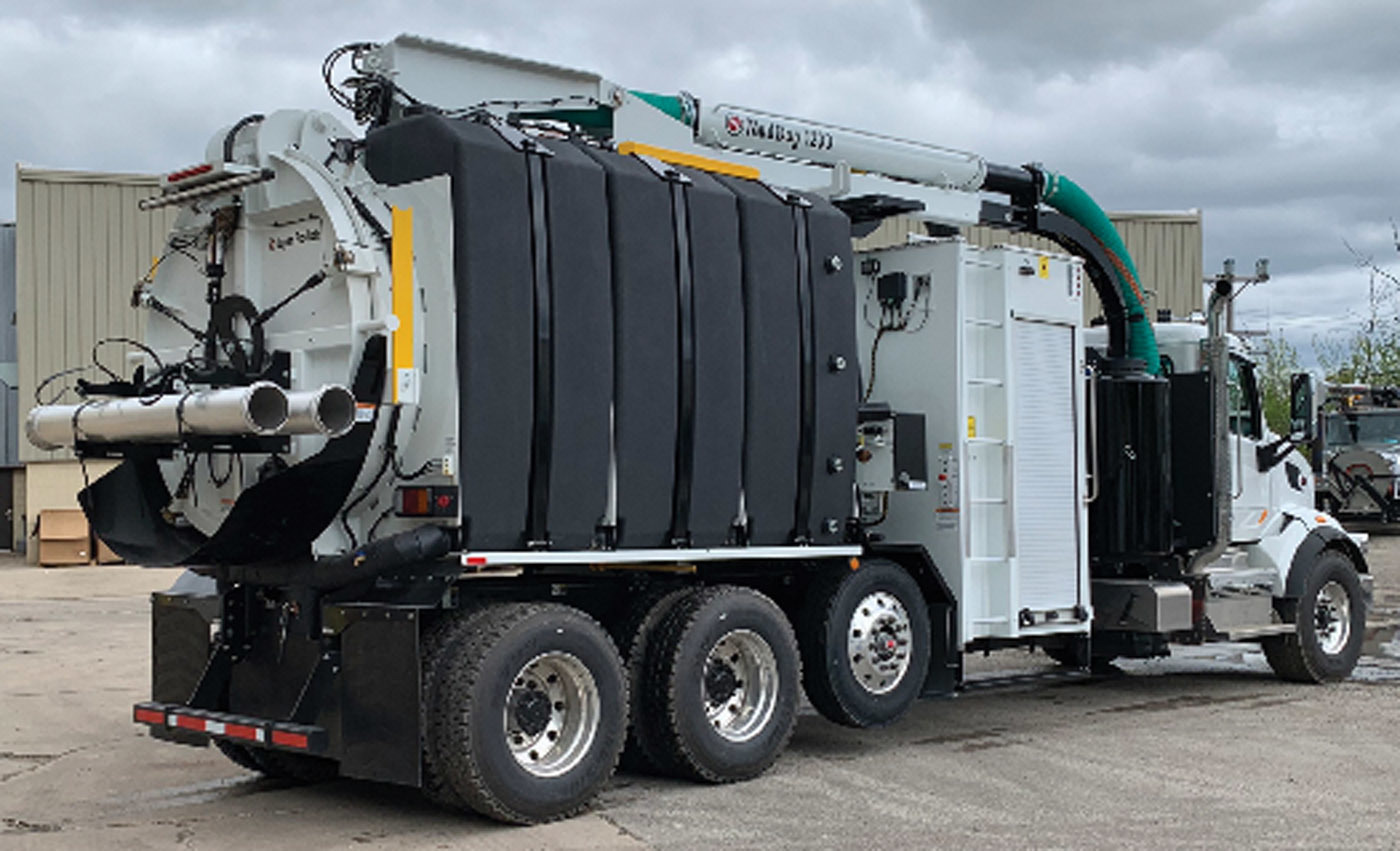

Super Products Mud Dog

The Mud Dog hydroexcavator from Super Products is designed for operator convenience and consistent performance in the harshest environments. It is available with an air excavation option, which allows the operator to always choose the best application, water or air, for the job. It is available with 12- or 16-yard debris capacity. Each model comes standard with tilt ejection unloading, which provides a safe dumping solution, and is equipped with a rear-mounted boom that can reach 27 feet and has 335-degree rotation.

 800-837-9711; www.superproductsllc.com

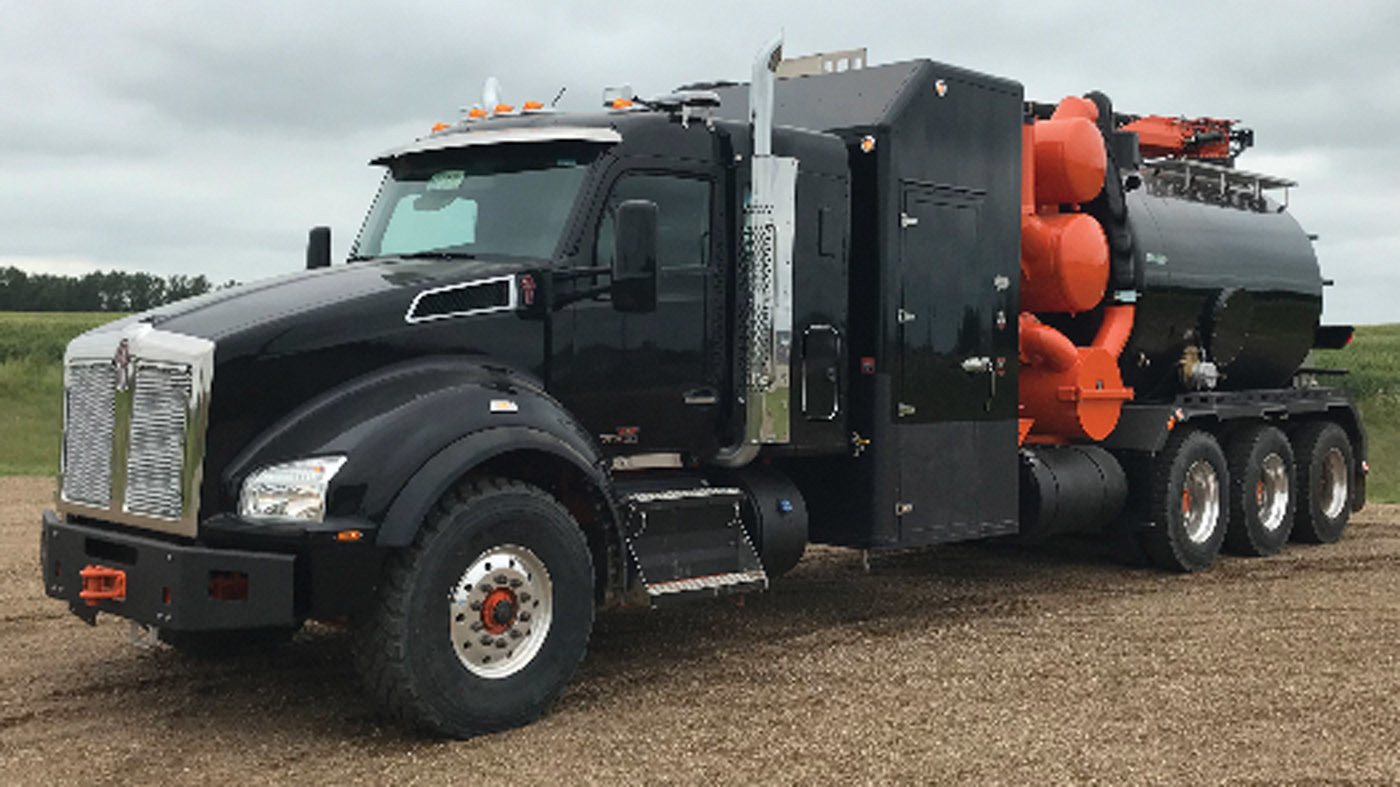

Tornado Global Hydrovacs F4 ECOLITE

The F4 ECOLITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and a 26-foot reach. The smaller F3 ECOLITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower.

877-340-8141; www.tornadotrucks.com

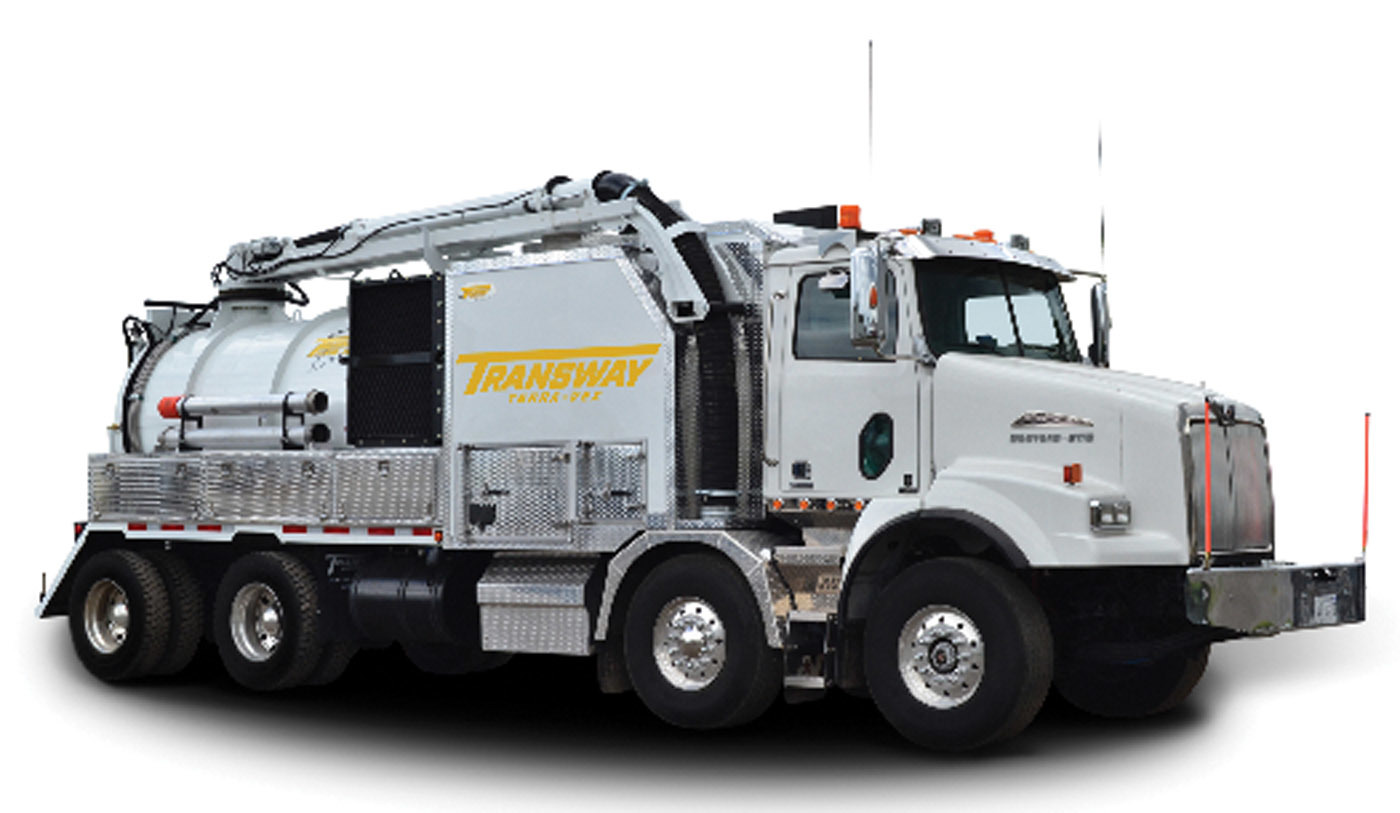

Transway Systems Terra-Vex HV38

The Transway Systems Terra-Vex HV38 has a 12-yard debris tank with onboard scales for efficient hauling and off-loading, complete with a 26-foot-by-8-inch telescopic boom. It has a one-touch-operated hydraulic half-door with a 3,800 cfm at 27 inches Hg hydraulically driven blower. Water pressure is achieved with a hydraulically driven triplex pump, delivering 10 gpm at 3,600 psi from a 1,000-gallon HDPE baffled water tank. The water is heated with a 420,000 Btu diesel-fired burner for cold-weather operation.

800-263-4508; www.transwaysystems.com

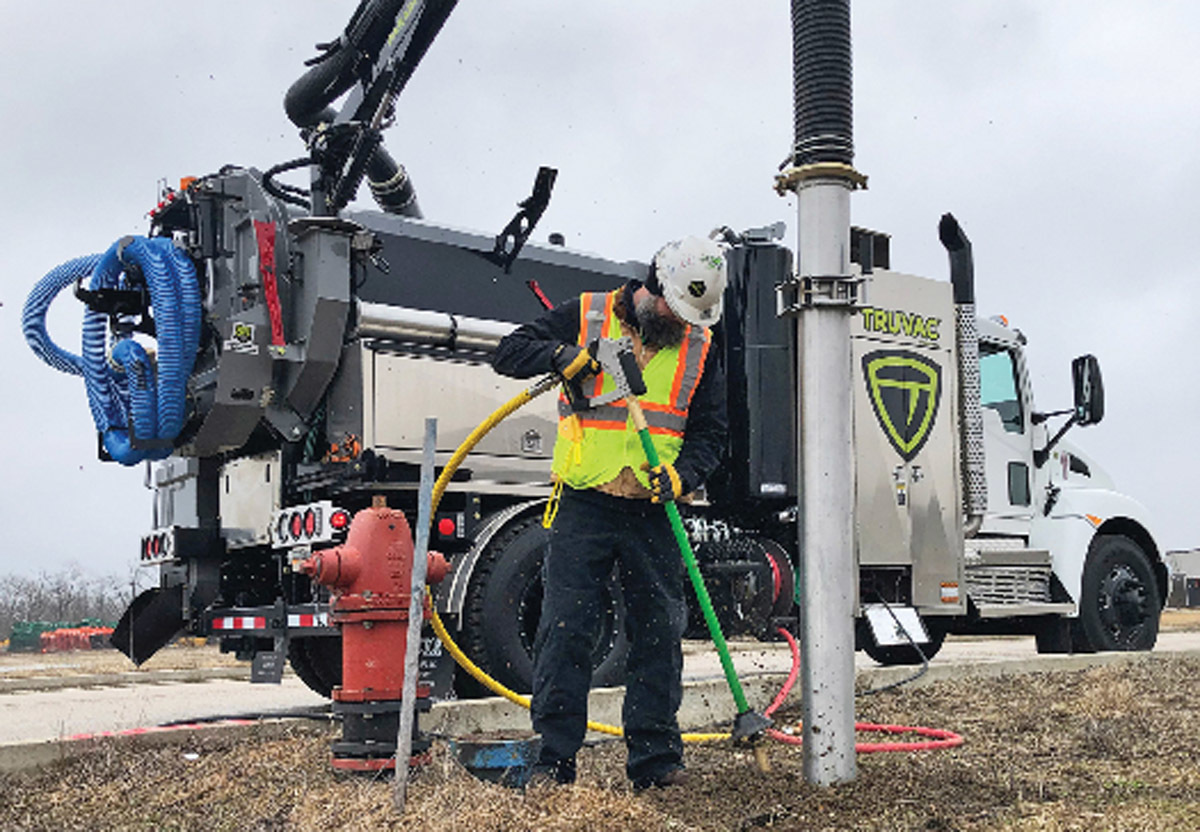

TRUVAC by Vactor Paradigm

Designed for utility, municipal and contractor customers involved in the installation, maintenance and repair of underground water, sewer, gas, electric and telecommunications lines, the Paradigm subcompact vacuum excavator from TRUVAC by Vactor can dig holes with water or air; vacuum, contain and dispose of drill mud; power pneumatic, hydraulic or electrical tools; and provide transport and storage of replacement parts, equipment and tools. The truck’s Park-n-Dig design minimizes time between job site arrival and excavation, including the ability to dig up to 6 feet without additional pipe and hose. The air compressor powers utility tools such as jackhammers and tampers. The truck offers tool storage space, including a long-handle toolbox. The truck can tow up to 20,000 pounds.

800-627-3171; www.truvac.com

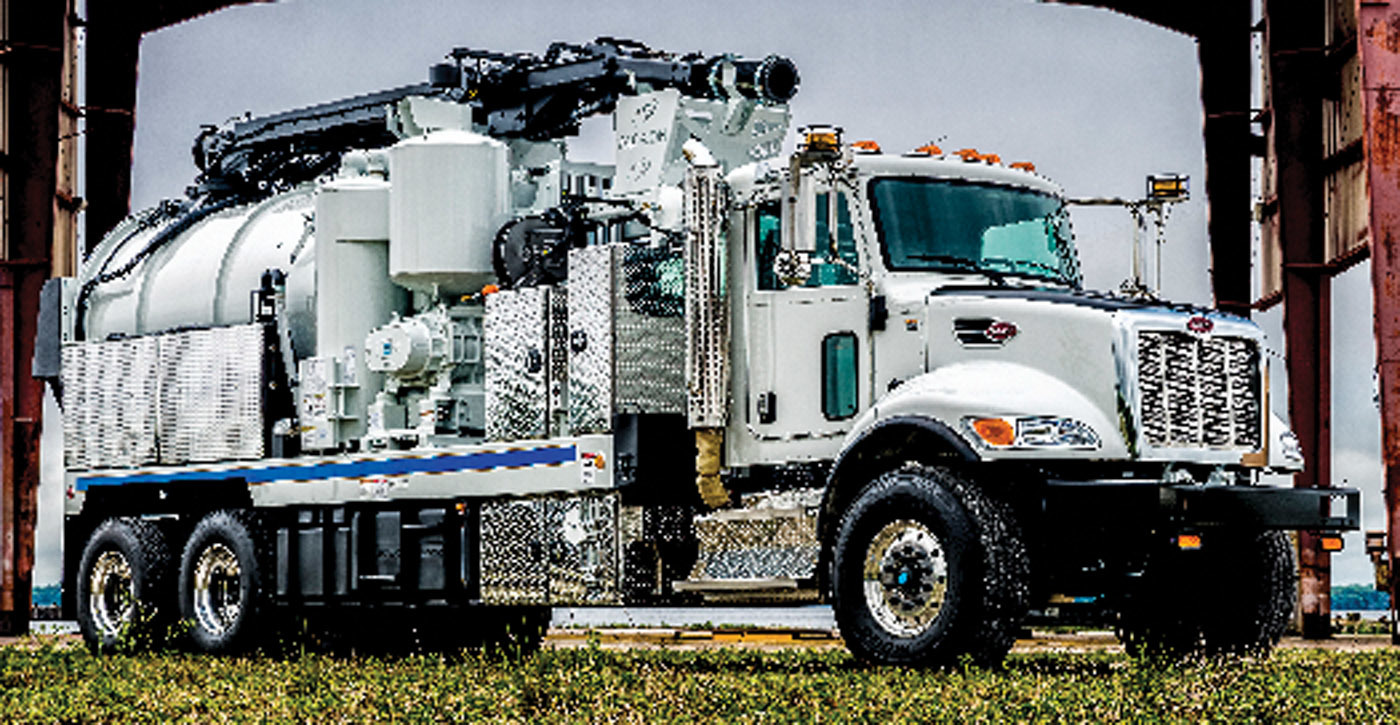

Vac-Con X-Cavator

The X-Cavator from Vac-Con is designed to be powerful, durable, efficient and easy to operate. It features a hydrostatic drive using the chassis engine for vacuum, eliminating the need for PTO, clutch and gearbox operation. It is available with water systems up to 4,000 psi and a mobile, wireless remote-control system for chassis engine revolutions per minute, boom, automatic vacuum breaker, dump controls and hydraulic door locks from up to a half-mile away. The boom rotates 270 degrees.

904-284-4200; www.vac-con.com

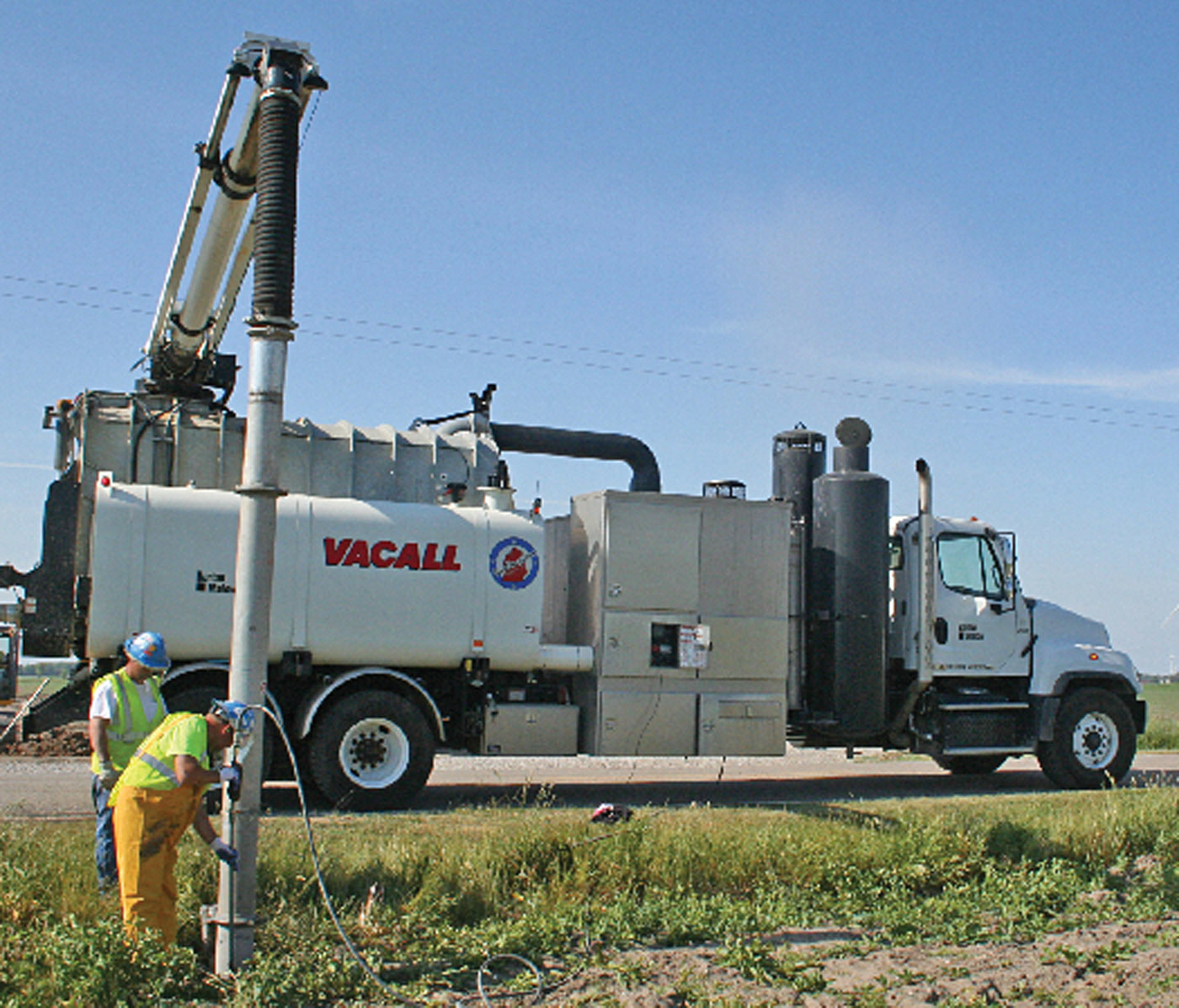

Vacall AllExcavate

Vacall AllExcavate hydroexcavators include AllSmartFlow smart controls to help conserve water during high-performance jet/vac digging around utilities and waterlines or while cleaning frac tanks and vessels. Single-engine efficiency helps conserve fuel and reduce emissions. It has a high-pressure water system with rheostat control to vary water volume and capacity output. A heated compartment protects the water system components from freezing. Its water tanks are made of high-quality aluminum for extra strength. Large, galvanized steel debris tanks are also available. A single control is used to open, close and lock the tailgate. It has double-cyclone filtration with a simplified design to reduce maintenance, extend performance and increase working life. Its rear-mounted boom front-loads debris. It is available with a cold-weather package.

800-382-8302; www.vacall.com


Inspection Equipment

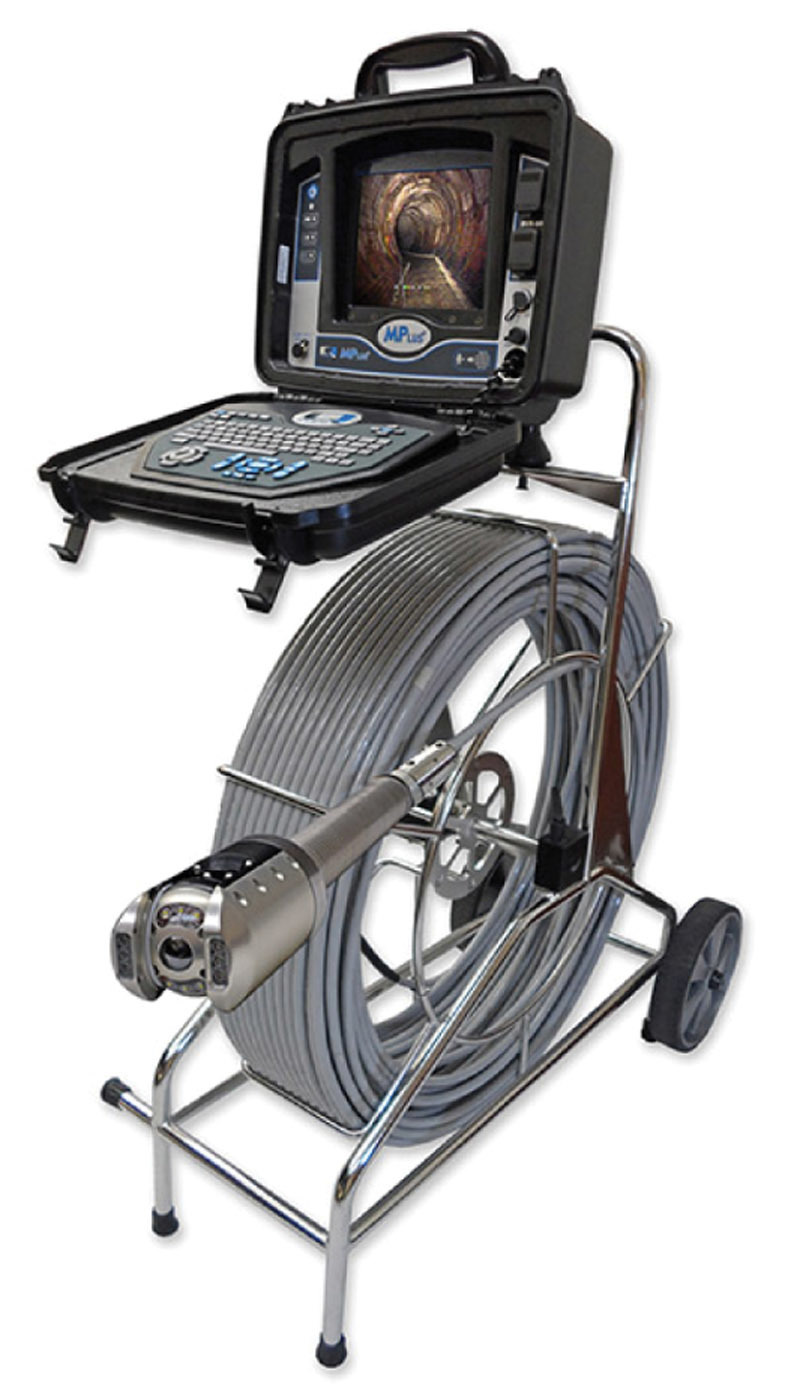

CUES MPlus+ XL

The CUES MPlus+ XL push system is designed for easy operation with an all-in-one setup and flexibility by quick removal of the control unit to be used separately. It includes a coiler configuration and pan-and-tilt camera for mainline and larger pipeline applications up to 500 feet. It integrates video observation coding, observation coding interface and digital recording. The lightweight system includes large, durable wheels for portability and a balanced footprint for stability. It is manufactured to handle rigorous field use.

800-327-7791; www.cuesinc.com

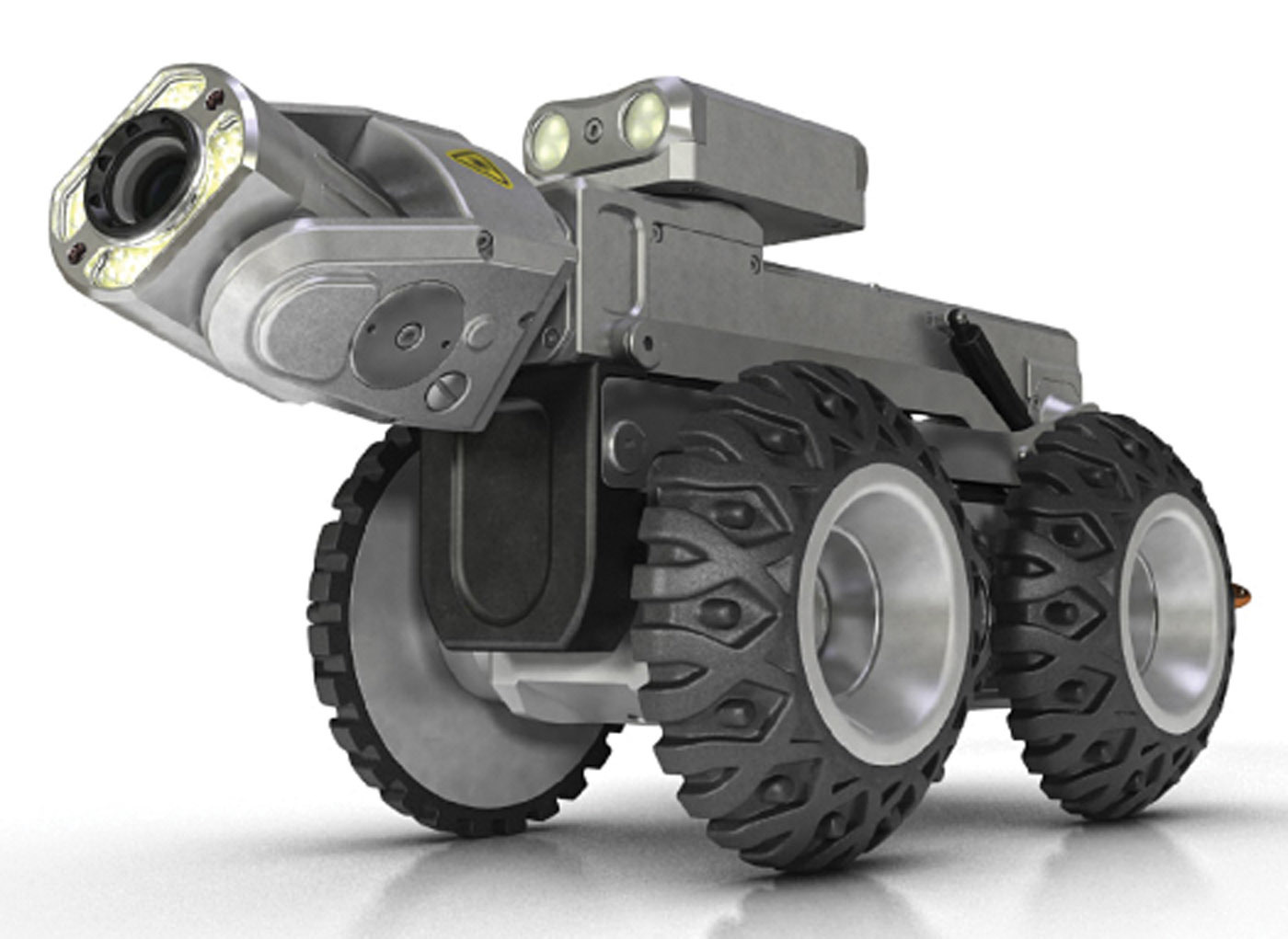

Envirosight ROVVER X

The ROVVER X inspection crawler from Envirosight lets an operator control inspections, view and record digital video, log observations, generate reports, and link directly to asset management software. All these capabilities are packed into a simple, three-piece layout, with no CCU or other components to clutter the workspace. Twelve-wheel options — plus camera lift, carriage and illumination accessories — mean it transforms in seconds to inspect any size line. The crawler is six-wheel drive with proportional steering to navigate past obstacles and has overlapping wheels to climb offsets. Powerful motors and a geared six-wheel drivetrain maximize travel range. It is built on an expandable digital backbone, with the ability to add side scanning and laser profiling, view data from onboard sensors, automate tasks with macros and measure defects on screen. Its firmware updates automatically to the latest features.

866-936-8476; www.envirosight.com

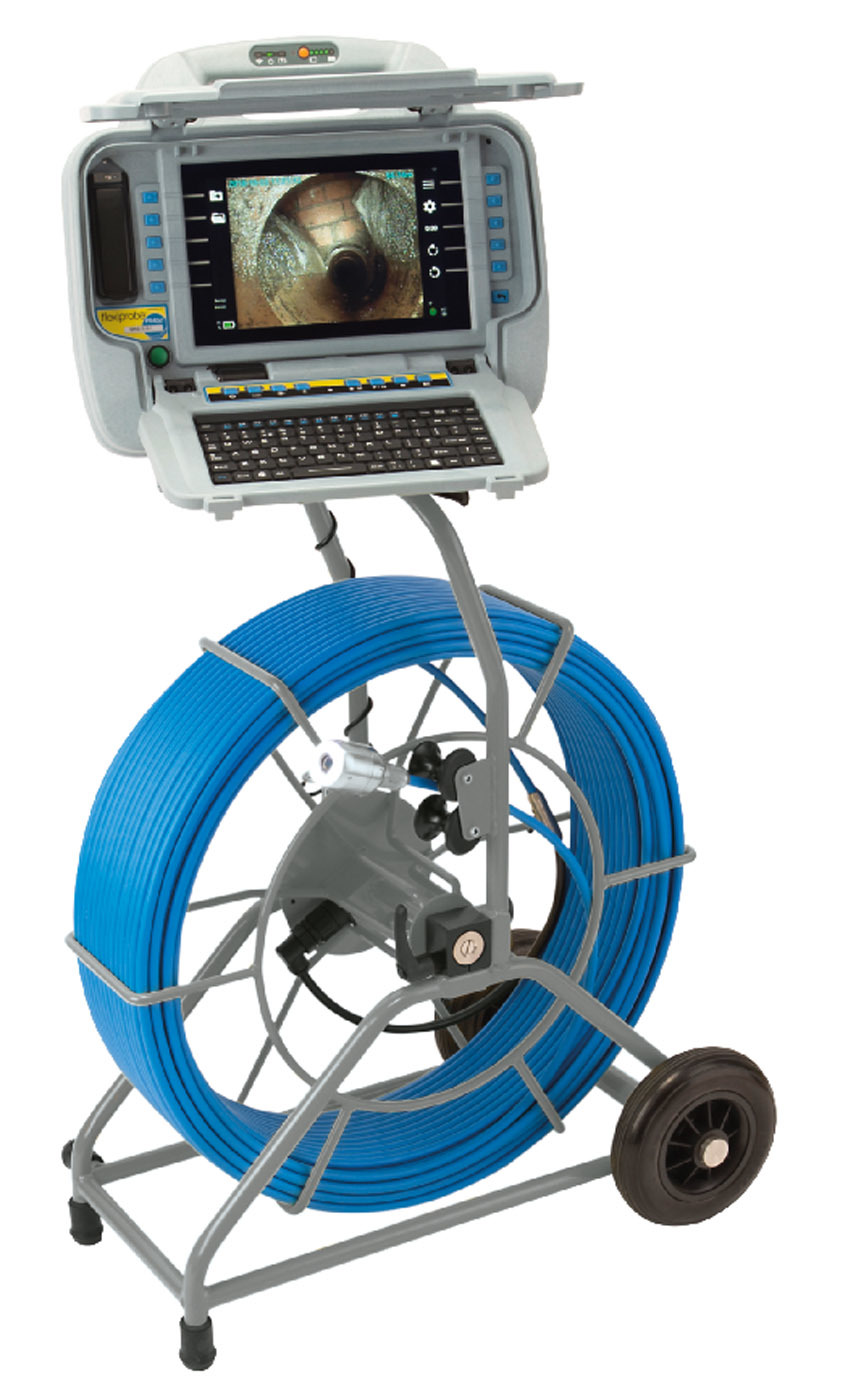

Pearpoint (USA) P540c

The Pearpoint (USA) P540c offers an intuitive graphical user interface with built-in user manual, a full-size QWERTY keyboard and a choice of six different languages at launch. Context-sensitive, ATM-style buttons on both sides of the display provide access to the easy-to-use menus while an additional seven buttons offer direct control of the most-used functions. It has the capability to use the newly designed command module with any reel system. This will provide customers the flexibility of having multiple rods for different uses while only needing one command module.

800-688-8094; www.pearpoint.com

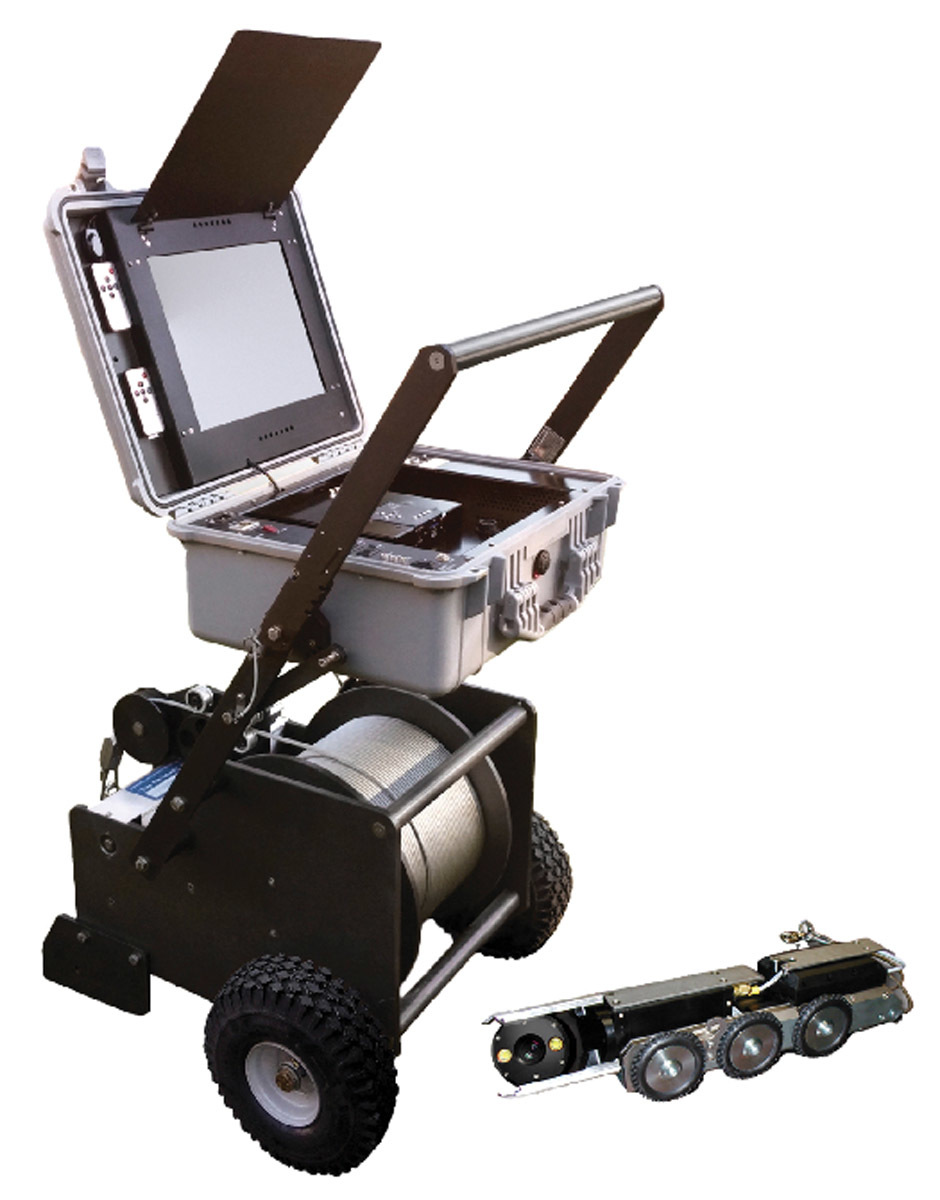

Subsite Electronics Private Eye II

The Private Eye II mainline inspection system from Subsite Electronics comes enclosed in a Pelican waterproof and crush-proof case. Weighing just 30 pounds, it provides extreme portability without sacrificing field durability. It is a suitable solution for easements, off-road manholes or any hard-to-get-to location. It is also suited for smaller municipalities or contractors needing the power and capabilities of a full mainline inspection system in a mobile package. It is compatible with all the company’s mainline cameras and tractors. When combined with the compact portable reel loaded with single-conductor cable, it can inspect 4- to 200-inch-diameter pipelines up to 1,000 feet in length.

800-767-1974; www.subsite.com

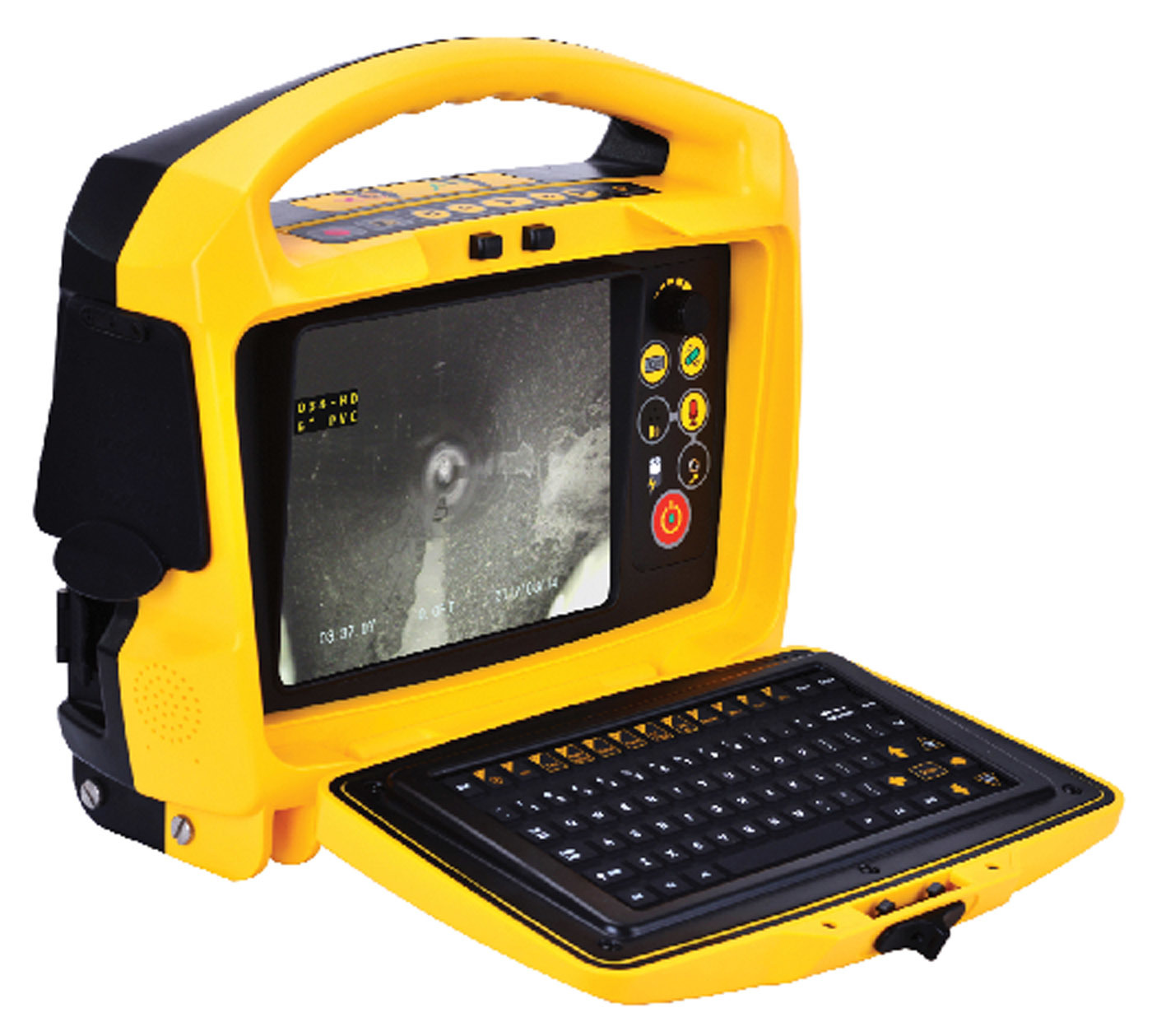

Vivax-Metrotech vCam-6

The vCam-6 HD inspection system from Vivax-Metrotech includes features such as text writer, voice-over, locatable sonde and traceable pushrod as standard equipment. The standard reel is available with 200, 300 or 400 feet of pushrod and choices of 1.3- or 1.8-inch self-leveling HD camera. The system includes a daylight-viewable control module with a 9.7-inch HD LCD monitor, distance counter and internal rechargeable batteries with five-plus hours of battery life. Video recording and JPG-format pictures can be saved to the internal 1 TB hard drive. The control module has built-in Wi-Fi to stream live video and snapshots to smartphone apps or directly to a computer for recording to the hard drive.

800-446-3392; www.vivax-metrotech.com


Pipe - PVC, Polypropylene, Polyethylene

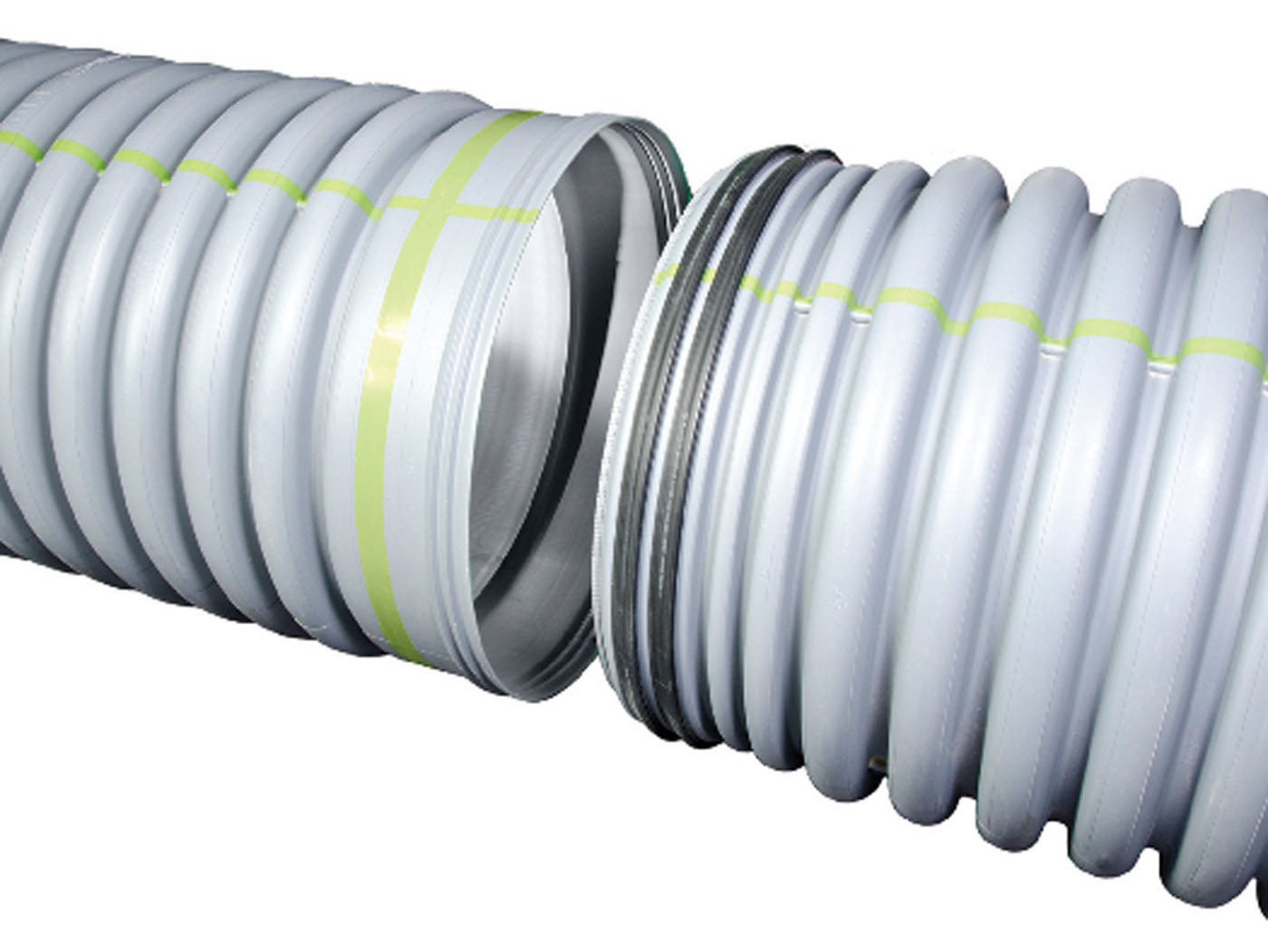

Advanced Drainage Systems HP Storm

HP Storm from Advanced Drainage Systems is a high-performance polypropylene pipe for gravity-flow storm drainage applications. It couples advanced polypropylene resin technology with a dual-wall profile design for performance and durability. The smooth interior wall offers additional strength as well as smooth flow. It has an extended bell that adds an additional factor of safety within each joint. It meets or exceeds typical standards for pipe stiffness and joint integrity, and it meets ASTM F2881 and AASHTO M330 for the respective diameters. It is approved for use by the Army Corps of Engineers, Federal Aviation Administration, and American Railway Engineering and Maintenance-of-Way Association.

800-821-6710; www.ads-pipe.com


Pipeline Rehabilitation/Lining

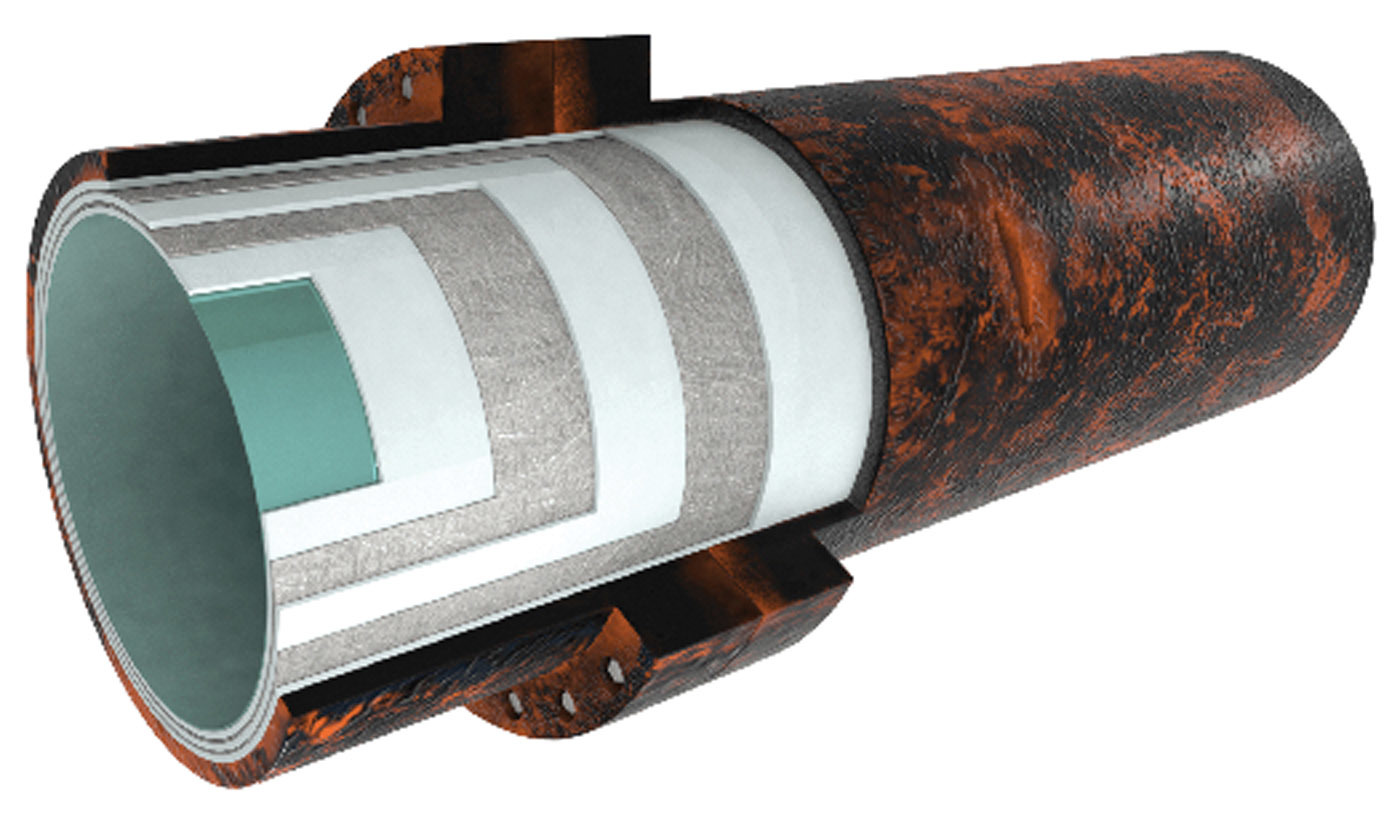

Applied Felts hybrid liners

Applied Felts hybrid liners combine fiberglass reinforcement with traditional felt liner material to provide strong, robust liners. These hybrid liners perform and install in the same manner as nonreinforced liners with the benefit of reduced thickness, delivering significant resin savings and ensuring a close fit and faster install. AquaCure RP, PS and PW fiberglass-reinforced liners provide strong physical and mechanical properties that meet or exceed ASTM and NSF 61 testing standards. The company’s traditional felt liners come in a variety of coating options for polyurethane, polypropylene or polyethylene.

276-656-1904; www.appliedfelts.com

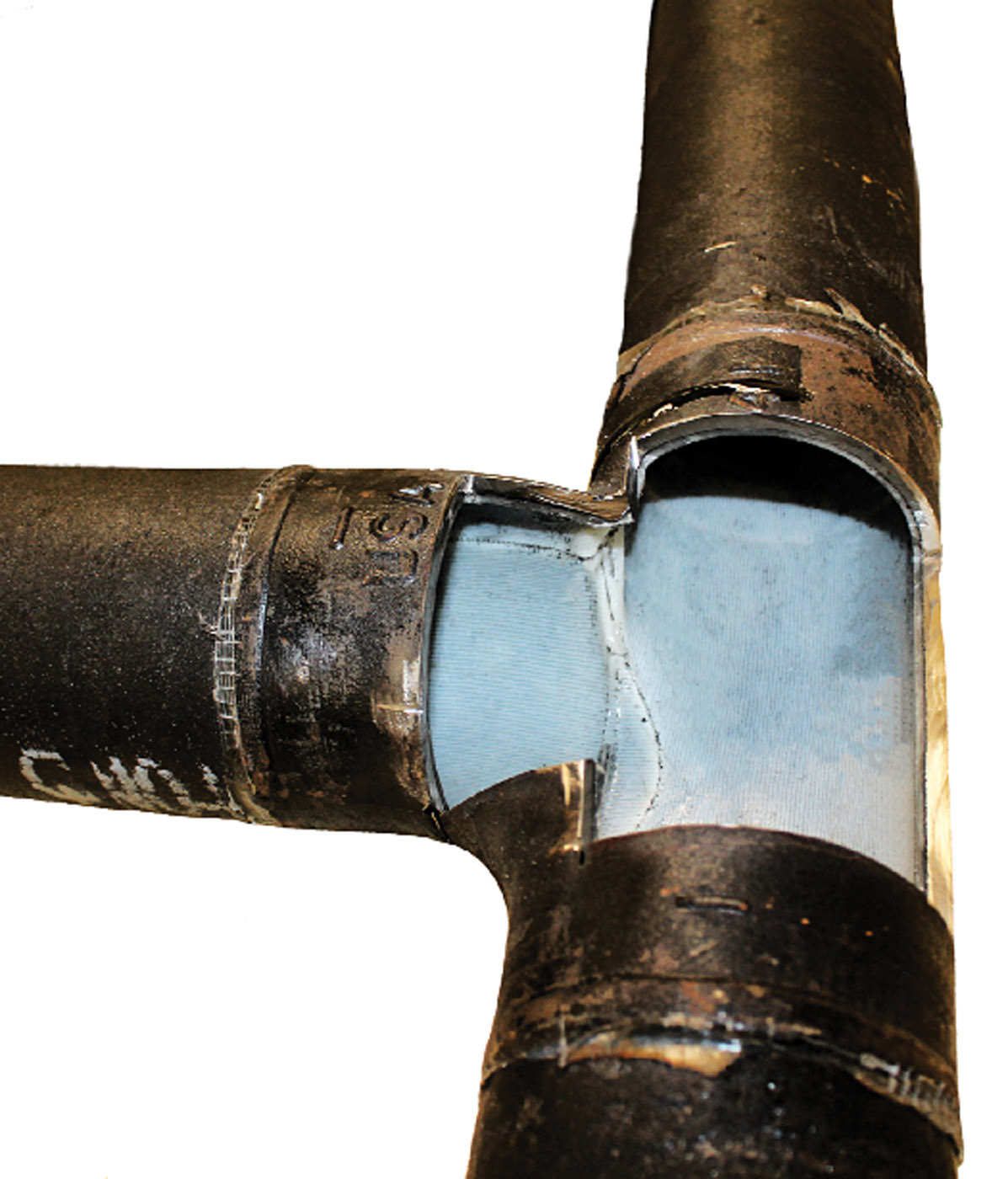

Perma-Liner Industries vertical connection lining system

Perma-Liner Industries’ vertical connection pipe lining system offers a way to approach and repair vertical pipelines in residential and commercial markets, making the process easier in less time. The system cures in one hour using a compact, electric steamer or vacuum pump. The system offers uniform thickness throughout. The host pipe does not need to be dry prior to installation, which lessens the installation and cure time. The materials come in kit form, eliminating measuring and waste, and an experienced crew can easily install five or more per day.

866-336-2568; www.perma-liner.com

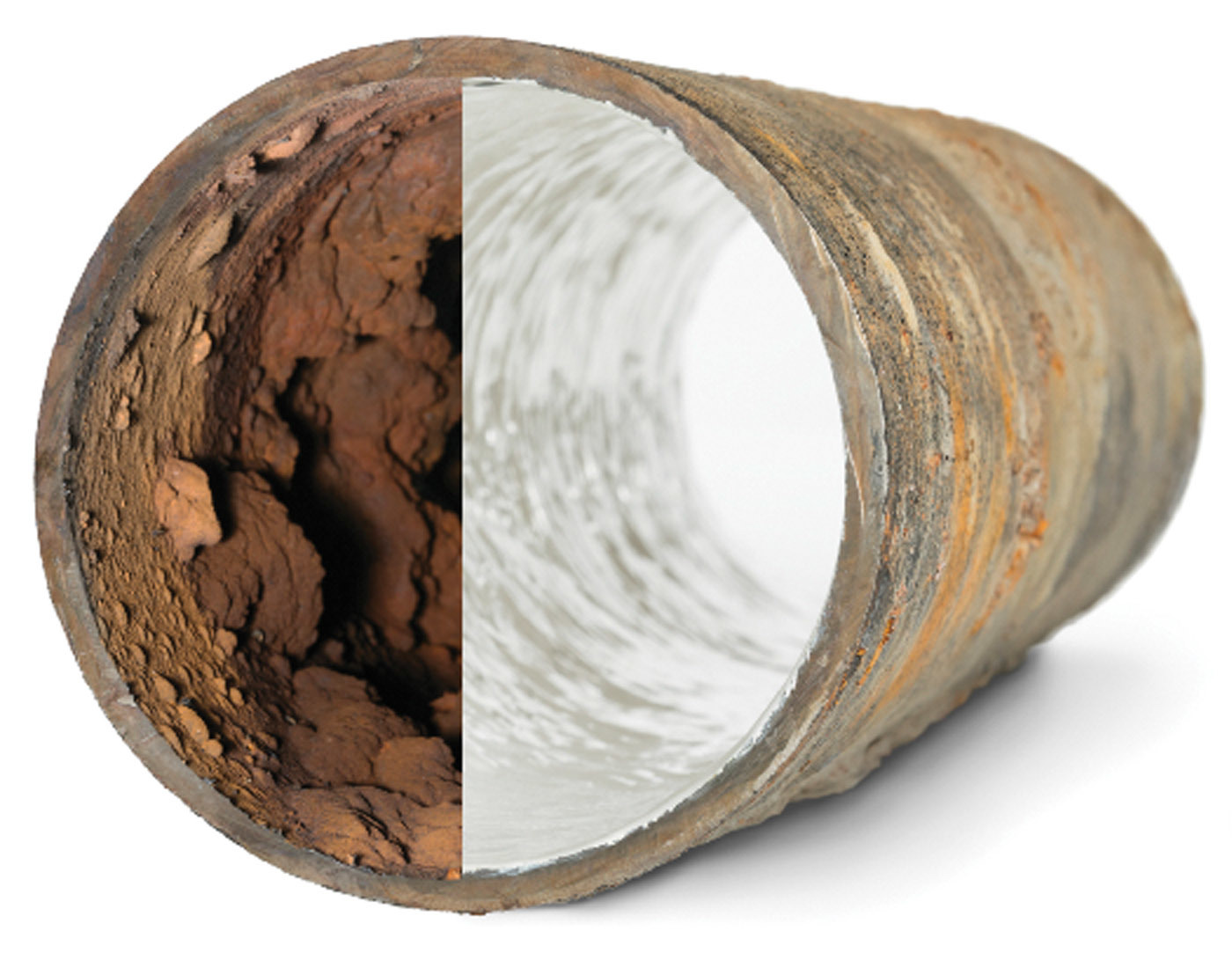

Picote Solutions Dual-Color Epoxy Brush Coating System

The Dual-Color Epoxy Brush Coating System from Picote Solutions allows technicians to rehabilitate pipes from 1.25 to 12 inches for drains, sewers, water pipes, electrical conduits, and heat and air-conditioning ducts by brush casting a coating. The coating resin forms a pipe inside the original pipe that is a tested, safe and environmentally friendly product. The new pipe is dampproof, corrosion-resistant, wear-resistant and noncorrosive. It is ASTM and NSF certified (NSF/ANSI 61-5). It is a 100% solids epoxy, and the method allows for clear visual verification during the application process. Apply to small areas or all drains in multistory buildings. The system is practical and easily fits in tight places.

219-440-1404; www.picotesolutions.com

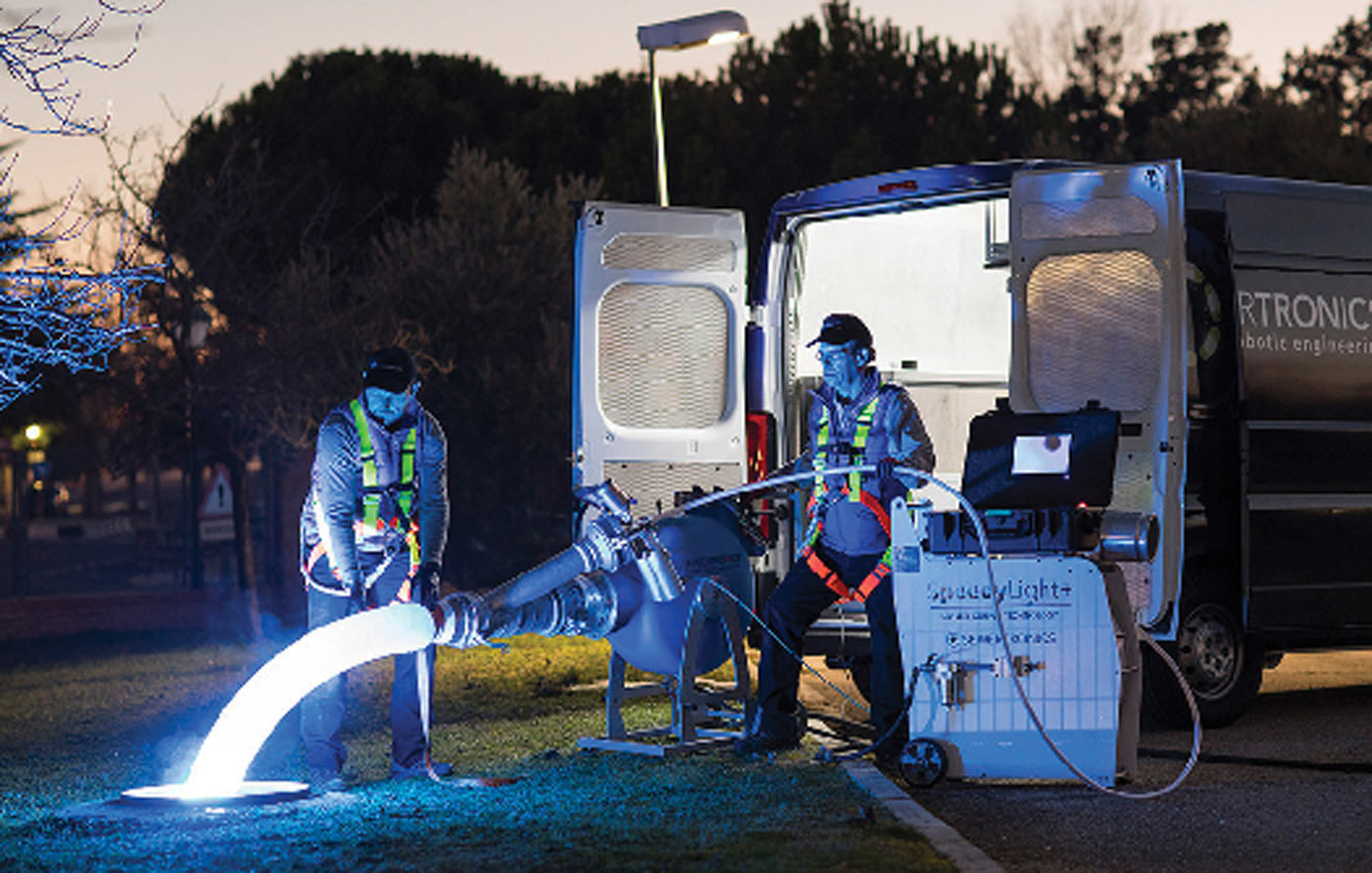

Pipeline Renewal Technologies SpeedyLight+

SpeedyLight+ from Pipeline Renewal Technologies is an LED-based UV solution for CIPP that cures at speeds ranging from 0.66 to 3.3 feet per minute. Because it’s compatible with felt (as well as invertible glass fiber), it can cure 90-degree bends in lines as small as 4 inches, as well as other challenging geometries like transitions and verticals. Free of styrene and amines (and the associated odor), UV-based cure technologies raise fewer objections from the public and a crew. The single-part vinyl ester resin requires no mixing and eliminates shelf life and working time challenges. It uses LED lamps to cure, drawing half the power of traditional UV technology while providing a more powerful cure. The integrated camera lets operators monitor the curing process in real time for optimal quality control. The highly portable design allows for access from even the most remote sites, curing up to 328 feet of liner in pipe 4 to 12 inches.

866-936-8476; www.pipelinert.com

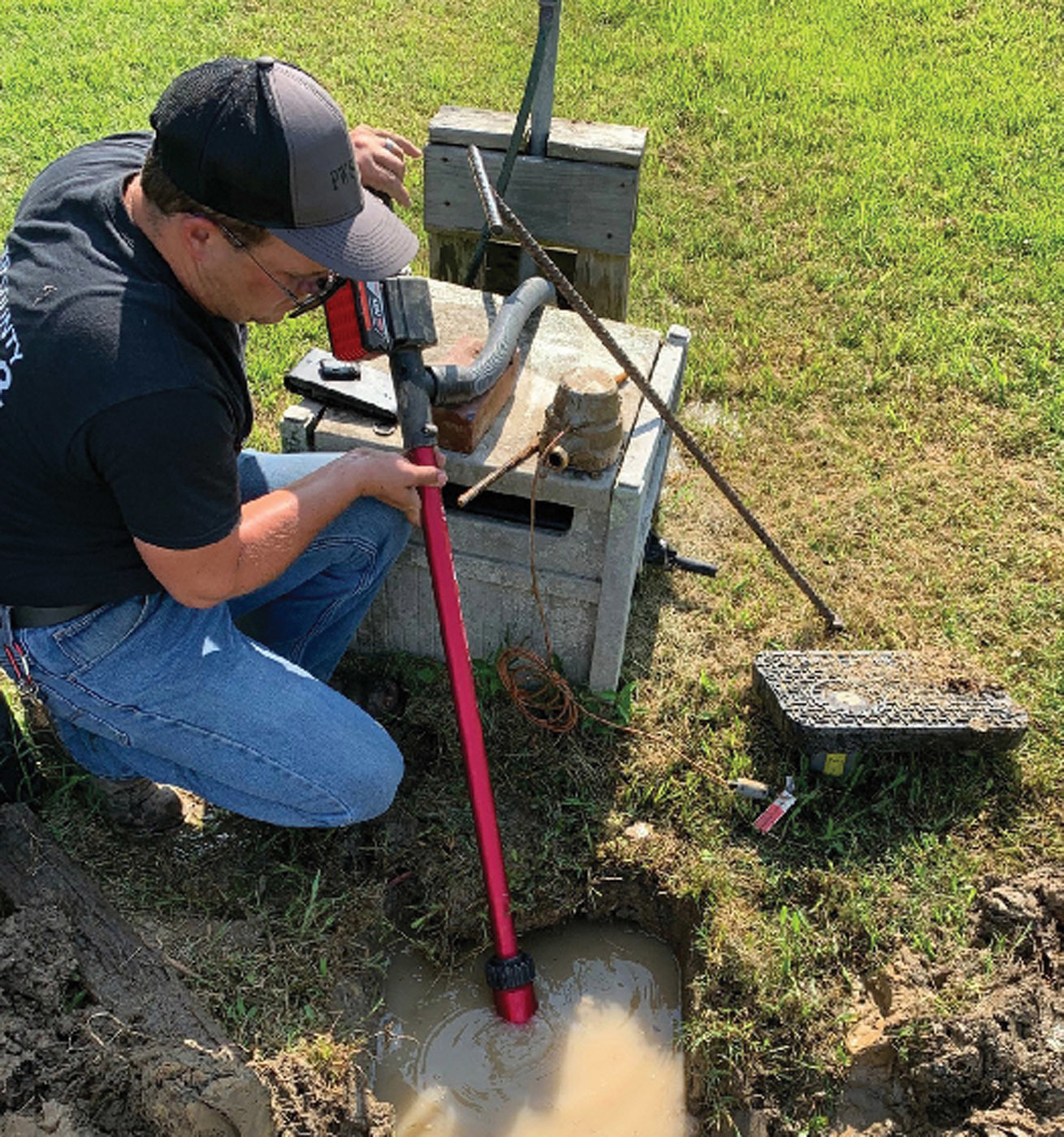

Reed Pump Stick

The Pump Stick cordless water transfer pump from Reed provides a portable, job site-friendly way to remove water. Applications for the battery-operated liquid transfer pump are numerous. It can be used with the operator’s own 18- to 20-volt battery by replacing the battery adapter plate with one designed for common, slide-style batteries. It has a hard shell, aluminum main body shaft; and to protect the impeller, choose from multiple screens, strainers and filters to find the right application. It comes with a 2-foot hose, with 4- and 7-foot hose extensions, plus a hose coupling available. Its long, slim design allows the operator to place the pump deep into small cavities. It can lift water up to 12 feet. A comfort grip handle at the top brings the pump to 4 feet for operational ease.

800-666-3691; www.reedmfgco.com

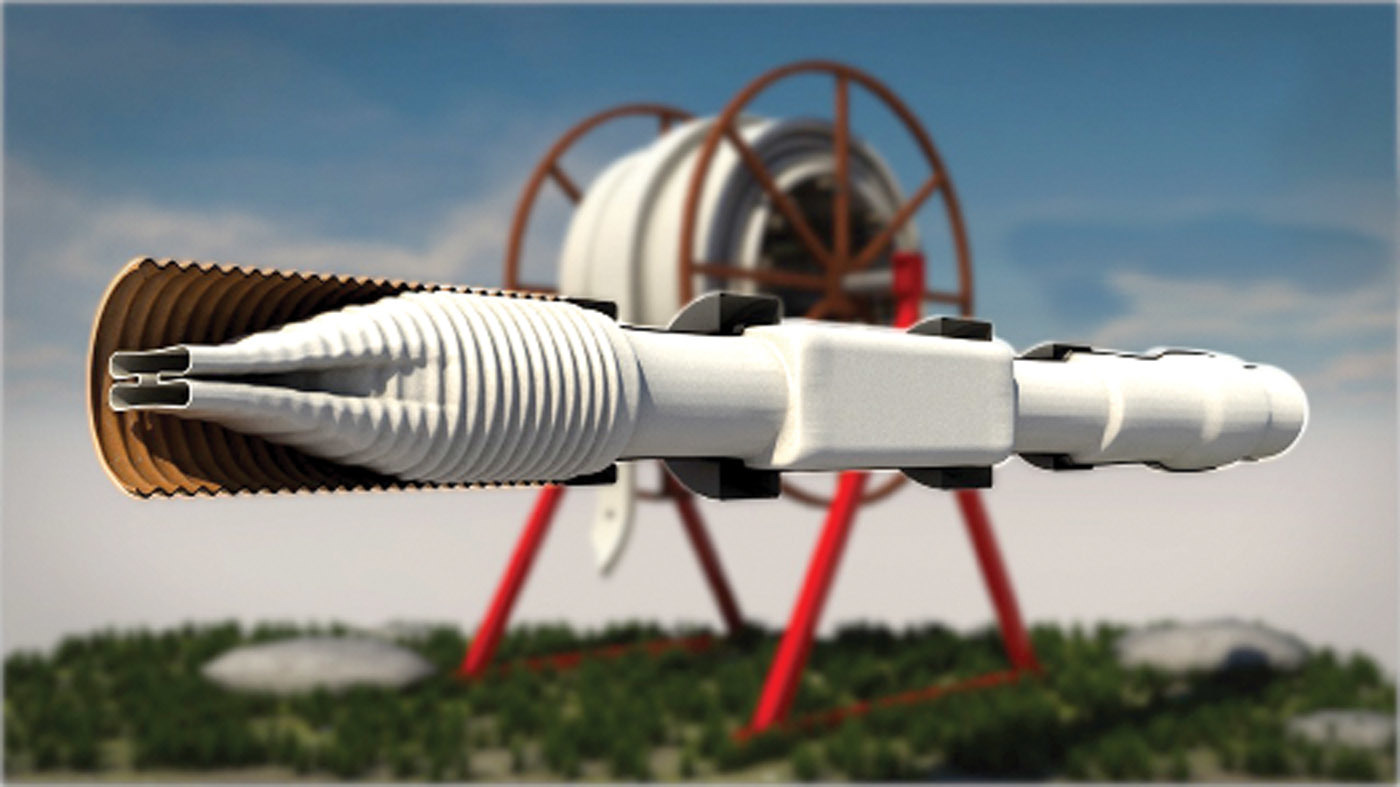

Warrior Trenchless Solutions Thermoform

Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest-quality work possible.

716-601-7760; www.thermoformliner.com


Trenchless Pipe Replacement

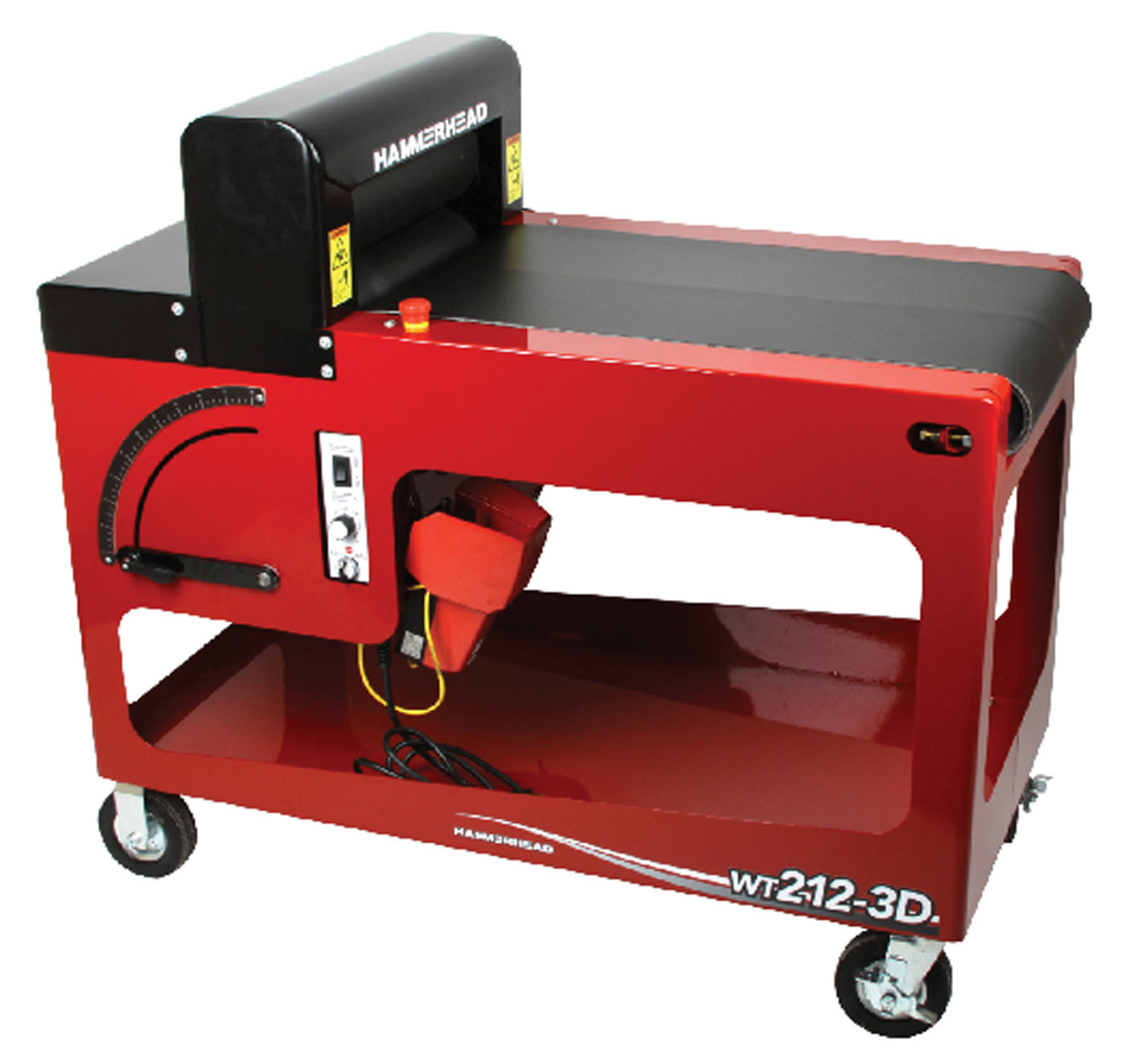

HammerHead Trenchless WT212-3D

The WT212-3D wet-out table from HammerHead Trenchless has a three-drive roller system and no-shim gap control that combine to deliver highly accurate and uniform resin saturation for quality CIPP installations. The latest CIPP curing methods, such as LED curing, require consistency in resin depth and saturation. The three-drive design of the unit powers rollers to reduce liner wrinkling. The smooth, automated operation delivers uniform wet-outs time after time. In addition, a quick-locking gap mechanism allows users to calibrate gaps between 5 and 15 mm, with more precision than shim-calibrated designs, to eliminate thickness variations in resin.

800-331-6653; www.hammerheadtrenchless.com

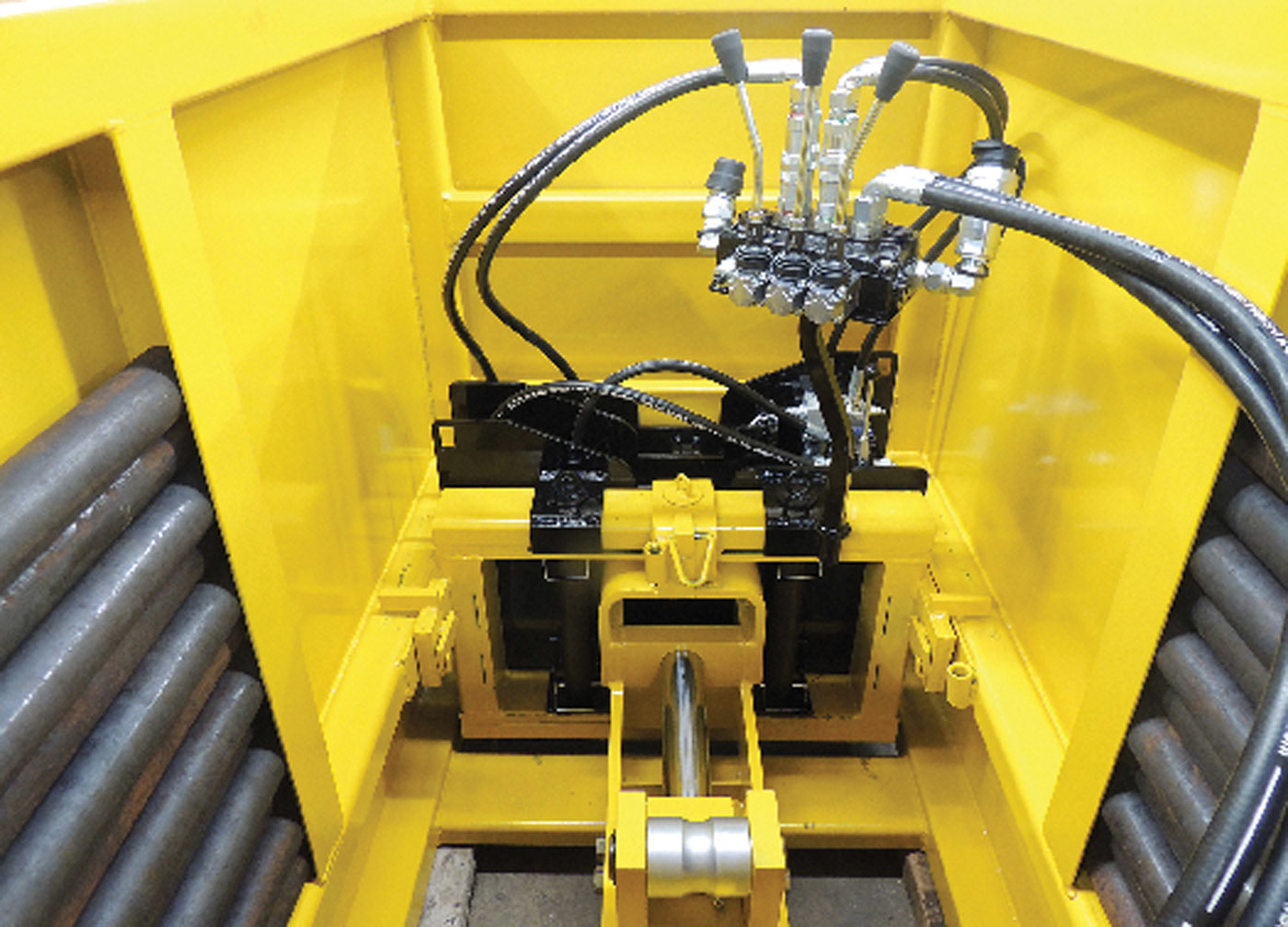

Pow-R Mole Trenchless Solutions Model P1-6RT

The P1-6RT mechanical rod turner from Pow-R Mole Trenchless Solutions integrates with the PD-6 Thrust Boring Machine and P1 Pusher Box to help install sewer pipes on grade and more accurately steer the bore to the target. It eliminates the need for pipe wrenches to turn the rods, making steering safer and more productive. It creates 4,500 ft-lbs of torque, allowing the operator to steer the boring machine up to 200 feet. Quick-disconnect hoses allow for fast and easy removal of the unit.

800-344-6653; www.powrmole.com
