Electronic Utility Locators

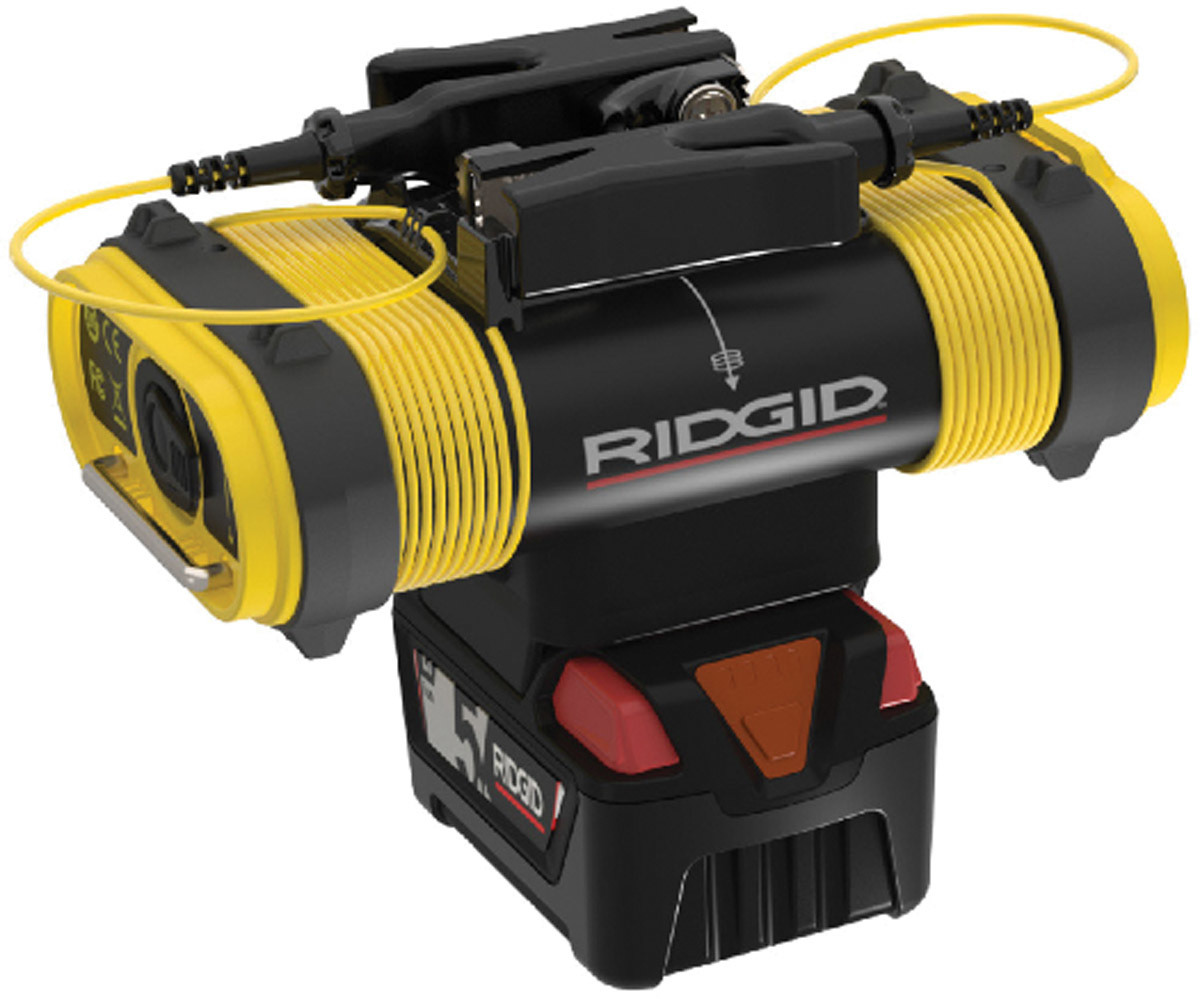

RIDGID SeekTech ST-305R Transmitter

The RIDGID SeekTech ST-305R Transmitter is a compact yet powerful multifrequency transmitter. It can be used with any SeekTech or NaviTrack receiver to find buried conductors such as pipes, cables, and wires. With its battery shoe, it can be powered by a lithium ion 18-volt rechargeable battery or six alkaline or NiMH C-cell batteries. It delivers up to 5 watts of power and transmits two frequencies simultaneously to allow optimal frequency selection. Audio feedback also confirms a good circuit before beginning a trace. 800-474-3443;

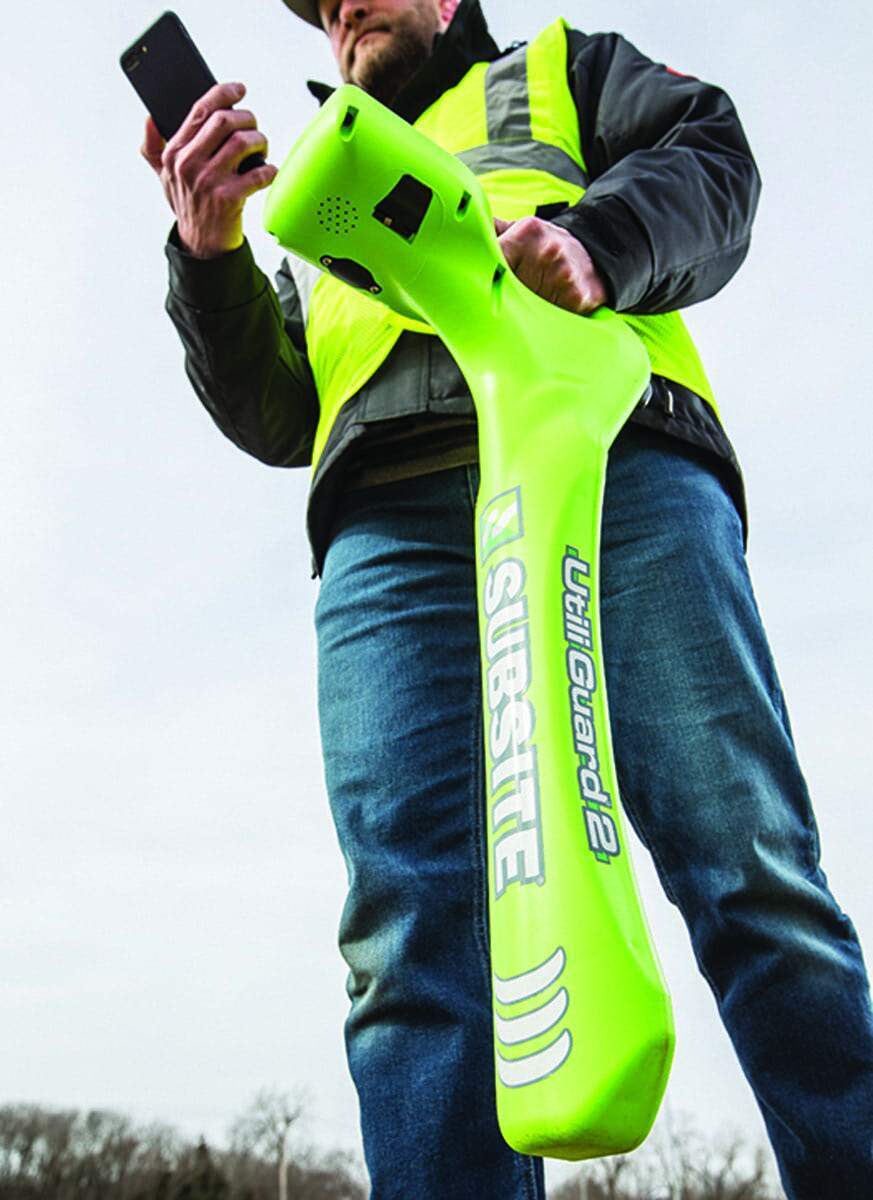

Subsite Electronics UtiliGuard 2

The Subsite Electronics UtiliGuard 2 is a multifrequency utility locator that takes the features of the original UtiliGuard and adds a user interface, integrated data capture and GPS positioning. The user interface has simplified graphics that are easier and faster to interpret. Operators will notice a change in screen layout when directly over a utility locate, providing positive confirmation. Screen graphics deliver increased operator confidence, locate consistency and operational performance. It automatically captures data without altering the operator’s normal workflow. This data can be used to verify performance and demonstrate quality and process compliance in the field. Supervisors can also track performance, compare it with benchmarks and enable actionable outcomes to be implemented. This reporting and auditing capability helps increase quality, reduce cable strikes and increase productivity across multiple crews. 800-846-2713;

Hydroexcavation Equipment

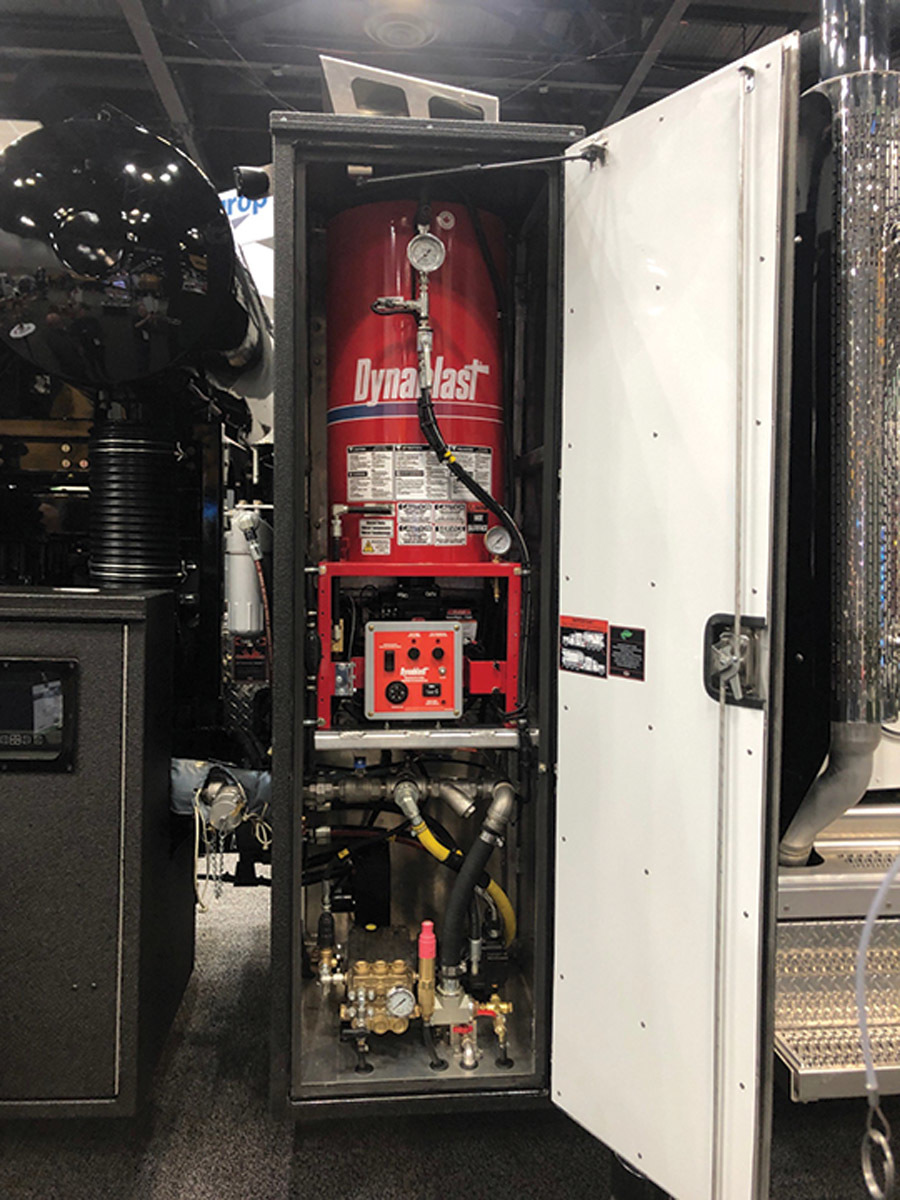

Dynablast HV420

Custom Dynablast HV420 hydrovac water heaters produce 420,000 Btus with an output temperature of 175 degrees F at 5 gpm, making them suitable for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, a stainless steel target plate for increased coil life and momentary override control. They include an Interpump Group T 2040 water pump package providing 10.5 gpm at 2,900 psi and 1,750 rpm, as well as a hydraulic package with Sunfab 34 cc motor. All components are custom-mounted in a 24-by-24-inch cabinet. 905-867-4642;

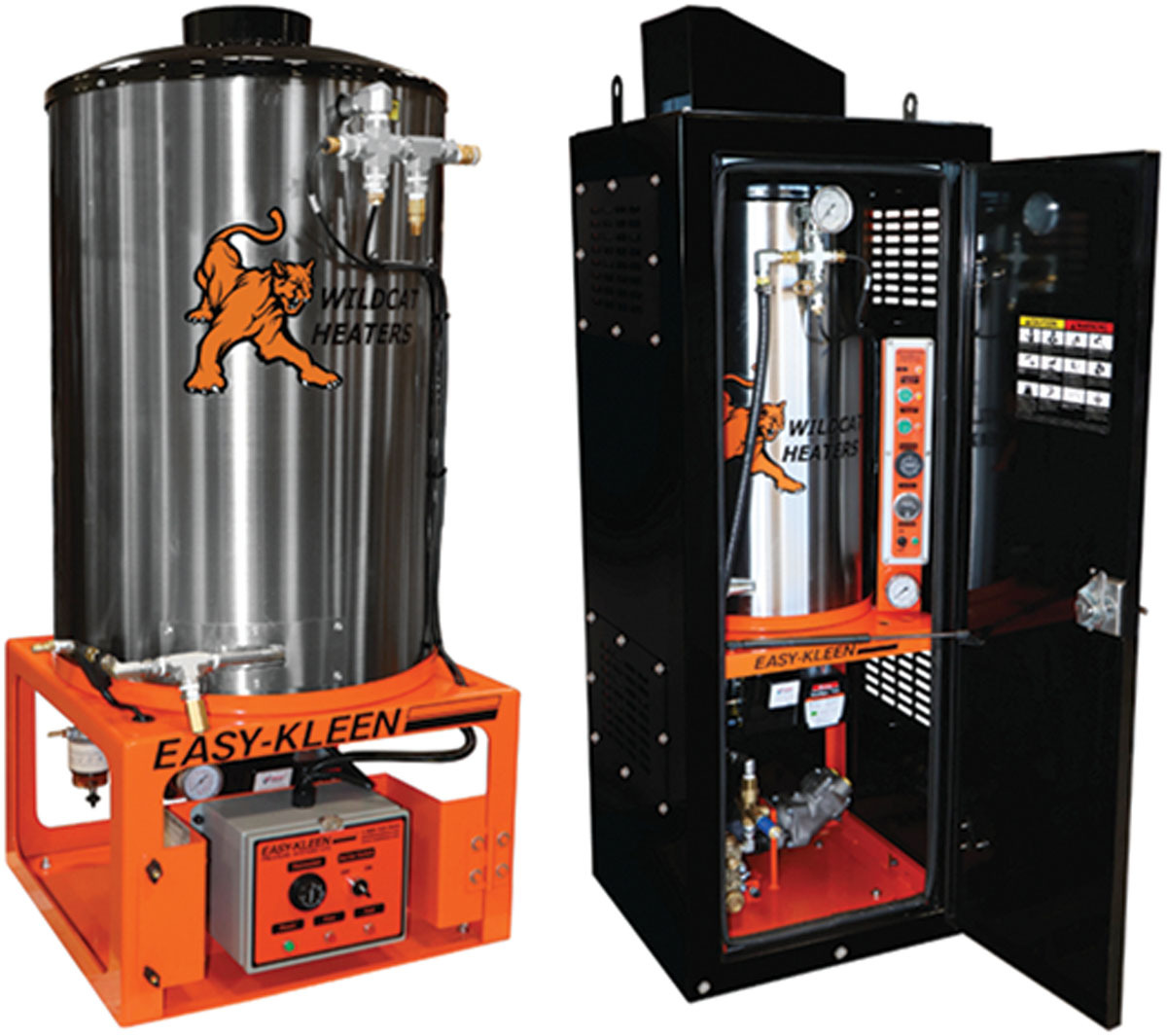

Easy-Kleen Pressure Systems Wildcat Heaters

Wildcat Heaters high-pressure, oil-fired hot-water/steam heaters and hydraulic pump systems from Easy-Kleen Pressure Systems are designed for reliability and efficiency and are installation-ready for vacuum trucks and hydroexcavators. A full range of heater options includes dry steam, redundancy packages, Schedule 80 and 160 stainless steel or A53 boiler pipe, fine-tuned temperature and flow-control systems. All coils are manufactured in-house, with CRN boiler-approved coils now available. Heaters can be designed for mounting in a cabinet or supplied as a completed cabinet unit. They are CSA and ETL approved. Hydraulic pumping systems are available. 800-315-5533;

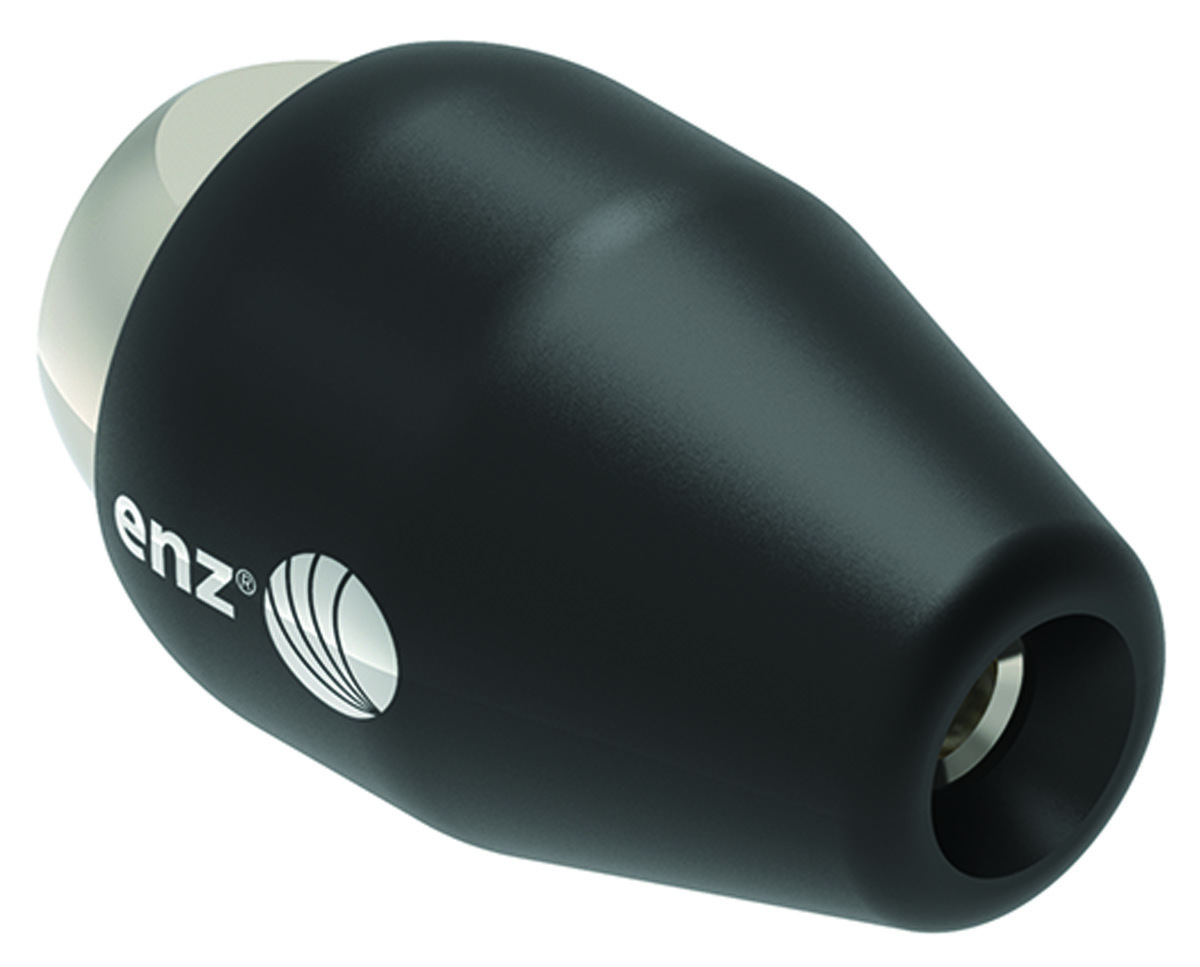

Enz USA Hydro X

The Hydro X nozzle from Enz USA is available in 3/8-inch NPT or 1/2-inch connecting threads, and it can function at up to 5,000 psi with flow as low as 8 gpm. It combines a powerful, oscillating water jet with a high removal rate of debris. A tungsten carbide front jet ensures a longer life than ceramic jets can offer. For quick and easy maintenance, a repair kit is available. Due to the nozzle’s simplicity, repairs can be made quickly and efficiently in the field with little downtime. For the operator’s safety, a plastic cover provides protection against harsh and sensitive environments. 888-369-8721;

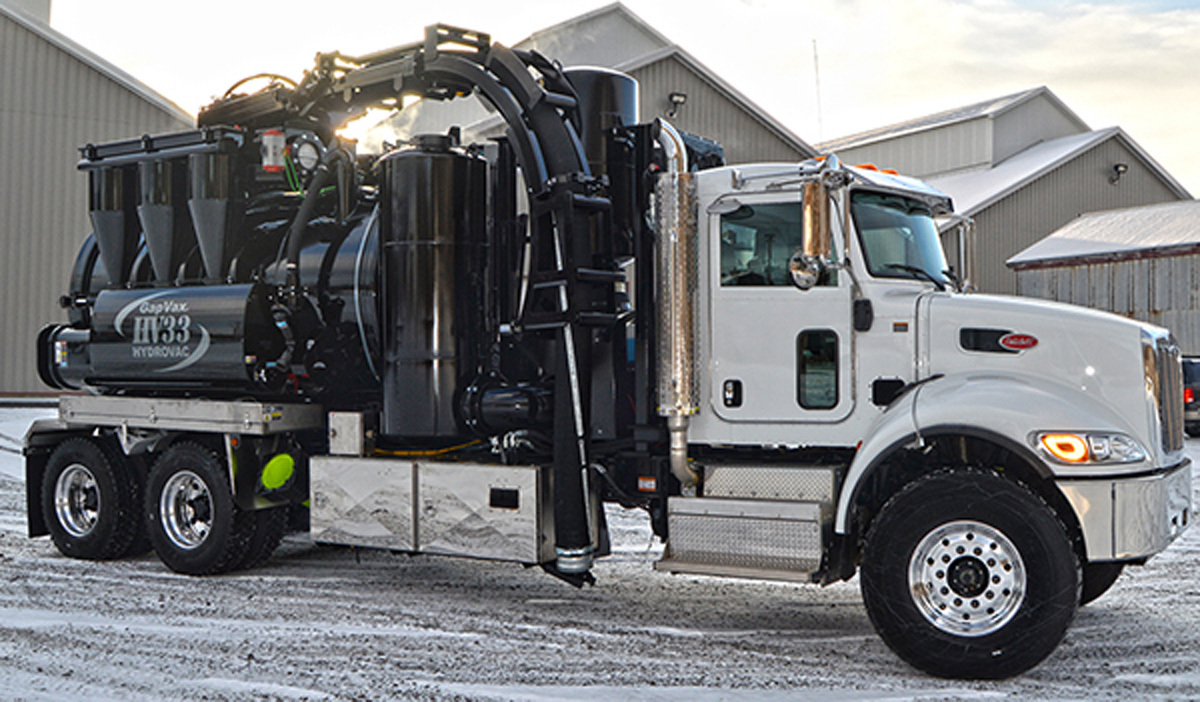

GapVax HV33

Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate. 888-442-7829;

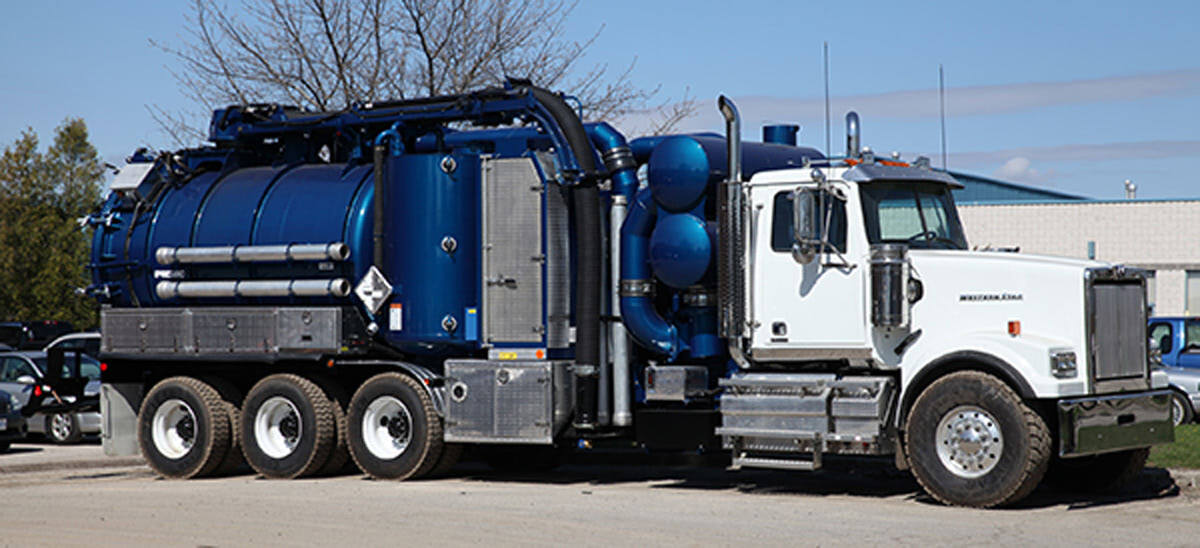

Presvac Systems Hydrovac

The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank minimizing carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance, according to the maker. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed. 800-387-7763;

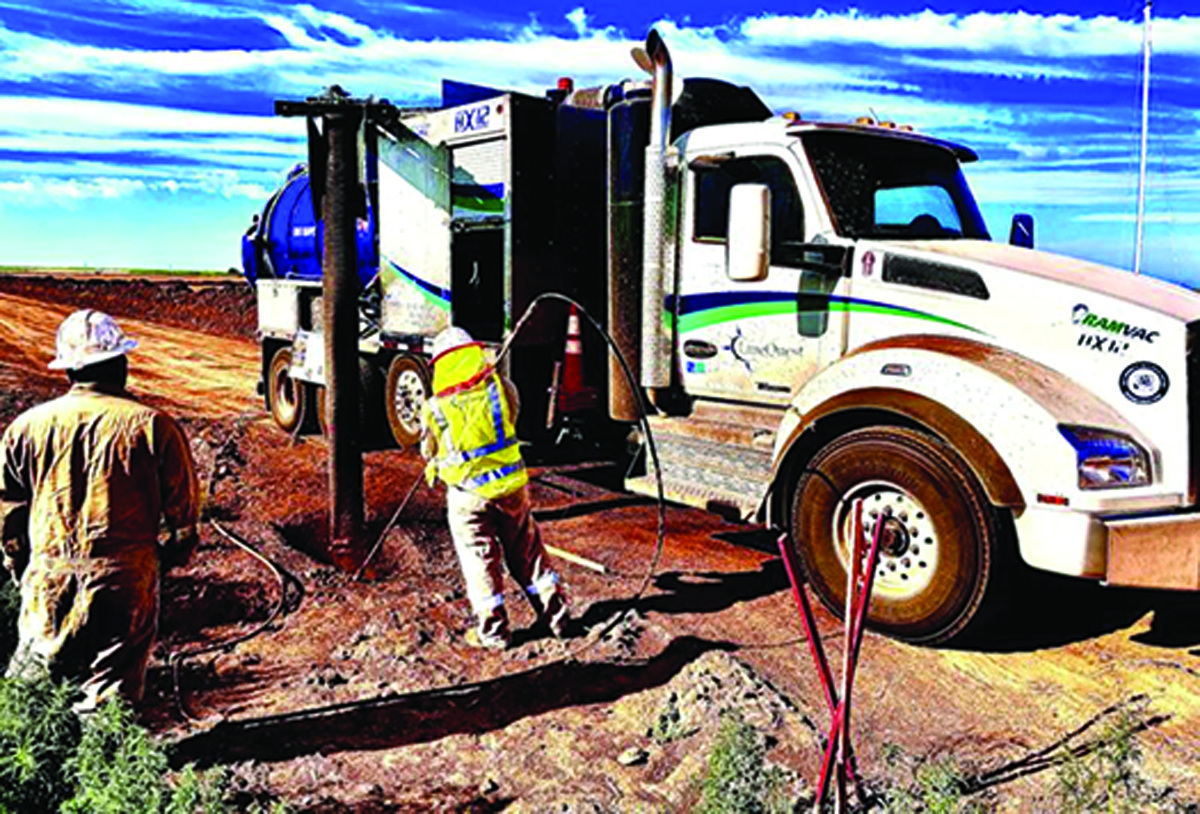

RAMVAC by Sewer Equipment HX-12

The HX-12 hydroexcavator from RAMVAC by Sewer Equipment has a 12-yard debris tank and a heated, secured equipment locker that contains the entire water system, including water tanks, for cold weather application and tool security. This machine touts a directional discharge system with the ability to offload debris back into the excavation site when done, without the mess of dumping the tank. This system also allows operators to blow any obstructions out of the dig hose and get back to work. It includes a long-range wireless remote, NEMA 4 electrical system, an 800,000 Btu water heater and a three-stage cyclonic filtration system. The standard 4,400 cfm blower will match the performance of larger blower machines, while delivering fuel economy, with the ability to go up to 5,400 cfm. The series offers debris capacities from 3 to 15 cubic yards while maintaining a short overall footprint. 877-735-4640;

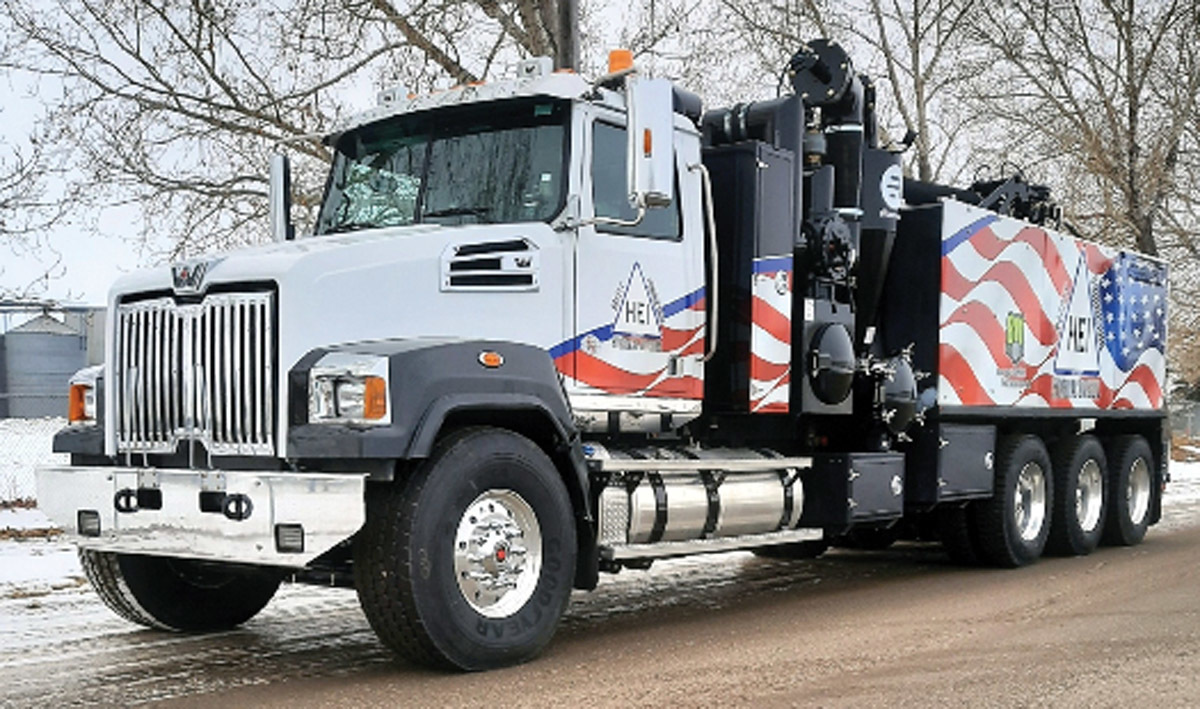

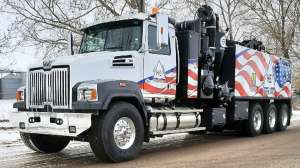

Rival Hydrovac T10

The T10 from Rival Hydrovac is a larger version of the initial Rival T7 unit, which has become a suitable choice for many urban contractors who are aware of the trending weight restrictions on these types of trucks and realize the need to bring these trucks into compliance when driving on roads to disposal. It operates in the same manner as the T7, as it is fully hydraulic, eliminating the need for a transfer case, and aside from engaging one PTO, the entire truck is operated from the remote and rear panel. This unit features the same “pressure off” feature as the smaller units and has essentially the same controls. 403-550-7997;

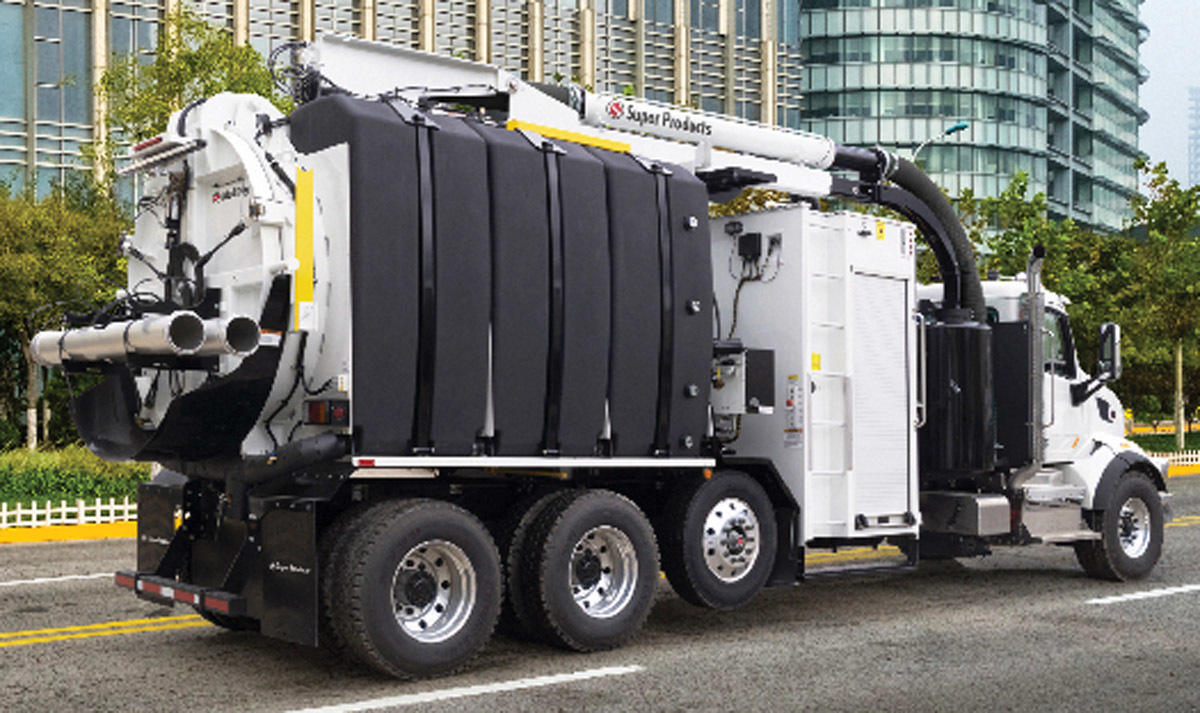

Super Products Mud Dog

The Mud Dog vacuum excavator from Super Products provides a safe and efficient alternative to traditional digging. It is designed for operator convenience and consistent performance even in the harshest environments. Units come standard as hydroexcavators with an optional air excavation package, which allows an operator to always choose the best application, water or air, for the job. It is available with 12- or 16-yard debris capacity and has a 1,500- to 2,000-gallon water tank capacity. Each model comes standard with tilt-ejection unloading, and a rear-mounted boom that reaches 27 feet, has 335-degree rotation and can move in a 45-degree upward and 25-degree downward pivot. This allows for versatility within dig areas so that units do not need to be constantly readjusted into position. 800-837-9711;

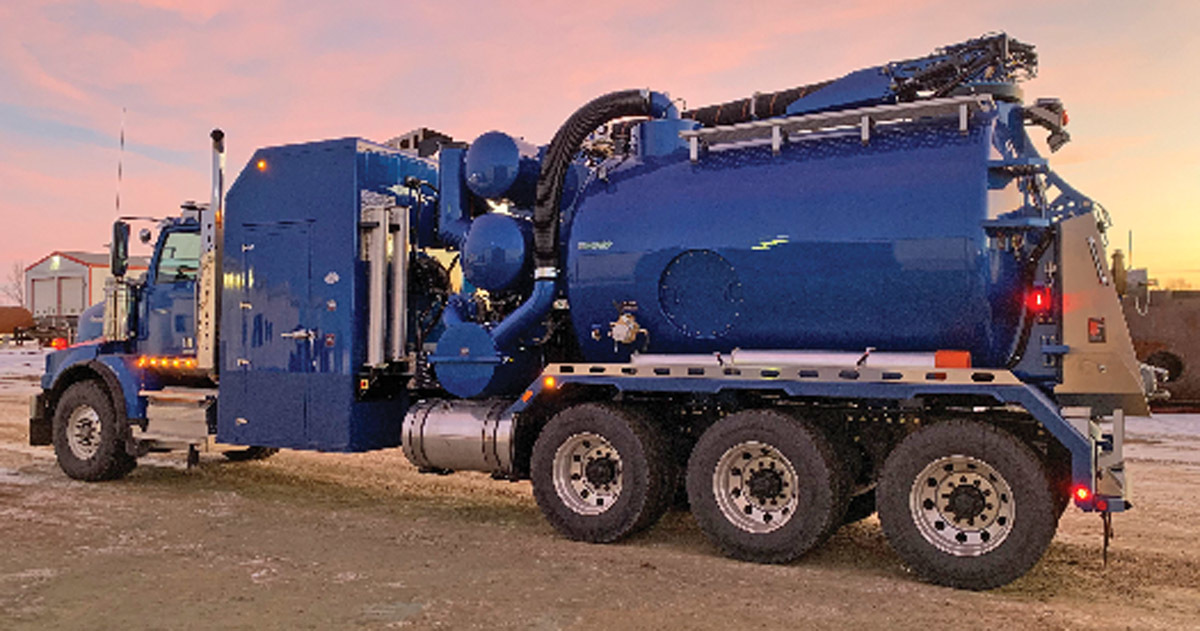

Tornado Global Hydrovacs F4 ECOLITE

The F4 ECOLITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECOLITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower. 877-340-8141;

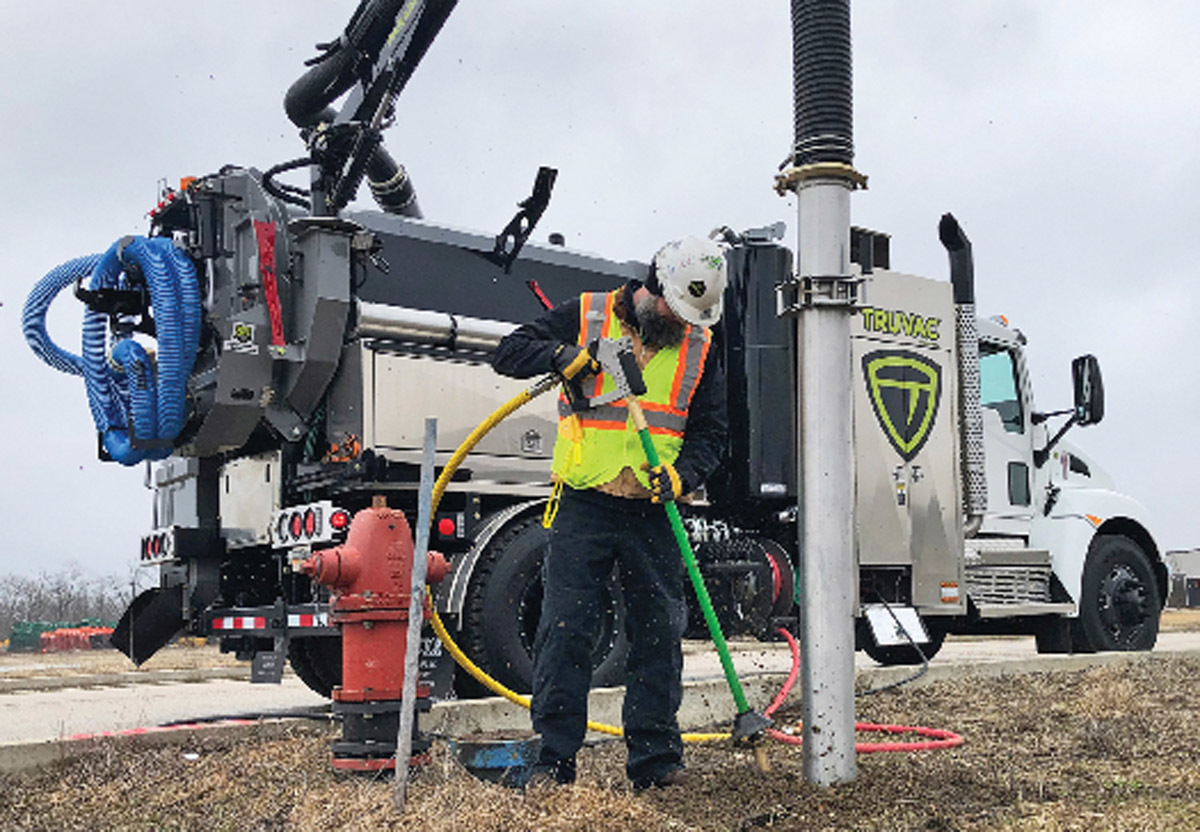

TRUVAC by Vactor Paradigm

Designed for utility, municipal and contractor customers involved in the installation, maintenance and repair of underground water, sewer, gas, electric and telecommunications lines, the Paradigm subcompact vacuum excavator from TRUVAC by Vactor can dig holes with water or air; vacuum, contain and dispose of drill mud; power pneumatic, hydraulic or electrical tools; and provide transport and storage of replacement parts, equipment and tools. The truck’s Park-n-Dig design minimizes time between job site arrival and excavation, including the ability to dig up to 6 feet without additional pipe and hose. The air compressor powers utility tools such as jackhammers and tampers. The truck offers tool storage space, including a long-handle toolbox. The truck can tow up to 20,000 pounds. 800-627-3171;

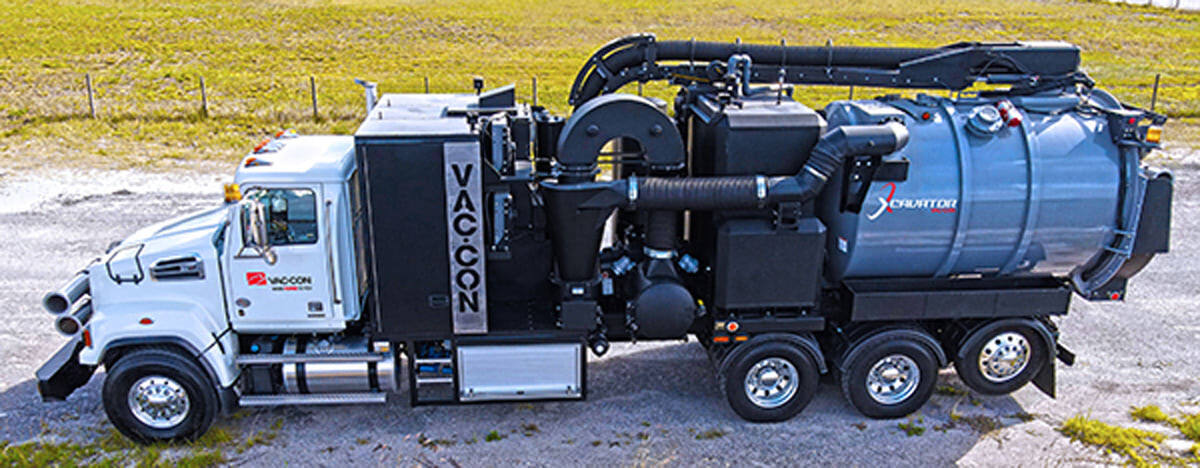

Vac-Con X-Cavator

The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel, as well as an interior area for operator seating and workspace. Unit filtration is based off of the Titan combination machine, with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and negative 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet. 904-284-4200;

Vermeer MV Solutions Mini-Combo

Mini-Combo vacuum excavators from Vermeer MV Solutions deliver a versatile combination of components and options that facilitate hydro jetting and excavation work in a single machine. They are available in three models — the 573 SDT, 873 SDT and 1273 SDT — that range from a 300- to 400-gallon water tank capacity and 500 to 1,200 gallons in waste tank capacity. All three models are engineered with a pump rated at 1,500 psi at 15 gpm and a powertrain featuring a 74 hp engine. This powerful engine and pump combination enable these machines to clean lateral lines up to 12 inches in diameter and 300 feet in length. They can be outfitted with a mechanically operated strong arm or hydraulic boom. 352-728-2222;

Leak Detection Equipment

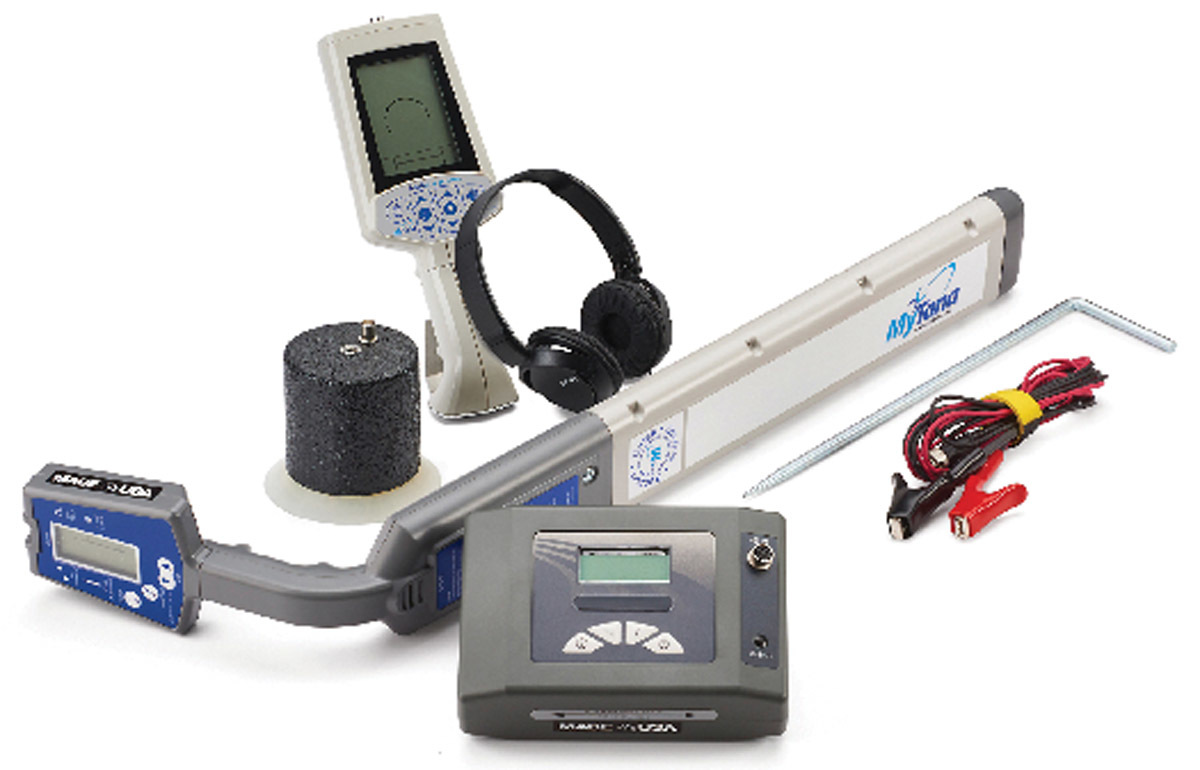

MyTana Locate and Leak Detection Package

MyTana’s Locate and Leak Detection Package helps pros save time finding leaks in utility lines. The LD40 leak detector works like a stethoscope to detect hissing, trickle or seeping sounds, while filtering out background noises. It can detect through any surface and has an easy-to-understand, real-time visual response meter, enabling operators to listen and watch for leaks. Five frequency bands help users home in on hard-to-find leaks, so it is suitable for use on vertical line leaks, slab leaks and irrigation leaks. The package also includes MyTana’s RL8873 locator and RT8872 transmitter, which locate most buried utility lines. 800-328-8170;

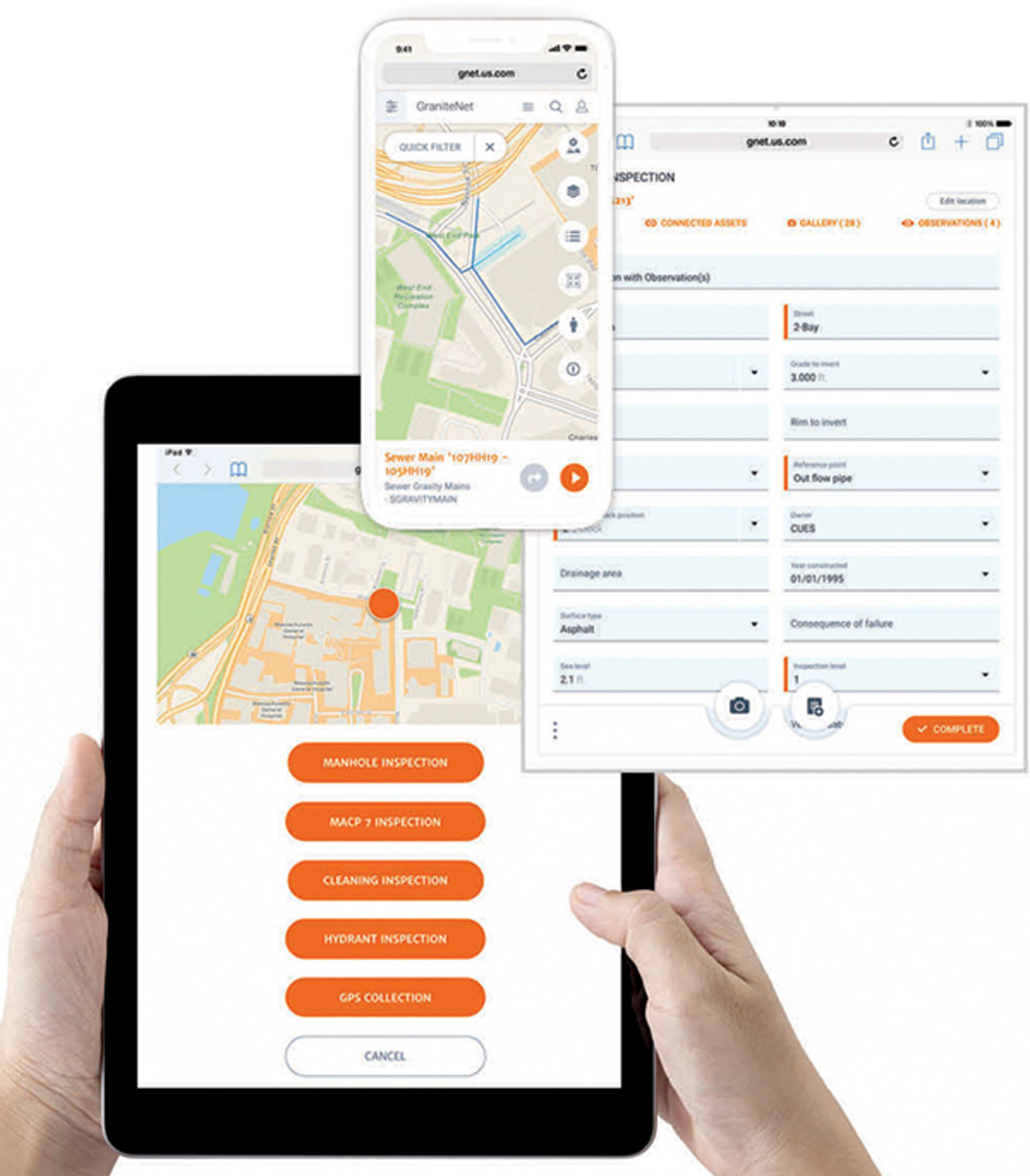

CUES GraniteNet WebInspect

GraniteNet WebInspect from CUES is a browser-based inspection app designed to perform inspections and collect information about municipal assets, such as manholes (including MACP v7 Level 1), hydrants, lift stations, grease traps, light poles and signage. It performs and tracks tasks such as valve turning, smoke tests, brush cutting and snow plowing, collecting GPS points, water quality samples and flow tests, and assessing sewer backups. Virtually any type of asset assessment or task can be quickly deployed, with or without existing GIS maps. There’s no software to install on any user devices. All that’s needed is an internet connection and virtually any device with a browser, such as a mobile phone or a tablet. 800-327-7791;

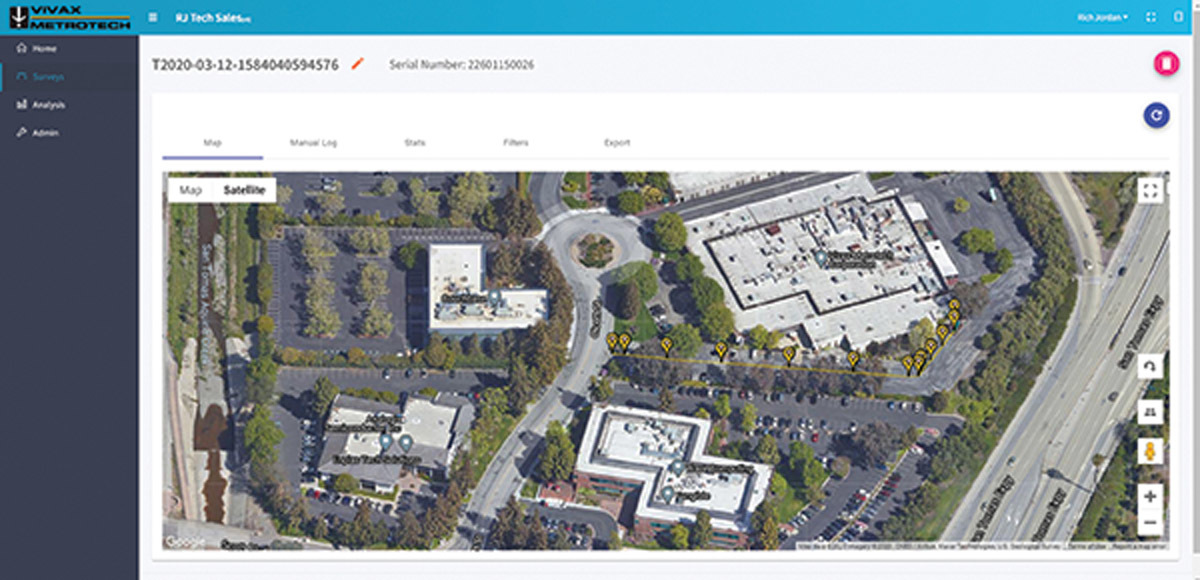

Vivax-Metrotech VMMap Utility Mapping App

The VMMap Utility Mapping App from Vivax-Metrotech records data from the field, which is instantly available online via the VMMap Cloud web portal, or can be shared using the email function in the app. Location data is obtained from the mobile phone, or an external GPS device of your choice. Depth readings, GPS coordinates, the distance between locates and more are captured as data logs and can be saved as xls, txt, shp and kml extension files. The image capture feature allows the user to attach a JPEG format image to the surveys. This is useful to add points of interest or a snapshot of the completed survey. The app generates maps in real time, giving confidence to the field technician that the data being collected is accurate. 800-446-3392;

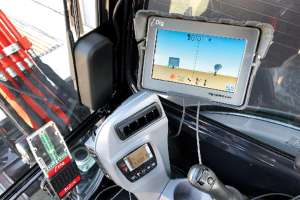

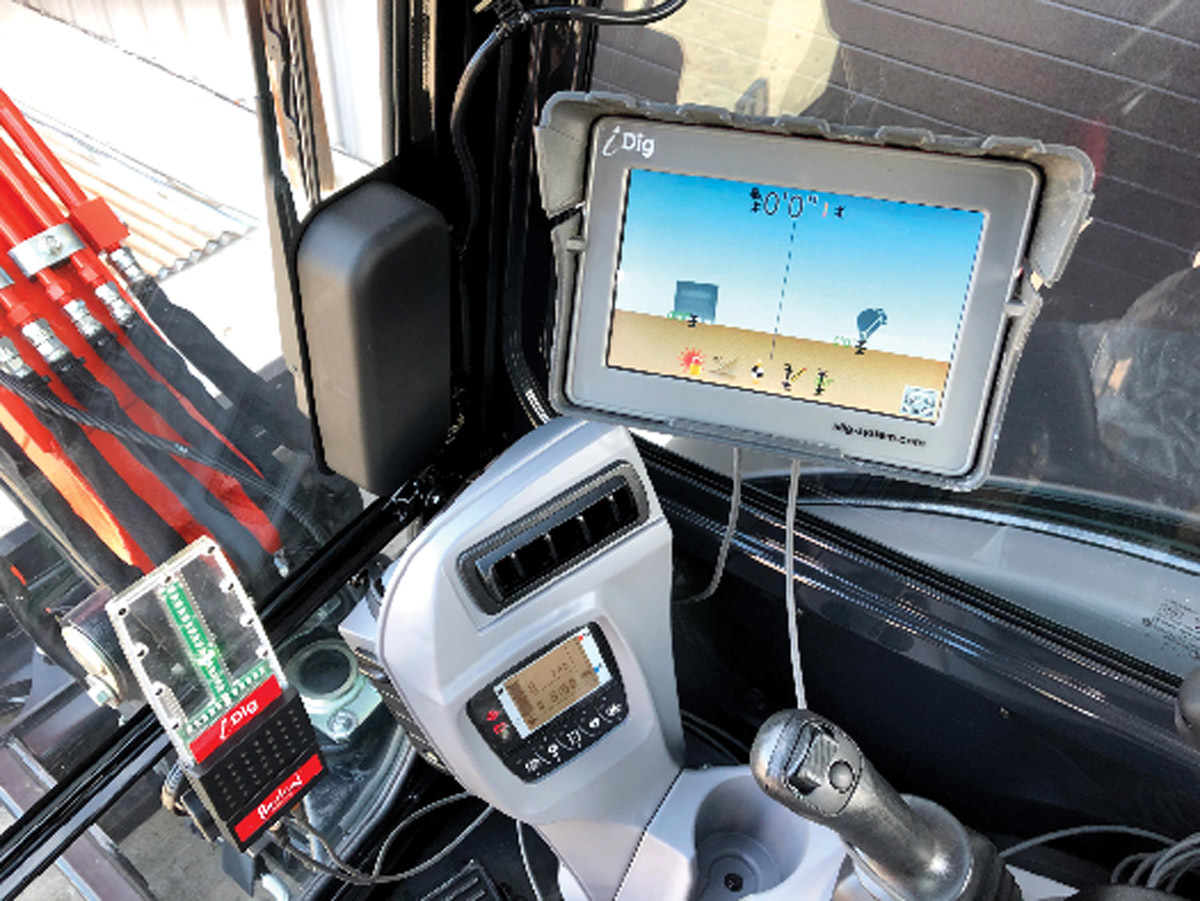

INTEQ Distributors iDig

The iDig system from INTEQ Distributors is a product for excavator contractors digging to grade and/or slope. The system goes on any size excavator or backhoe, providing real-time depth/slope information as the operator digs. One system can be installed on multiple excavators. Sensors are wireless and are charged via solar. It can be used with any tilt bucket, and some rotators. Simply input the depth/slope and watch the grade lights on the LED light-bar mounted in the cab while digging. Once the green light illuminates, grade has been reached. Its use means there is no need for a grade-checker, and no downtime to check grade. It prevents over-digging, so there is less need for backfill. Owner/operators don’t have to get off the machine to check the grade. 405-789-9900;
