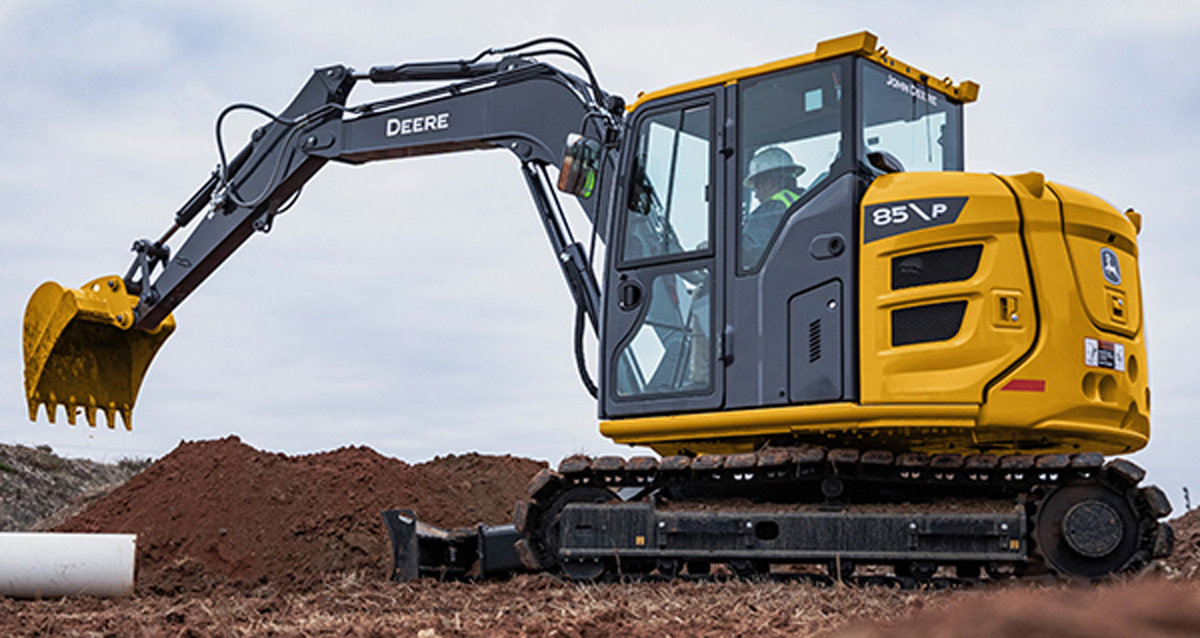

The John Deere 85 P-Tier Excavator is a powerful and versatile machine designed for demanding tasks. Its spacious and comfortable cab enhances operator comfort during long hours on the job, while a 17% increase in engine horsepower ensures efficient performance. The reduced-tail-swing configuration allows for exceptional maneuverability in tight spaces, making it well-suited for congested job sites. Ergonomic short-throw pilot joysticks provide precise control, and the adjustable heated air-suspension seat enhances operator comfort. JDLink connectivity offers real-time monitoring and diagnostics. The dealer-installed hardware kit enables the analysis of machine performance, tracking of usage, and receipt of diagnostic alerts through the John Deere Operations Center. It also supports John Deere Connected Support for proactive issue resolution, remote monitoring, and more, ensuring peak performance.800-503-3373; www.johndeere.com
Horizontal Directional Drilling

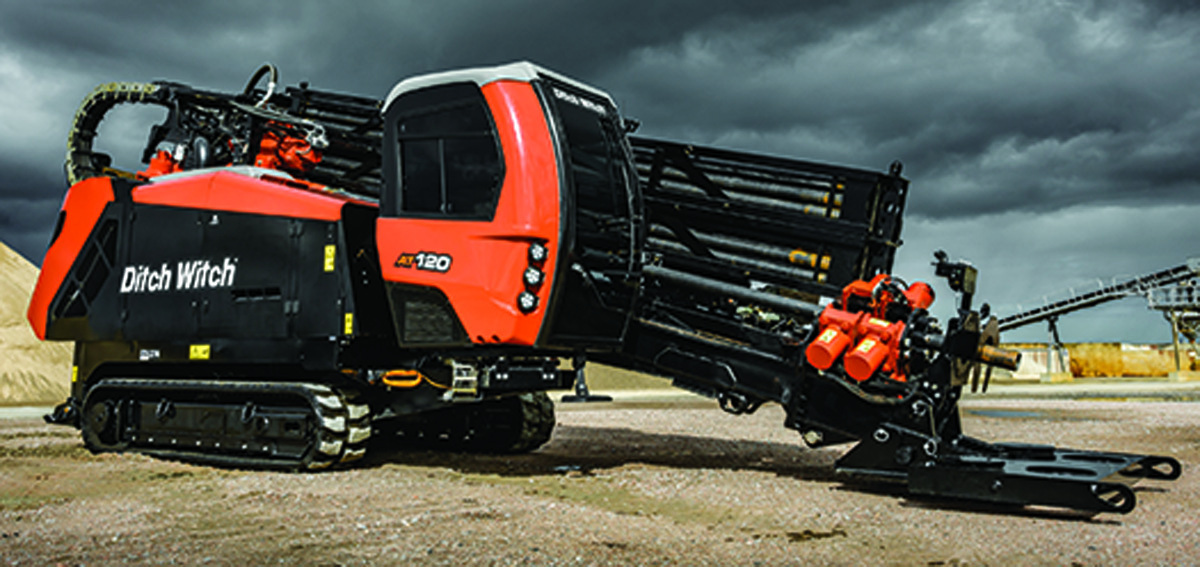

Ditch Witch AT120
The AT120 from Ditch Witch enables maxi-rig drill operators to move down a class size to meet job site constraints without compromising job site productivity. It features 15,000 ft-lbs of rotational torque. With 120,000 pounds of thrust and pullback, it allows operators to take on a wide variety of projects, as well as move through longer bores and larger diameter installations more efficiently. With 20 feet of end-to-end drill pipe on board, it helps operators put more pipe in the ground, further boosting job site uptime. It offers a saver lock design to protect the drill pipe and drive system against wear and tear. With updated and intuitively located compartment panels, operators have increased access to critical components that frequently need to be maintained, streamlining maintenance routines and the serviceability of the drill.580-336-4402; www.ditchwitch.com
Hydroexcavation Equipment

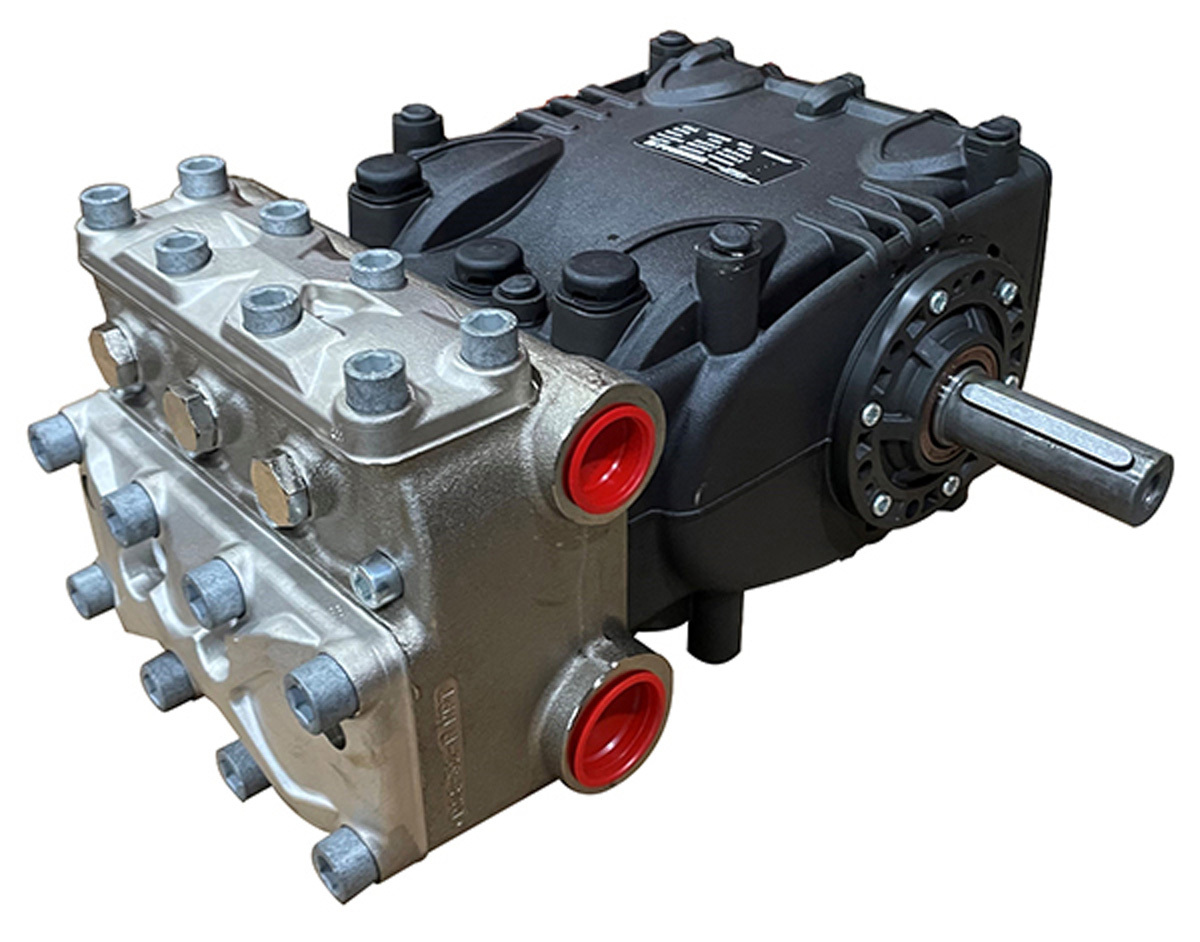

Dynablast Pratissoli KTX Series
The Pratissoli KTX Series water pump, distributed by Dynablast, is designed for hydroexcavation. The KTX24ASPF offers 13.5 gpm at 3,625 psi and 1,450 rpm and the KTX28ASPF offers 18.4 gpm at 2,900 psi and 1,450 rpm. Its T13 female spline shaft input and SAE B 2/4 bolt flange enable direct mounting to the hydraulic motor. It has run dry seals with a Kevlar Graphite rope, a 420 stainless steel manifold for protection from cavitation, and a self-lubricating design so that no oiler kit or weekly oiling is required. Its symmetrical crankcase makes it easy to reverse shaft the pump. Internal fins on the aluminum crankcase provide cooling to lower oil temperature. A tapered roller bearing improves lateral loading. The two-bore ceramic plungers are thicker ceramic on the water end to prevent thermal shock.905-867-4642; www.dynablast.ca/product/hydrovac

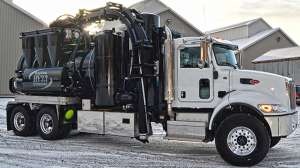

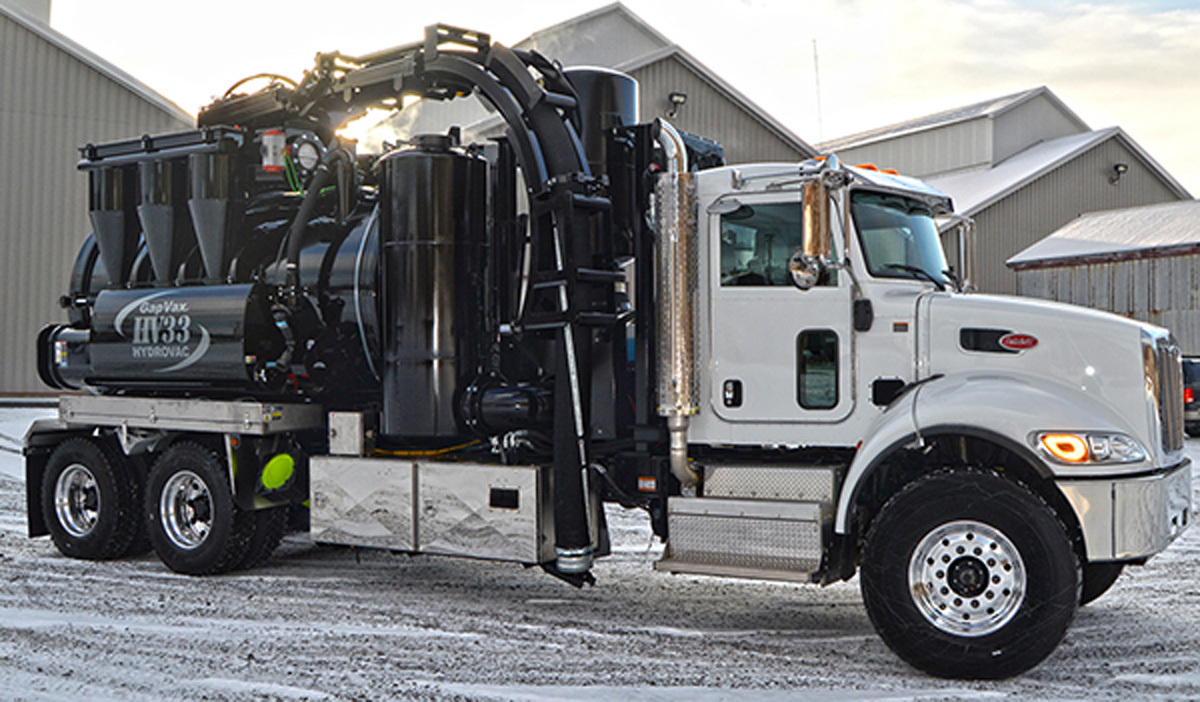

GapVax HV33
Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate.888-442-7829; www.gapvax.com

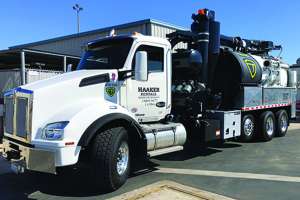

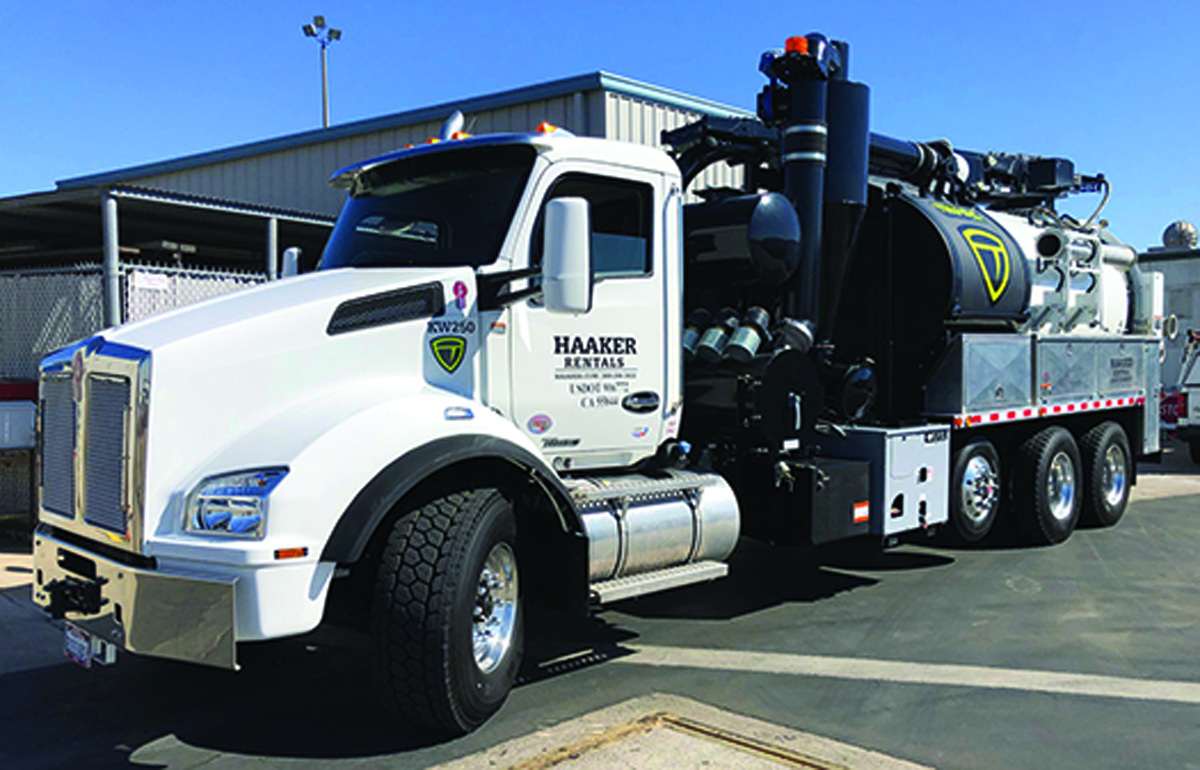

Haaker Underground TRUVAC 824
The TRUVAC 824 mid-size hydroexcavation truck, distributed by Haaker Underground, ensures nondestructive digging (DigSafe), safeguarding underground utilities and minimizing the risk of damage. This method also reduces the need for manual labor, enhancing operational efficiency and cutting down on project timelines. The mid-size truck is highly maneuverable, allowing it to access confined spaces and challenging terrains effortlessly. The 18-inch PD blower (4,970 cfm) enables swift removal of debris, promoting a cleaner and safer work environment. Equipped with advanced safety features and user-friendly controls, the truck ensures seamless operations while prioritizing worker well-being. By combining precision, power, and adaptability, this truck streamlines processes, enhances productivity and minimizes potential risks, making it a valuable investment for any operation.800-200-3432; www.haakerunderground.com

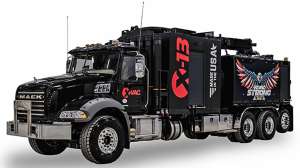

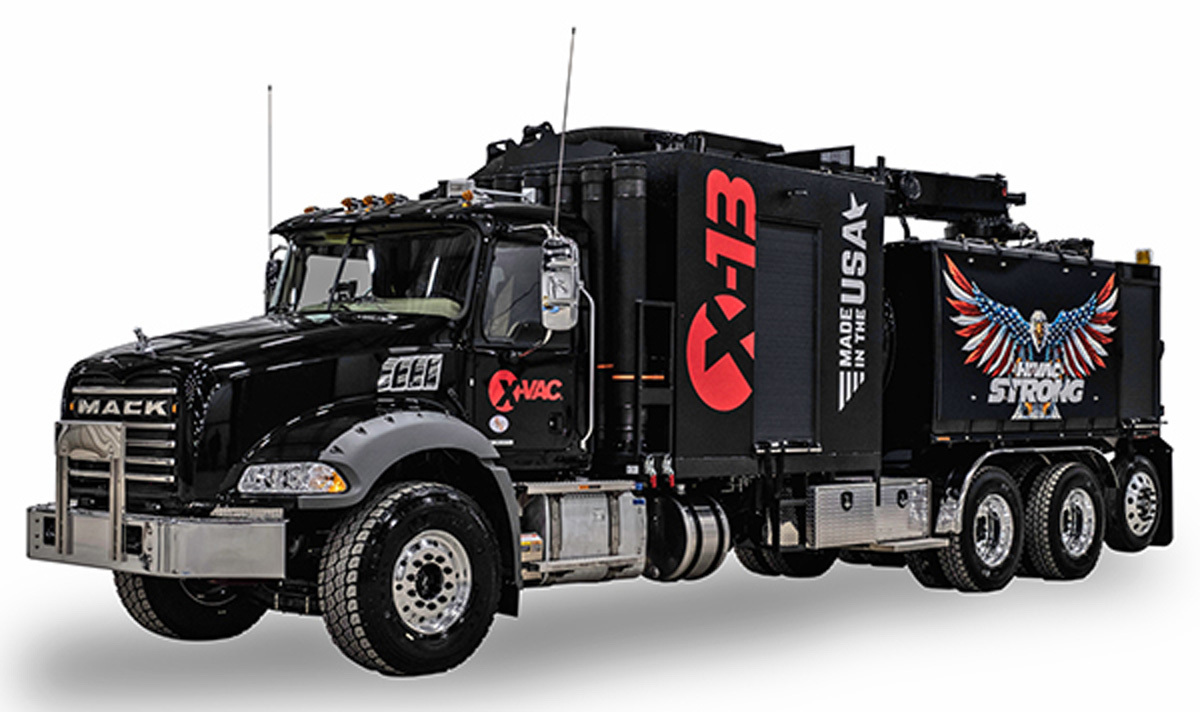

Hi-Vac X-13
Contractors, municipalities and utility service providers depend on Hi-Vac X-13 hydroexcavators to safely and efficiently trench for new sewer and wastewater lines with minimal disturbance to surrounding areas. They combine surgically precise hydroexcavating power with low-maintenance components that help minimize downtime. Simple, intuitive controls and quick access to all critical systems mean jobs get done faster. A 13-cubic-yard debris tank, up to 24,500-pound payload capacity and 1,140-gallon freshwater capacity help reduce the number of costly job site returns. Power is provided by a 5,800 cfm, 27-inch Hg high-performance blower and a run-dry water pump that delivers 20 gpm at 2,500 psi. The 360-degree, top-mounted boom provides full accessibility in every direction, and a heavy-duty hydraulic vibrator provides fast and efficient unloading of the debris body. Designed for safe and easy operation, it only requires a short learning curve.800-752-2400; www.x-vac.com

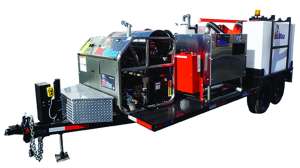

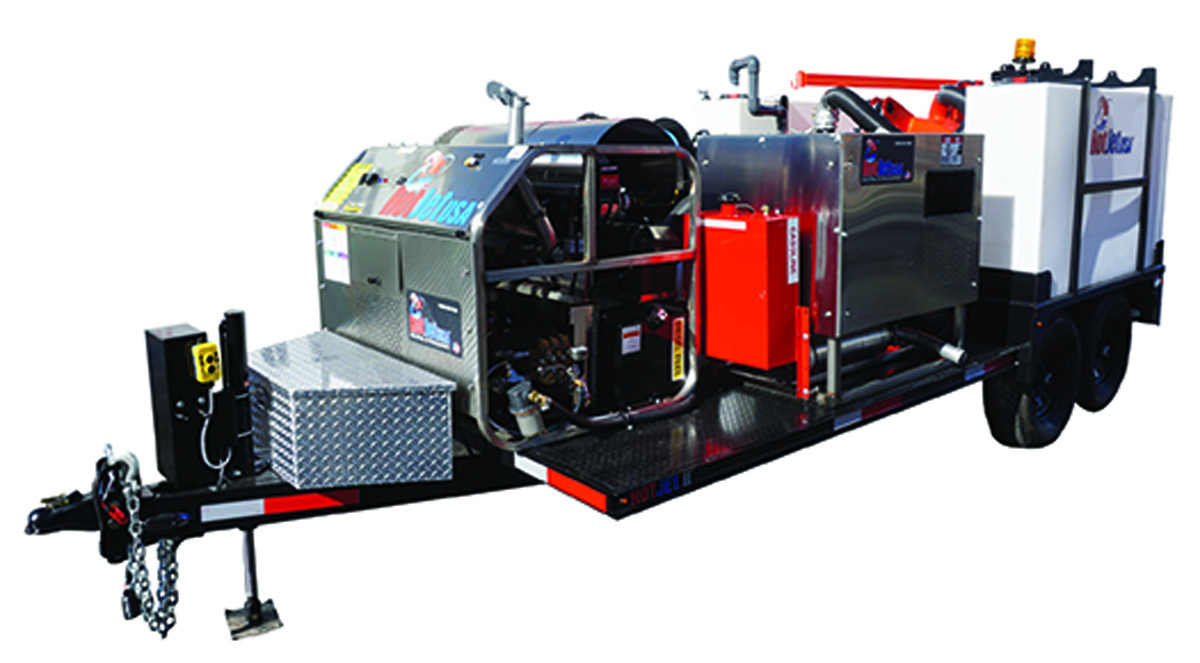

HotJet USA Vac’n Jet Series
The HotJet USA Vac’n Jet Series of vacuum trailer jetters are compact and specially engineered to haul equipment and the spoils load, perform hydroexcavation, and clean valve boxes, storm drains and drain/sewer lines. They feature hot and/or cold water operation with a choice of engine options ranging from 23 to 70 hp and gas or diesel operation. They are equipped with premium triplex pumps, a 500-gallon spoils tank, up to 440-gallon water tanks, Gardner/Denver vac/blowers, a 4-ton hydraulic dump and a dual filter centri-clean filter system. They can also be custom engineered and designed to meet specifications.800-624-8186; www.hotjetusa.com

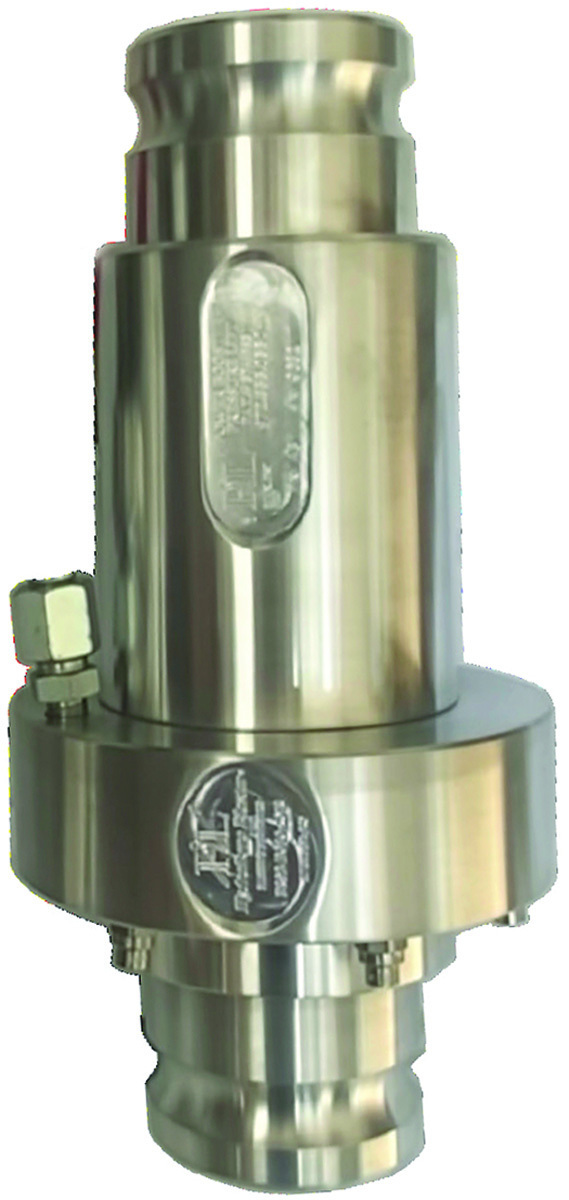

Pressure Lift HydraBore
The HydraBore equipment attachment from Pressure Lift fits on the end of any vacuum hose for a simple, more cost-effective approach to hydroexcavation. It breaks up soil, removing it quickly and easily to reduce labor requirements to a one-person operator, keeping every project extra clean improving safety. This tool reduces the downtime of an operator changing clothes when finished and requires fewer workers by using the tool for its other benefits of pumping deeper and faster. It can also be used in concert with smaller vacuum equipment to gain maximum benefits while capitalizing on project expenses.866-504-6596; www.pressurelift.com

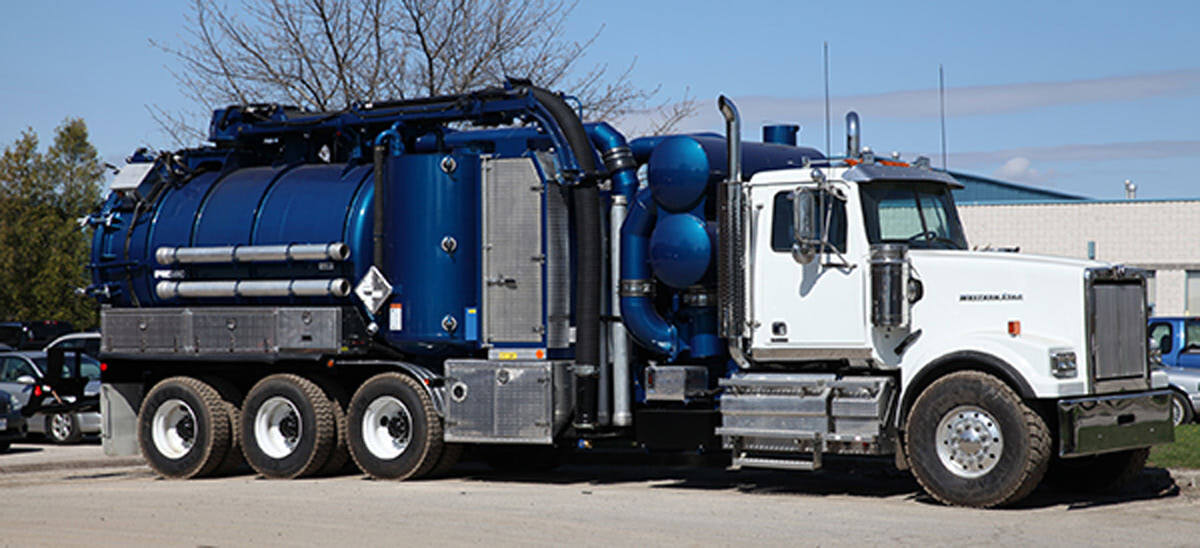

Presvac Systems Hydrovac
The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank to minimize carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.800-387-7763; www.presvac.com

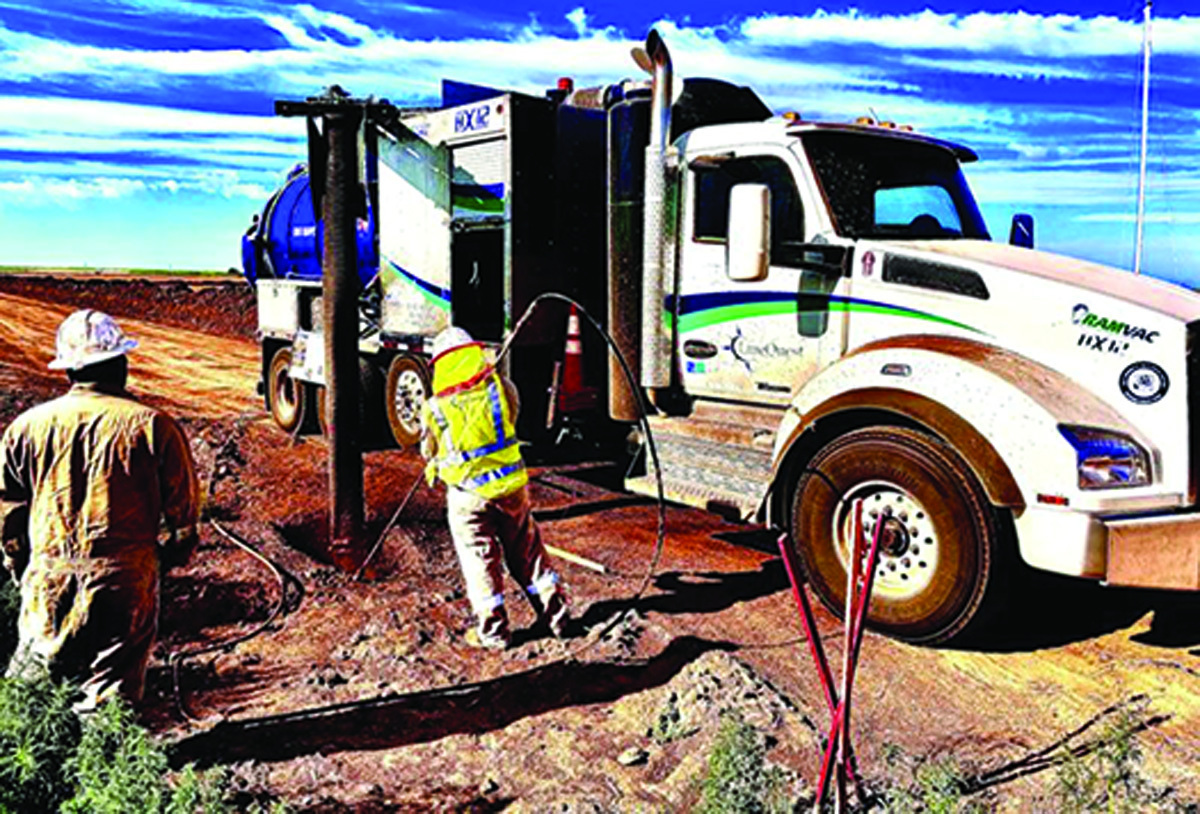

RAMVAC by Sewer Equipment HX-12
The HX-12 hydroexcavator from RAMVAC by Sewer Equipment has a 12-yard debris tank and a heated, secured equipment locker that contains the entire water system, including water tanks, for cold-weather application and tool security. This machine touts a directional discharge system with the ability to offload debris back into the excavation site when done, without the mess of dumping the tank. This system also allows operators to blow any obstructions out of the dig hose and get back to work. It includes a long-range wireless remote, NEMA 4 electrical system, an 800,000 Btu water heater and a three-stage cyclonic filtration system. The standard 4,400 cfm blower will match the performance of larger blower machines while delivering fuel economy with the ability to go up to 5,400 cfm. The series offers debris capacities from 3 to 15 cubic yards while maintaining a short overall footprint.888-477-7638; www.ram-vac.com

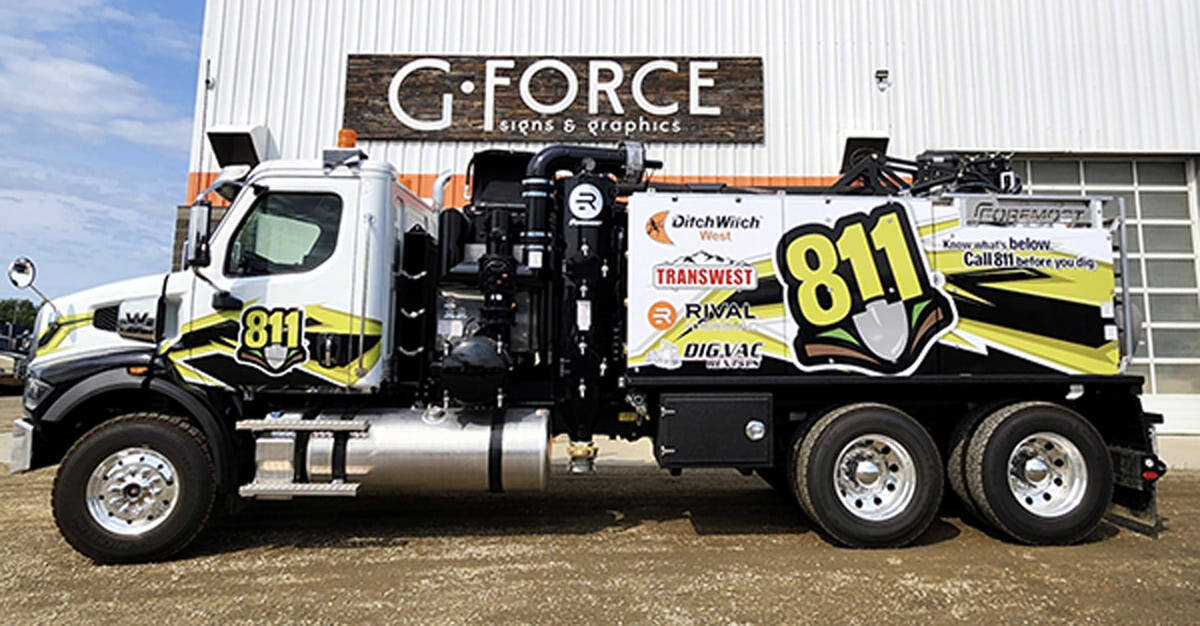

Rival Hydrovac T7 Tandem and T10
The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system, but with larger capacities and components. It is for both utility and industrial work. It is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces before nondestructive excavating.403-550-7997; www.rivalhydrovac.com

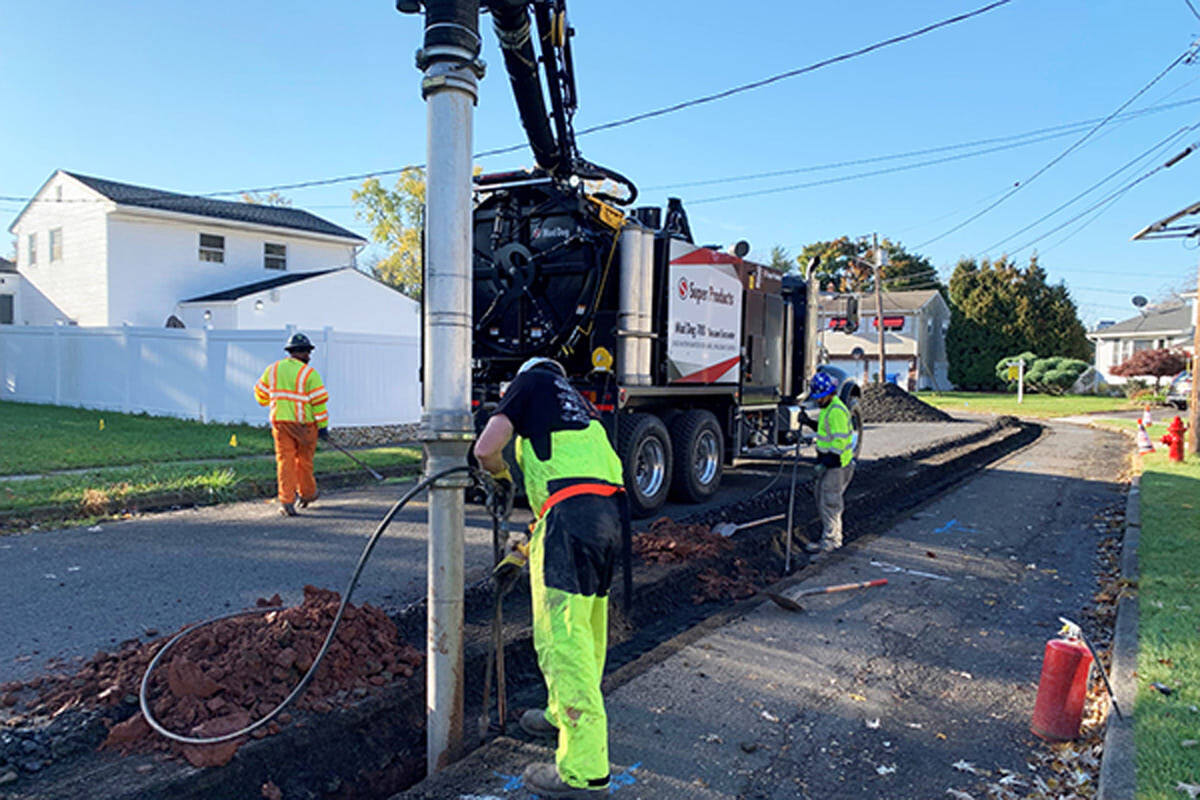

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact, urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

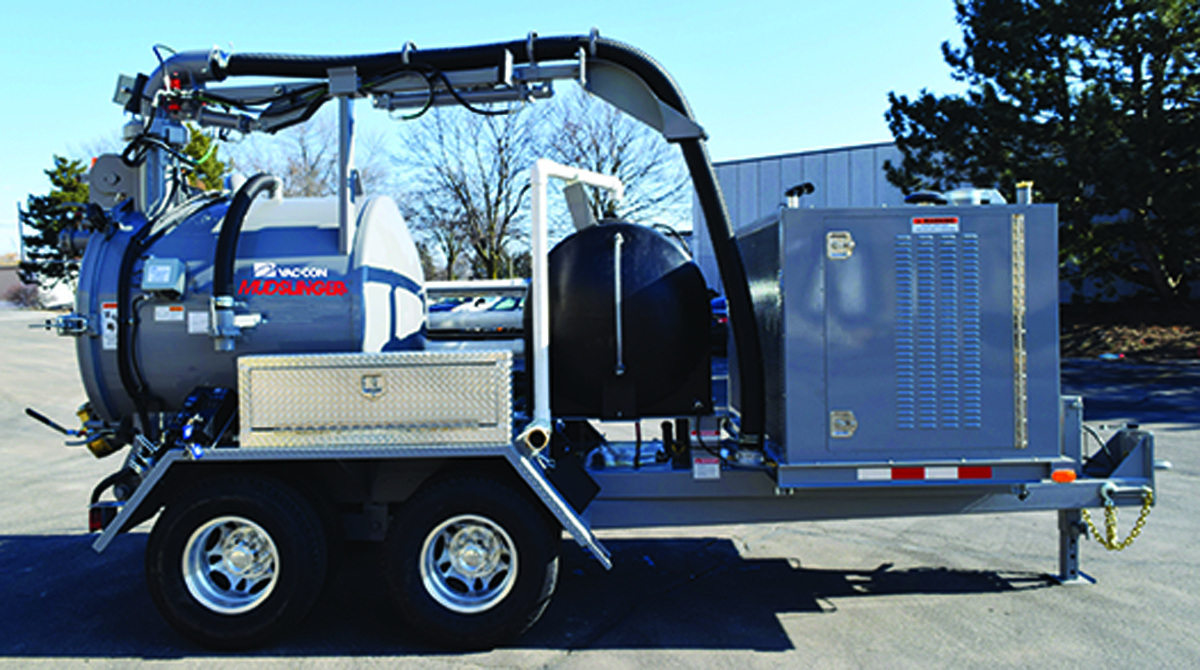

Vac-Con Mudslinger MS800
The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con is designed to provide the same power, suction and capacity of a truck hydroexcavator on a portable, pull-behind trailer. It includes the choice of Tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. It has an 845-gallon debris tank and a 9-foot boom with 24 inches of hydraulic extension providing a full range of motion. It is designed to be a standalone unit but can also provide support to construction, HDD and public utility fleets. A variety of applications include daylighting, potholing, culvert and manhole cleaning, and utility locating.904-284-4200; www.vac-con.com

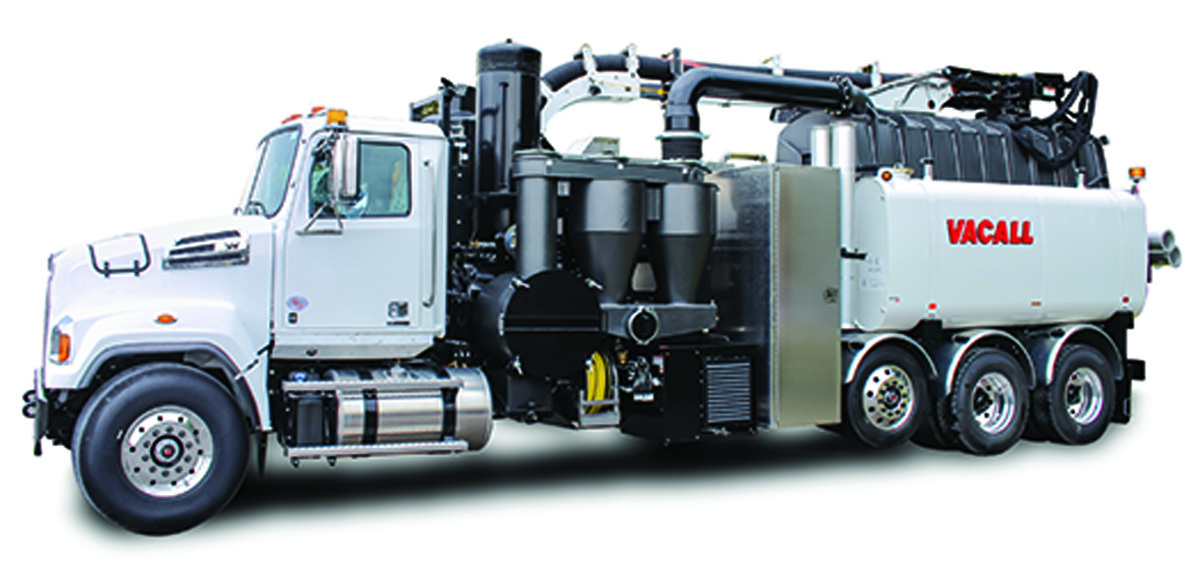

Vacall AllExcavate 811
Vacall AllExcavate 811 models deliver hydro and air excavation in a smaller footprint. Get in and out of tight jobs faster with the 8-cubic-yard debris tank, 1,100-gallon water tanks and an overall vehicle length of under 35 feet. The AE 811 delivers vacuum forces up to 5,400 cfm at free air and waterjetting power of 0 to 25 gpm at 3,000 psi. It adds air pressure modes at 110 psi at 185 cfm or 150 psi at 150 cfm. The AllSmartFlow CANbus intelligent control system features a programmable LCD that monitors engine, water flow, air pressure and vacuum performance for precise boom and reel adjustments. Aluminum water tanks and optional galvanized debris tanks with supreme finish carry a lifetime warranty. Both models, manufactured by Gradall, use one engine to power the chassis and excavation functions, reducing service and operation costs.800-382-8302; www.vacall.com

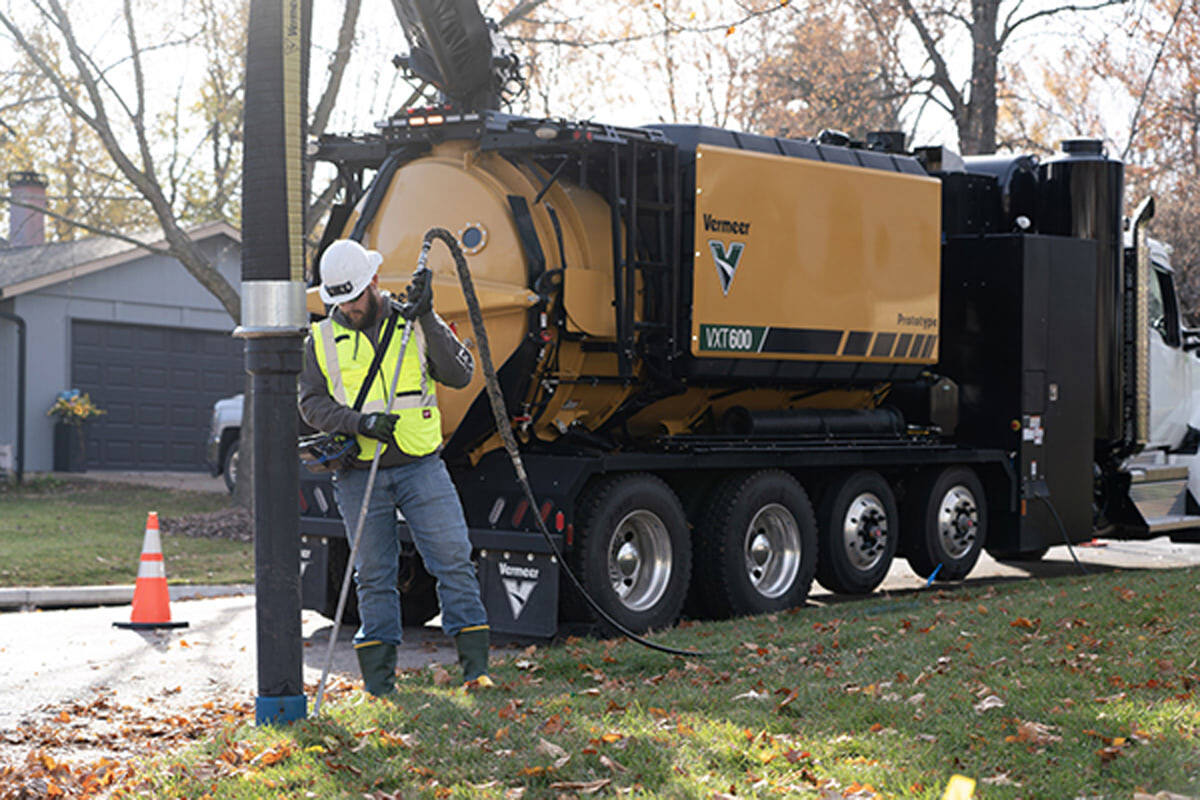

Vermeer VXT600
The Vermeer VXT600 vacuum excavator has a 12-cubic-yard elongated spoil tank design and 1,200-gallon freshwater tank capacity, but weighs in at just 40,000 pounds. It has a low profile with a height (with boom) of 12.25 feet so that it can maneuver under trees, power lines and bridges. The VXT600 is a powerful digging machine that operates quietly while on the job. It features a vacuum system that is powered by a 6,400 cfm Helical tri-lobe Jurop blower. With a 23-foot boom, an 8-inch diameter dig hose, a vacuum level of 27 in Hg, and a water pump that produces 10 gpm of flow at 3,000 psi, the truck can dig quickly and deeply. Additionally, the boom dig hose can be stowed with the dig tube attached to minimize setup time between digs. Additionally, the VXT600 includes a handwashing station for operator convenience.352-728-2222; www.vermeer.com
Pipe - PVC, Polypropylene, Polyethylene

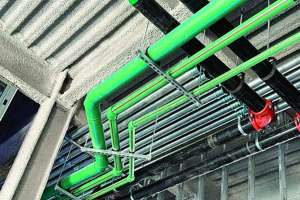

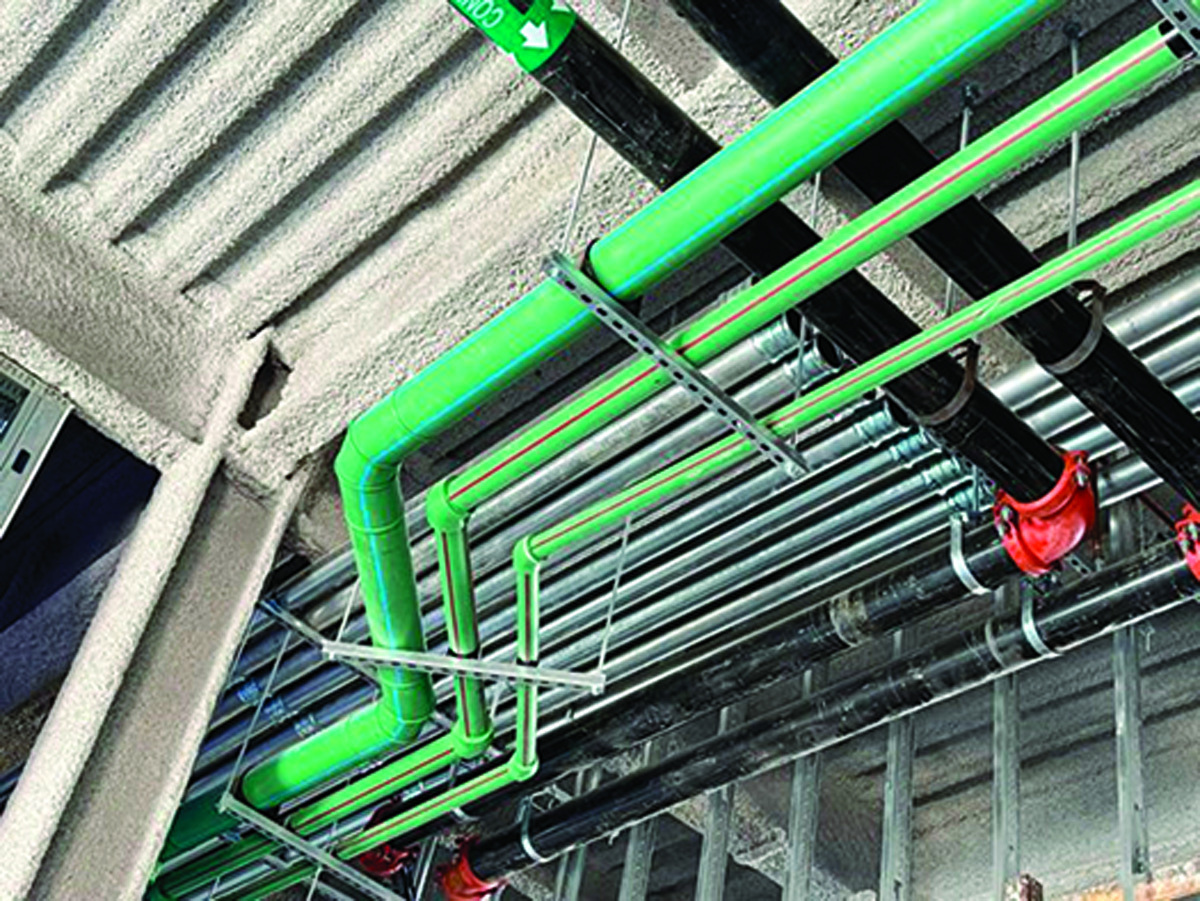

Uponor PP-RCT
Uponor PP-RCT is the lightweight, durable piping solution. Available in sizes from 1/2 to 12 inches, it is 80% lighter than steel, uses heat fusion for joining to eliminate open flame, and resists corrosion, rust and scale buildup for greater durability.800-321-4739; www.uponor-usa.com
Pipe Bursting

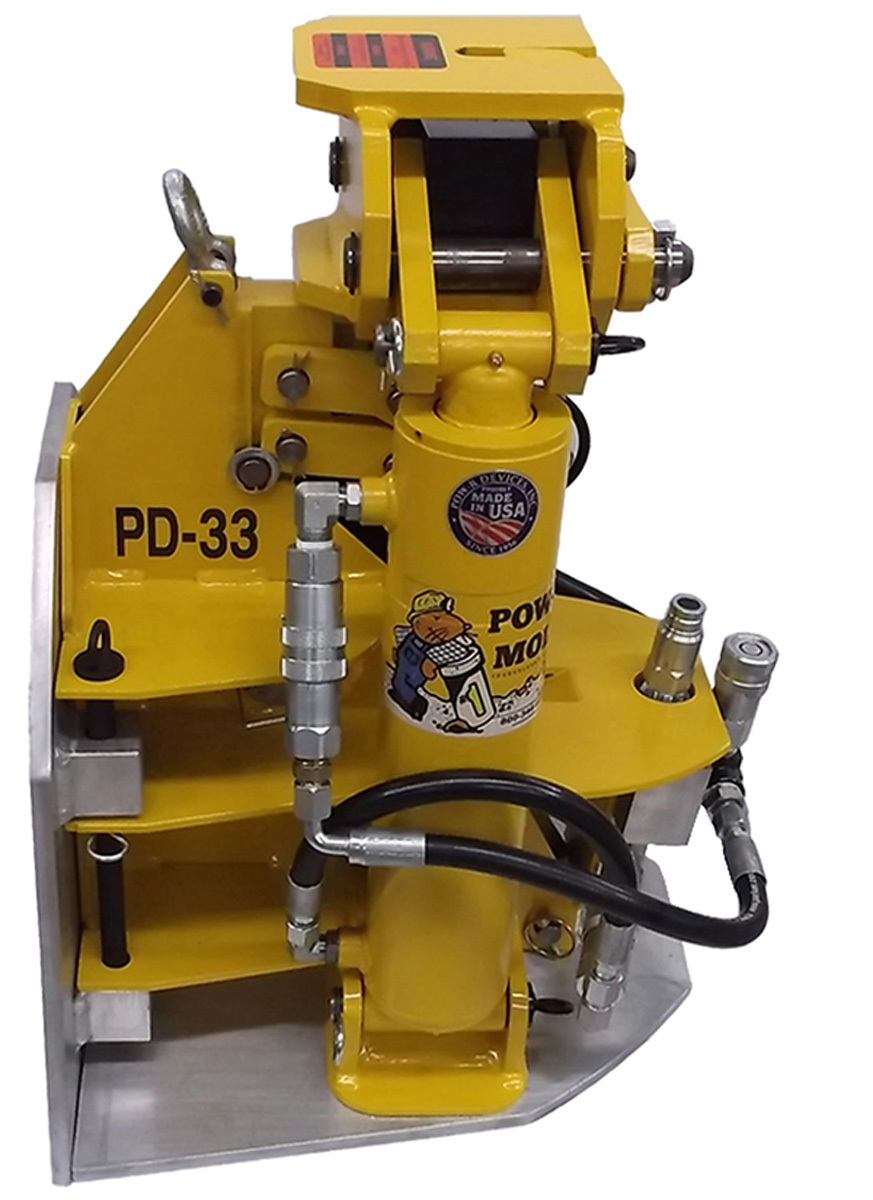

Pow-R Mole Trenchless Solutions PD-33M
The PD-33M pipe bursting machine from Pow-R Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations.800-344-6653; www.powrmole.com

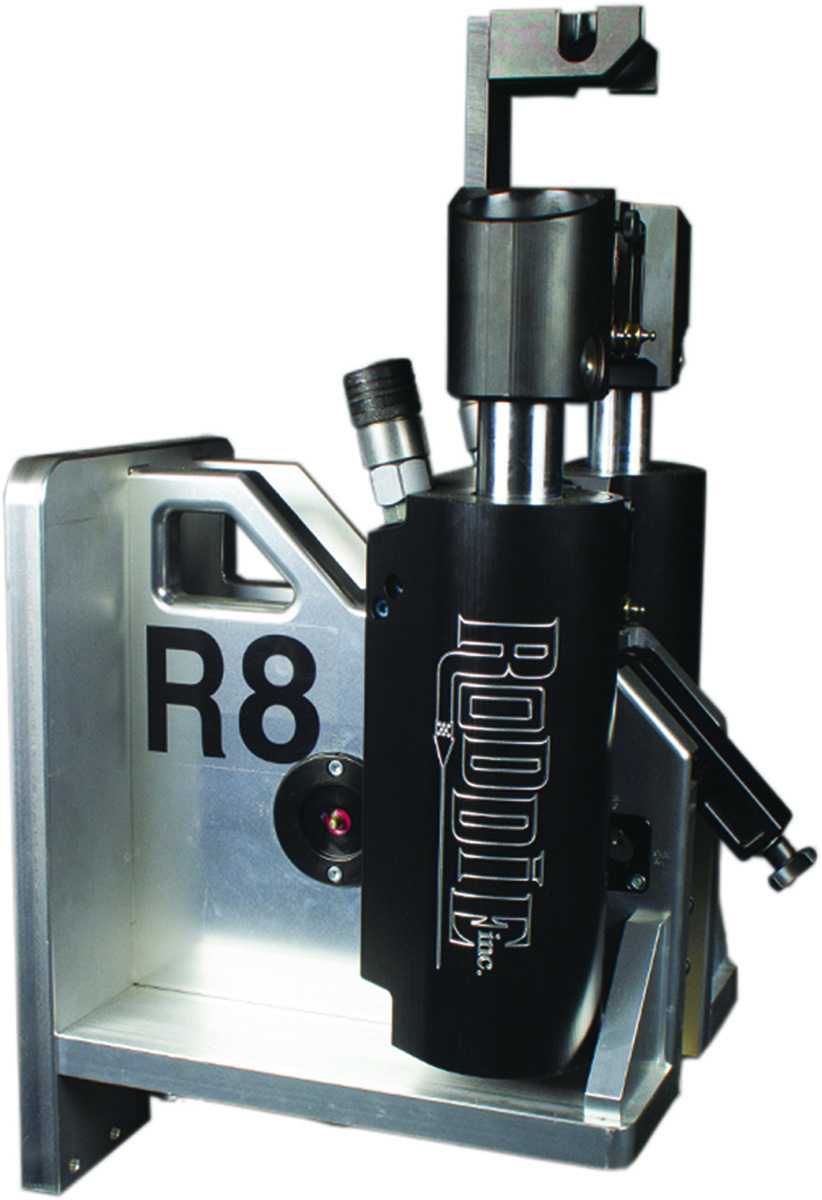

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally, and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable-grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple, as the user only needs to rinse off and re-grease six Zerk fittings.888-406-3821; www.roddieunderground.com

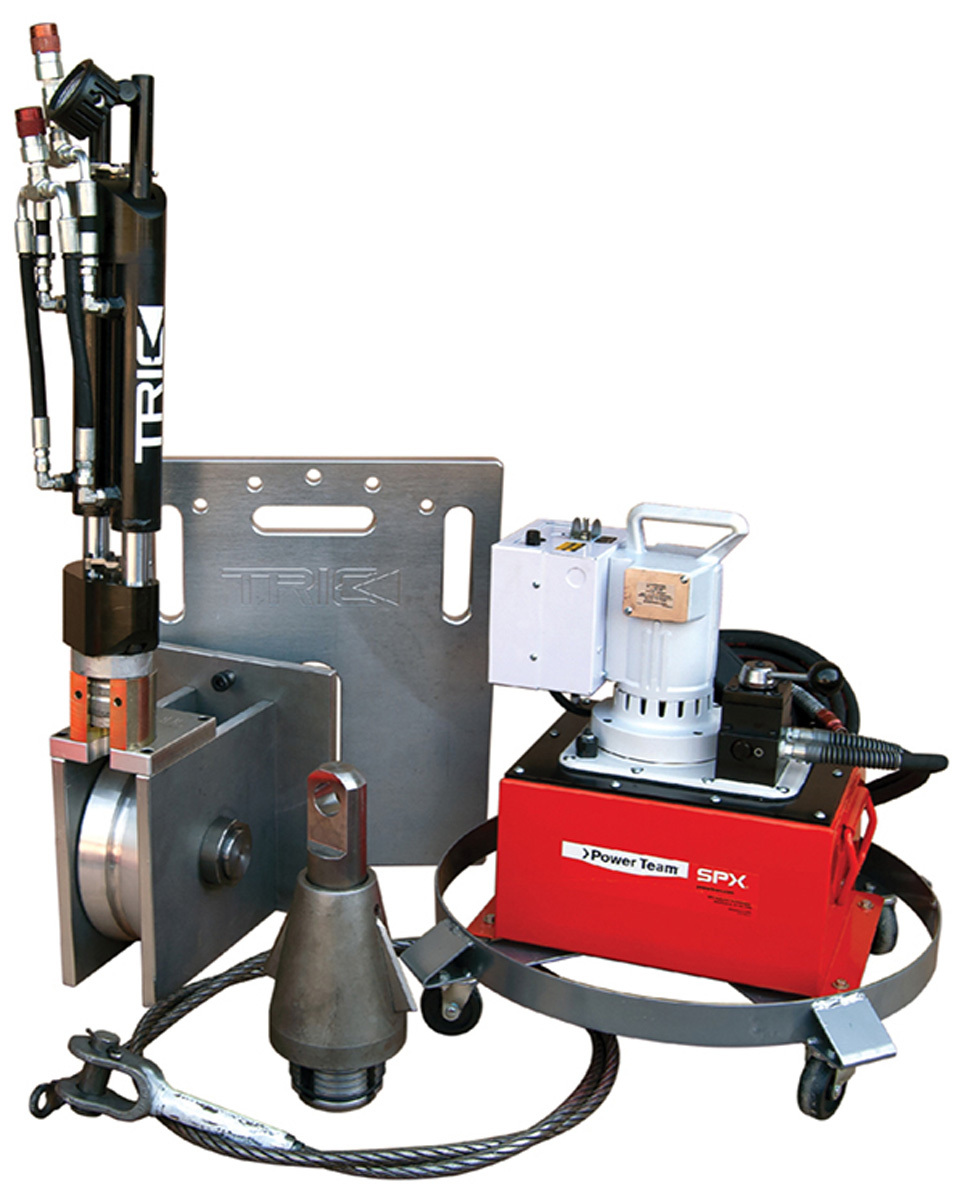

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump, plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements, and very tight spaces with limited access.888-883-8742; www.trictools.com
Pipeline Surveying and Mapping

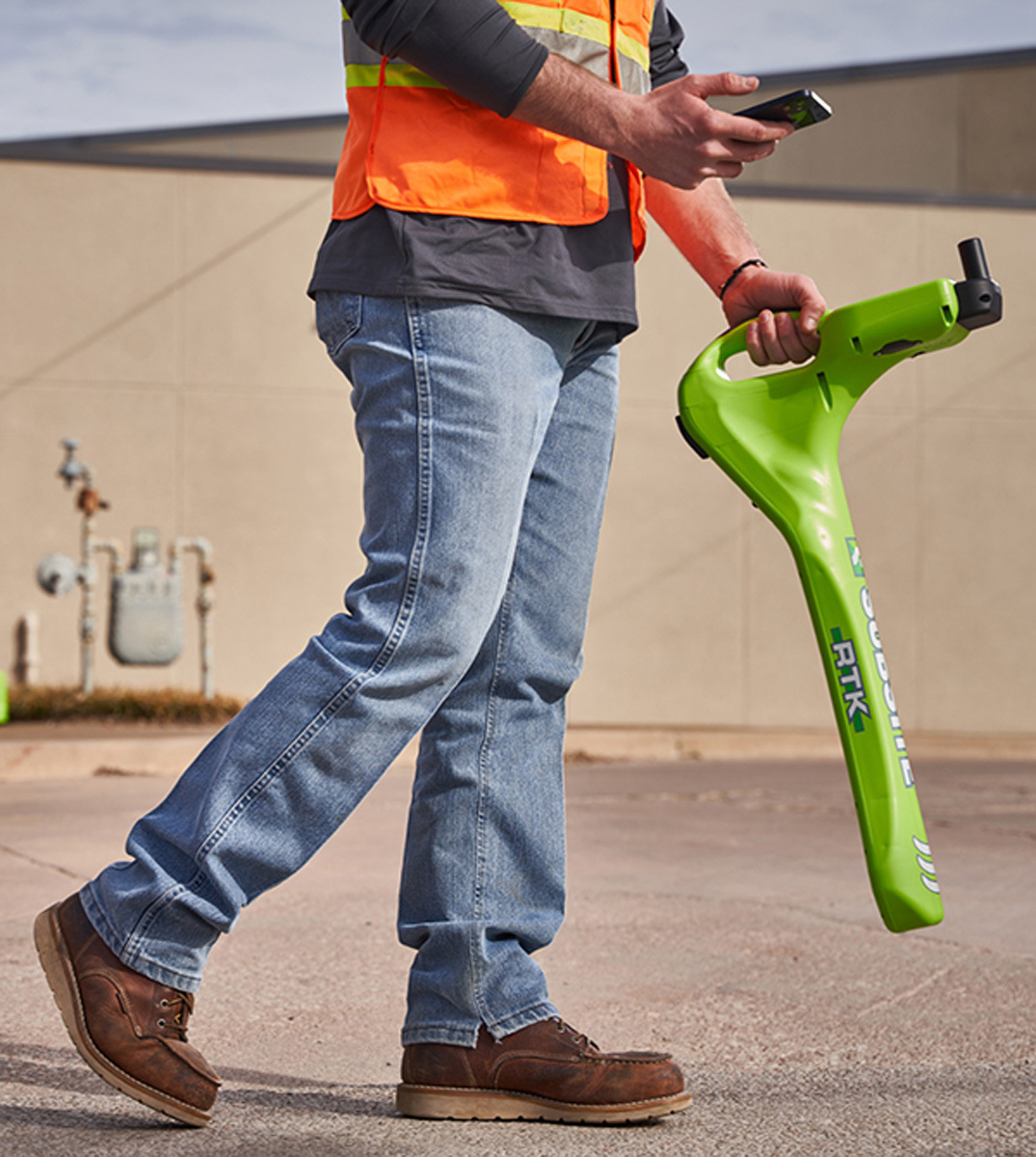

Subsite Electronics UtiliGuard 2 RTK
The UtiliGuard 2 RTK receiver from Subsite Electronics was designed as a simple, easy-to-operate utility locating tool for operators locating, mapping and capturing underground utilities. It utilizes survey-grade technology and features dual-band antennas to provide operators with reliable positioning data with centimeter-grade accuracy. Its precision helps when locating abandoned and untracked utilities that are difficult to pinpoint. By quickly verifying the utilities installed, operators efficiently tailor bids to match a job site needs, as well as gain insight into the underground infrastructure to avoid cross bores during future projects. The receiver provides locate crews with integrated data capture, GPS positioning and an intuitive user interface to improve work quality and maximize locate awareness. By downloading the MyUtiliGuard application, operators simplify and streamline how they capture, map and share data.800-846-2713; www.subsite.com

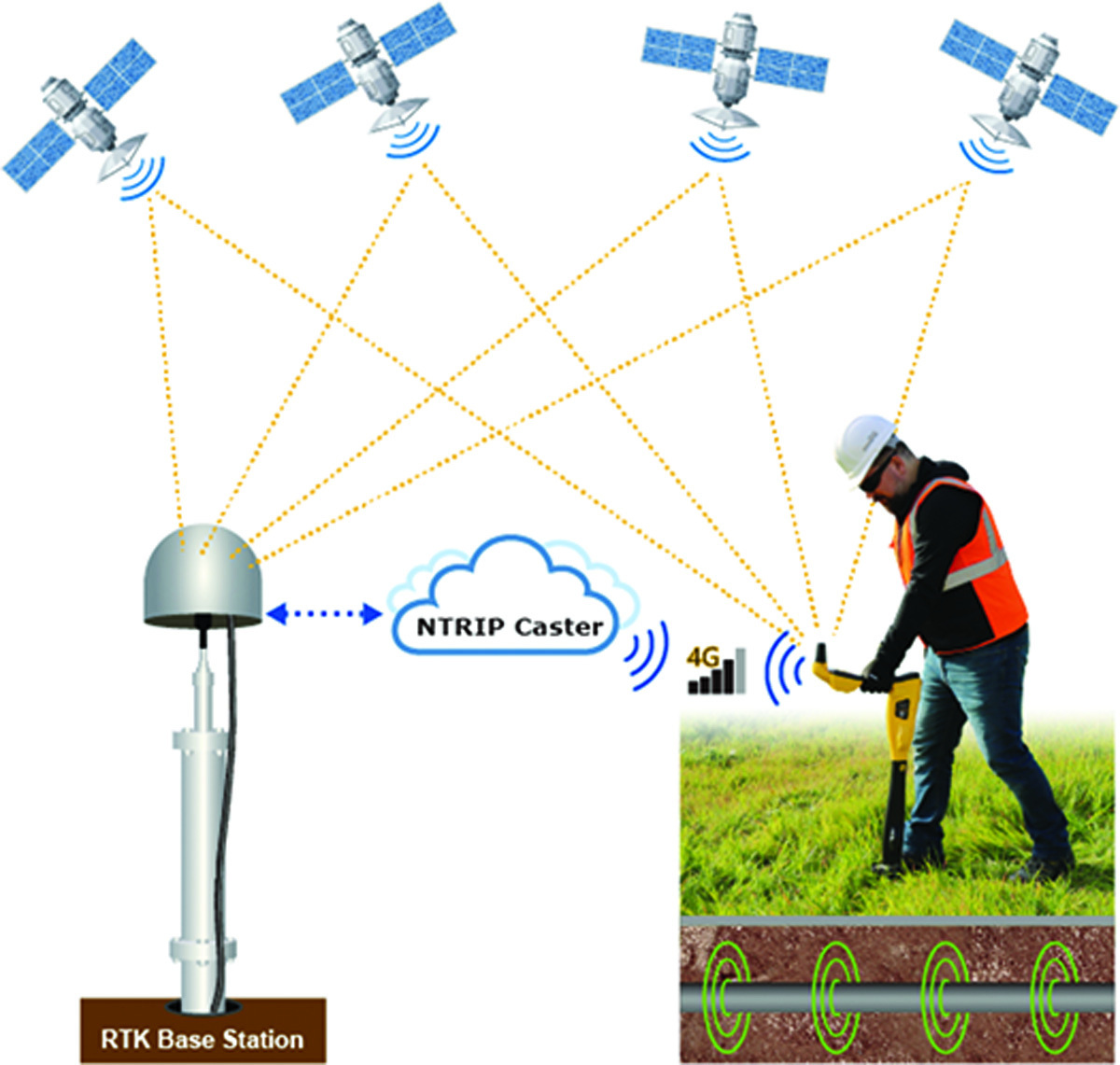

Vivax-Metrotech vLoc3 RTK-Pro
The vLoc3 RTK-Pro receiver from Vivax-Metrotech adds RTK GNSS accuracy to a utility locator. Using the internal cellular module with 4G LTE capabilities, the operator can connect to an NTRIP RTK (Real-Time Kinematic) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data and the utility’s geographical location with survey-grade accuracy. It is designed for all operator levels, utilizing user-friendly and intuitive locate screens. Operators confirm the utility data with the press of a button and align the electronic spirit level to store data. All field data is sent to the cloud and retained in the receiver’s onboard storage for review and exporting to mapping programs.800-446-3392; www.vxmt.com
Pipeline Rehabilitation/Lining

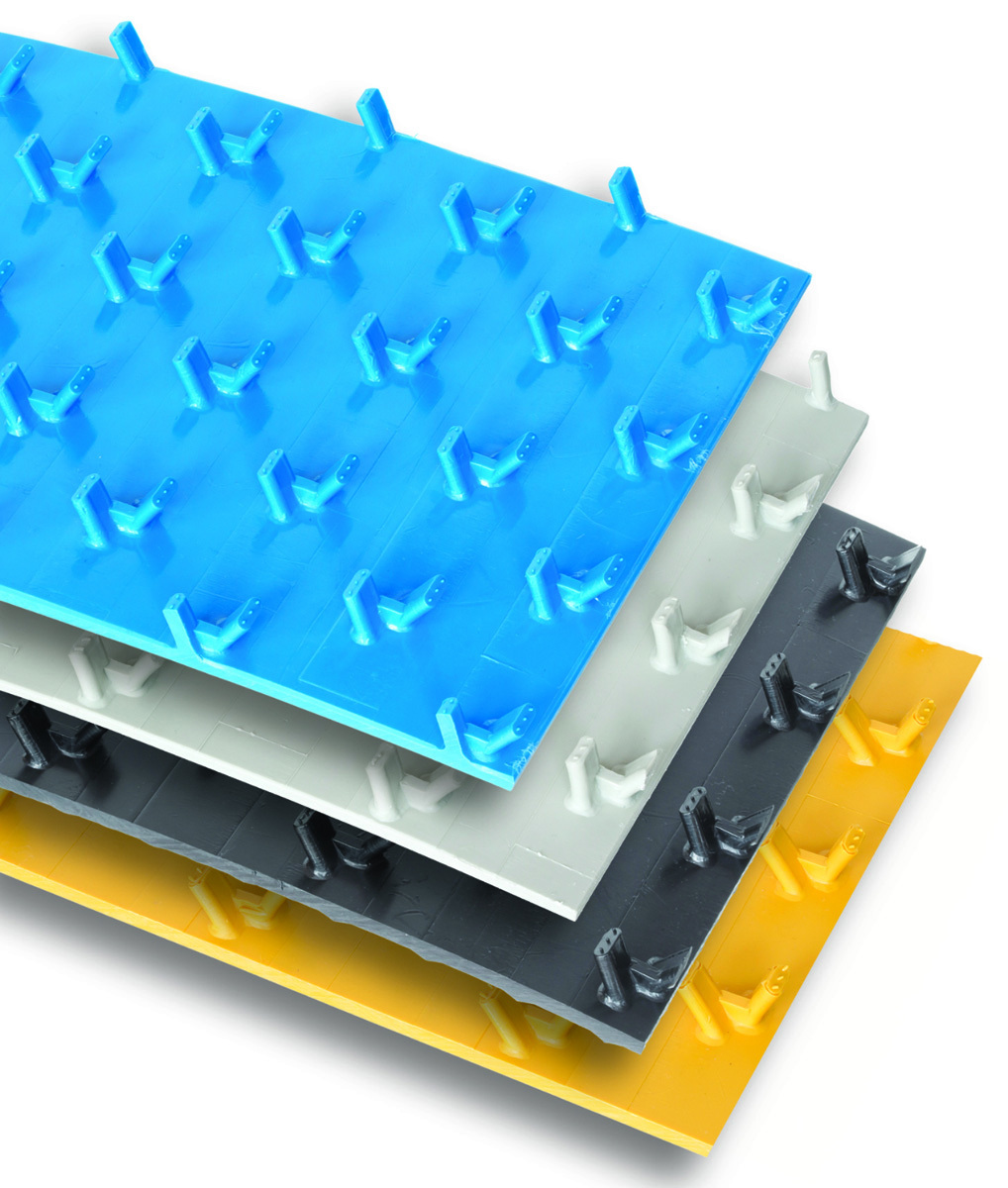

AGRU America Sure-Grip
Sure-Grip liners from AGRU America are made of HDPE, HDPE-el, PP, PVDF or ECTFE, and serve as a long-term alternative to spray-applied concrete protection products. The liners prevent concrete corrosion and degradation, can substantially extend the lifetime of a structure, and by preventing exfiltration and infiltration, provide direct protection for the environment. The liners have anchoring systems that enable construction in areas of significant backpressure. Unlike spray-applied liners, which have to be reapplied regularly due to cracking or delamination, these liners are long-lasting, and are designed to avoid the residuals cost often associated with concrete spray-on liners, which require tank emptying and cleaning every few years for reapplication.843-546-0600; www.agruamerica.com

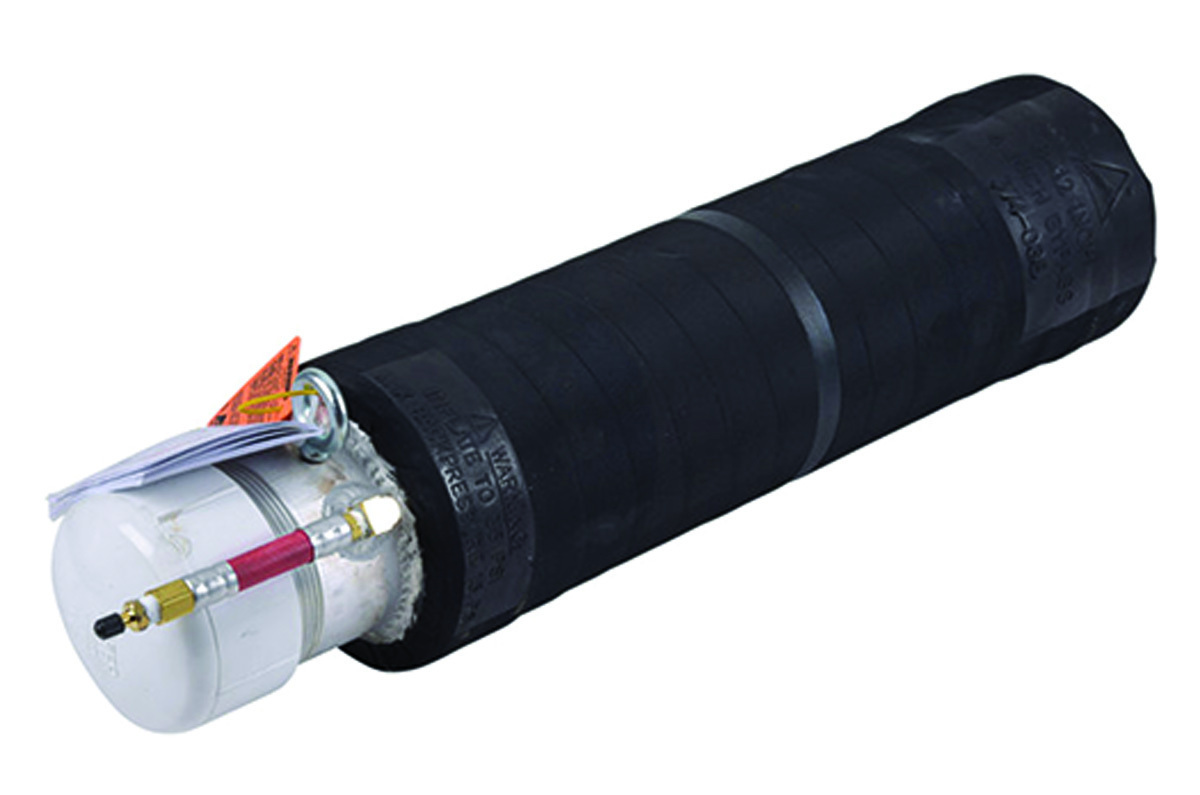

Cherne Multi-Size Big-Mouth
Cherne Multi-Size Big-Mouth plugs are ideal for gravity bypassing or bypass pumping. Their removable tire valve allows for easy replacement, with an optional quick disconnect. They offer a greater expansion range. This product has five variations, ranging from 6 to 10 inches with 4-inch bypass plugs to 12 to 18 inches with 6-inch bypass plugs.800-843-7584; www.cherneind.com

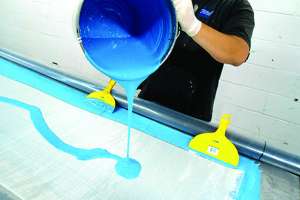

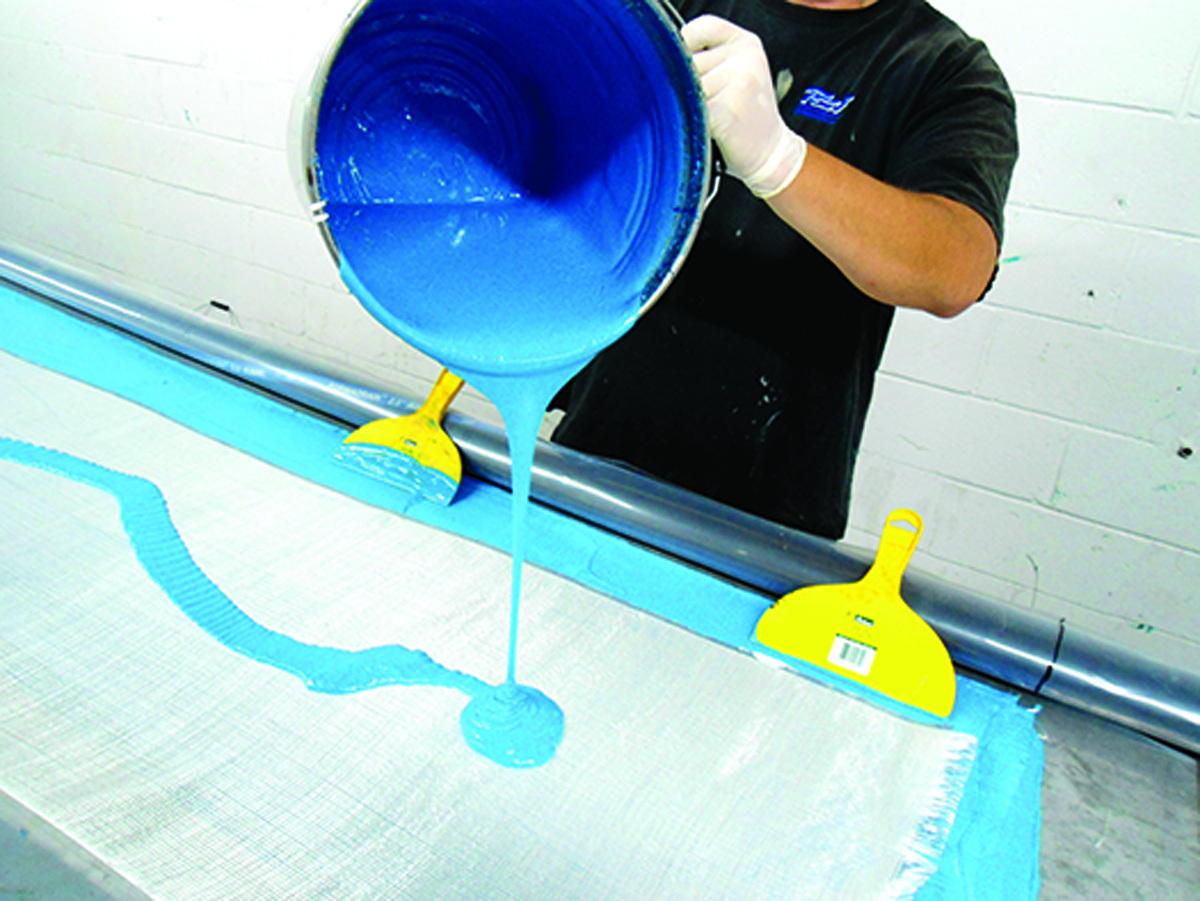

FORMADRAIN Formapox 101
Formapox 101 from FORMADRAIN is a durable steam-cured liner that eliminates the mess and cost of traditional dig-and-replace methods. It is made from a watertight, thin, yet extremely strong composite material and a specially formulated resin. The liner is bright blue in color. It is the mainstay of the company’s pushed- or pulled-in-place, steam-cured, fiberglass and epoxy underground pipe repair system. It can be used in line sizes from 2 to 48 inches. The repair is so thin that pipes sustain their original flow capacities, even with a liner installed in such small diameters.888-337-6764; www.formadrain.com

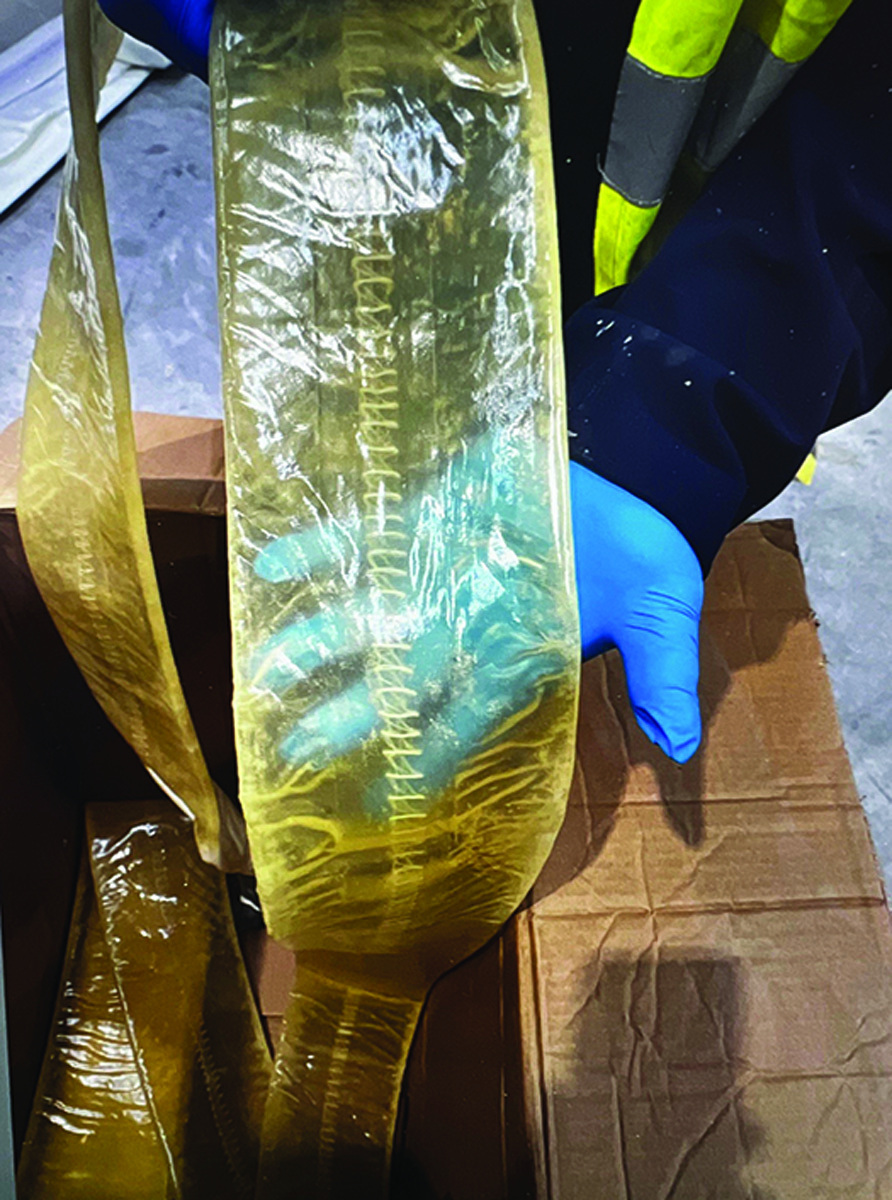

MaxLiner USA GhostLiner
GhostLiner lateral CIPP liner from MaxLiner becomes transparent during wet-out, reduces UV cure times by up to 50% and delivers superior physical properties. It offers a faster and higher quality cure due to transparency once saturated, and negotiates pipe bends up to 45 degrees. It is a uniquely manufactured synthetic fiber felt with a TPU coating designed to maximize LED light-cure capabilities. Tube forming and seam bonding are achieved by an overlocking chain stitched seam with an extruded taped joint, creating a superior, high-performance impermeable liner designed for sweeping bends up to 45 degrees and very minimal stretch.877-426-5948; www.maxlinerusa.com

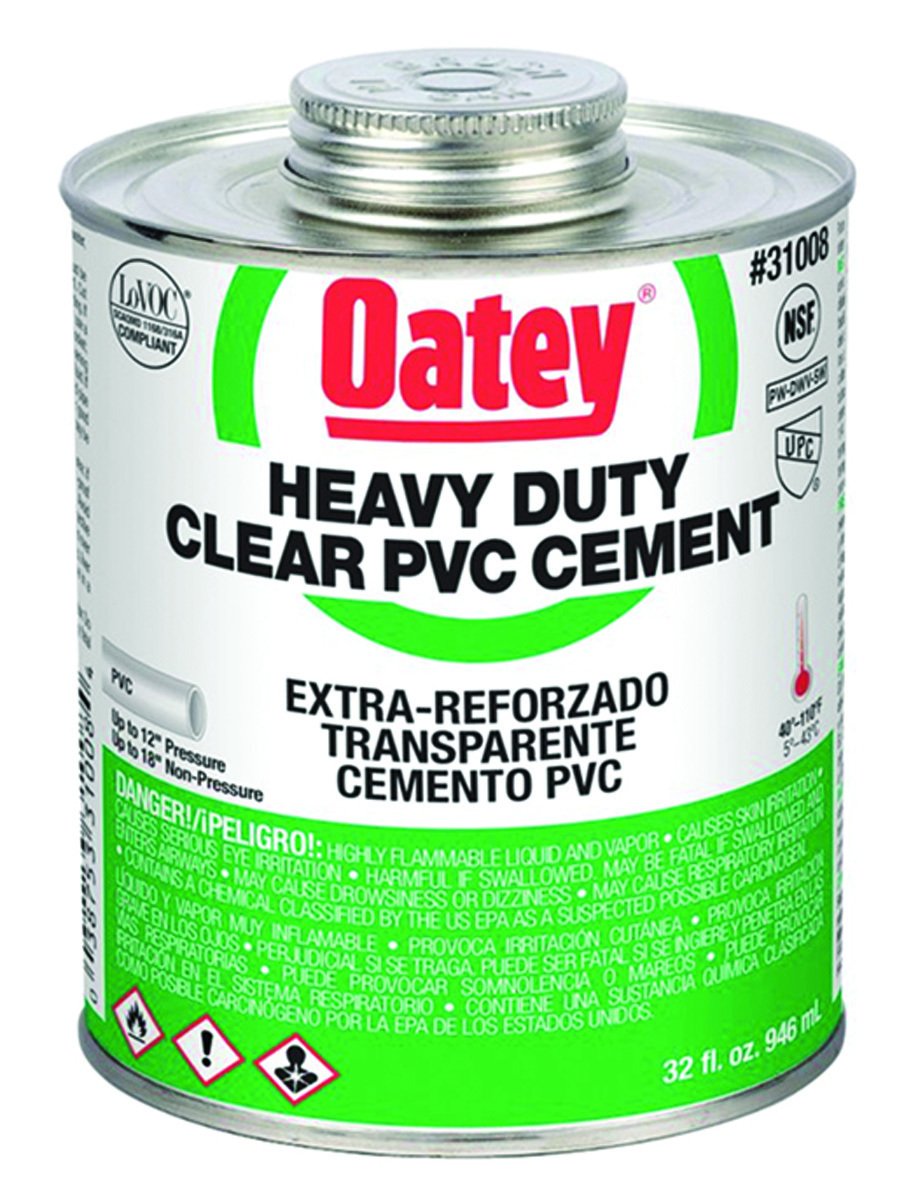

Oatey Heavy Duty Clear PVC Cement
Oatey Heavy Duty Clear PVC Cement is recommended for DWV, pressure pipe, potable water and electrical applications. Its thick formula fills gaps in large diameter pipe and loose-fitting joints and is easy to apply with an included in-lid dauber. This clear, heavy-duty, medium-set cement can be used to solvent weld all schedules and classes of PVC pipe and fittings with interference fit up to 18-inch diameter for nonpressure and 12-inch diameter for pressure pipes. The recommended application temperature ranges from 40 degrees Fahrenheit to 110 degrees Fahrenheit. All Oatey solvent cement and primer products are certified to UL Greenguard Gold, and this particular product meets ASTM standard D2564 and complies with NSF/ANSI 61 health effect requirements. It is offered in a variety of sizes, from 4 ounces to 1 gallon.800-321-9532; www.oatey.com

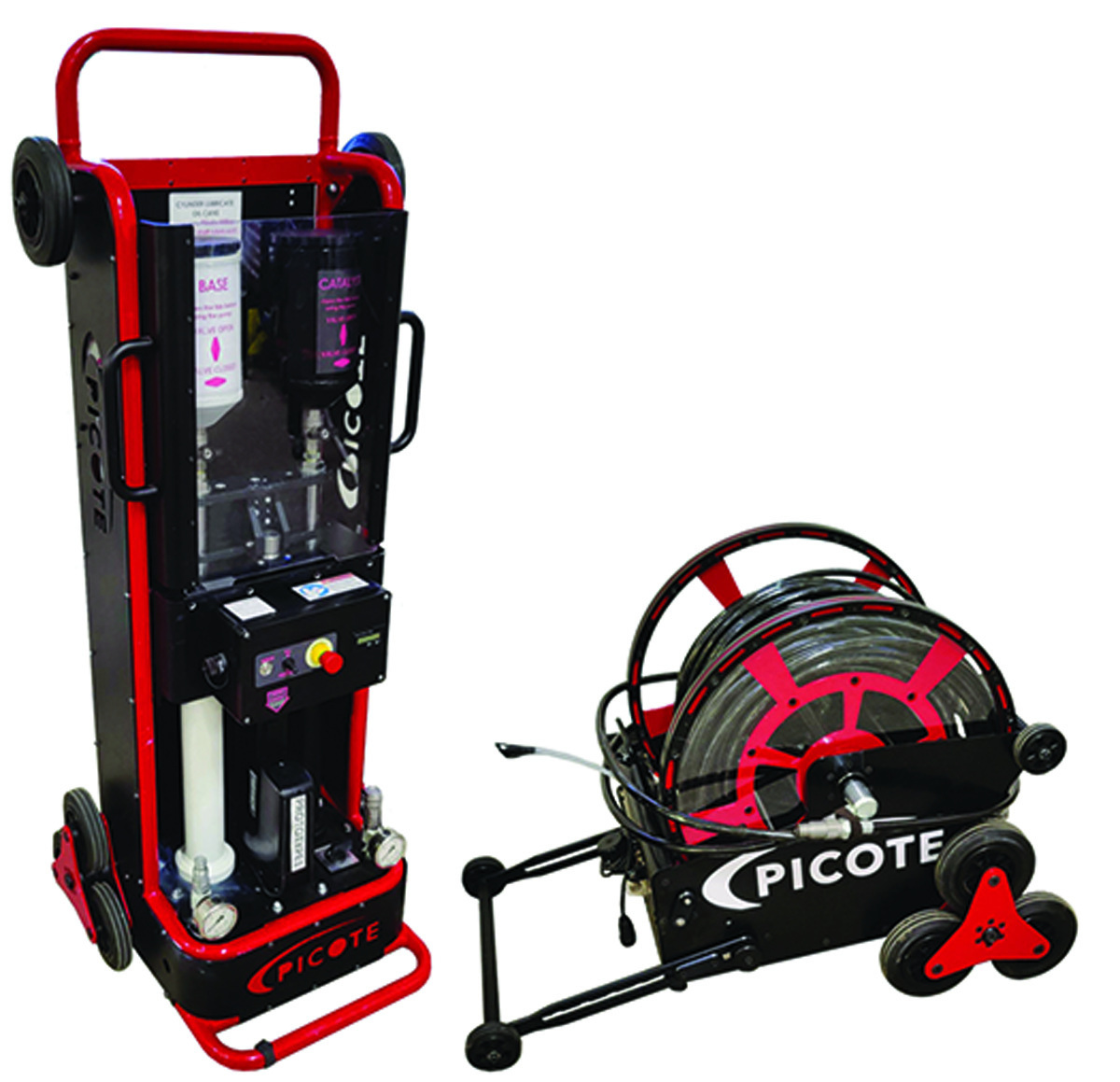

Picote Xpress Brush Coating System
The Picote Xpress Brush Coating System provides a solution for refurbishing pipes ranging from 1 1/4 to 12 inches in diameter, boasting rapid curing times, zero waste, and quick setup providing savings in both cost and time. Used in conjunction with Picote Millers, the heart of the system is the Xpress Coating Pump featuring dual hydraulic resin cylinders for the new 1-1, single color epoxy. It has a built-in extended life battery and internal resin heater providing several hours of working time. The system also includes a motorized delivery hose reel with 131 feet of delivery hose, allowing for easier setup, movement and storage. The Xpress Epoxy is applied at approximately 1 mm thickness per layer, and curing time is as low as an hour between coats, resulting in a minimal number of coats needed, little time between coats, and a quick return to service.864-940-0088; www.picotegroup.com
Trenchless Pipe Replacement

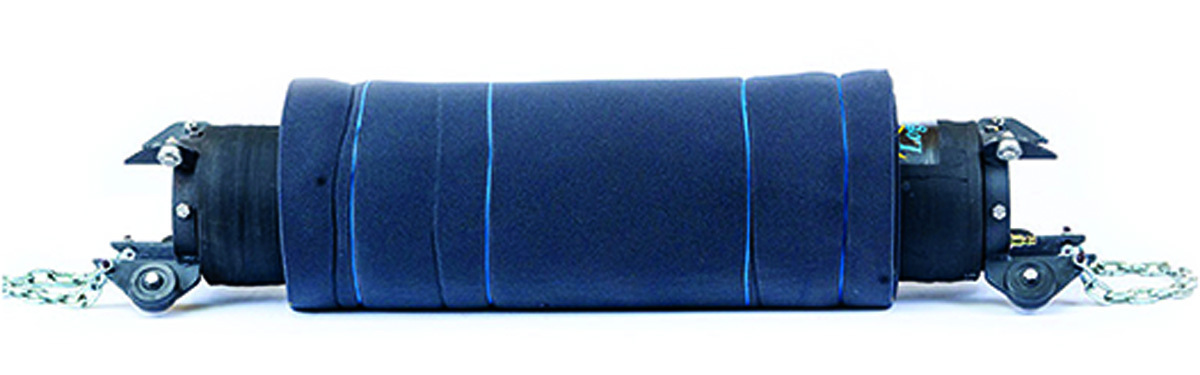

CUES LOCK
CUES LOCK is a no-dig structural point repair solution. Crossbore strikes, cracks, and separated joints, just to name a few, can be repaired in as little as 30 minutes, with no digging. The gear required to install is very minimal, and on average, will pay for itself in the first one to three repairs. This saves significant time and money versus dig and replace or traditional lining, as well as improving safety for install crews by limiting exposure. The sleeve is constructed with a 316 stainless steel core, rated to 100 year service life. It is available for pipe from 6 to more than 108 inches in diameter and in 12- to 36-inch lengths. Sleeves can be installed in series to repair longer defects. It can be used with an existing CCTV system.800-327-7791; www.cuesinc.com

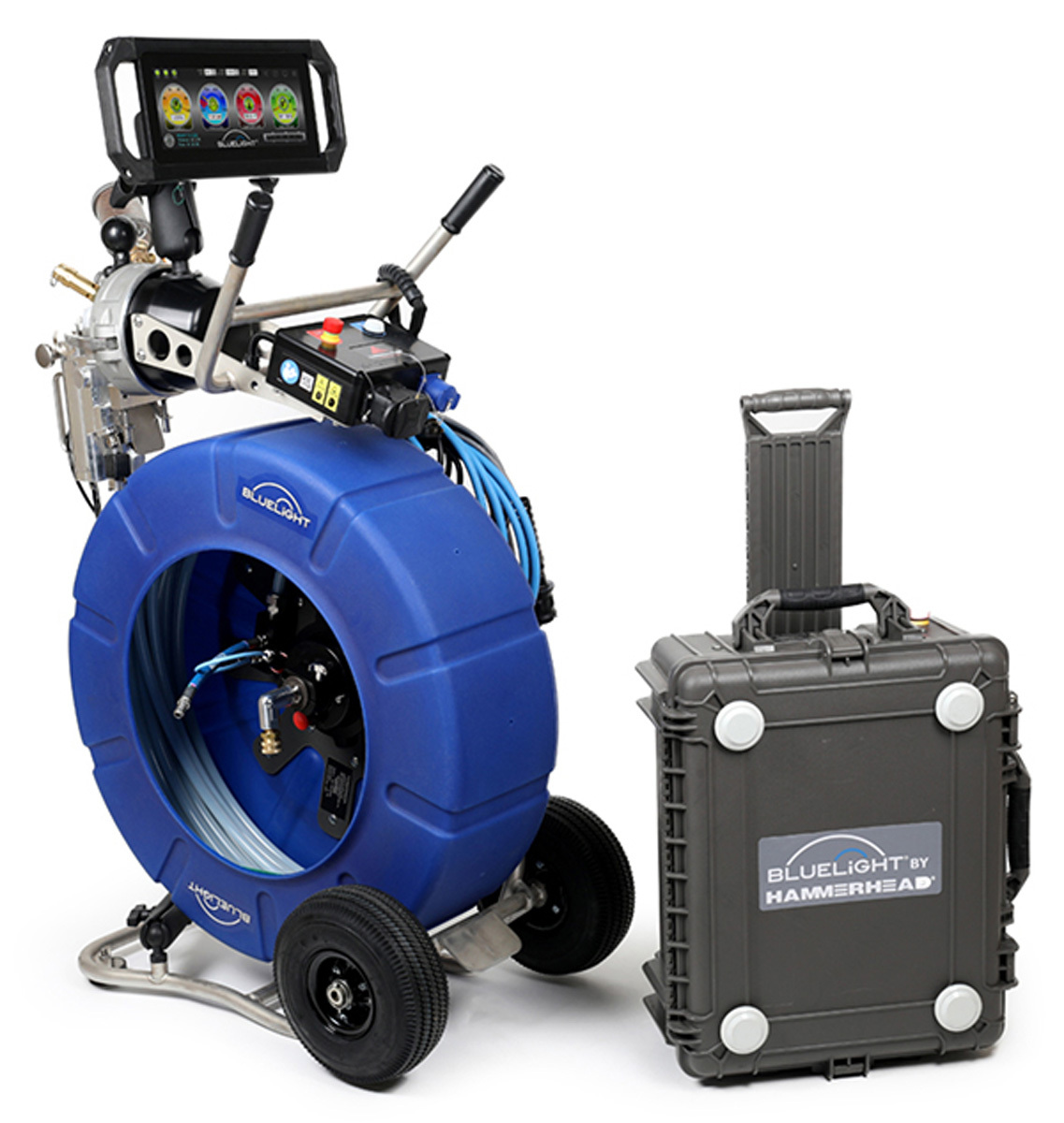

HammerHead Trenchless Bluelight LED
The redesigned Bluelight LED CIPP lining system for laterals and small drainpipes from HammerHead Trenchless uses a specially formulated resin that only cures under light in the “blue” wavelength, giving installers a significantly longer working time between liner wet-out and curing. Once installed, the automated curing system pulls the LED light head through the liner, curing the resin almost instantly — up to five times faster than other methods. Instead of waiting hours for the liner to cure, a 50-foot sewer line could be fully cured in under 10 minutes.800-331-6653; www.hammerheadtrenchless.com

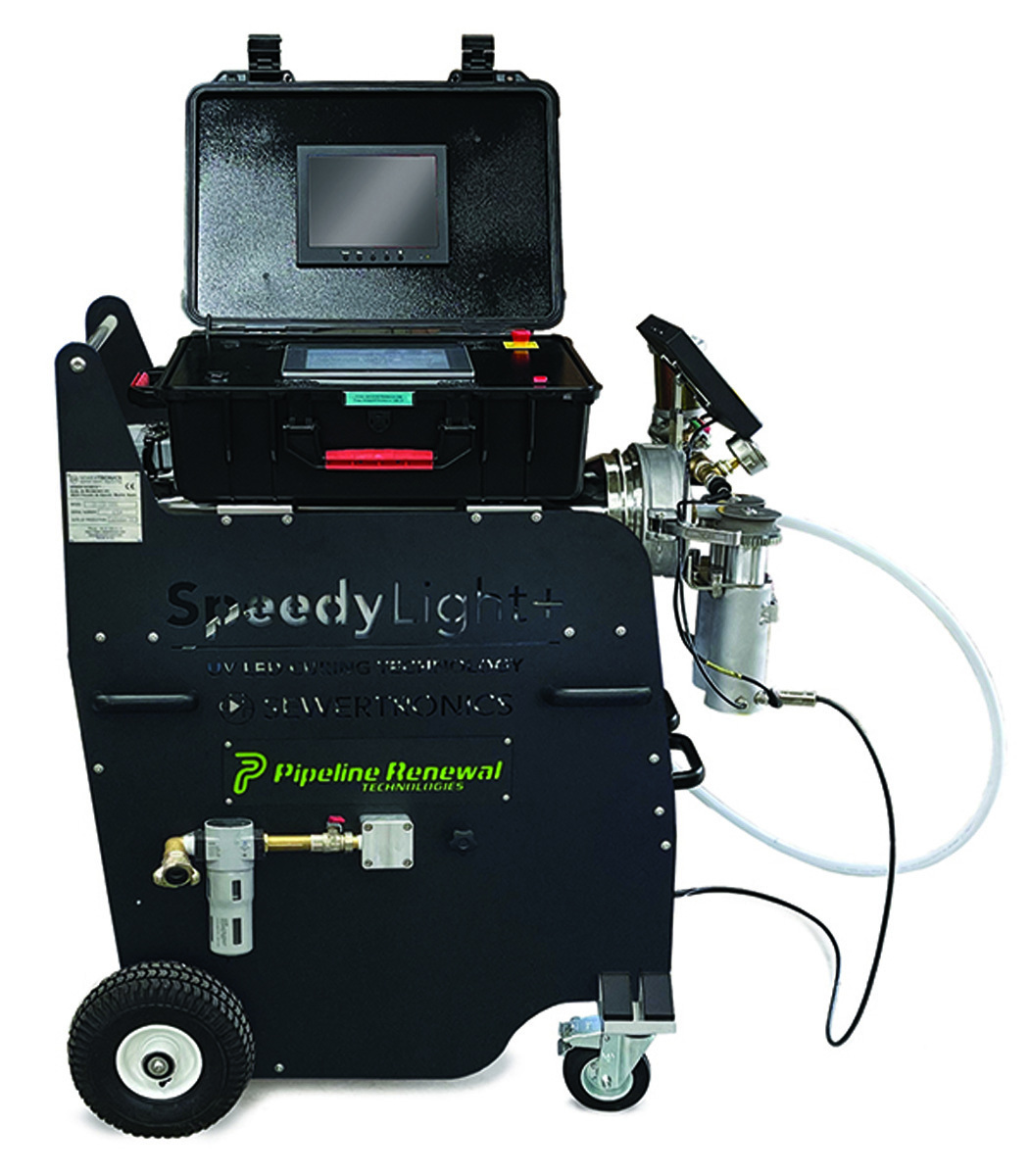

Pipeline Renewal Technologies SpeedyLight+
SpeedyLight+ from Pipeline Renewal Technologies is LED-based UV light-curing technology for trenchless pipe rehab that requires less time and energy and is less disruptive to communities and businesses. Closures are minimal and work is able to be completed without having to relocate occupants. LED UV cure eliminates safety risks such as the wrong mixing of resins or dealing with boiler systems. There are no working time considerations, as you turn the light on and off any time you want to stop or start the cure. Interchangeable camera heads show operators what’s happening underground, giving them the ability to control the speed and accuracy of the cure. It cures felt or GFRP liner and can cure 90-degree bends in lines down to 2 inches, as well as transitions and verticals.866-936-8476; www.pipelinert.com

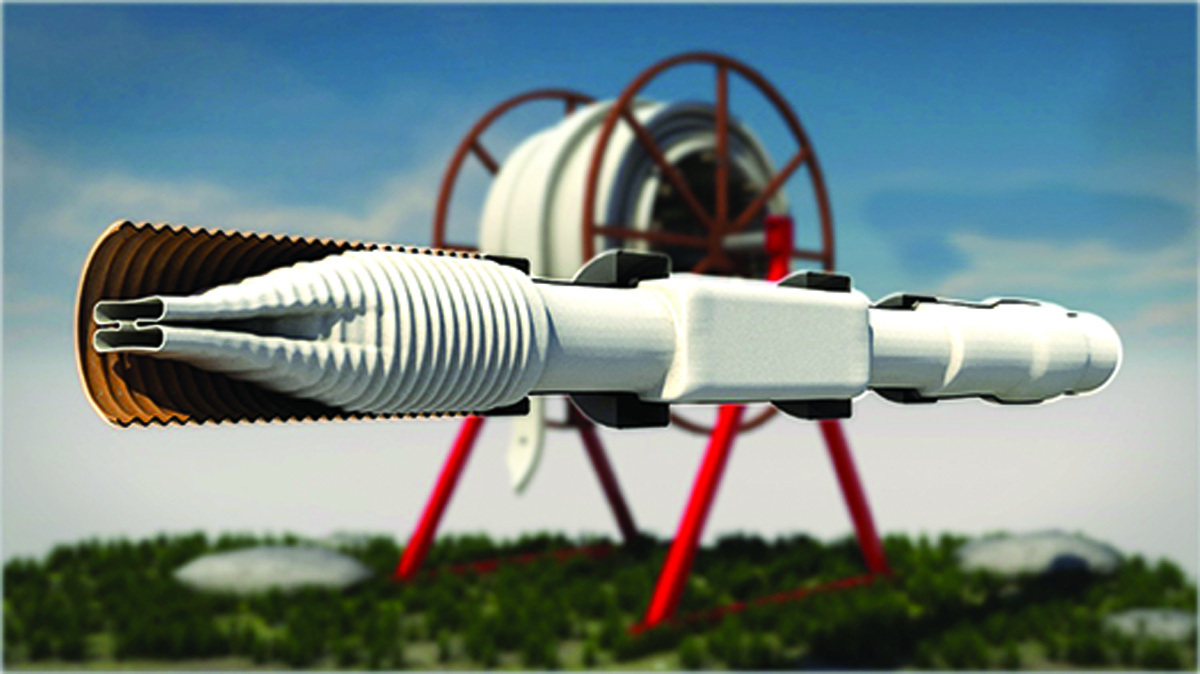

Warrior Trenchless Solutions Thermoform
Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest quality work possible.716-601-7760; www.thermoformliner.com
