Pipeline rehab and lining technologies, ranging from high-density polyethylene liners to steam-cured epoxy systems, are designed to extend the lifespan of pipelines significantly while minimizing environmental impact. By providing a barrier against corrosion, infiltration, and exfiltration, methods like those below not only preserve the structural integrity of pipelines but also enhance their functionality.

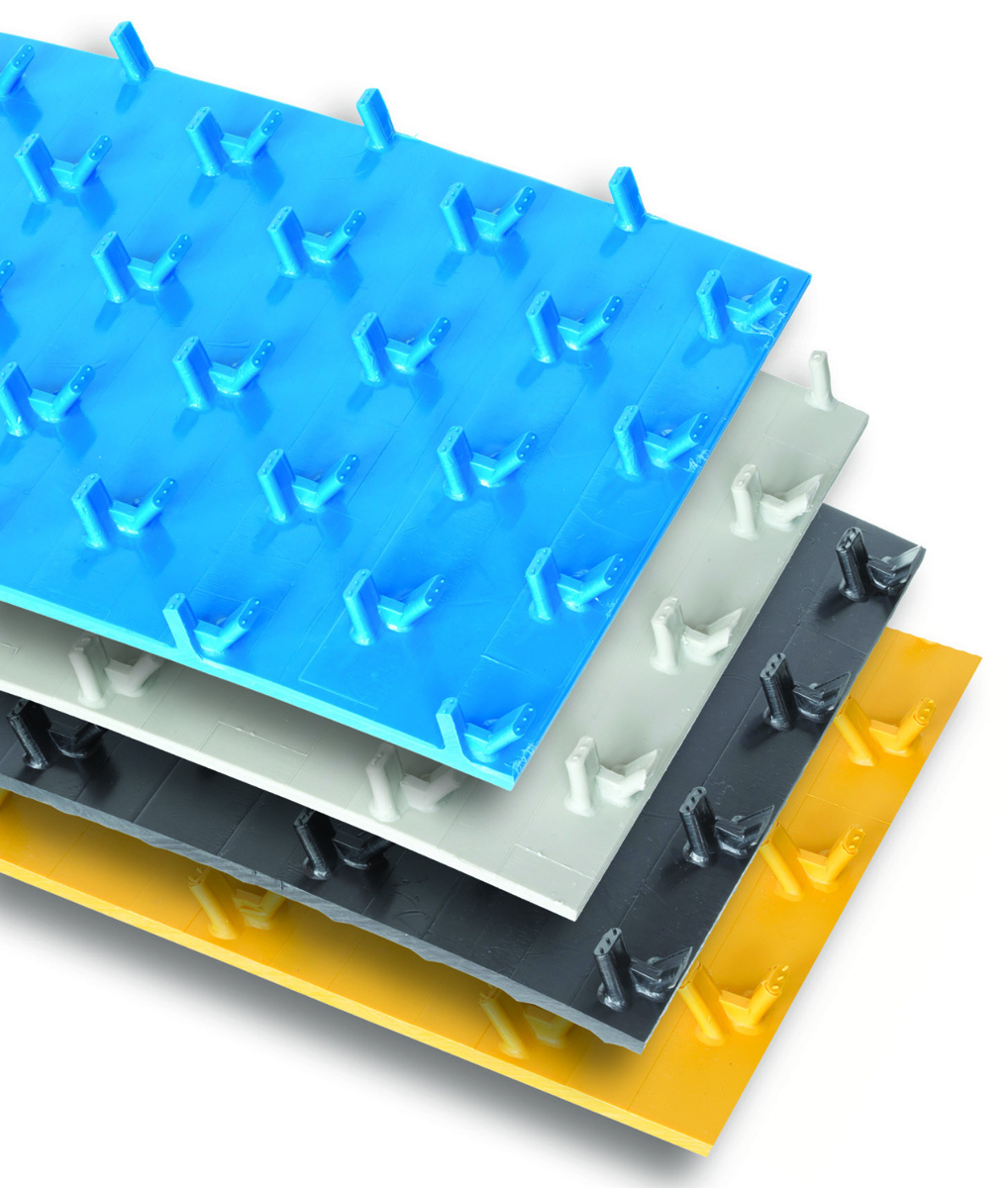

AGRU America Sure-Grip
Sure-Grip liners from AGRU America are made of HDPE, HDPE-el, PP, PVDF or ECTFE, and serve as a long-term alternative to spray-applied concrete protection products. The liners prevent concrete corrosion and degradation, can substantially extend the lifetime of a structure, and by preventing exfiltration and infiltration, provide direct protection for the environment. The liners have anchoring systems that enable construction in areas of significant backpressure. Unlike spray-applied liners, which have to be reapplied regularly due to cracking or delamination, these liners are long-lasting, and are designed to avoid the residuals cost often associated with concrete spray-on liners, which require tank emptying and cleaning every few years for reapplication.
843-546-0600; www.agruamerica.com

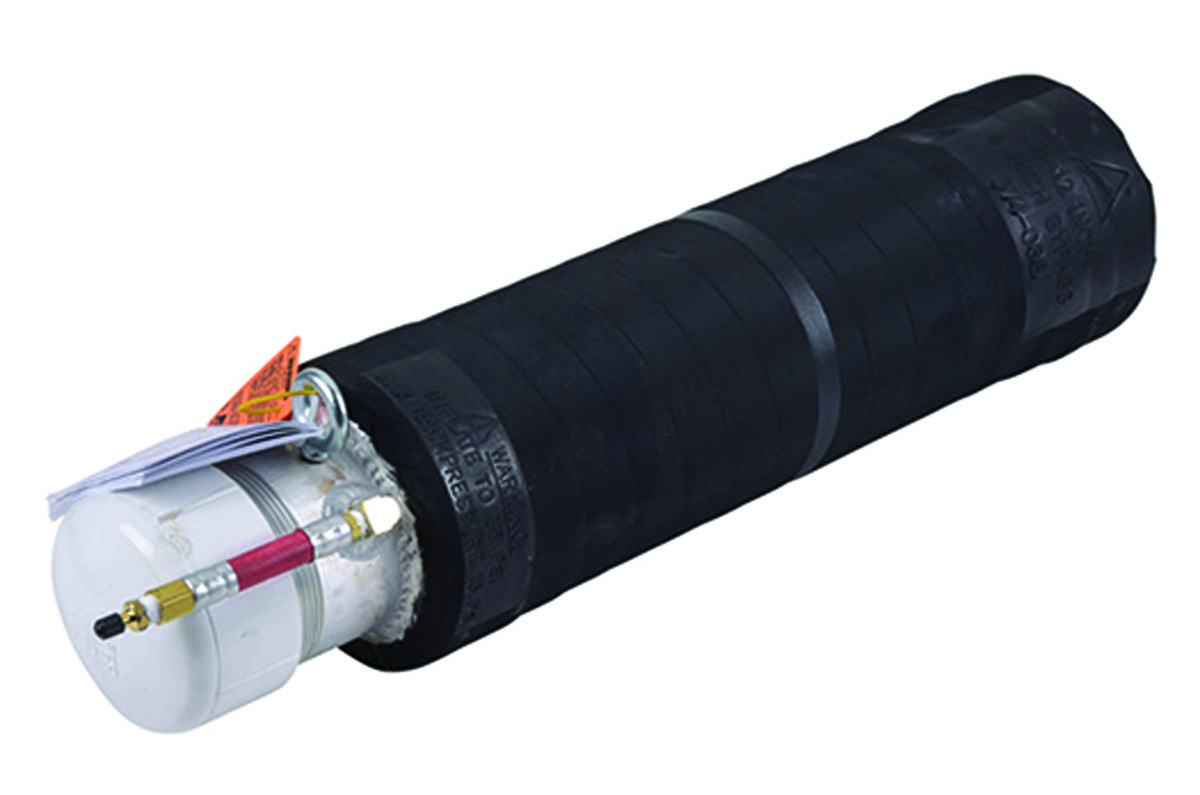

Cherne Multi-Size Big-Mouth
Cherne Multi-Size Big-Mouth plugs are ideal for gravity bypassing or bypass pumping. Their removable tire valve allows for easy replacement, with an optional quick disconnect. They offer a greater expansion range. This product has five variations, ranging from 6 to 10 inches with 4-inch bypass plugs to 12 to 18 inches with 6-inch bypass plugs.
800-843-7584; www.cherneind.com

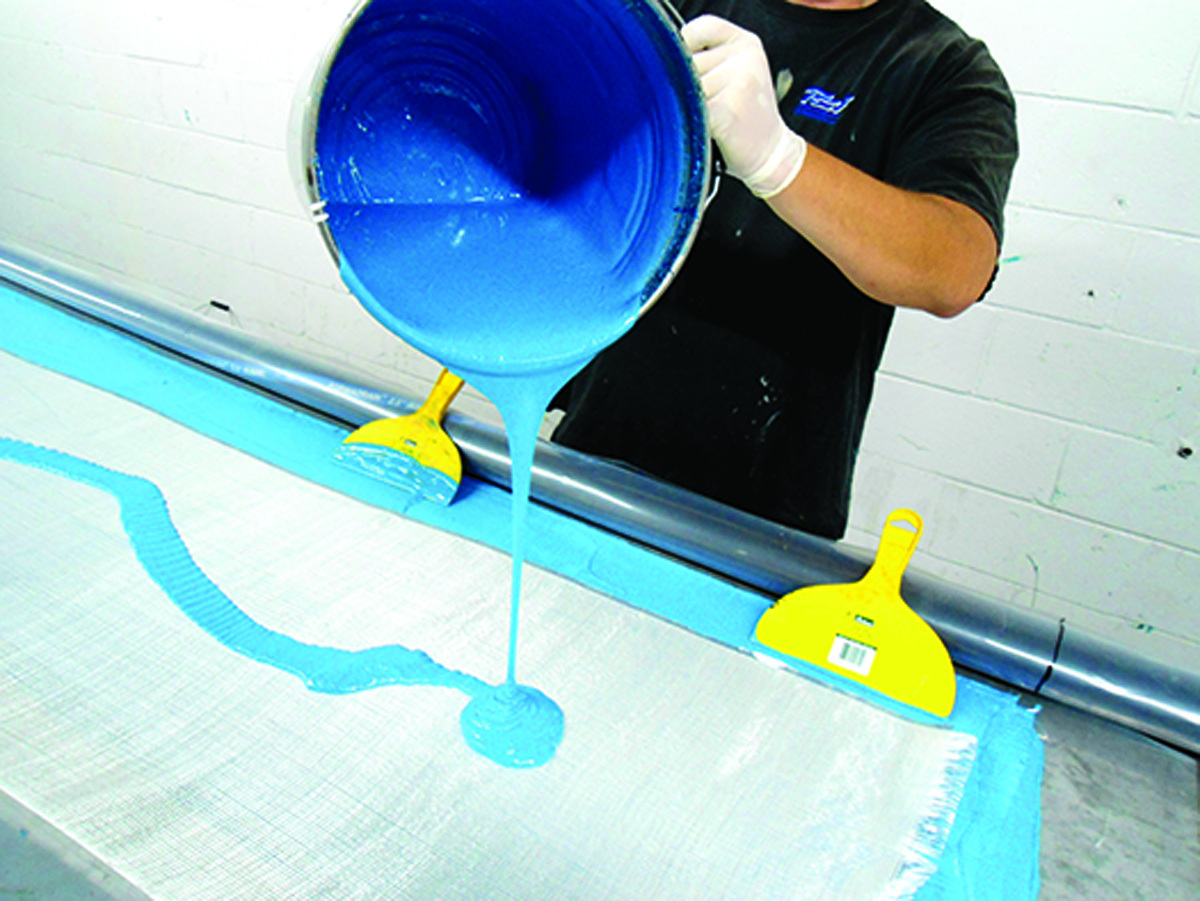

FORMADRAIN Formapox 101
Formapox 101 from FORMADRAIN is a durable steam-cured liner that eliminates the mess and cost of traditional dig-and-replace methods. It is made from a watertight, thin, yet extremely strong composite material and a specially formulated resin. The liner is bright blue in color. It is the mainstay of the company’s pushed- or pulled-in-place, steam-cured, fiberglass and epoxy underground pipe repair system. It can be used in line sizes from 2 to 48 inches. The repair is so thin that pipes sustain their original flow capacities, even with a liner installed in such small diameters.
888-337-6764; www.formadrain.com

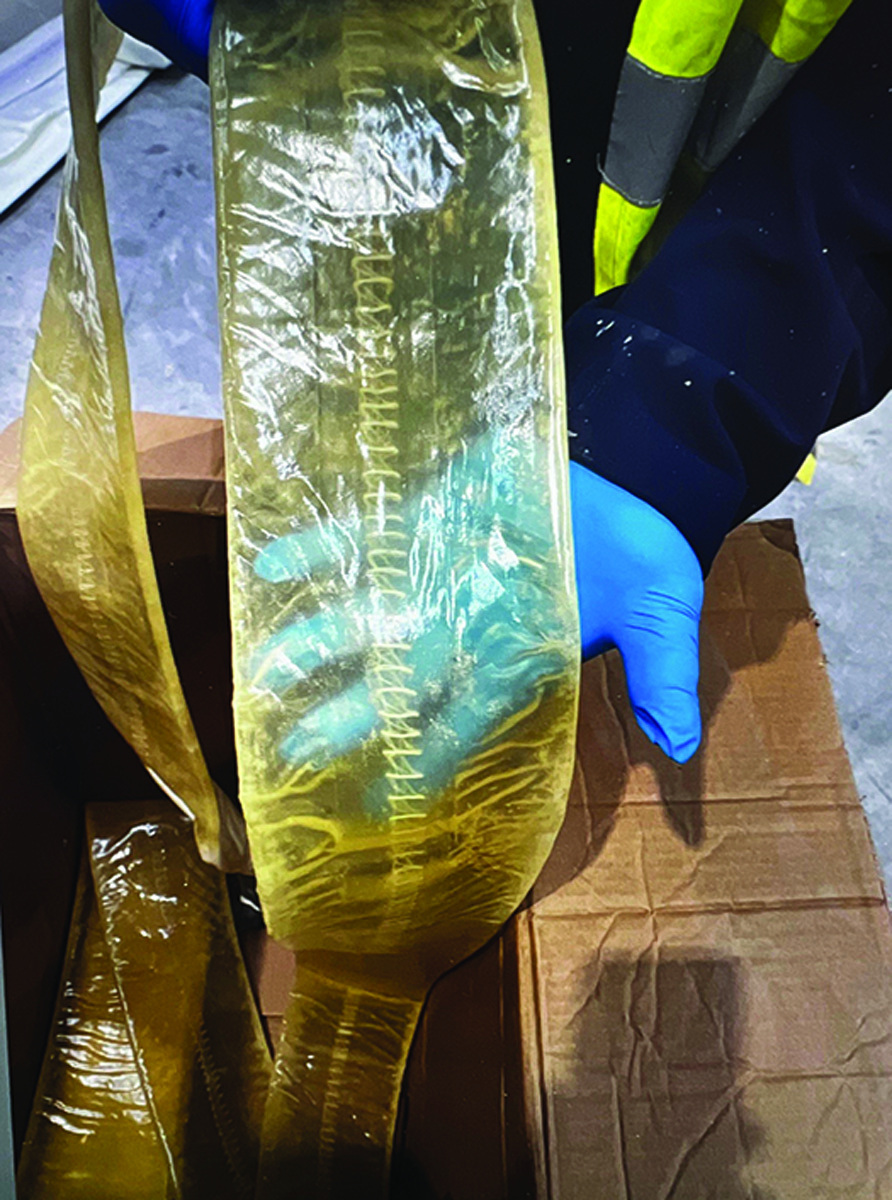

MaxLiner USA GhostLiner
GhostLiner lateral CIPP liner from MaxLiner becomes transparent during wet-out, reduces UV cure times by up to 50% and delivers superior physical properties. It offers a faster and higher quality cure due to transparency once saturated, and negotiates pipe bends up to 45 degrees. It is a uniquely manufactured synthetic fiber felt with a TPU coating designed to maximize LED light-cure capabilities. Tube forming and seam bonding are achieved by an overlocking chain-stitched seam with an extruded taped joint creating a superior, high-performance impermeable liner designed for sweeping bends up to 45 degrees and very minimal stretch.
877-426-5948; www.maxlinerusa.com

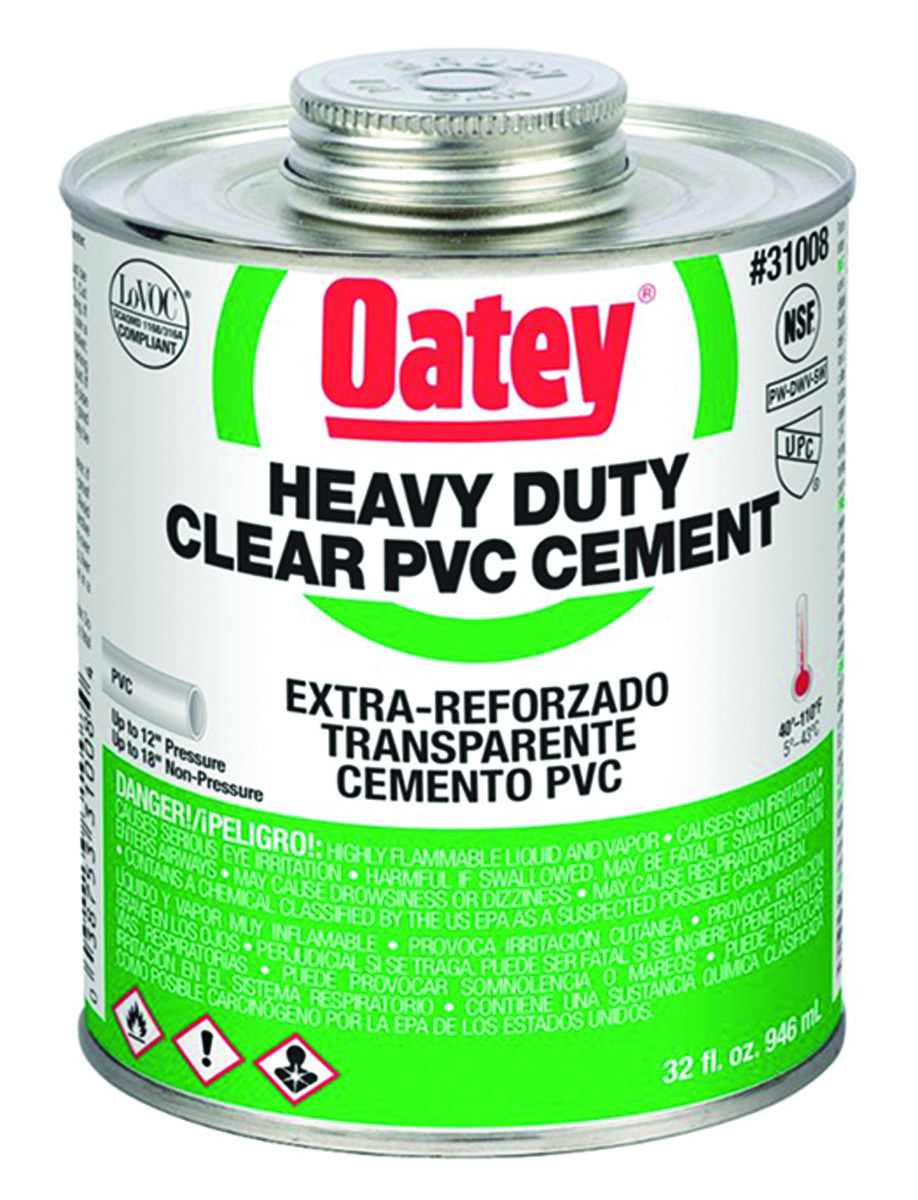

Oatey Heavy Duty Clear PVC Cement
Oatey Heavy Duty Clear PVC Cement is recommended for DWV, pressure pipe, potable water and electrical applications. Its thick formula fills gaps in large diameter pipe and loose-fitting joints and is easy to apply with an included in-lid dauber. This clear, heavy-duty, medium-set cement can be used to solvent weld all schedules and classes of PVC pipe and fittings with interference fit up to 18 in. diameter for non-pressure and 12 in. diameter for pressure pipes. The recommended application temperature ranges from 40 degrees Fahrenheit to 110 degrees Fahrenheit. All Oatey solvent cement and primer products are certified to UL Greenguard Gold, and this particular product meets ASTM standard D2564 and complies with NSF/ANSI 61 health effect requirements. It is offered in a variety of sizes, from 4 ounces. to a gallon.
800-321-9532; www.oatey.com

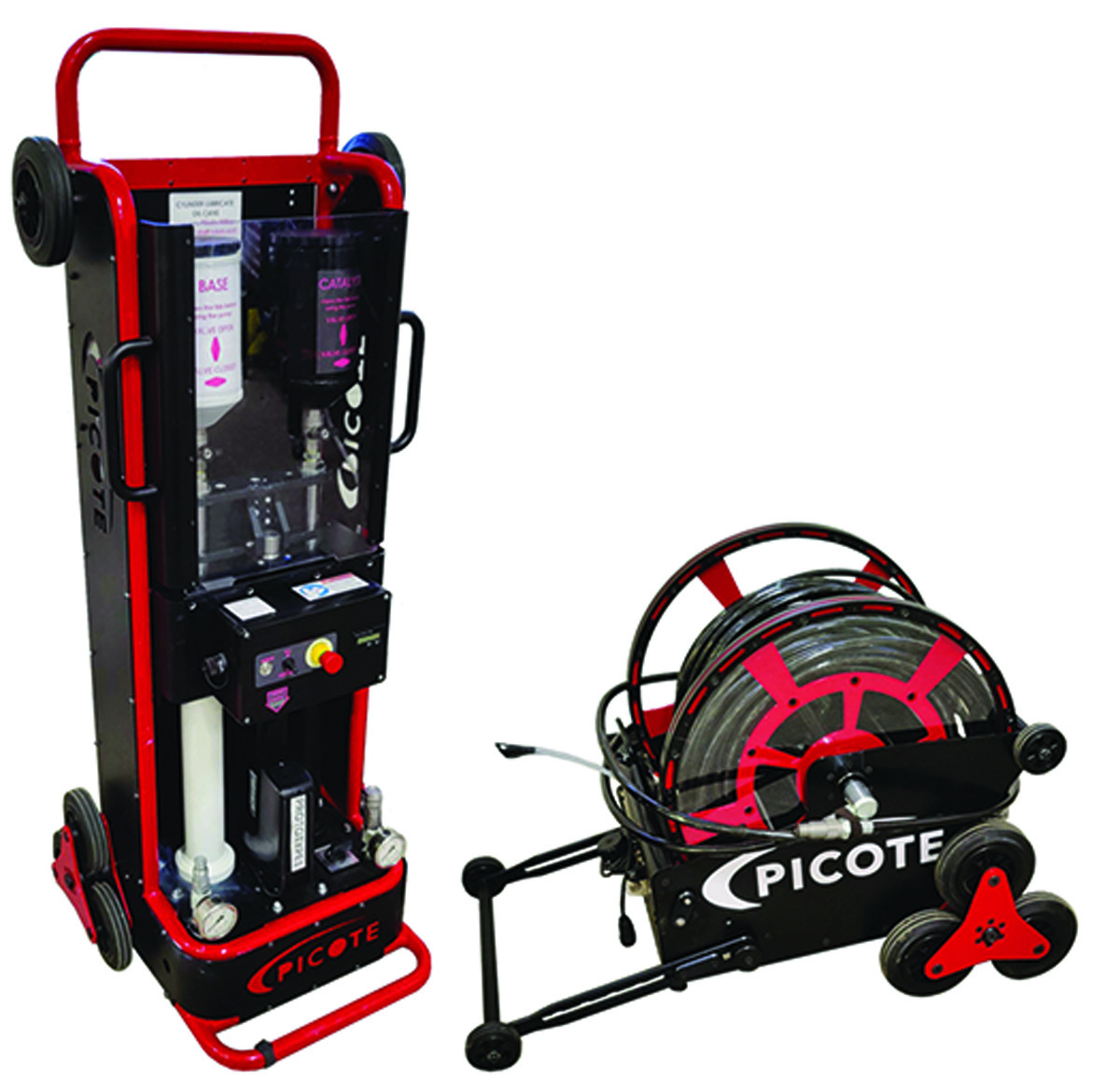

Picote Xpress Brush Coating System
The Picote Xpress Brush Coating System provides a solution for refurbishing pipes ranging from 1 1/4 to 12 inches in diameter, boasting rapid curing times, zero waste, and quick setup providing savings in both cost and time. Used in conjunction with Picote Millers, the heart of the system is the Xpress Coating Pump featuring dual hydraulic resin cylinders for the new 1-1, single-color epoxy. It has a built-in extended life battery and internal resin heater providing several hours of working time. The system also includes a motorized delivery hose reel with 131 feet of delivery hose, allowing for easier setup, movement and storage. The Xpress Epoxy is applied at approximately 1 mm thickness per layer, and curing time is as low as an hour between coats, resulting in a minimal number of coats needed, little time between coats, and a quick return to service.
864-940-0088; www.picotegroup.com
