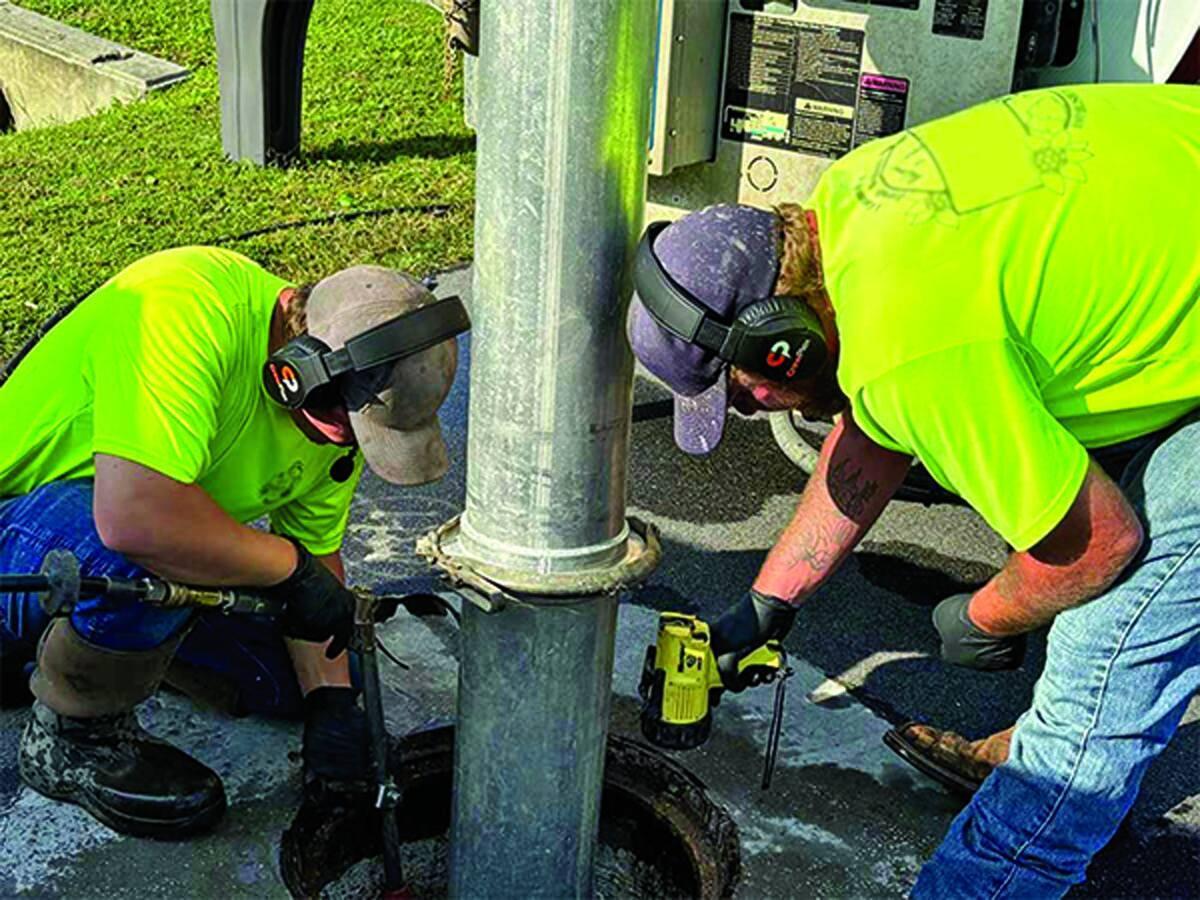

Manhole inspection and rehabilitation demand uncompromising safety, flawless coordination,and split-second decisions. But in noisy, confined and hazardous environments, traditional methods like hand signals or push-to-talk radios often slow crews down and increase the risk of mistakes. That’s where CrewPlex hands-free, full-duplex communication changes the game. Teams can talk and listen simultaneously — just like a natural face-to-face conversation — ensuring clear, continuous communication between crews underground and support staff above. Immediate communication enables faster decisions. Crews can focus fully on the task without fumbling for radios. Fewer errors and stronger safety practices mean projects get done on time and on budget.334-321-1400; www.crewplex.com
Horizontal Directional Drilling

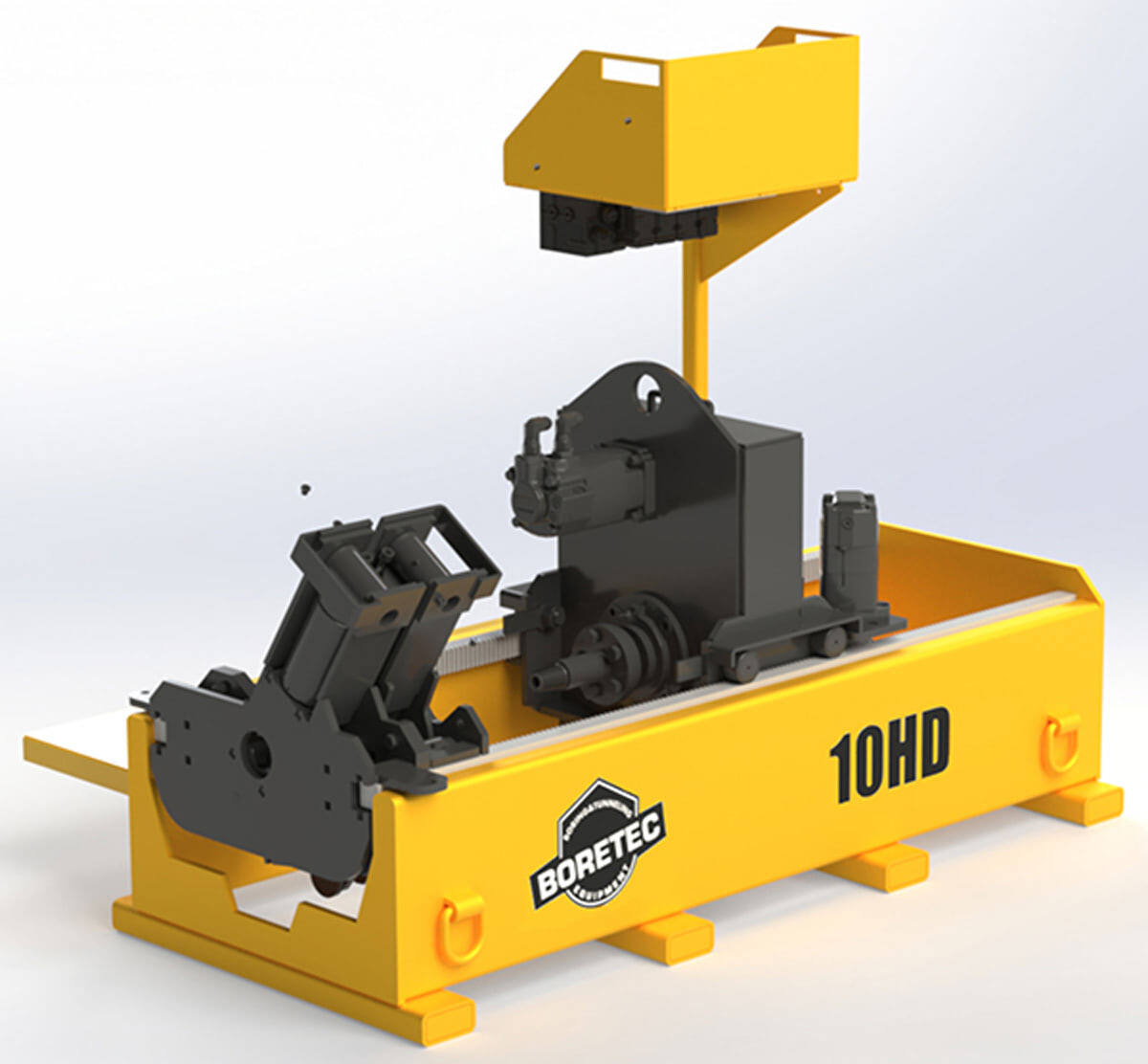

Boretec 10HD
The Boretec 10HD is a compact, high-performance pit-launched horizontal directional drill designed for dependable operation in demanding conditions. Its clean, durable frame and efficient power delivery make it a contractor-focused boring system built for productivity. It can run a 3-inch rock hammer directly off the drill circuit, giving it true all-terrain capability without extra equipment. It offers 0-175 rpm rotation, 1,500 ft-lbs spindle torque at 3,000 psi, and 12,000 pounds push/pull thrust at 3,000 psi, with a recommended hydraulic flow of 20 to 30 gpm at 2,500 to 3,000 psi. It is available in a 5- or 8-foot track, maintains a low 14-inch centerline and uses 1.5-inch O.D. rods with 1.66-inch joints for fast, easy handling.864-708-1250; www.boretec.com

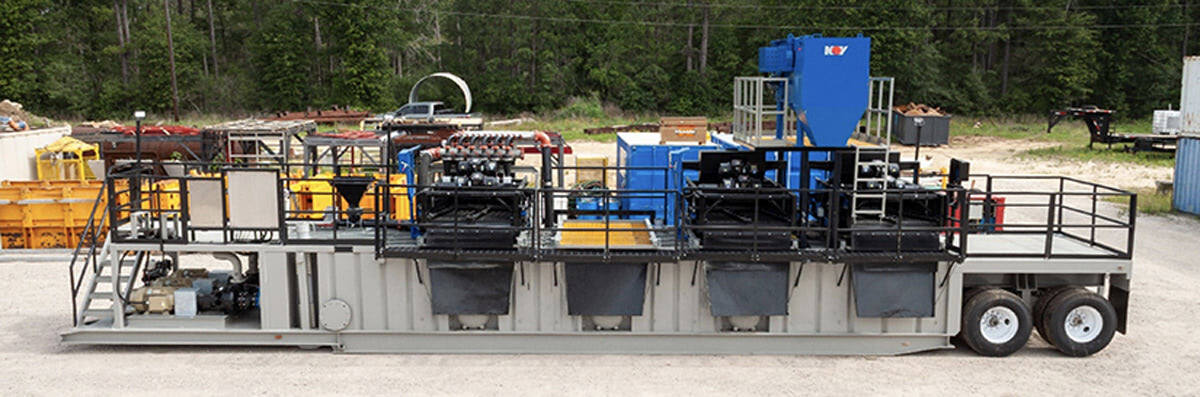

Sentinel Solutions Senturion 1590
The Senturion 1590 from Sentinel Solutions is a high-capacity mud recycling system engineered for horizontal directional drilling operations requiring maximum solids-control efficiency. Built on a rugged rockover trailer with hydraulic landing gear, it integrates four Alpha Shakers featuring the Pneumaseal screen locking system and tongue-and-groove screens. The Pneumaseal system allows for a full deck of screens to be changed in minutes versus traditional hammer and wedge designs, while creating a zero bypass deck so contractors can be certain of cutpoints. The Alpha shakers are the lowest decibel rated shakers on the market, making them ideal in urban environments. Equipped with 1,500 gpm desander and desilter, it can handle any Maxi-Rig operation. Its 9,000-gallon tank capacity and 1,500 gpm process rate allows contractors to maintain drilling fluids while minimizing haul-off and disposal costs.631-622-5970; www.sentinel-solutions.com
Hydroexcavation Equipment

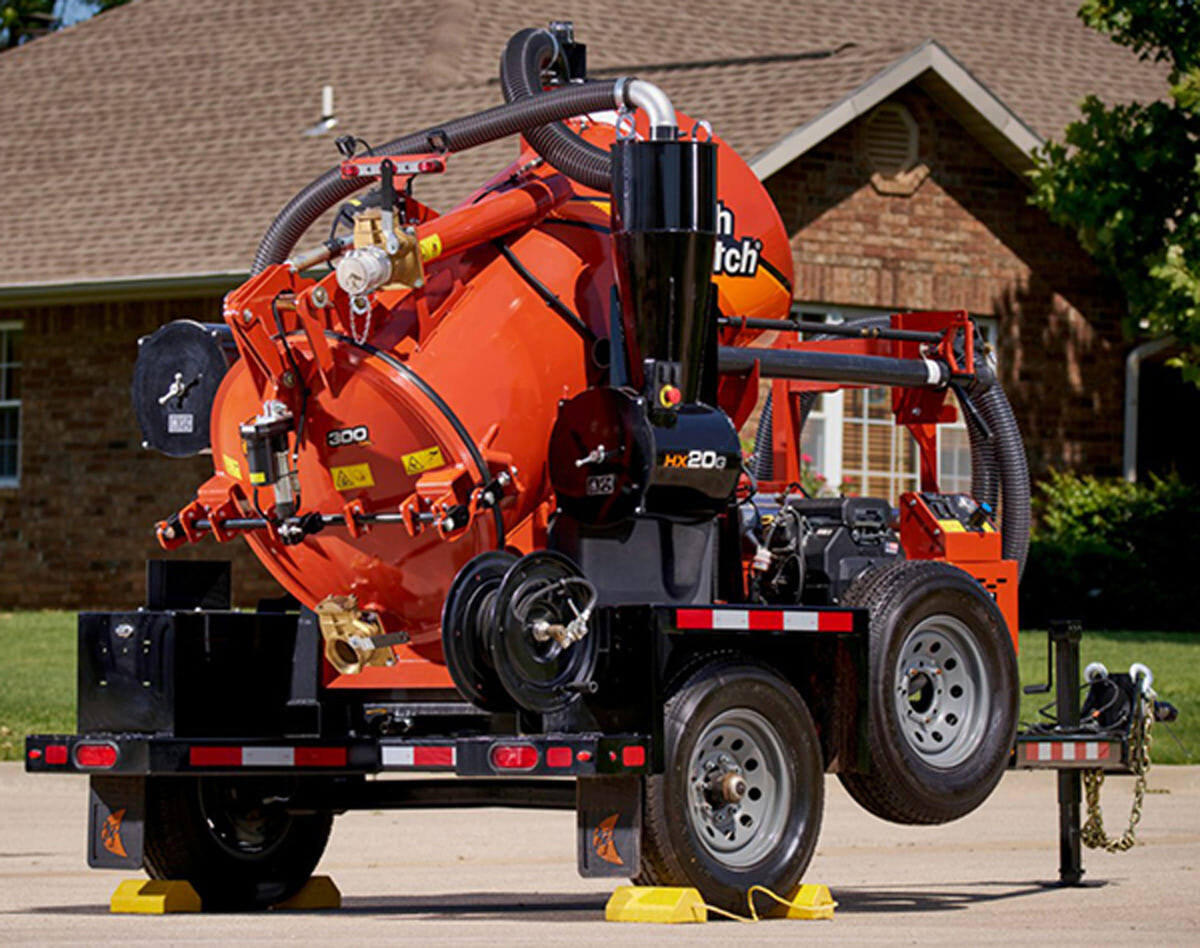

Ditch Witch HX20G
The HX20G vacuum excavator from Ditch Witch offers operators the option between a 150- or 300-gallon spoils tank, both paired with a 90-gallon freshwater tank, to accommodate various job sizes and site conditions. It is powered by a 27 hp Kohler EFI gas engine for optimal suction power and water pressure to remove slurry and expose existing utilities for easy repair or replacement. It features a 541 cfm blower and 3,000 psi water pressure capacity. Its compact dimensions allow towing behind a standard pickup truck, maximizing fleet flexibility and reducing transportation costs. Additionally, a redesigned access door and operator interface simplify daily operations and maintenance, reducing downtime and training needs. It can tackle a wide range of applications from utility locating to debris cleanup and landscaping.580-336-4402; www.ditchwitch.com

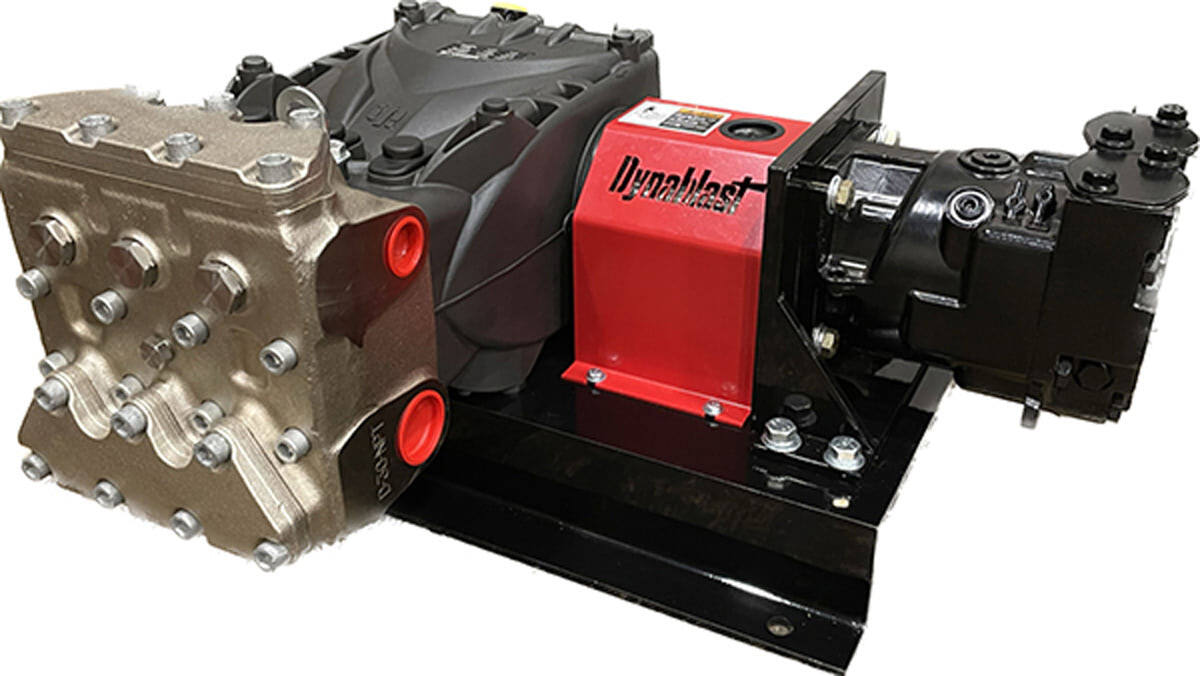

Dynablast Pratissoli KFR25
The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, internal fins on its aluminum crank case to provide cooling to lower the oil temperature, a tapered roller bearing for improved lateral loading and two bore ceramic plungers that are thicker ceramic on the water end to prevent thermal shock.905-867-4642; www.dynablast.ca

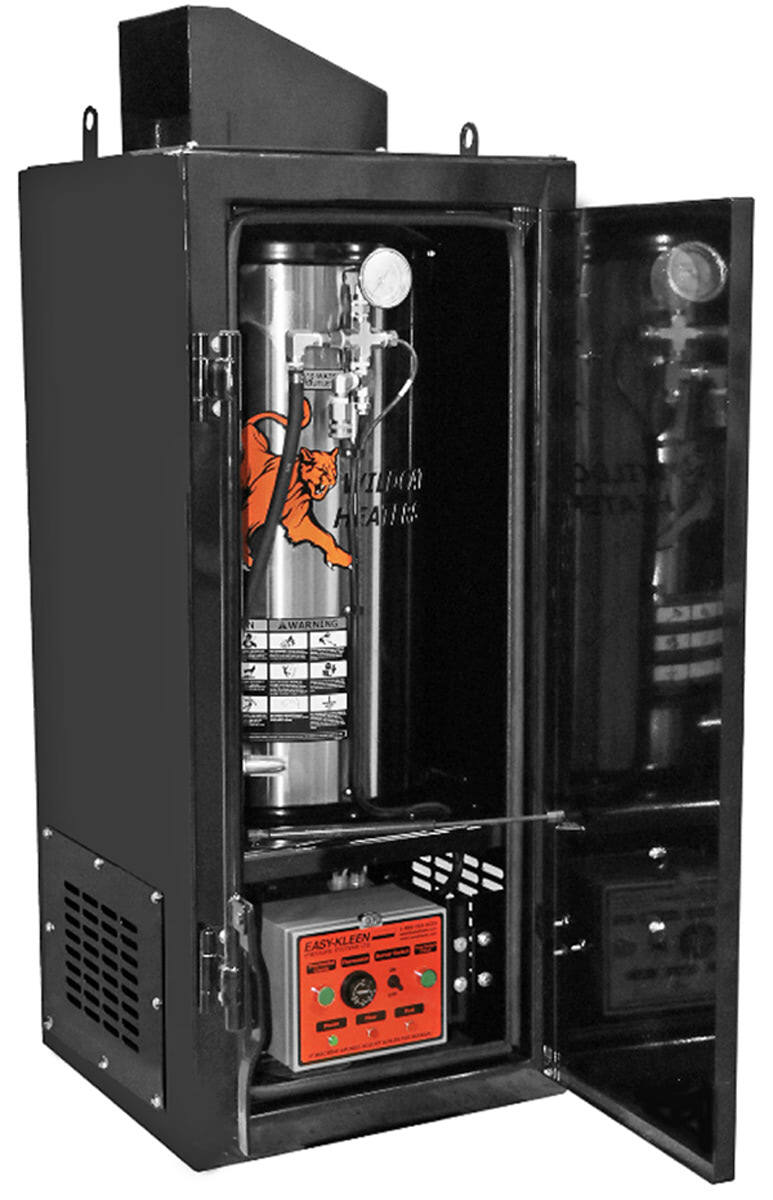

Easy-Kleen Mobile Heater
Easy-Kleen’s Mobile Heater delivers portability for contractors tackling remote or confined spaces. It features a 300,000 Btu diesel-fired heat exchanger mounted on a steel frame with forklift pockets, pneumatic tires and a telescoping handle, enabling hot-water cleaning even in subzero environments. Its stainless steel coil and adjustable thermostat ensure consistent temperatures up to 200 degrees F, while integrated fuel and water tanks support eight hours of continuous operation.800-315-5533; www.easykleen.com

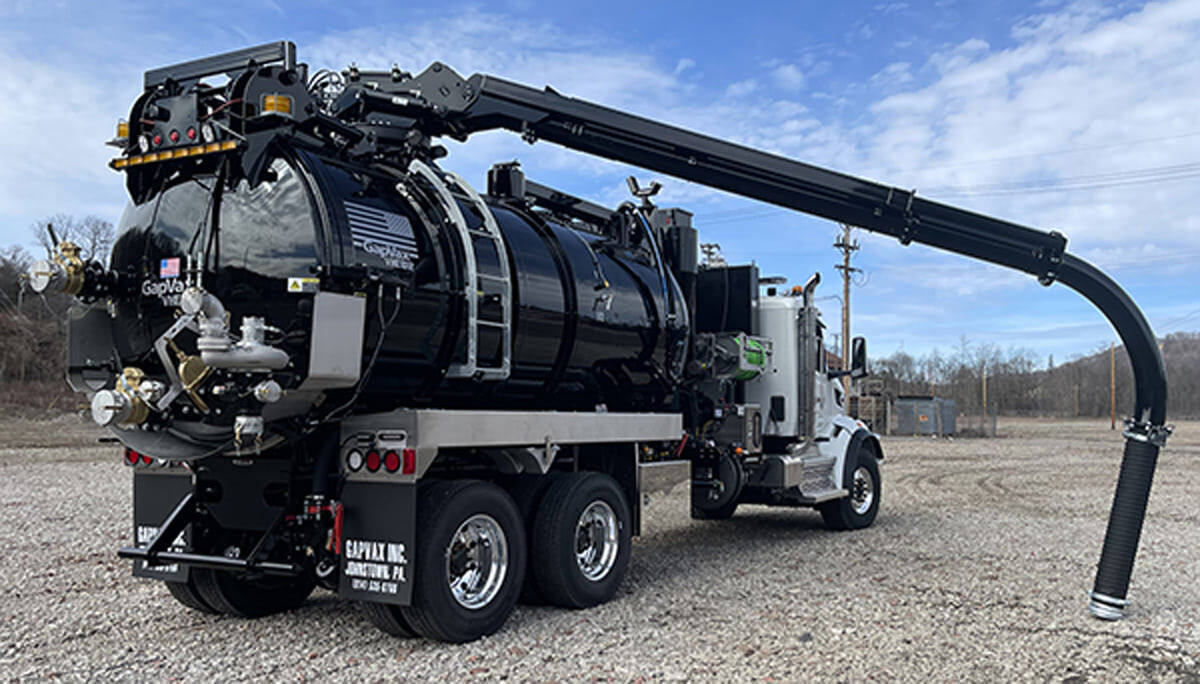

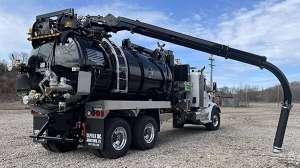

GapVax VHE
The GapVax VHE hydrovac is built for strength and simplicity. The full-length 6-inch subframe reinforces the chassis frame and provides a stable dumping platform. It comes standard with a full-opening tailgate and 50-degree dump angle for fast, efficient unloading. Customizable options include water tanks from 300 to 2,000 gallons, debris bodies from 4 to 15 cubic yards and a standard 4,500 cfm, 18-inch Hg blower (a 4,000 cfm, 27-inch Hg option is available). Water systems range from 19 gpm and 2,900 psi up to 40 gpm and 5,800 psi. Its improved 8-inch telescoping boom rotates 180 degrees, uses heavy-duty dual lift cylinders for consistent positioning and dips down 8 feet lower than the previous model. The multistage filtration system features a stainless steel float ball shut-off, self-cleaning cyclone separators and an easy-clean cartridge filter.800-442-7829; www.gapvax.com

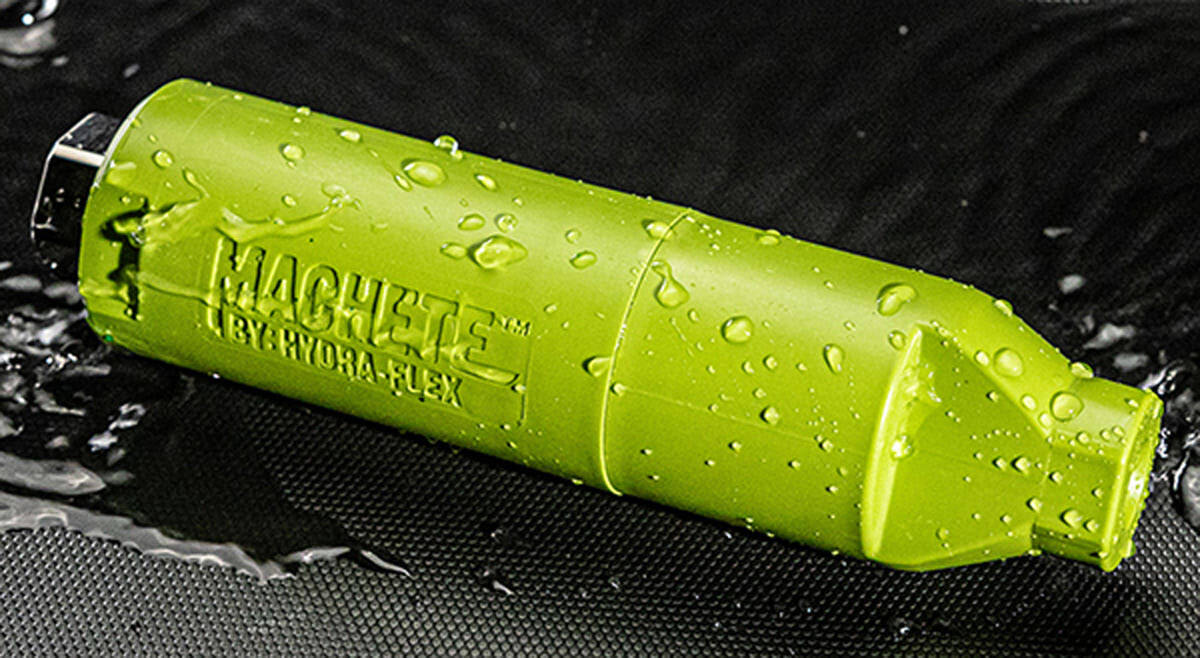

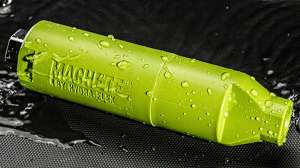

Hydra-Flex Machete
The Machete nozzle from Hydra-Flex offers precision and power for trenching, sloping and bell holing. Its 15-degree linear oscillating stream combines the force of a straight tip with the efficiency of a rotating tip, allowing for faster, deeper digging in compact, rocky soils and caliche. Its continuously moving stream makes it a safer tool to use around underground utilities and reduces the risk of soil collapsing or undermining. Its ergonomic design reduces physical strain on the operator and helps minimize long-term wear and tear on the body. Built with premium, long-lasting materials, this nozzle is designed to be field-repairable, resulting in a longer lifespan and lower operational costs.952-808-3640; www.hydraflexinc.com

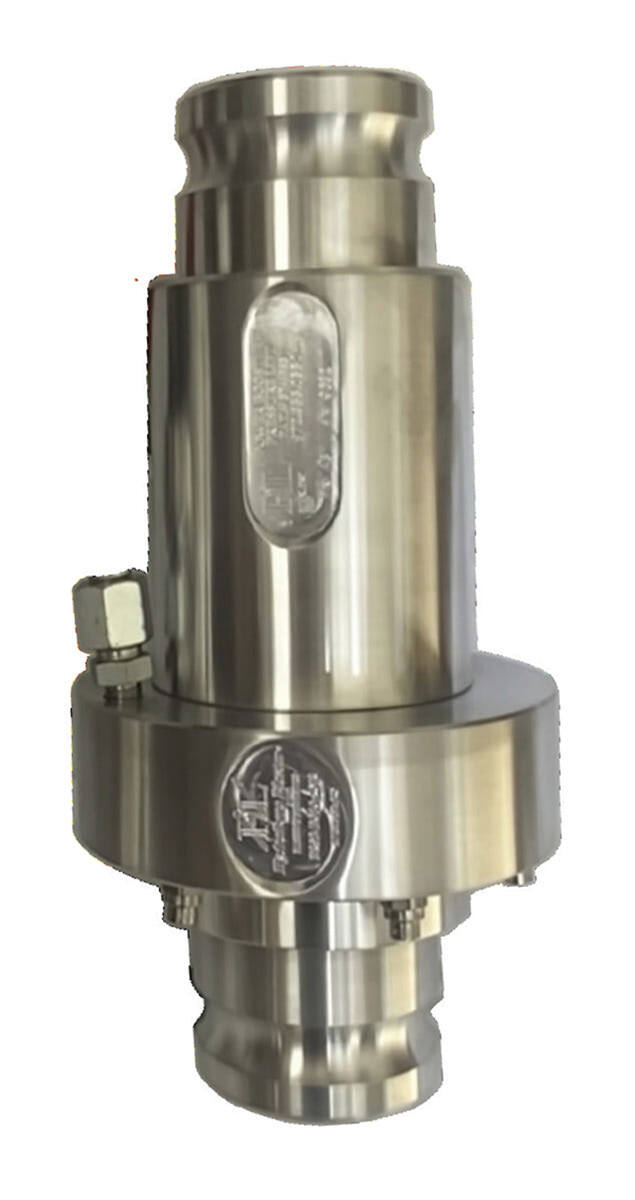

Pressure Lift HydraBore
The HydraBore equipment attachment from Pressure Lift fits on the end of any vacuum hose used for hydroexcavation. Place the stinger on the far end of the tool, then hook the HydraBore to the end of the snorkel. Connect the air supply and high-pressure water supply systems, turning the air on first, then the water supply, open the vacuum system and begin hydroexcavating. Contractors no longer need additional workers holding a lance-powered high-pressure water supply. It also removes the need to wear a rain suit to remain clean as the user begins every job from several feet away using the lanyard or from the safety of the side of the rig at the other controls. Once hydroexcavation begins, the user can control the boom in an up-and-down motion, then when the HydraBore becomes submerged, it can excavate faster and go deeper than before, reducing wear and tear on vacuum equipment.866-504-6596; www.pressurelift.com

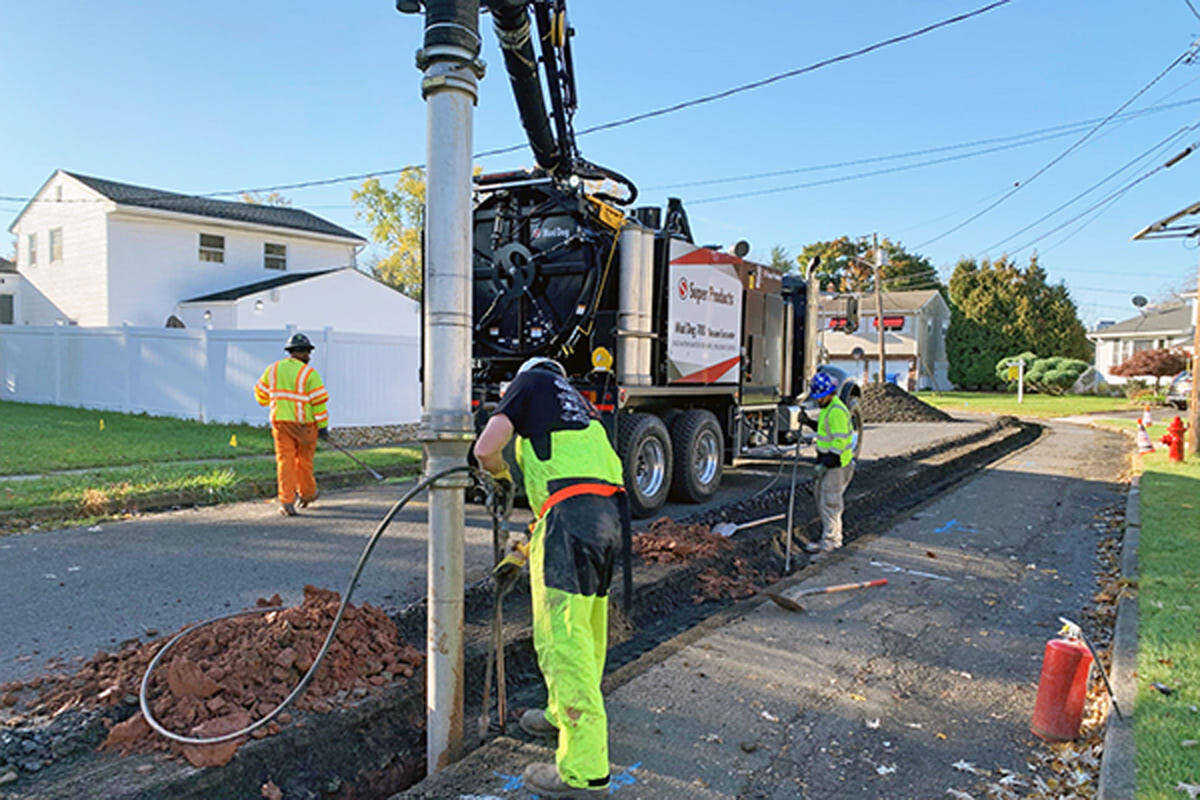

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

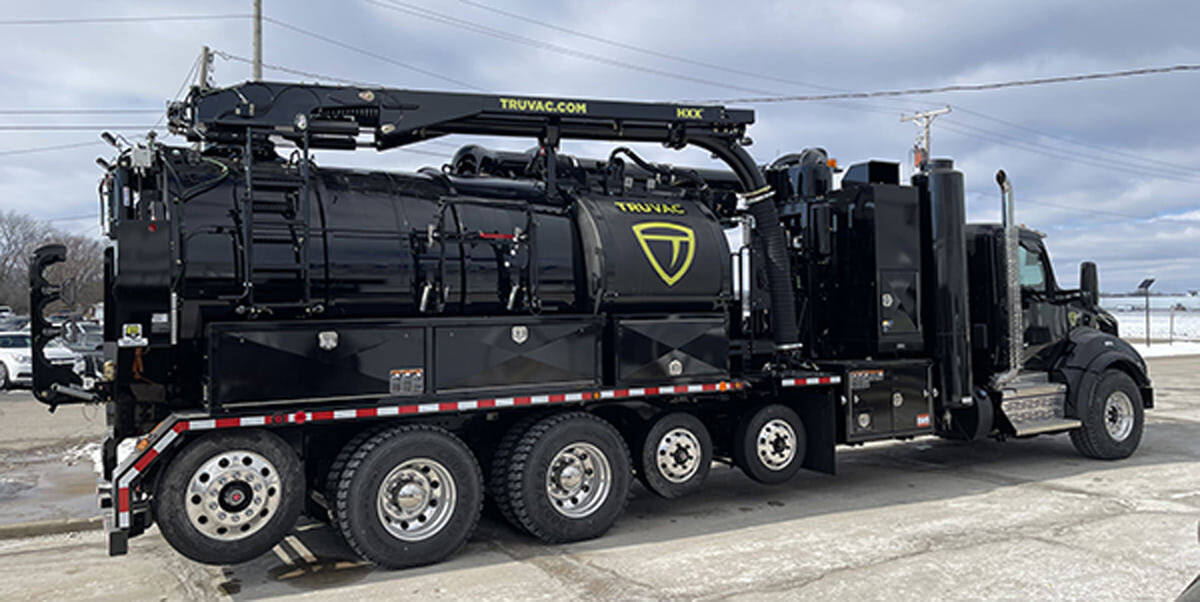

TRUVAC HXX Quint
TRUVAC’s five-axle HXX Quint is able to handle a superior payload without sacrificing performance or versatility. As a heavy-duty, full-sized hydrovac, the five-axle unit is built to deliver maximum job site productivity. That includes the ability to hold 1,200 gallons of water, with a legal payload of 25,000 pounds. The simple controls are the same as the HXX four-axle for familiarity and ease. As a vacuum excavator, itprovides a safer, easy-to-use alternative for potholing, waterline repair, slot trenching, directional drilling, sign and pole installation, pipe and line repair and installation and other large-volume excavation. Its five axles increase the maximum payload capacity beyond what the TRUVAC HXX four-axle could handle.815-672-3171; www.truvac.com

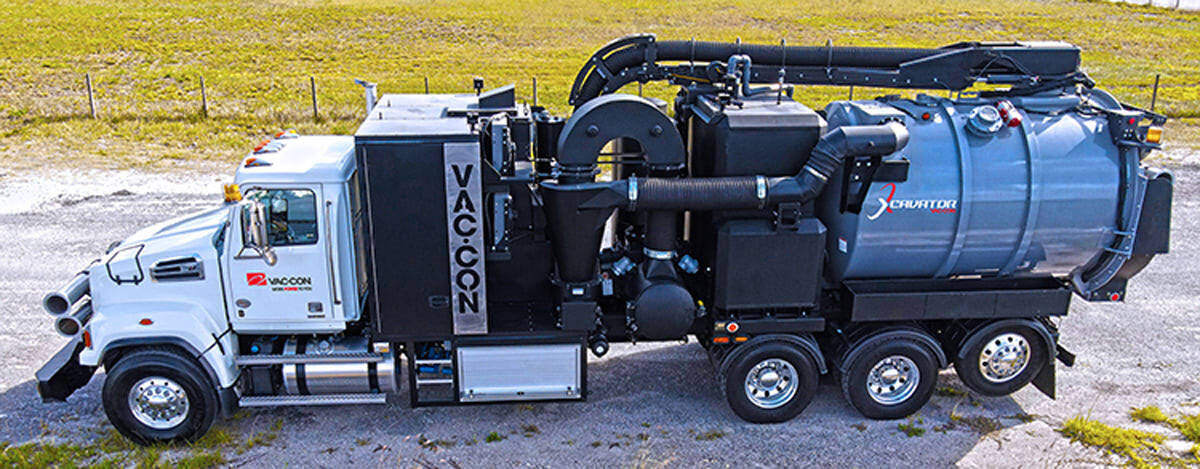

Vac-Con X-Cavator
The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet.904-284-4200; www.vac-con.com

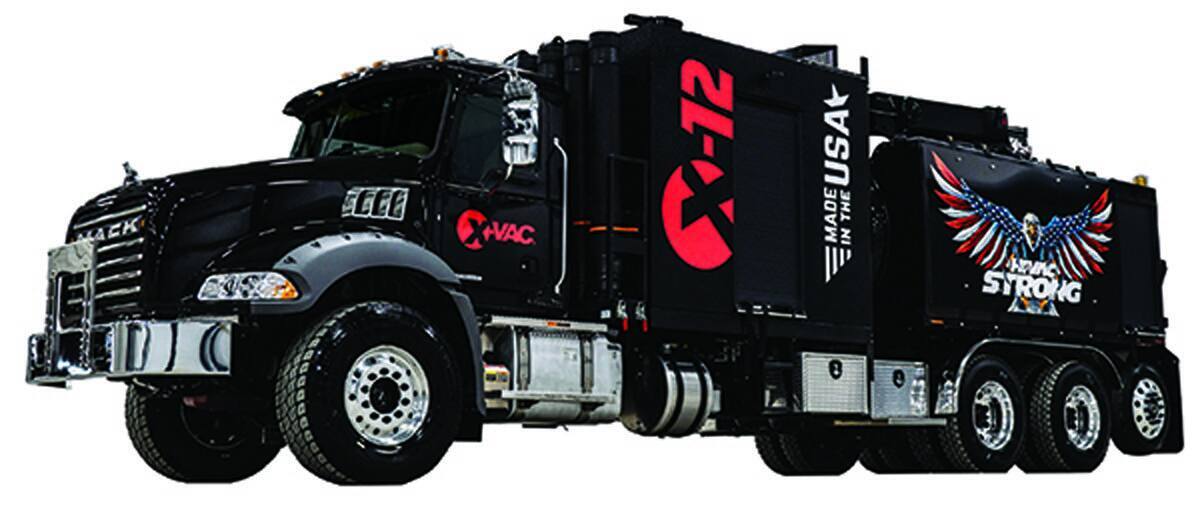

X-Vac X-12 1450
The X-Vac X-12 1450 hydroexcavator safely and efficiently trenches, potholes and daylights with a combination of power, capacity and operator protection. The top-mounted, 360-degree rotation boom and simple intuitive controls make setups quick, even in tight spaces. The high-volume hydroexcavating power of a 20 gpm at 3,000 psi pump and debris removal of a 5,775 cfm 27-inch Hg high-performance blower get jobs done faster. An air excavation system is also available. A 12-cubic-yard debris tank, 1,450-gallon freshwater capacity and cold weather protection systems keep the unit working longer at the job site. It also includes important job site, transit and maintenance safety features such as integrated wired and wireless E-stops, audible-visual boom out-of-stow alarms and standard debris tank and door prop rods.800-752-2400; www.x-vac.com
Inspection Equipment

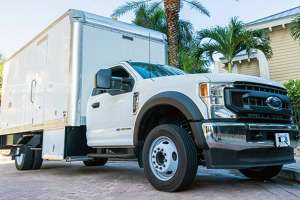

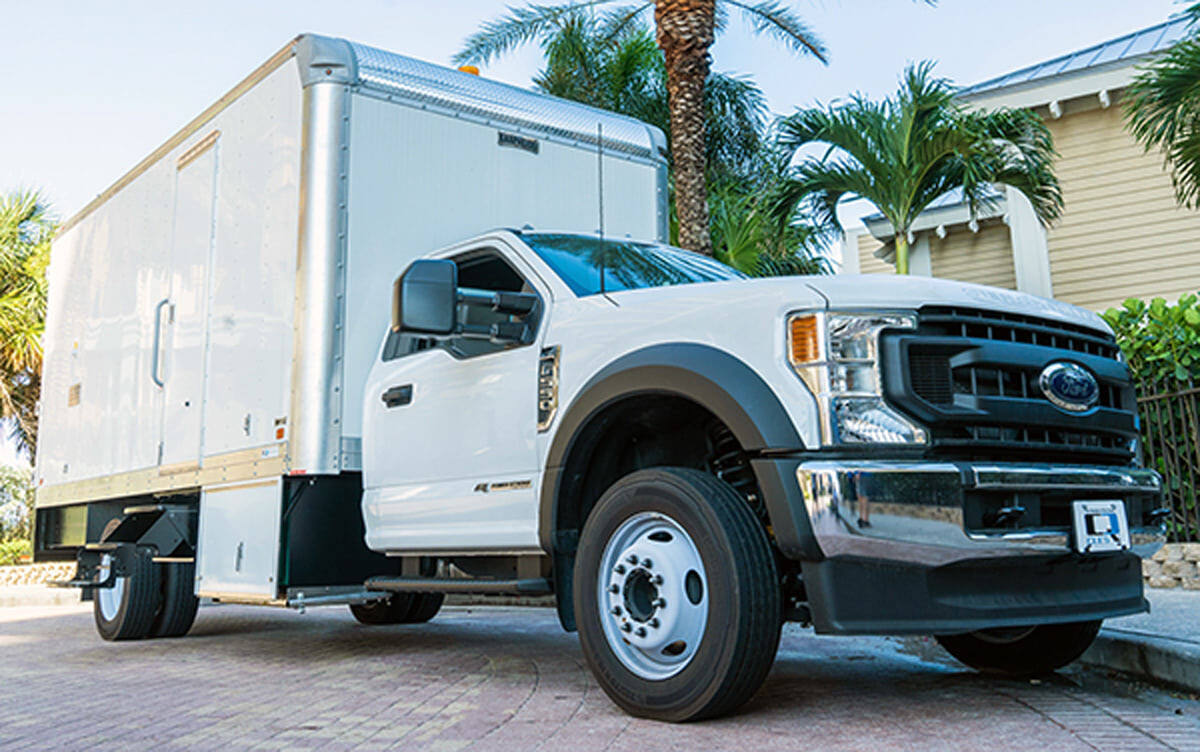

CUES prebuilt truck
CUES offers a full line of prebuilt inspection trucks, along with demos and trade-ins for fast delivery. They are always in stock and preconfigured with the same proven CUES equipment found in most custom builds. They are built on rugged Ford F-550 diesel or Ford E-450 gas chassis and outfitted with USA-made CUES inspection equipment. With CUES prebuilt trucks, you get quick delivery, proven reliability and state-of-the-art equipment that keeps your crews productive and your projects on schedule.800-327-7791; www.cuesinc.com

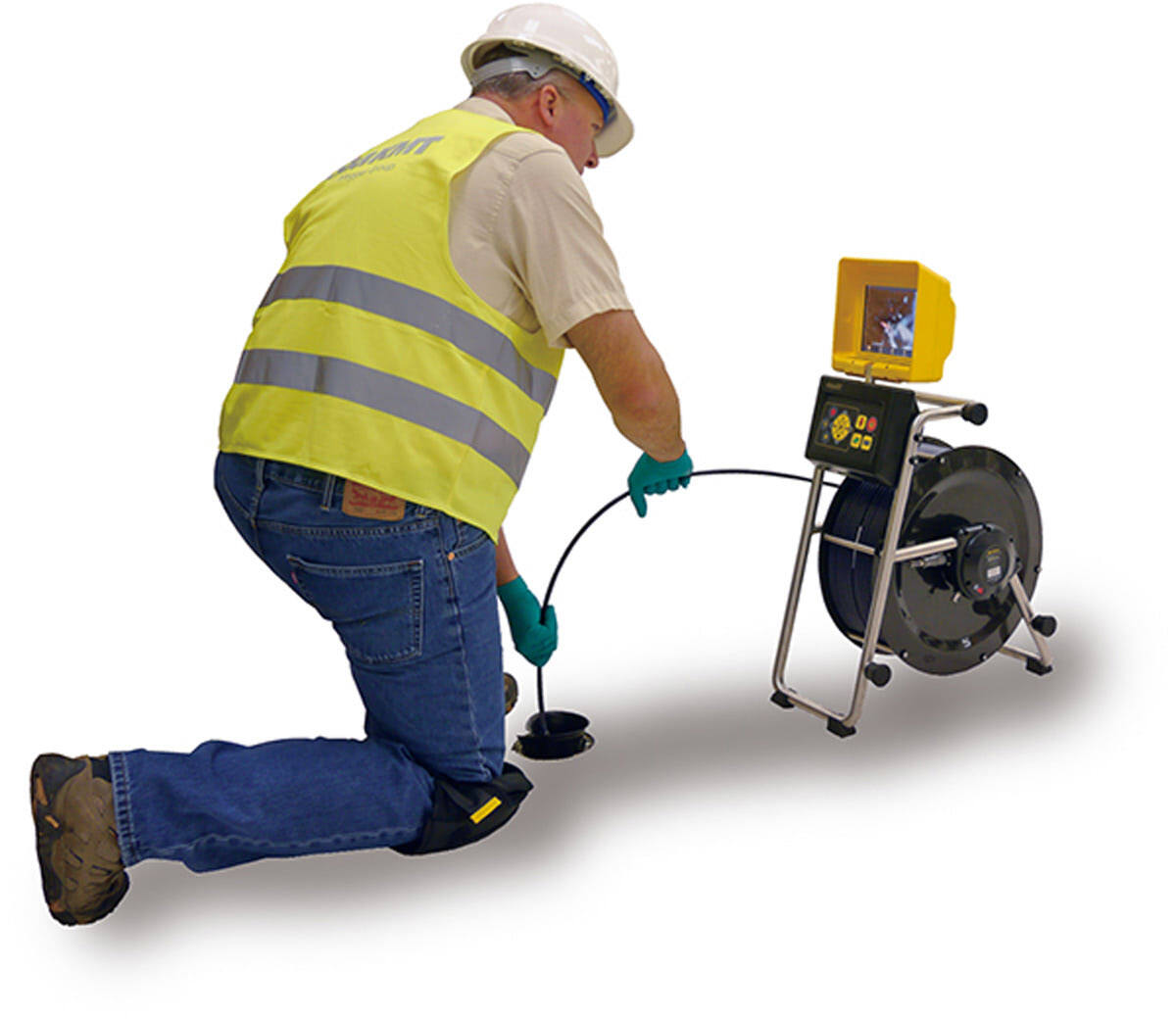

Vivax-Metrotech vCam Inspection Products
Vivax-Metrotech vCam Inspection Products combine cutting-edge technology with a rugged, lightweight and compact design engineered to perform in the toughest conditions of sewer lateral inspections. Precision sonde and utility locators can quickly and accurately pinpoint camera sondes, trace pushrods and identify buried utilities — saving time and preventing costly damage. Standard Systems are ideal for 3- to 10-inch lines while Mini Systems are perfect for 2- to 6-inch lines, and Drain Systems are designed for 1.5- to 3-inch lines. Each system delivers crystal-clear 1080p HD video, MP4 recording, JPEG image capture and features 512 Hz sondes with locatable pushrods for unmatched accuracy and efficiency. Internal Li-ion rechargeable batteries provide all-day power and can be conveniently charged via AC or DC power, including on-the-go recharging with the included DC vehicle cable.800-446-3392; www.vivax-metrotech.com
Pipe Bursting

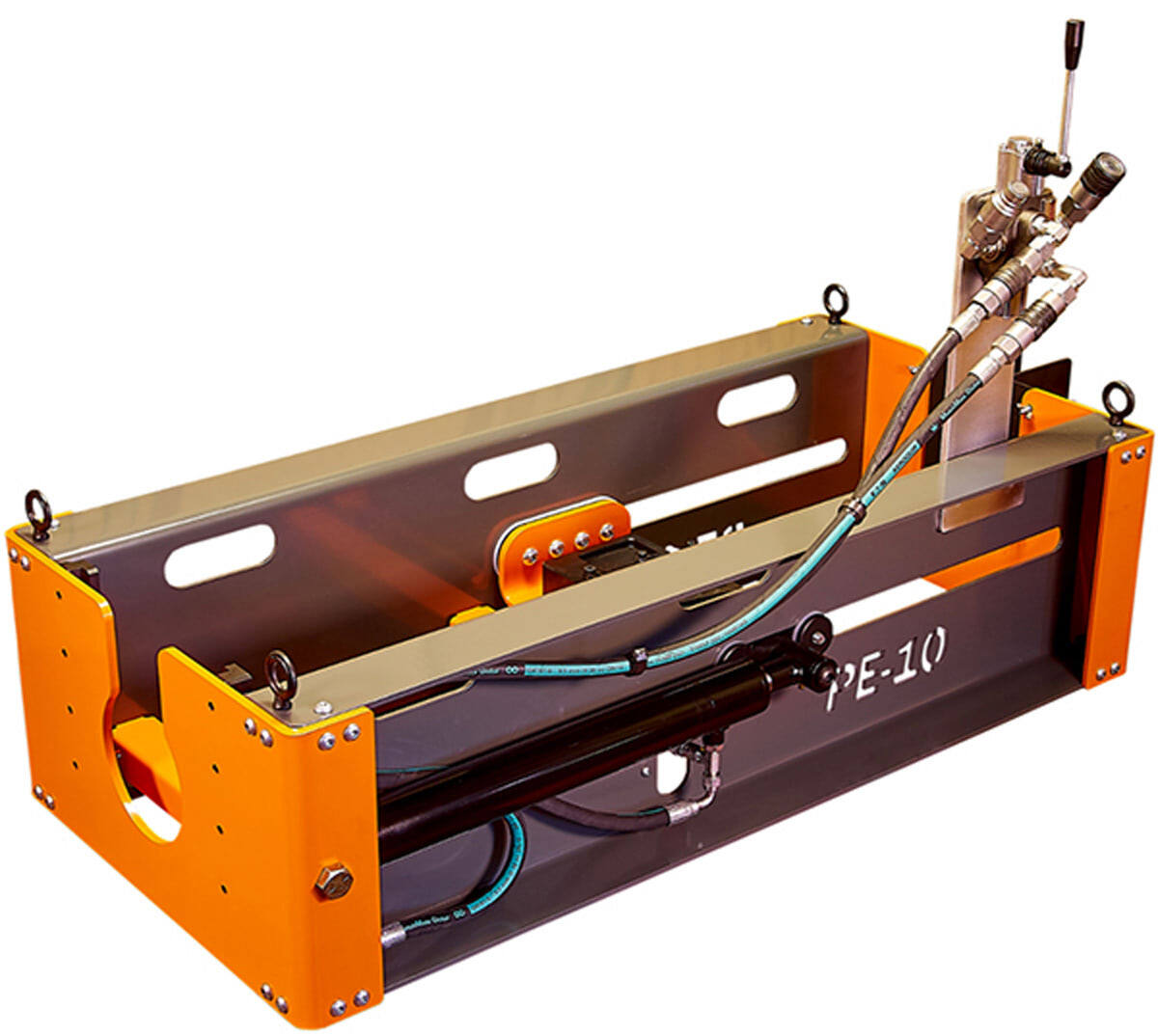

PE Equipment PE-10
The PE-10 from PE Equipment is a compact, two-in-one trenchless machine for fast service line installation or replacement. It combines pipe bursting and rod pushing on a single modular chassis equipped with premounted hydraulics, a control module and interchangeable attachments. The unit connects with a range of hydraulic power sources, including excavators and portable units. Light enough for two people to carry, it’s engineered for 3/4- to 3-inch service lines. Module changes take under 10 minutes, eliminating the need for multiple machines on site. The Pipe Bursting Module replaces old or damaged lines up to 150 feet long and operates at pullback speeds up to 13 feet per minute. The Rod Pushing Module installs new lines or follows existing paths, using a quick-access rod lock for rapid loading and removal.406-499-8136; www.pe-equipment.com
Pipeline Surveying and Mapping

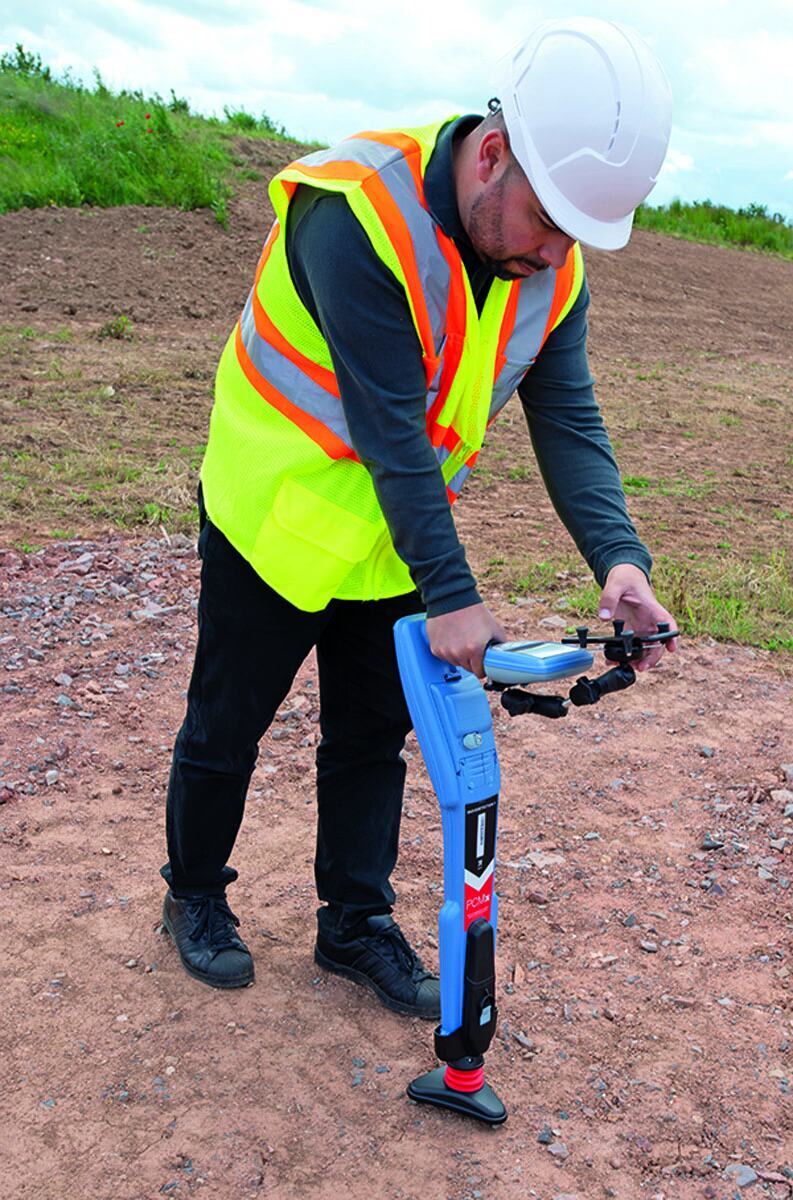

Radiodetection PCMx
The PCMx system from Radiodetection is designed for corrosion and cathodic protection professionals to evaluate the condition of buried pipeline coatings and identify faults, holidays or shorts caused by contact with other structures. Its portable 25-watt transmitter provides sufficient output for long-range surveys in varied field conditions. The system supports ACCA (Alternating Current Current Attenuation) and ACVG (Alternating Current Voltage Gradient) survey methods in accordance with ANSI/NACE SP0502-2010, enabling assessment of coating defects and potential corrosion points. These surveys can be performed separately or simultaneously. When the detachable foot is removed, the receiver functions as a precision locator, allowing users to determine depth of cover and capture GPS positional data for mapping and analysis. Together, these capabilities support the evaluation and documentation of pipeline coating integrity as part of ongoing corrosion protection programs.877-247-3797; www.radiodetection.com

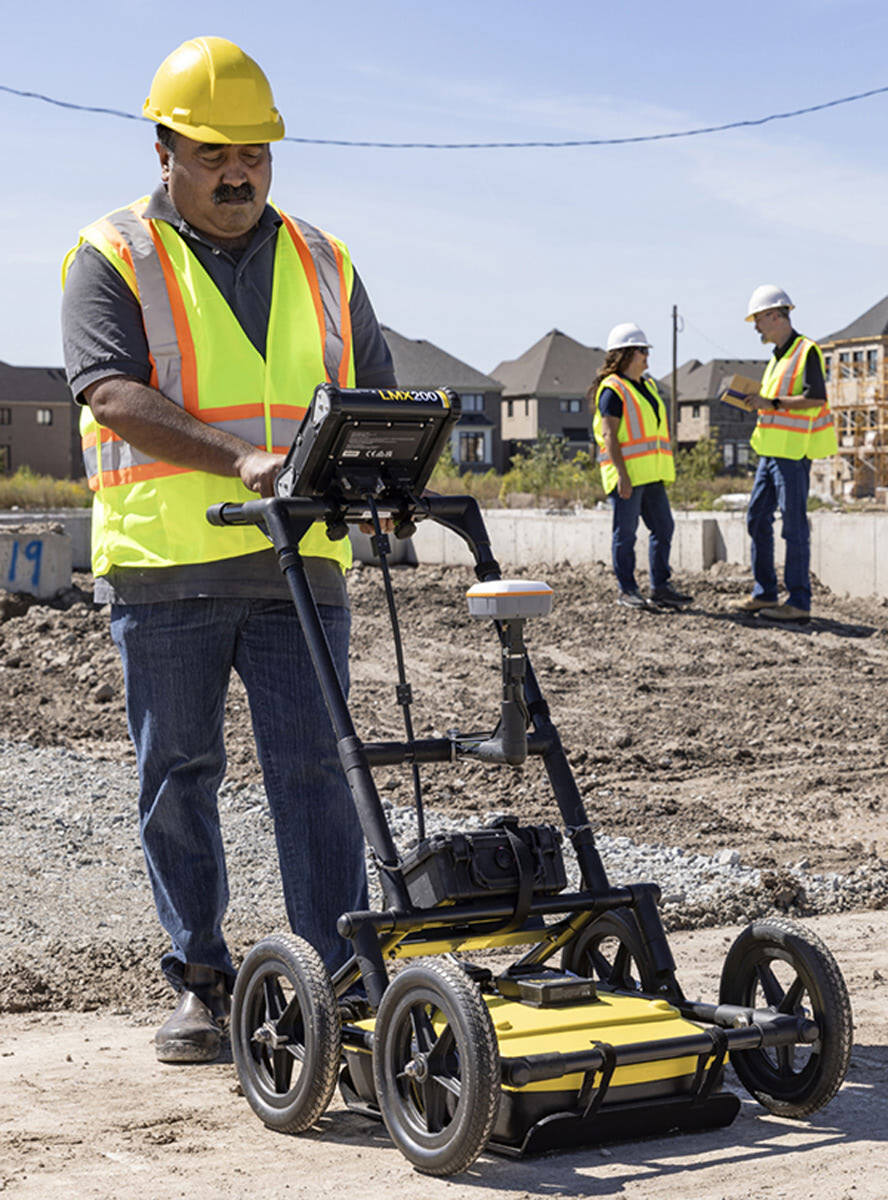

Sensors & Software LMX200SG
Sensors & Software’s LMX200SG (Survey Grade) integrates the LMX200 Ground Penetrating Radar system with a plug-and-play GNSS accessory for accurate positioning in utility mapping applications. It detects and maps metallic and nonmetallic utilities, underground tanks and non-utility structures. The system includes a preconfigured Juniper Geode GNSS receiver offering 30 cm RMS accuracy (with SBAS). The RTK upgrade enables 20 cm RMS (with Galileo HAS) or 1 cm RMS (with RTK corrections, not included). GNSS data is logged at 10 Hz and fully integrated with GPR data, simplifying field collection and post-processing. Power is supplied from the GPR system battery, eliminating the need for separate GNSS battery management. The LMXSG is compatible with EKKO_Project software for data analysis and export.800-267-6013; www.sensoft.ca

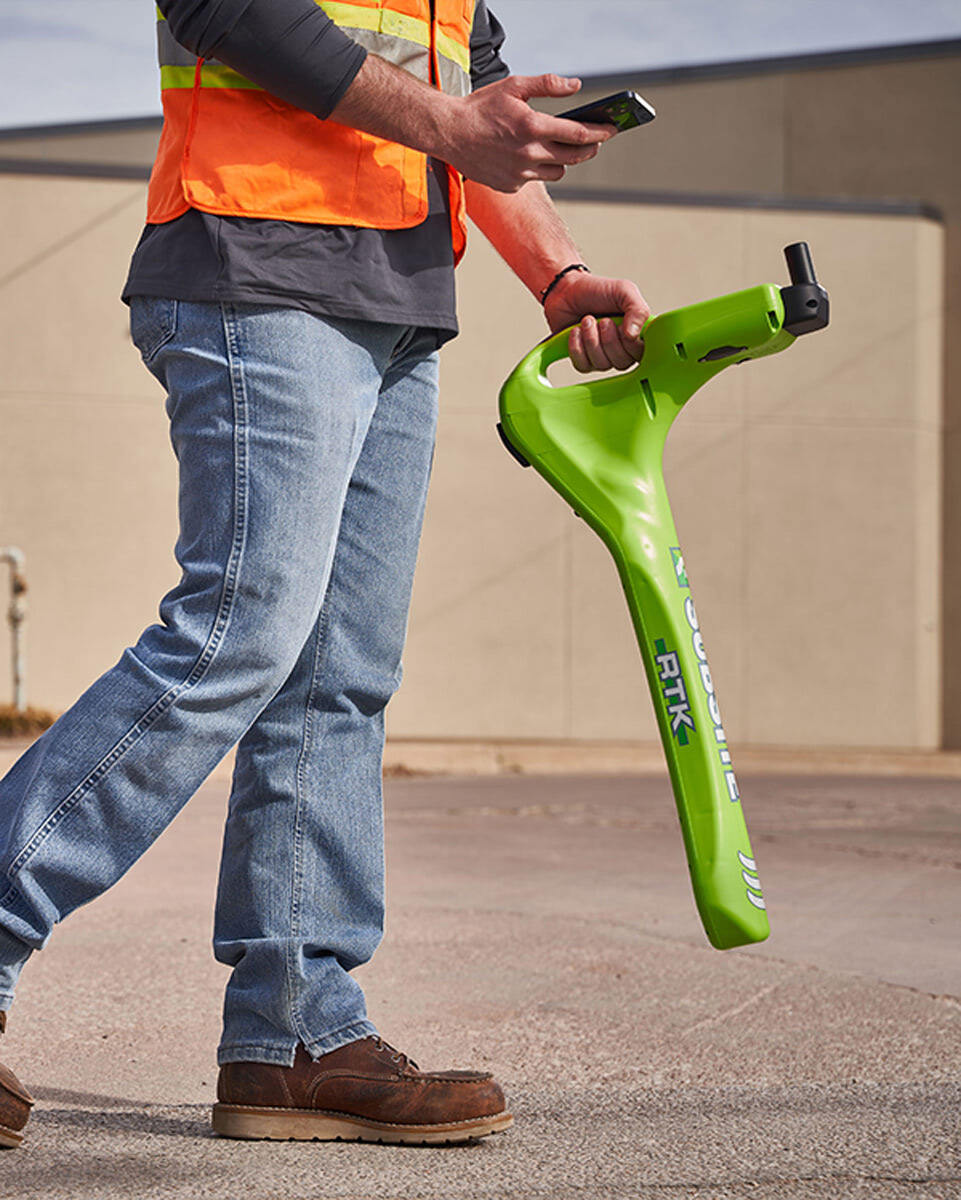

Subsite Electronics UtiliGuard 2 RTK receiver
The UtiliGuard 2 RTK (real-time kinematic) receiver from Subsite Electronics is designed with survey-grade technology and dual-band antennas to deliver centimeter-grade accuracy, making it an ideal solution for locating abandoned and untracked utilities that are often difficult to pinpoint. Its high-precision capabilities provide insights into underground infrastructure, helping crews avoid cross bores during future projects. Like the UtiliGuard 2 Standard and Advanced units, the RTK receiver features integrated data capture, GPS positioning and an intuitive user interface to improve work quality and maximize locate awareness. Additional enhancements include dead-reckoning capabilities, which help operators maintain accurate locates in heavy tree canopy or areas where GPS signals falter. A multi-frequency fault-finding capability also allows contractors to accurately identify and locate faulted power lines using a broad spectrum of customizable frequencies, up to 10 kHz.800-846-2713; www.subsite.com
Trenchless Pipe Replacement

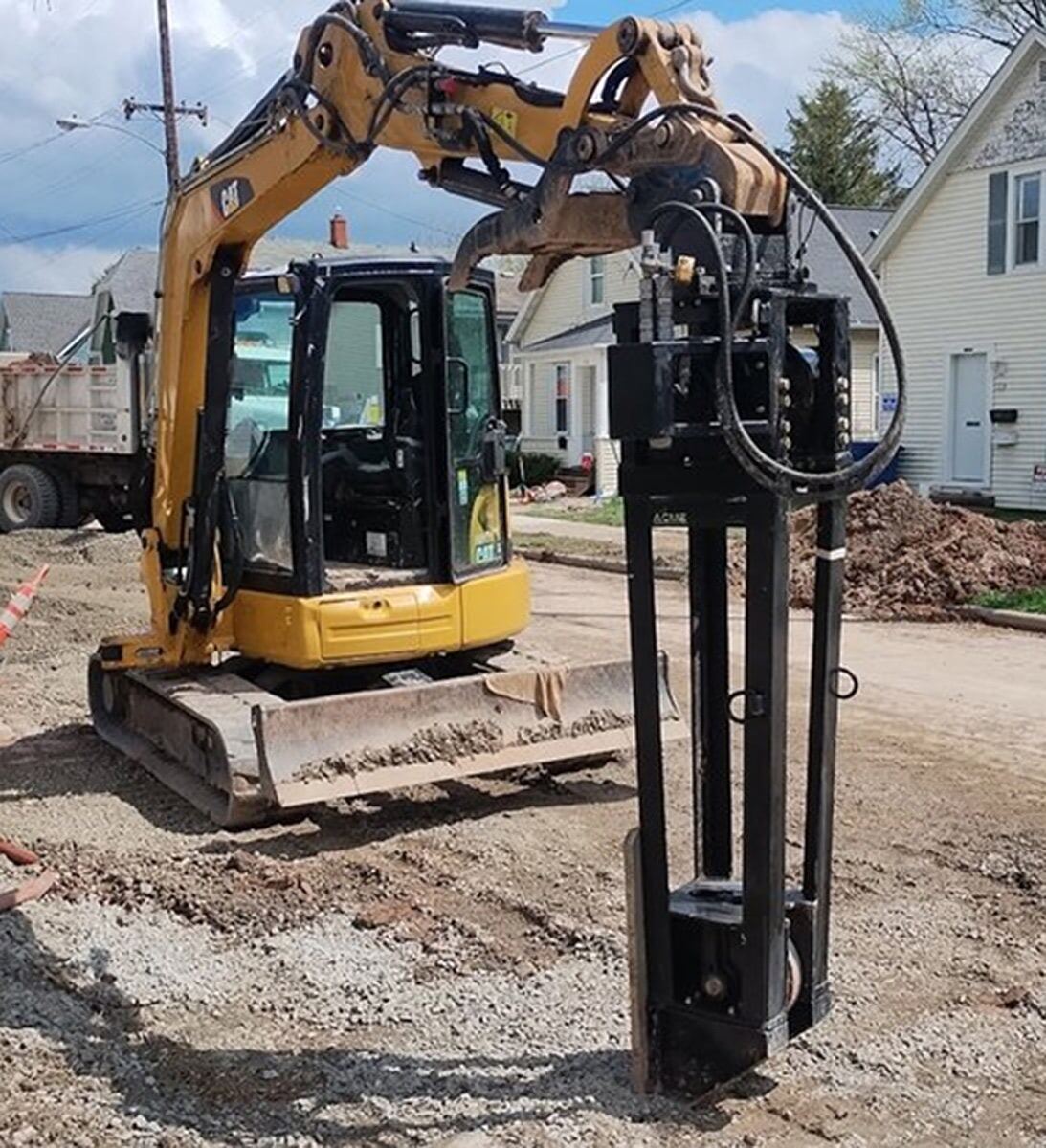

ACME Trenchless Pipe Winch
The ACME Trenchless Pipe Winch makes trenchless pipe pulling quick and routinely easy. It delivers the pulling power needed — 20,000 pounds breakout force — applied to MAX 7/16 pulling cables which have a minimum rated breakpoint of 24,000 pounds. The pulling cables are reusable, and tensioned pulling cable remains inside the confines of the winch frame. It attaches to a compact excavator or backhoe via a quick coupler and will dispatch to the access pit at any approach angle, allowing for the preservation of the original bury depth of the existing waterline. It works with lead, galvanized, copper and plastic piping.920-376-4222; www.acmetrenchless.com

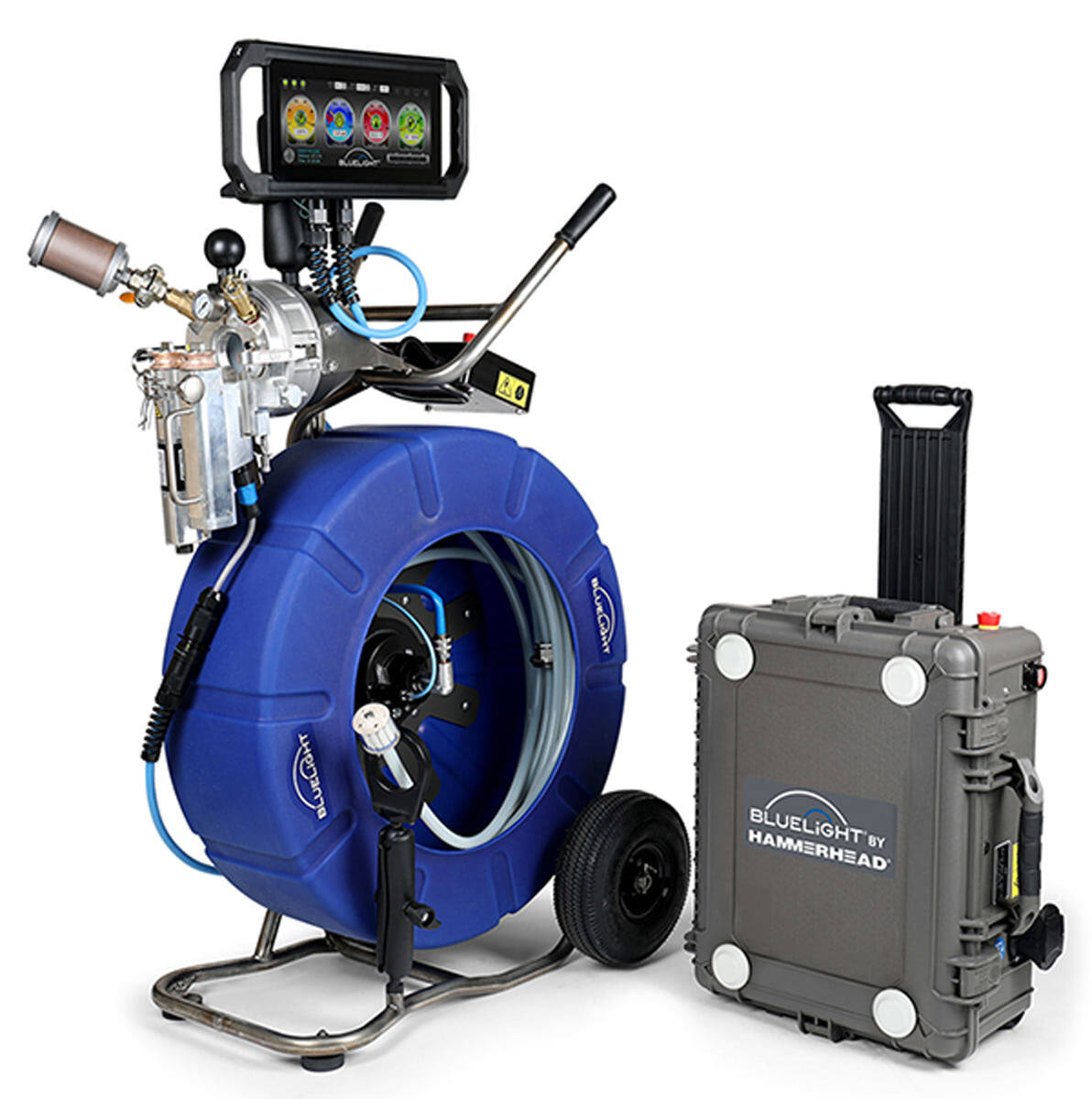

HammerHead Trenchless Bluelight LED CIPP System
The Bluelight LED CIPP System from HammerHead Trenchless is a trenchless pipe rehabilitation solution designed for lateral pipes. It uses a resin that cures only when exposed to blue light wavelengths (444-457 nm), giving installers extended working time and precise control during setup. The system’s automated LED light head can cure a 50-foot sewer line in under 12 minutes, significantly reducing installation time compared to traditional methods. It accommodates pipe diameters from 2 to 18 inches and offers multiple light head options for varied applications. A touchscreen interface automates pullback speed, while interchangeable reels ranging from 33 to 100 meters provide flexibility across job sites. The integrated camera allows real-time monitoring to ensure installation quality, and the ergonomic frame enhances portability.920-648-4848; www.hammerheadtrenchless.com

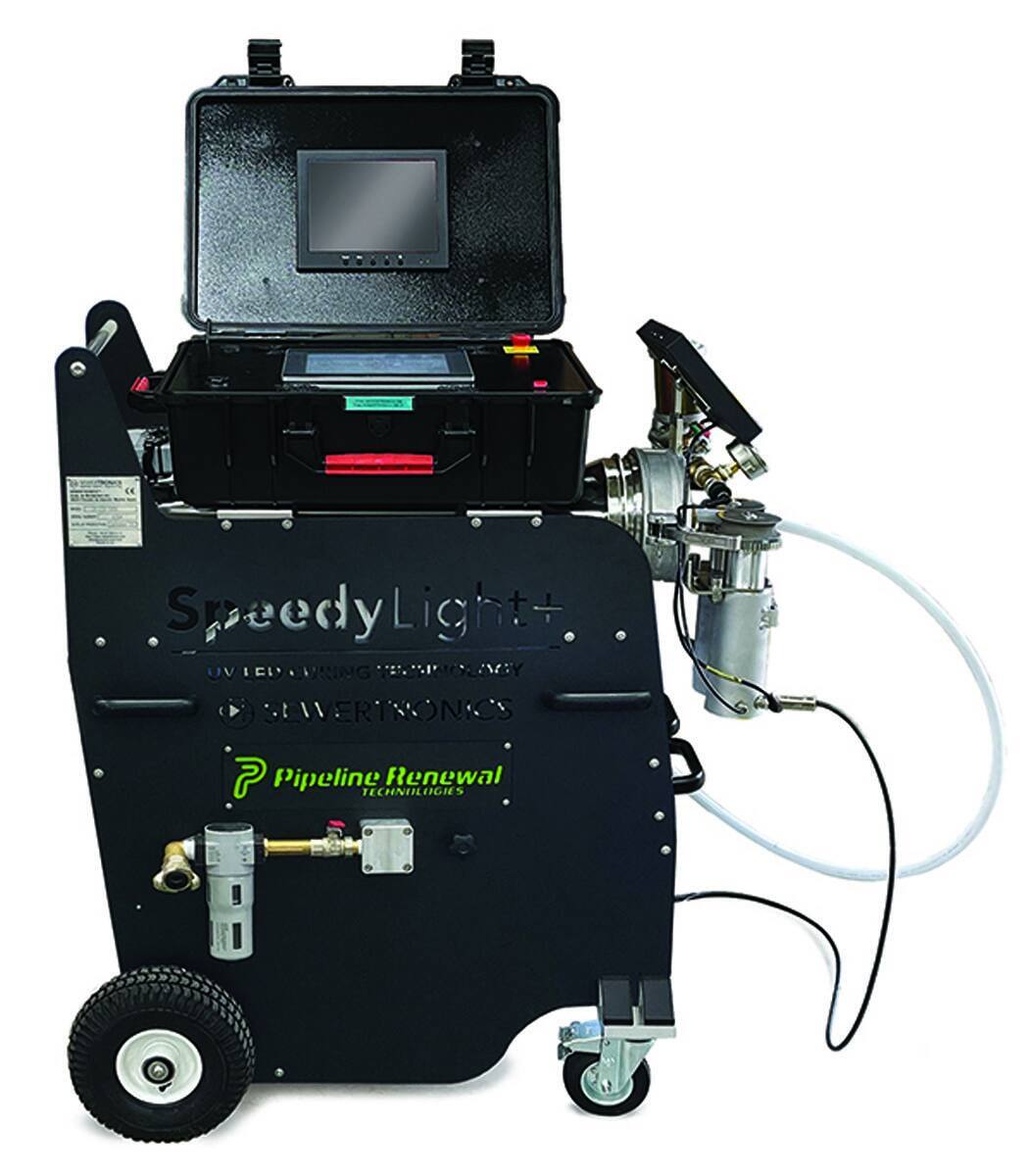

Pipeline Renewal Technologies SpeedyLight+
SpeedyLight+ from Pipeline Renewal Technologies delivers LED-based UV light-curing technology for trenchless pipe rehab. UV CIPP is fast and produces strong liners, and it’s less disruptive to communities and businesses. Closures are minimal, and work can be completed without having to relocate occupants. LED UV cure eliminates safety risks such as the wrong mixing of resins or dealing with boiler systems. There are no working time considerations, as you turn the light on and off any time you want to stop or start the cure. Five interchangeable cure heads allow for work in 2- to 24-inch lines. Integrated cameras show operators what’s happening underground, giving them the ability to control the speed and accuracy of the cure. It cures felt or GFRP liner and can cure 90-degree bends in lines as well as transitions and verticals.866-936-8476; www.pipelinert.com
