RAMVAC Vacuum Excavators by Sewer Equipment Tempest
The Tempest industrial air mover from RAMVAC Vacuum Excavators by Sewer Equipment is capable of removing dry and liquid materials over a long distance and from great depths. This unit delivers maximum vacuum efficiency even in the toughest working conditions. While utilizing high suction from a 28 inches Hg 5,500 cfm positive displacement blower through an 8-inch system, this unit offers a self-discharging filter system that provides automatic interval cleaning of the filter house during vacuum operations. This system significantly reduces the downtime associated with premature cleaning of the baghouse when the debris box is not full. It allows operators to keep working, while recognizing maximum debris capacity. Additionally, its hydraulically powered articulating extendable knuckleboom is exclusive in the marketplace. With 270-degree range of motion and 16 foot working length, this boom hinges back and forth, providing maximum support of the vacuum tube for increased operator ergonomics as well as cleaning efficiency.

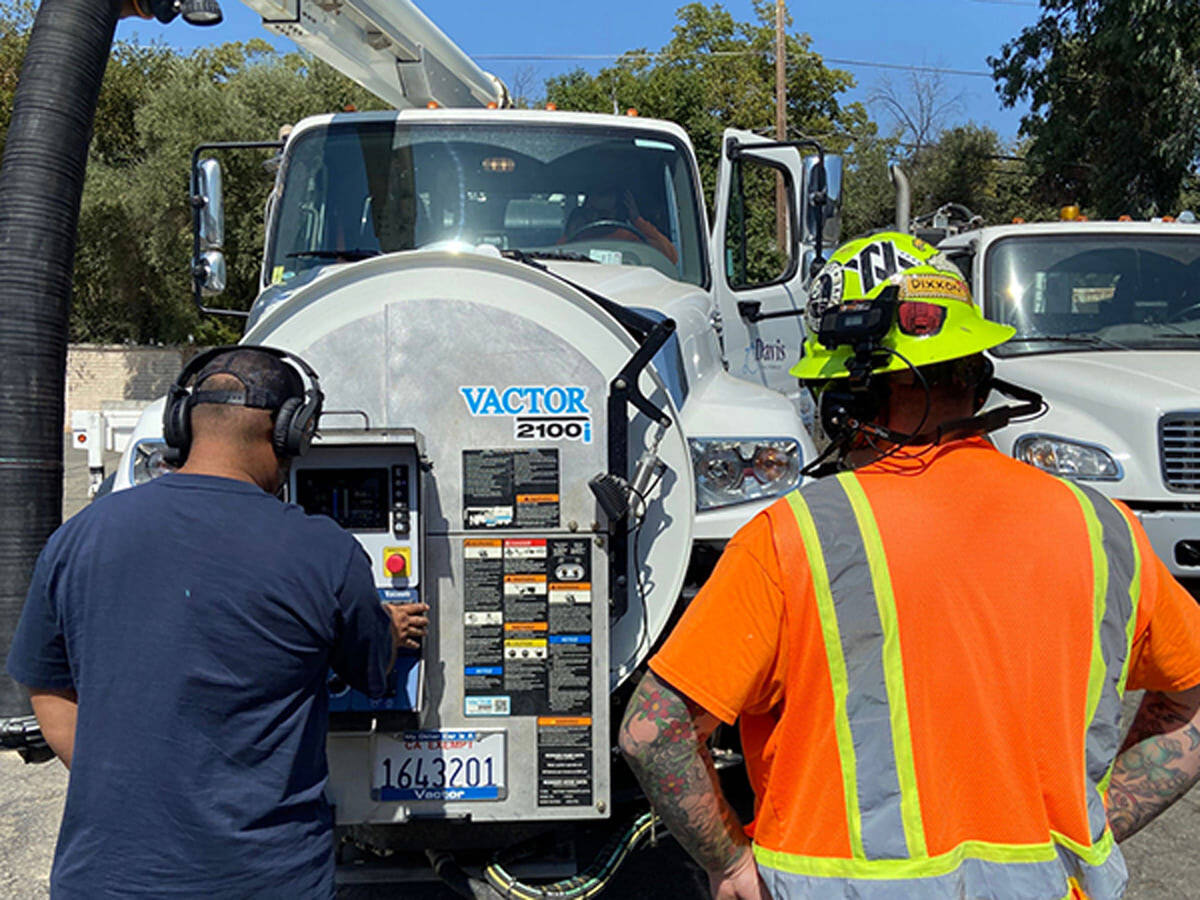

CrewPlex is a hands-free communication solution to help crews overcome the challenges of continuous communication in environments where noise, distance and task complexity can affect safety and productivity. It enables the user to connect the entire vacuum truck, camera truck and support personnel team with one system. Users can talk and hear each other in real-time without delay and without voice triggering or pushing a button. Ideal audio quality provides better communication in all environments, especially in vacuum truck operations where noise levels can exceed 100 dB. Available connectivity to two-way radio systems keeps workgroups in touch with a supervisor and extends the communication reach of an entire work team.

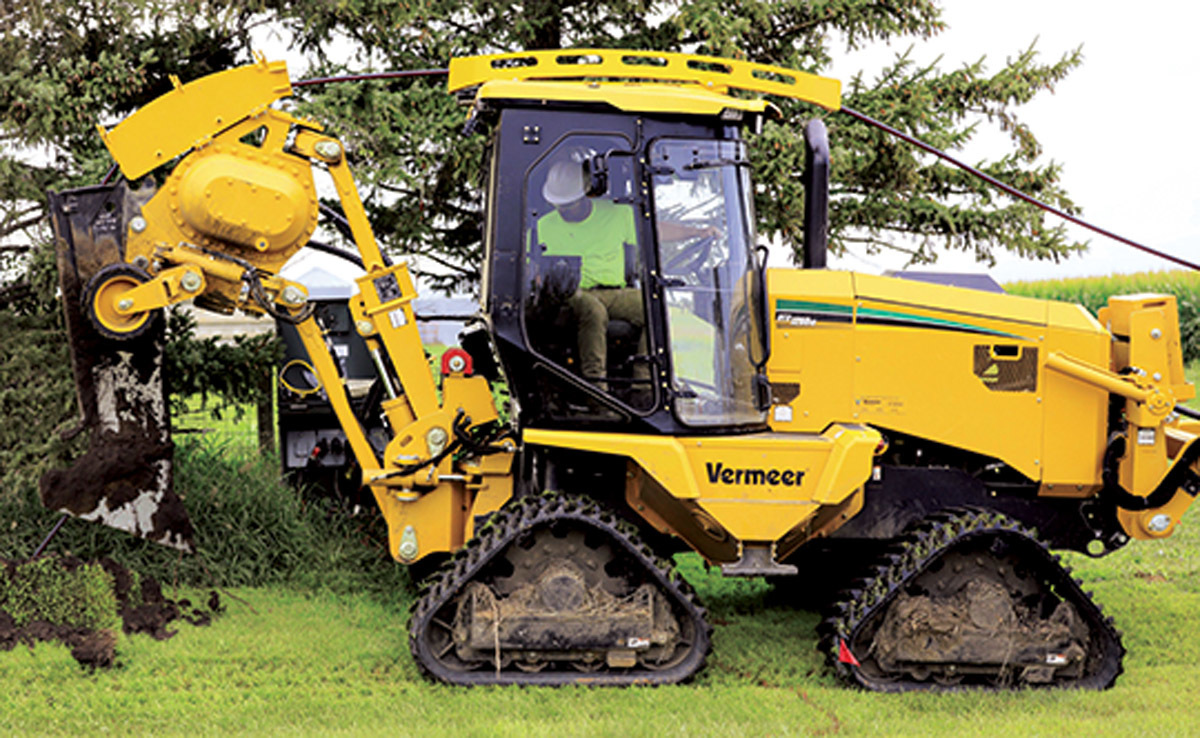

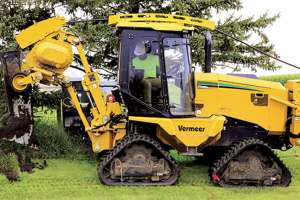

The Vermeer RTX1250i2 ride-on tractor features controls that deliver several productivity advantages, including Productivity Zone, Auto Plunge, TrenchSense electronic control system, and EcoIdle engine control system. It is convenient to customize and reconfigure the unit with intelligent i2 attachments that can be switched out in as little as 60 minutes. The self-identifying i2 attachments communicate with the tractor and the machine’s controls are then adjusted according to the operational needs of the attachment. Other features include the optional self-leveling auto tilt to help maintain a vertical trench by adjusting the rear tractor axle.

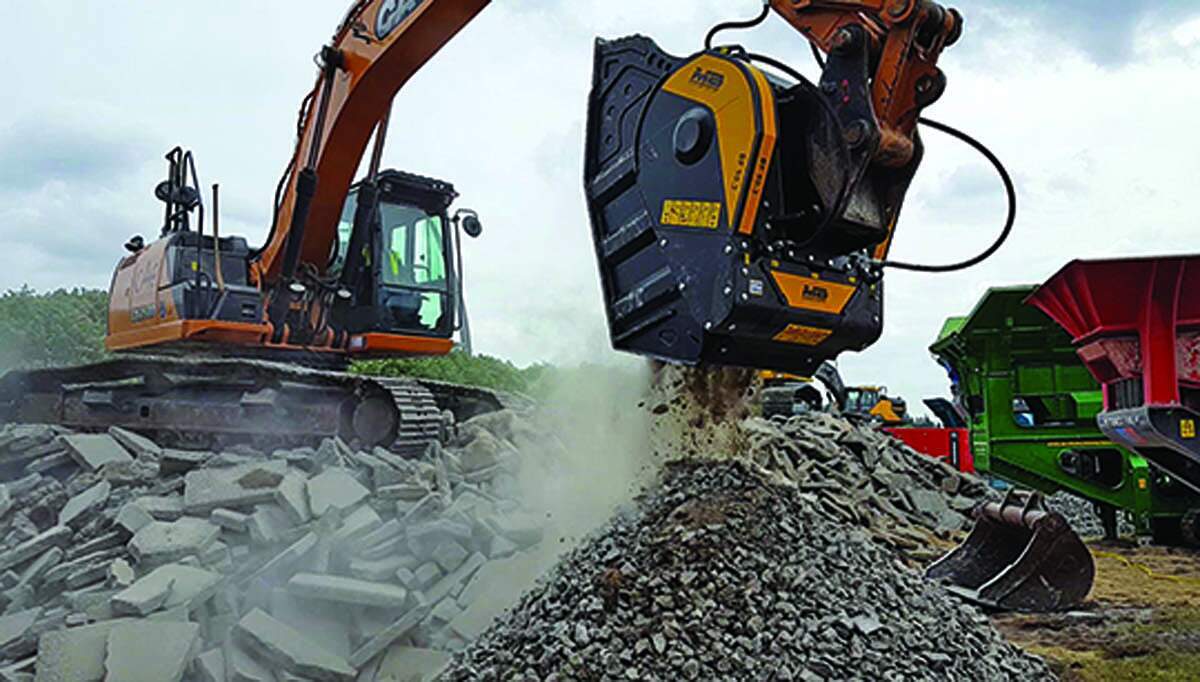

The BF90.3 crusher from MB Crusher is a popular midsized crusher bucket designed for excavators with an operating weight ranging between 46,300 to 70,500 pounds. The crusher is suitable for turning waste materials into aggregates ready to be repurposed on current or future job sites, saving money by eliminating transportation and material purchasing costs. The unit can reach a variety of job sites, regardless of the location and space available thanks to its compact size.

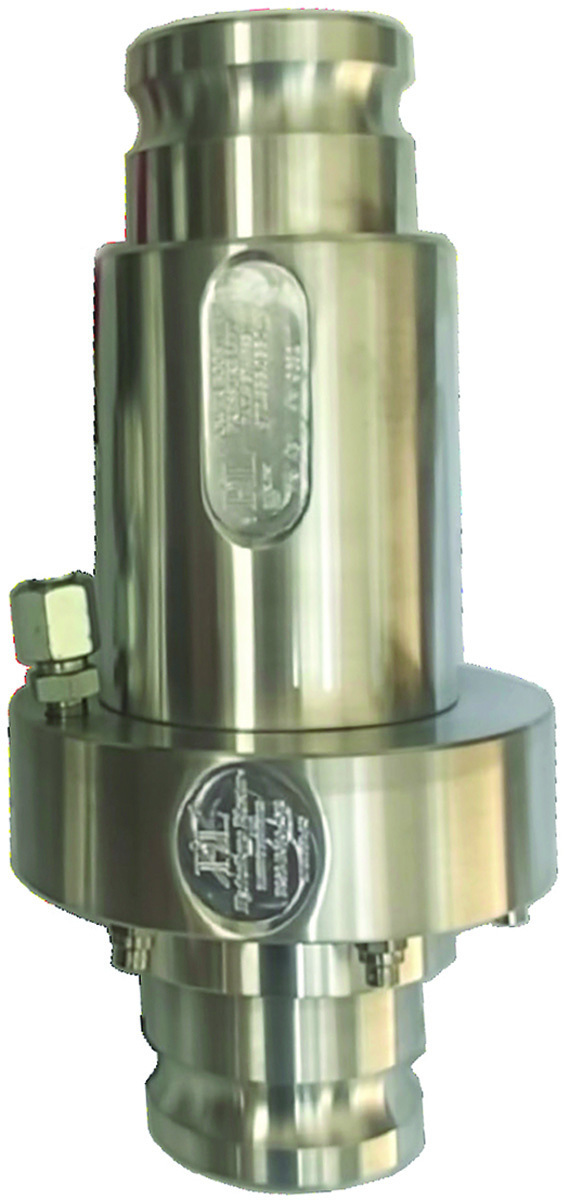

The HydraBore Blaster from Pressure Lift can blast down and physically remove built up tallow, soap residue and tank waste left behind from poor service work, or anything that hasn’t been serviced in a long time. Best used with a jetter, it will still only add roughly 16 gallons of high-pressure water in a 10 minute period. Total time on a job, with a unit pumping approximately 2,000 gallons of waste, is less than 20 minutes, at any depth, from 5 to 500 feet. Units are available in 3- and 4-inch sizes, with special orders of 6- and 8-inch units available. The unit offers one-man operation, faster loading times, and it keeps pumps cooler, decreasing pump wear and tear. It also reduces back injuries from full hoses. It works with industrial-size pressure washers and jetters, resuspending materials while pumping.

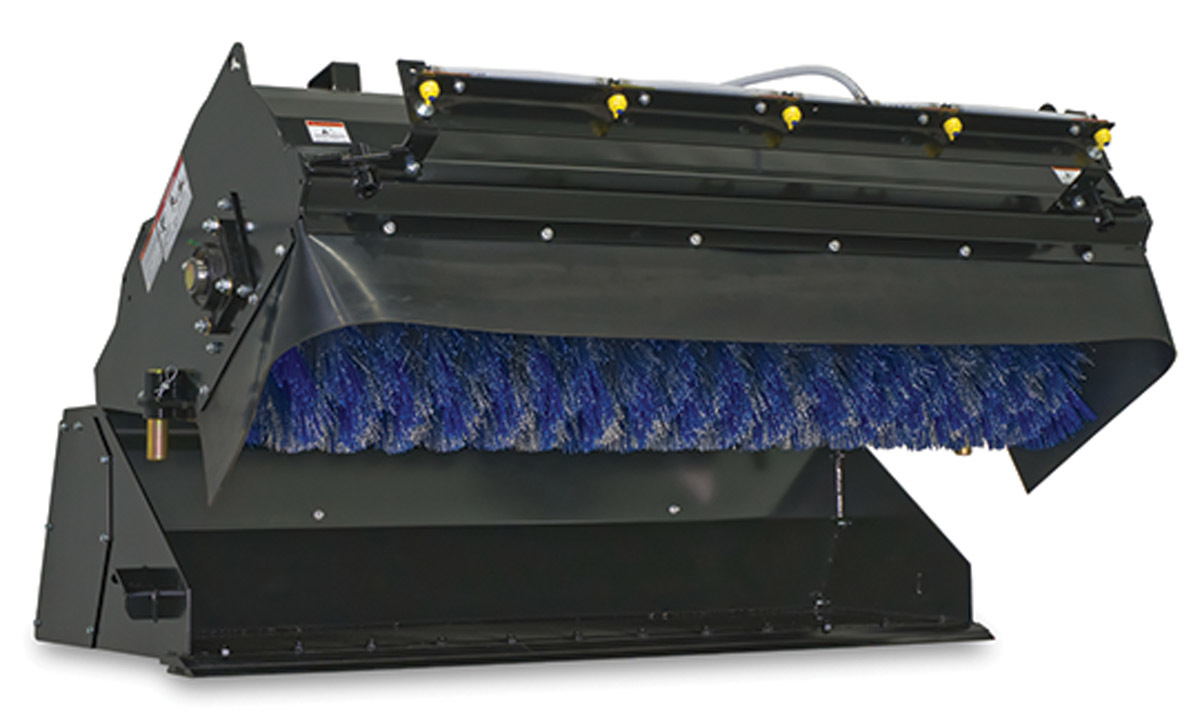

The Pick-Up Broom with Internal Water Tank from Virnig Mfg. is designed to control dust. It has a 55-gallon tank with capacity indicators, direct drive guarded motor, HD bucket and an oversized 2-inch bearing and pin adjustment system to set bristle height. Widths of 72 and 84 inches are available, and the unit comes complete with hoses, couplers and a bolt-on edge.

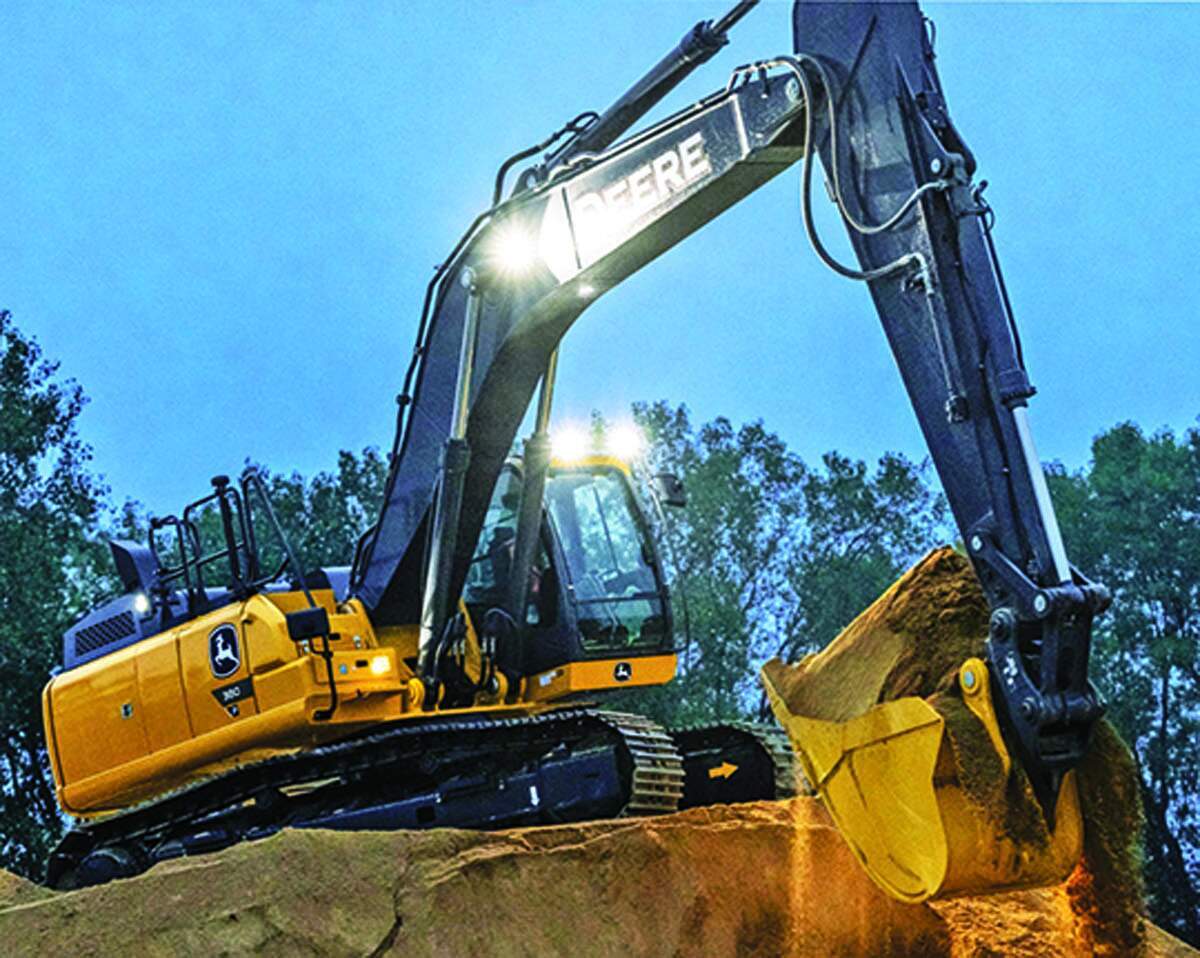

John Deere released the newly enhanced 350 P-Tier and 380 P-Tier midsized excavators. Both offer SmartGrade technology as a factory option and field upgrade kits, and the user can choose from 2D or 3D guidance, or 2D or 3D SmartGrade Ready Control. Overdig protect limits the bucket’s cutting edge from going below the target design surface. Visibility around the machines has been improved with the option of a right, rear and left camera system with LED surround lighting that provides 270-degree visibility and is integrated into the cab’s primary display. In an effort to lower daily operating costs, the machines’ fuel economy is up 7% compared to previous models via electric on-demand cooling fans that reduce engine load, in-line after treatment for less restriction and system complexity, and increased front piping diameter to cut down hydraulic restriction.

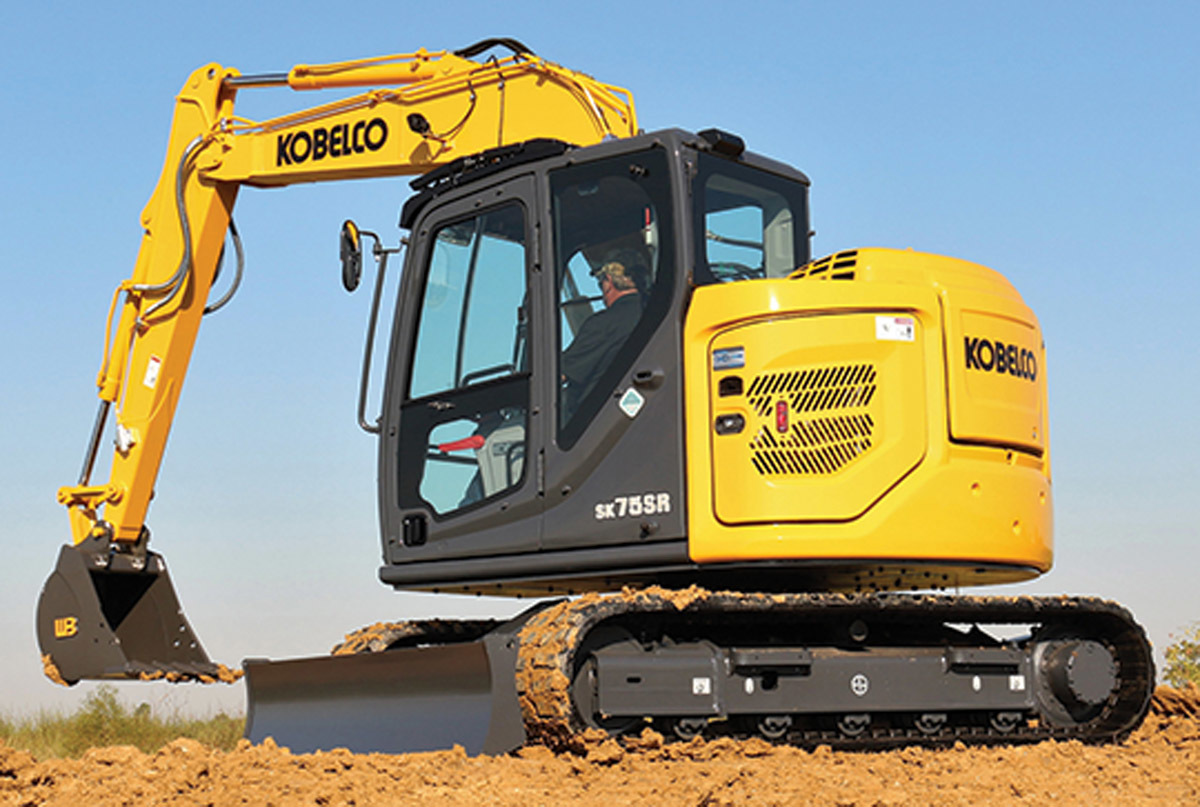

The SK75SR-7 from Kobelco Construction Machinery USA has the power, fuel economy and features needed to tackle jobs in tight spaces. With a dynamic digging force of 15,900 pounds and a 37% increase in digging speed, it delivers continuous operation and reduces cycle times. This unit maintains productivity and efficiency while working at high power levels, lifting heavy loads and traveling on steep grades. It includes an optimized control layout with a jog dial and 10-inch color monitor, built-in rear, left- and right-side cameras with a customizable split-screen display function to enhance operator awareness and job site safety, and a standard ergonomic lever and air ride suspension seat to reduce operating force and fatigue by 25%. Enhanced multifunction capabilities include an attachment selection system with adjustable flow-rate presets for the bucket, breaker, nibbler and thumb, allowing the operator to change between tools quickly and easily.

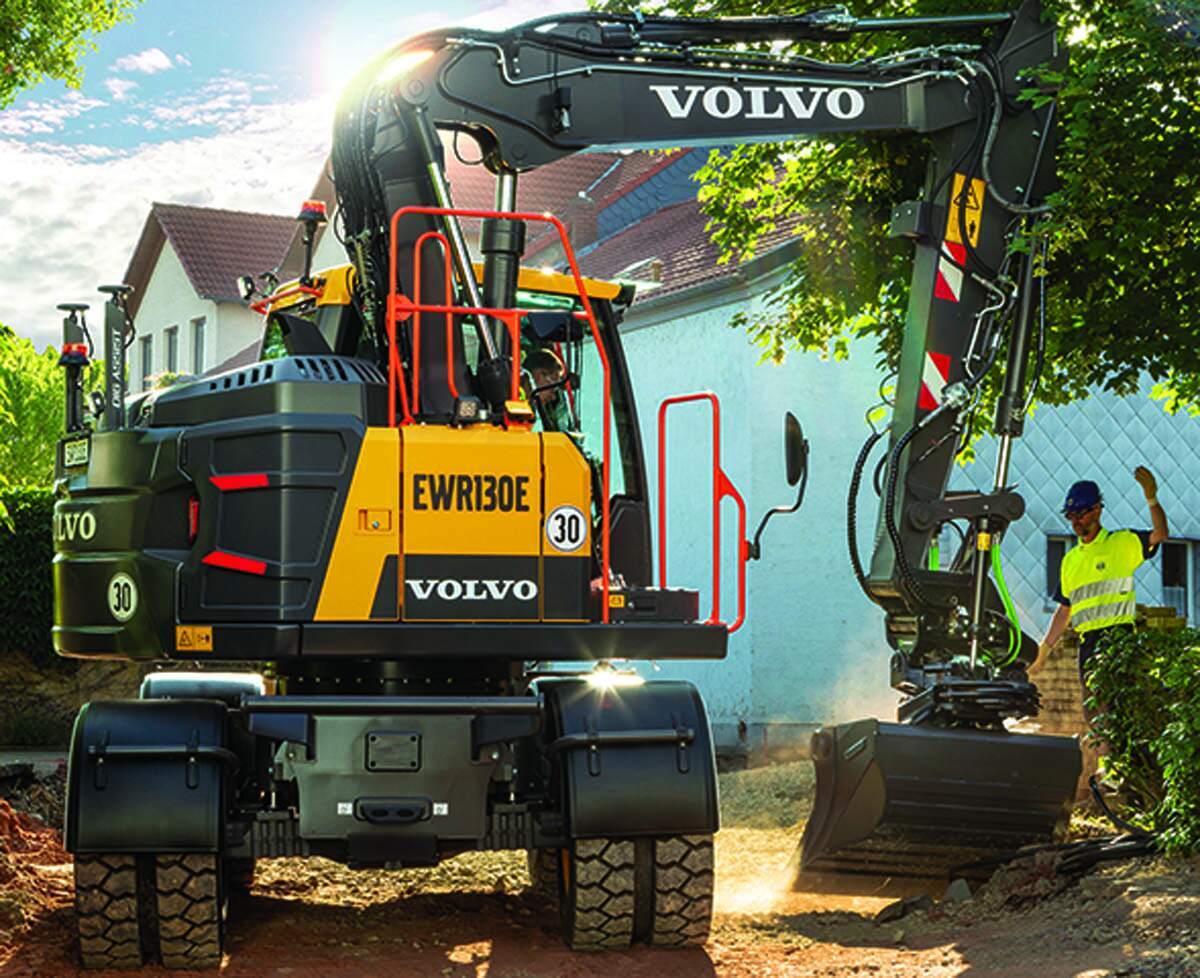

The Volvo Construction Equipment EWR130E midsized wheeled excavator provides the shortest front and rear swing radius in its size class without compromising on lifting performance or digging force. With a rear swing of 5 feet 1 inch and a front swing of 5 feet 11 inches, it has the shortest swing radius in the 12- to 13-ton range. When coupled with new four-wheel steering and in-line outrigger options, the result is a machine that is easy to control and stable. It is ideal for urban jobs where frequent roading is required, and in confined job sites or on roads where traffic safety is paramount. It’s also light enough to use on landscaping projects. The inline outriggers help position and stabilize the machine in tight spaces. A divided blade option helps provide additional leveling on uneven ground or around curbs. The standard two-piece boom enables lifting up to 9,480 pounds at a 19.7-foot reach.

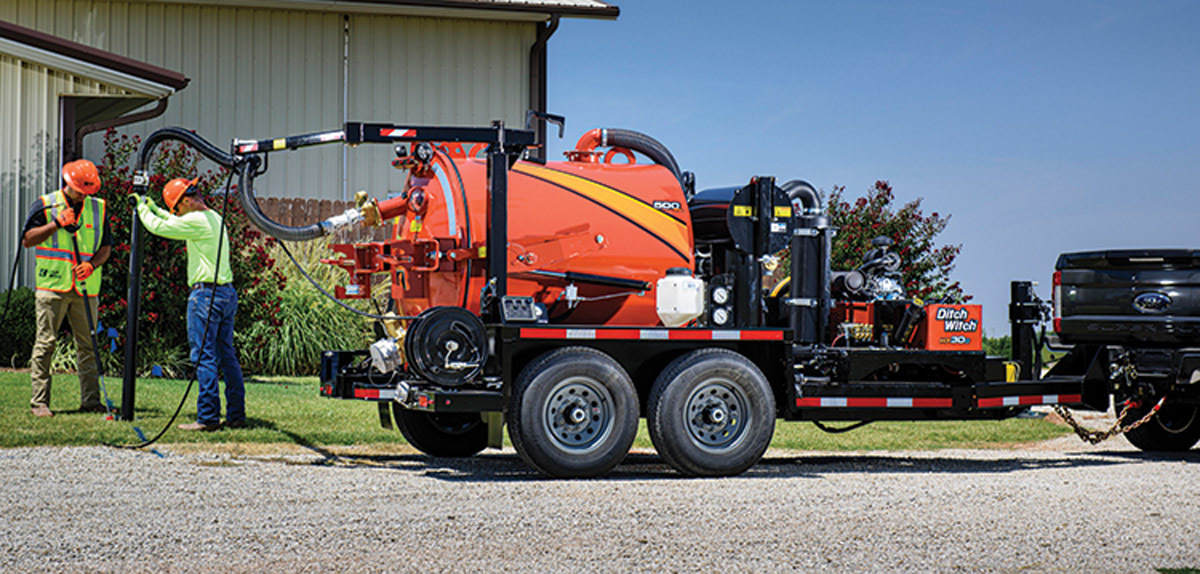

The HX30G from Ditch Witch offers power in a low-profile design to help increase productivity. It is powered by a 31 hp Vanguard gas engine for suction power and water pressure to remove slurry and expose water/sewer lines for easy repair. It has a 542 cfm blower, 3,000 psi water pressure capacity and 4.2 gpm water flow, increasing the operator’s efficiency and precision on the job site. It comes with the choice of a 500- or 800-gallon tank for a variety of job requirements. The machine is also available in a variety of trailer configurations, including the Ditch Witch VT9 trailer — which, when equipped with the 500-gallon tank, does not require a CDL to transport.

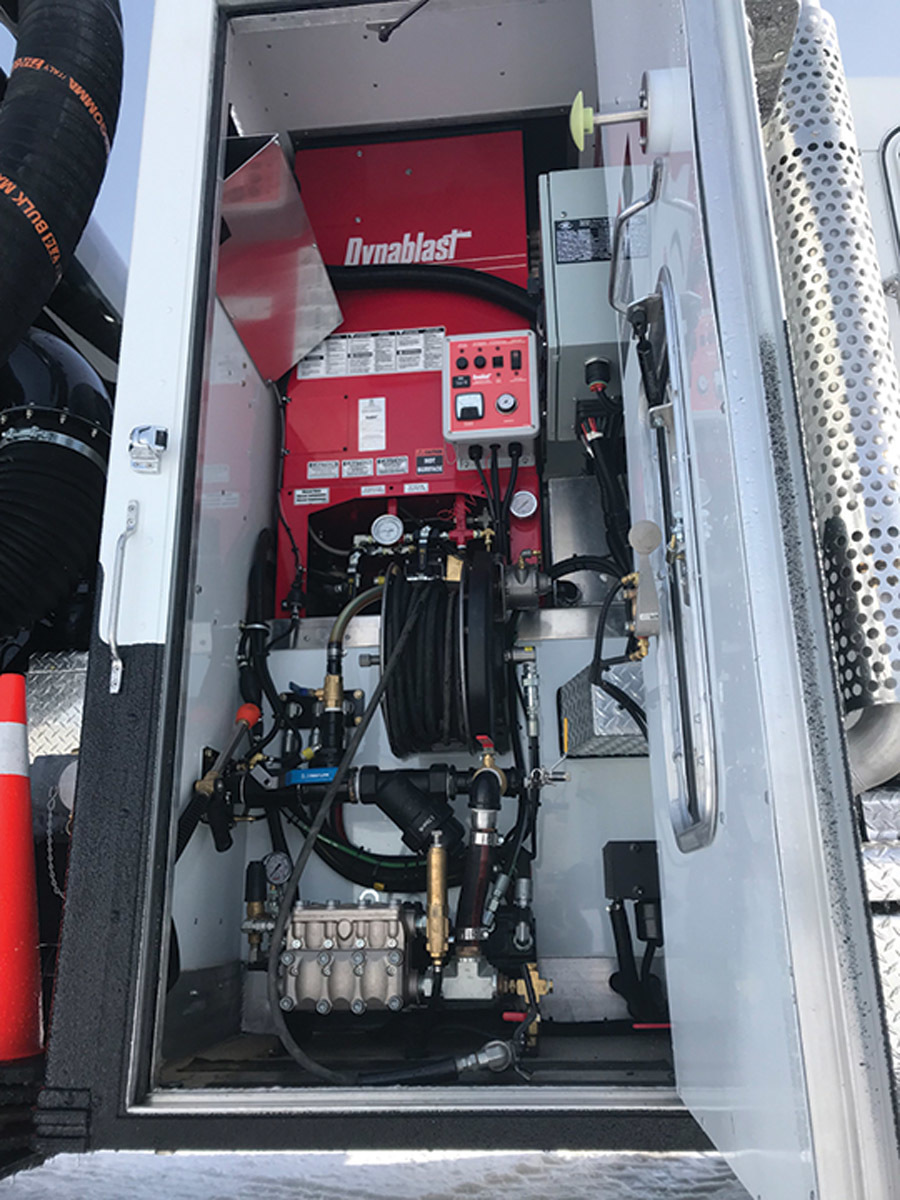

The Dynablast HV690FLS-12V hydrovac water heater produces 690,000 Btus with an output temperature of 175 degrees F at 10 gpm, making it ideal for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, stainless steel target plate for increased coil life and designed with serviceability in mind with momentary override control. The package is available with a Pratissoli KT28ASPF water pump offering 18.4 gpm at 2,900 psi at 1,450 rpm. It is available with a T13 female spline shaft input and SAE B 2/4 bolt flange for direct mounting the hydraulic motor, which will reduce weight and save space on the truck.

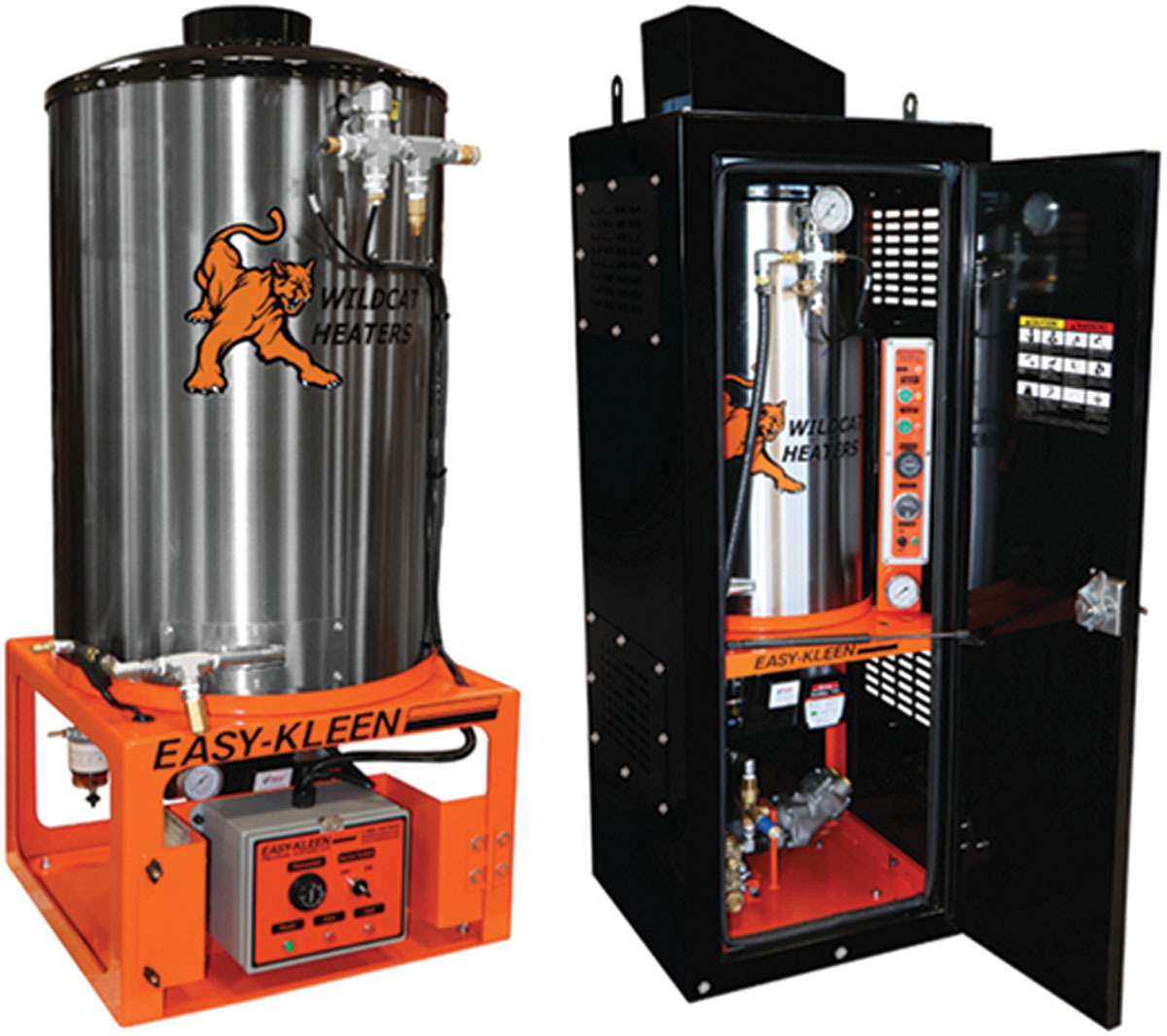

Wildcat Heaters high-pressure, oil-fired hot-water/steam heaters and hydraulic pump systems from Easy-Kleen Pressure Systems are designed for reliability and efficiency, and are installation-ready for vacuum trucks and hydroexcavators. A full range of heater options includes dry steam, redundancy packages, schedule 80 and 160 stainless steel or A53 boiler pipe, fine-tuned temperature and flow-control systems. All coils are manufactured in-house, with CRN boiler-approved coils now available. Heaters can be designed for mounting in a cabinet or supplied as a completed cabinet unit. They are CSA and ETL approved. Hydraulic pumping systems are available.

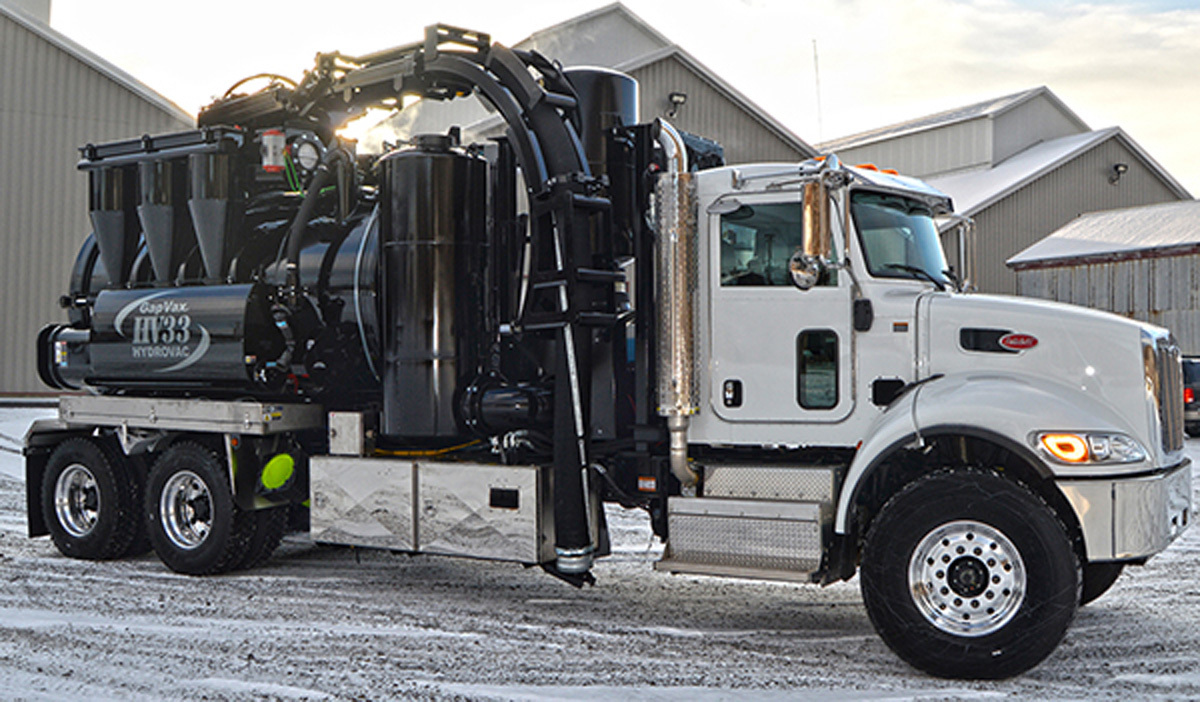

Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate.

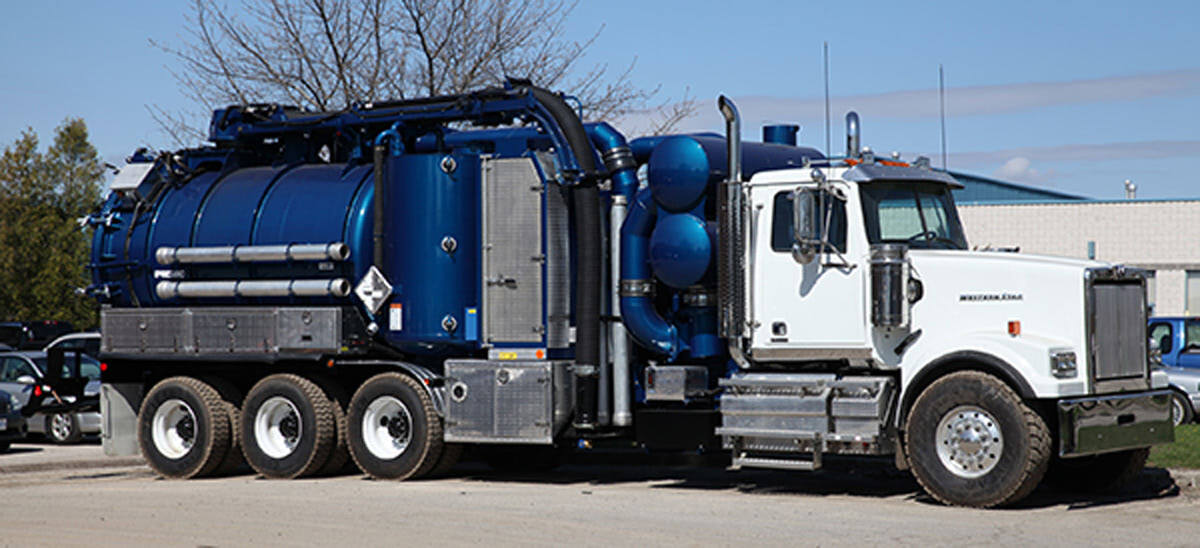

The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank to minimize carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.

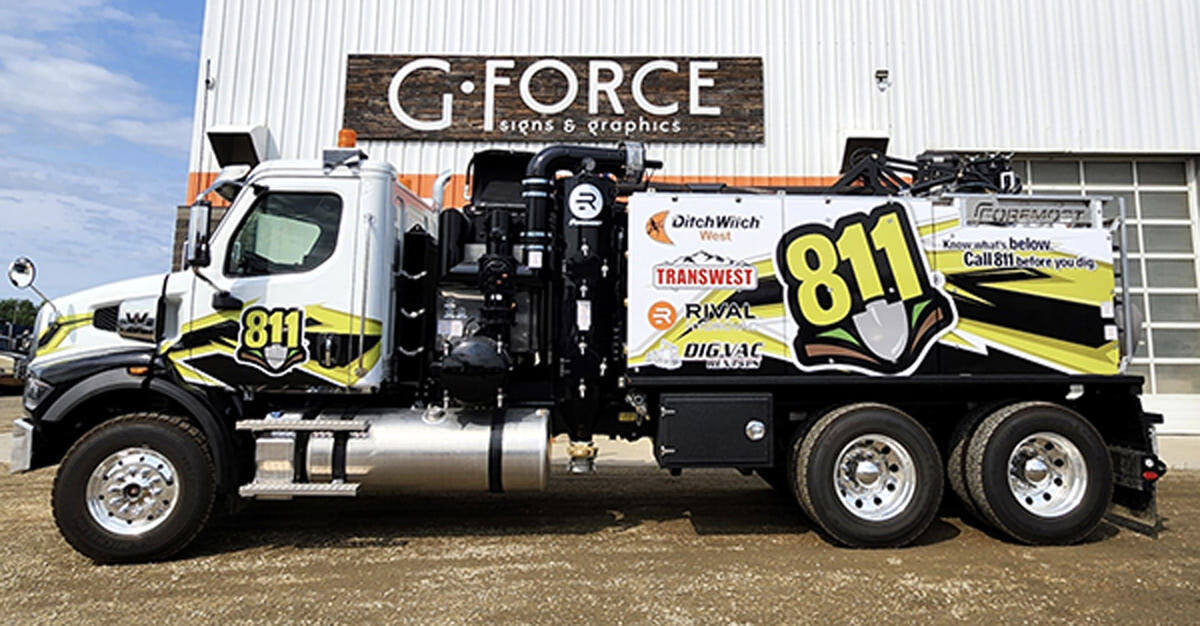

The T7 Tandem from Rival Hydrovac was designed primarily to be a unit that could be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weight prior to travel. The T10 is built with the same features and operating system, but with larger capacities and components. It is popular with clients who do both utility and industrial work. It is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating.

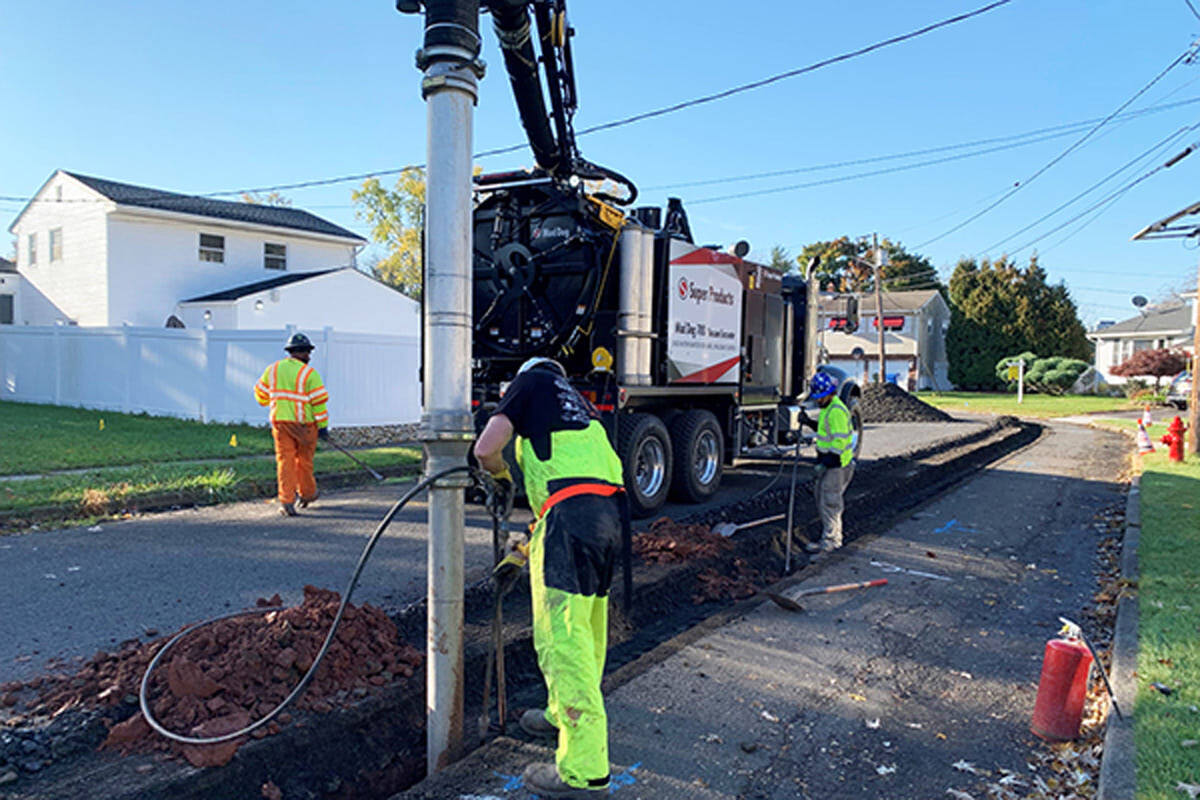

The Mud Dog 700 vacuum excavator from Super Products is designed for operator convenience and consistent performance to meet the challenges of compact, urban projects to large-scale excavation. It offers a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.

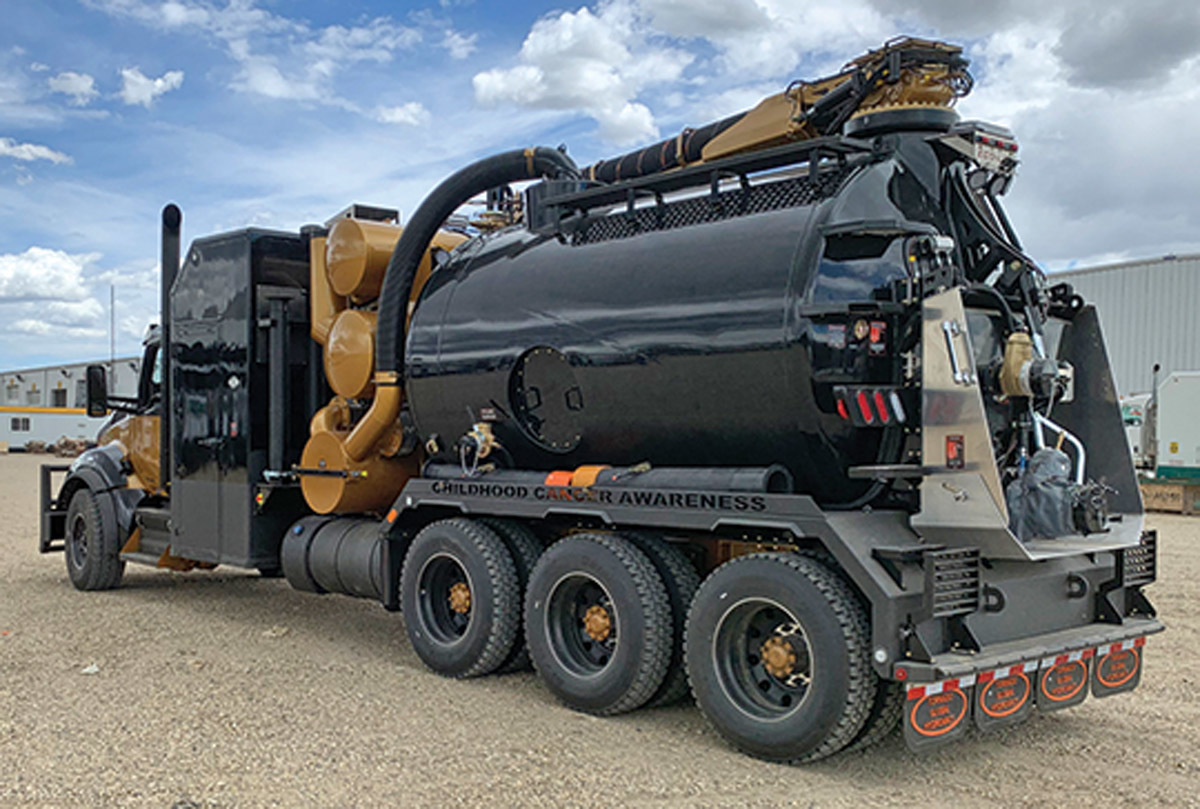

The F4 ECO-LITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECO-LITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower.

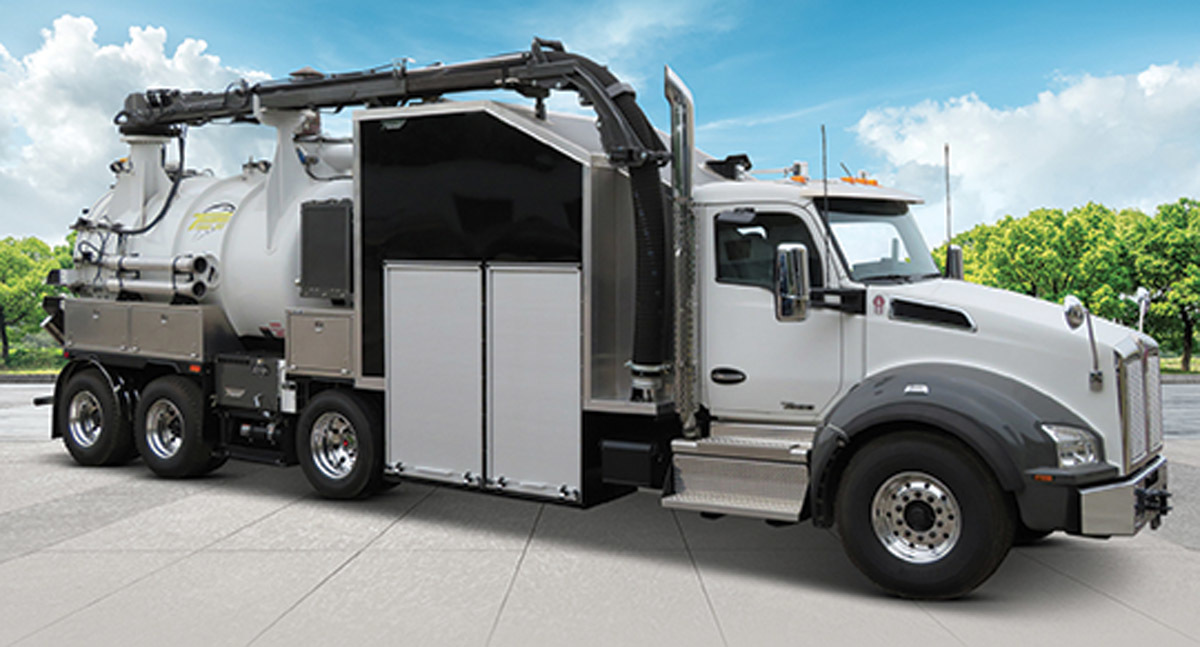

The Transway Systems Terra-Vex HV65 is an ideal single-operator unit, capable of performing all functions from a single remote control, saving time and money. The blower, water tank, boiler, jetter system and wands are housed in an insulted, sound-dampening enclosure complete with thermostat-controlled heater. It includes large, winter-friendly roll-up doors with ample inside storage. An onboard air compressor compliments the many features available by buying directly from the manufacturer.

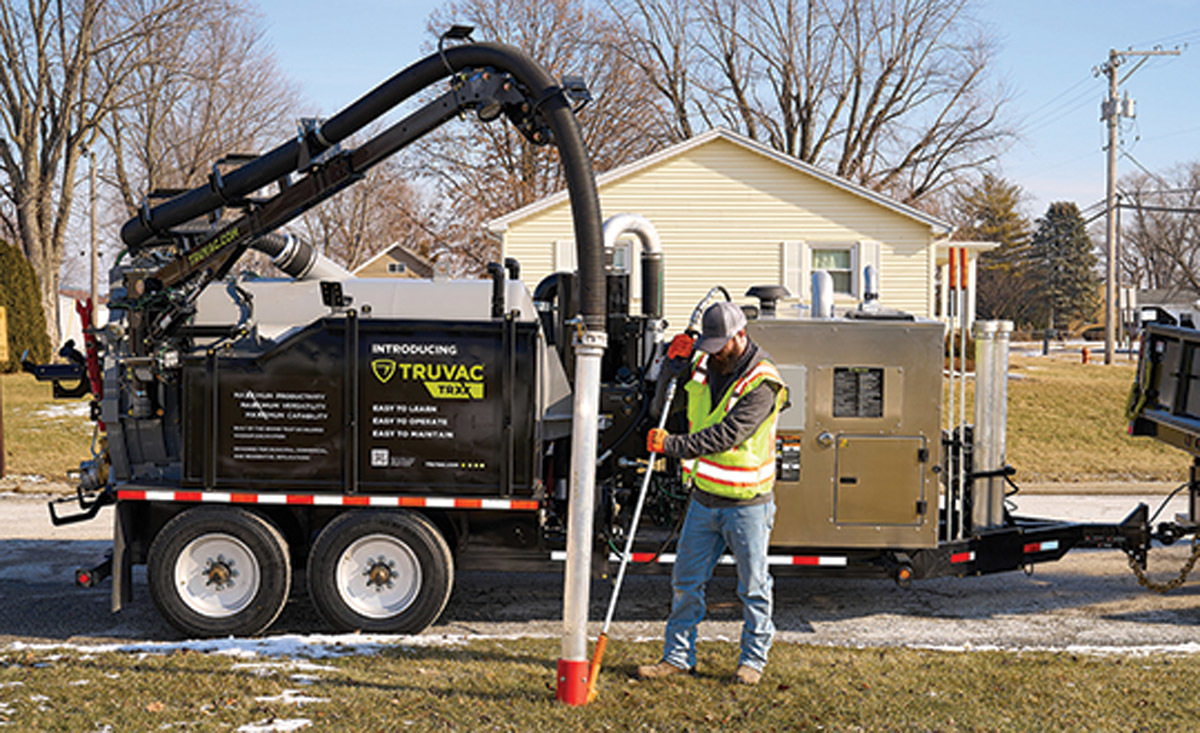

The TRXX vacuum excavation trailer from TRUVAC by Vactor Mfg. is easy to learn, operate and maintain. It delivers power and features required to perform a wide range of safe digging applications, including underground utility locating, keyholing for HDD installations, slot trenching and removal of nonhazardous liquids including flood water, drilling spoils and catch basins. It brings safe digging to a new range of applications such as landscaping and plumbing that are not as suitable, or as profitable, for a full-size truck. It is available in two sizes that offer optional cyclone filtration. A standard wireless multifunction remote control activates all dig, vacuum and dump functions, including the “Dig and Unclog” feature to streamline the operator’s workflow. The optional strong arm or hydraulic boom extends the reach even further.

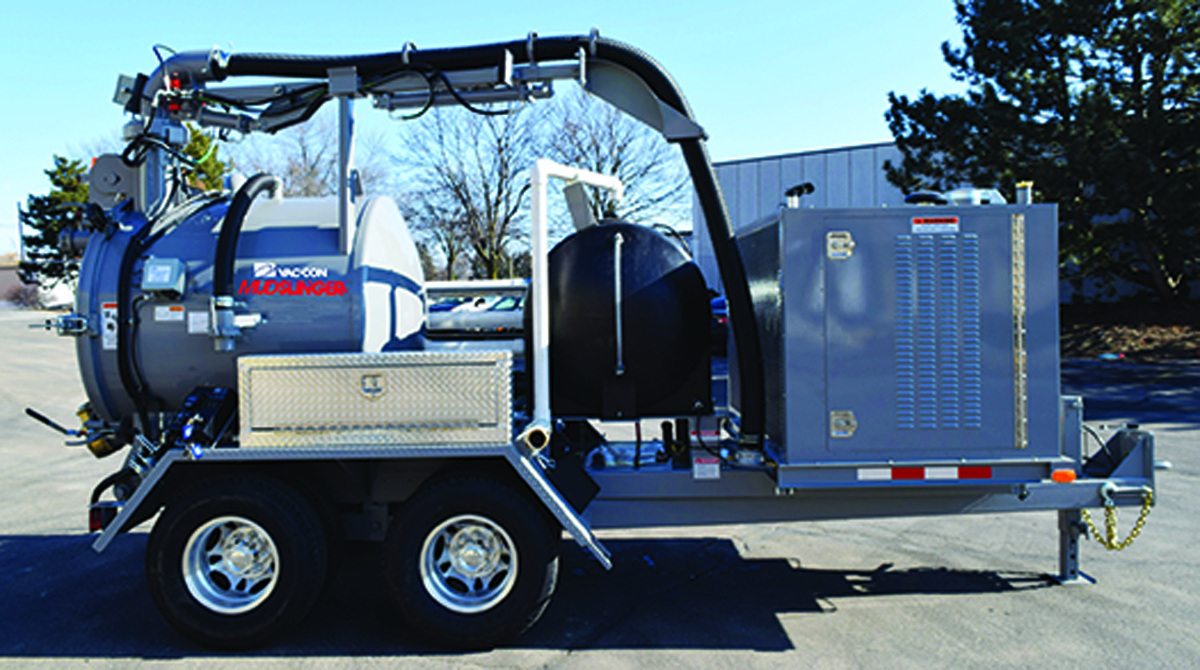

The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con encompasses the same power, suction and capacity of a truck hydroexcavator on a portable, pull-behind trailer. It includes the choice of tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. An 845-gallon debris tank allows operators to stay productive on the job site, while a 9-foot boom with 24 inches of hydraulic extension provides a full range of motion. It is designed to be a powerful standalone unit, but can also provide support to construction, HDD and public utility fleets. It’s at home in a variety of applications including daylighting, potholing, culvert and manhole cleaning, and utility locating.

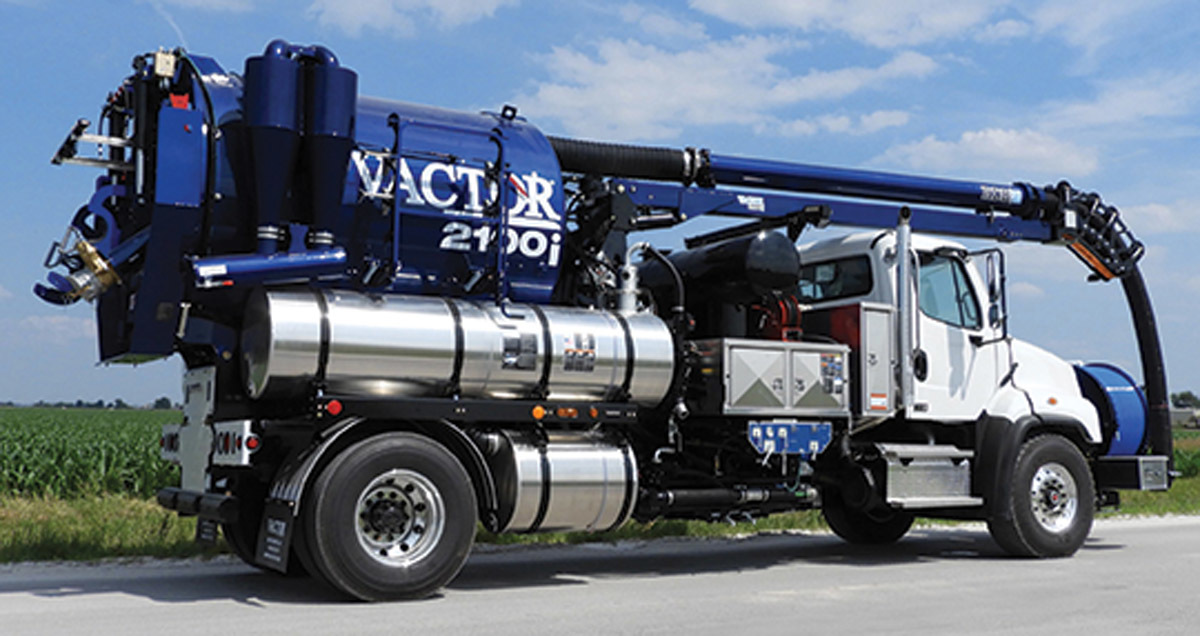

The 2100i combo unit from Vactor has been updated to include improved operator ergonomics and more control of the machine from the operator station. Boom operation has also been improved in both speed and control, easing and reducing setup time. To help manage total cost of ownership service, reminders have been added to the machine as well as a winterization reminder. Nondestructive e-stops protect both the operator and the equipment and one-button operation allows for the simplest engagement process. The unit now includes an alarm and message in the cab if the operator attempts to move the truck with either the boom or body raised, further improving operator safety.

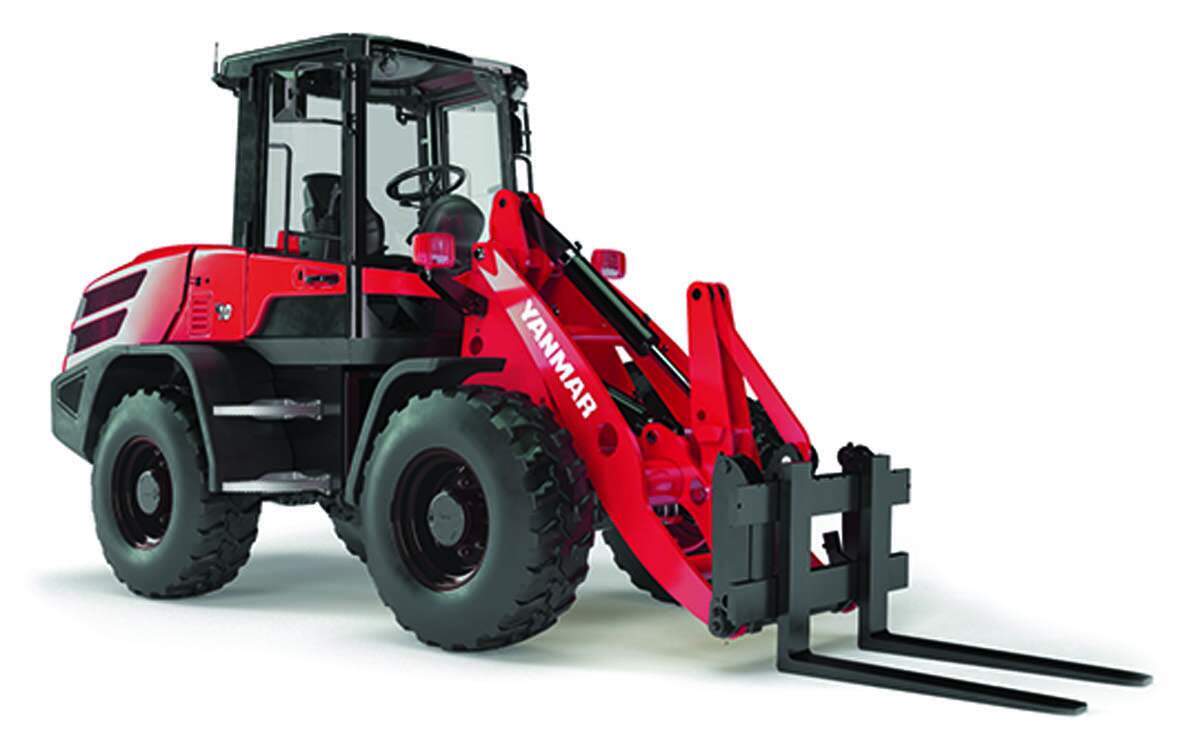

Yanmar Compact Equipment’s compact wheel loaders include comfort features across the line, including a spacious cab and dual doors for easy entry from each side. The machines provide a combination of power, comfort and compactness for applications that require fast travel speeds, high lift capacity and a small turning radius. The lineup includes the V4-7, V8, V10 and V12. Operating weights for the line range from 8,422 to 15,432 pounds. The loaders feature bucket capacities of 0.65 cubic yards to 2.35 cubic yards and lift capacities of 7,451 to 15,962 pound-force. Fast travel speeds improve job site productivity, ranging from 11.8 to 22 mph. Hydraulic quick couplers allow for fast and easy changing of attachments.

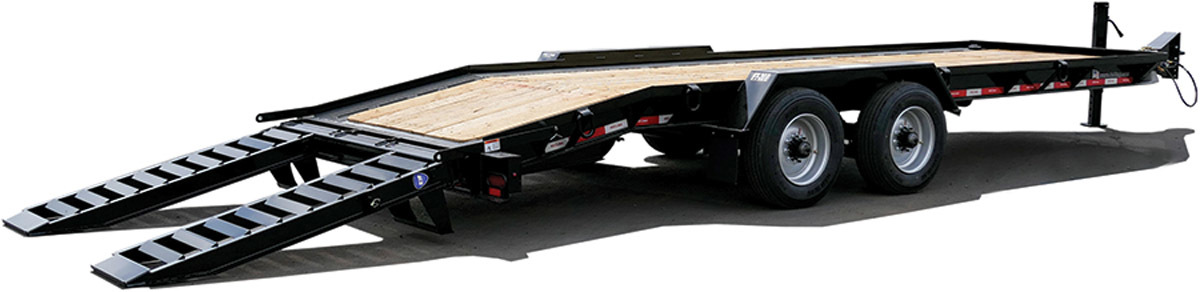

Felling Trailers Drop Deck I SeriesFT-20 and FT-24
Drop Deck I series FT-20 I and FT-24 I trailers from Felling Trailers are air brake equipped. The DDI Air Ramp System operates via an airbag system that works off the same supply as the air brake system. Thus, any air-brake-equipped truck can operate a trailer equipped with air ramps without any other external power source (e.g., battery, gas engine or truck-powered hydraulic system). Unique to the DDI’s air ramp operation is the slider track system that works in unison with the ramps pivoting as they are raised or lowered. The design of the slider track allows the ramps to move laterally along the trailer’s full width. This lateral movement provides operators the flexibility to change the placement of the ramps based on the equipment they are transporting. For example, if loading a horizontal directional drill, an operator can slide the ramps to one side to load/unload, then move apart to load/unload a skid steer or compact loader.
