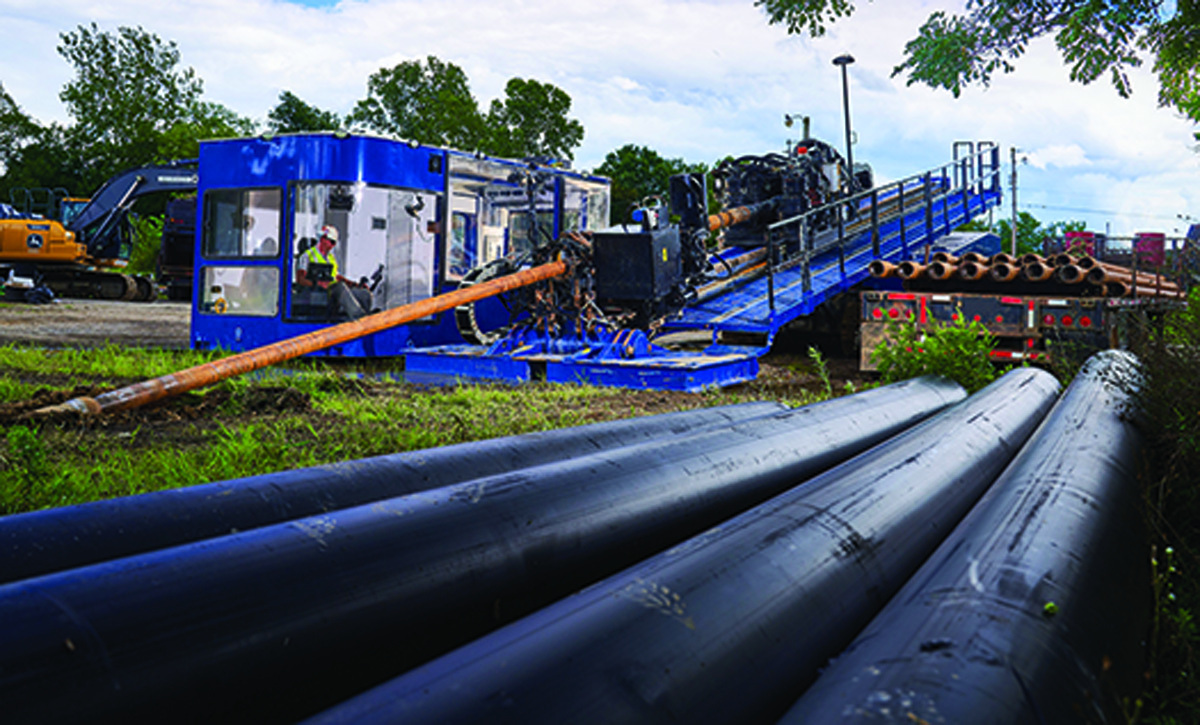

The DD600 maxi-rig directional drill from American Augers is equipped with a 755 hp Stage V/T4F/T3 CAT C18 engine that does not require diesel exhaust fluid, making it the only machine of its kind in this class. The simple exhaust system increases uptime and reliability, eliminating daily job site struggles with DEF. Additionally, the 755 hp engine allows for higher demand loads without challenging the engine capacity, and the Stage V engine classification meets emission standards for engines in Europe. The weight meets standard transportation requirements, meaning no special permits are required. It can also be transported without removing the wrenches, saving hours in assembly and disassembly time. A hydraulic catwalk helps expedite the time required to set up and teardown, as well as the number of people it takes to do so.800-324-4930; www.americanaugers.com

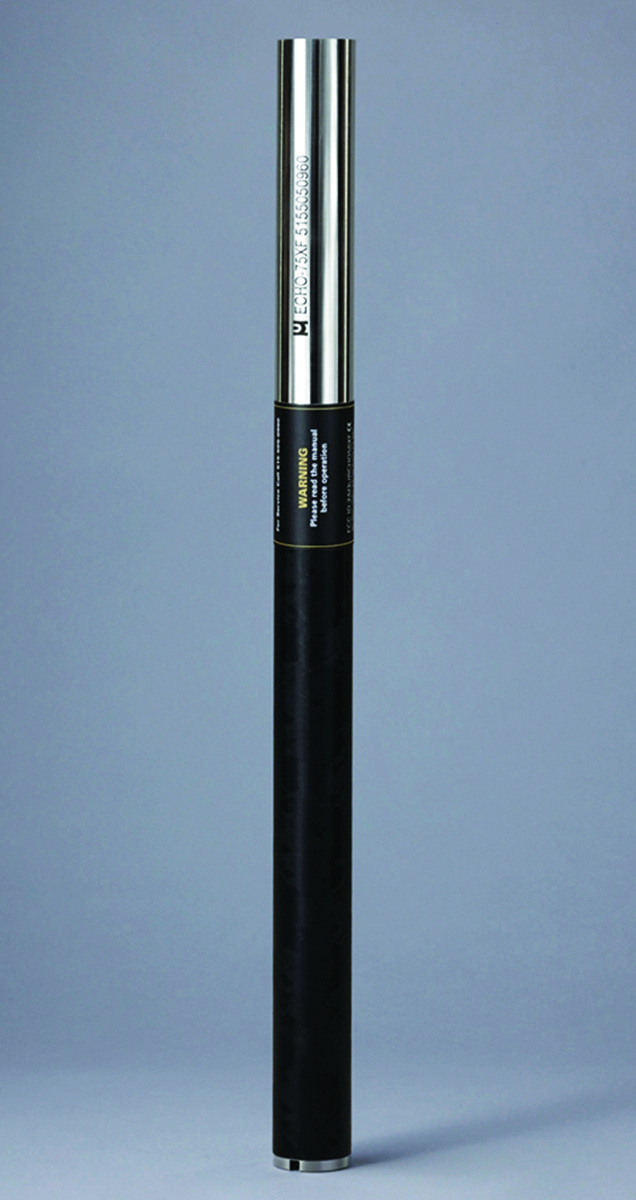

Underground Magnetics Echo 75XF
As utility easements continue to get more congested, the need to work in these areas with precision is critical. Low Sub-kHz frequencies have always been the best solution for drilling in these environments. The Echo 75XF from Underground Magnetics is a 19-inch transmitter that offers 16 frequencies from Sub-kHz .325, up to 41 kHz. It has three power levels, enabling it to run for up to 100 hours on a single charge in low power. It is suitable for crossing 10-lane highways to drilling under heavy rebar and wire mesh.515-505-0960; www.umaghdd.com
Hydroexcavation Equipment

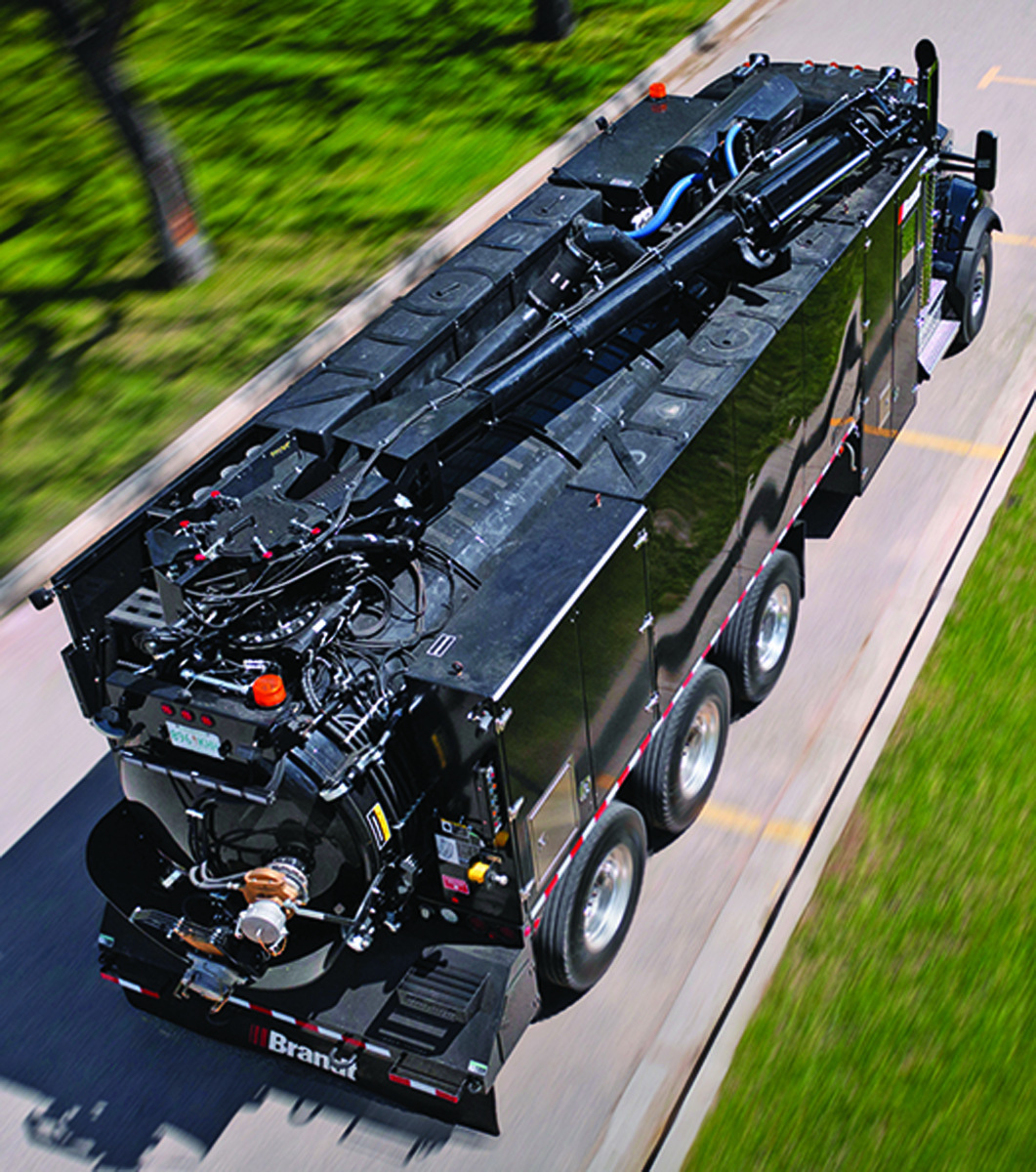

Brandt HX120 Hydrovac
In response to the increasing need for hydrovacs that combine full-size capacity with maneuverability in tight urban spaces, Brandt offers the HX120 Hydrovac. This high-pressure performer helps contractors work more efficiently with maximized legal load weights, quicker debris loading and unloading time, and the capacity to take on larger jobs without load weight concerns. The real-time measurement of water and overall truck weight enables operators to make quick, informed decisions, which reduces the risk of damage or overweight penalties. The unit has a 1,150-gallon water tank capacity and 11.6 cubic yards of debris tank capacity, as well as a 28-foot boom reach with 340-degree rotation. It also operates quietly, which is a benefit in urban settings.866-427-2638; www.brandt.ca

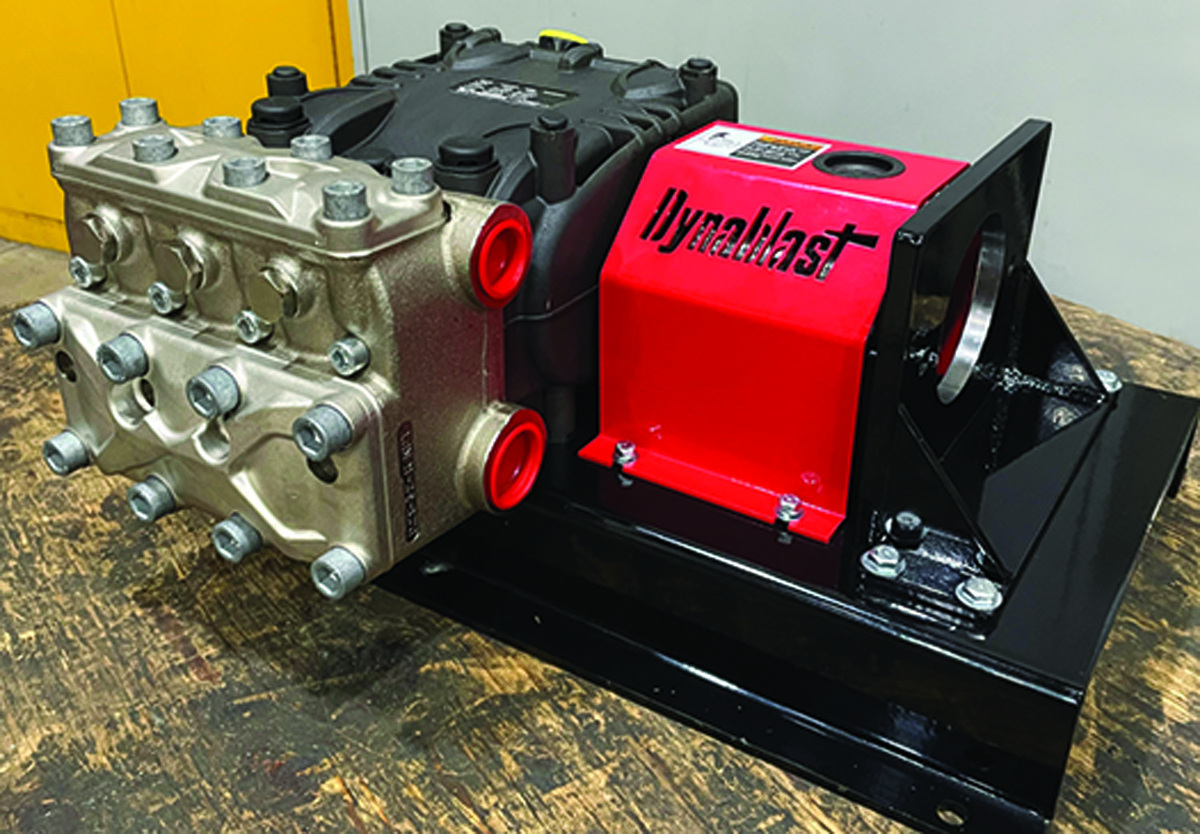

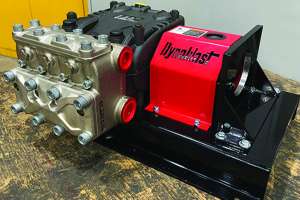

Dynablast Pratissoli KTX24A
Pratissoli KTX24A direct-drive water pump packages, distributed by Dynablast, offer 13.5 gpm at 3,625 psi at 1,450 rpm, or are available in the KTX28A that offers 18.4 gpm at 2,900 psi at 1,450 rpm. They have a 30 mm male shaft, a 420 stainless steel manifold for protection from cavitation and run dry seals with Kevlar Graphite rope. They are built into a compact mini skid design with a KTR coupler with purple spider between. They fit onto a SAE B flange with any 1-inch keyed shaft hydraulic motor of choice.905-867-4642; www.dynablast.ca

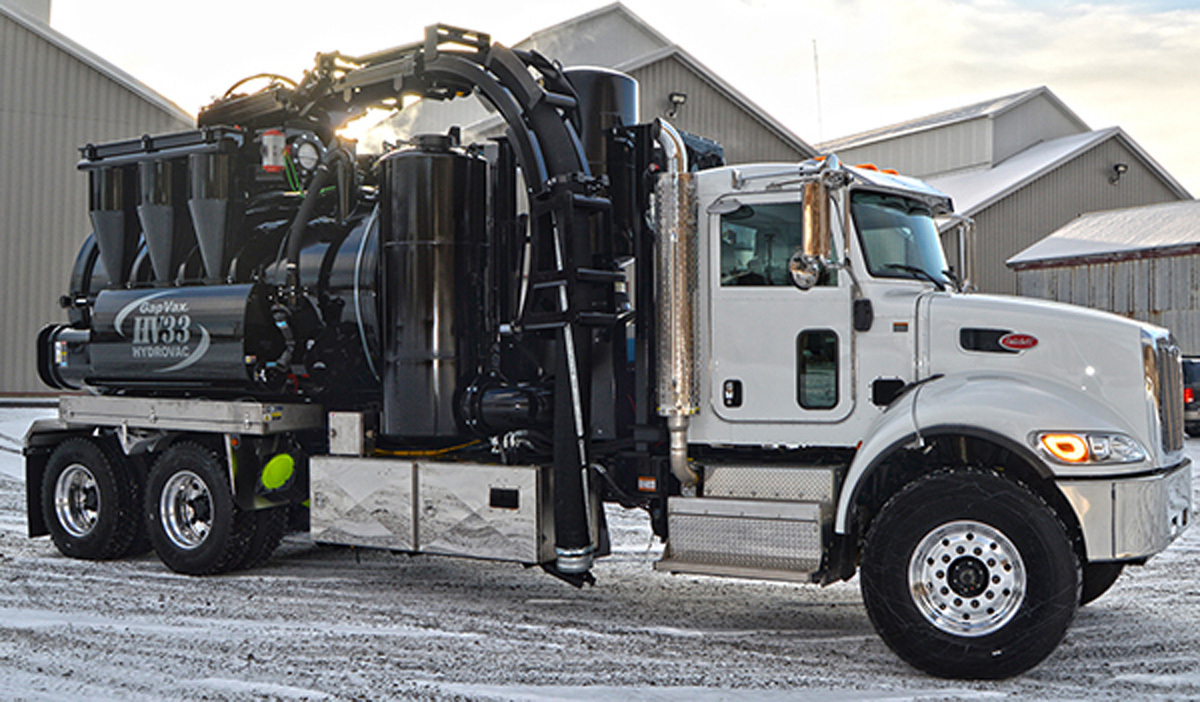

GapVax HV33
Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate.888-442-7829; www.gapvax.com

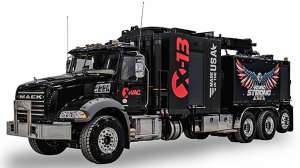

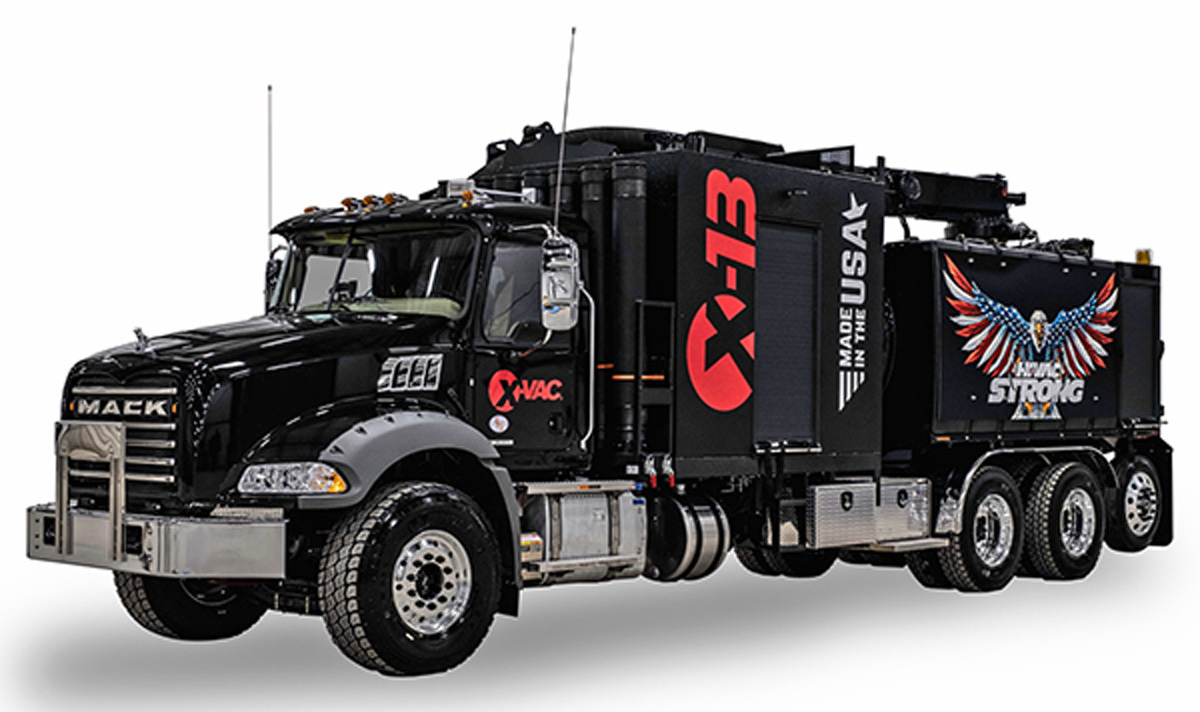

Hi-Vac X-13
Contractors, municipalities and utility service providers depend on Hi-Vac X-13 hydroexcavators to safely and efficiently trench for new sewer and wastewater lines with minimal disturbance to surrounding areas. They combine surgically precise hydroexcavating power with low-maintenance components that help minimize downtime. Simple, intuitive controls and quick access to all critical systems mean jobs get done faster. A 13-cubic-yard debris tank, with up to 24,500-pound payload capacity and 1,140-gallon freshwater capacity, helps reduce the number of costly job site returns. Power is provided by a 5,800 cfm, 27-inch Hg high-performance blower and a run-dry water pump that delivers 20 gpm at 2,500 psi. The 360-degree, top-mounted boom provides full accessibility in every direction, and a heavy-duty hydraulic vibrator provides fast and efficient unloading of the debris body. Designed for safe and easy operation, it only requires a short learning curve.800-752-2400; www.x-vac.com

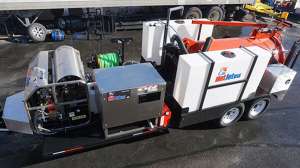

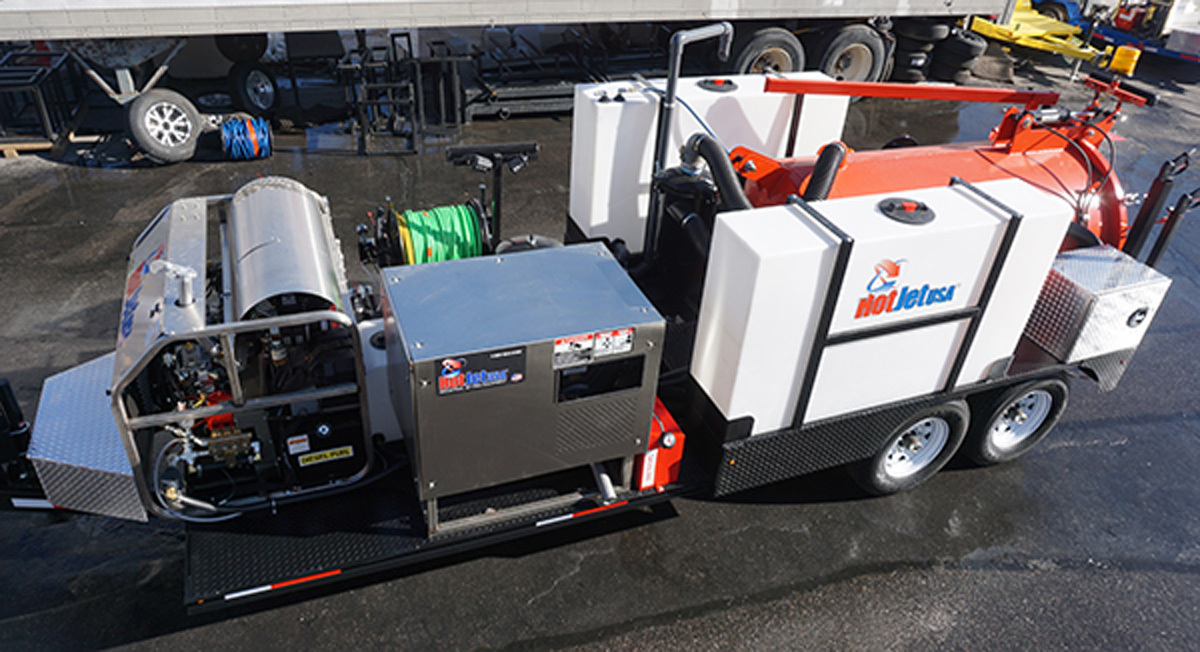

HotJet USA Vac’n Jet Series
The HotJet USA Vac’n Jet Series of vacuum trailer jetters are compact and specially engineered to haul equipment and the spoils load, perform hydroexcavation, and clean valve boxes, storm drains and drain/sewer lines. They feature hot and/or cold water operation with a choice of engine options ranging from 23 to 70 hp and gas or diesel operation. They are equipped with premium triplex pumps, a 500-gallon spoils tank, up to 440-gallon water tanks, Gardner/Denver vac/blowers, a 4-ton hydraulic dump and a dual filter, centri-clean filter system. They can also be custom engineered and designed to meet specifications.800-624-8186; www.hotjetusa.com

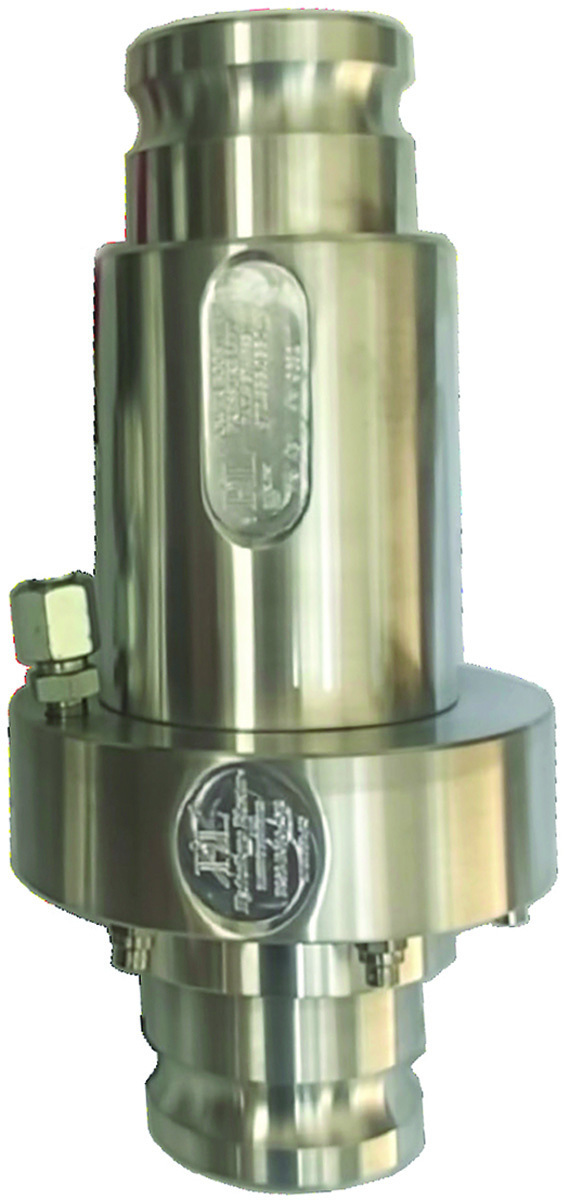

Pressure Lift HydraBore
The HydraBore equipment attachment from Pressure Lift fits on the end of any vacuum hose for a simple, more cost-effective approach to hydroexcavation. To use it, first place the stinger on the far end of the tool, then hook the HydraBore to the end of the snorkel. Connect the air supply and high-pressure water supply systems, turning air on first, then the water supply, open the vacuum system and begin hydroexcavating. Contractors no longer need to have additional manpower holding a lance-powered high-pressure water supply. It also removes the need to wear a rain suit to remain clean, as the user begins every job from several feet away using the lanyard or from the safety of the side of the rig at the other controls. Once hydroexcavation begins, the user can control the boom in an up-and-down motion, then when the HydraBore becomes submerged, can excavate faster and go deeper than before, reducing wear and tear on vacuum equipment.866-504-6596; www.pressurelift.com

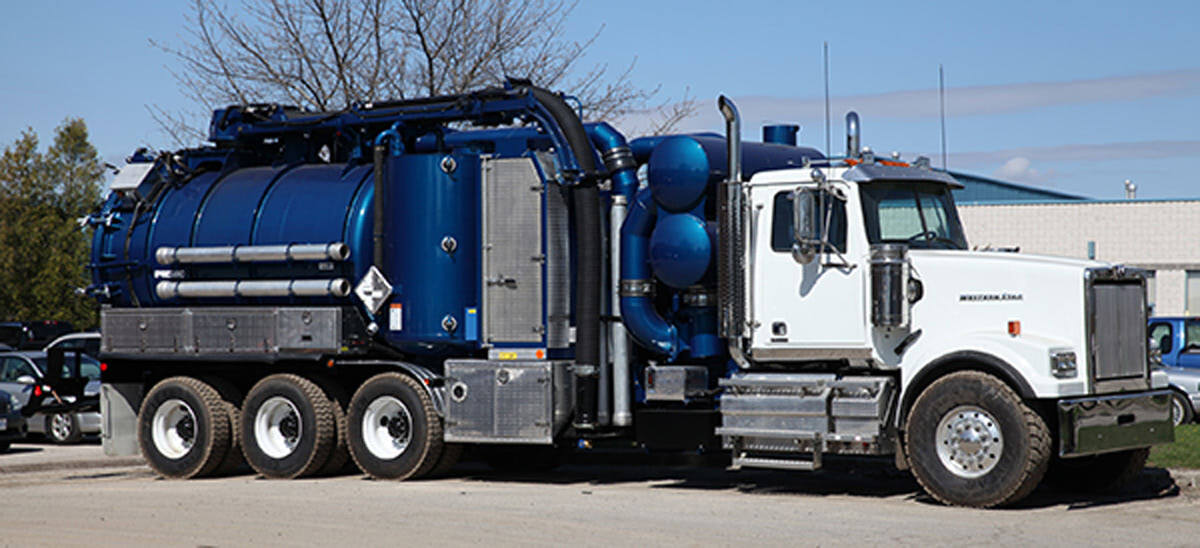

Presvac Systems Hydrovac
The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank to minimize carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.800-387-7763; www.presvac.com

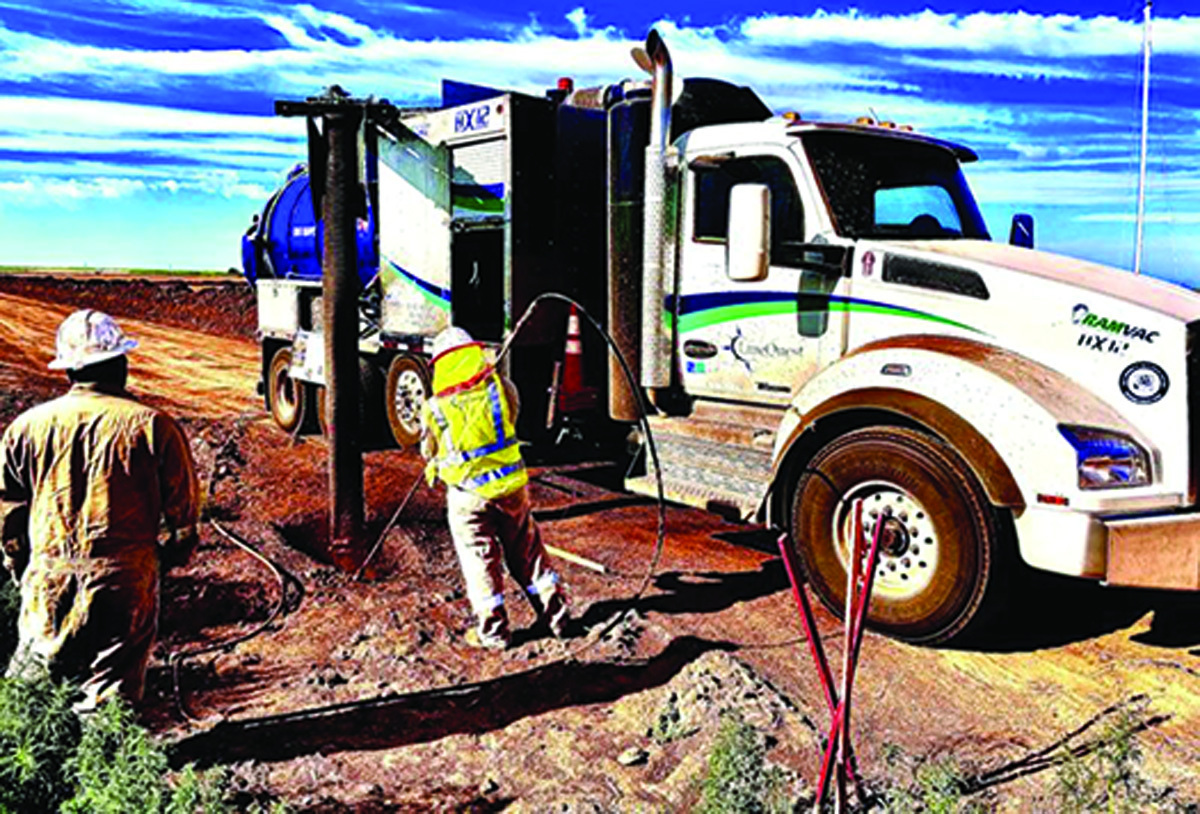

RAMVAC by Sewer Equipment HX-12
The HX-12 hydroexcavator from RAMVAC by Sewer Equipment has a 12-yard debris tank and a heated, secured equipment locker that contains the entire water system, including water tanks, for cold-weather application and tool security. This machine touts a directional discharge system with the ability to offload debris back into the excavation site when done, without the mess of dumping the tank. This system also allows operators to blow any obstructions out of the dig hose and get back to work. It includes a long-range wireless remote, NEMA 4 electrical system, an 800,000 Btu water heater and a three-stage cyclonic filtration system. The standard 4,400 cfm blower will match the performance of larger blower machines while delivering fuel economy with the ability to go up to 5,400 cfm. The series offers debris capacities from 3 to 15 cubic yards while maintaining a short overall footprint.888-477-7638; www.ram-vac.com

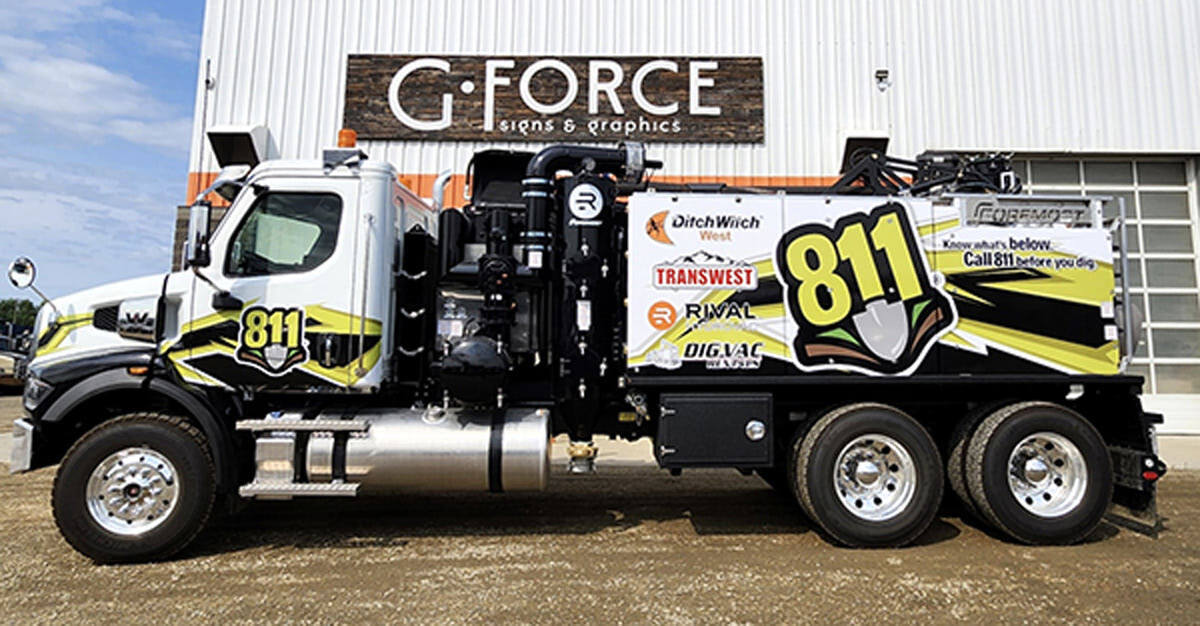

Rival Hydrovac T7 Tandem and T10
The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system, but with larger capacities and components. It is for both utility and industrial work. It is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating.403-550-7997; www.rivalhydrovac.com

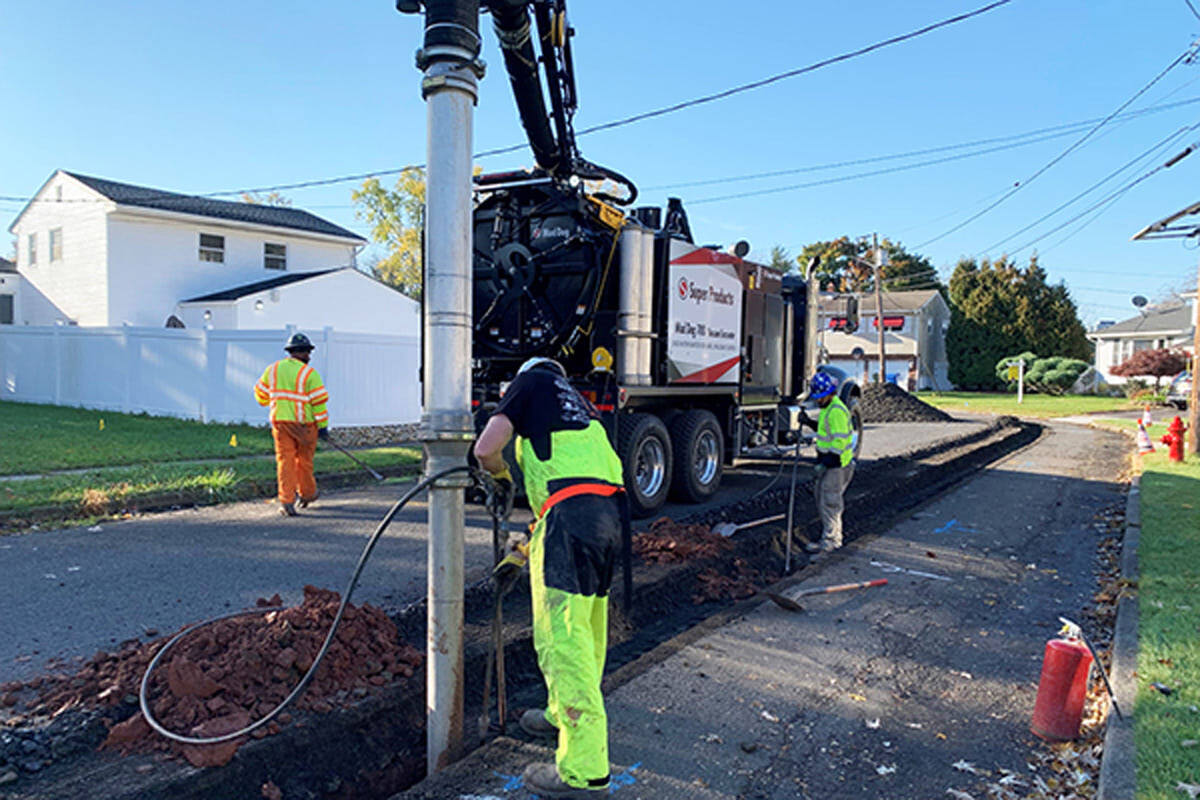

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact, urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

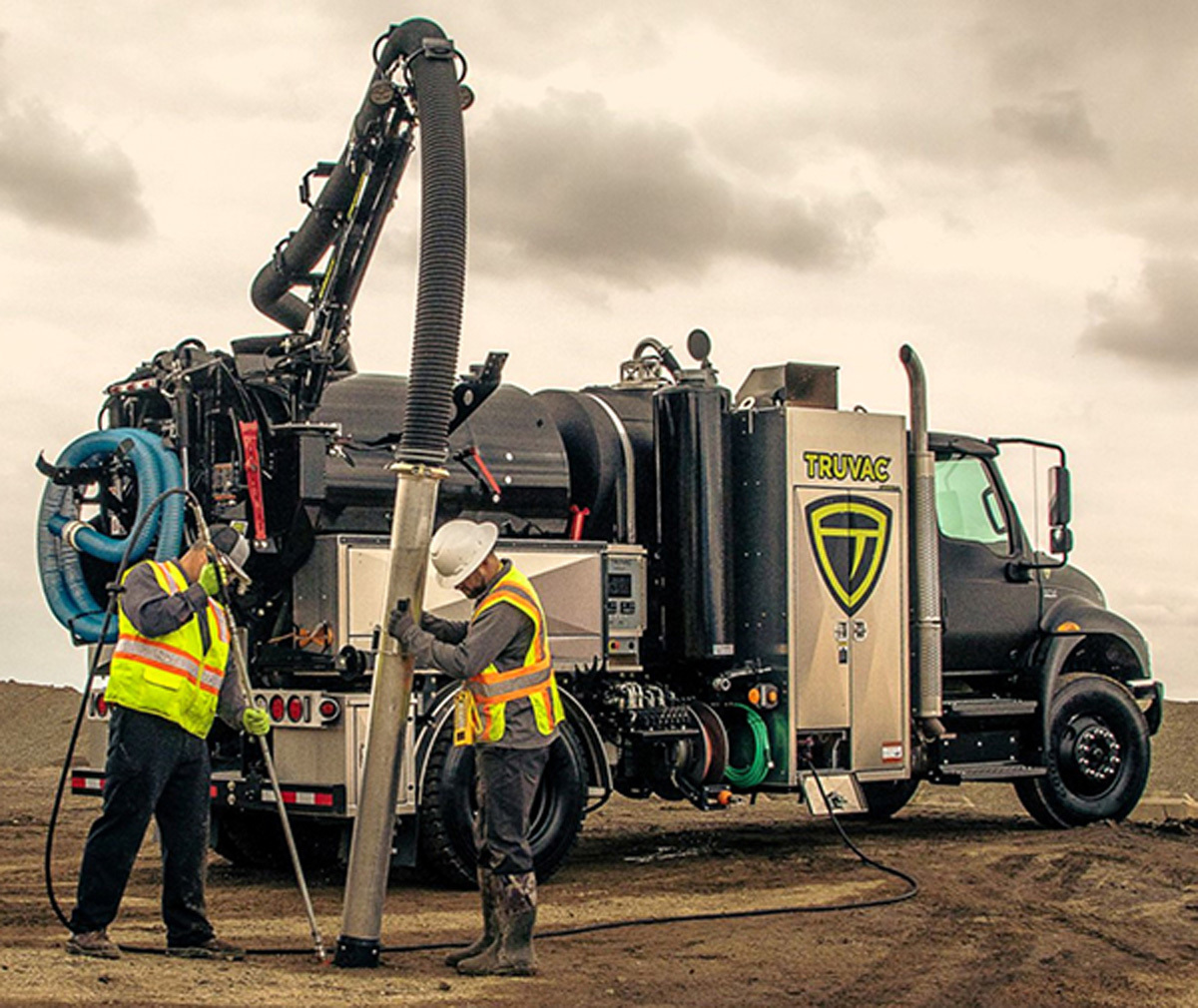

TRUVAC Paradigm
The Paradigm sub-compact vacuum excavator from TRUVAC is designed for safe and efficient digging around utilities. Its compact, low-profile, and tough non-CDL design allows for easy maneuverability, making it a suitable choice for any excavation job. With its quick setup design, operators can begin operations with just a flip of a switch using the Park-N-Dig feature.815-672-3171; www.truvac.com

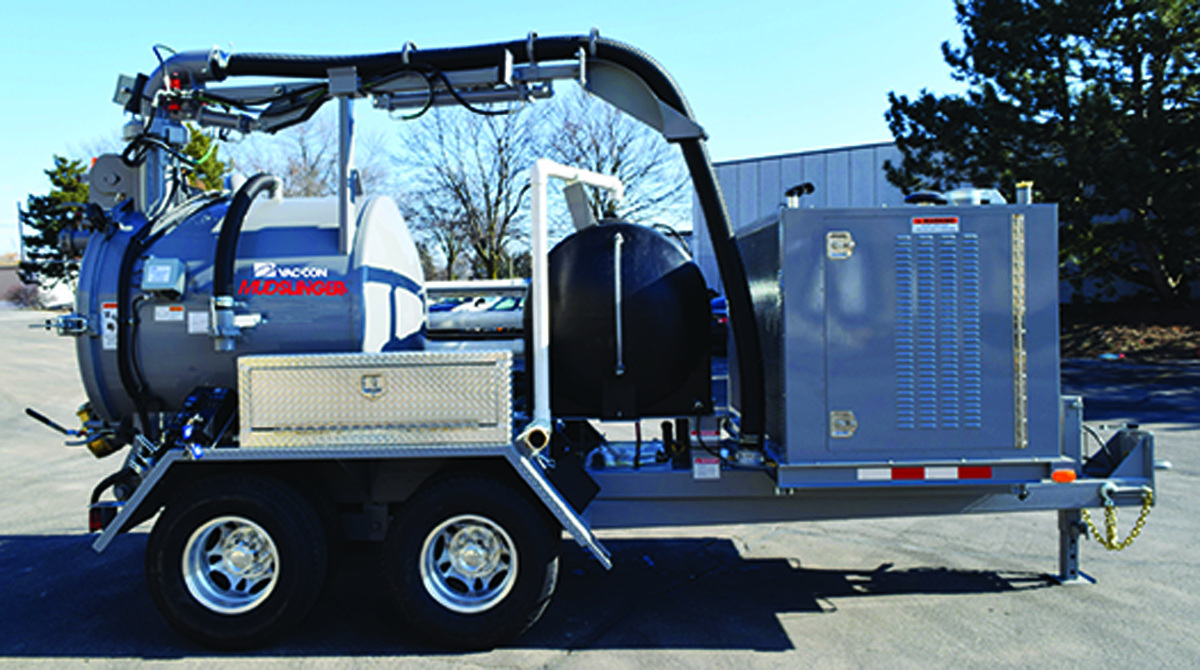

Vac-Con Mudslinger MS800
The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con is designed to provide the same power, suction and capacity of a truck hydroexcavator on a portable, pull-behind trailer. It includes the choice of Tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. It has an 845-gallon debris tank and a 9-foot boom with 24 inches of hydraulic extension providing a full range of motion. It is designed to be a standalone unit but can also provide support to construction, HDD and public utility fleets. A variety of applications include daylighting, potholing, culvert and manhole cleaning, and utility locating.904-284-4200; www.vac-con.com

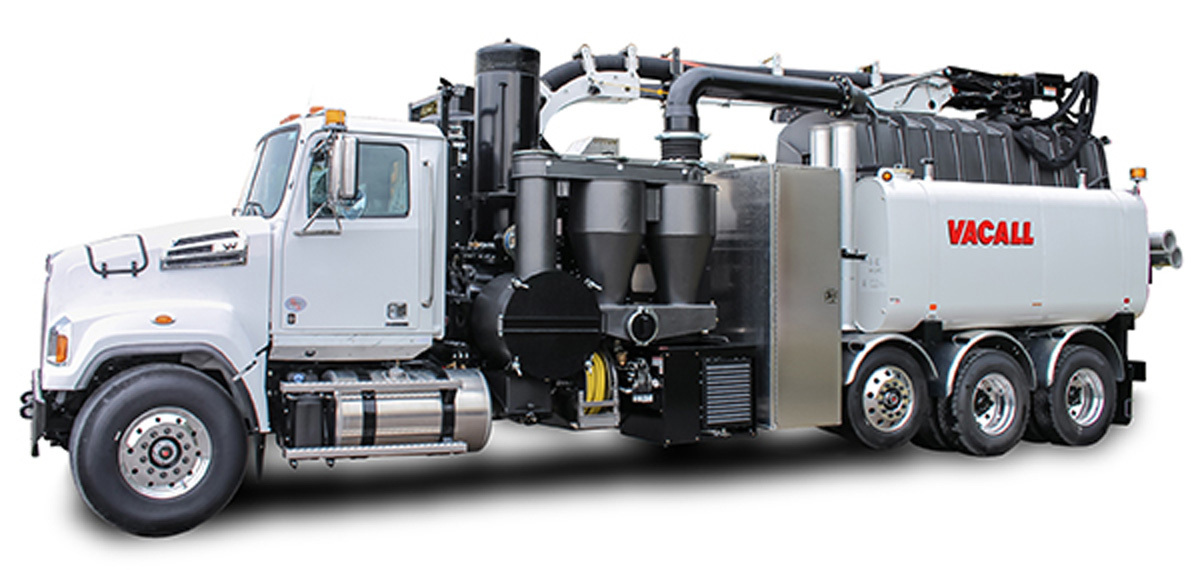

Vacall AllExcavate and AllExcavate2
Vacall AllExcavate and AllExcavate2 machines feature standard intelligent controls and easy startup operation. Both models are designed to efficiently remove dirt around utility lines and foundations. Water pumps generate 24.5 to 120 gpm and pressures to 3,000 psi. The AE2 model adds air excavation at 185 cfm and dual psi of 110 and 150. Water system, wand, control panel, tools and worker apparel are protected in a heated compartment. An AllSmartFlow CANbus control system features a programmable LCD that monitors engine, water flow, air pressure and vacuum performance for precise boom and reel adjustments. Aluminum water tanks with lifetime warranty carry 1,000 to 1,300 gallons. Galvanized debris tanks have a supreme finish and are available with 8-, 10- and 13-cubic-yard capacities. They use one engine to power the chassis and excavation functions, designed to reduce service and operation costs.800-382-8302; www.vacall.com

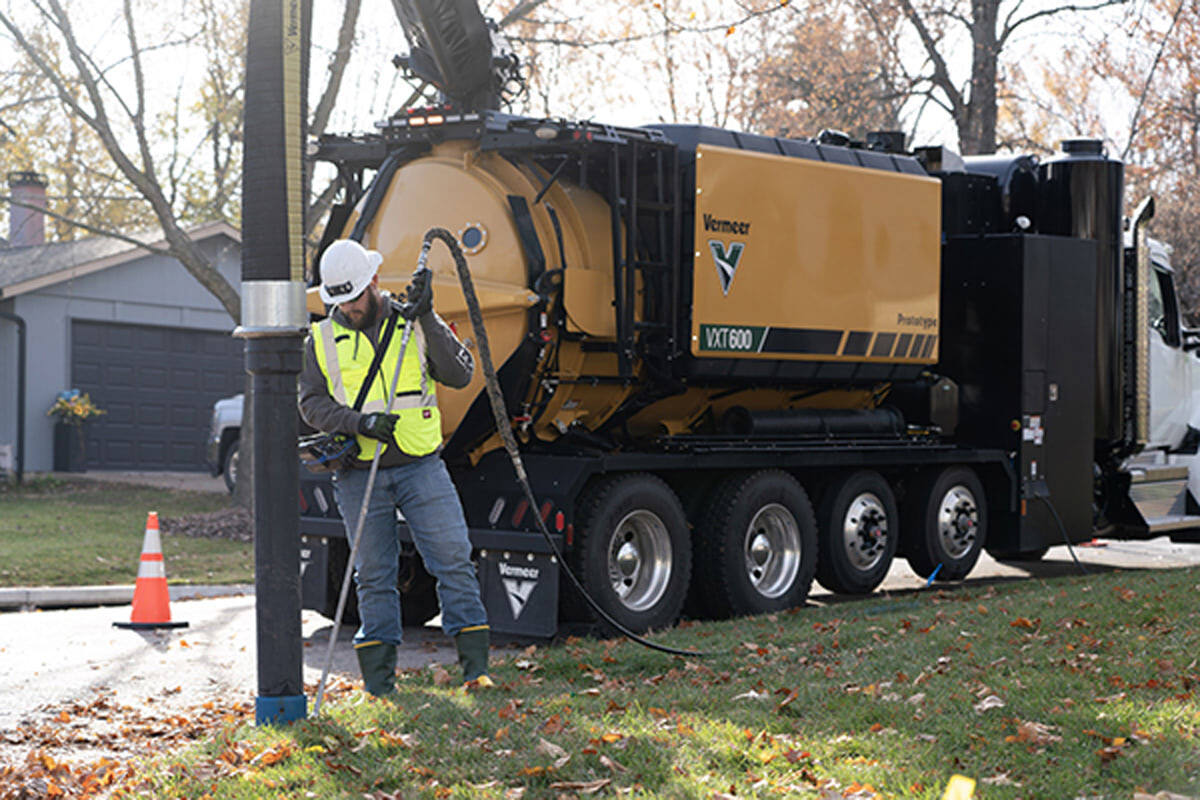

Vermeer VXT600
The Vermeer VXT600 vacuum excavator has a 12-cubic-yard elongated spoil tank design and 1,200-gallon freshwater tank capacity, but weighs in at just 40,000 pounds. It has a low profile with a height (with boom) of 12.25 feet so that it can maneuver under trees, power lines and bridges. The VXT600 is a powerful digging machine that operates quietly while on the job. It features a vacuum system that is powered by a 6,400 cfm Helical tri-lobe Jurop blower. With a 23-foot boom, an 8-inch diameter dig hose, a vacuum level of 27 in Hg, and a water pump that produces 10 gpm of flow at 3,000 psi, the truck can dig quickly and deeply. Additionally, the boom dig hose can be stowed with the dig tube attached to minimize setup time between digs. Additionally, the VXT600 includes a handwashing station for operator convenience.352-728-2222; www.vermeer.com
Piercing Tools

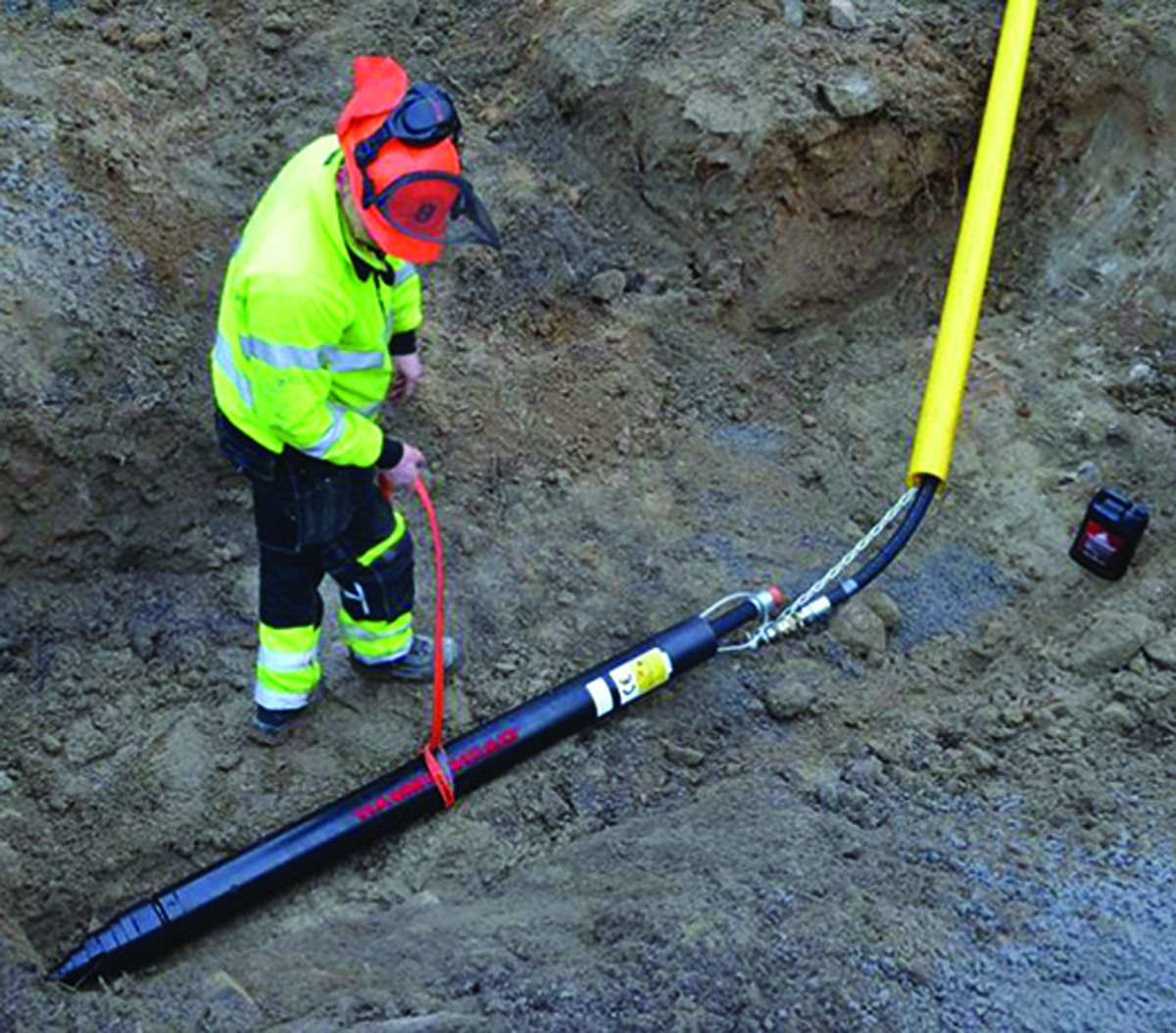

Ditch Witch HammerHead Catamount
Designed for short-shot utility installation projects, the HammerHead Catamount pneumatic piercing tool, distributed by Ditch Witch, offers a trenchless solution ready to excel in a variety of ground conditions. It allows contractors to install gas, water, cable, irrigation, fiber and electrical service lines under existing landscapes or structures with minimal disruption. It specializes in bores ranging from 2 1/2 to 5 1/8 inches in diameter, with depths from 2 to 5 feet. Its Power Port quarter-turn reverse feature locks the tool into forward or reverse gear to prevent accidental direction changes during operation. Its reciprocating head is easy to start regardless of ground conditions, making it effective in both hard and soft soils. Its small footprint combined with fast on-site setup time improves productivity across job sites for operators needing a straightforward yet durable trenchless solution.580-336-4402; www.ditchwitch.com
Pipe Bursting

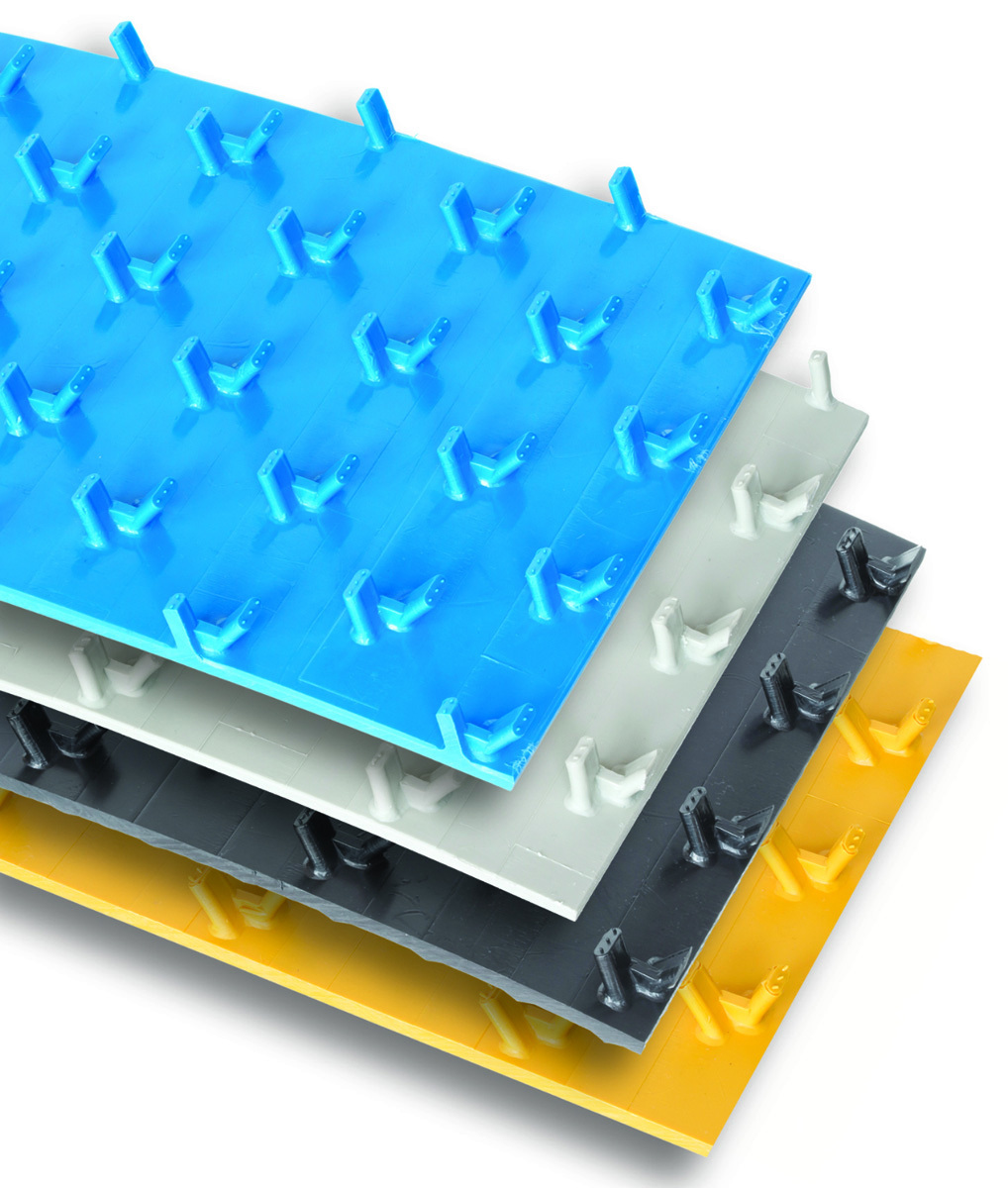

AGRU America Sure-Grip
Sure-Grip liners from AGRU America are made of HDPE, HDPE-el, PP, PVDF or ECTFE, and serve as a long-term alternative to spray-applied concrete protection products. The liners prevent concrete corrosion and degradation, can substantially extend the lifetime of a structure, and by preventing exfiltration and infiltration, provide direct protection for the environment. The liners have anchoring systems that enable construction in areas of significant backpressure. Unlike spray-applied liners, which have to be reapplied regularly due to cracking or delamination, these liners are long-lasting, and are designed to avoid the residual costs often associated with concrete spray-on liners, which require tank emptying and cleaning every few years for reapplication.843-546-0600; www.agruamerica.com

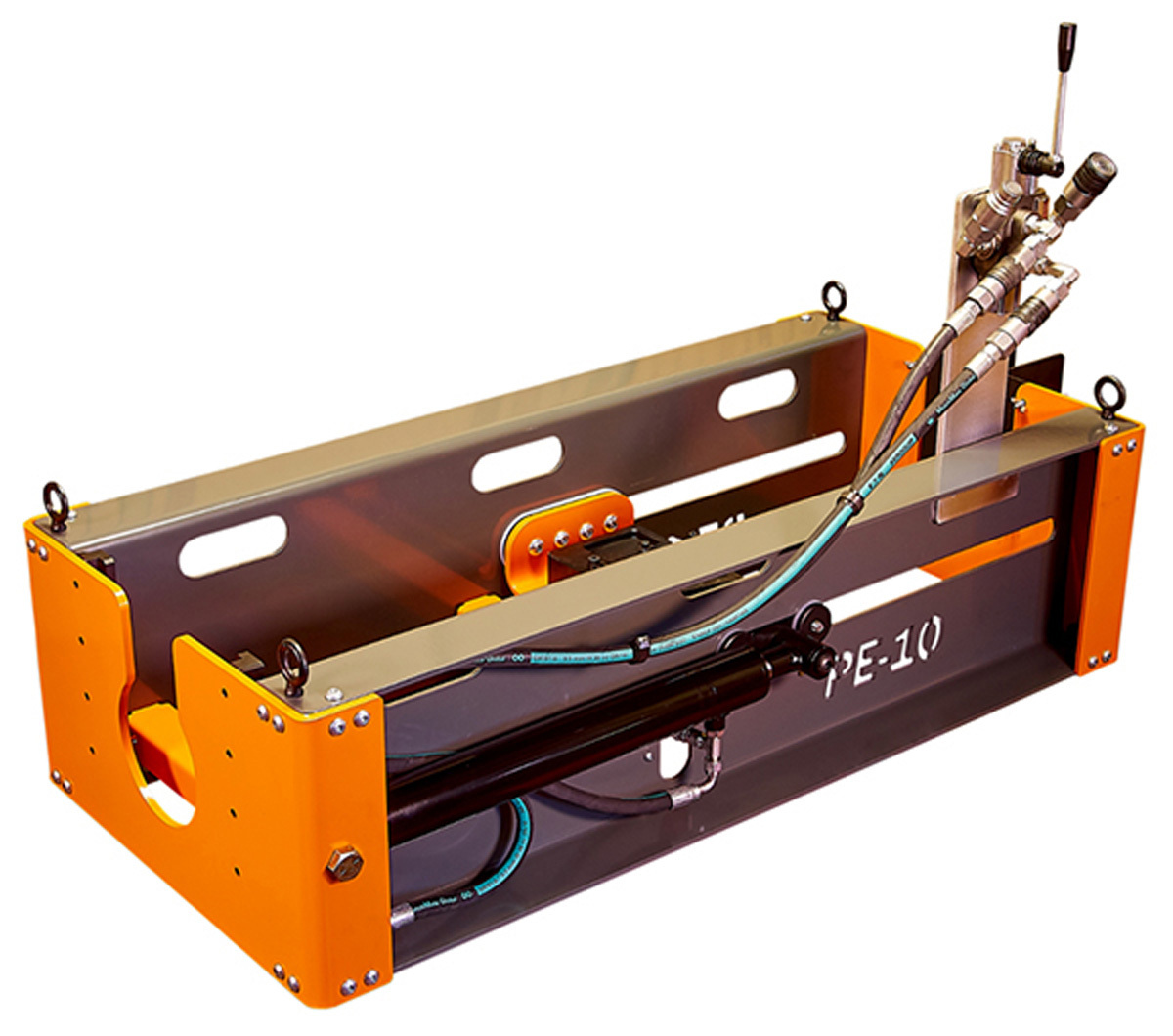

PE Equipment PE-10
The PE-10 from PE Equipment is a multi-function trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules, and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe-bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed, capable of up to 13 feet per minute depending on conditions.406-499-8136; www.pe-equipment.com

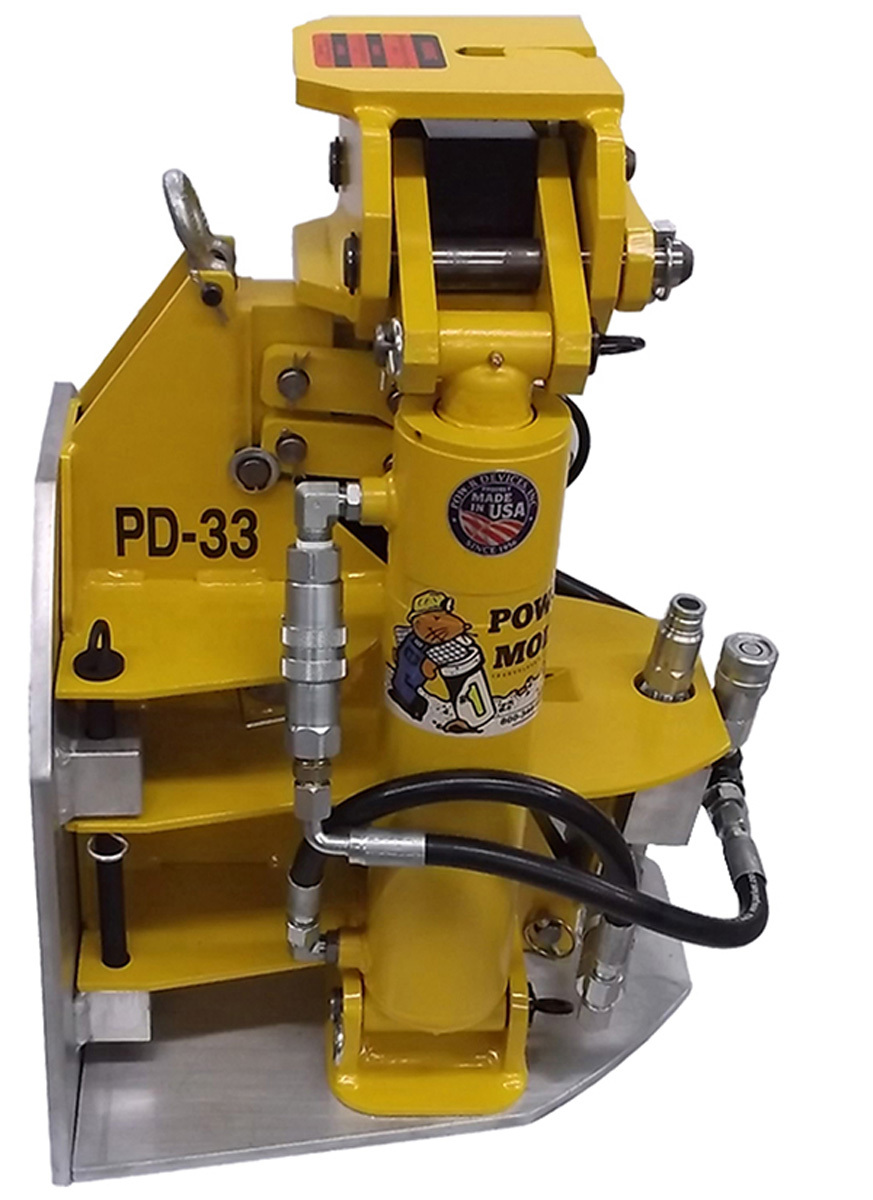

Pow-R Mole Trenchless Solutions PD-33M
The PD-33M pipe bursting machine from Pow-R Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations.800-344-6653; www.powrmole.com

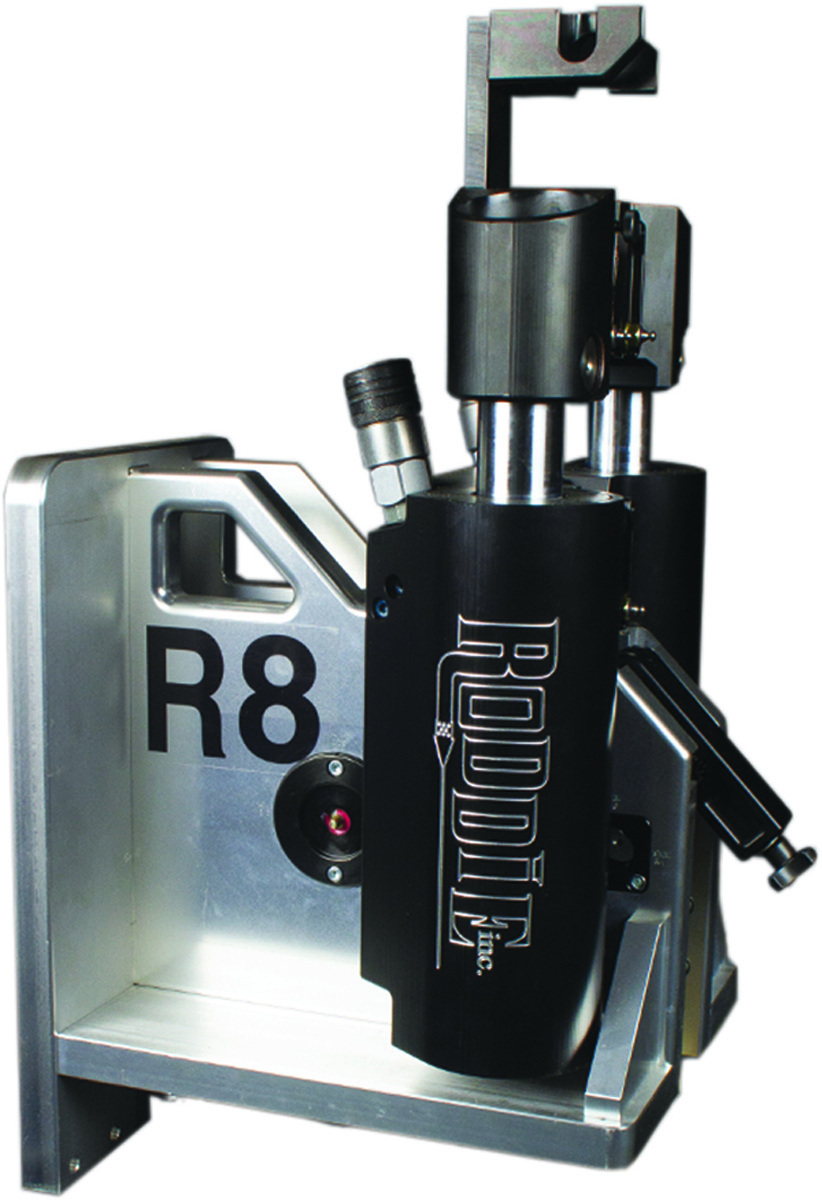

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally, and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable-grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple, as the user only needs to rinse off and re-grease six Zerk fittings.888-406-3821; www.roddieunderground.com

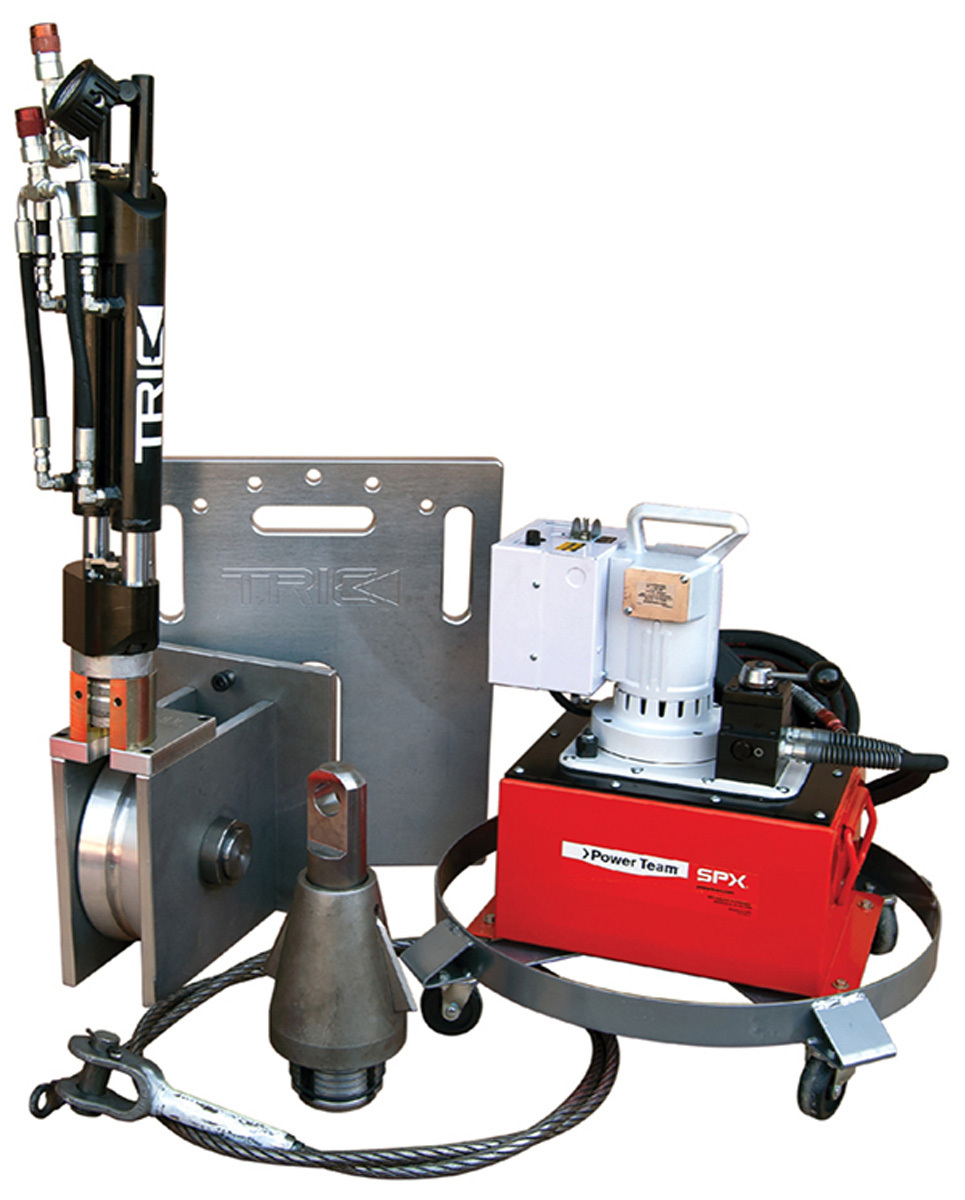

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump, plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements, and very tight spaces with limited access.888-883-8742; www.trictools.com
