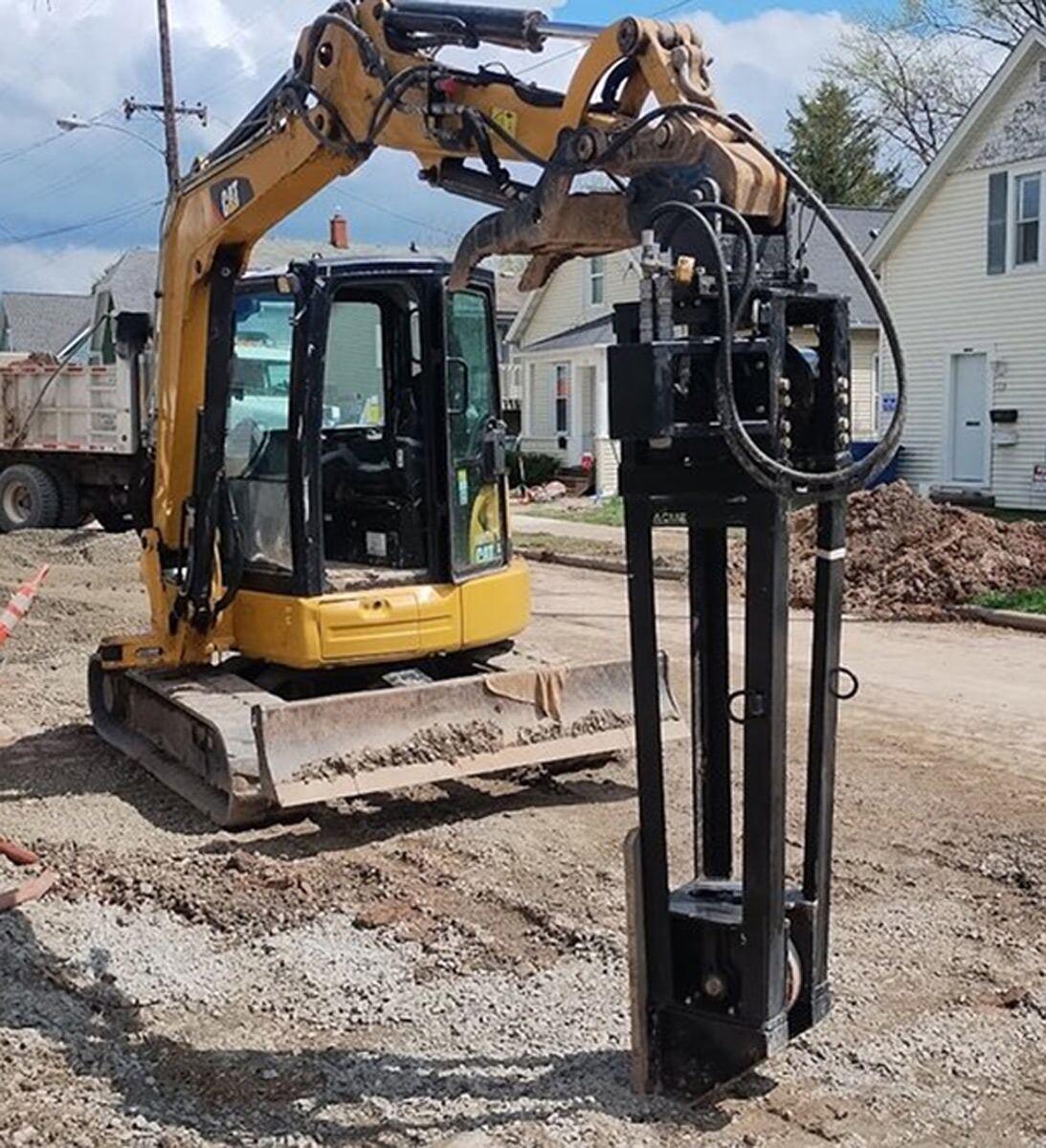

The ACME Trenchless Pipe Winch makes trenchless pipe pulling quick, routine and easy. It delivers the pulling power needed — 20,000 pounds breakout force — applied to MAX 7/16 pulling cables which have a minimum rated breakpoint of 24,000 pounds. The pulling cables are reusable, and tensioned pulling cable remains inside the confines of the winch frame. It attaches to a compact excavator or backhoe via a quick coupler and will dispatch to the access pit at any approach angle, allowing for the preservation of the original bury depth of the existing waterline. it works with lead, galvanized, copper and plastic piping.920-376-4222; www.acmetrenchless.com
Excavators

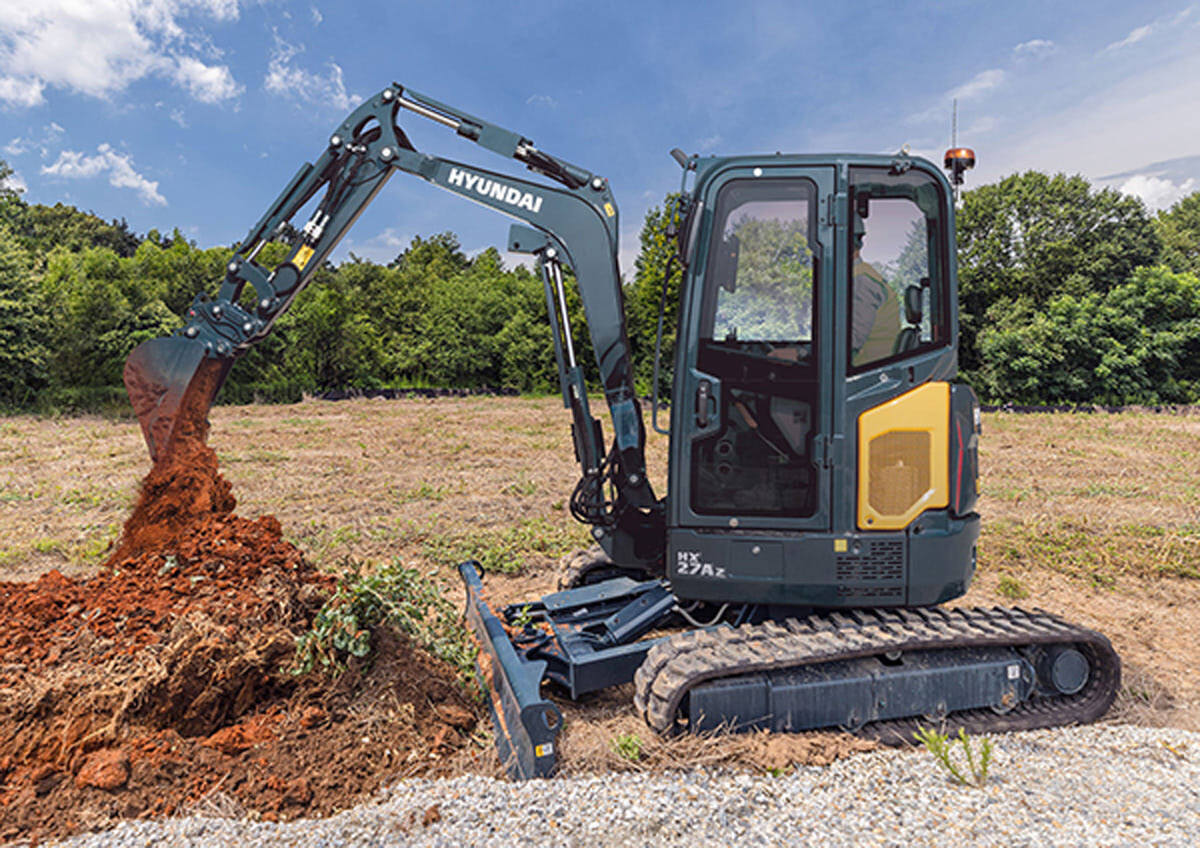

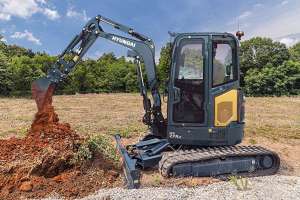

Hyundai Construction Equipment Americas HX-A
Hyundai Construction Equipment Americas introduced four new models in its HX-A series of compact hydraulic excavators. The Hyundai HX17AZ, HX27AZ, HX55ACR and HX60A excavators fill in the company’s line of compact excavators which debuted in 2023. With these four new machines, the HX-A series compact excavator line now includes eight models. All four new models feature low-emission engines that are Tier 4 Final compliant. Both the HX17AZ and HX27AZ models are true zero-tail-swing machines for working in confined or busy spaces. The HX55ACR is a compact-radius model. All four models feature a 5-inch full-color LCD monitor. Standard boom, arm and bucket cylinder guards protect the digging end of the machine. Other standard features include a hydraulic quick coupler and an integrated utility lifting hook.678-823-7777; www.hyundaiamericas.com

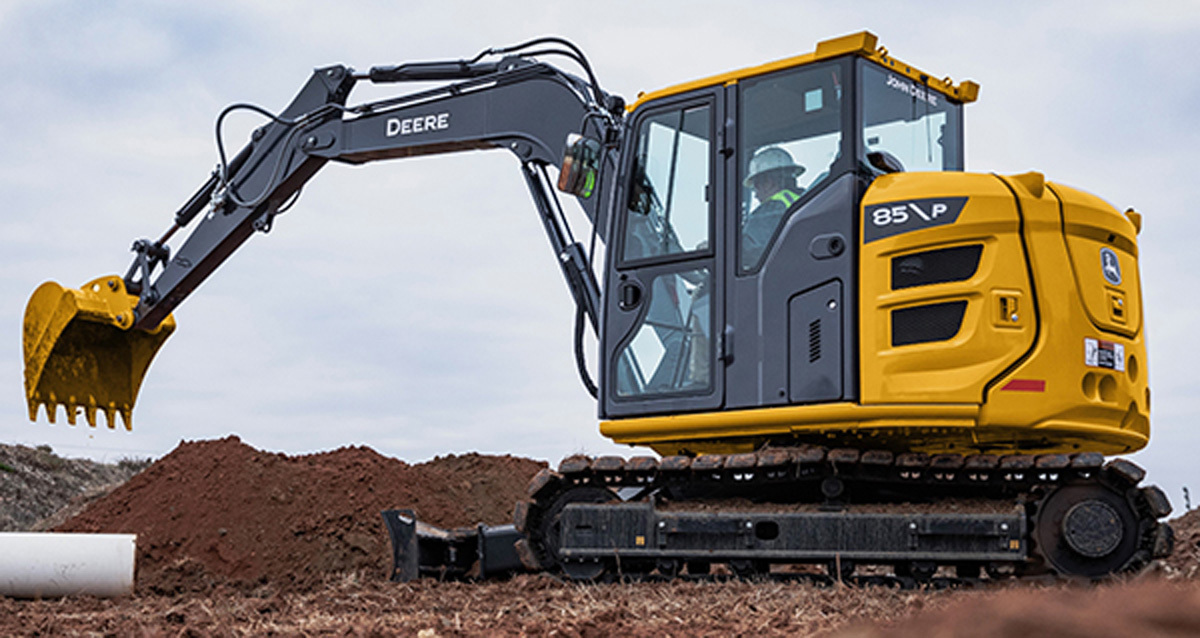

John Deere 85 P-Tier Excavator
The John Deere 85 P-Tier Excavator is a powerful and versatile machine designed for demanding tasks. Its spacious and comfortable cab enhances operator comfort during long hours on the job, while a 17% increase in engine horsepower ensures efficient performance. The reduced-tail-swing configuration allows for exceptional maneuverability in tight spaces, making it well-suited for congested job sites. Ergonomic short-throw pilot joysticks provide precise control, and the adjustable heated air-suspension seat enhances operator comfort. JDLink connectivity offers real-time monitoring and diagnostics. The dealer-installed hardware kit enables the analysis of machine performance, tracking of usage and receipt of diagnostic alerts through the John Deere Operations Center. It also supports John Deere Connected Support for proactive issue resolution, remote monitoring and more, ensuring peak performance.800-503-3373; www.johndeere.com

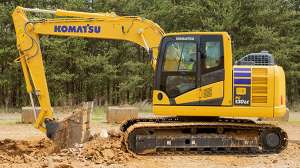

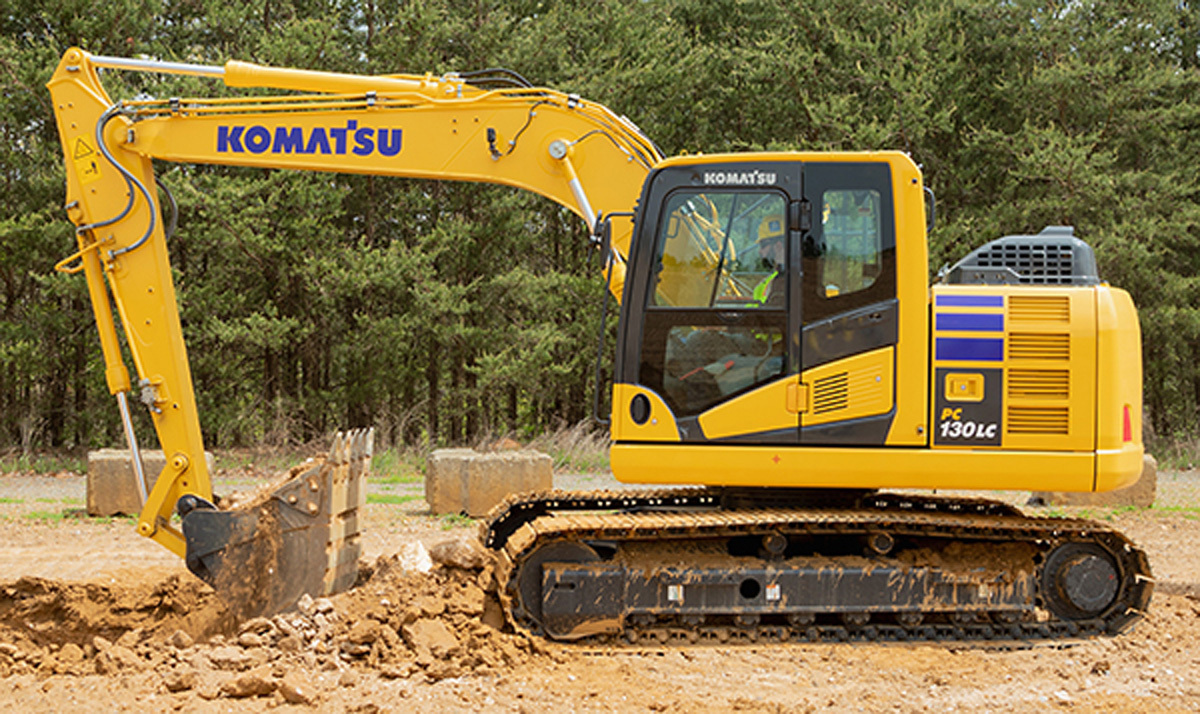

Komatsu America PC130LC-11
For contractors looking for an excavator that can help complete jobs faster, Komatsu’s PC130LC-11 with a longer undercarriage design increases lifting capacity by up to 20% compared to the previous model. This durable, reliable and productive 97.2 hp small conventional tail-swing excavator is easily transportable and offers a unique combination of lightweight power and agility in a small package. It uses up to 12% less fuel than the previous model (PC130-8). Fuel consumption can also be reduced with the auto idle shutdown feature that can be set to automatically stop the engine after a preset amount of idle time. The Komatsu diesel oxidation catalyst helps reduce particulate matter by using passive regeneration over 98% of the time.847-437-5800; www.komatsu.com

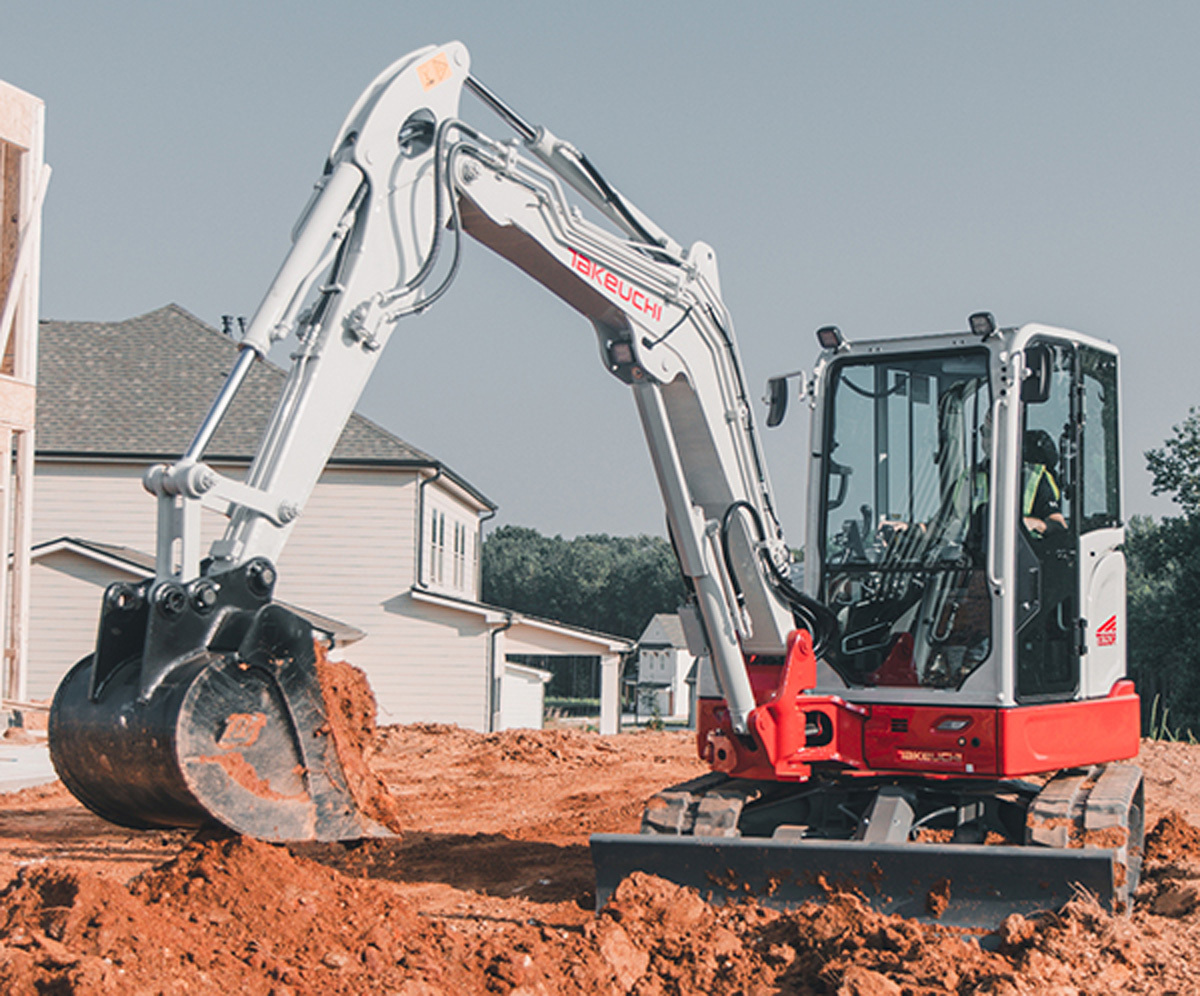

Takeuchi TB335R
Takeuchi’s TB335R short tail-swing compact excavator has a rear overhang of only 3.1 inches over the tracks, making it ideal for working in tight or confined spaces. It also provides a level of stability rarely found in a short tail-swing machine. It comes with a powerful 24.4 hp engine with a maximum torque of 70.6 ft-lbs. Two working modes — Standard and ECO — allow operators to choose more power or fuel savings as desired. Low-effort, pilot-operated joystick controls help operators tackle tough jobs with ease. Cab models include a 7.0-inch touchscreen, multifunction, color display, while canopy models offer a 4.3-inch multifunction display. Cab models also feature air conditioner, heat/defrost, windshield wiper and washer and AM/FM radio with Bluetooth technology. The Takeuchi Fleet Management telematics system is standard, delivering valuable alerts and machine information.706-693-3600; www.takeuchi-us.com

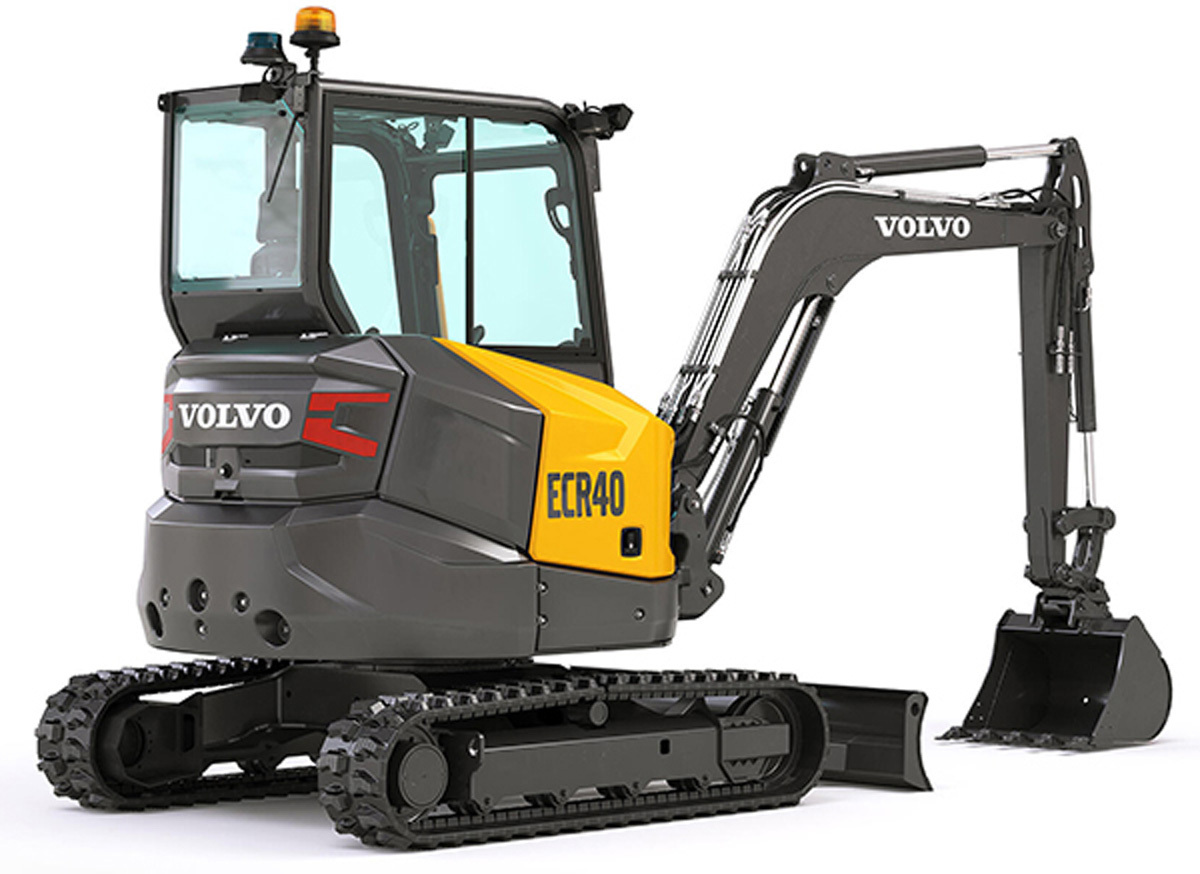

Volvo Construction Equipment ECR40
The ECR40 from Volvo Construction Equipment is an easy-to-operate compact short swing radius excavator designed to deliver high breakout force and lifting capabilities across a multitude of tasks, even when taking on tough applications and heavy loads. Thanks to an intuitive navigation system and proportional fingertip controls, it is easy even for newly trained operators to get the best performance. It has a short swing radius to allow for work in more confined spaces.828-650-2000; www.volvoce.com

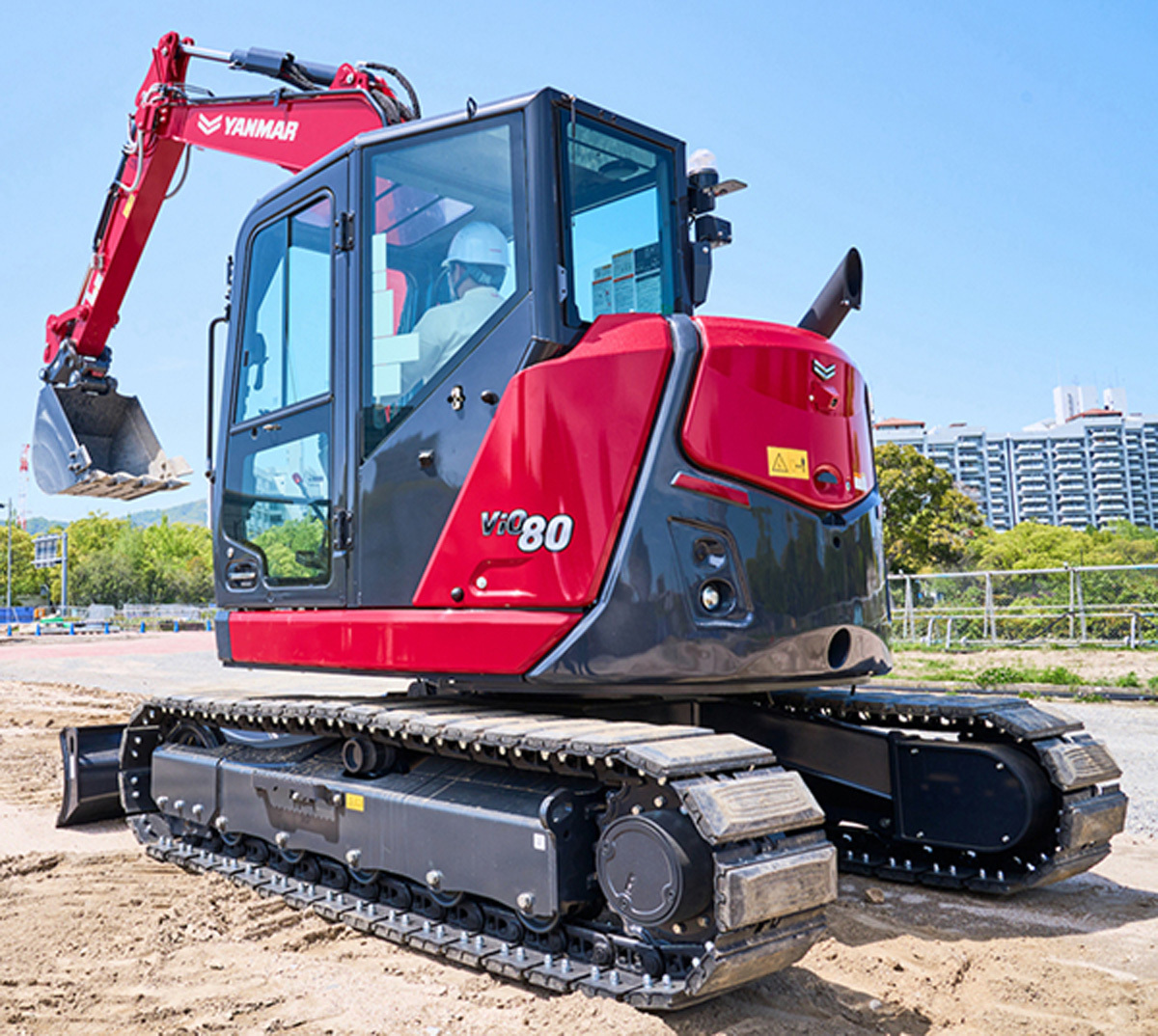

Yanmar Compact Equipment ViO80-7
The 18,122-pound ViO80-7 mini-excavator from Yanmar Compact Equipment offers 18% more power over its predecessor with its new 67 hp Yanmar Tier 4 Final diesel engine. It provides operators with increased attachment performance with 20% more PTO flow rate. It achieves a maximum dig depth of 14.25 feet, and includes signature zero tail-swing allowing the excavator to rotate next to a structure with less risk of hitting it. Improved engine output and hydraulics allow for more productivity and greater attachment performance. Those same improvements also allow for a 15% increase in work speed, 13% lower fuel consumption rate and 25% increase in travel speed on slope. A 2-Pump Load Sensing (2PLS) hydraulic system increases pump flow rate under high loads to direct power where it’s needed to improve performance.800-205-9913; www.yanmarce.com
Loader

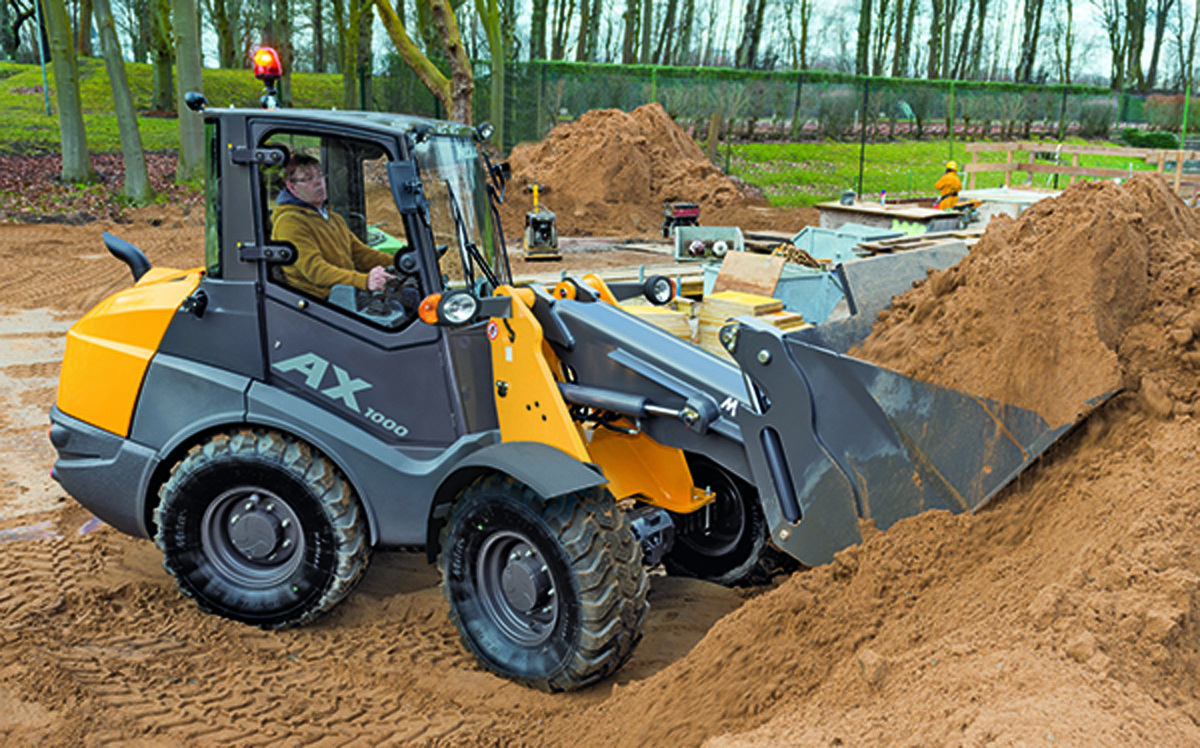

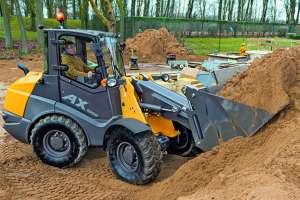

Mecalac North America AX1000
The AX1000 articulated loader from Mecalac North America combines heavy-duty performance with self-stabilizing maneuverability and a sleek design. Its monoboom provides greater boom rigidity and strength, resisting the twisting that can occur with the traditional two-arm setup. Combining large, tinted windows with the unique monoboom design, it eliminates the two loader arms obstructing the operator’s view and allows clear visibility to the left and right in addition to straight ahead. Along with enhanced safety, this visibility boosts productivity. It also offers greater stability because the machine’s pivot joint is offset at a positive angle. As the machine articulates, the center of gravity is transferred to the rear so it can re-level itself, greatly reducing the risk of the machine toppling over. It has a standard bucket volume of 1.3 cubic yards plus a 75 hp engine. It has a lift capacity of 9,038 pounds and maintains lifting power from the ground to its highest point.508-921-3076; www.mecalac.com
Skid-Steers

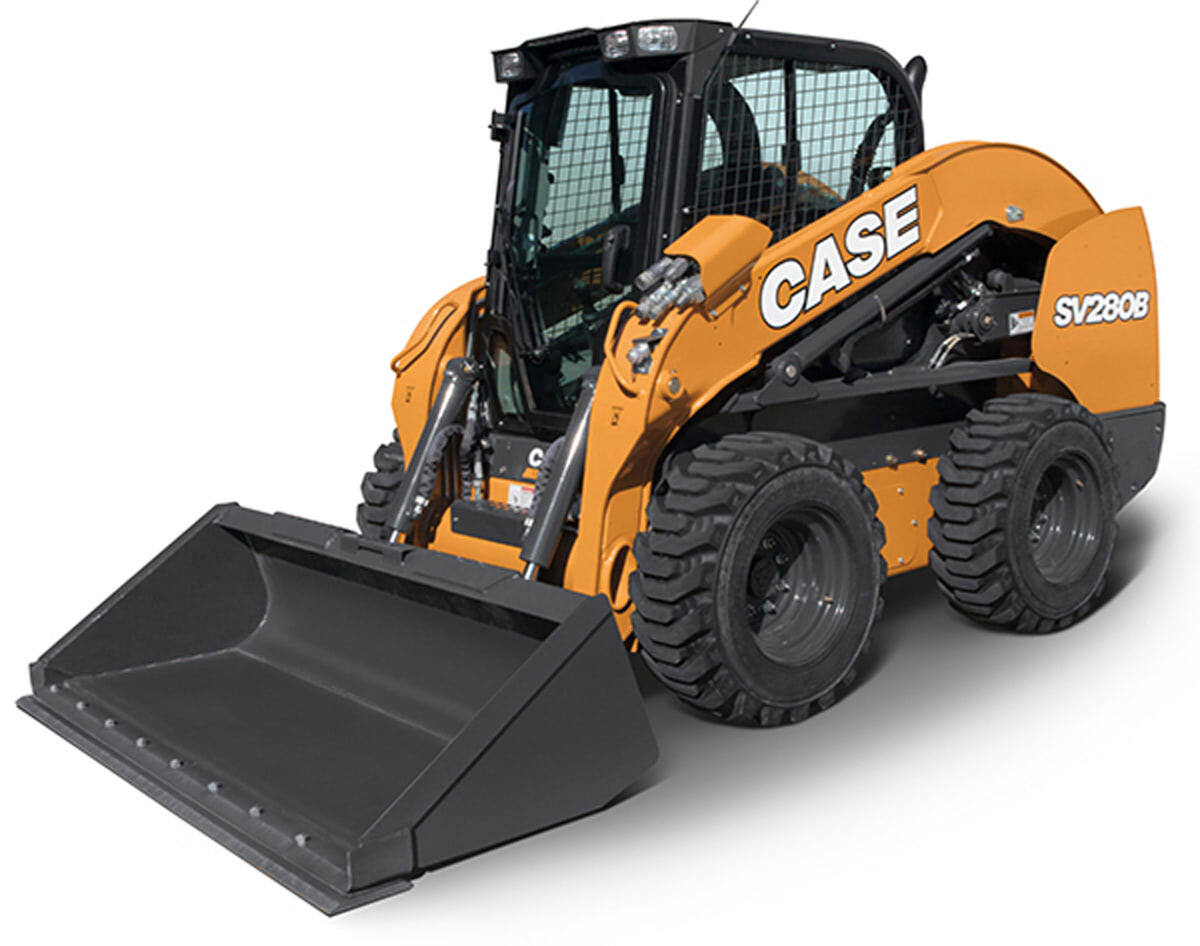

CASE Construction Equipment SV280B
Featuring 360-degree cab visibility, exceptional bucket breakout force, efficient engine torque and “Hydraulics on Demand” adjustable flow for demanding attachments, the 8,090-pound SV280B from CASE Construction Equipment offers a rated operating capacity of 2,800 pounds, 232 foot-pounds of engine torque, a bucket breakout force of up to 8,680 pounds, and both standard and optional high-flow auxiliary hydraulics for power and attachment versatility. It has an EZ-EH (electro-hydraulic) setup menu with nine adjustable speed and control sensitivity settings. CASE Ride Control and two-speed ground drive improves material retention and operator comfort.866-542-2736; www.casece.com

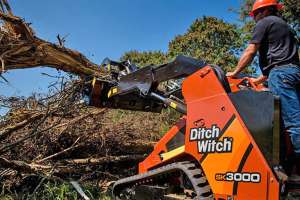

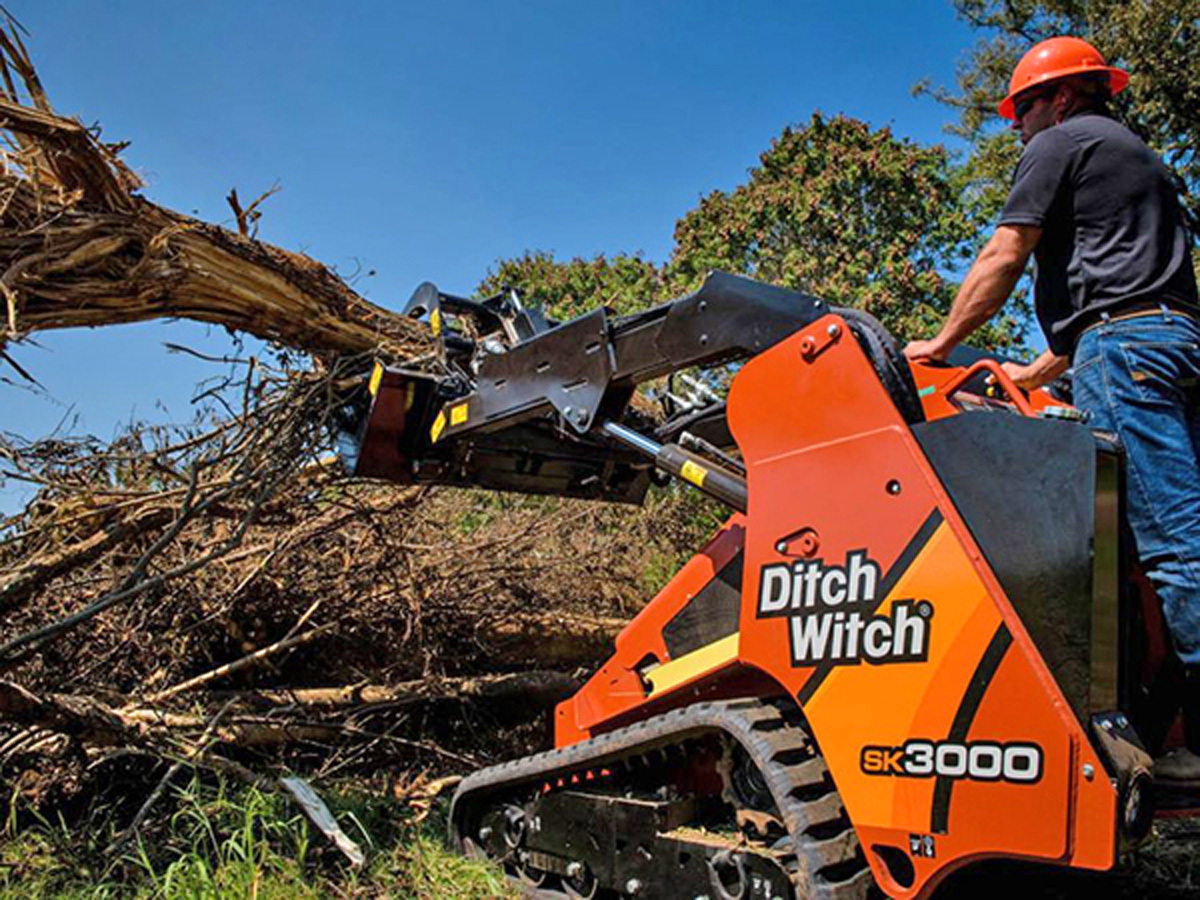

Ditch Witch SK3000
Contractors looking to gain a 360-degree view of the job site, without compromising power, can turn to the Ditch Witch SK3000. The full-size stand-on skid-steer is built with the power to complete a wide range of projects typically reserved for traditional skid-steers, but with the convenience of a stand-on machine. As the largest and most powerful unit in the SK fleet, the SK3000 features an operating capacity of 3,100 pounds. The unit delivers 5,500 pounds of breakout force to help operators lift and move heavy loads while directing up to 51 hp to the attachment. The machine provides a smooth, comfortable ride with outstanding maneuverability and stability — even when transporting heavy loads across rough terrain.800-654-6481; www.ditchwitch.com
