The AIR KING air and hydroexcavation trailer from Pacific Tek is available with a 500- or 800-gallon-capacity debris tank made of carbon steel and sandblasted, then powder-coated inside and out. It employs a 185 cfm compressor with 100 psi output connected to an air wand allowing the operators to return the spoils collected in the debris tank to the ground. The system also has a pressure washer system (4 gpm at 3,500 psi) in case the operators want to hydroexcavate for faster or deeper digs. A simple three-way valve selector switch is situated on the curbside of the trailer for easy toggling from vac to air to hydroexcavator functions. The trailer itself is made of carbon steel and is sandblasted then powder-coated like the debris tank. Options include a telescoping vacuum hose boom, reverse flow feature, LED work lamps, spare tire and mount, and a tool storage box.800-884-5551; www.pacific-tek.com

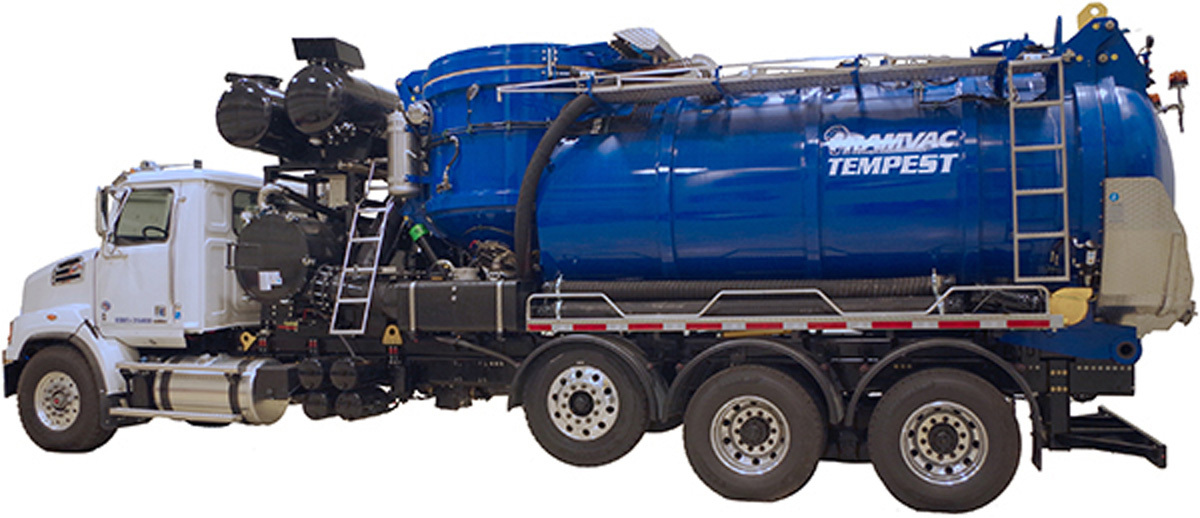

RAMVAC Vacuum Excavators by SewerEquipment Tempest
The Tempest industrial air mover from RAMVAC Vacuum Excavators by Sewer Equipment is capable of removing dry and liquid materials over a long distance and from great depths. This unit delivers maximum vacuum efficiency even in the toughest working conditions. While utilizing high suction from a 28 inches Hg, 5,500 cfm positive-displacement blower through an 8-inch system, this unit offers a self-discharging filter system that provides automatic interval cleaning of the filter house during vacuum operations. This system significantly reduces the downtime associated with premature cleaning of the baghouse when the debris box is not full. It allows operators to keep working, while recognizing maximum debris capacity. Additionally, its hydraulically powered articulating extendable knuckleboom is exclusive in the marketplace. With 270-degree range of motion and 16-foot working length, this boom hinges back and forth, providing maximum support of the vacuum tube for increased operator ergonomics as well as cleaning efficiency.888-477-7638; www.sewerequipment.com
Hydroexcavation Equipment

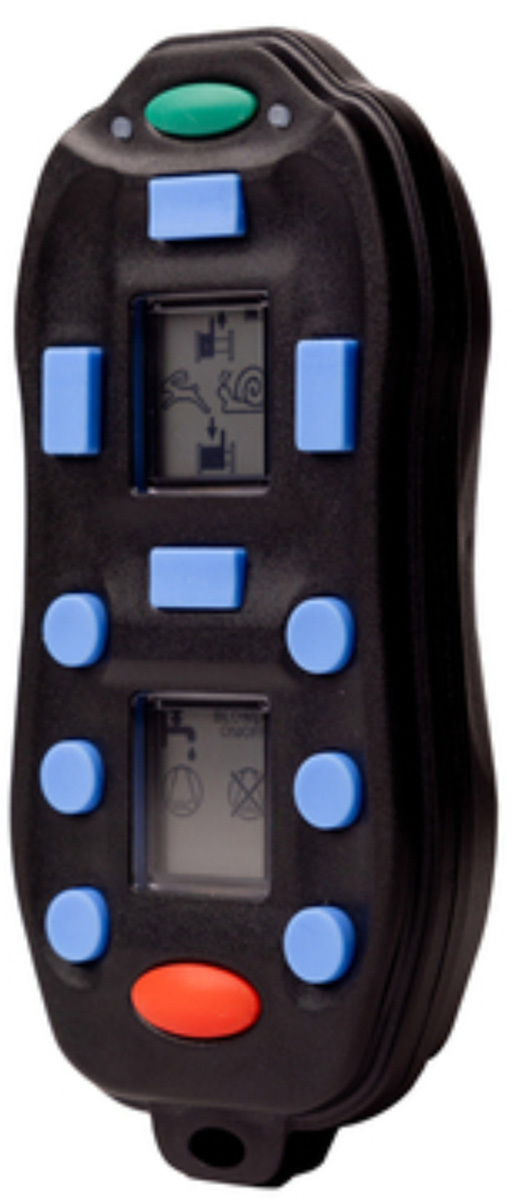

Aarcomm Handheld Remote Control
The Aarcomm Handheld Remote Control delivers performance and proven reliability, no matter what the conditions. With multiple machine types and configuration options available through the firmware, it is also compatible with business needs — just one unit can back up (or spare for) an entire fleet. Advanced radio frequency engineering and signal processing technologies deliver better performance in range, response time and durability. It has guaranteed IP66 and IP67 waterproof rating for both transmitter and receiver. The remote performs to minus 40 degrees F to survive tough job sites. Plug-and-play installation will get it up and running very quickly.800-604-9218; www.aarcomm.com

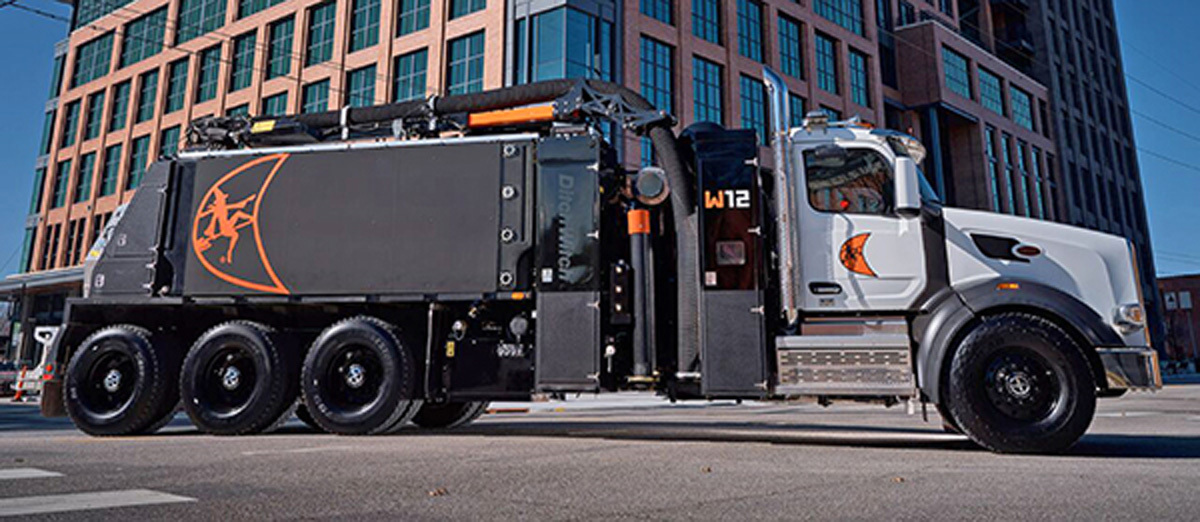

Ditch Witch Warlock W12
The Warlock W12 from Ditch Witch is a PTO-driven vacuum excavator that offers dual 600-gallon saddle tanks and a 12-cubic-yard debris tank, bringing increased capacity and performance to the job site. Available with a 5,000 cfm blower and 27 inches Hg of vacuum power, it helps operators take on bigger jobs and maximize job site uptime.580-336-4402; www.ditchwitch.com

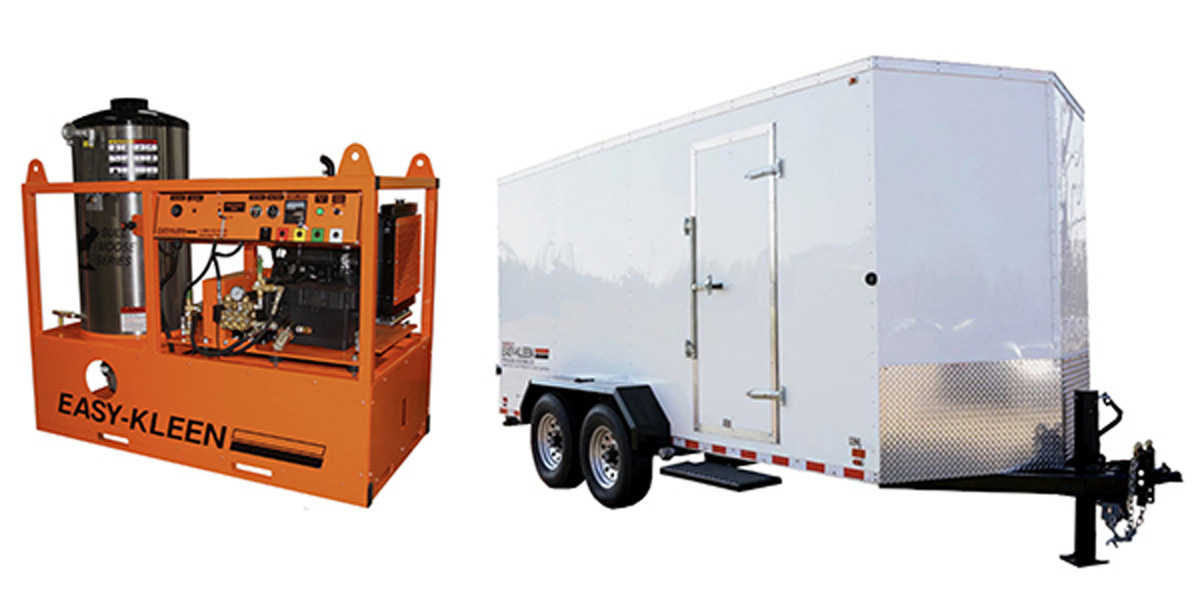

Easy-Kleen Pressure Systems Purpose-Built Enclosed Turnkey Trailer
Easy-Kleen’s Purpose-Built Enclosed Turnkey Trailer, paired with a Bull Moose Series delivers a powerful mobile cleaning solution that combines high-volume output with superior heating capabilities. At its core, the EZ03010D industrial hot water diesel unit delivers 10 gpm at 3,000 psi with 1 million Btu, making it ideal for heavy-duty cleaning applications, fleet washing and industrial maintenance. The 16-foot enclosed cargo trailer features tandem 7,000-pound axles, electric brakes and barn-style rear doors, ensuring durability and easy access. Its interior is professionally insulated with white metal lining on walls and roof, plus a 1/2-inch urethane foam-insulated floor. A 1,500-watt trailer heater supports year-round operation in cold climates, while the system’s 740-gallon water tank and professional hose reel set up with a 150-foot capacity ensure extended runtime without interruptions. For added safety, the trailer includes a roof vent safety switch for burner shutdown and a 35-gallon antifreeze tank for cold weather protection. This turnkey system provides mobility, reliability and performance, enabling comfortable operation in any environment.800-315-5533; www.easykleen.com

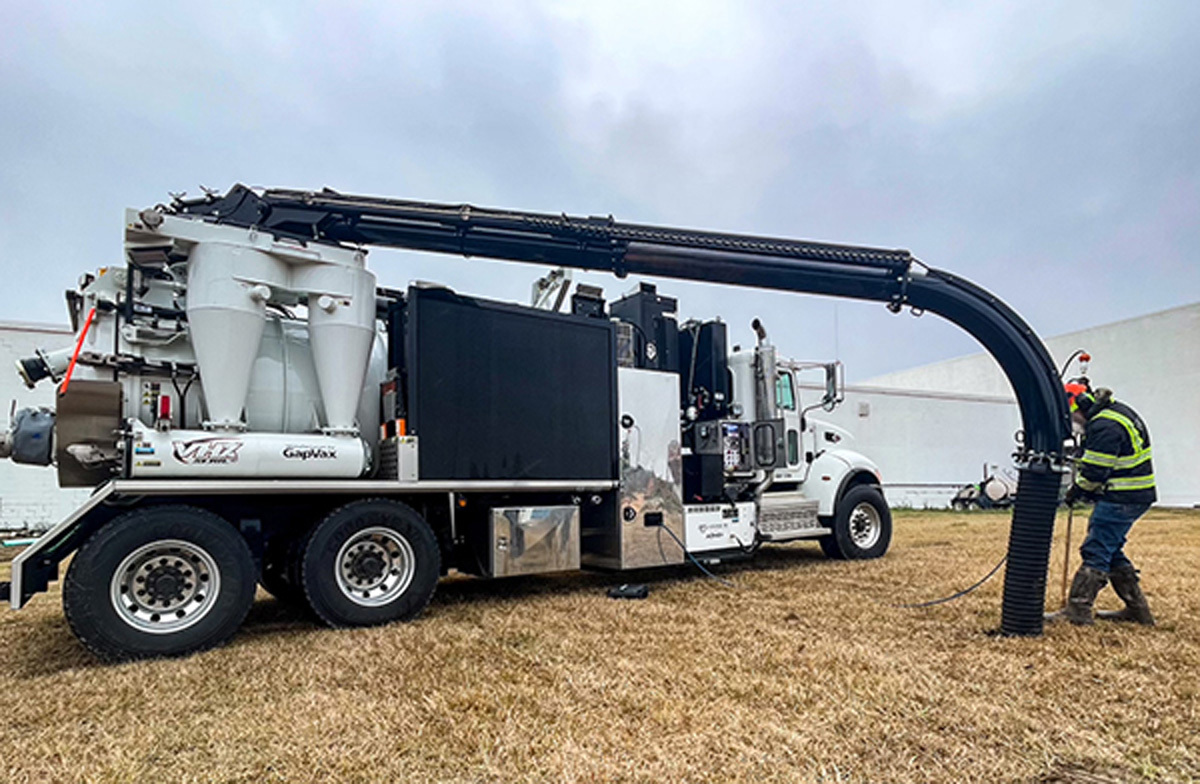

GapVax VHX Series
The GapVax VHX Series hydrovac is designed for optimal weight distribution, improved safety features and improved performance. The debris body is 7.5 cubic yards, offering a 15,000-pound payload. The low profile (12 feet, 2 inches) makes it suitable for all-around hydroexcavation projects. The vacuum system with single mode wet/dry filtration is quiet, reliable and simple, according to the maker. It includes a 4,000 cfm positive displacement blower, 600 hp transfer case with air-shift engagement and ultra-quiet air injection, and discharge silencers. This filtration design includes a top-loading debris tank, 14-inch stainless steel float-ball shut-off, efficient centrifugal cyclone separators and long-lasting filter bags. It is equipped with a 12 gpm, 3,000 psi water system with optional 200 cfm air compressor system. A full-tilting debris body, over 45-degree dump angle and full-opening tailgate promote fast unloading and easy cleanout. The 8-inch telescoping VHX boom offers a 22-foot reach with 15-degree downward pivot.888-442-7829; www.gapvax.com

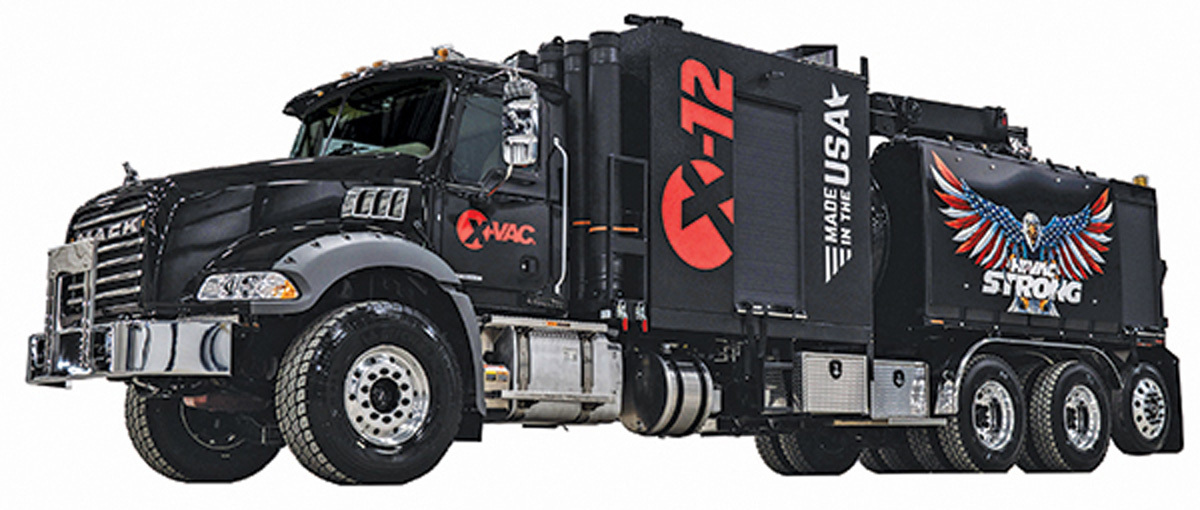

Hi-Vac X-Vac X-12 1450 Hydro Excavator
The X-Vac X-12 1450 Hydro Excavator from Hi-Vac provides the largest freshwater volume in a standard 12-cubic-yard truck platform. With more water, operators can trench, pothole and daylight longer without leaving the job site to refill. It also incorporates a combination of power, capacity and operator protection. The top-mounted, 360-degree rotation boom and simple intuitive controls make setups quick, even in tight spaces. The high-volume hydroexcavating power of a 20 gpm at 3,000 psi pump and debris removal of a 5,775 cfm 27-inch Hg high-performance blower get jobs done faster. It also includes important job site, transit and maintenance safety features such as integrated wired and wireless E-stops, audible-visual boom out-of-stow alarms, and standard debris tank and door prop rods.800-752-2400; www.x-vac.com

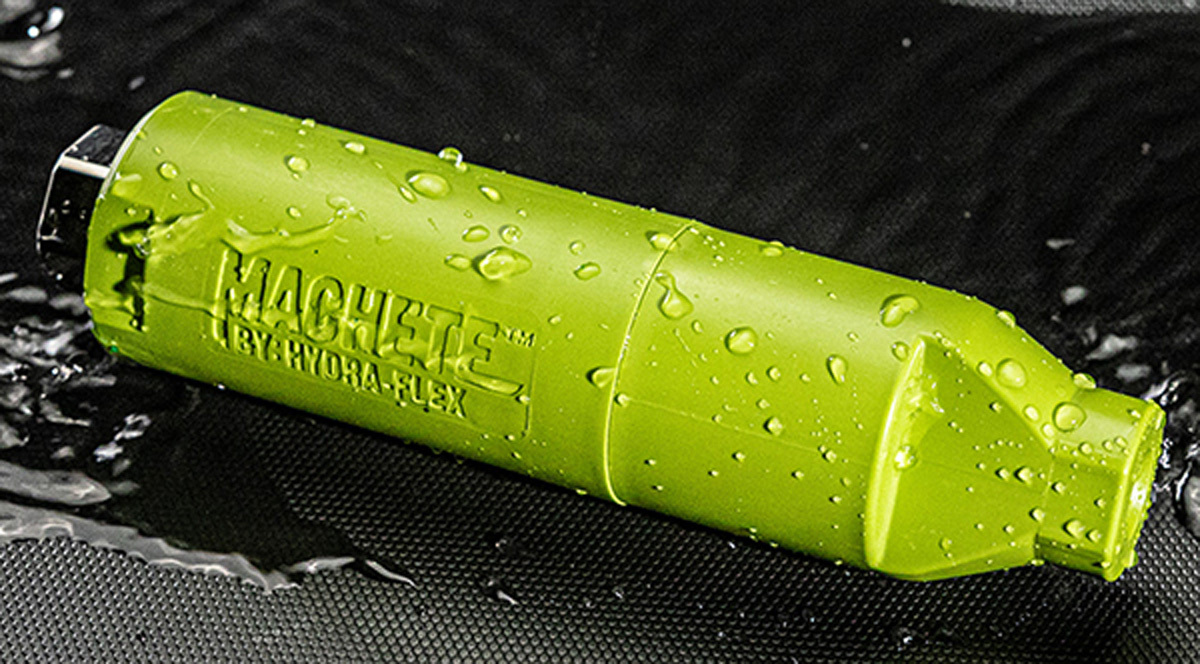

Hydra-Flex Machete
The Machete nozzle from Hydra-Flex offers precision and power for trenching, sloping and bell holing. Its 15-degree linear oscillating stream combines the force of a straight tip with the efficiency of a rotating tip, allowing for faster, deeper digging in compact, rocky soils and caliche. Its continuously moving stream makes it a safer tool to use around underground utilities and reduces the risk of soil collapsing or undermining. Its ergonomic design reduces physical strain on the operator and helps minimize long-term wear and tear on the body. Built with premium, long-lasting materials, this nozzle is designed to be field-repairable, resulting in a longer lifespan and lower operational costs.952-808-3640; www.hydraflexinc.com

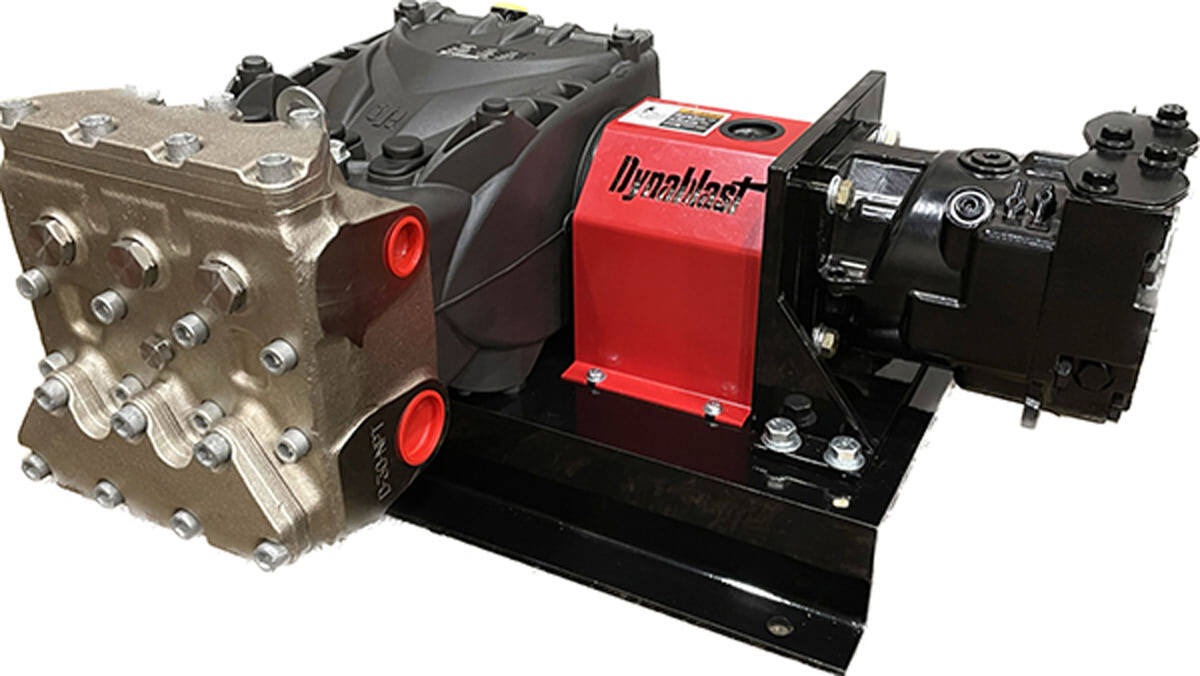

Dynablast Pratissoli KFR25
The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, internal fins on its aluminum crank case to provide cooling to lower the oil temperature, a tapered roller bearing for improved lateral loading and two bore ceramic plungers that are thicker ceramic on the water end to prevent from thermal shock.905-867-4642; www.dynablast.ca

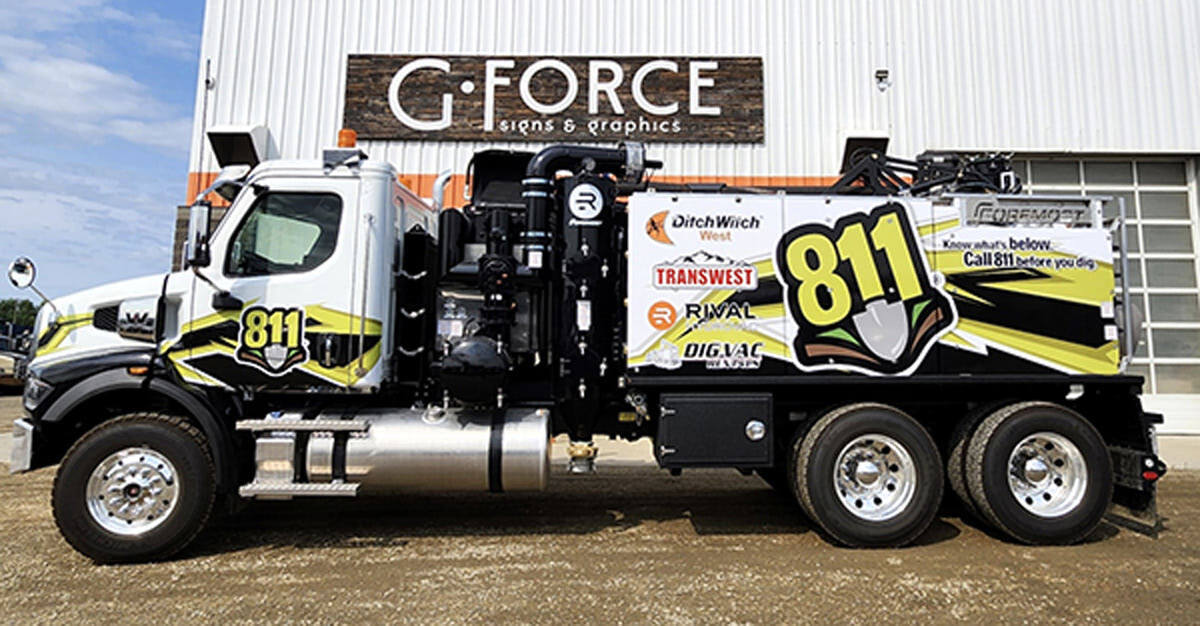

Rival Hydrovac T7 Tandem and T10
The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system, but with larger capacities and components. It is for both utility and industrial work and is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating.403-550-7997; www.rivalhydrovac.com

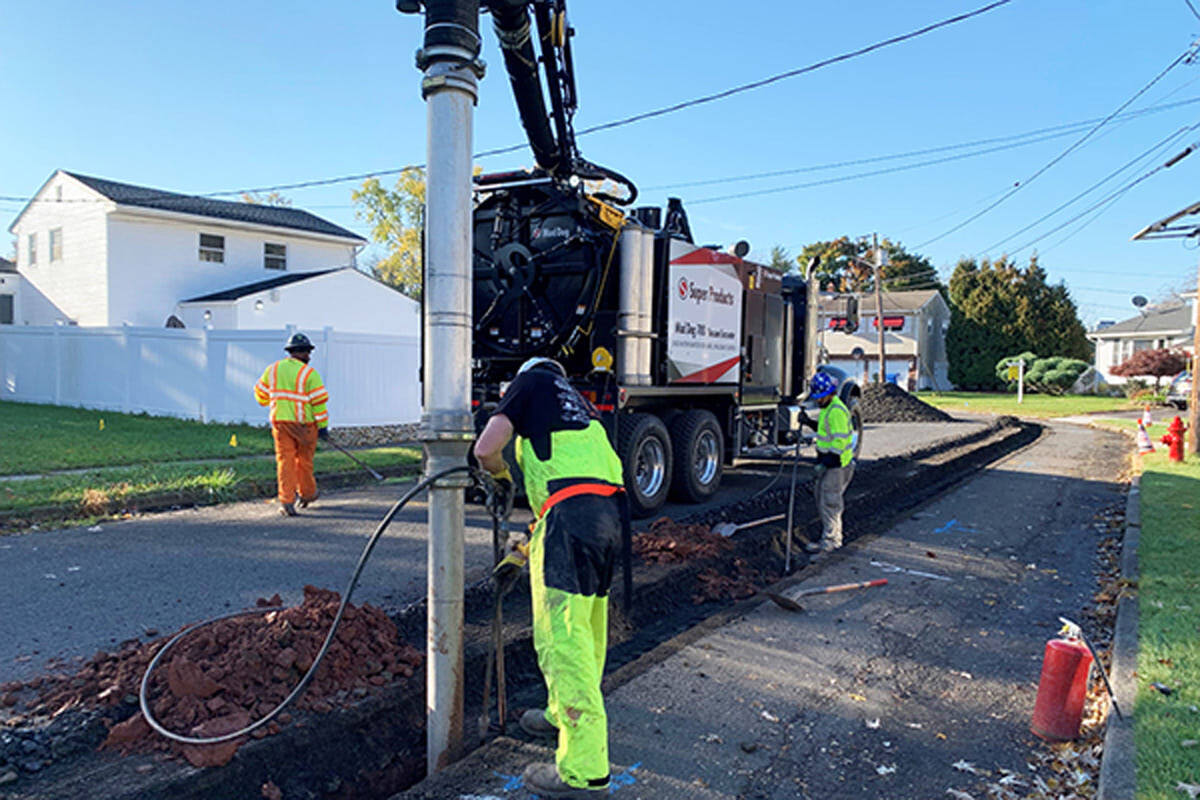

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

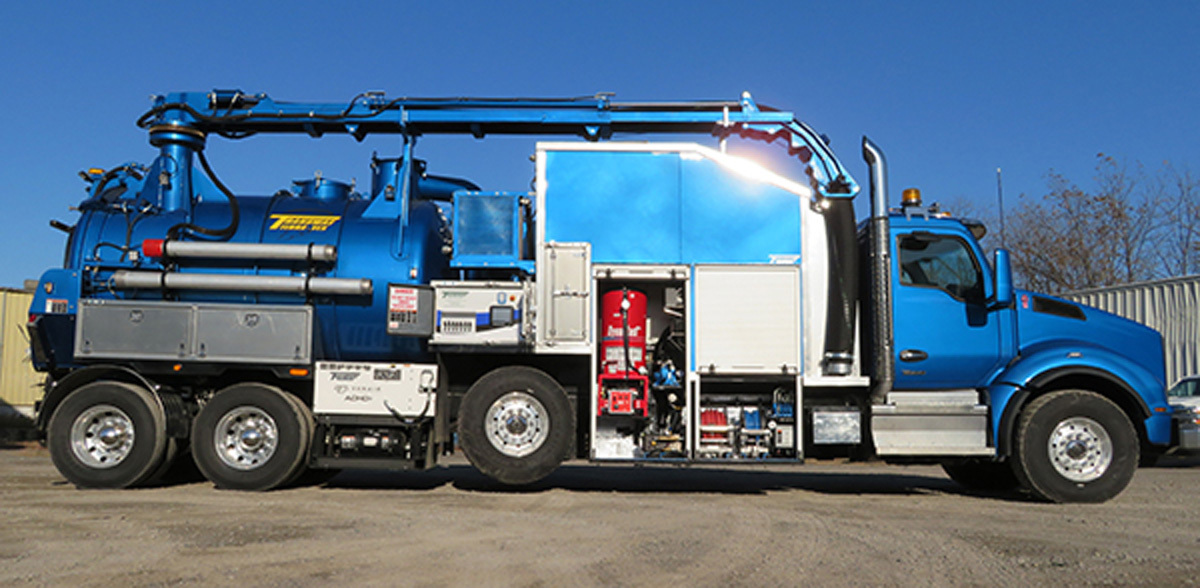

Transway Systems Hydroexcavation Units
Transway Systems Hydroexcavation Units are built to provide reliable, safe and efficient excavation solutions. Featuring an enclosed blower assembly, these units are designed to reduce noise, making them ideal for work in noise-sensitive areas such as urban environments or residential zones. This feature helps create a safer and more comfortable working environment. With rugged durability and all-weather design, they are engineered to withstand tough job sites and harsh conditions. Whether navigating rough terrain, extreme temperatures, or challenging work environments, the units are built to perform consistently. An optional air compressor enables pneumatic soil excavation, allowing for even faster and more efficient soil removal when required for specific projects. Additionally, the units also offer generous tool storage capacity to help keep tools organized and easily accessible, increasing efficiency on the job site.800-263-4508; www.transwaysystems.com
TRUVAC Paradigm
The Paradigm subcompact vacuum excavator from TRUVAC revolutionizes safe and efficient digging around utilities. Its compact, low-profile and tough non-CDL design allows for easy maneuverability, making it a suitable choice for any excavation job. With its quick setup design, operators can begin operations with just a flip of a switch using the Park-N-Dig feature. Parts and service centers nationwide, dedicated training and rapid response time ensures that the vacuum excavators are always up and running.815-672-3171; www.truvac.com

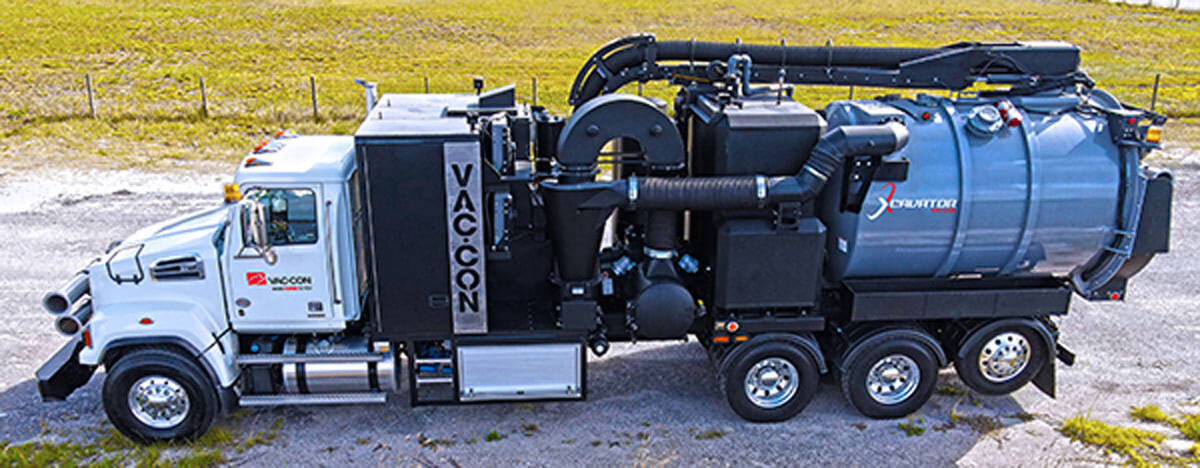

Vac-Con X-Cavator
The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine, with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet.904-284-4200; www.vac-con.com
Mud/Slurry Pump

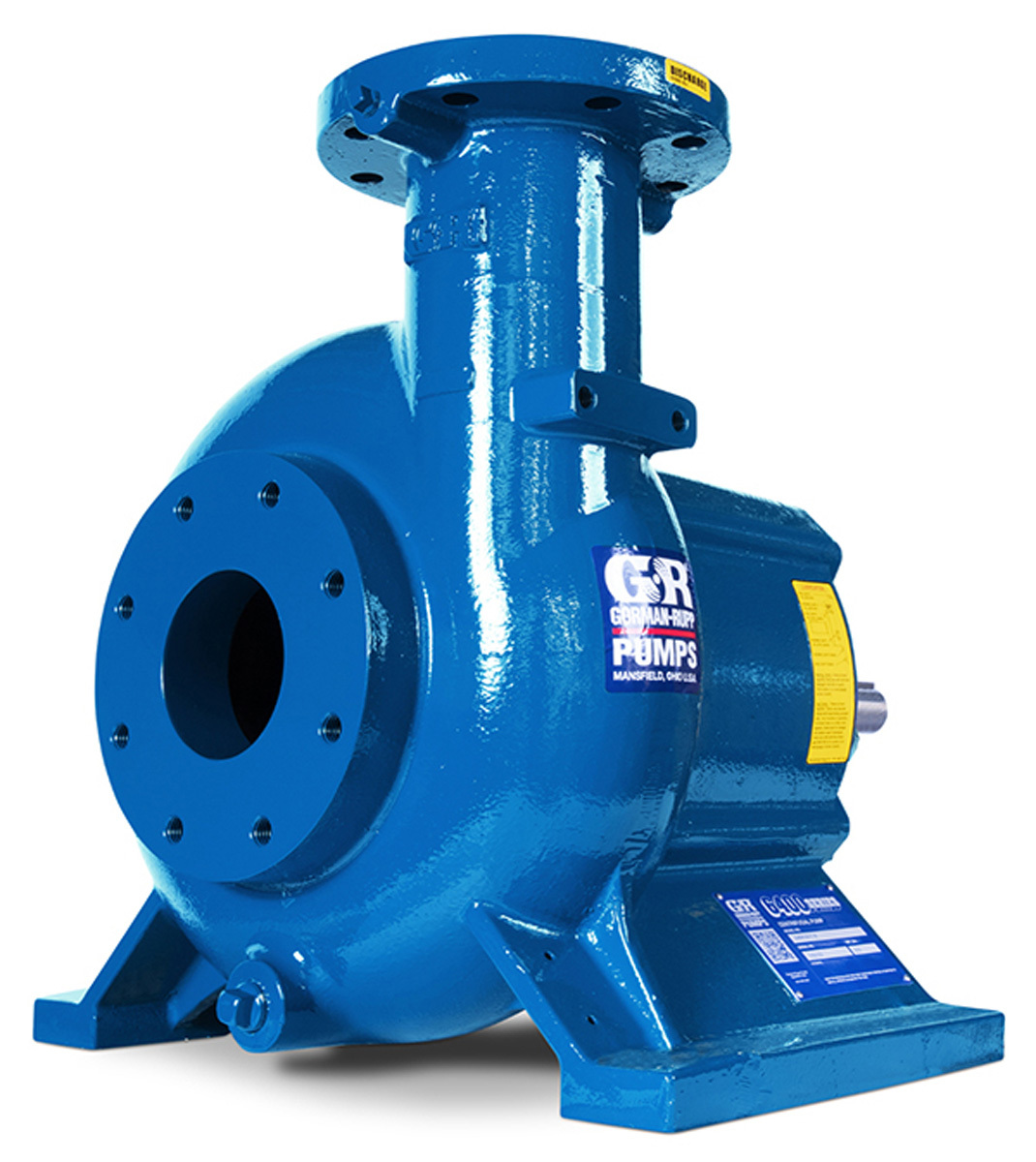

Gorman-Rupp 6400 Series
Gorman-Rupp’s 6400 Series line of end suction centrifugal vortex pumps is based on the Super T Series product line. An alternative for flooded suction applications, these pumps feature the same footprint and shaft height as comparable Super T Series models. They are available in 4- and 6-inch sizes, and can be equipped with straight- or winged-vane impellers depending on the liquid being pumped. The straight-vane impeller (VA) is designed for more aggressive, abrasive applications. This model is also better at handling stringy, fibrous debris. The winged-vane impeller (VB) is better suited for higher discharge pressures and incorporates a steeper performance curve, which requires less horsepower. Both impellers come standard in Austempered ductile iron for handling tough abrasives.419-755-1011; www.grpumps.com
Pipe Bursting

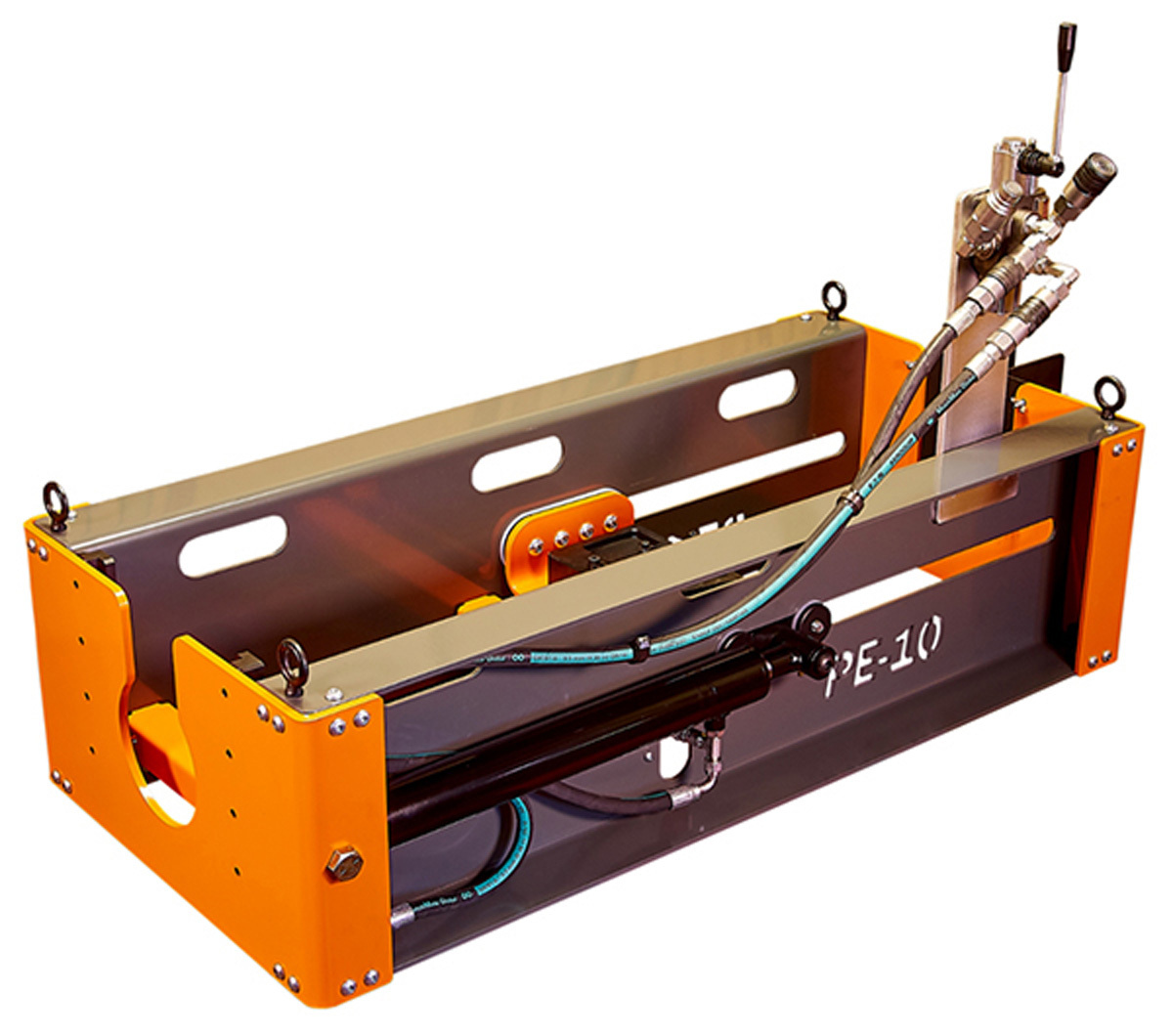

PE Equipment PE-10
The PE-10 from PE Equipment is a multifunction trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed capable of up to 13 feet per minute depending on conditions.406-499-8136; www.pe-equipment.com

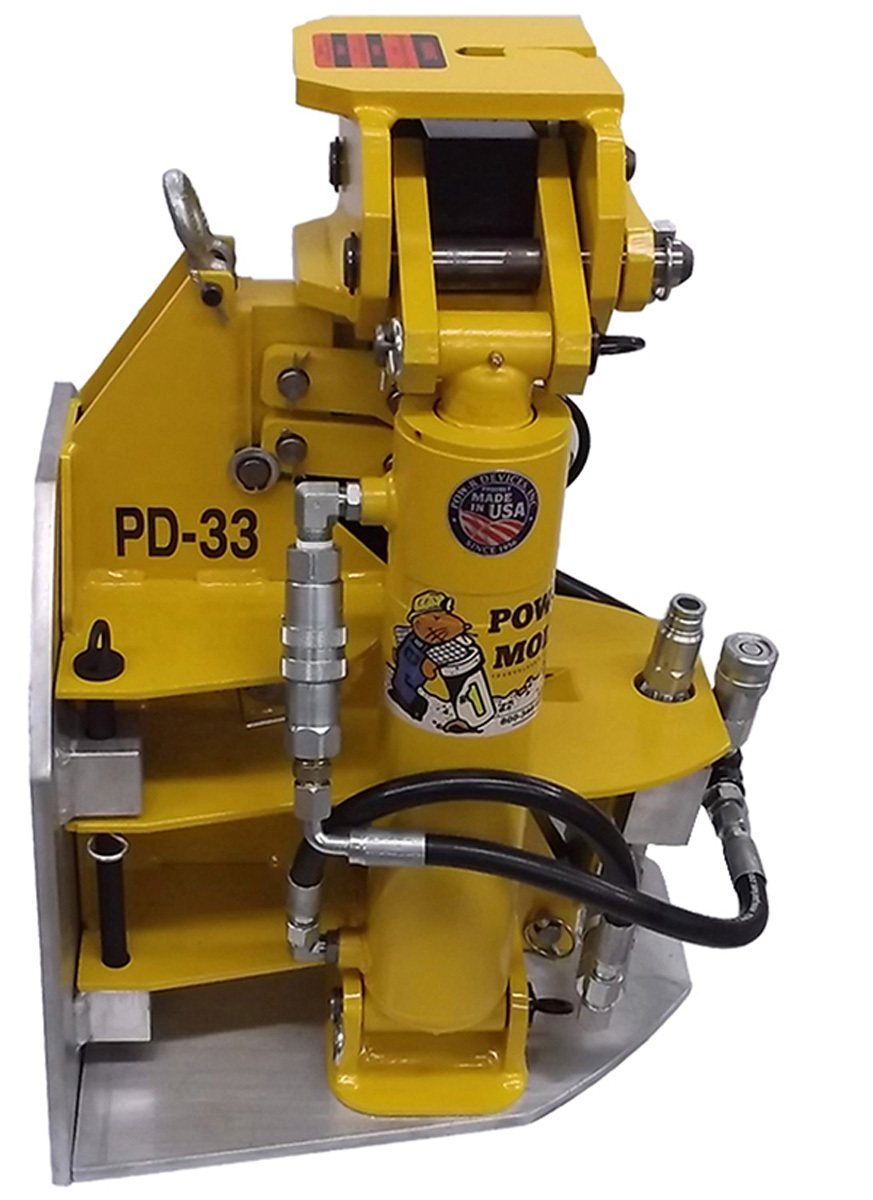

Power Mole Trenchless Solutions PD-33M
The PD-33M pipe-bursting machine from Power Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations.800-344-6653; www.powrmole.com

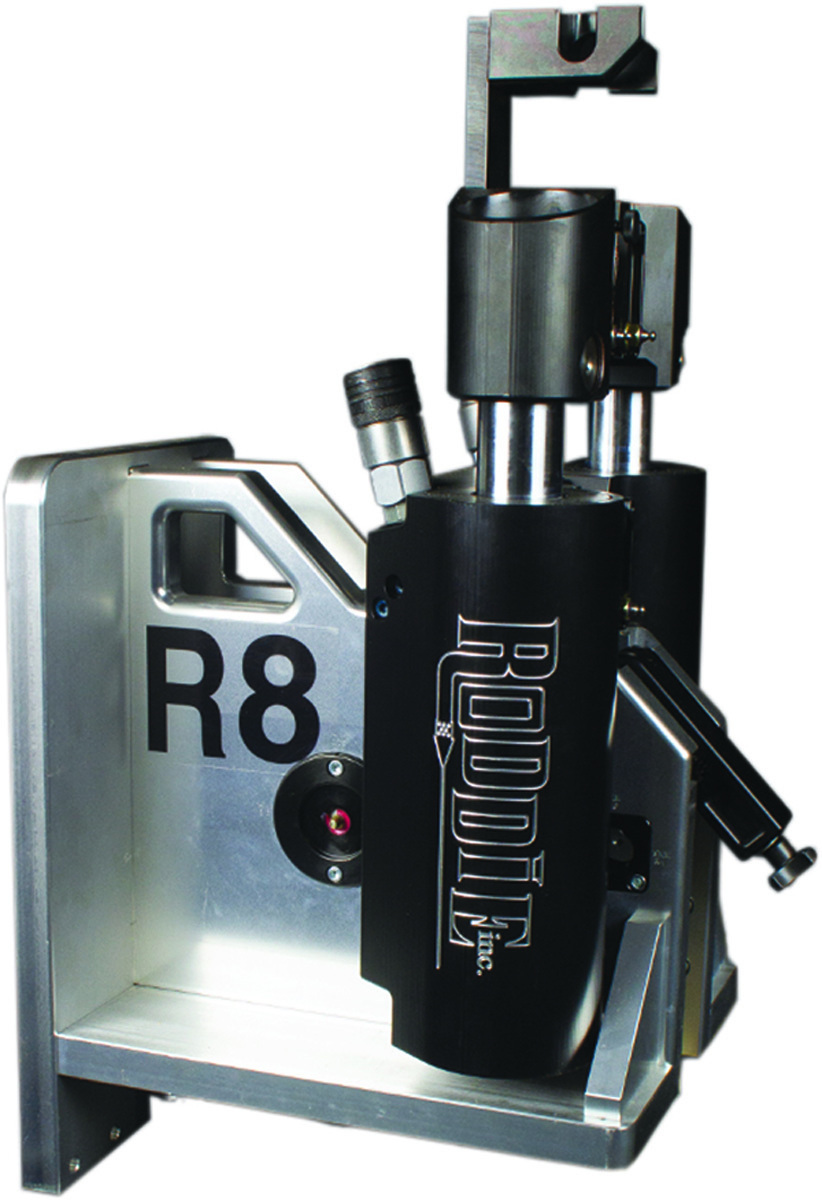

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple, as the user only needs to rinse off and re-grease six Zerk fittings.888-406-3821; www.roddieunderground.com

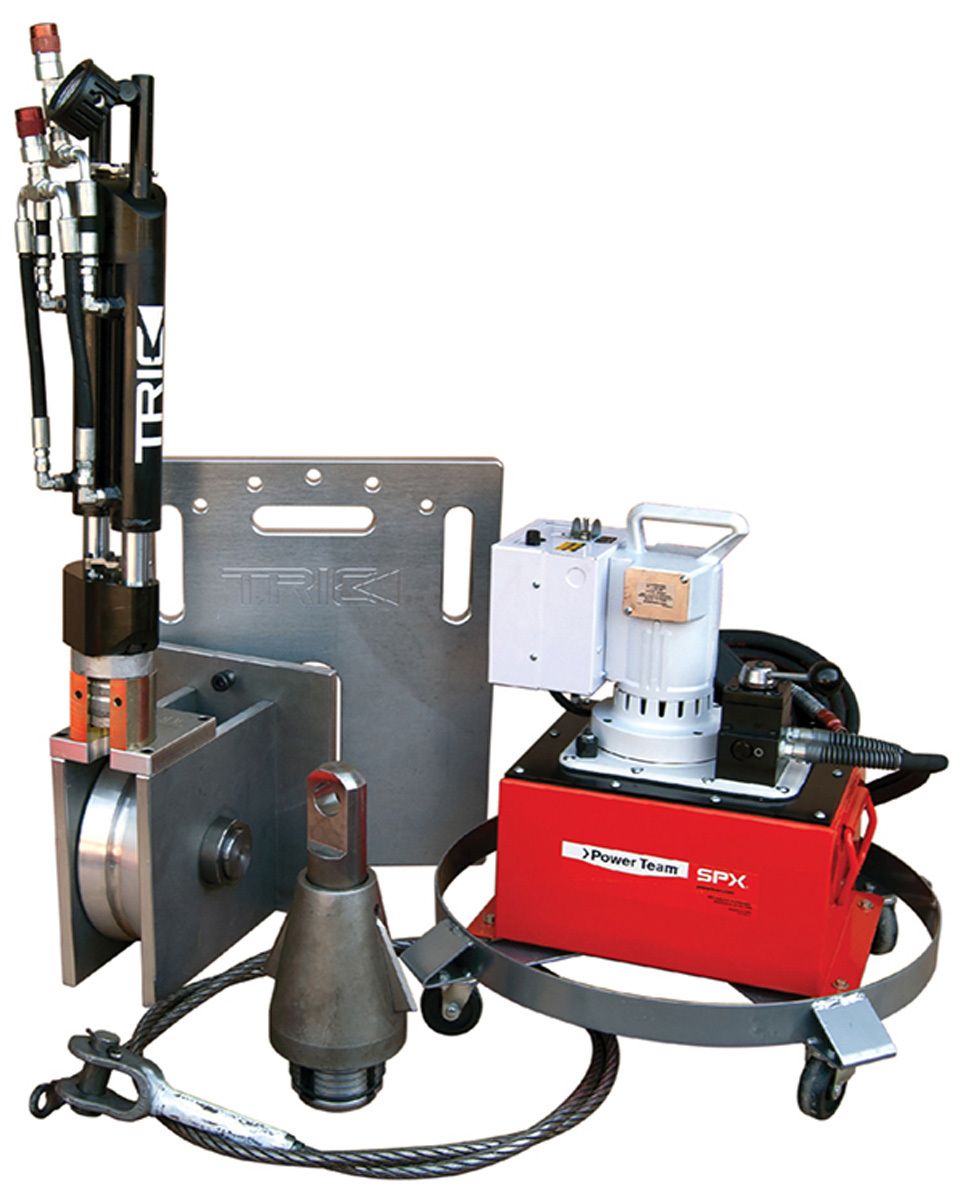

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements and very tight spaces with limited access.888-883-8742; www.trictools.com

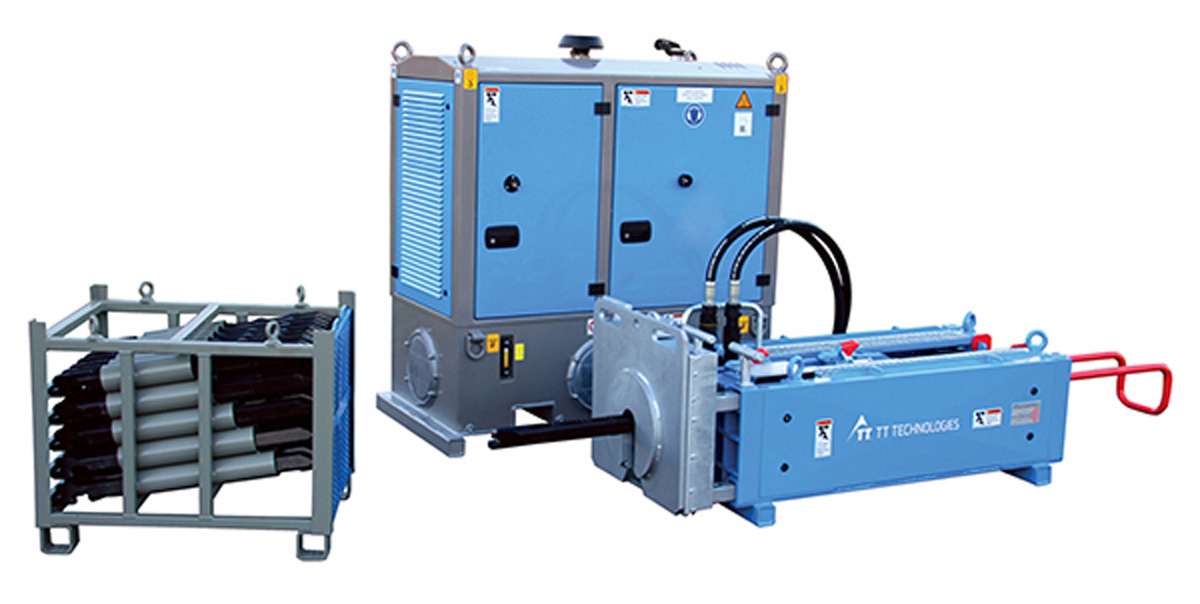

TT Technologies Grundoburst
Burst and replace water, sewer, gas and other pipes with the Grundoburst static pipe bursting system from TT Technologies. It can pull in a variety of replacement pipe including PVC, DIP, ABS, cast iron, fusion welded HDPE and VCP jacking pipe. The static pipe bursting system utilizes a specially designed bladed cutter head to make bursting ductile iron and steel pipe possible. Pulled by a hydraulic bursting unit, the cutter head’s special cutting wheels split the host pipe. An attached expander spreads and displaces the split pipe into the surrounding soil while simultaneously pulling in the new pipe. QuickLock bursting rods are linked together, not threaded. This saves time, prevents twisting and extends the life of the cutter head over threaded bursting rods. Six models are available for bursting 2- through 54-inch pipes and larger.800-533-2078; www.tttechnologies.com
