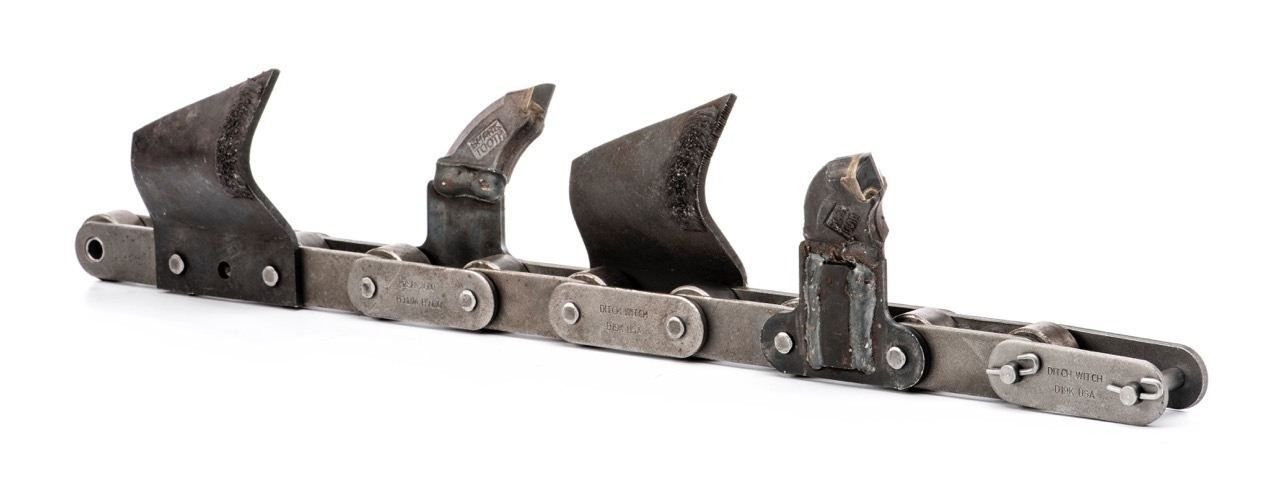

Ditch Witch digging system for walk-behind trenchers
The OptiCut digging system from Ditch Witch, a Charles Machine Works Company, is made to enhance walk-behind trencher productivity in all soil conditions. Designed for depths up to 36 inches and 3.5 inches wide, the digging system uses a low-profile tooth design for a smoother cut with less chain wear. Configurations include a 4-pitch DuraTooth, a 2-pitch Shark and a 2-pitch DuraTooth/Shark combination. The digging system is compatible with Ditch Witch C12, C14, C16, C16X, C24X and C30X walk-behind trenchers and can be adapted to other makes and models with a special conversion sprocket. 800/654-6481; www.ditchwitch.com.
Muncie Power Products FR3C power take-off
The FR3C power take-off from Muncie Power Products is designed for Ford F-650 and F-750 trucks. It allows for higher torque capacity (237 ft-lbs) by providing the maximum torque available from the Ford Torqshift transmission and a keyed shaft output. Built with integrated wiring harnesses, the PTO also contains an enhanced clutch pack, bearings and gear set. One-piece housing provides fewer leak points and ease of installation. 800/367-7867; www.munciepower.com.

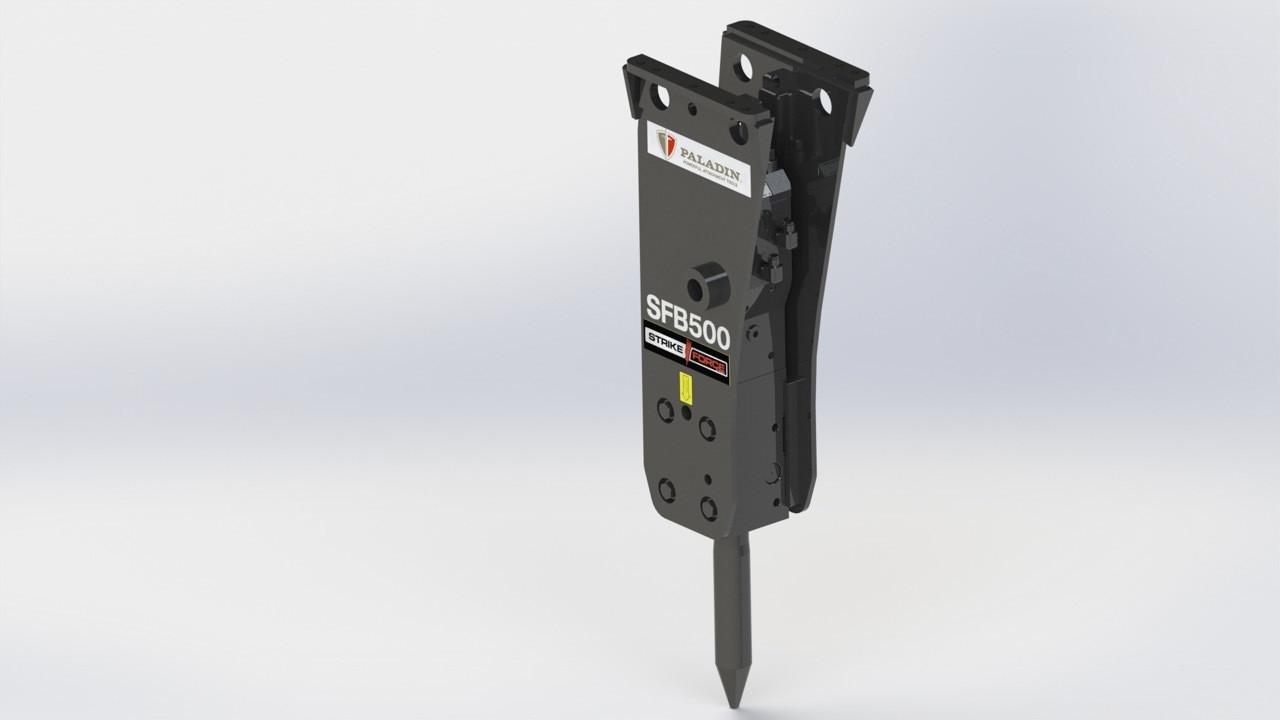

Paladin Attachments hydraulic breakers
The Strike Force series of small-mounted hydraulic breakers from Paladin Attachments are made jobs on mini-excavators and skid-steer loaders requiring safe and efficient handling with a high breaking capacity. The attachments are available in a range of models and sizes for various carriers and applications. 800/456-7100; www.paladinattachments.com.

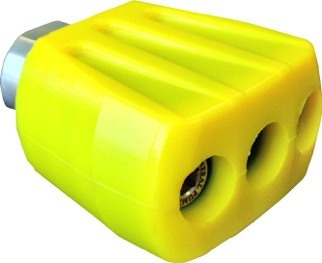

General Pump hydroexcavation nozzle
HX hydroexcavation nozzles from General Pump are urethane-coated for durability and operator protection. Featuring a stainless steel body, the nozzles are rated for up to 30 gpm and 1,000 to 4,000 psi. 888/474-5487; www.generalpump.com.

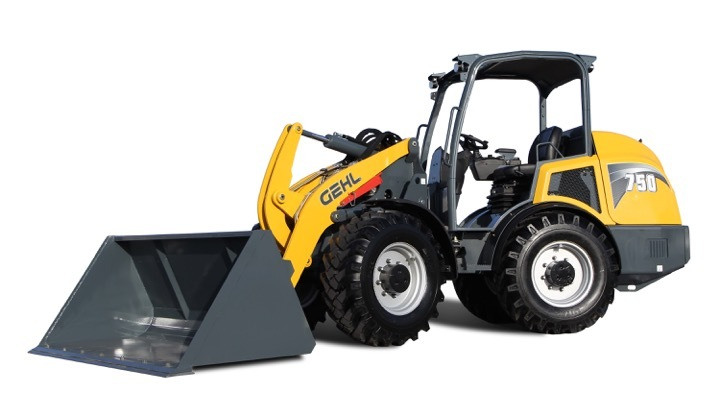

Mustang-Gehl Company articulated wheel loaders
Gehl 650 and 750 articulated wheel loaders from Mustang-Gehl Company represent an expansion into the 60-80 hp size class and feature Tier 4 certified engines. The digging and scraping performance is maximized through high breakout forces and front and rear locking differentials. An oscillating articulation joint offers 45-degree turning angles to the left and right and 10 degrees of oscillation in both directions for added traction and maneuverability. The bucket and tires follow a constant turning radius, so the rear tires of the loader follow the path of the front tires. Narrow machine widths allow access to tight spaces. Optional features include Bluetooth-enabled radio, air suspension seat, LED work lights, rotating beacon, high-flow auxiliary hydraulics, rear hydraulic hook-up, rear mount and clevis, and three-speed transmission with speeds up to 19 mph. 800/628-0491; www.gehl.com.

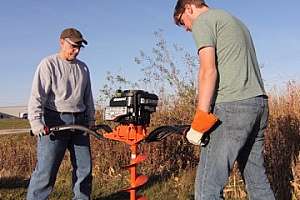

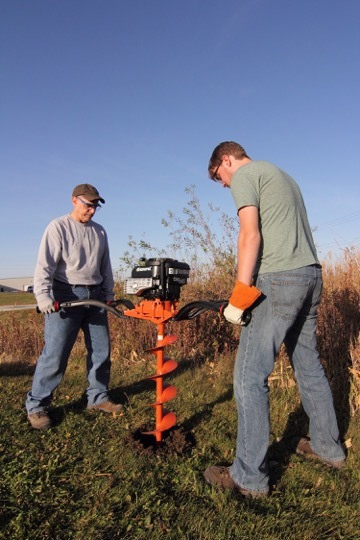

General Equipment Company earth auger
The M235 two-man hole digger from General Equipment Company is designed for various soil types. The auger features a Briggs & Stratton 190 cc, 4.5 hp gasoline engine with a drilling torque of 154 ft-lbs. The Gen 2 Comfort-Flex operator handle absorbs torque-related kickback and vibrations, reducing physical stress and operator fatigue. An oil-cooled transmission includes a centrifugal all-metal clutch and machine-cut spur gears with a 1-inch output shaft. Augers are available in diameters ranging from 2 1/4 to 12 inches for digging up to 30 inches deep. A 15-inch extension is available for deeper hole digging applications. 800/533-0524; www.generalequip.com.

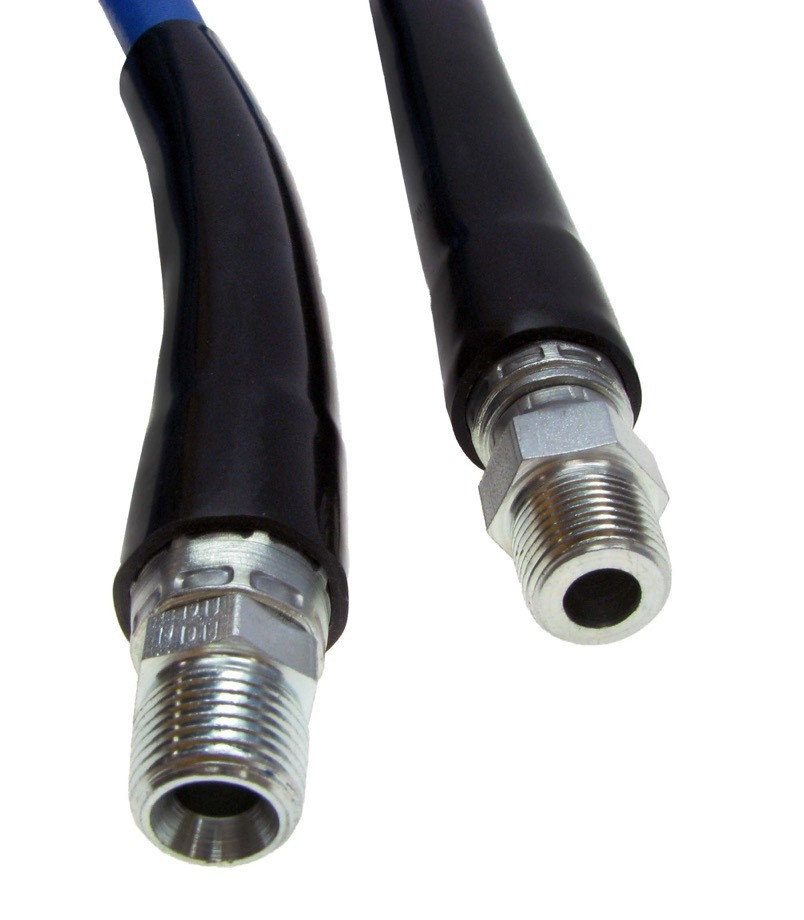

Continental ContiTech industrial hose
Blue Neptune hose from Continental ContiTech is designed for use with gas or electric pressure washers in various applications. Hoses are rated for 3,000 psi and feature a nitrile synthetic rubber tube with an oil-resistant synthetic rubber cover. Reinforced with braided steel wire, hoses can accommodate temperatures between -20 degrees to 250 degrees F. Hoses and assemblies are available in 1/4 (less than 3 gpm), 3/8 (3 to 5 gpm) and 1/2 inches (greater than 5 gpm). 800/235-4632; www.ContiTech.us.

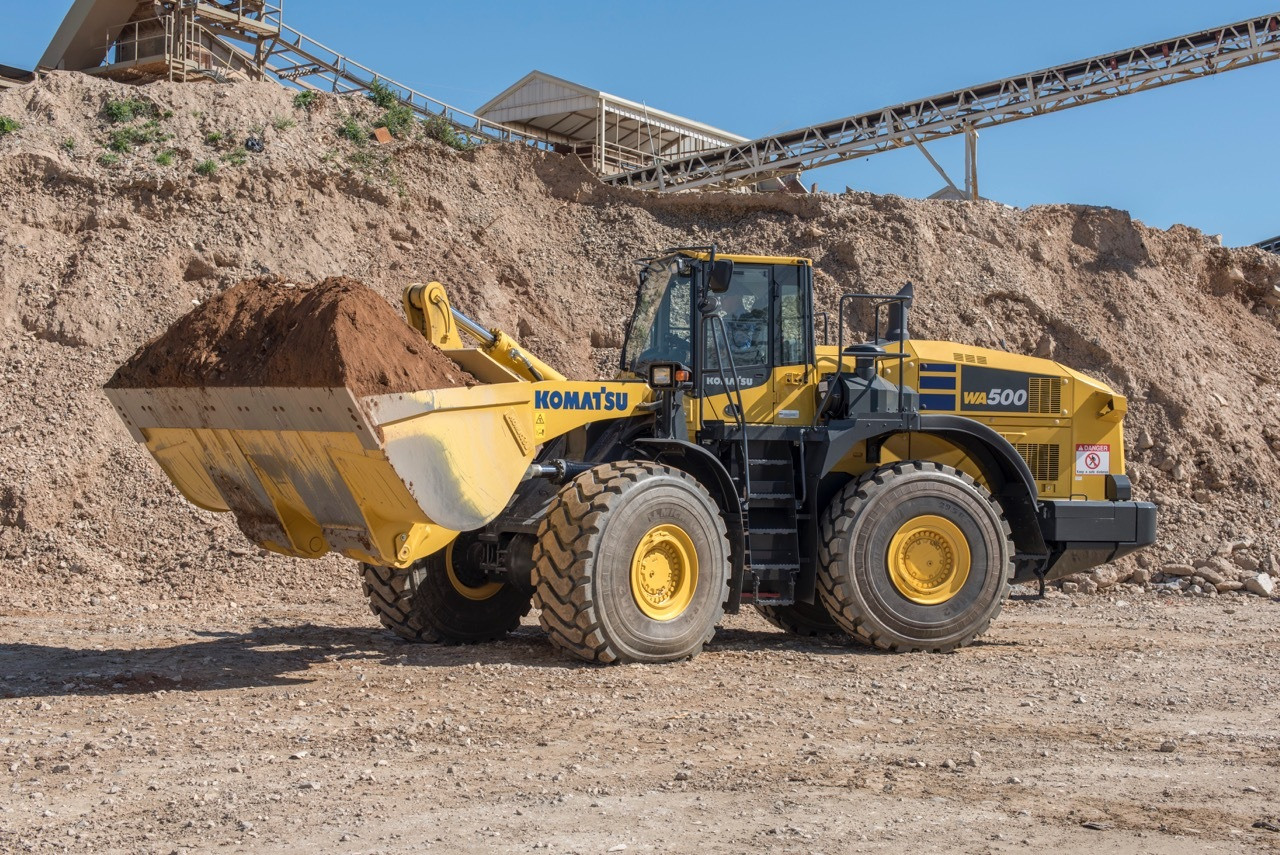

Komatsu America Corp wheel loader
The WA500-8 wheel loader from Komatsu America Corp is designed for loading on-highway trucks or smaller rigid trucks in quarry applications, articulated trucks on construction sites, or load and carry applications. The wheel loader features a bucket capacity of 7.6 cubic yards and a 357 hp, Tier 4 Final SAA6D14OE-7 engine. The lockup torque converter activates in second, third and four gear to provide optimal engine torque for improved acceleration, hill-climbing ability and fuel savings. 847/437-5800; www.komatsuamerica.com.
