Pipe bursting technology not only offers a more efficient and less invasive alternative to traditional excavation but also reduces the environmental impact of utility work. Innovations in this space include multi-function machines capable of adapting to various job site conditions, lightweight and portable systems that can be set up in tight spaces and high-force equipment designed to handle pipes of various sizes. Check out some product options below.
AGRU America Sure-Grip
Sure-Grip liners from AGRU America are made of HDPE, HDPE-el, PP, PVDF or ECTFE, and serve as a long-term alternative to spray-applied concrete protection products. The liners prevent concrete corrosion and degradation, can substantially extend the lifetime of a structure, and by preventing exfiltration and infiltration, provide direct protection for the environment. The liners have anchoring systems that enable construction in areas of significant backpressure. Unlike spray-applied liners, which have to be reapplied regularly due to cracking or delamination, these liners are long-lasting, and are designed to avoid the residuals cost often associated with concrete spray-on liners, which require tank emptying and cleaning every few years for reapplication.
843-546-0600; www.agruamerica.com

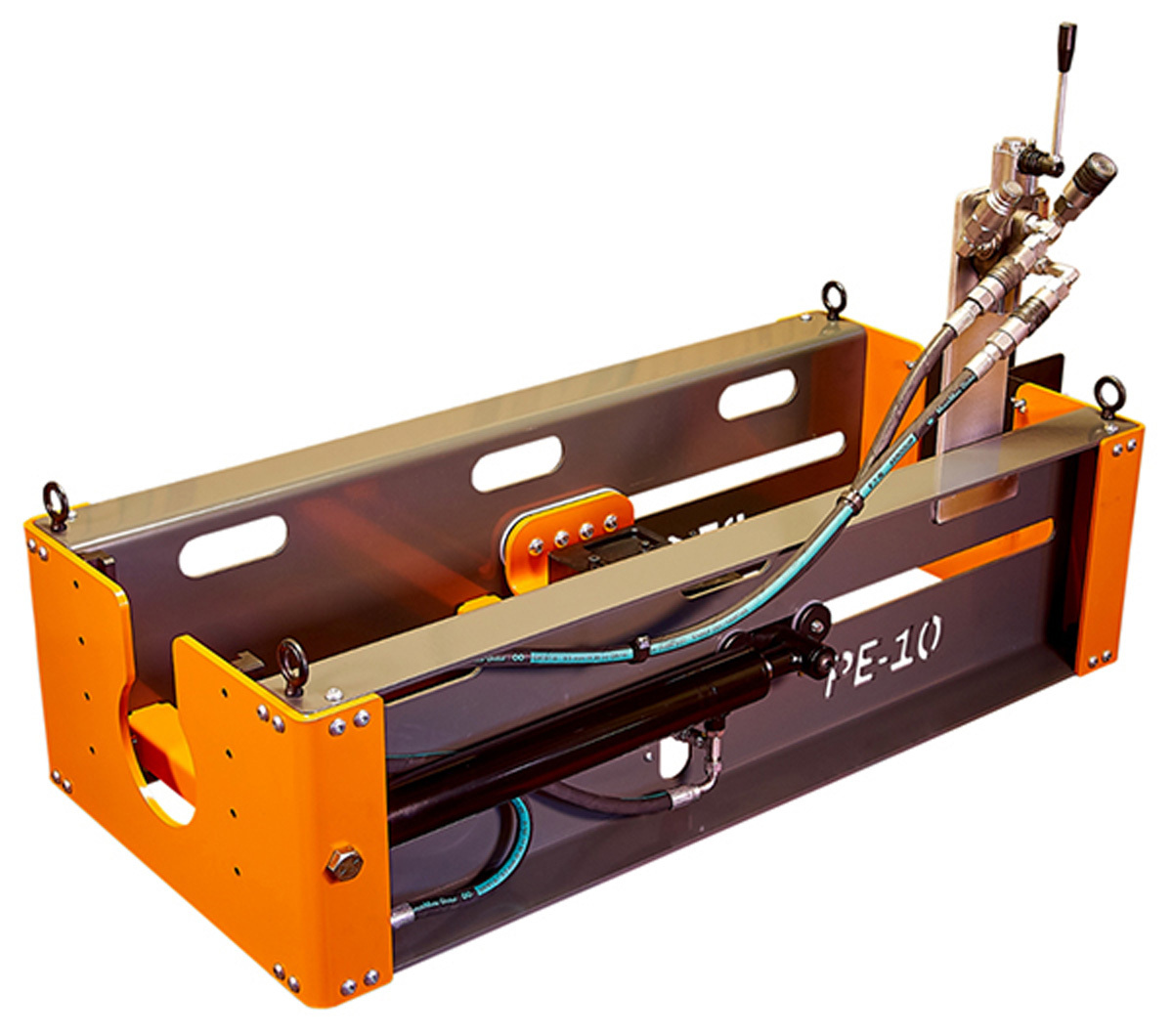

PE Equipment PE-10
The PE-10 from PE Equipment is a multifunction trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules, and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe-bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed, capable of up to 13 feet per minute depending on conditions.
406-499-8136; www.pe-equipment.com

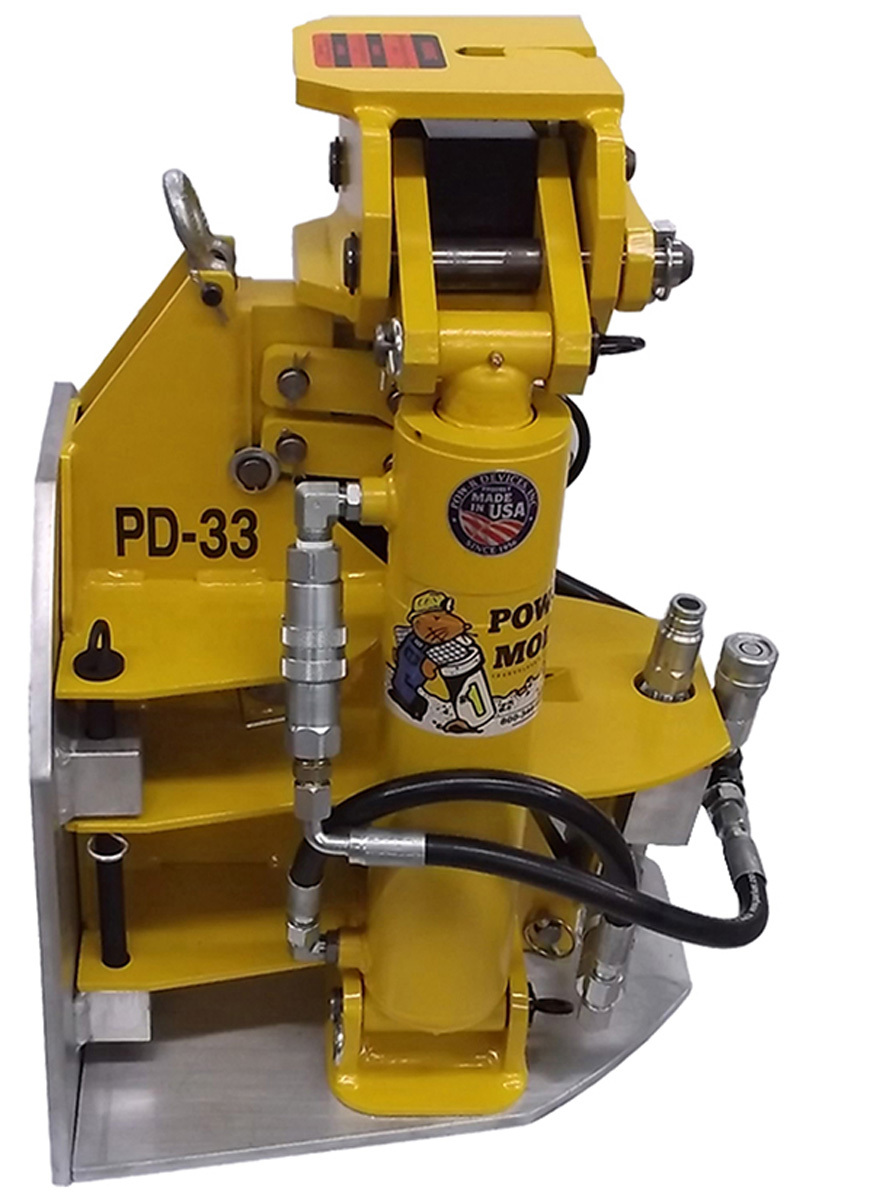

Pow-R Mole Trenchless Solutions PD-33M
The PD-33M pipe bursting machine from Pow-R Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations.
800-344-6653; www.powrmole.com

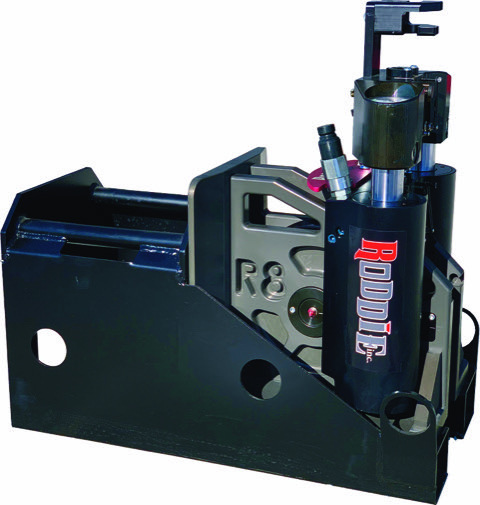

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally, and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable-grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple, as the user only needs to rinse off and re-grease six Zerk fittings.
888-406-3821; www.roddieunderground.com

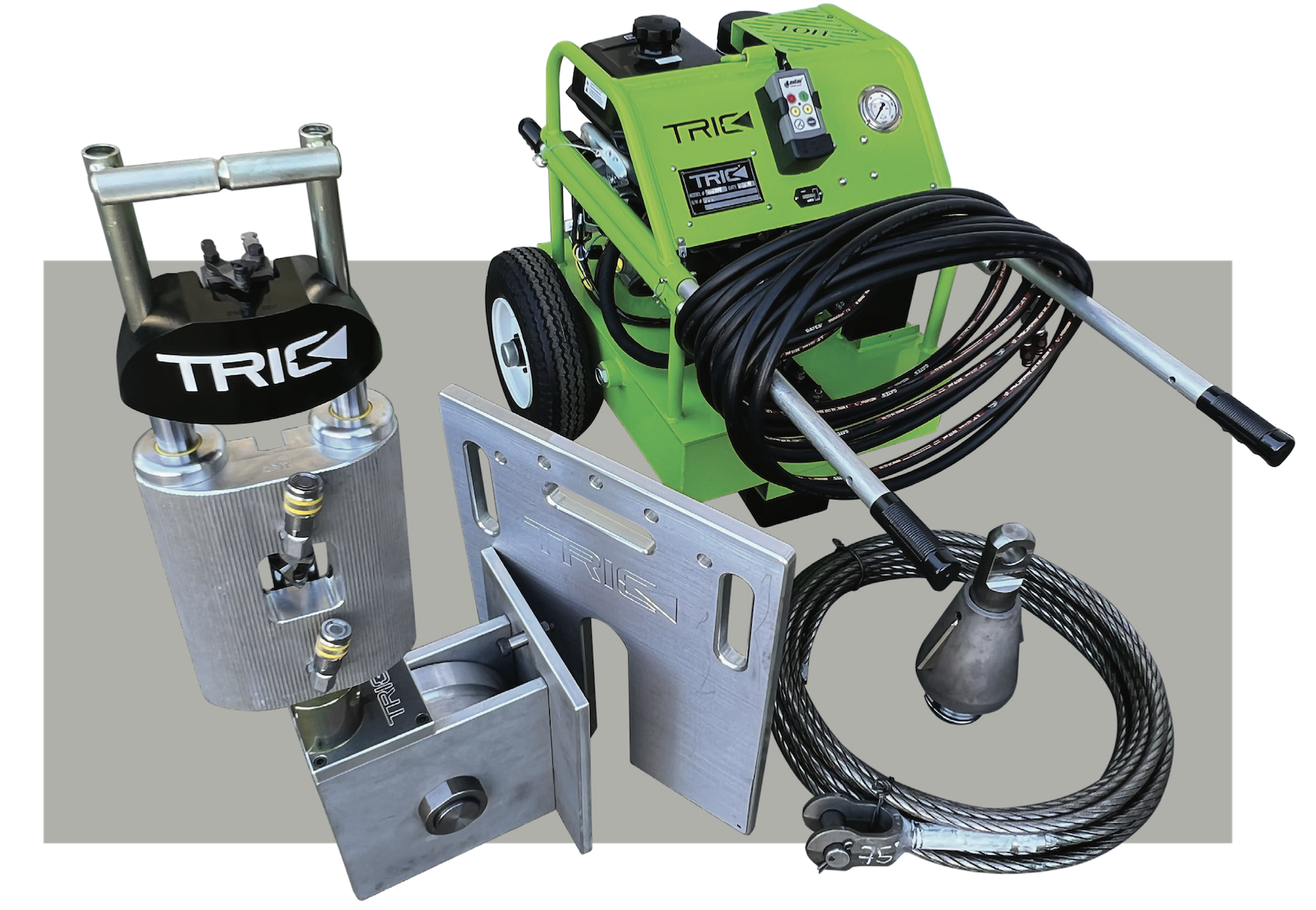

TRIC Tools X30
Everything about the X30 lateral pipe bursting system is optimized for residential and commercial contractors. The new X30 has internal and external improvements that make it lighter, stronger and more reliable than ever. The TRIC HC14 hydraulic power-pack is the ideal companion to drive the X30 puller at top speed with extra convenience, with features including wireless remote control, four retractable heavy duty handles, and a separate tool circuit for powering hydraulic devices such as jackhammers, concrete saws, trash pumps and more. Burst from 2- to 6-inch pipe with the same 3/4-inch high-strength cable.
888-883-8742; www.trictools.com
