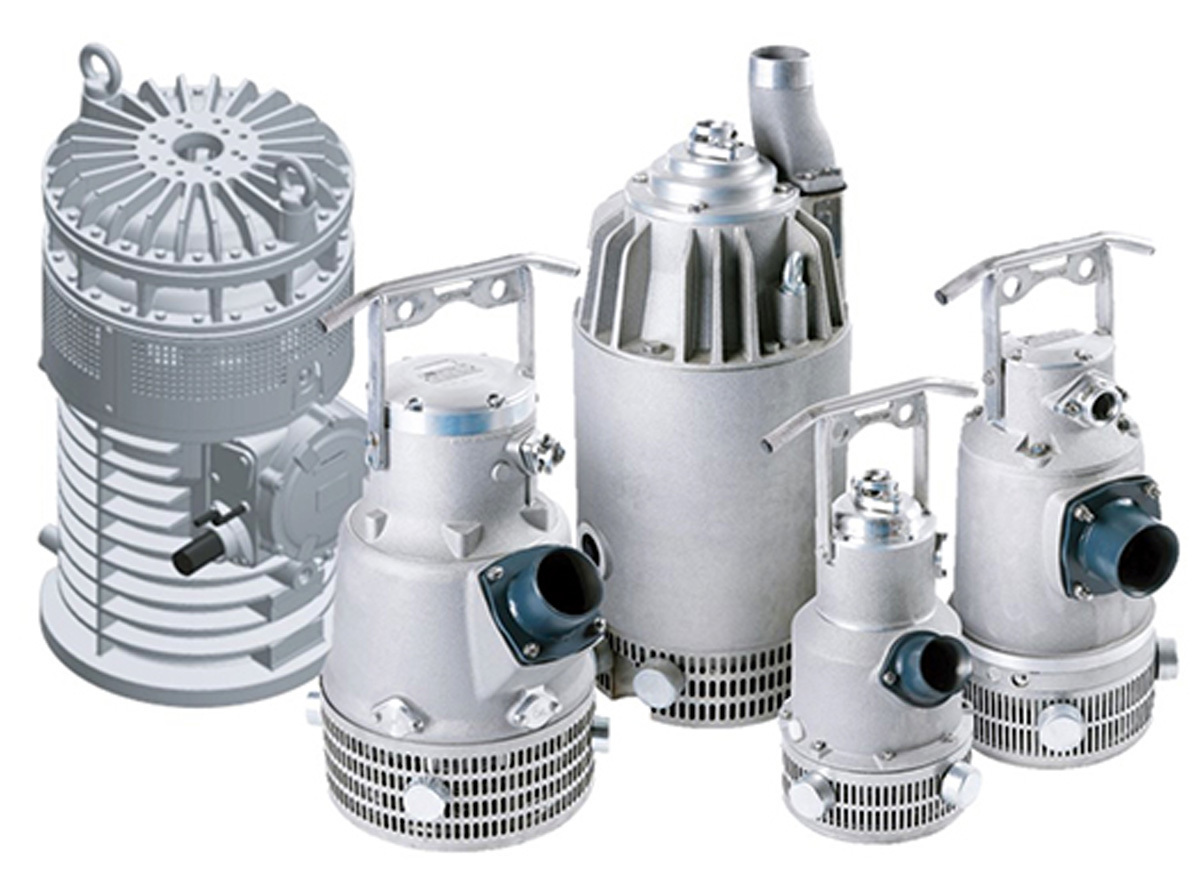

Pioneer Pump Minetuff Series dewatering pumps
Franklin Electric’s Minetuff Series of electric submersible dewatering pumps from Pioneer Pump are specially designed for deep wells or space-limited sites. The pumps come in 8 to 140 hp and are designed to work in harsh environments from wastewater to mining to construction. Features include heavy-duty motors with integrated thermistors to protect against thermal overload, durable mechanical seals, duplex stainless steel impellers for toughness and corrosion resistance, polyurethane-coated wear parts and light aluminum castings with thick walls for durability. 844-250-4982, www.pioneerpump.com

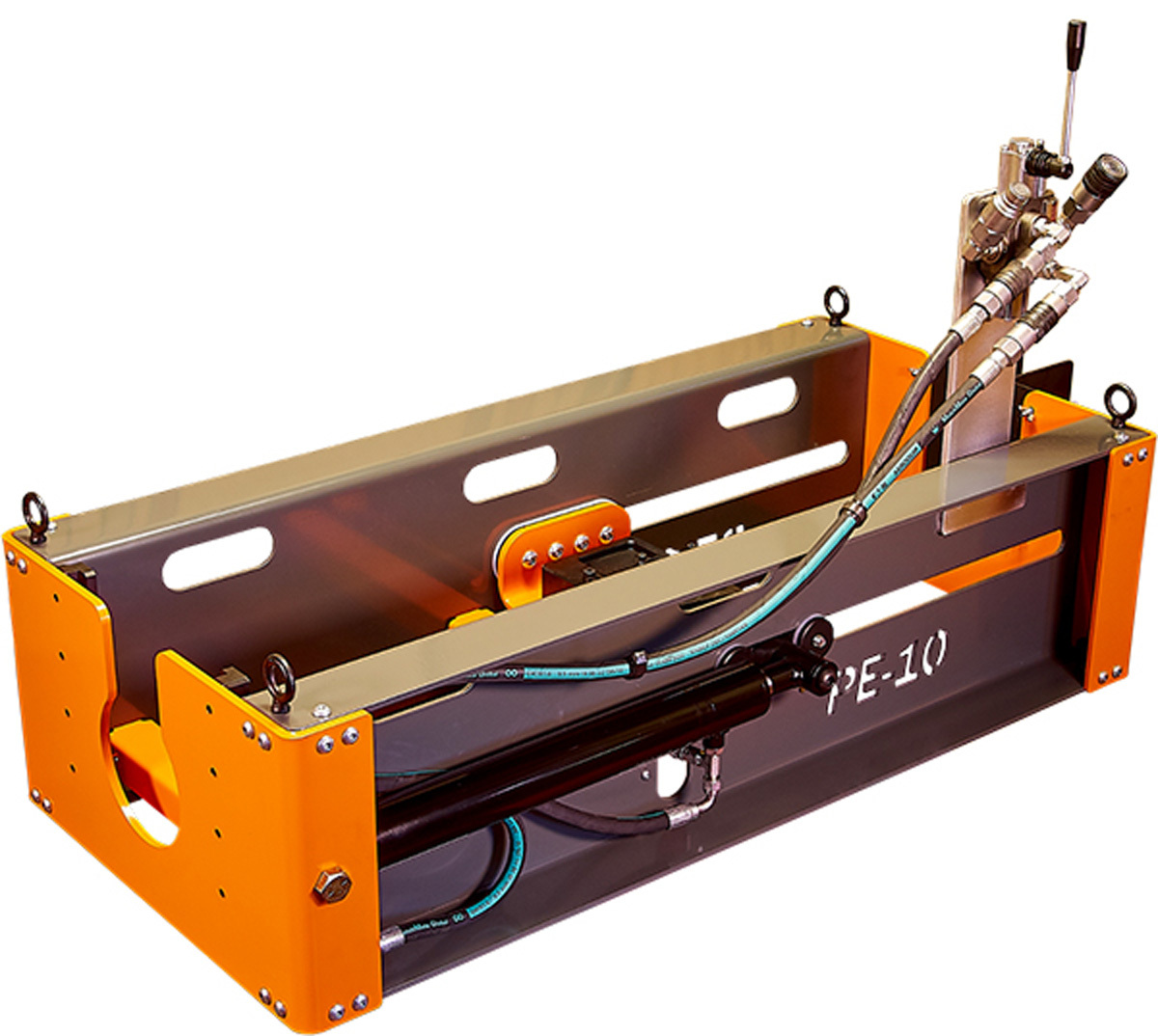

PE Equipment trenchless 2-in-1 pipe bursting and rod pushing system
PE Equipment launched its PE-10 2-in-1 system that includes both pipe bursting and rod pushing capabilities in a single machine. The system, measuring 47 inches long, 23 inches wide and 31 inches tall, offers unmatched portability and is easily carried by two people. Engineered for quick adaptability, the PE-10 allows for seamless module changes in just 5 to 10 minutes, eliminating the need for multiple machines on the job site. The system plugs directly into excavators, running off existing hydraulic capabilities, negating the need for additional power units. It is designed to adapt to various ground conditions, including rocky clay and other challenging soils, excelling in diverse terrains and environments. 406-499-8136; www.pe-equipment.com

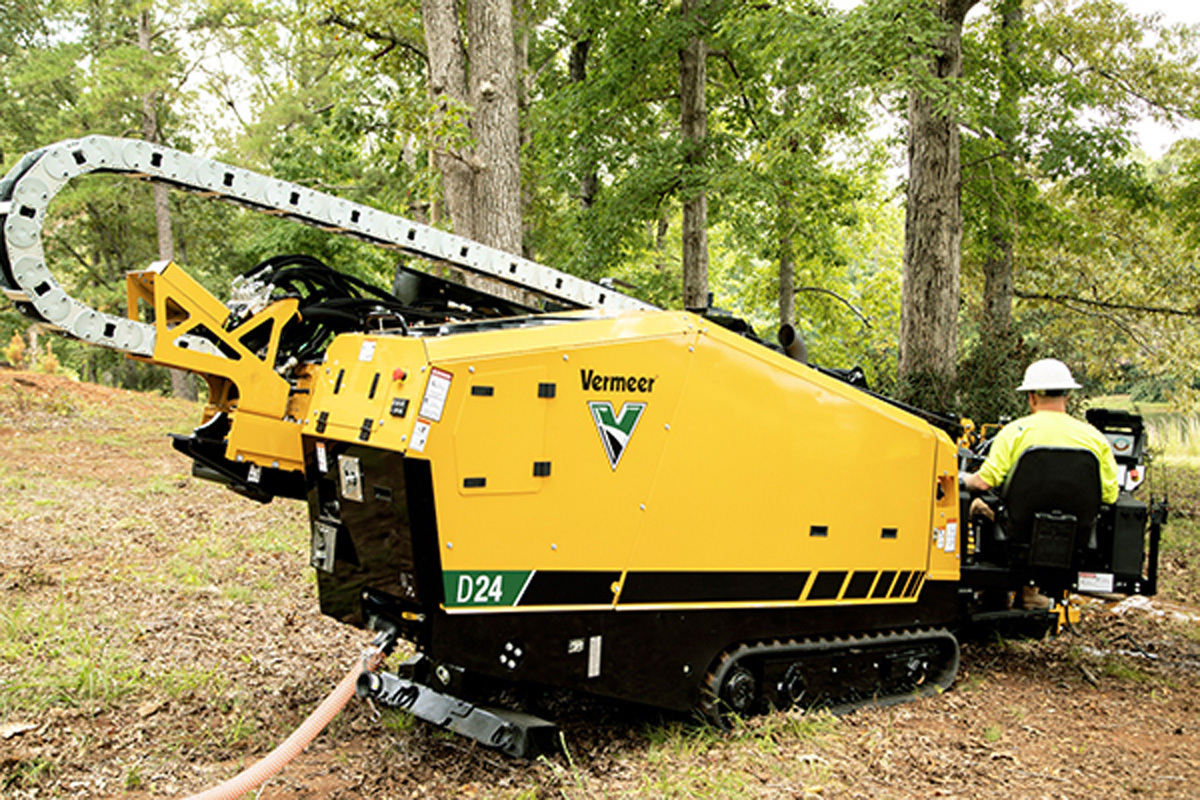

Vermeer D24 horizontal directional drill
Vermeer’s D24 powerful 24,000-pound-class horizontal directional drill replaces the D23x30 S3 in the Vermeer utility drill lineup. It boasts a 100 hp Cat 3.6L Tier 4F/Stage V engine. The D24 delivers a max peak thrust and pullback of 24,700 pounds and a continuous thrust and pullback of 22,000 pounds. It also features 3,080 ft-lbs of rotational torque and a 45 gpm mud pump. The D24 has an advanced onboard diagnostic system, accessible via the machine’s touchscreen display. The D24 HDD enables crews to efficiently install utilities including fiber, power cables and water infrastructure in congested urban areas. 641-628-3141; www.vermeer.com

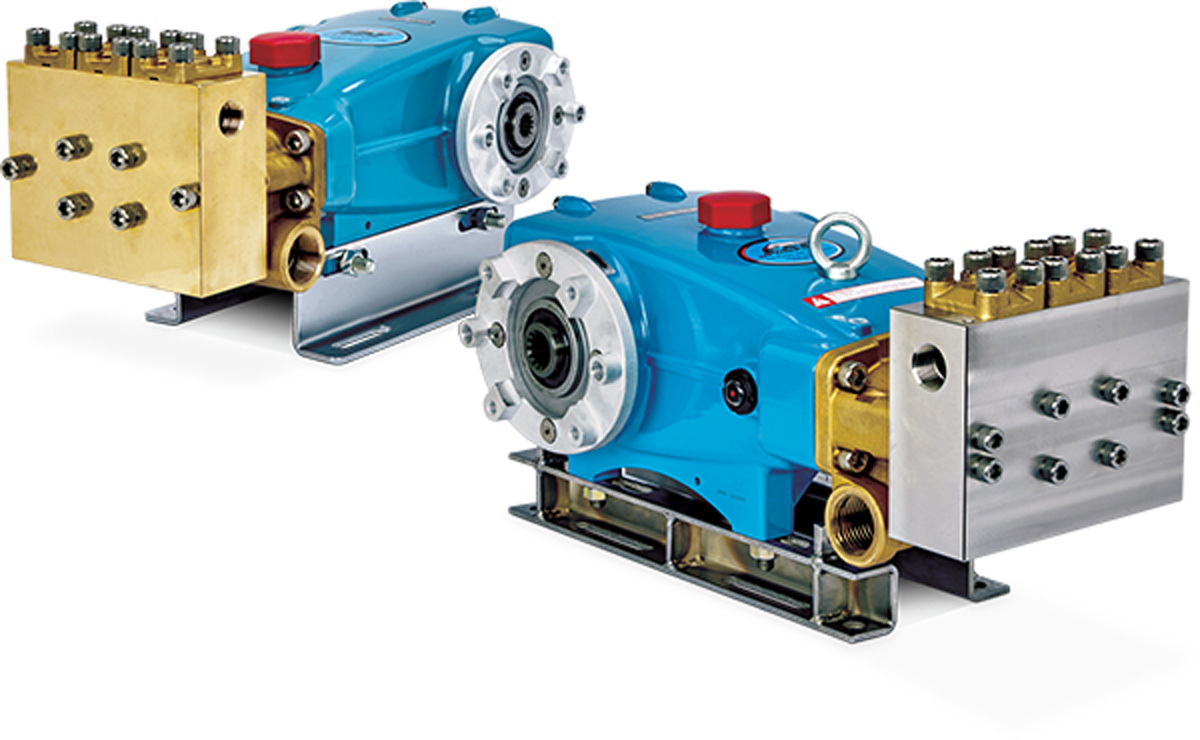

Cat Pumps compact mobile hydroexcavating spline shaft pumps
Cat Pumps offers the trusted performance of the 2565 and 3560 pumps with a new direct-mount flange and hollow spline shaft. This innovation addresses the challenges of limited space and allows pairing with compact SAE hydraulic motors. Model 2565T13 achieves flows to 20 gpm at pressures up to 3,000 psi and pairs to an SAE B hydraulic motor with a 13-tooth spline shaft. This reduces the width of the pump by over 7 1/2 inches compared to the standard bell housing configuration. Models 3560T14 and 3560RST14 pair with SAE C hydraulic motors with a 14-tooth spline shaft and can pump 20 gpm up to 4,000 psi or 25 gpm up to 3,000 psi. These models significantly decrease the overall pump and bell housing width by more than 8 inches and permit the motor to be mounted on either side. Equipment builders can add an optional electronic rpm speed sensor to ensure accurate, consistent pump operation. 763-780-5440; www.catpumps.com
