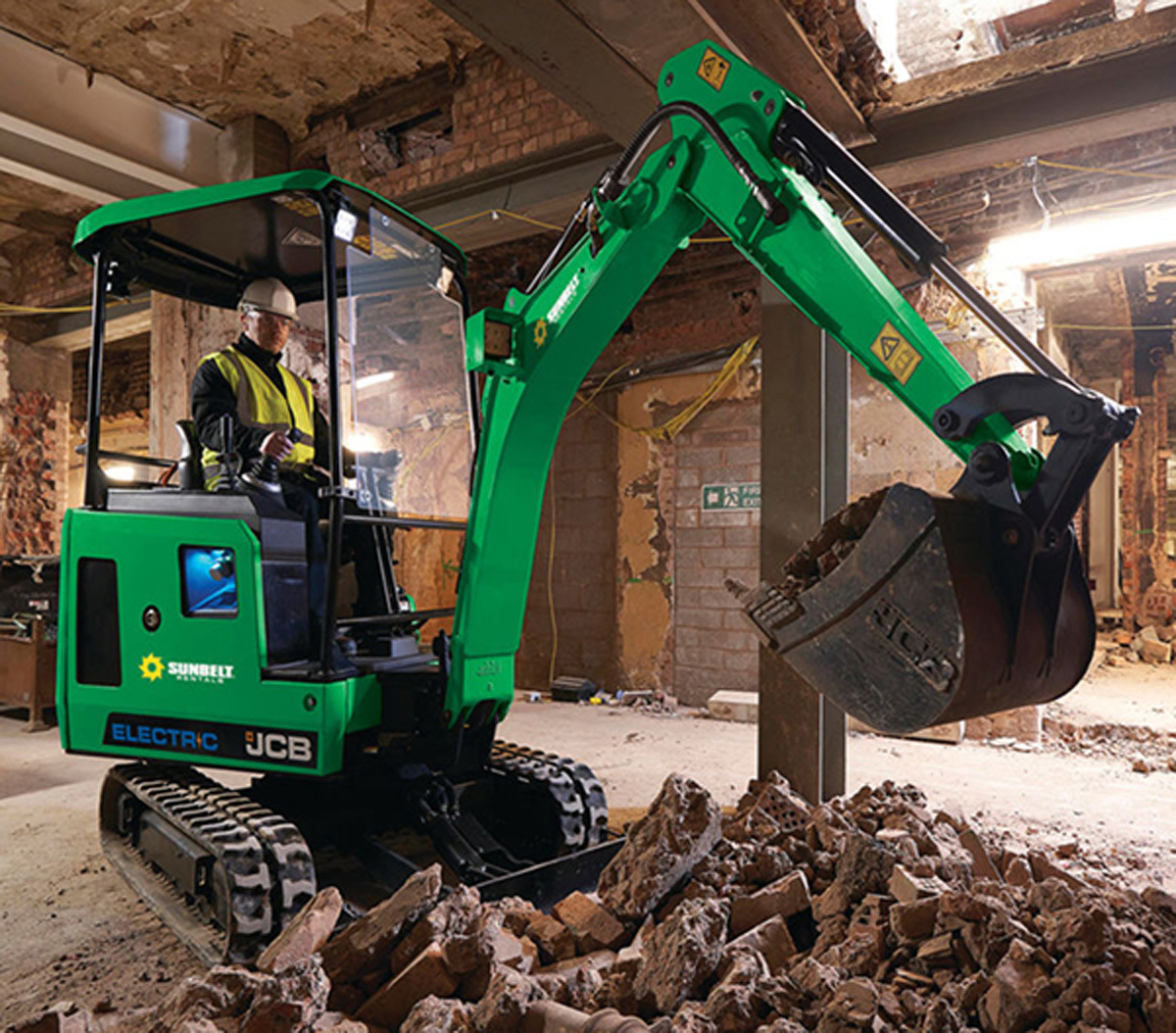

Compact and quiet, the fully electric JCB 19C-1E, available from Sunbelt Rentals, is a powerful machine equipped to support various job site applications. It offers zero operational emissions and is a suitable choice for urban projects, indoor tasks and environmentally sensitive areas. Additionally, there’s no performance compromise since this battery-powered model handles demanding workloads just as well as its diesel counterparts. The quiet operation is a crucial advantage, too, allowing operators to work in noise-sensitive settings or after hours without disturbing the surroundings. With no electrical tether, zero operational emissions and low noise levels, it allows for a safer workplace for the operator and those on the job site.800-667-9328; www.sunbeltrentals.com
Hydroexcavation Equipment

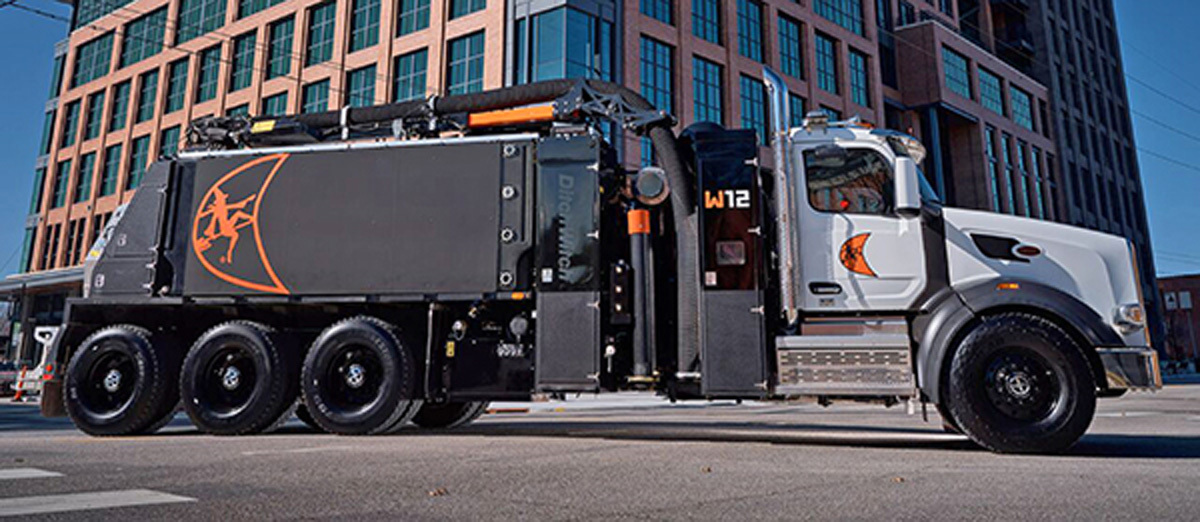

Ditch Witch Warlock W12
The Warlock W12 from Ditch Witch is a PTO-driven vacuum excavator that offers dual 600-gallon saddle tanks and a 12-cubic-yard debris tank, bringing increased capacity and performance to the job site. Available with a 5,000 cfm blower and 27 inches Hg of vacuum power, it helps operators take on bigger jobs and maximize job site uptime.580-336-4402; www.ditchwitch.com

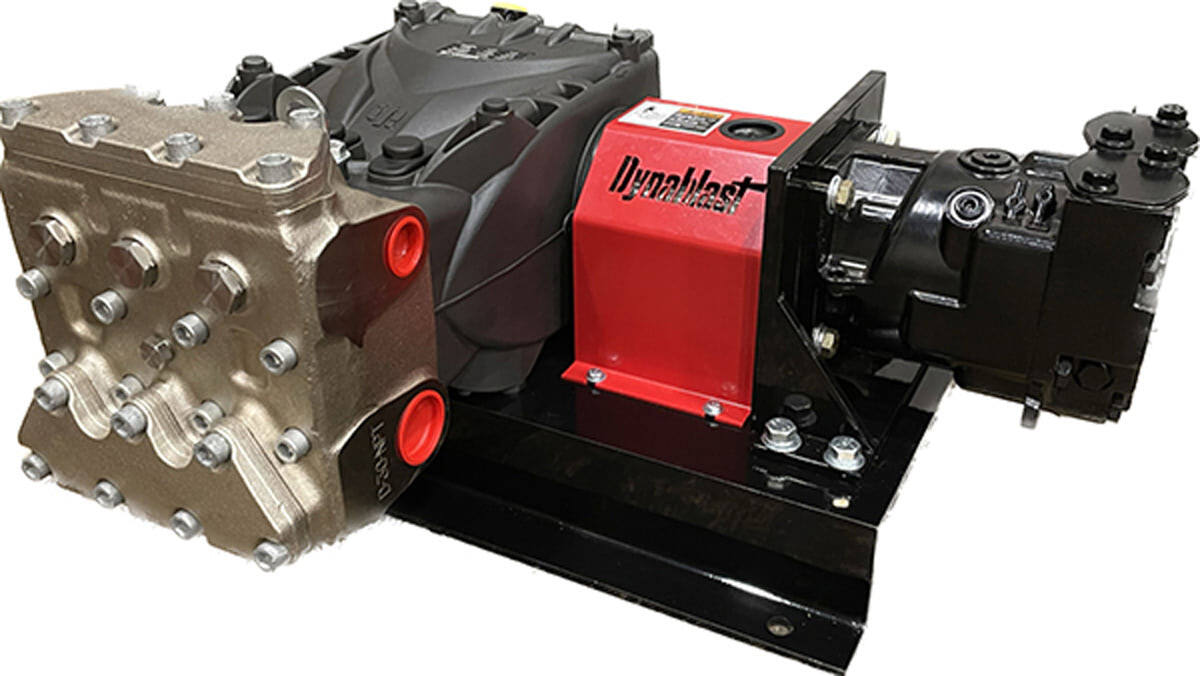

Dynablast Pratissoli KFR25
The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, a tapered roller bearing for improved lateral loading and two bore ceramic plungers that are thicker ceramic on the water end to prevent from thermal shock. The hydrovac skid is designed to fit on a Danfoss 90 M motor with 13/8-inch shaft.905-867-4642; www.dynablast.ca

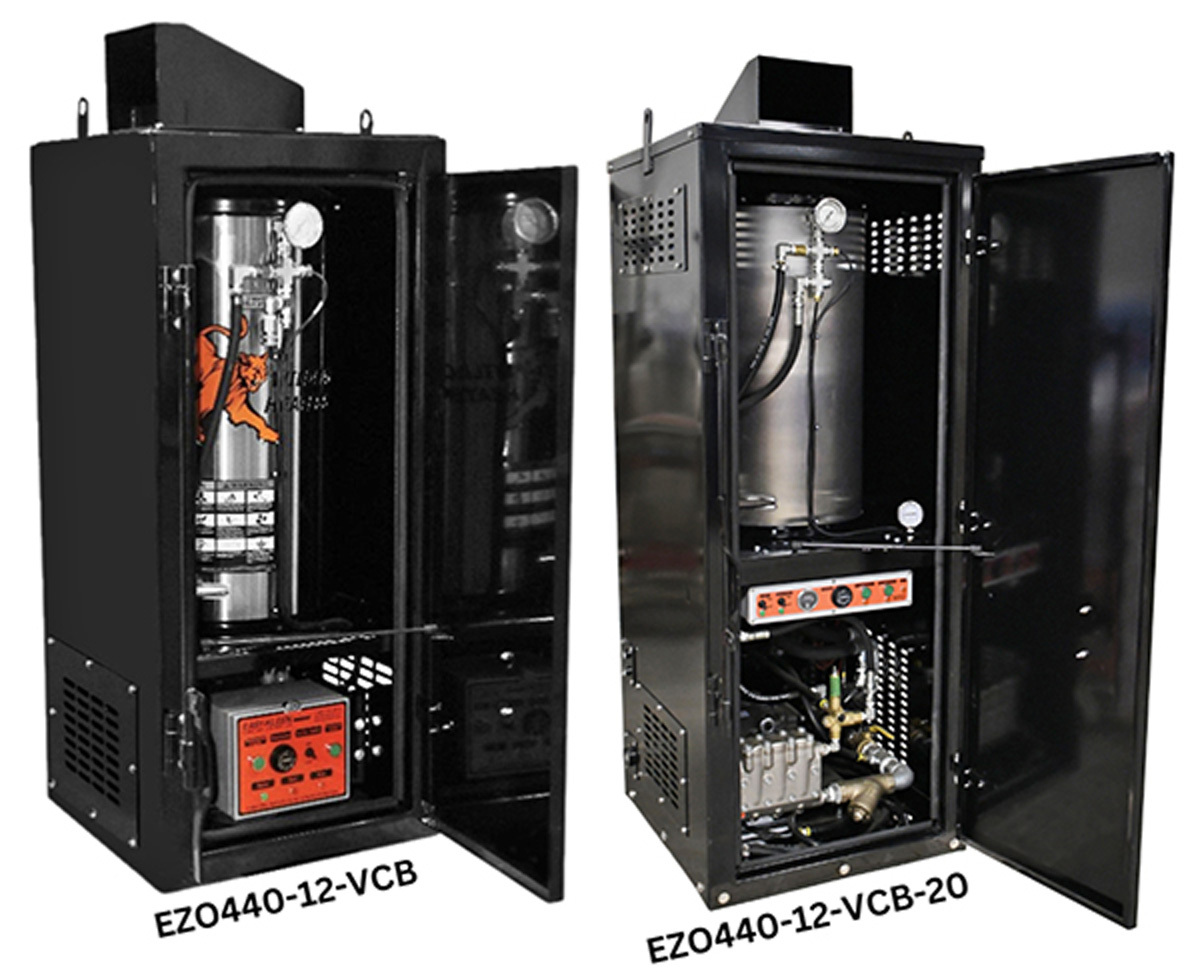

Easy-Kleen Pressure Systems EZO440-12-VCBand EZO440-12-VCB-20
The EZO440-12-VCB model from Easy-Kleen Pressure Systems delivers 440,000 Btu of heating power, supporting 120-volt or 12-volt power setups, with operational pressures of up to 5,000 psi. Its modular, enclosed design protects the system and allows easy maintenance with dual access panels. For more demanding applications, the EZO440-12-VCB-20 model adds a pump pack for 20 gpm flow at 4,000 psi, ideal for high-demand environments needing rapid heating and high-pressure output. Both are compact for easy installation and provide a complete heating solution that ensures efficiency and reliability, even in harsh environments. Designed to seamlessly integrate with vacuum trucks and high-pressure jetting systems, these heaters streamline operations and reduce maintenance downtime.888-430-9359; www.easykleen.com

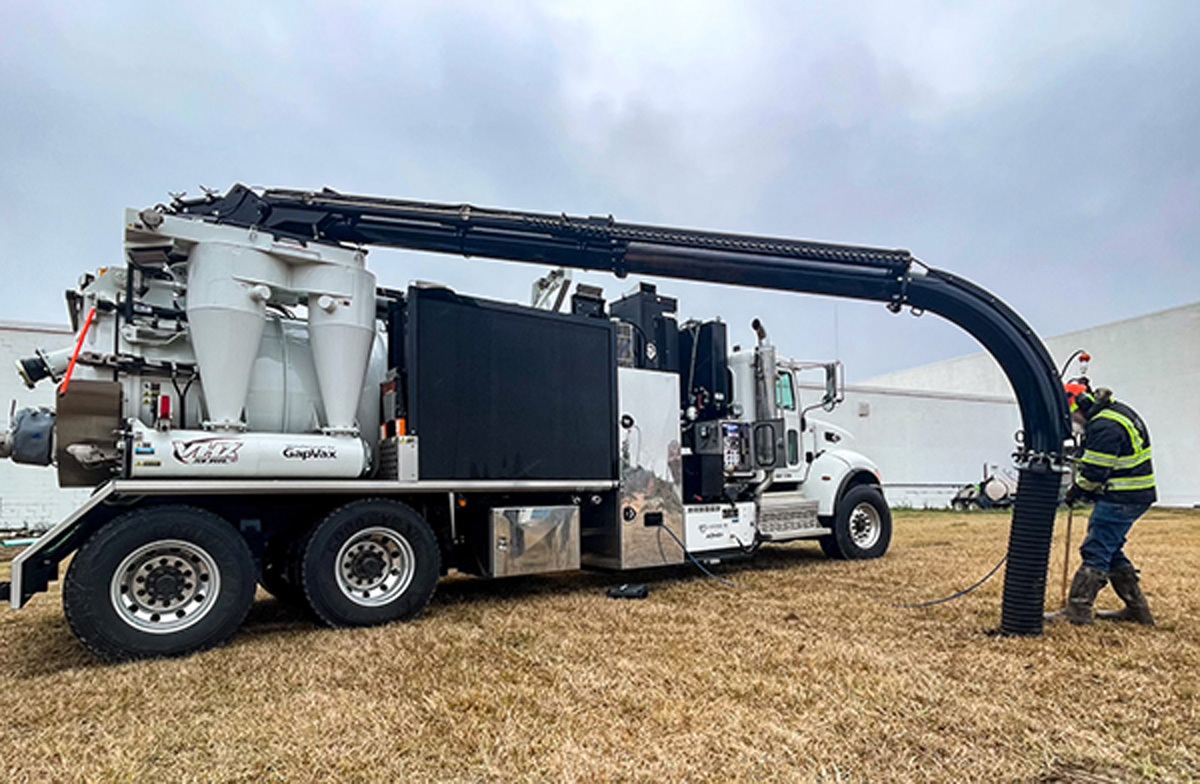

GapVax VHX Series
The GapVax VHX Series hydrovac is designed for optimal weight distribution, improved safety features and improved performance. The debris body is 7.5 cubic yards, offering a 15,000-pound payload. The low profile (12 feet, 2 inches) makes it suitable for all-around hydroexcavation projects. The vacuum system with single mode wet/dry filtration is quiet, reliable and simple, according to the maker. It includes a 4,000 cfm positive displacement blower, 600 hp transfer case with air-shift engagement and ultra-quiet air injection, and discharge silencers. This filtration design includes a top-loading debris tank, 14-inch stainless steel float-ball shut-off, efficient centrifugal cyclone separators and long-lasting filter bags. It is equipped with a 12 gpm, 3,000 psi water system with optional 200 cfm air compressor system. A full-tilting debris body, over 45-degree dump angle and full-opening tailgate promote fast unloading and easy clean-out. The 8-inch telescoping VHX boom offers a 22-foot reach with 15-degree downward pivot.888-442-7829; www.gapvax.com

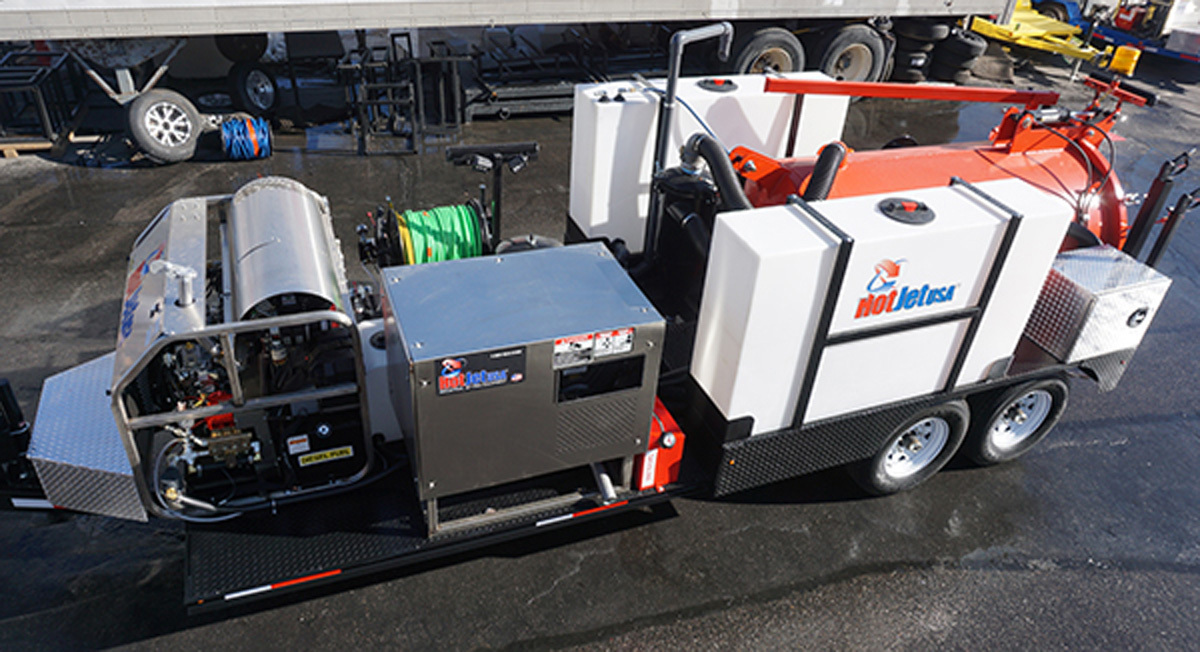

HotJet USA Vac’n Jet Series
The HotJet USA Vac’n Jet Series of vacuum trailer jetters are compact and engineered to haul equipment and the spoils load, perform hydroexcavation and clean valve boxes, storm drains and drain/sewer lines. They feature hot and/or cold water operation with a choice of engines ranging from 23 to 70 hp and gas or diesel. They are equipped with premium triplex pumps, a 500-gallon spoils tank, up to 440-gallon water tanks, Gardner Denver vac/blowers, a 4-ton hydraulic dump and a dual-filter centri-clean filter system. They can also be custom engineered to meet specifications.800-624-8186; www.hotjetusa.com
Hydra-Flex Ripsaw HD
The Ripsaw HD from Hydra-Flex is a rotating turbo nozzle designed for the hydroexcavation industry. It takes on numerous applications, including potholing, daylighting, debris removal, piling hole and frac tank cleaning. Its 18-degree front cone angle rotates at an optimized speed to pack intense force while providing more control and precision. It is constructed with a durable stainless-steel housing and tungsten carbide wear surfaces to minimize wear and tear, and a premium Hytrel coating that protects users and sensitive underground utilities. This nozzle has a flow rate range of 1.5 to 10.7 gpm and operates effectively within a pressure range of 1,000 to 3,200 psi.952-808-3640; www.hydraflexinc.com

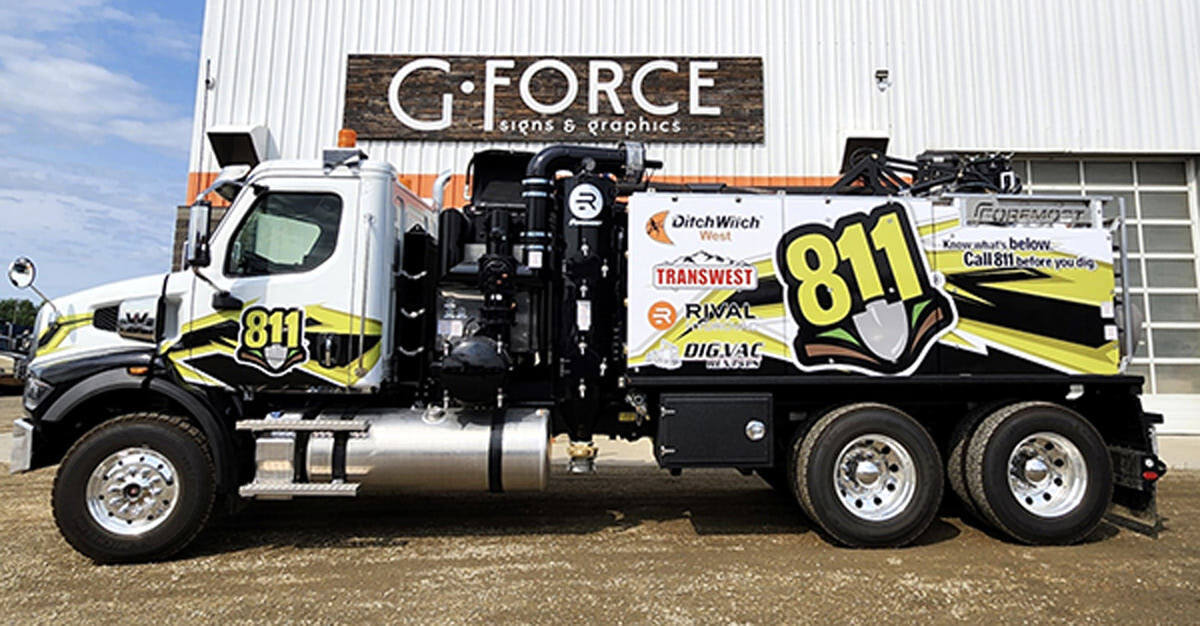

Rival Hydrovac T7 Tandem and T10
The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system, but with larger capacities and components. It is for both utility and industrial work and is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating.403-550-7997; www.rivalhydrovac.com

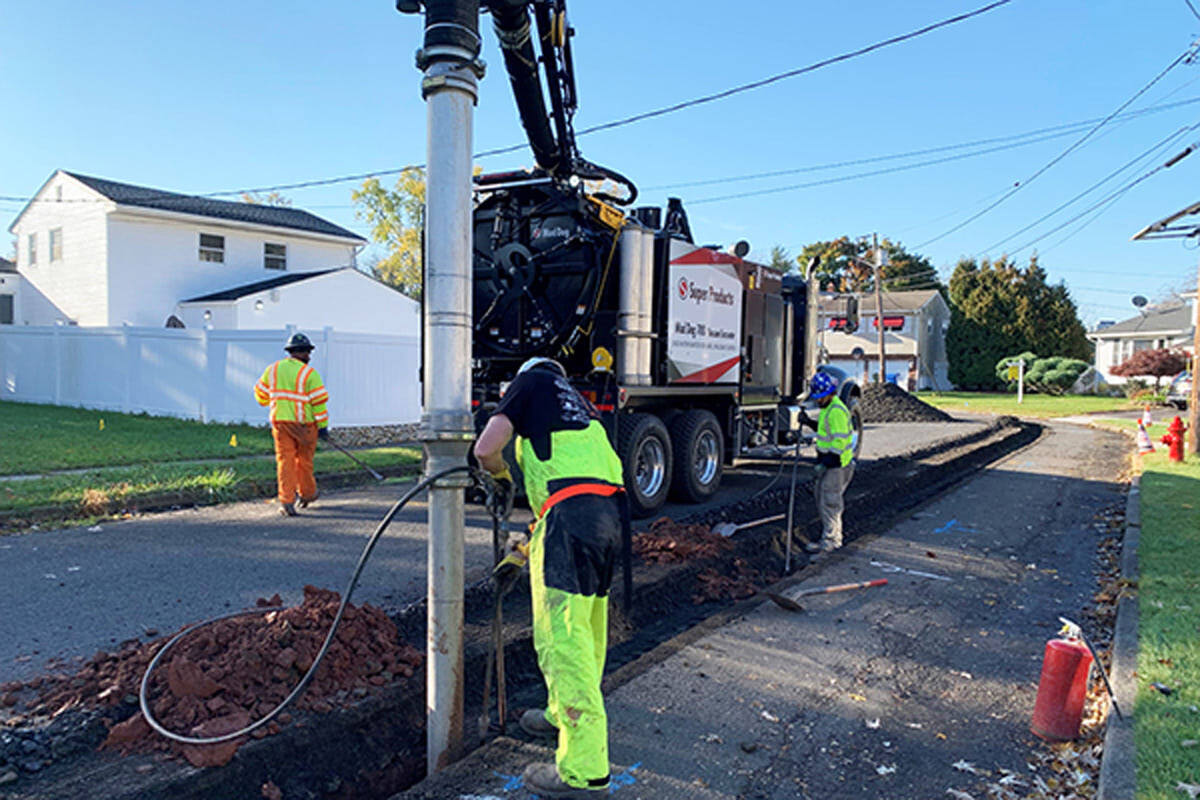

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

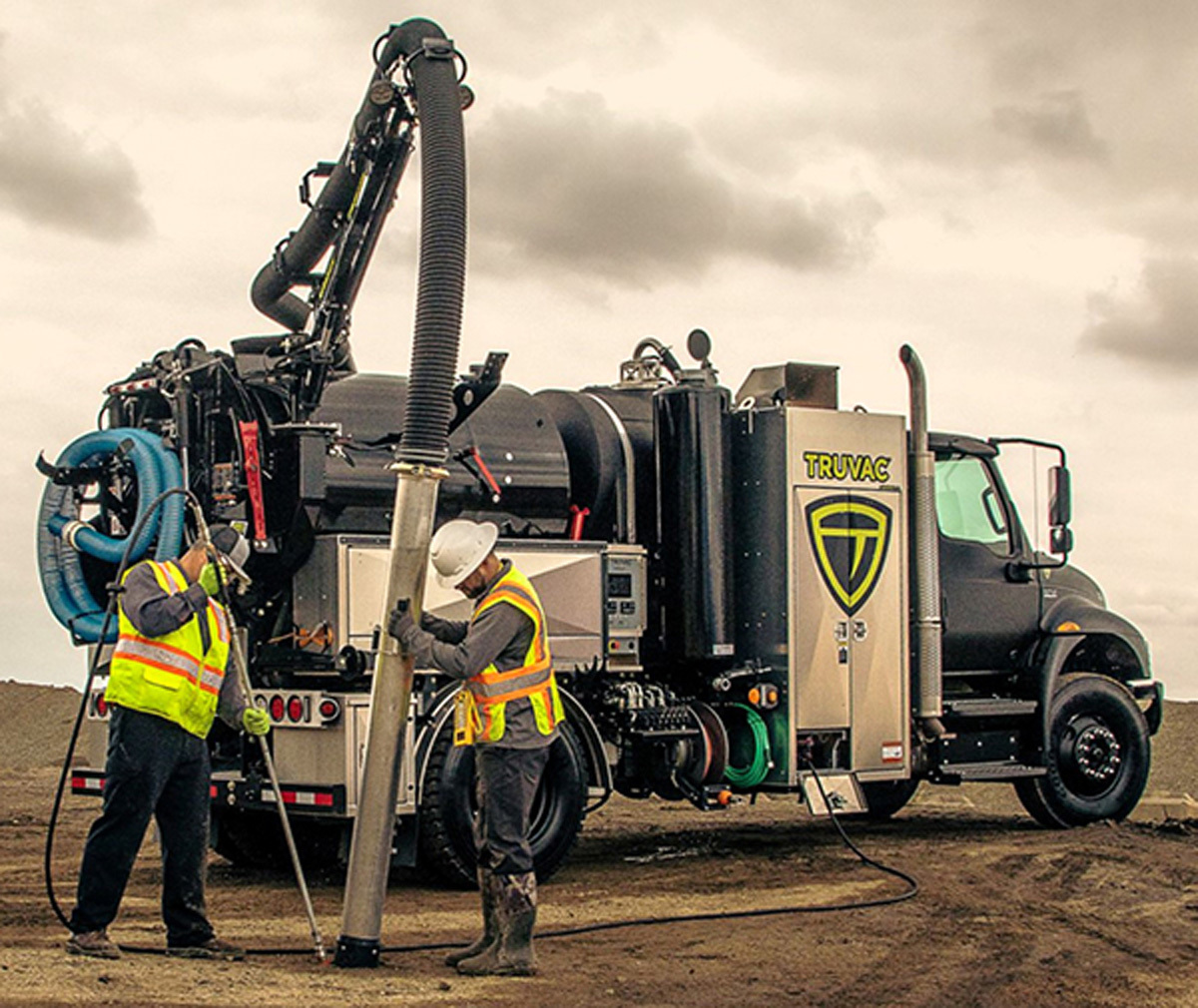

TRUVAC Paradigm
The Paradigm subcompact vacuum excavator from TRUVAC revolutionizes safe and efficient digging around utilities. Its compact, low-profile and tough non-CDL design allows for easy maneuverability, making it a suitable choice for any excavation job. With its quick setup design, operators can begin operations with just a flip of a switch using the Park-N-Dig feature. Parts and service centers nationwide, dedicated training and rapid response time ensures that the vacuum excavators are always up and running.815-672-3171; www.truvac.com

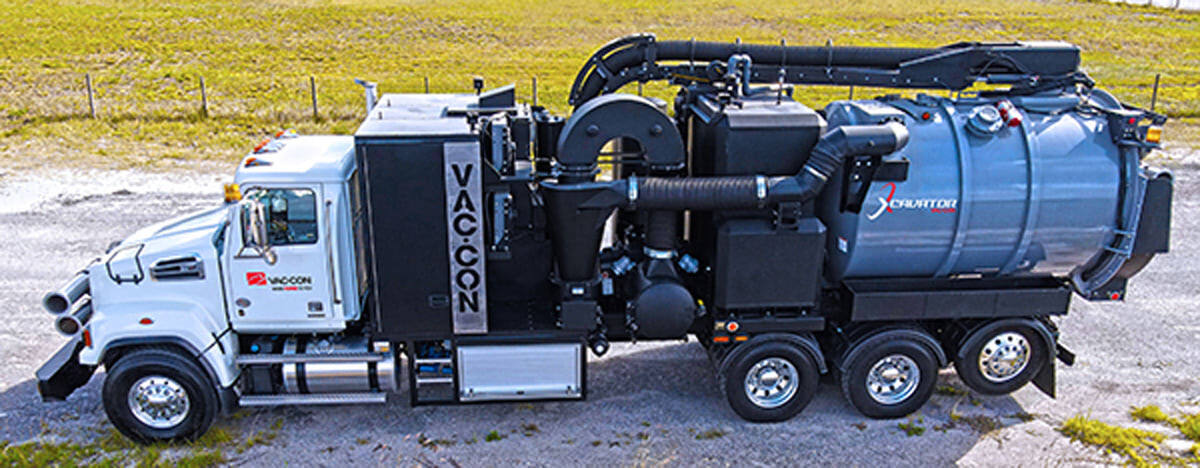

Vac-Con X-Cavator
The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine, with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet.904-284-4200; www.vac-con.com
X-Vac X-12 1450 Hydro Excavator
X-Vac’s X-12 1450 Hydro Excavator provides the largest freshwater volume in a standard 12-cubic-yard truck platform. With more water, operators can trench, pothole and daylight longer without leaving the job site to refill. The top-mounted, 360-degree rotation boom and simple intuitive controls make setups quick, even in tight spaces. The high-volume hydroexcavating power of a 20 gpm at 3,000 psi pump and debris removal of a 5,775 cfm 27-inch Hg high-performance blower get jobs done faster. It includes job site, transit and maintenance safety features such as integrated wired and wireless E-stops, audible-visual boom out-of-stow alarms, and standard debris tank and door prop rods.800-752-2400; www.x-vac.com
Inspection Equipment

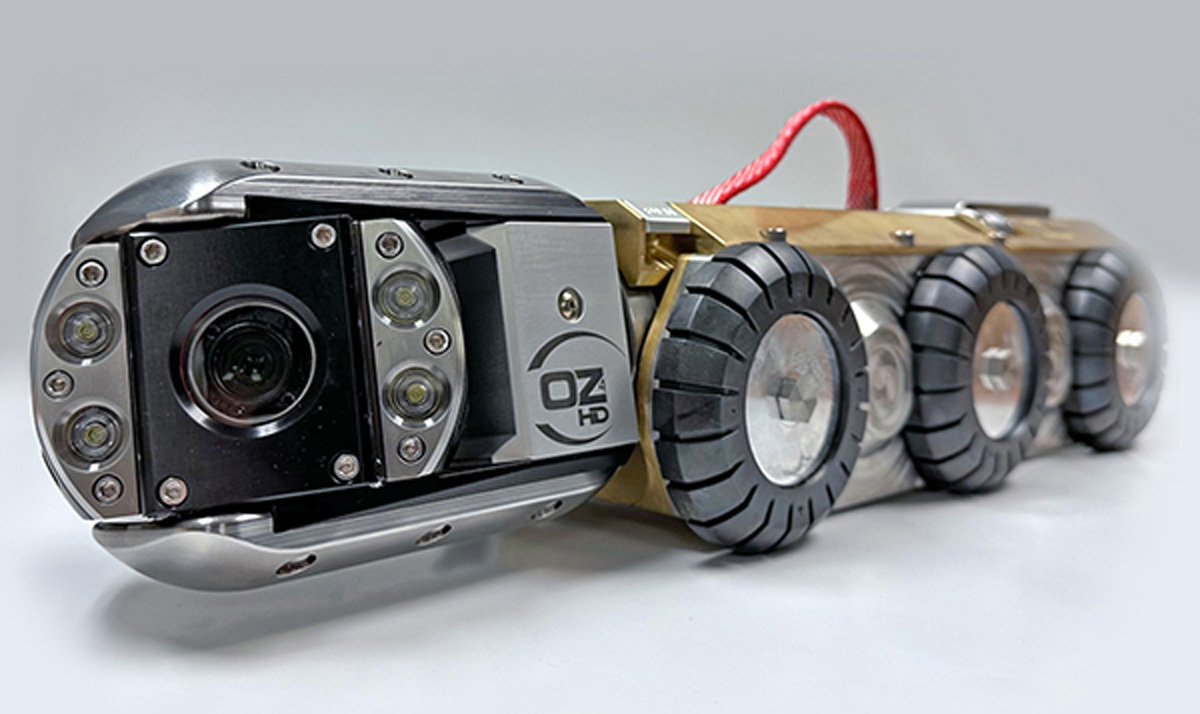

CUES OZ4-HD Camera
The OZ4-HD Camera from CUES is a 1080p high-definition pan-and-tilt mainline camera that offers video with a level of detail that can detect and address potential pipeline issues with superior accuracy. It is designed specifically to be backward compatible, meaning customers currently running CUES equipment are now able to upgrade to HD for a minimal investment. This is done by installing an HD Truck Upgrade Package that includes a smart relay system, allowing the OZ4-HD to be compatible with the CUES K2/Summit system, transporters, cable, reel, etc. Operators can switch seamlessly between SD and HD cameras with no interruption to workflow, ensuring a smooth and efficient inspection process every time. GraniteNet condition assessment software offers HD video support, ensuring uninterrupted performance.800-327-7791; www.cuesinc.com

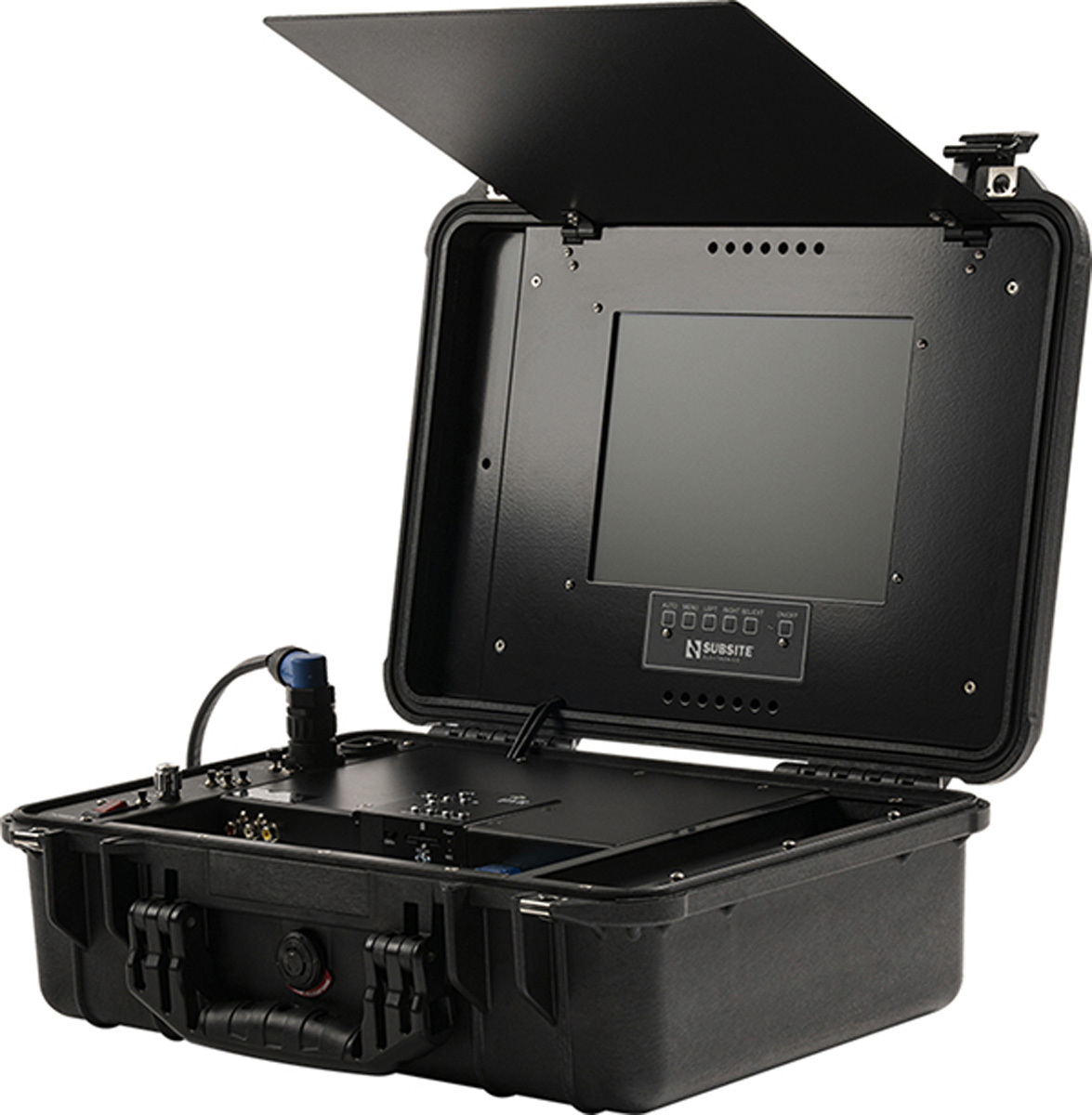

Subsite Electronics Push Camera
When a transporter isn’t an option because of pipe size or limited access, the Subsite Electronics Push Camera allows operators to complete inspections in the most challenging conditions. Ideal for pipes from 1.5 to 12 inches, it features single conductor technology with a rigid 1/4-inch fiber pushrod covered with a durable Hytrel jacketing that allows operators to inspect up to 500 feet down the line. Additionally, the 1/4-inch-diameter single conductor cable provides added strength without weight concerns, allowing operators to complete significantly longer inspections without the cable getting twisted or warped. The 1545 camera with an in-line 512 Hz beacon allows the operator to easily locate damage and blockage in the pipe. The camera is controlled by a 1575 controller, which features a rugged, durable and reliable enclosure.800-846-2713; www.subsite.com
Pipe Bursting

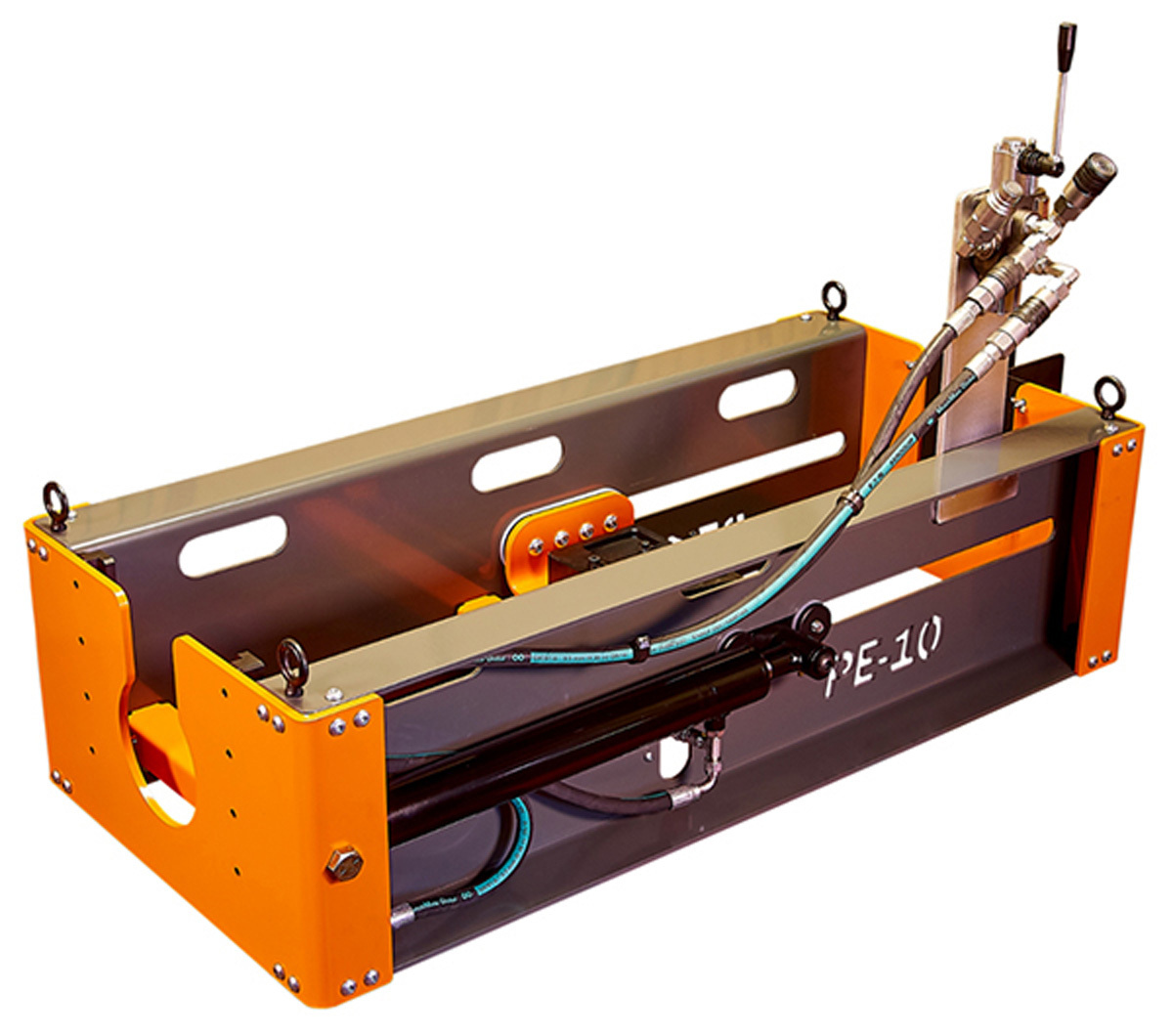

PE Equipment PE-10
The PE-10 from PE Equipment is a multifunction trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed capable of up to 13 feet per minute depending on conditions.406-499-8136; www.pe-equipment.com

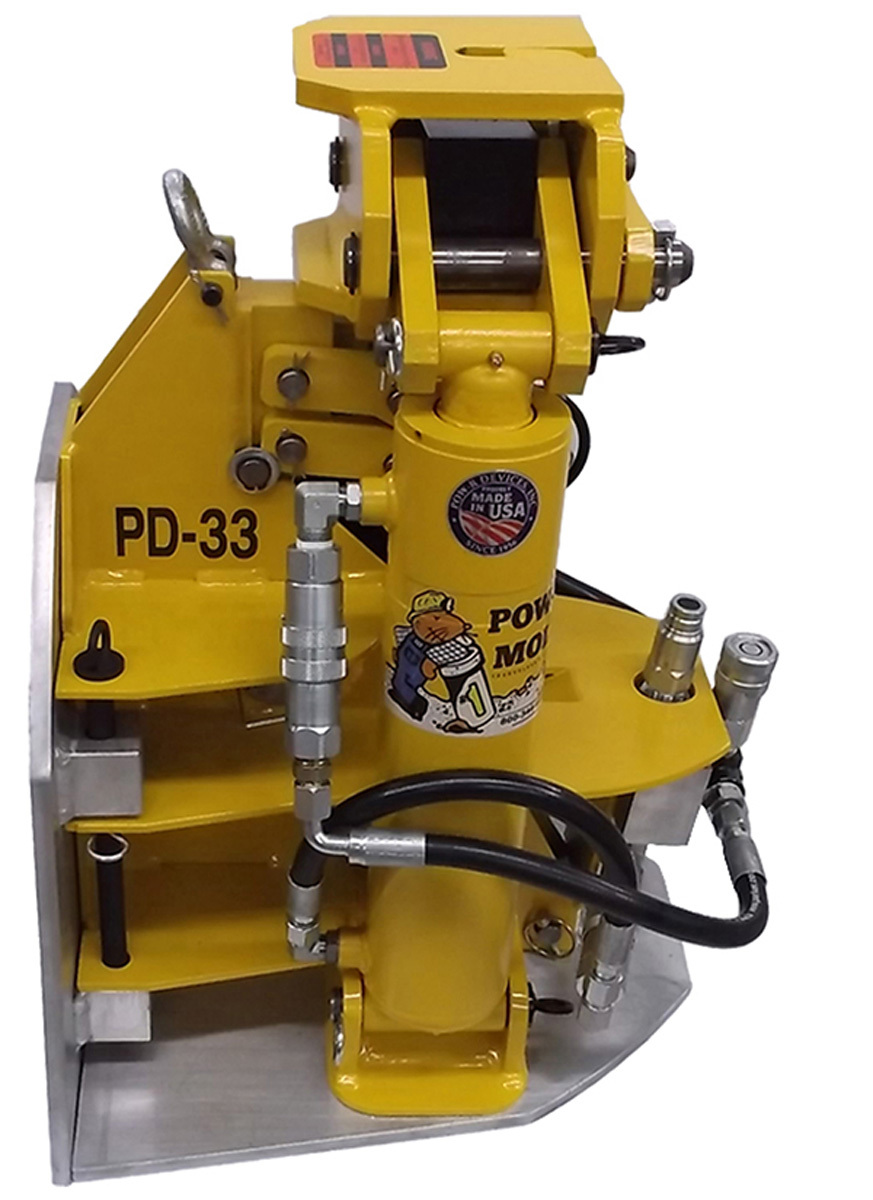

Power Mole Trenchless Solutions PD-33M
The PD-33M pipe-bursting machine from Power Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations.800-344-6653; www.powrmole.com

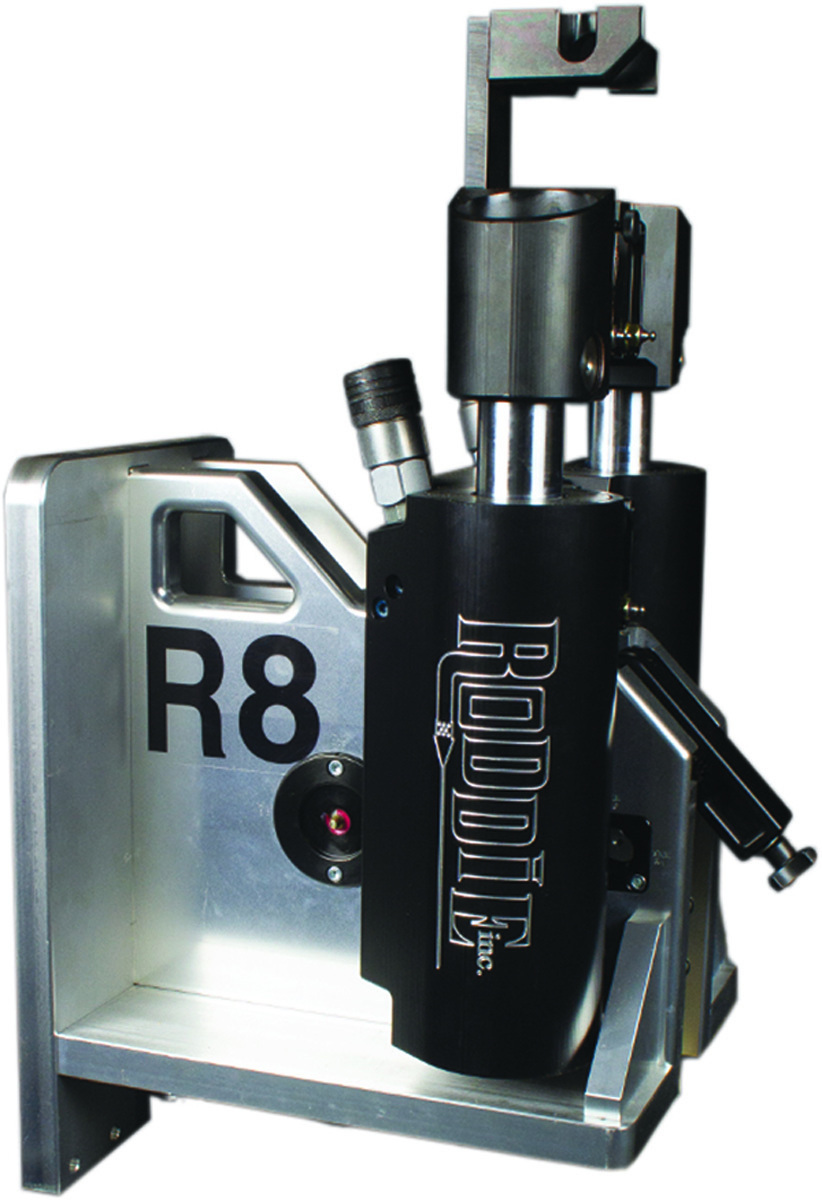

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple, as the user only needs to rinse off and regrease six Zerk fittings.888-406-3821; www.roddieunderground.com
TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements and very tight spaces with limited access.888-883-8742; www.trictools.com
Pipeline Surveying and Mapping

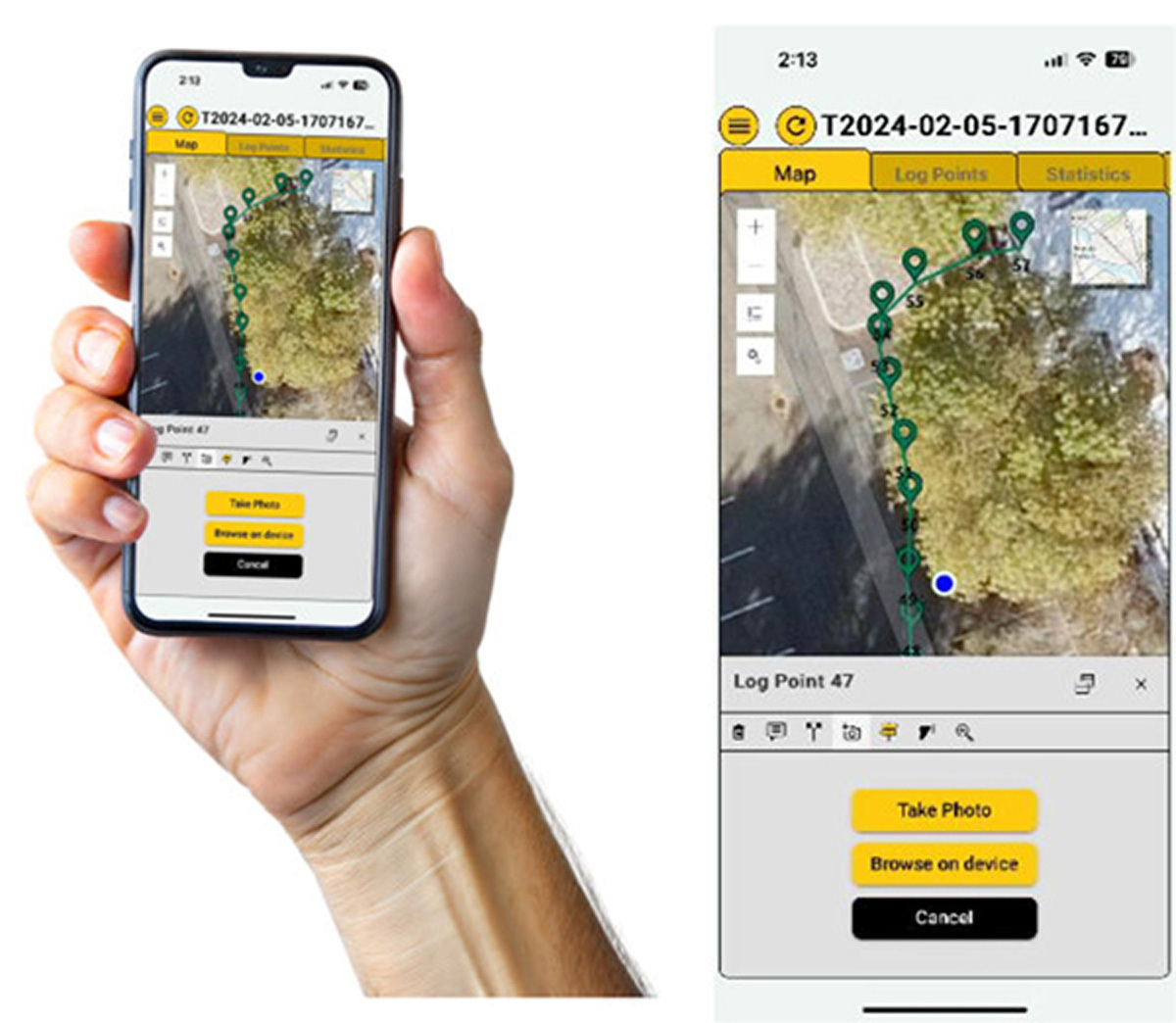

Vivax-Metrotech VMMap Cloud Pro
VMMap Cloud Pro from Vivax-Metrotech is a mobile application for high-accuracy GPS data collection and real-time cloud-based data management. Available for iOS and Android, it enables field workers to efficiently collect, edit and manage location data. It integrates seamlessly with vLoc3 RTK-Pro receivers via Bluetooth, ensuring precise data capture including depth measurements, GPS coordinates and distance between points. The app offers real-time data transfer to the included cloud, allowing internal teams and external partners to view and process information instantly via the VMMap web portal. Users can easily attach JPG images and export data in formats such as .csv, .kml, .xlsx, and more, making it compatible with GIS, CAD and asset management systems. With support for Google Maps, Apple Maps and third-party GPS devices, it enhances workflows, improving communication and productivity in the field.800-446-3392; www.vivax-metrotech.com
Pipeline Rehabilitation/Lining

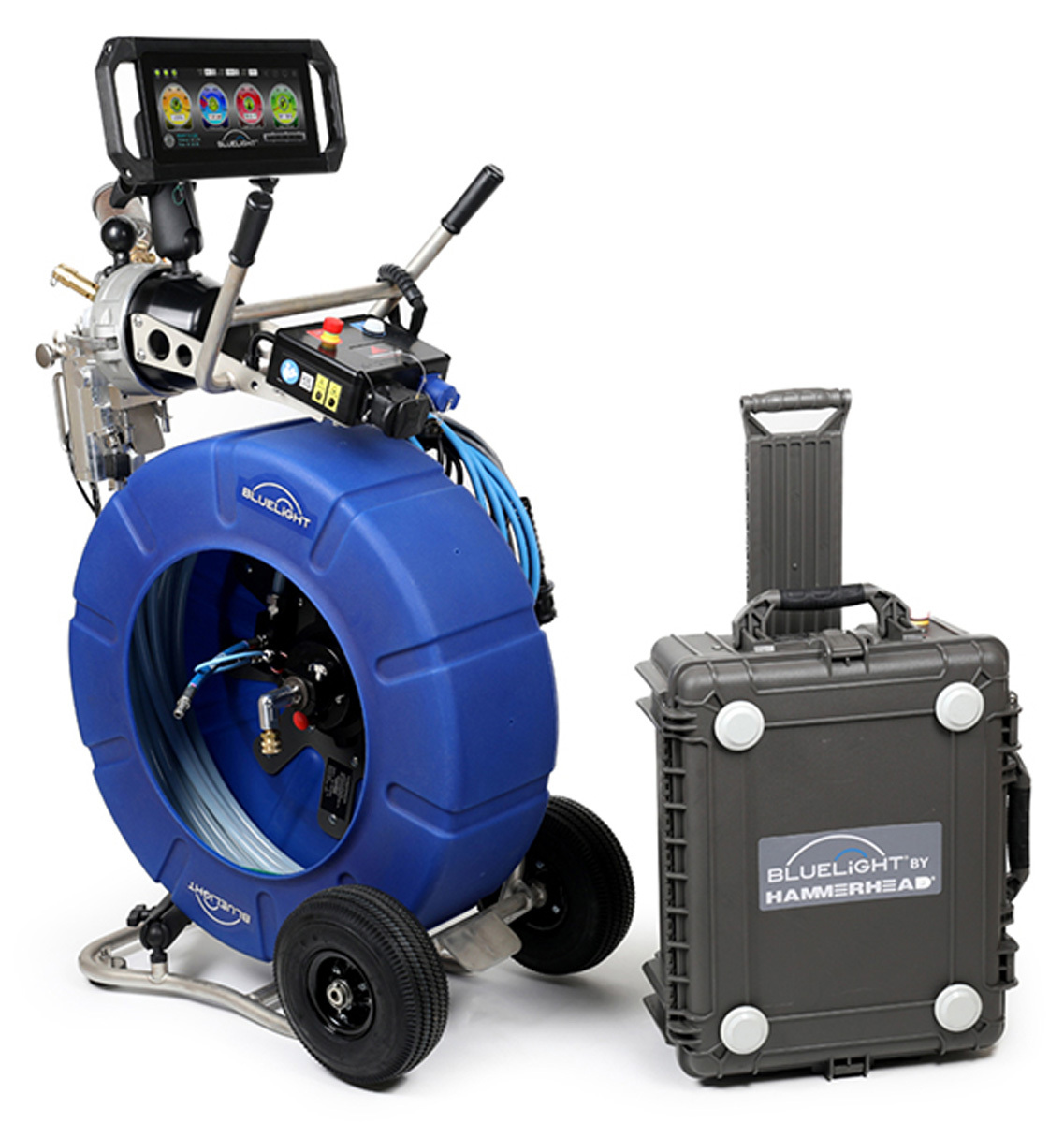

HammerHead Trenchless Bluelight LED
The Bluelight LED CIPP lining system for laterals and small drainpipes from HammerHead Trenchless uses a specially formulated resin that only cures under light in the “blue” wavelength, giving installers a significantly longer working time between liner wet-out and curing. Once installed, the automated curing system pulls the LED light head through the liner, curing the resin almost instantly — up to five times faster than other methods. Instead of waiting hours for the liner to cure, a 50-foot sewer line could be fully cured in under 10 minutes.800-331-6653; www.hammerheadtrenchless.com

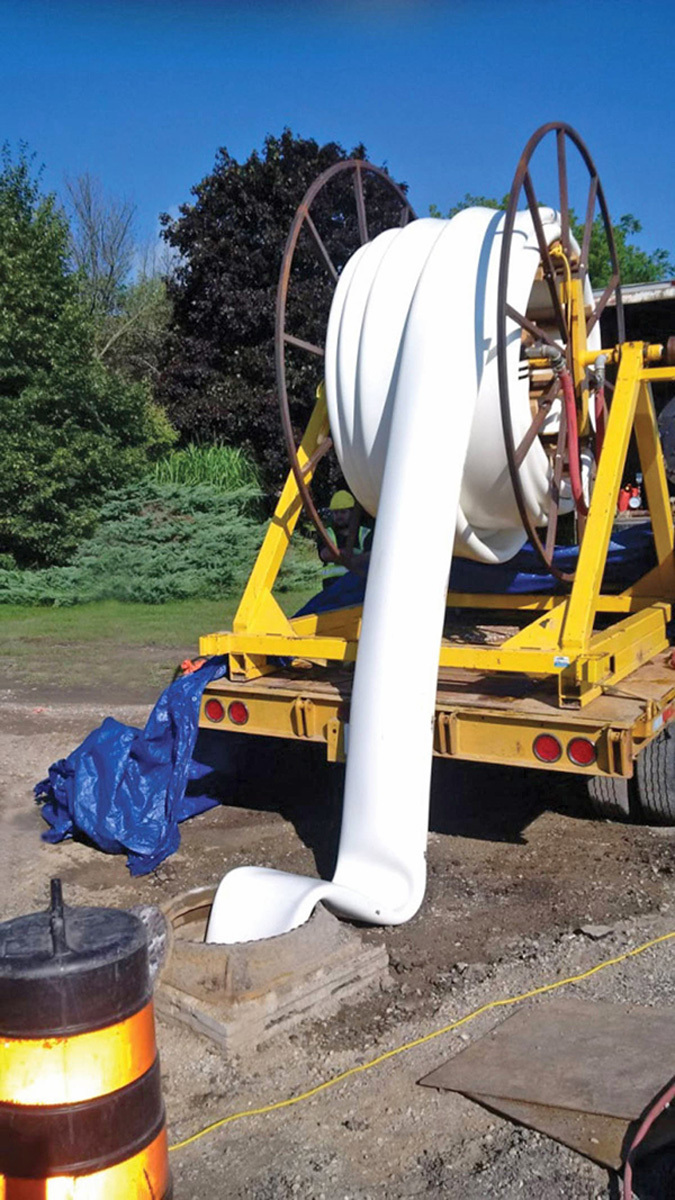

IPEX NovaForm PVC Liner
IPEX has launched a 36-inch size of its NovaForm PVC Liner designed for trenchless rehabilitation of sewer and stormwater culverts. This styrene-free, expand-in-place liner combines durability with flexibility, making it suitable for challenging installation environments. The addition meets the ASTM 1871 standard, enhancing municipalities’ ability to repair infrastructure while minimizing environmental impact. It allows for rapid reinstatement of service through robotic processes, allowing same-day use after installation. The liner is versatile, accommodating repairs for various pipe types, from corroded sewers to deteriorated steel. Factory-made and rigorously tested, it ensures consistent quality and reliability. Additionally, the installation process is environmentally friendly, with steam used for installation and only water discharged at the job site.289-881-0120; www.ipexna.com

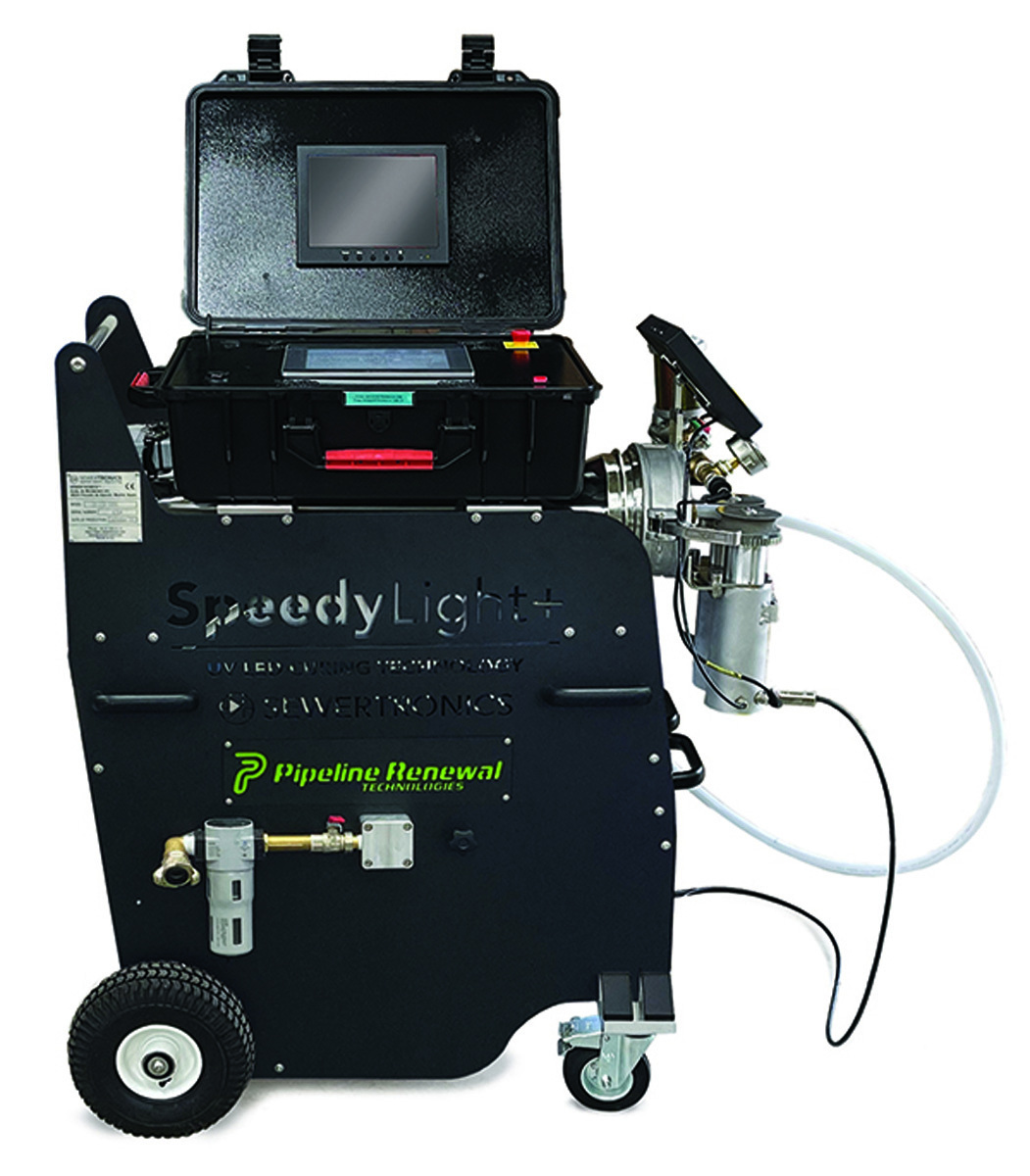

Pipeline Renewal Technologies SpeedyLight+
SpeedyLight+ from Pipeline Renewal Technologies delivers LED-based UV light-curing technology for trenchless pipe rehab. It is fast, results in stronger liner and is less disruptive to communities and businesses. Closures are minimal and work is able to be completed without having to relocate occupants. LED UV cure eliminates safety risks such as the wrong mixing of resins or dealing with boiler systems. There are no working time considerations, as you turn the light on and off any time you want to stop or start the cure. Interchangeable cure heads show operators what’s happening underground, giving them the ability to control the speed and accuracy of the cure. It cures felt or GFRP liner and can cure 90-degree bends in lines down to 2 inches, as well as transitions and verticals.866-936-8476; www.pipelinert.com
Trenchless Pipe Replacement

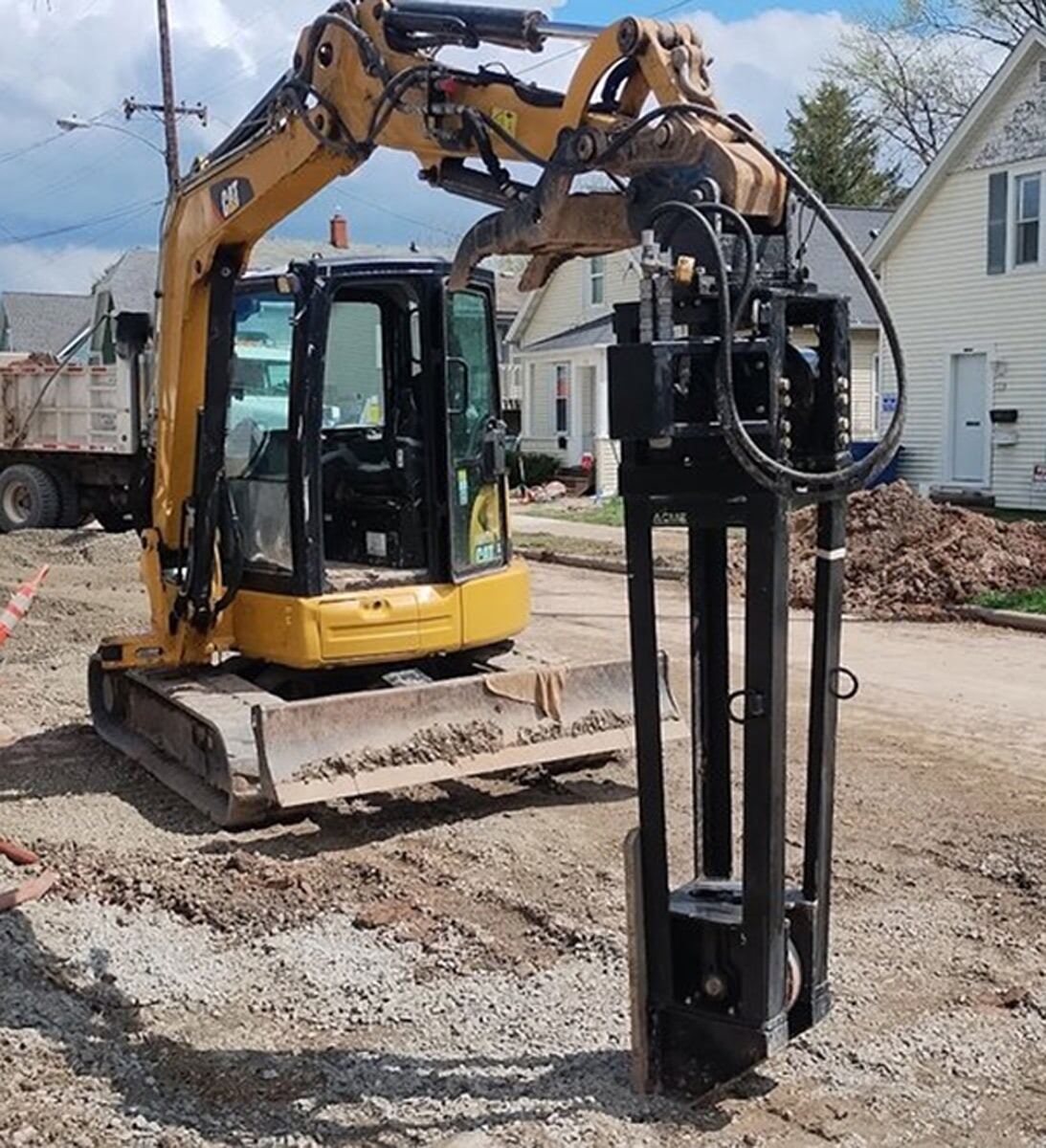

ACME Trenchless Pipe Winch
The ACME Trenchless Pipe Winch makes trenchless pipe pulling quick, and routinely easy. It delivers the pulling power needed — 20,000 pounds breakout force — applied to MAX 7/16 pulling cables which have a minimum rated breakpoint of 24,000 pounds. The pulling cables are reusable, and tensioned pulling cable remains inside the confines of the winch frame. It attaches to a compact excavator or backhoe via a quick coupler and will dispatch to the access pit at any approach angle, allowing for the preservation of the original bury depth of the existing waterline. It works with lead, galvanized, copper and plastic piping.920-376-4222; www.acmetrenchless.com

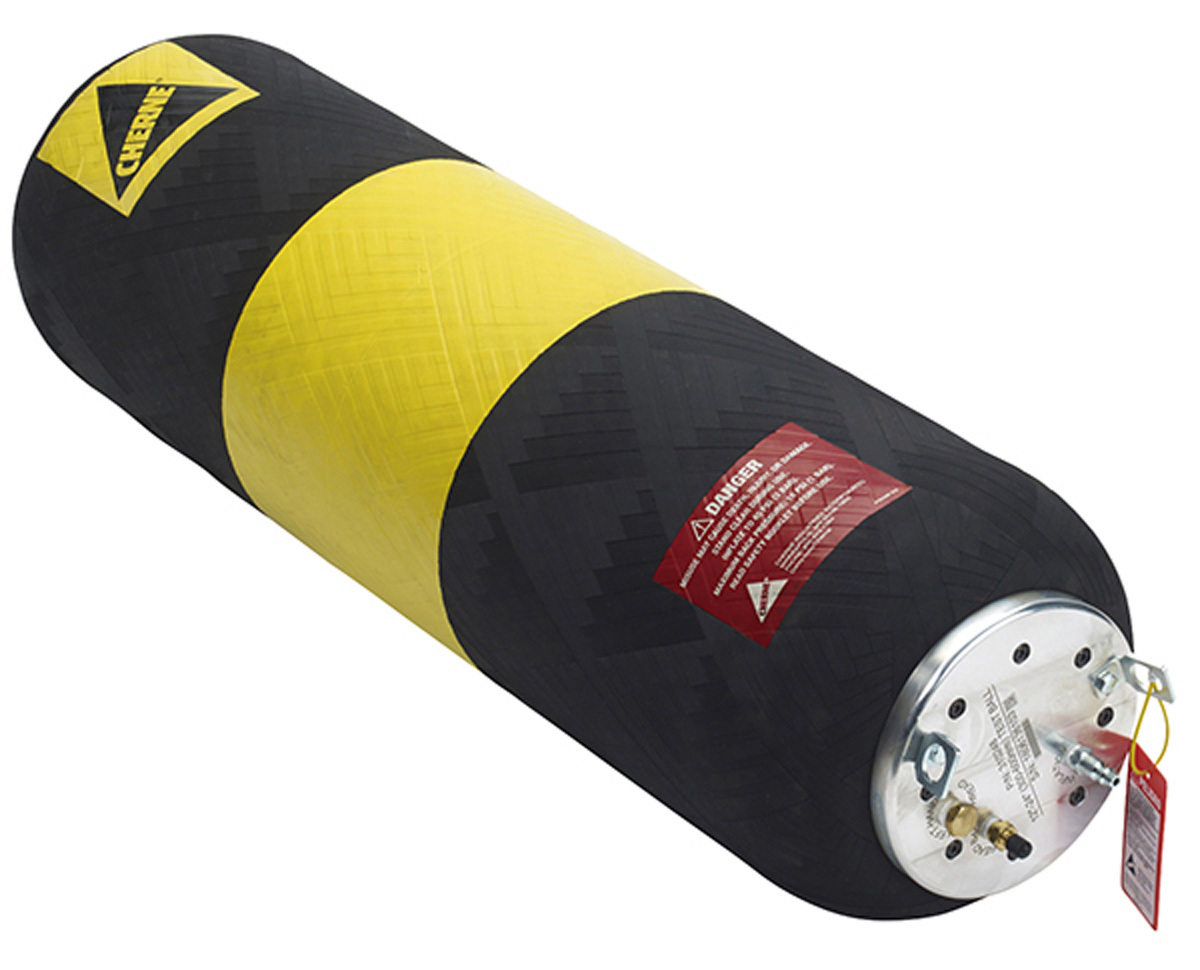

Cherne I-Series Test-Ball Plugs
Cherne I-Series Test-Ball Plugs are lightweight, short and flexible, delivering state-of-the-art solutions for blocking and bypassing flow, installing new pipes and junction boxes or repairing old ones and installing or repairing utility holes. Available in eight expansion ranges, from 6 to 24 inches, they meet U.S. and international industrial and municipal needs for engineers and contractors. The plugs feature robotic, mechanical bonding of aluminum end plates to the plugs’ premium natural rubber to eliminate chemical bonding failures. They provide improved performance and safety through optimized design and superior back pressure (maximum: 15 psi; inflation pressure: 45 psi).800-843-7584; www.cherneind.com
