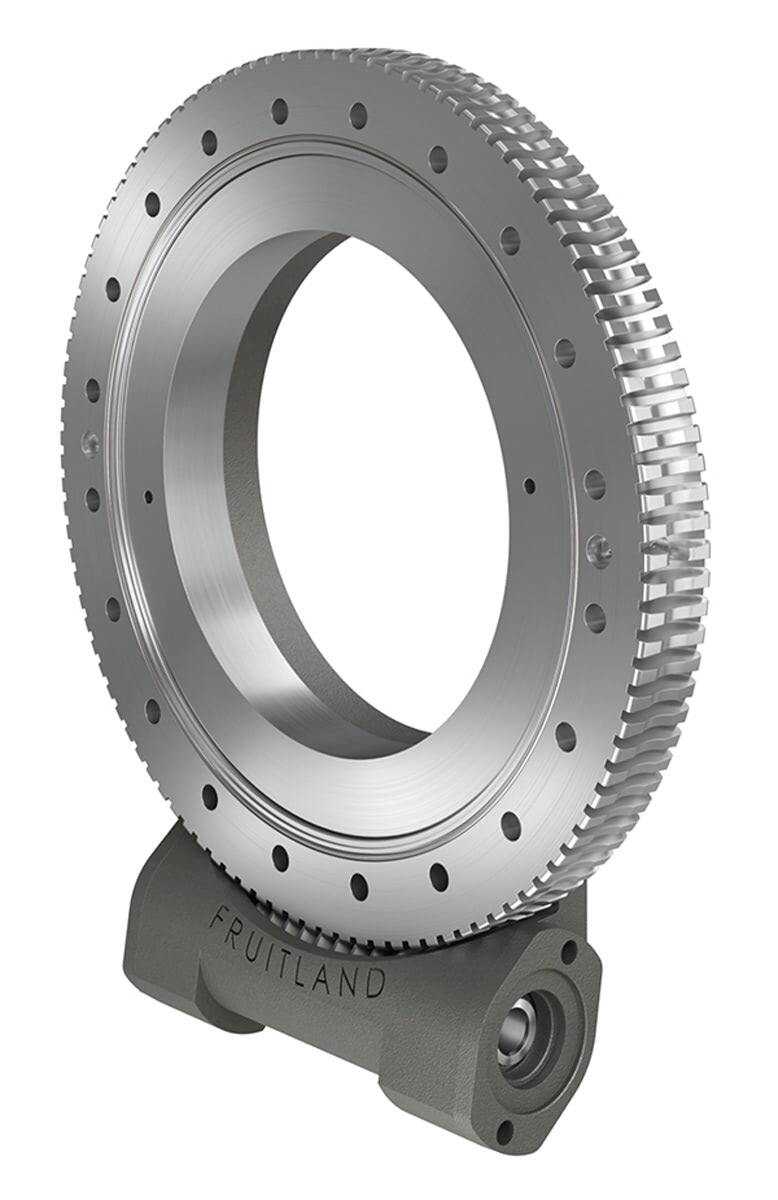

Fruitland Manufacturing offers a full line of boom swivels or slewing rings/rotating seals in a variety of sizes and configurations. These are essential components for any boom-mounted mobile vacuum system and are engineered for use in high stress environments throughout many industries. Available in interior diameters ranging from 4 to 17 inches, the swivels can be geared or nongeared, and can be worm-, pinion- or manually driven depending on the application. They have in-house laser-hardened bearing courses for superior durability in high-stress conditions, high-carbon steel rings for enhanced strength and longevity, high-quality stainless steel bearings to ensure smooth, reliable operation and custom-made wiper seals for an airtight seal under vacuum conditions.800-663-9003; www.fruitlandmanufacturing.com
Hot Water Boilers

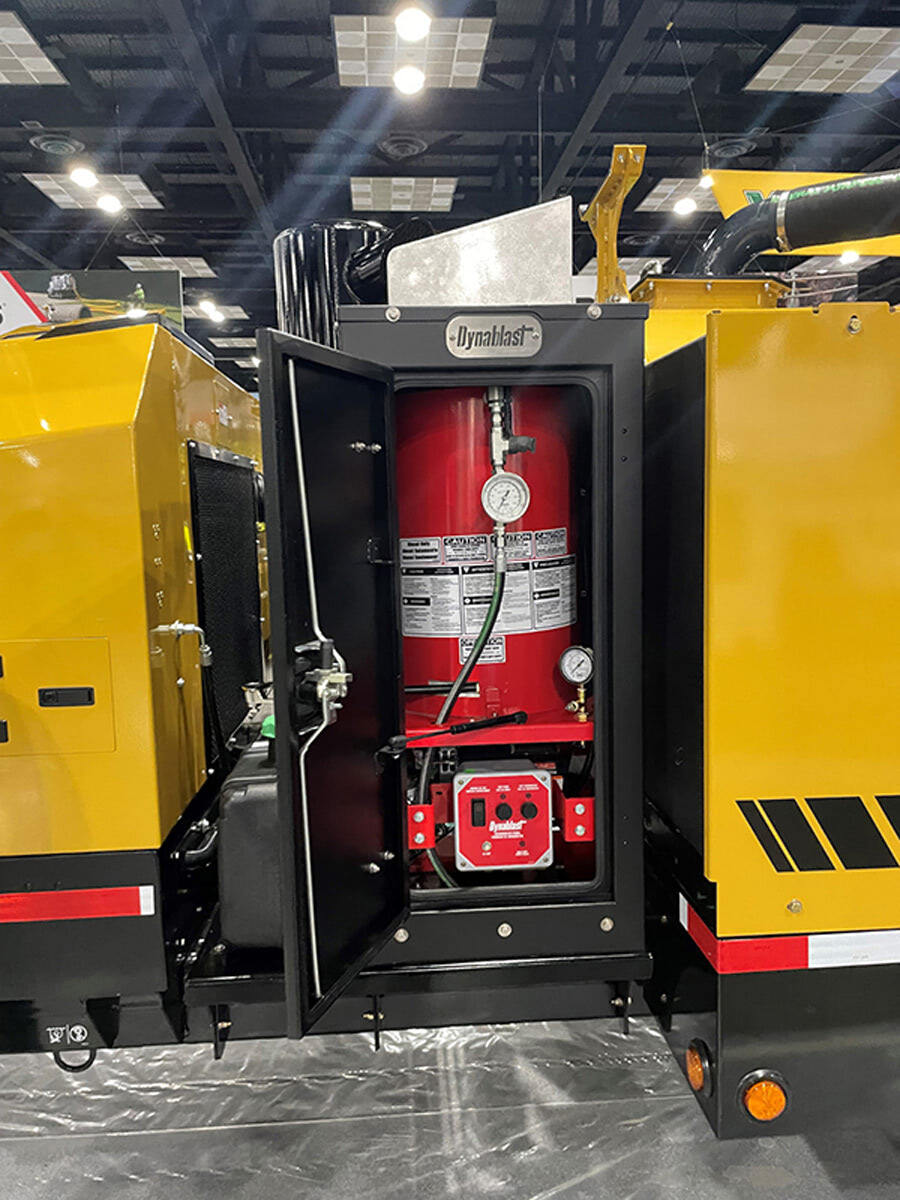

Dynablast CAB300FLS-12V
The Dynablast CAB300FLS-12V hydrovac trailer water heater produces 300,000 Btu with an output temperature of 175 degrees F at 4 gpm, making it ideal for colder climates and improves digging in clay-filled areas. All models comes with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, stainless steel target plate for increased coil life and designed with serviceability in mind with momentary override control. Its full cabinet design with a 19.5-by-23-inch footprint makes it ideal for compact installations.905-867-4642; www.dynablast.ca

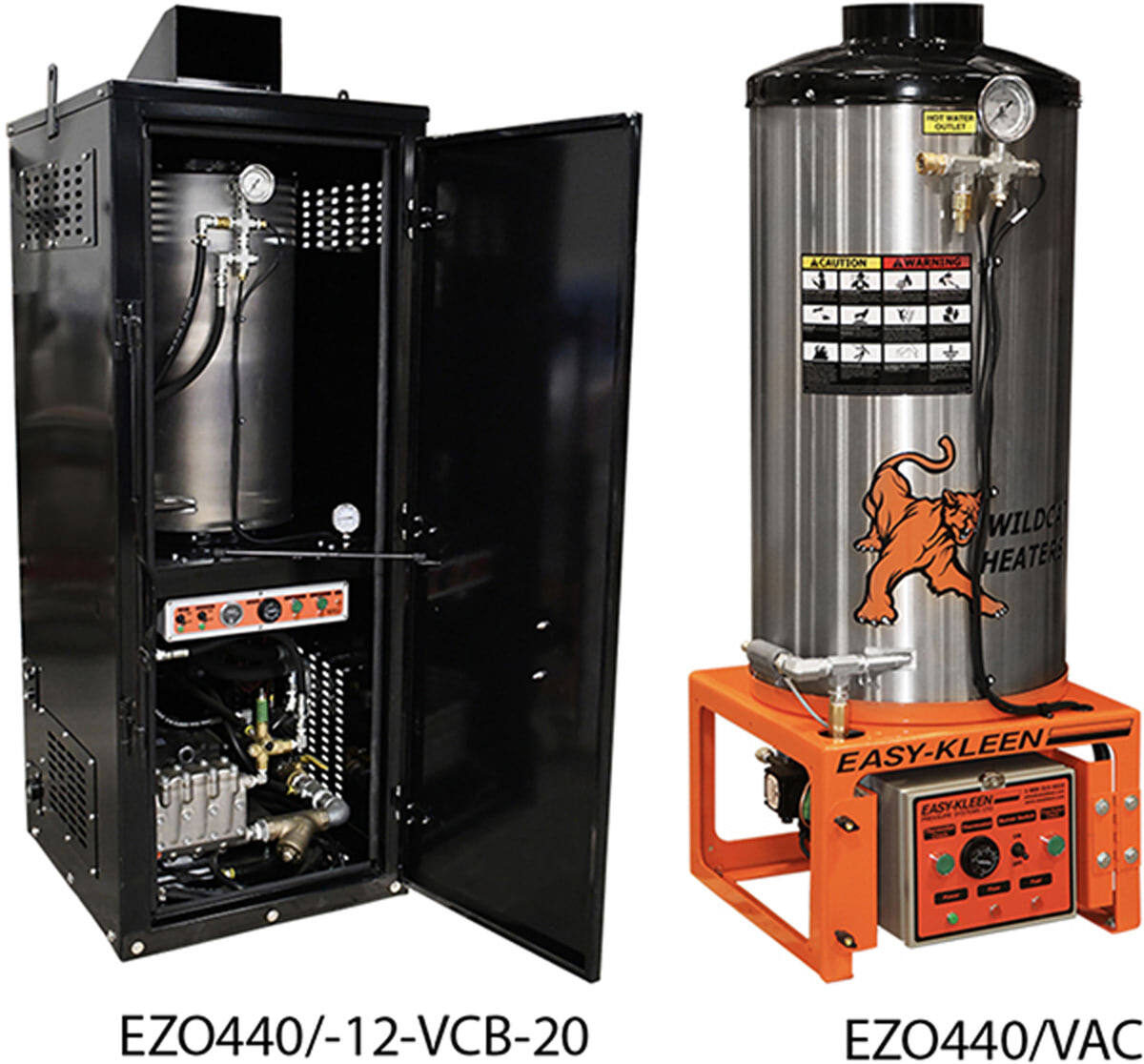

Easy-Kleen Pressure Systems WildCat Heaters
WildCat plug-and-play fully enclosed modular hot-water heater cabinets from Easy-Kleen Pressure Systems are designed for heating high-pressure water efficiently, well protected and ready to roll. They deliver powerful performance in a compact, fully enclosed package, providing 20 gpm at 4,000 psi, making it ideal for demanding industrial cleaning applications. The cabinet design offers protection from the elements and easy access for maintenance. For installations requiring a more open design, the EZO440/VAC offers the same 440,000 Btu heating capacity in a frame optimized for vacuum and hydrovac trucks. This versatile unit can handle pressures up to 10,000 psi with schedule 160 pipe, providing exceptional flexibility for various cleaning tasks. Both models are equipped with oil-fired burners featuring adjustable thermostats, ensuring efficient and reliable operation. The EZO440 series offers heating power ranging from 200,000 to 2 million Btu.800-315-5533; www.easykleen.com
Hydroexcavation Equipment

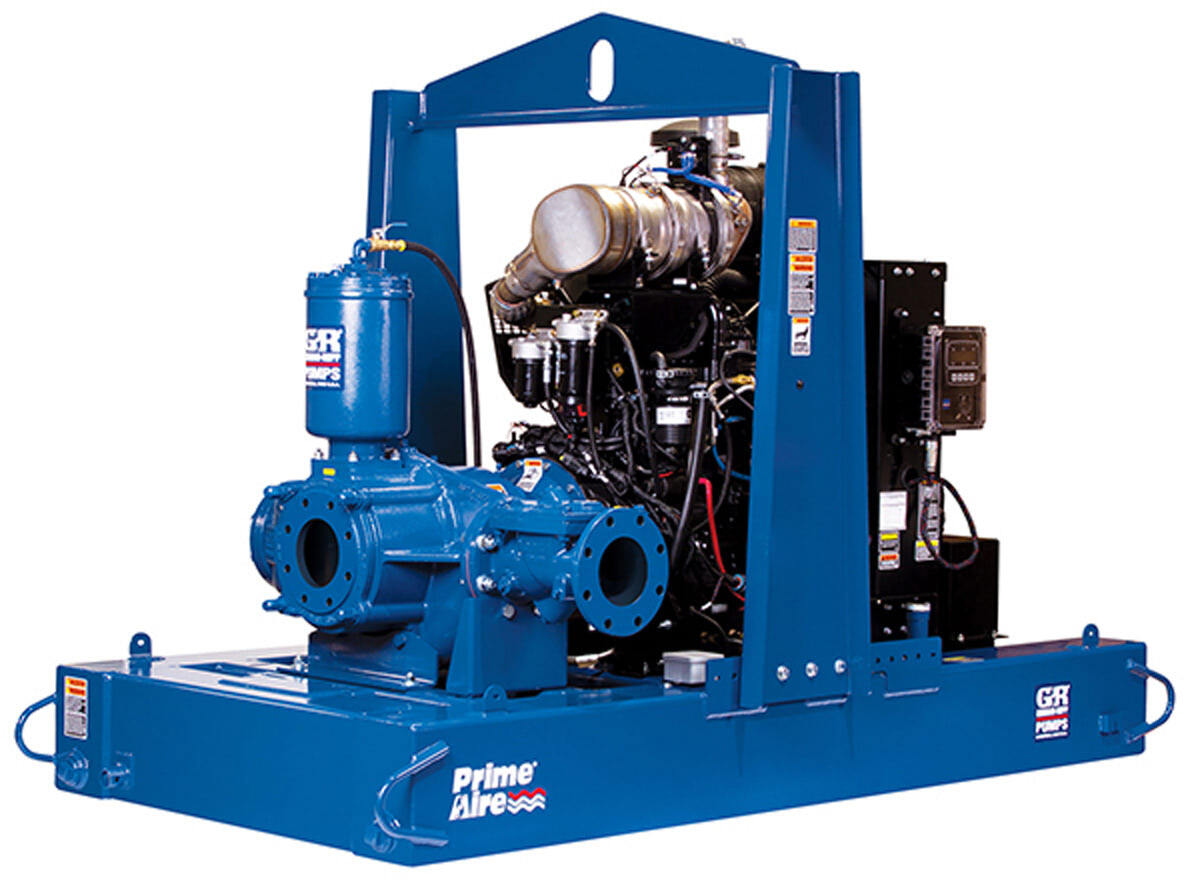

Gorman-Rupp PA6C60-4045T FT4
Gorman-Rupp’s PA6C60-4045T FT4 priming-assisted trash pump comes equipped with a venturi compressor priming chamber and priming valve system. This system eliminates leaks associated with other vacuum-assisted pumps and reduces environmental concerns on sewage bypass operations, allowing the pump to operate under flooded conditions without leaking. This 6-by-6-inch pump model is powered by a 74 hp Tier IV John Deere diesel air-cooled engine. Constructed of ductile iron, this pump features a two-vane impeller capable of passing a 3-inch-diameter solid. This model can handle flows up to 2,100 gpm, and heads to 148 feet. It is available with an optional single-axle wheel kit or tandem-axle over-the-road trailer for increased portability.419-755-1011; www.grpumps.com

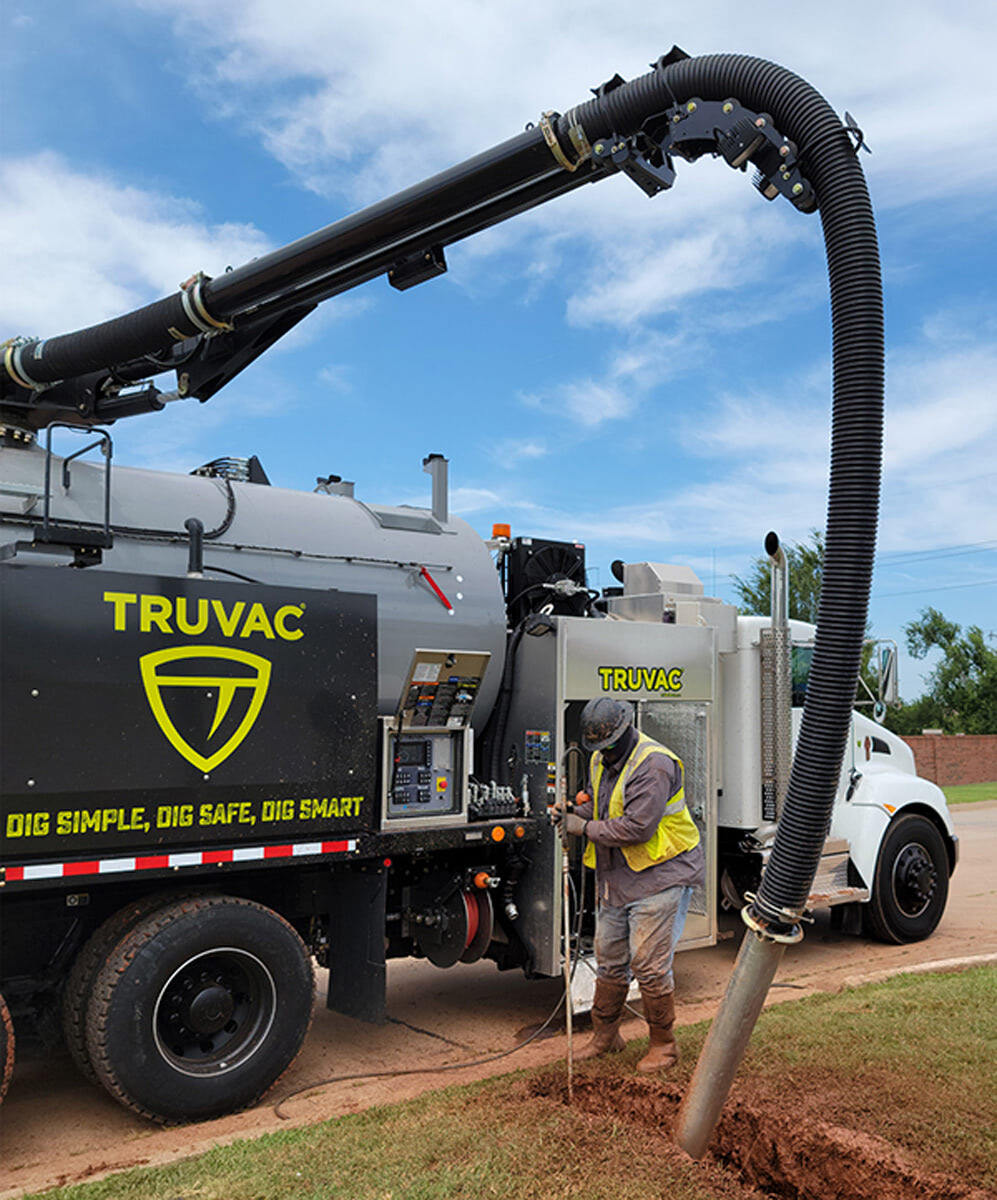

TRUVAC DigRight Technology
TRUVAC’s DigRight Technology revolutionizes hydroexcavation with safety and efficiency. Its advanced variable water flow pump adjusts precisely to nozzle needs, avoiding excess pressure and protecting both equipment and underground utilities. Operators can set three customizable pressure limits and can adjust water pressure using a wireless handheld controller. It helps prevent utility damage and ensure operator safety, streamline operations by automating water flow, and minimize water-related property damage, empowering contractors to work smarter, reduce risks and improve productivity across all sectors. The technology is available on all TRUVAC vacuum excavators, with models available for any size job.815-672-3171; www.truvac.com
Hydroexcavation Trucks and Trailers

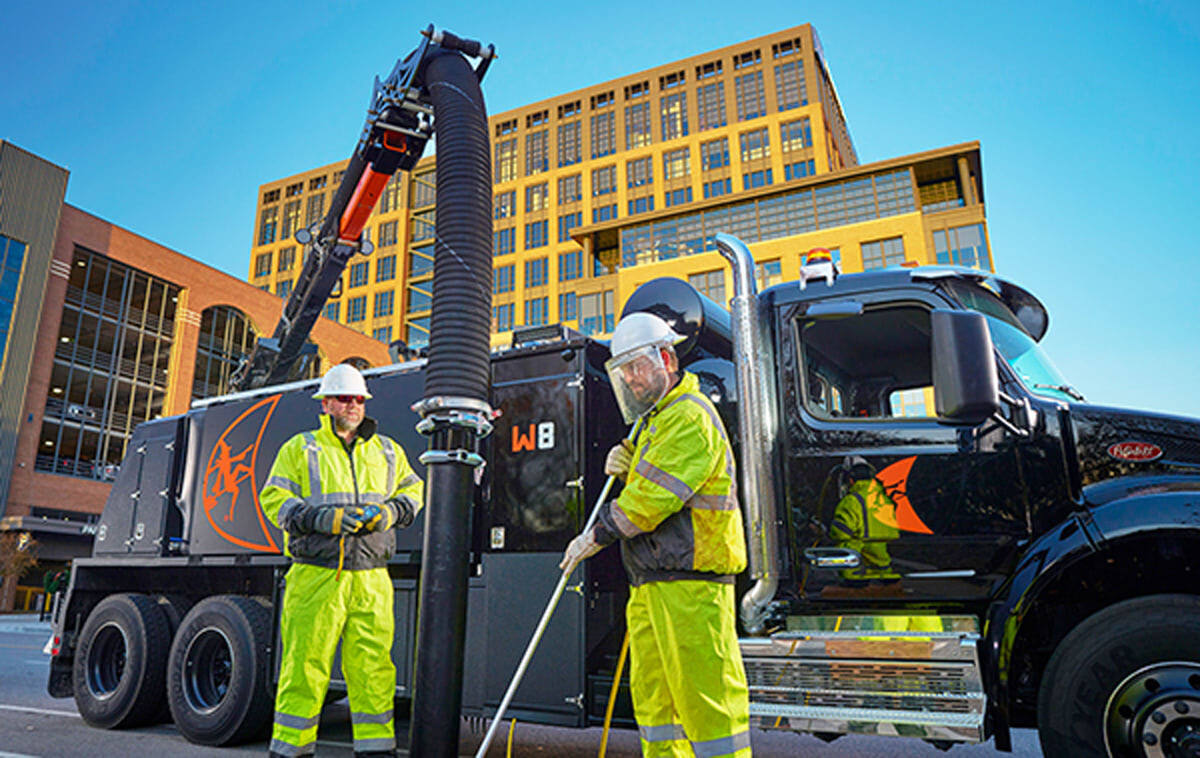

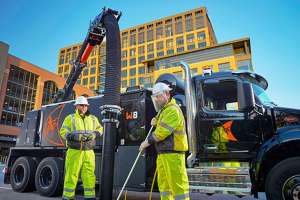

Ditch Witch Warlock W8
Ditch Witch’s Warlock W8 hydrovac truck provides contractors with a powerful and agile solution for potholing, slot trenching and cleanup tasks. It is the latest addition to the Warlock series of truck vacs, delivering robust performance and powerful suction capabilities in a compact machine, making it ideal for underground construction professionals, municipalities and utility contractors operating in tight urban areas. With an 8-inch dig tube, 800-gallon water capacity, and an 8-cubic-yard spoils tank (1,600 gallons), the W8 offers powerful 27 Hg vacuum power, the same as the W12.580-336-4402; www.ditchwitch.com

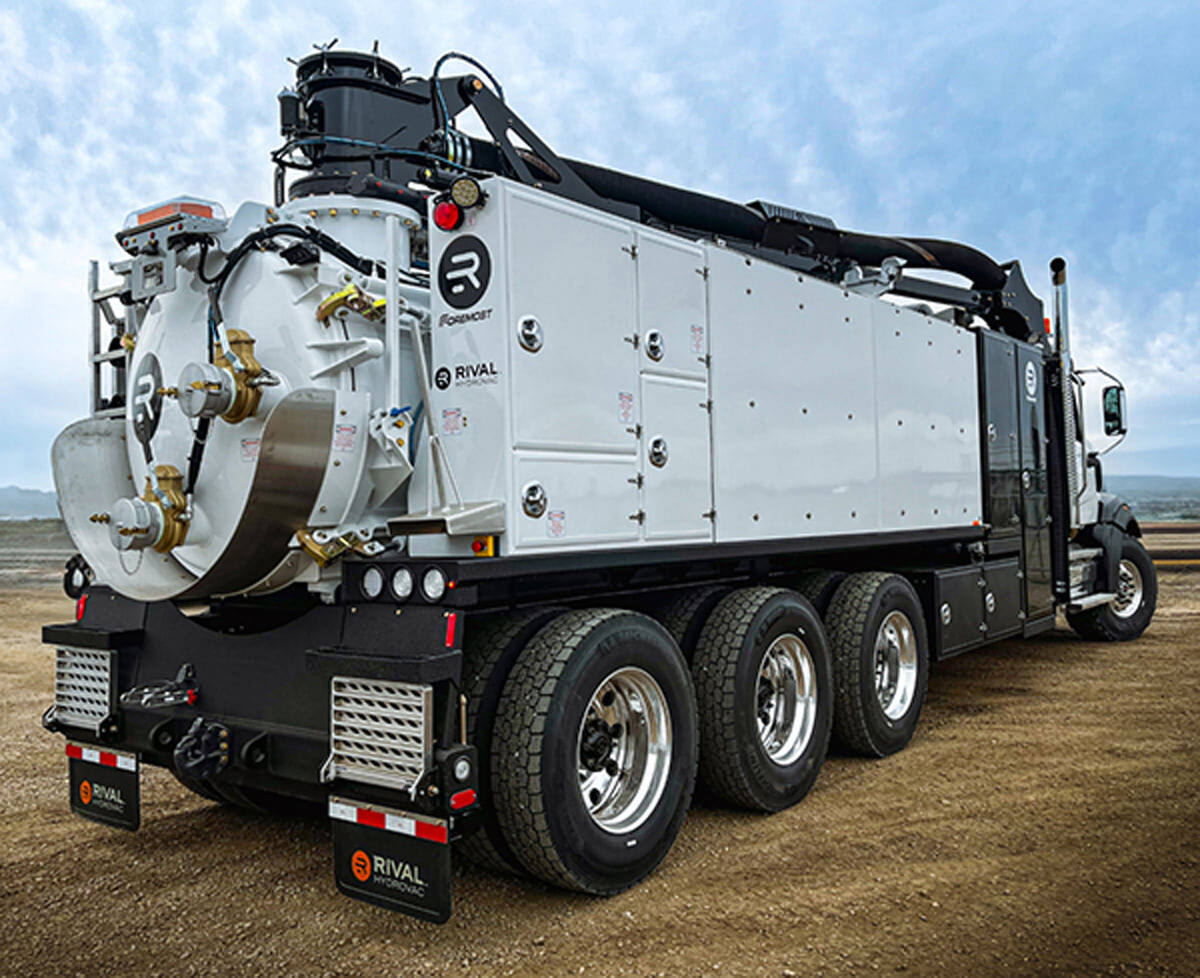

Foremost Rival T10
The Rival T10, engineered by Foremost, is a top-performing hydrovac built for efficiency and durability. It features poly saddle tanks with 1,200-gallons of freshwater capacity and a 10-cubic-yard debris tank with a three-stage hoist and pressure-off capability for seamless offloading. Standard components include a Robuschi 125 blower, Interpump T2040 water pump, and a 420,000 Btu boiler. Operator convenience and safety are enhanced with an Aarcomm remote system, backup cameras and an Airweigh Scale system for real-time weight monitoring. Options include an air compressor package, multicyclone separator, tank vibrator and a high-capacity water pump. Every unit comes with a standard winterization package for colder climates and is job site ready. It can be mounted on a tridem, tandem with a pusher axle or quint chassis (tandem with two pushers and a tag), providing versatility for various applications and road laws.403-295-5800; www.foremost.ca

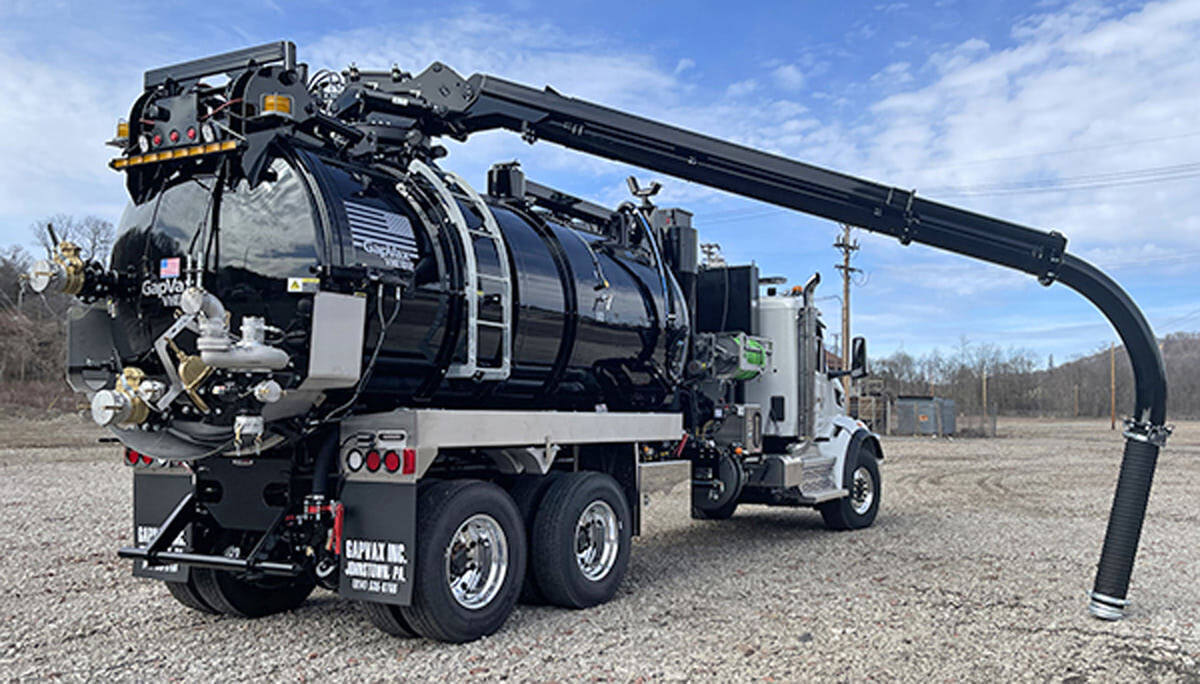

GapVax VHE
The GapVax VHE hydrovac is built for strength and simplicity. The full-length 6-inch subframe reinforces the chassis frame and provides a stable dumping platform. It comes standard with a full-opening tailgate and 50-degree dump angle for fast, efficient unloading. Customizable options include water tanks from 300 to 2,000 gallons, debris bodies from 4 to 15 cubic yards, and a standard 4,500 cfm, 18-inch Hg blower (an 4,000 cfm, 27-inch Hg option is available). Water systems range from 19 gpm and 2,900 psi up to 40 gpm and 5,800 psi. Its improved 8-inch telescoping boom rotates 180 degrees, uses heavy-duty dual lift cylinders for consistent positioning, and dips down 8 feet lower than the previous model. The multi-stage filtration system features a stainless steel float ball shut-off, self-cleaning cyclone separators and an easy-clean cartridge filter.888-442-7829; www.gapvax.com

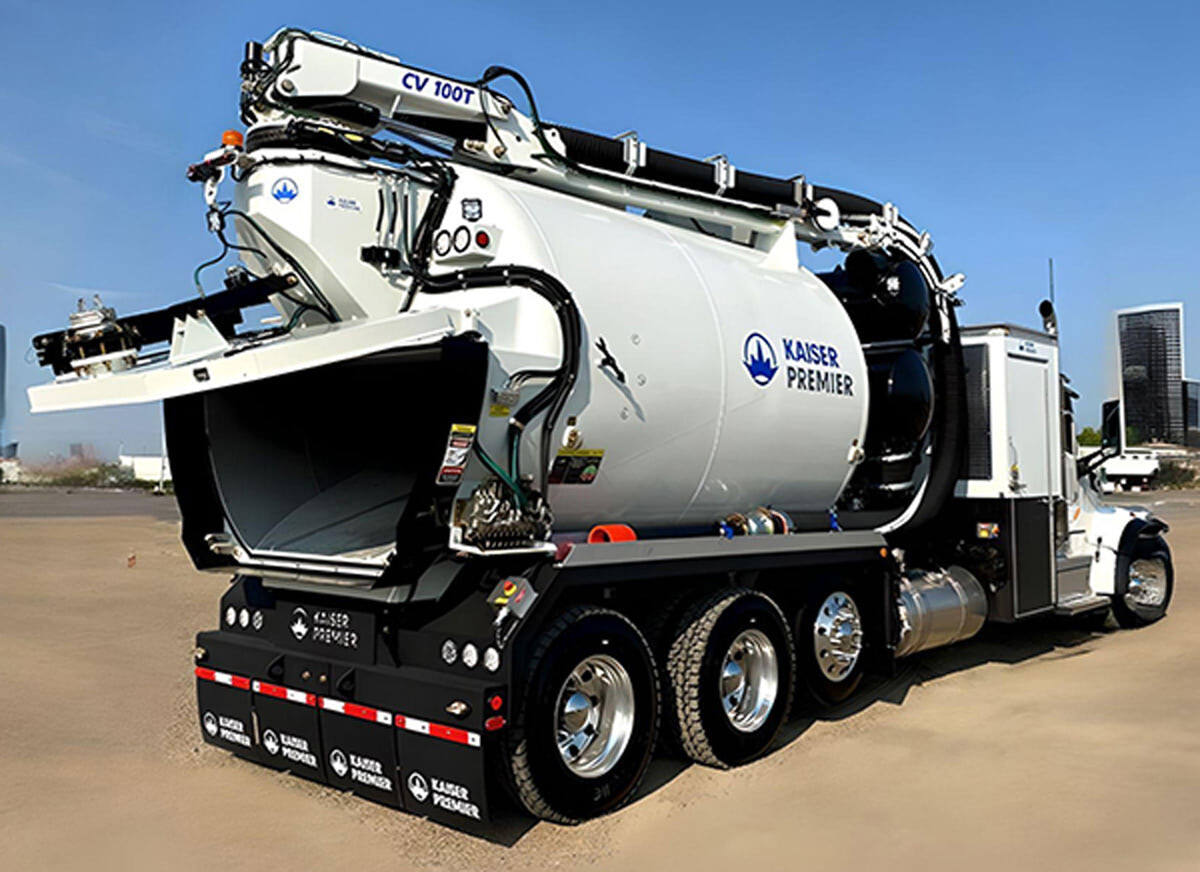

KAISER PREMIER CV Series
The CV Series line of hydrovacs from KAISER PREMIER employ a powerful Robuschi DV145 — a 27-inch Hg, 6,250 cfm positive displacement blower. The unit comes ready to dig with its Top Gun boom that allows 342-degree rotation and a 26-foot reach or 20-foot depth without clamping on extension pipes. It carries 1,800 to 2,200 gallons of water depending on the model. Material evacuation is simple with its wide-mouth door. There is no need to raise the truck bed, as a sloped floor uses gravity, a high-flow washout system and optional dozer plate to quickly and easily offload material. All critical components are centralized and housed in a protected, insulated and heated van body.970-542-1975; www.kaiserpremier.com

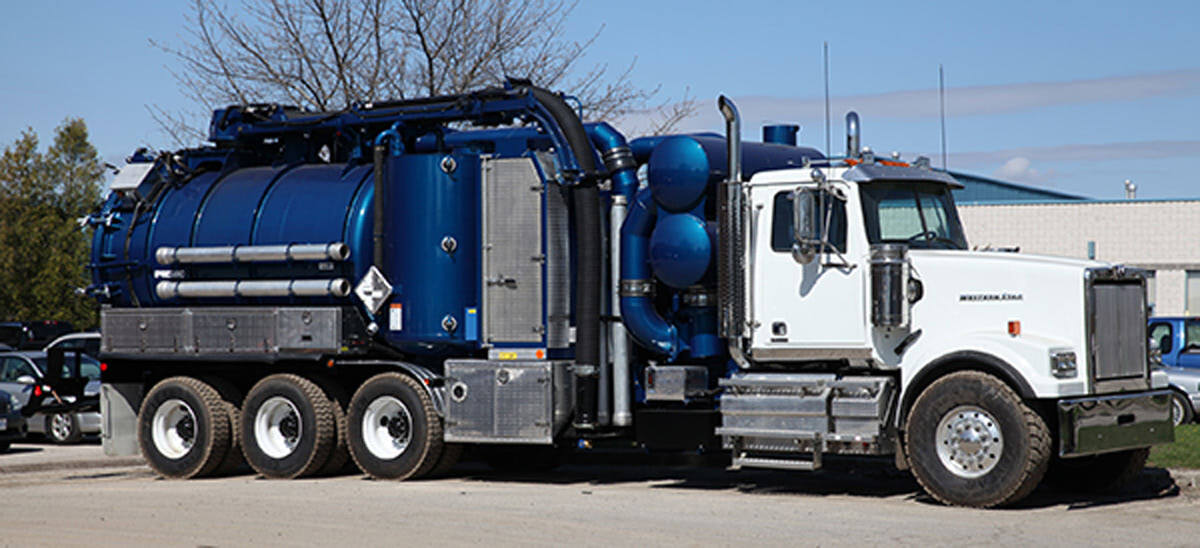

Presvac Systems Hydrovac
The Presvac Systems Hydrovac is designed for versatility and cold-weather operation with optional full compliance with U.S. Department of Transportation specifications for collection or transportation of hazardous materials. The high-vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt material, with knockout features in the debris tank to minimize carryover. Modular filtration configured to blower size provides blower protection and minimal maintenance. It comes with a heavy-duty, 8-inch boom that extends up to 25 feet with six-way hydraulic power and wireless controls for all boom functions, a soft-start water pump, vacuum breaker and truck engine speed.800-387-7763; www.presvac.com

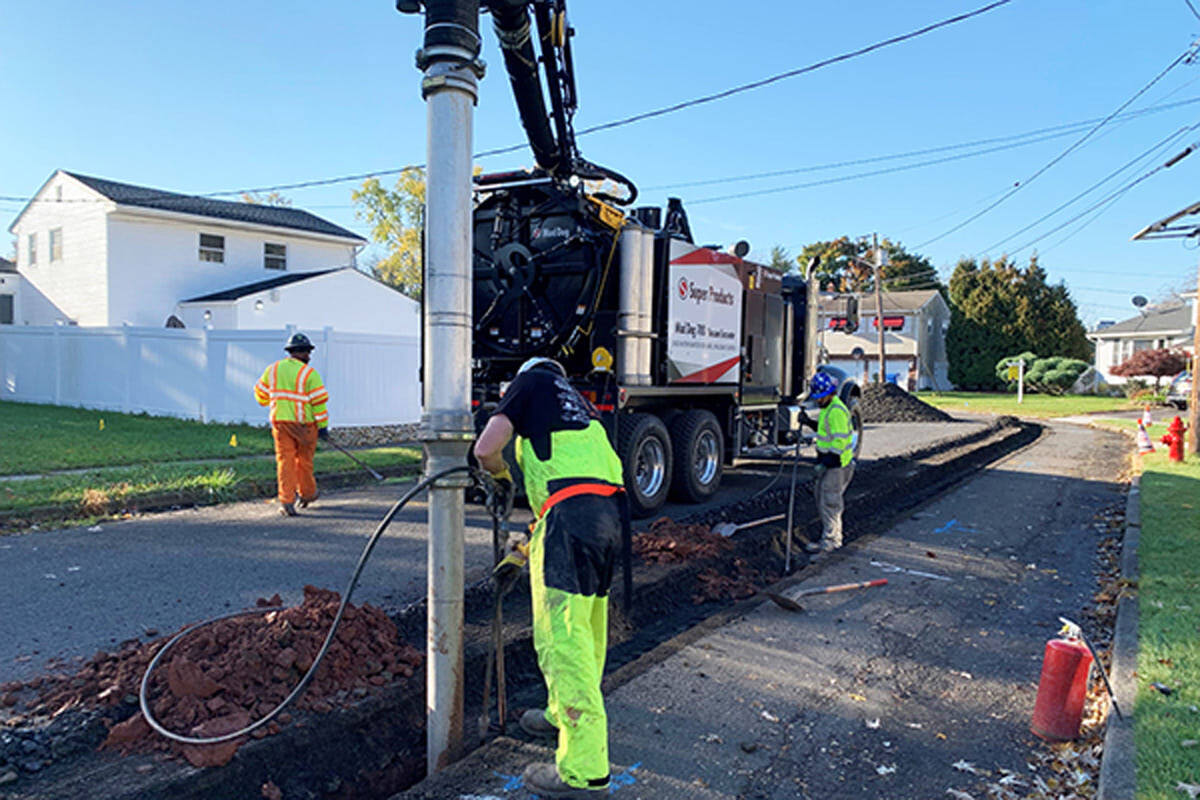

Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads.800-837-9711; www.superproducts.com

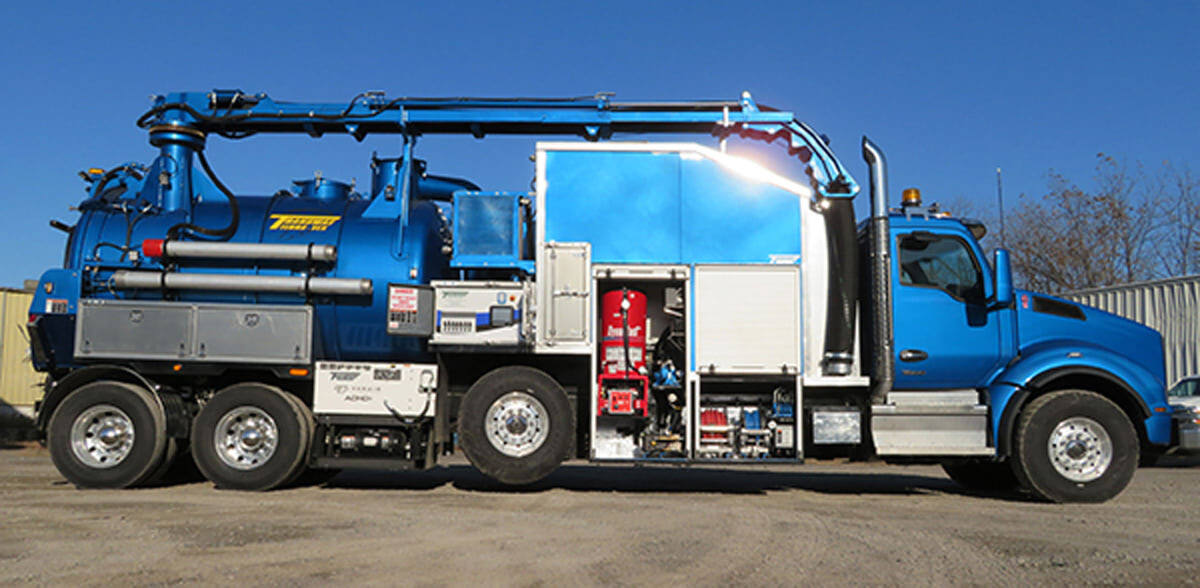

Transway Systems Terra-Vex
The Terra-Vex hydrovac from Transway Systems features a newly developed hydraulic system for advanced water system control. This provides consistent pressure output, allowing for greater operator precision, safer excavation and reduced water waste. By dynamically adjusting flow based on demand, it adapts in real time to varying soil conditions and job site requirements. Designed as a single-operator unit, it simplifies operation without sacrificing performance — making it an ideal choice for lean crews and fast-paced job sites. It is engineered with fewer components, helping reduce long-term maintenance, streamline servicing and minimize the risk of failure in the field. This not only enhances reliability, but also contributes to a lower overall cost of ownership.800-263-4508; www.transwaysystems.com

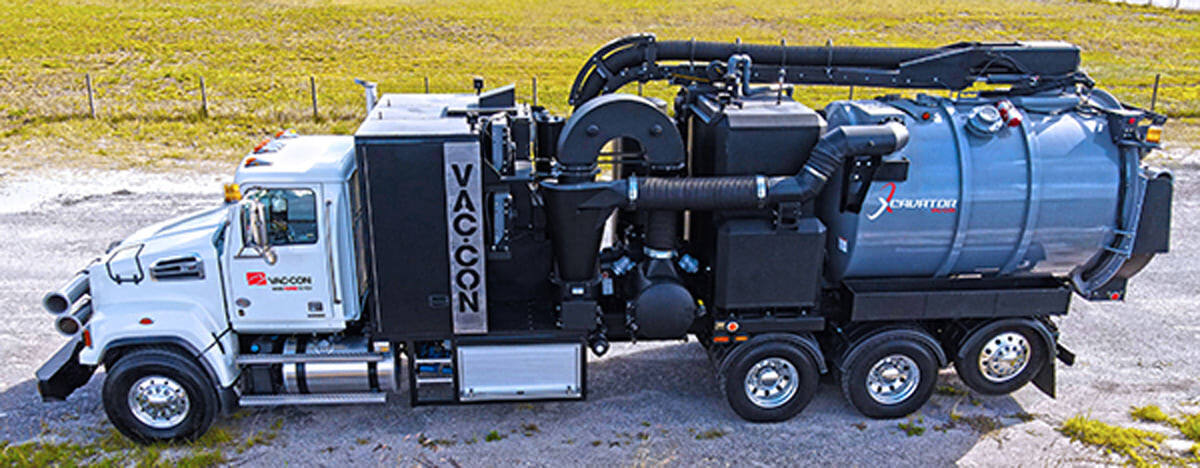

Vac-Con X-Cavator
The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet.904-284-4200; www.vac-con.com

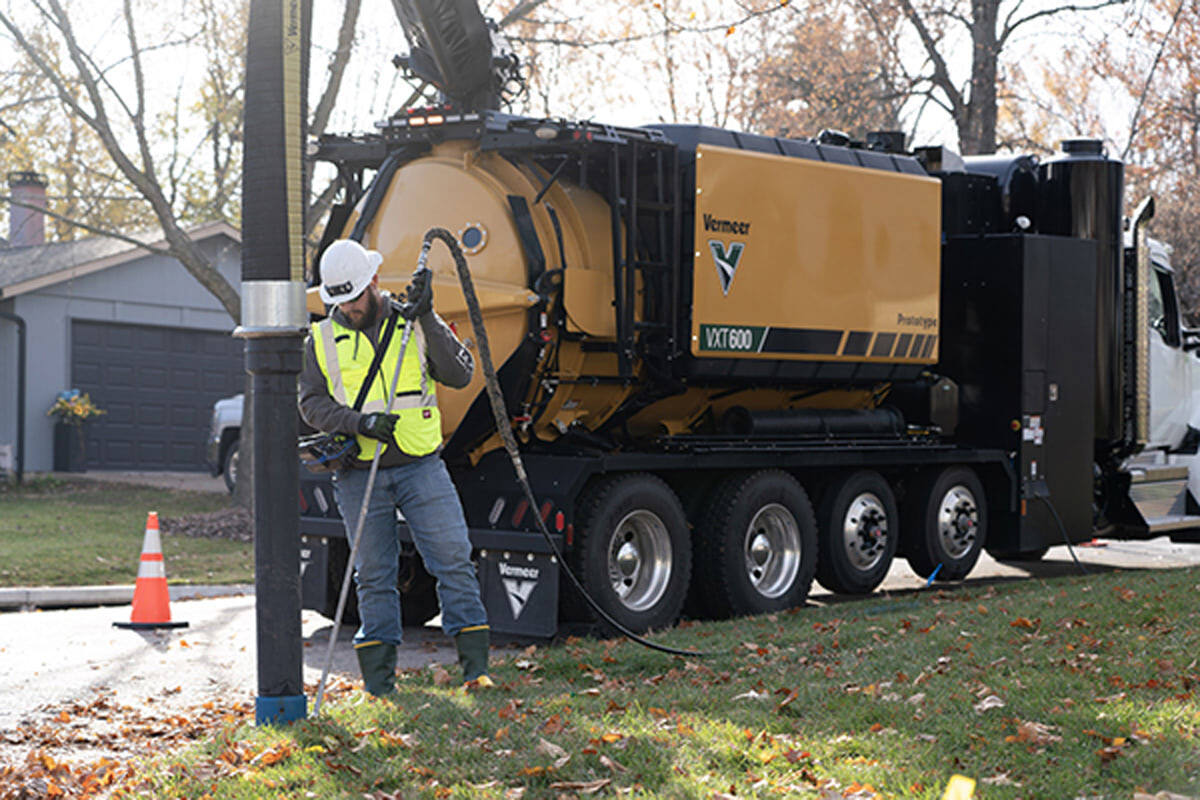

Vermeer VXT600
With a 12-cubic-yard elongated spoil tank design and 1,200-gallon freshwater tank capacity, the Vermeer VXT600 vacuum truck is the lightest vacuum excavator in its size class, weighing in at just 40,000 pounds. This design allows for even weight distribution when traveling while maximizing the volume of material hauled. It also has a low profile with a height (with boom) of 12.25 feet so that it can maneuver under trees, power lines and bridges. It features a vacuum system that is powered by a 6,400 cfm Helical tri-lobe Jurop blower. With a 23-foot boom, an 8-inch-diameter dig hose, a vacuum level of 27 inches Hg, and a water pump that produces 10 gpm of flow at 3,000 psi, it can dig quickly and deeply. Additionally, the boom dig hose can be stowed with the dig tube attached to minimize setup time between digs. 352-728-2222; www.vermeer.com
Nozzles

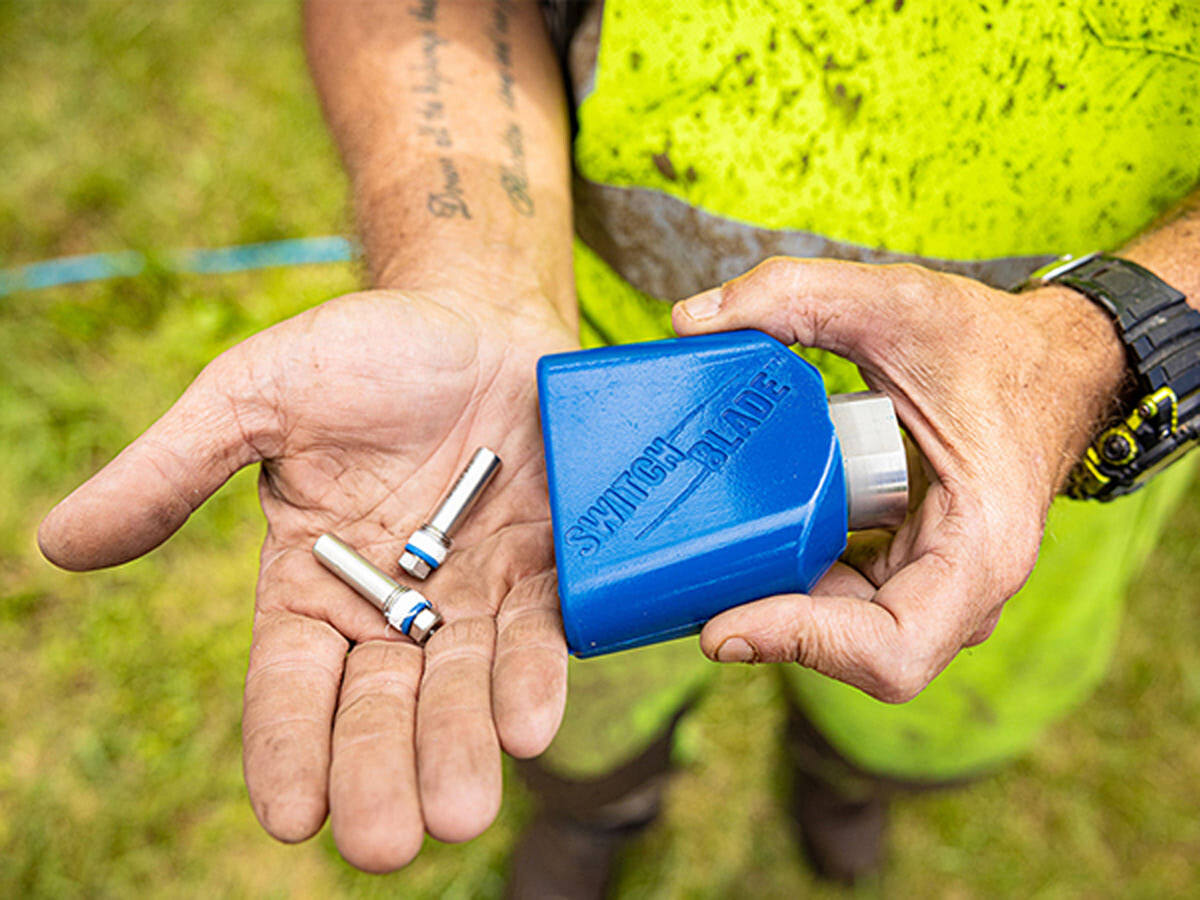

Hydra-Flex Switchblade
The Switchblade from Hydra-Flex offers versatile, straight-stream power to the hydroexcavation industry. With three steam options, the user can seamlessly transition from precision work with the Ace (single-stream) to efficient wide slot trench digging with the Quad (four-stream option) and anything in-between with the Deuce (dual-stream). Each stream features a 0-degree static flow to deliver a powerful force for faster and more effective results. It also utilizes interchangeable pills for easy flow changes in the field. This allows the user to adjust to the exact needs of your job and equipment to ensure the best performance on every task.952-808-3640; www.hydraflexinc.com
