Construction sites are always on the lookout for ways to increase efficiency and accomplish tasks with fewer machine movements. Tiltrotators can help, as the versatile attachments for excavators are designed to enable operators to rotate and tilt their working tools (like buckets, grapples, etc.) 360 degrees and up to 45 degrees, significantly increasing precision and flexibility. This allows for a wider range of tasks to be performed from a single machine position, enhancing efficiency and productivity.

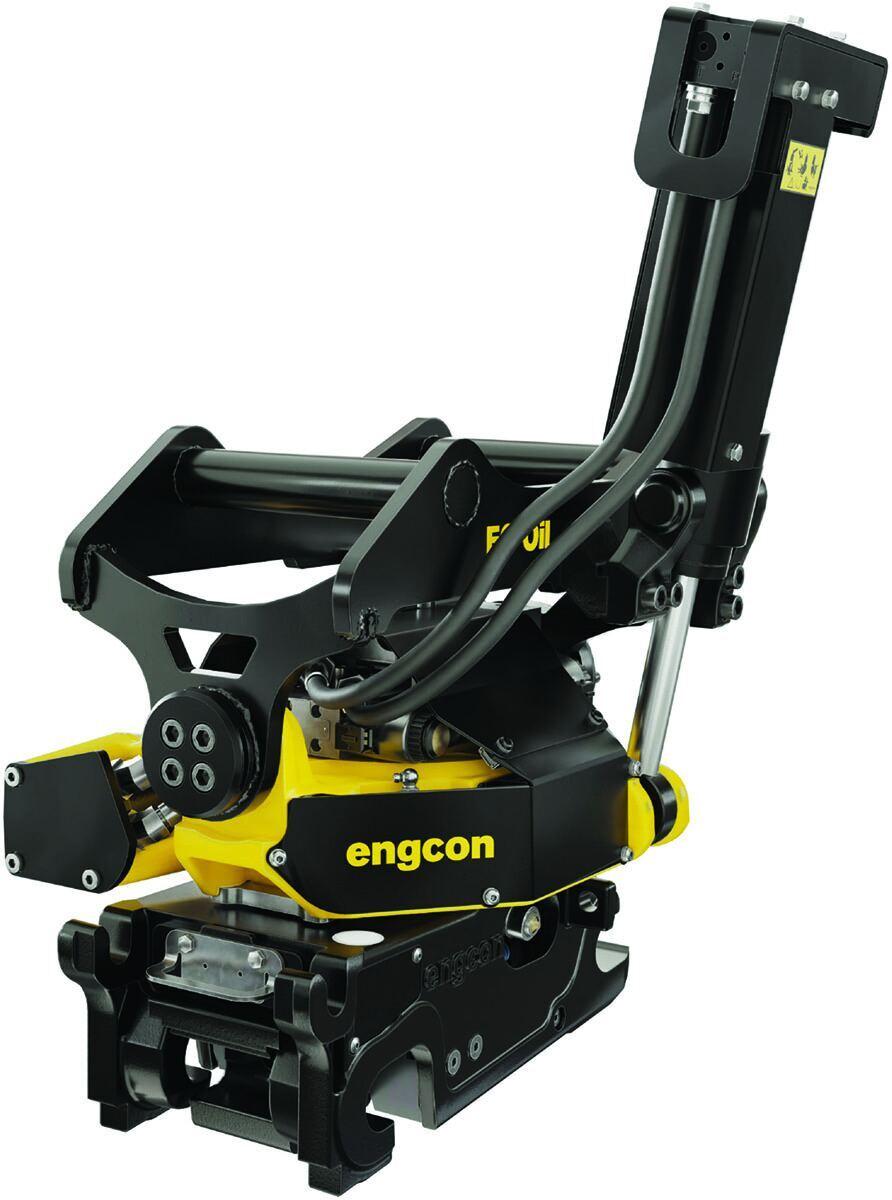

A new tiltrotator for excavators in the 2- to 4-ton weight class, the EC204, was just released by engcon. In essence, the EC204 transforms the excavator into a flexible tool carrier, reducing both the need for other machines and labor around the excavator. The result is increased profitability for the end customer.
The total length of the unit is 18 1/4 inches, with a construction height of 12 1/4 inches, with a weight of approximately 285 pounds. It uses standard S40 brackets, and can be used on a bucket with the maximum width of 39 inches. It is compatible with tilt angle and rotation sensors. Compatibility with DC2, SS9, SS0, DC3 units is coming soon.
The EC204 features engcon’s EC-Oil quick coupler system both above and below the tiltrotator, which is unique on smaller machines, according to Martin Engström, product manager at engcon. This makes it easier to change attachments or to disconnect the tiltrotator if necessary. It offers a 45-degree tilt angle, infinite rotation and the ability to easily mount different attachments, contributing to versatility and flexibility in excavation work. The model is also prepared for EPS, engcon’s innovative positioning system.
“I’m very proud that we can deliver our EC-Oil automatic quick coupler system both above and below the tiltrotator for the 2- to 4-ton class, this really makes the excavator the ultimate tool carrier,” says Engström. “Our customers can rely on engcon to always deliver state-of-the-art technology that improves their profitability.”
EC-Oil is an attachment consisting of hydraulic blocks with hydraulic, electrical and central lubrication connections. When EC-Oil is mounted on the Q-Safe quick coupler, the combination provides fully automatic connection of hydraulic attachments such as tiltrotators, grapples, sweepers, ground vibrators, etc. The operator does not have to leave the driver’s seat to connect the attachments, which increases the safety of the excavator operator.
203-691-5920; www.engcon.com/en
